abcCheck.c File Reference

#include "abc.h"
#include "base/main/main.h"

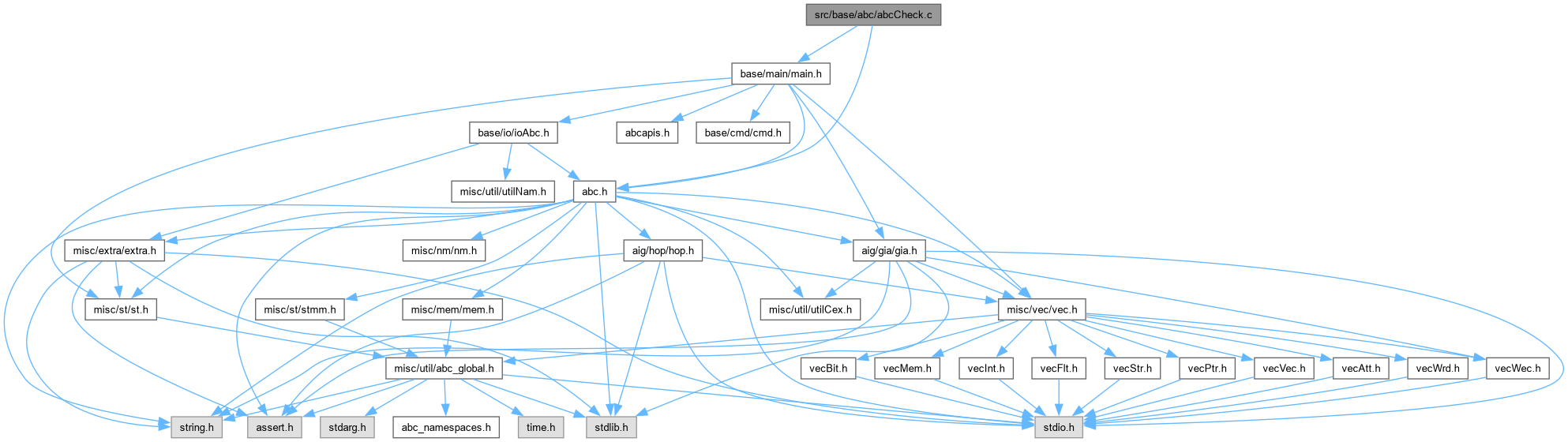

Include dependency graph for abcCheck.c:

Go to the source code of this file.

Functions
int	Abc_NtkCheck (Abc_Ntk_t *pNtk)
	FUNCTION DEFINITIONS ///.
int	Abc_NtkCheckRead (Abc_Ntk_t *pNtk)
int	Abc_NtkDoCheck (Abc_Ntk_t *pNtk)
int	Abc_NtkCheckObj (Abc_Ntk_t *pNtk, Abc_Obj_t *pObj)
int	Abc_NtkCompareBoxes (Abc_Ntk_t *pNtk1, Abc_Ntk_t *pNtk2, int fComb)
int	Abc_NtkCompareSignals (Abc_Ntk_t *pNtk1, Abc_Ntk_t *pNtk2, int fOnlyPis, int fComb)
int	Abc_NtkIsAcyclicHierarchy_rec (Abc_Ntk_t *pNtk)
int	Abc_NtkIsAcyclicHierarchy (Abc_Ntk_t *pNtk)
int	Abc_NtkNamesCompare (char **pName1, char **pName2)
int	Abc_NtkCheckUniqueCiNames (Abc_Ntk_t *pNtk)
int	Abc_NtkCheckUniqueCoNames (Abc_Ntk_t *pNtk)
int	Abc_NtkCheckUniqueCioNames (Abc_Ntk_t *pNtk)

Function Documentation

Abc_NtkCheck()

int Abc_NtkCheck

(

Abc_Ntk_t *

pNtk

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Checks the integrity of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 64 of file abcCheck.c.

{
   return !Abc_FrameIsFlagEnabled( "check" ) || Abc_NtkDoCheck( pNtk );
}

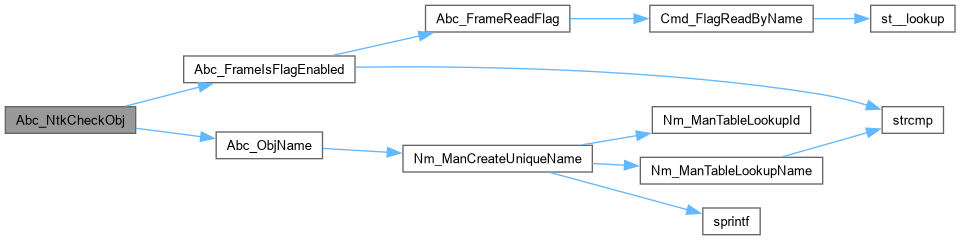

Here is the call graph for this function:

Abc_NtkCheckObj()

int Abc_NtkCheckObj	(	Abc_Ntk_t *	pNtk,
		Abc_Obj_t *	pObj )

Function*************************************************************

Synopsis [Checks the connectivity of the object.]

Description []

SideEffects []

SeeAlso []

Definition at line 420 of file abcCheck.c.

{
    Abc_Obj_t * pFanin, * pFanout;
    int Value = 1;
    int i, k;

    // check the network
    if ( pObj->pNtk != pNtk )
    {
        fprintf( stdout, "NetworkCheck: Object \"%s\" does not belong to the network.\n", Abc_ObjName(pObj) );
        return 0;
    }
    // check the object ID
    if ( pObj->Id < 0 || (int)pObj->Id >= Abc_NtkObjNumMax(pNtk) )
    {
        fprintf( stdout, "NetworkCheck: Object \"%s\" has incorrect ID.\n", Abc_ObjName(pObj) );
        return 0;
    }

    if ( !Abc_FrameIsFlagEnabled("checkfio") )
        return Value;

    // go through the fanins of the object and make sure fanins have this object as a fanout
    Abc_ObjForEachFanin( pObj, pFanin, i )
    {
        if ( Vec_IntFind( &pFanin->vFanouts, pObj->Id ) == -1 )
        {
            fprintf( stdout, "NodeCheck: Object \"%s\" has fanin ", Abc_ObjName(pObj) );
            fprintf( stdout, "\"%s\" but the fanin does not have it as a fanout.\n", Abc_ObjName(pFanin) );
            Value = 0;
        }
    }
    // go through the fanouts of the object and make sure fanouts have this object as a fanin
    Abc_ObjForEachFanout( pObj, pFanout, i )
    {
        if ( Vec_IntFind( &pFanout->vFanins, pObj->Id ) == -1 )
        {
            fprintf( stdout, "NodeCheck: Object \"%s\" has fanout ", Abc_ObjName(pObj) );
            fprintf( stdout, "\"%s\" but the fanout does not have it as a fanin.\n", Abc_ObjName(pFanout) );
            Value = 0;
        }
    }

    // make sure fanins are not duplicated
    for ( i = 0; i < pObj->vFanins.nSize; i++ )
        for ( k = i + 1; k < pObj->vFanins.nSize; k++ )
            if ( pObj->vFanins.pArray[k] == pObj->vFanins.pArray[i] )
            {
                printf( "Warning: Node %s has", Abc_ObjName(pObj) );
                printf( " duplicated fanin %s.\n", Abc_ObjName(Abc_ObjFanin(pObj,k)) );
            }

    // save time: do not check large fanout lists
    if ( pObj->vFanouts.nSize > 100 )
        return Value;

    // make sure fanouts are not duplicated
    for ( i = 0; i < pObj->vFanouts.nSize; i++ )
        for ( k = i + 1; k < pObj->vFanouts.nSize; k++ )
            if ( pObj->vFanouts.pArray[k] == pObj->vFanouts.pArray[i] )
            {
                printf( "Warning: Node %s has", Abc_ObjName(pObj) );
                printf( " duplicated fanout %s.\n", Abc_ObjName(Abc_ObjFanout(pObj,k)) );
            }

    return Value;
}

Here is the call graph for this function:

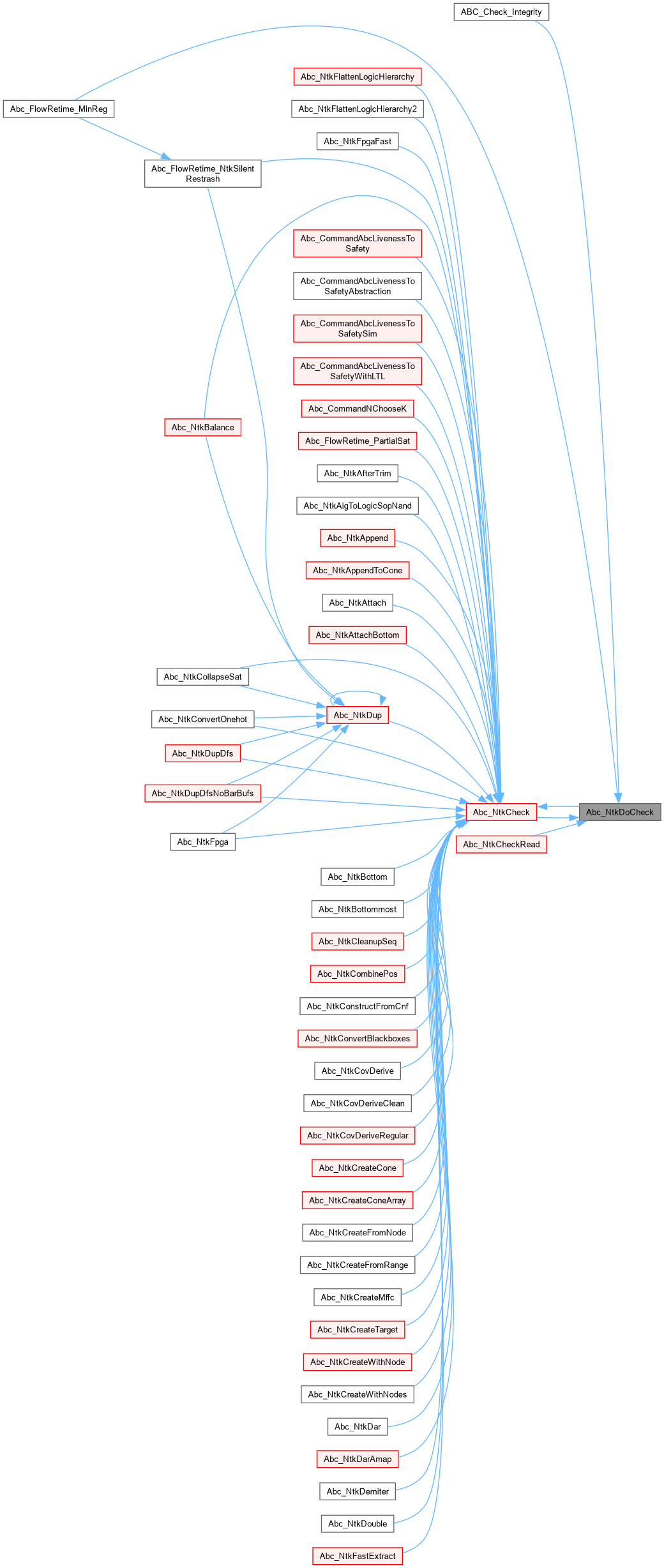

Here is the caller graph for this function:

Abc_NtkCheckRead()

int Abc_NtkCheckRead

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Checks the integrity of the network after reading.]

Description []

SideEffects []

SeeAlso []

Definition at line 80 of file abcCheck.c.

{
   return !Abc_FrameIsFlagEnabled( "checkread" ) || Abc_NtkDoCheck( pNtk );
}

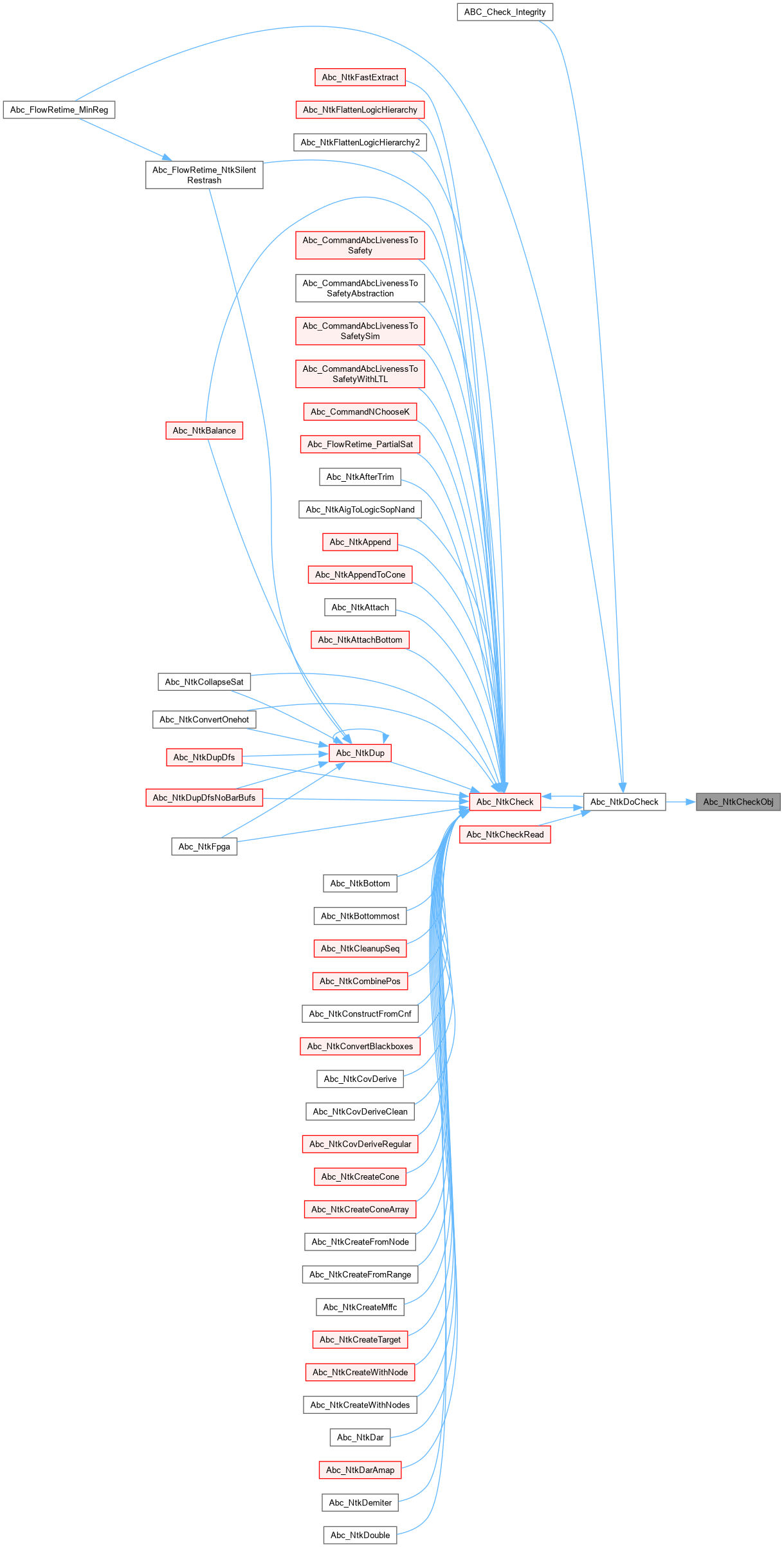

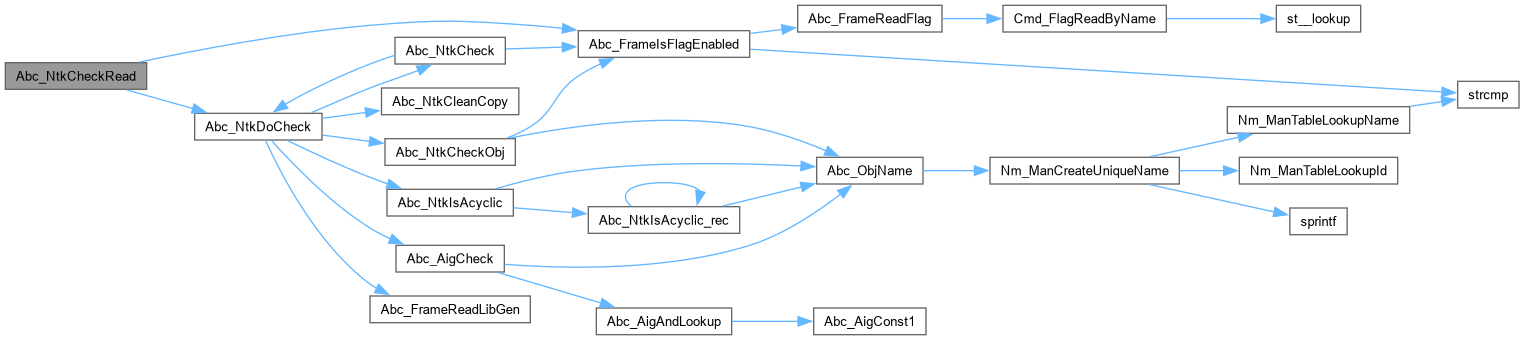

Here is the call graph for this function:

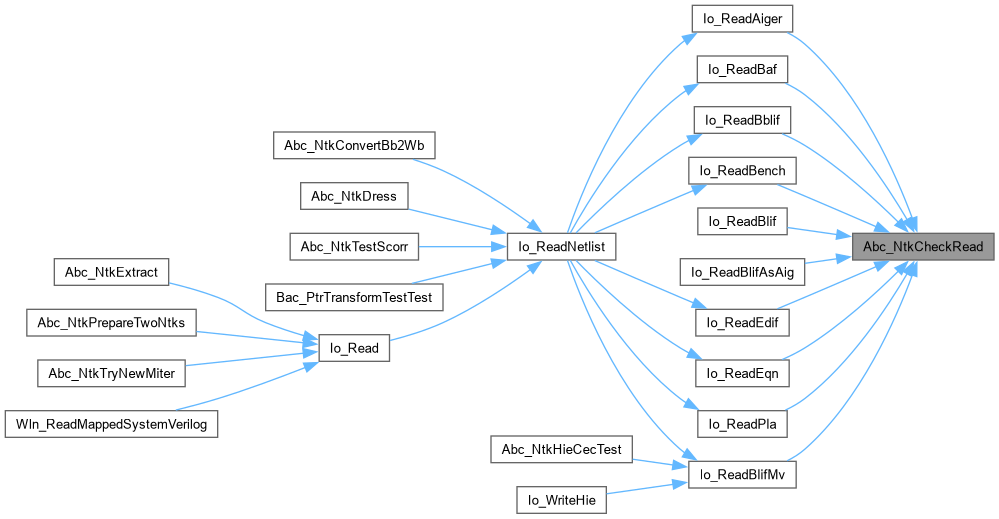

Here is the caller graph for this function:

Abc_NtkCheckUniqueCiNames()

int Abc_NtkCheckUniqueCiNames

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 0 if CI names are repeated.]

Description []

SideEffects []

SeeAlso []

Definition at line 862 of file abcCheck.c.

{
    Vec_Ptr_t * vNames;
    Abc_Obj_t * pObj;
    int i, fRetValue = 1;
    assert( !Abc_NtkIsNetlist(pNtk) );
    vNames = Vec_PtrAlloc( Abc_NtkCiNum(pNtk) );
    Abc_NtkForEachCi( pNtk, pObj, i )
        Vec_PtrPush( vNames, Abc_ObjName(pObj) );
    Vec_PtrSort( vNames, (int (*)(const void *, const void *))Abc_NtkNamesCompare );
    for ( i = 1; i < Abc_NtkCiNum(pNtk); i++ )
        if ( !strcmp( (const char *)Vec_PtrEntry(vNames,i-1), (const char *)Vec_PtrEntry(vNames,i) ) )
        {
            printf( "Abc_NtkCheck: Repeated CI names: %s and %s.\n", (char*)Vec_PtrEntry(vNames,i-1), (char*)Vec_PtrEntry(vNames,i) );
            fRetValue = 0;
        }
    Vec_PtrFree( vNames );
    return fRetValue;
}

Here is the call graph for this function:

Abc_NtkCheckUniqueCioNames()

int Abc_NtkCheckUniqueCioNames

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 0 if there is a pair of CI/CO with the same name and logic in between.]

Description []

SideEffects []

SeeAlso []

Definition at line 927 of file abcCheck.c.

{
    Abc_Obj_t * pObj, * pObjCi, * pFanin;
    int i, nCiId, fRetValue = 1;
    assert( !Abc_NtkIsNetlist(pNtk) );
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        nCiId = Nm_ManFindIdByNameTwoTypes( pNtk->pManName, Abc_ObjName(pObj), ABC_OBJ_PI, ABC_OBJ_BO );
        if ( nCiId == -1 )
            continue;
        pObjCi = Abc_NtkObj( pNtk, nCiId );
        assert( !strcmp( Abc_ObjName(pObj), Abc_ObjName(pObjCi) ) );
        pFanin = Abc_ObjFanin0(pObj);
        if ( pFanin != pObjCi )
        {
            printf( "Abc_NtkCheck: A CI/CO pair share the name (%s) but do not link directly. The name of the CO fanin is %s.\n",
                Abc_ObjName(pObj), Abc_ObjName(Abc_ObjFanin0(pObj)) );
            fRetValue = 0;
        }
    }
    return fRetValue;
}

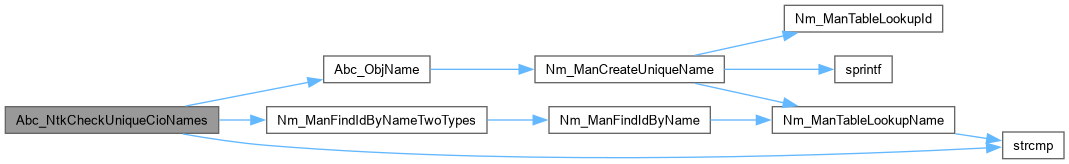

Here is the call graph for this function:

Abc_NtkCheckUniqueCoNames()

int Abc_NtkCheckUniqueCoNames

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 0 if CO names are repeated.]

Description []

SideEffects []

SeeAlso []

Definition at line 893 of file abcCheck.c.

{
    Vec_Ptr_t * vNames;
    Abc_Obj_t * pObj;
    int i, fRetValue = 1;
    assert( !Abc_NtkIsNetlist(pNtk) );
    vNames = Vec_PtrAlloc( Abc_NtkCoNum(pNtk) );
    Abc_NtkForEachCo( pNtk, pObj, i )
        Vec_PtrPush( vNames, Abc_ObjName(pObj) );
    Vec_PtrSort( vNames, (int (*)(const void *, const void *))Abc_NtkNamesCompare );
    for ( i = 1; i < Abc_NtkCoNum(pNtk); i++ )
    {
//        printf( "%s\n", Vec_PtrEntry(vNames,i) );
        if ( !strcmp( (const char *)Vec_PtrEntry(vNames,i-1), (const char *)Vec_PtrEntry(vNames,i) ) )
        {
            printf( "Abc_NtkCheck: Repeated CO names: %s and %s.\n", (char*)Vec_PtrEntry(vNames,i-1), (char*)Vec_PtrEntry(vNames,i) );
            fRetValue = 0;
        }
    }
    Vec_PtrFree( vNames );
    return fRetValue;
}

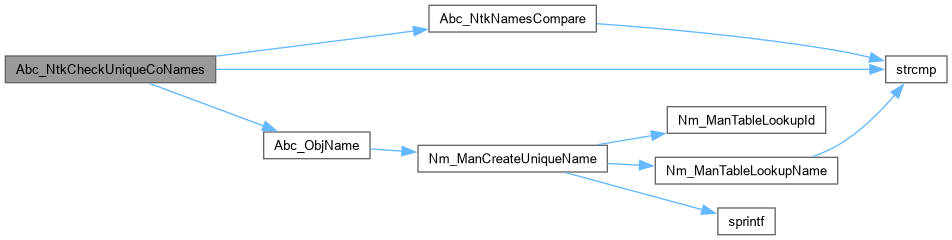

Here is the call graph for this function:

Abc_NtkCompareBoxes()

int Abc_NtkCompareBoxes	(	Abc_Ntk_t *	pNtk1,
		Abc_Ntk_t *	pNtk2,
		int	fComb )

Function*************************************************************

Synopsis [Compares the latches of the two networks.]

Description []

SideEffects []

SeeAlso []

Definition at line 711 of file abcCheck.c.

{
    Abc_Obj_t * pObj1;
    int i;
    assert( Abc_NtkHasOnlyLatchBoxes(pNtk1) );
    assert( Abc_NtkHasOnlyLatchBoxes(pNtk2) );
    if ( !fComb )
        return 1;
    if ( Abc_NtkBoxNum(pNtk1) != Abc_NtkBoxNum(pNtk2) )
    {
        printf( "Networks have different number of latches.\n" );
        return 0;
    }
    // for each PI of pNet1 find corresponding PI of pNet2 and reorder them
    Abc_NtkForEachBox( pNtk1, pObj1, i )
    {
        if ( strcmp( Abc_ObjName(Abc_ObjFanout0(pObj1)), Abc_ObjName(Abc_ObjFanout0(Abc_NtkBox(pNtk2,i))) ) != 0 )
        {
            printf( "Box #%d is different in network 1 ( \"%s\") and in network 2 (\"%s\").\n",
                i, Abc_ObjName(Abc_ObjFanout0(pObj1)), Abc_ObjName(Abc_ObjFanout0(Abc_NtkBox(pNtk2,i))) );
            return 0;
        }
    }
    return 1;
}

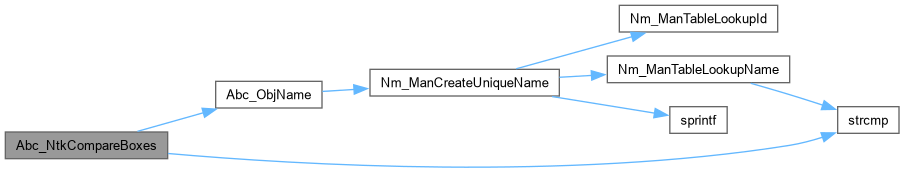

Here is the call graph for this function:

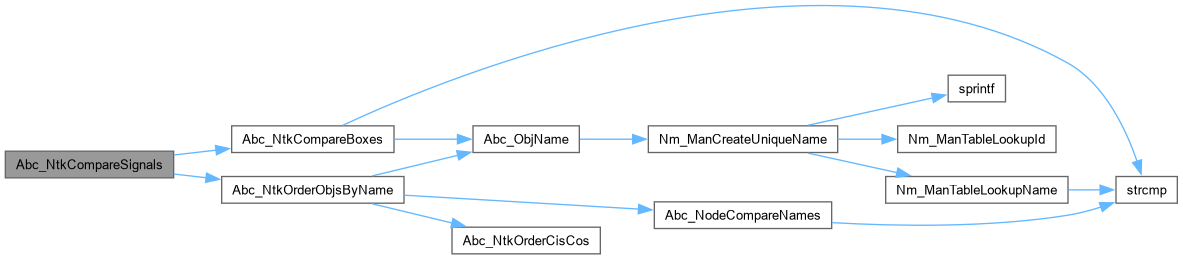

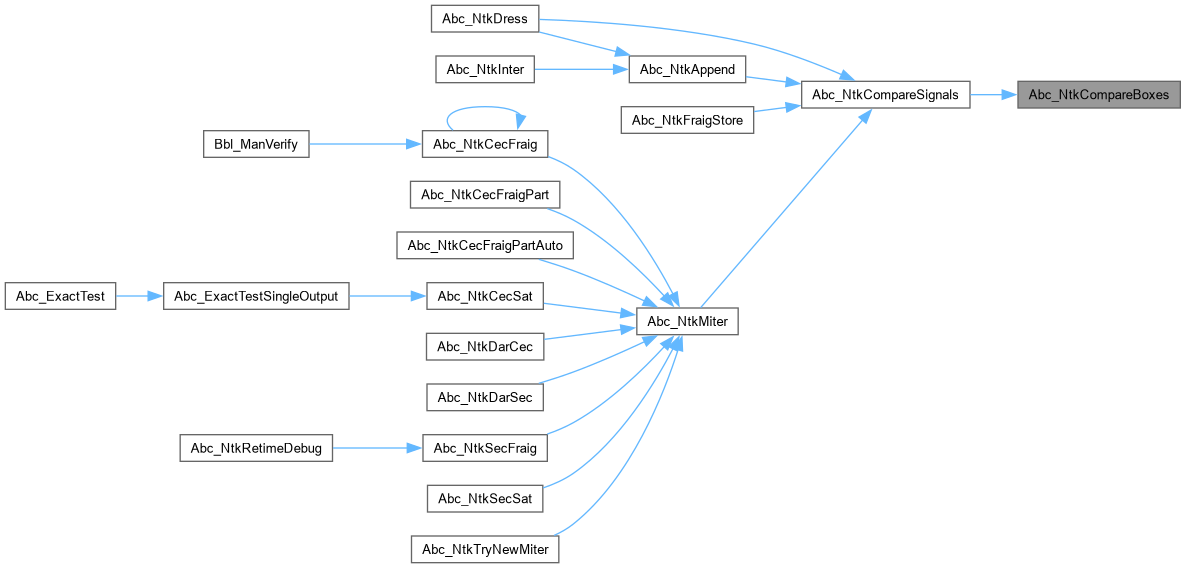

Here is the caller graph for this function:

Abc_NtkCompareSignals()

int Abc_NtkCompareSignals	(	Abc_Ntk_t *	pNtk1,
		Abc_Ntk_t *	pNtk2,
		int	fOnlyPis,
		int	fComb )

Function*************************************************************

Synopsis [Compares the signals of the networks.]

Description []

SideEffects [Ordering POs by name is a very bad idea! It destroys the natural order of the logic in the circuit.]

SeeAlso []

Definition at line 749 of file abcCheck.c.

{
    Abc_NtkOrderObjsByName( pNtk1, fComb );
    Abc_NtkOrderObjsByName( pNtk2, fComb );
    if ( !Abc_NtkComparePis( pNtk1, pNtk2, fComb ) )
        return 0;
    if ( !fOnlyPis )
    {
        if ( !Abc_NtkCompareBoxes( pNtk1, pNtk2, fComb ) )
            return 0;
        if ( !Abc_NtkComparePos( pNtk1, pNtk2, fComb ) )
            return 0;
    }
    return 1;
}

Here is the call graph for this function:

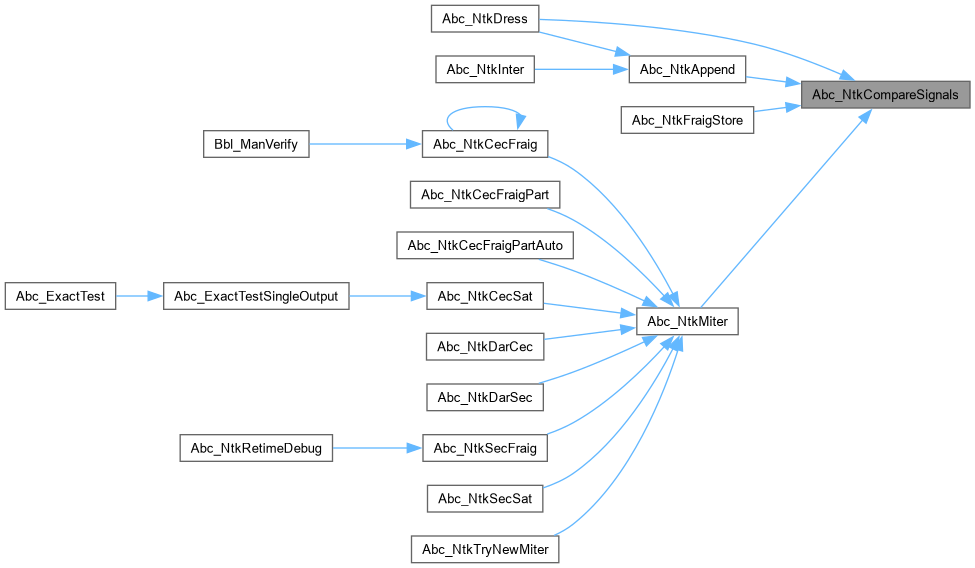

Here is the caller graph for this function:

Abc_NtkDoCheck()

int Abc_NtkDoCheck

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Checks the integrity of the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 96 of file abcCheck.c.

{
    Abc_Obj_t * pObj, * pNet, * pNode;
    int i;

    // check network types
    if ( !Abc_NtkIsNetlist(pNtk) && !Abc_NtkIsLogic(pNtk) && !Abc_NtkIsStrash(pNtk) )
    {
        fprintf( stdout, "NetworkCheck: Unknown network type.\n" );
        return 0;
    }
    if ( !Abc_NtkHasSop(pNtk) && !Abc_NtkHasBdd(pNtk) && !Abc_NtkHasAig(pNtk) && !Abc_NtkHasMapping(pNtk) && !Abc_NtkHasBlifMv(pNtk) && !Abc_NtkHasBlackbox(pNtk) )
    {
        fprintf( stdout, "NetworkCheck: Unknown functionality type.\n" );
        return 0;
    }
    if ( Abc_NtkHasMapping(pNtk) )
    {
        if ( pNtk->pManFunc != Abc_FrameReadLibGen() )
        {
            fprintf( stdout, "NetworkCheck: The library of the mapped network is not the global library.\n" );
            return 0;
        }
    }

    if ( Abc_NtkHasOnlyLatchBoxes(pNtk) )
    {
        // check CI/CO numbers
        if ( Abc_NtkPiNum(pNtk) + Abc_NtkLatchNum(pNtk) != Abc_NtkCiNum(pNtk) )
        {
            fprintf( stdout, "NetworkCheck: Number of CIs does not match number of PIs and latches.\n" );
            fprintf( stdout, "One possible reason is that latches are added twice:\n" );
            fprintf( stdout, "in procedure Abc_NtkCreateObj() and in the user's code.\n" );
            return 0;
        }
        if ( Abc_NtkPoNum(pNtk) + Abc_NtkLatchNum(pNtk) != Abc_NtkCoNum(pNtk) )
        {
            fprintf( stdout, "NetworkCheck: Number of COs does not match number of POs, asserts, and latches.\n" );
            fprintf( stdout, "One possible reason is that latches are added twice:\n" );
            fprintf( stdout, "in procedure Abc_NtkCreateObj() and in the user's code.\n" );
            return 0;
        }
    }

    // check the names
    if ( !Abc_NtkCheckNames( pNtk ) )
        return 0;

    // check PIs and POs
    Abc_NtkCleanCopy( pNtk );
    if ( !Abc_NtkCheckPis( pNtk ) )
        return 0;
    if ( !Abc_NtkCheckPos( pNtk ) )
        return 0;

    if ( Abc_NtkHasBlackbox(pNtk) )
        return 1;

    // check the connectivity of objects
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( !Abc_NtkCheckObj( pNtk, pObj ) )
            return 0;

    // if it is a netlist change nets and latches
    if ( Abc_NtkIsNetlist(pNtk) )
    {
        if ( Abc_NtkNetNum(pNtk) == 0 )
            fprintf( stdout, "NetworkCheck: Warning! Netlist has no nets.\n" );
        // check the nets
        Abc_NtkForEachNet( pNtk, pNet, i )
            if ( !Abc_NtkCheckNet( pNtk, pNet ) )
                return 0;
    }
    else
    {
        if ( Abc_NtkNetNum(pNtk) != 0 )
        {
            fprintf( stdout, "NetworkCheck: A network that is not a netlist has nets.\n" );
            return 0;
        }
    }

    // check the nodes
    if ( Abc_NtkIsStrash(pNtk) )
    {
        if ( !Abc_AigCheck( (Abc_Aig_t *)pNtk->pManFunc ) )
            return 0;
    }
    else
    {
        Abc_NtkForEachNode( pNtk, pNode, i )
            if ( !Abc_NtkCheckNode( pNtk, pNode ) )
                return 0;
    }

    // check the latches
    Abc_NtkForEachLatch( pNtk, pNode, i )
        if ( !Abc_NtkCheckLatch( pNtk, pNode ) )
            return 0;

    // finally, check for combinational loops
//  clk = Abc_Clock();
    if ( !Abc_NtkIsAcyclic( pNtk ) )
    {
        fprintf( stdout, "NetworkCheck: Network contains a combinational loop.\n" );
        return 0;
    }
//  ABC_PRT( "Acyclic  ", Abc_Clock() - clk );

    // check the EXDC network if present
    if ( pNtk->pExdc )
        Abc_NtkCheck( pNtk->pExdc );
/*
    // check the hierarchy
    if ( Abc_NtkIsNetlist(pNtk) && pNtk->tName2Model )
    {
        stmm_generator * gen;
        Abc_Ntk_t * pNtkTemp;
        char * pName;
        // check other networks
        stmm_foreach_item( pNtk->tName2Model, gen, &pName, (char **)&pNtkTemp )
        {
            pNtkTemp->fHiePath = pNtkTemp->fHieVisited = 0;
            if ( !Abc_NtkCheck( pNtkTemp ) )
                return 0;
        }
        // check acyclic dependency of the models
        if ( !Abc_NtkIsAcyclicHierarchy( pNtk ) )
        {
            fprintf( stdout, "NetworkCheck: Network hierarchical dependences contains a cycle.\n" );
            return 0;
        }
    }
*/
    return 1;
}

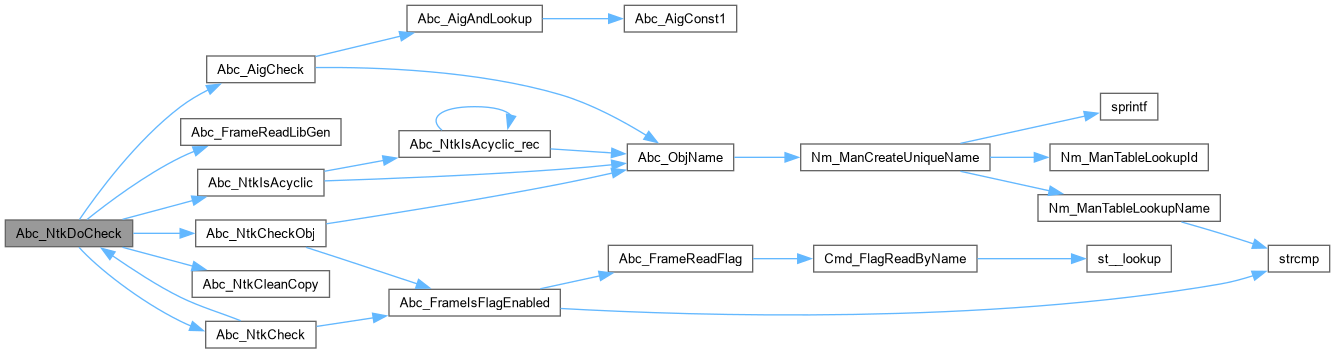

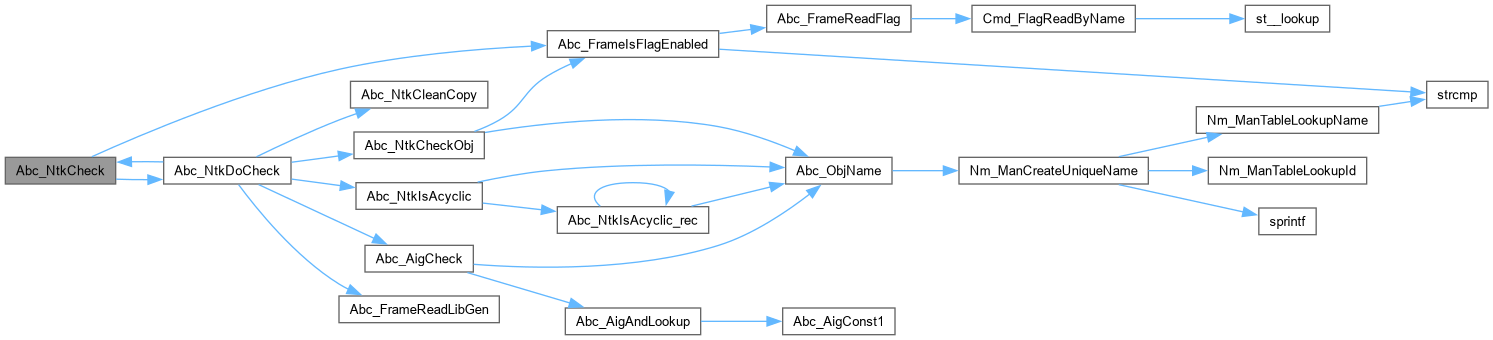

Here is the call graph for this function:

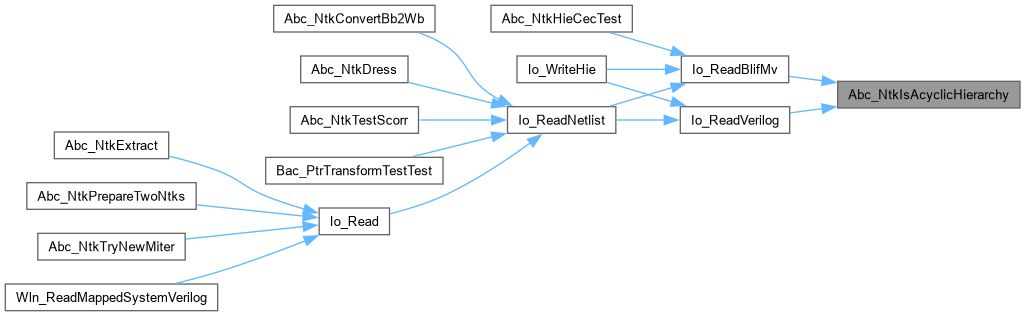

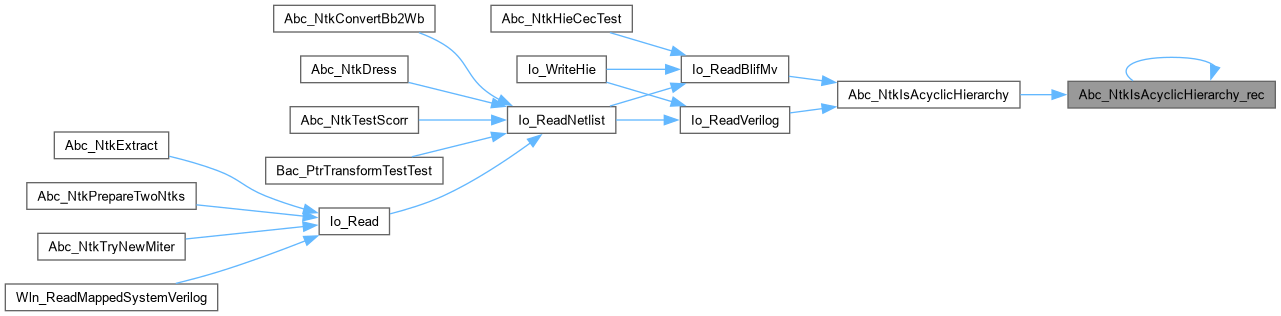

Here is the caller graph for this function:

Abc_NtkIsAcyclicHierarchy()

int Abc_NtkIsAcyclicHierarchy

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 0 if the network hierachy contains a cycle.]

Description []

SideEffects []

SeeAlso []

Definition at line 817 of file abcCheck.c.

{
    Abc_Ntk_t * pTemp;
    int i, RetValue;
    assert( Abc_NtkIsNetlist(pNtk) && pNtk->pDesign );
    // clear the modules
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pTemp, i )
        pTemp->fHieVisited = pTemp->fHiePath = 0;
    // traverse
    pNtk->fHiePath = 1;
    RetValue = Abc_NtkIsAcyclicHierarchy_rec( pNtk );
    pNtk->fHiePath = 0;
    // clear the modules
    Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pTemp, i )
        pTemp->fHieVisited = pTemp->fHiePath = 0;
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkIsAcyclicHierarchy_rec()

int Abc_NtkIsAcyclicHierarchy_rec

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 0 if the network hierachy contains a cycle.]

Description []

SideEffects []

SeeAlso []

Definition at line 776 of file abcCheck.c.

{
    Abc_Ntk_t * pNtkNext;
    Abc_Obj_t * pObj;
    int i;
    // return if visited
    if ( pNtk->fHieVisited )
        return 1;
    pNtk->fHieVisited = 1;
    // return if black box
    if ( Abc_NtkHasBlackbox(pNtk) )
        return 1;
    assert( Abc_NtkIsNetlist(pNtk) );
    // go through all the children networks
    Abc_NtkForEachBox( pNtk, pObj, i )
    {
        if ( Abc_ObjIsLatch(pObj) )
            continue;
        pNtkNext = (Abc_Ntk_t *)pObj->pData;
        assert( pNtkNext != NULL );
        if ( pNtkNext->fHiePath )
            return 0;
        pNtk->fHiePath = 1;
        if ( !Abc_NtkIsAcyclicHierarchy_rec( pNtkNext ) )
            return 0;
        pNtk->fHiePath = 0;
    }
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkNamesCompare()

int Abc_NtkNamesCompare	(	char **	pName1,
		char **	pName2 )

Function*************************************************************

Synopsis [Returns 0 if CI names are repeated.]

Description []

SideEffects []

SeeAlso []

Definition at line 846 of file abcCheck.c.

{
    return strcmp( *pName1, *pName2 );
}

Here is the call graph for this function:

Here is the caller graph for this function:
