abcFanio.c File Reference

#include "abc.h"

Include dependency graph for abcFanio.c:

Go to the source code of this file.

Functions
void	Abc_ObjAddFanin (Abc_Obj_t *pObj, Abc_Obj_t *pFanin)
void	Abc_ObjDeleteFanin (Abc_Obj_t *pObj, Abc_Obj_t *pFanin)
void	Abc_ObjRemoveFanins (Abc_Obj_t *pObj)
void	Abc_ObjPatchFanin (Abc_Obj_t *pObj, Abc_Obj_t *pFaninOld, Abc_Obj_t *pFaninNew)
void	Abc_ObjPatchFanoutFanin (Abc_Obj_t *pObj, int iObjNew)
Abc_Obj_t *	Abc_ObjInsertBetween (Abc_Obj_t *pNodeIn, Abc_Obj_t *pNodeOut, Abc_ObjType_t Type)
void	Abc_ObjTransferFanout (Abc_Obj_t *pNodeFrom, Abc_Obj_t *pNodeTo)
void	Abc_ObjReplace (Abc_Obj_t *pNodeOld, Abc_Obj_t *pNodeNew)
void	Abc_ObjReplaceByConstant (Abc_Obj_t *pNode, int fConst1)
int	Abc_ObjFanoutFaninNum (Abc_Obj_t *pFanout, Abc_Obj_t *pFanin)

Function Documentation

Abc_ObjAddFanin()

void Abc_ObjAddFanin	(	Abc_Obj_t *	pObj,
		Abc_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Creates fanout/fanin relationship between the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 84 of file abcFanio.c.

{
    Abc_Obj_t * pFaninR = Abc_ObjRegular(pFanin);
    assert( !Abc_ObjIsComplement(pObj) );
    assert( pObj->pNtk == pFaninR->pNtk );
    assert( pObj->Id >= 0 && pFaninR->Id >= 0 );
    assert( !Abc_ObjIsPi(pObj) && !Abc_ObjIsPo(pFaninR) );    // fanin of PI or fanout of PO
    assert( !Abc_ObjIsCo(pObj) || !Abc_ObjFaninNum(pObj) );  // CO with two fanins
    assert( !Abc_ObjIsNet(pObj) || !Abc_ObjFaninNum(pObj) ); // net with two fanins
    Vec_IntPushMem( pObj->pNtk->pMmStep, &pObj->vFanins,     pFaninR->Id );
    Vec_IntPushMem( pObj->pNtk->pMmStep, &pFaninR->vFanouts, pObj->Id    );
    if ( Abc_ObjIsComplement(pFanin) )
        Abc_ObjSetFaninC( pObj, Abc_ObjFaninNum(pObj)-1 );
}

Abc_ObjDeleteFanin()

void Abc_ObjDeleteFanin	(	Abc_Obj_t *	pObj,
		Abc_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Destroys fanout/fanin relationship between the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 111 of file abcFanio.c.

{
    assert( !Abc_ObjIsComplement(pObj) );
    assert( !Abc_ObjIsComplement(pFanin) );
    assert( pObj->pNtk == pFanin->pNtk );
    assert( pObj->Id >= 0 && pFanin->Id >= 0 );
    if ( !Vec_IntRemove( &pObj->vFanins, pFanin->Id ) )
    {
        printf( "The obj %d is not found among the fanins of obj %d ...\n", pFanin->Id, pObj->Id );
        return;
    }
    if ( !Vec_IntRemove( &pFanin->vFanouts, pObj->Id ) )
    {
        printf( "The obj %d is not found among the fanouts of obj %d ...\n", pObj->Id, pFanin->Id );
        return;
    }
}

Here is the caller graph for this function:

Abc_ObjFanoutFaninNum()

int Abc_ObjFanoutFaninNum	(	Abc_Obj_t *	pFanout,
		Abc_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Returns the index of the fanin in the fanin list of the fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 373 of file abcFanio.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_ObjForEachFanin( pFanout, pObj, i )
        if ( pObj == pFanin )
            return i;
    return -1;
}

Here is the caller graph for this function:

Abc_ObjInsertBetween()

Abc_Obj_t * Abc_ObjInsertBetween	(	Abc_Obj_t *	pNodeIn,
		Abc_Obj_t *	pNodeOut,
		Abc_ObjType_t	Type )

Function*************************************************************

Synopsis [Inserts one-input node of the type specified between the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 251 of file abcFanio.c.

{
    Abc_Obj_t * pNodeNew;
    int iFanoutIndex, iFaninIndex;
    // find pNodeOut among the fanouts of pNodeIn
    if ( (iFanoutIndex = Vec_IntFind( &pNodeIn->vFanouts, pNodeOut->Id )) == -1 )
    {
        printf( "Node %s is not among", Abc_ObjName(pNodeOut) );
        printf( " the fanouts of node %s...\n", Abc_ObjName(pNodeIn) );
        return NULL;
    }
    // find pNodeIn among the fanins of pNodeOut
    if ( (iFaninIndex = Vec_IntFind( &pNodeOut->vFanins, pNodeIn->Id )) == -1 )
    {
        printf( "Node %s is not among", Abc_ObjName(pNodeIn) );
        printf( " the fanins of node %s...\n", Abc_ObjName(pNodeOut) );
        return NULL;
    }
    // create the new node
    pNodeNew = Abc_NtkCreateObj( pNodeIn->pNtk, Type );
    // add pNodeIn as fanin and pNodeOut as fanout
    Vec_IntPushMem( pNodeNew->pNtk->pMmStep, &pNodeNew->vFanins,  pNodeIn->Id  );
    Vec_IntPushMem( pNodeNew->pNtk->pMmStep, &pNodeNew->vFanouts, pNodeOut->Id );
    // update the fanout of pNodeIn
    Vec_IntWriteEntry( &pNodeIn->vFanouts, iFanoutIndex, pNodeNew->Id );
    // update the fanin of pNodeOut
    Vec_IntWriteEntry( &pNodeOut->vFanins, iFaninIndex, pNodeNew->Id );
    return pNodeNew;
}

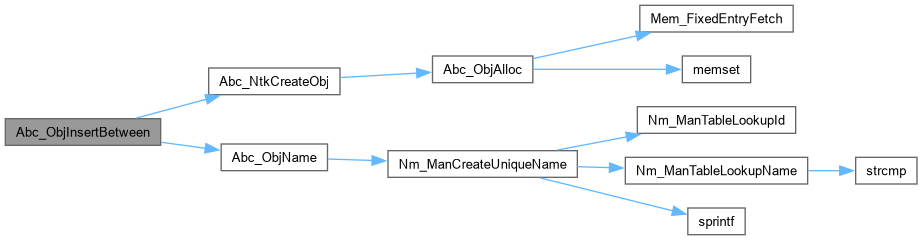

Here is the call graph for this function:

Abc_ObjPatchFanin()

void Abc_ObjPatchFanin	(	Abc_Obj_t *	pObj,
		Abc_Obj_t *	pFaninOld,
		Abc_Obj_t *	pFaninNew )

Function*************************************************************

Synopsis [Replaces a fanin of the node.]

Description [The node is pObj. An old fanin of this node (pFaninOld) has to be replaced by a new fanin (pFaninNew). Assumes that the node and the old fanin are not complemented. The new fanin can be complemented. In this case, the polarity of the new fanin will change, compared to the polarity of the old fanin.]

SideEffects []

SeeAlso []

Definition at line 172 of file abcFanio.c.

{
    Abc_Obj_t * pFaninNewR = Abc_ObjRegular(pFaninNew);
    int iFanin;//, nLats;//, fCompl;
    assert( !Abc_ObjIsComplement(pObj) );
    assert( !Abc_ObjIsComplement(pFaninOld) );
    assert( pFaninOld != pFaninNewR );
//    assert( pObj != pFaninOld );
//    assert( pObj != pFaninNewR );
    assert( pObj->pNtk == pFaninOld->pNtk );
    assert( pObj->pNtk == pFaninNewR->pNtk );
    if ( (iFanin = Vec_IntFind( &pObj->vFanins, pFaninOld->Id )) == -1 )
    {
        printf( "Node %s is not among", Abc_ObjName(pFaninOld) );
        printf( " the fanins of node %s...\n", Abc_ObjName(pObj) );
        return;
    }

    // remember the attributes of the old fanin
//    fCompl = Abc_ObjFaninC(pObj, iFanin);
    // replace the old fanin entry by the new fanin entry (removes attributes)
    Vec_IntWriteEntry( &pObj->vFanins, iFanin, pFaninNewR->Id );
    // set the attributes of the new fanin
//    if ( fCompl ^ Abc_ObjIsComplement(pFaninNew) )
//        Abc_ObjSetFaninC( pObj, iFanin );
    if ( Abc_ObjIsComplement(pFaninNew) )
        Abc_ObjXorFaninC( pObj, iFanin );

//    if ( Abc_NtkIsSeq(pObj->pNtk) && (nLats = Seq_ObjFaninL(pObj, iFanin)) )
//        Seq_ObjSetFaninL( pObj, iFanin, nLats );
    // update the fanout of the fanin
    if ( !Vec_IntRemove( &pFaninOld->vFanouts, pObj->Id ) )
    {
        printf( "Node %s is not among", Abc_ObjName(pObj) );
        printf( " the fanouts of its old fanin %s...\n", Abc_ObjName(pFaninOld) );
//        return;
    }
    Vec_IntPushMem( pObj->pNtk->pMmStep, &pFaninNewR->vFanouts, pObj->Id );
}

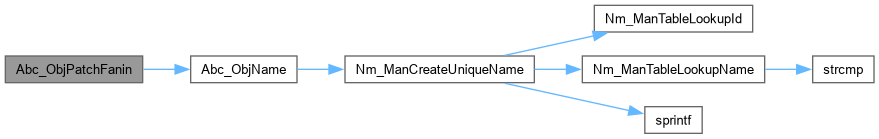

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ObjPatchFanoutFanin()

void Abc_ObjPatchFanoutFanin	(	Abc_Obj_t *	pObj,
		int	iObjNew )

Function*************************************************************

Synopsis [Replaces pObj by iObjNew in the fanin arrays of the fanouts.]

Description []

SideEffects []

SeeAlso []

Definition at line 223 of file abcFanio.c.

{
    Abc_Obj_t * pFanout;
    int i, k, Entry;
    // update fanouts of the node to point to this one
    Abc_ObjForEachFanout( pObj, pFanout, i )
    {
        Vec_IntForEachEntry( &pFanout->vFanins, Entry, k )
            if ( Entry == (int)Abc_ObjId(pObj) )
            {
                Vec_IntWriteEntry( &pFanout->vFanins, k, iObjNew );
                break;
            }
        assert( k < Vec_IntSize(&pFanout->vFanins) );
    }
}

Abc_ObjRemoveFanins()

void Abc_ObjRemoveFanins

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Destroys fanout/fanin relationship between the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 141 of file abcFanio.c.

{
    Vec_Int_t * vFaninsOld;
    Abc_Obj_t * pFanin;
    int k;
    // remove old fanins
    vFaninsOld = &pObj->vFanins;
    for ( k = vFaninsOld->nSize - 1; k >= 0; k-- )
    {
        pFanin = Abc_NtkObj( pObj->pNtk, vFaninsOld->pArray[k] );
        Abc_ObjDeleteFanin( pObj, pFanin );
    }
    pObj->fCompl0 = 0;
    pObj->fCompl1 = 0;
    assert( vFaninsOld->nSize == 0 );
}

Here is the call graph for this function:

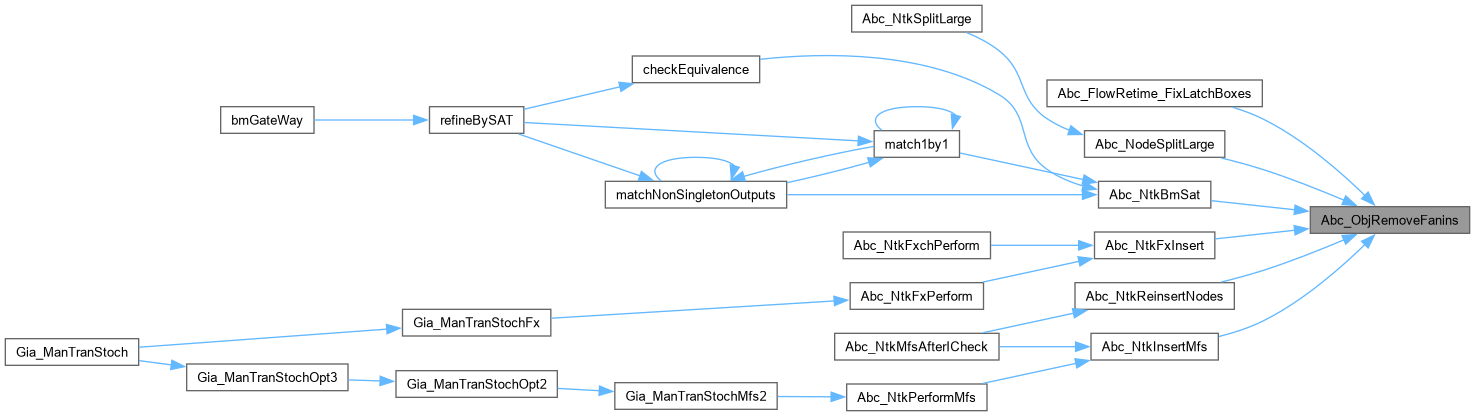

Here is the caller graph for this function:

Abc_ObjReplace()

void Abc_ObjReplace	(	Abc_Obj_t *	pNodeOld,
		Abc_Obj_t *	pNodeNew )

Function*************************************************************

Synopsis [Replaces the node by a new node.]

Description []

SideEffects []

SeeAlso []

Definition at line 325 of file abcFanio.c.

{
    assert( !Abc_ObjIsComplement(pNodeOld) );
    assert( !Abc_ObjIsComplement(pNodeNew) );
    assert( pNodeOld->pNtk == pNodeNew->pNtk );
    assert( pNodeOld != pNodeNew );
    assert( Abc_ObjFanoutNum(pNodeOld) > 0 );
    // transfer the fanouts to the old node
    Abc_ObjTransferFanout( pNodeOld, pNodeNew );
    // remove the old node
    Abc_NtkDeleteObj_rec( pNodeOld, 1 );
}

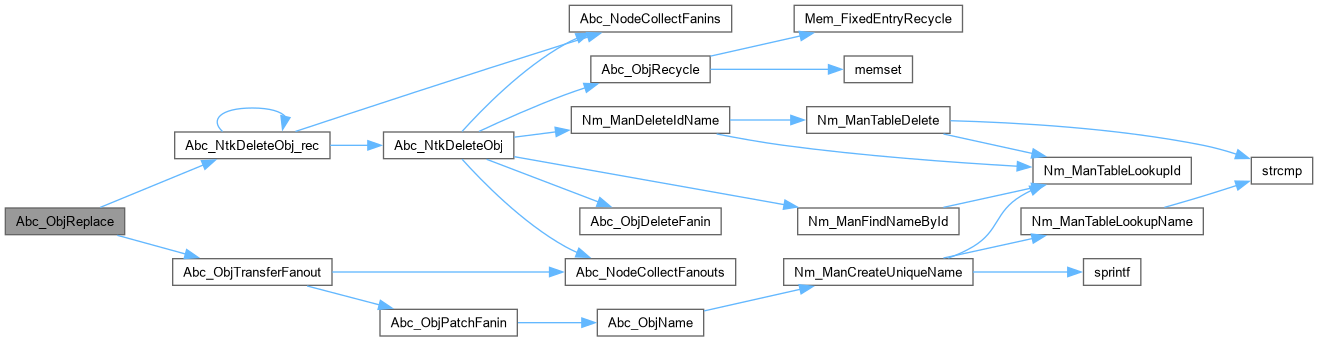

Here is the call graph for this function:

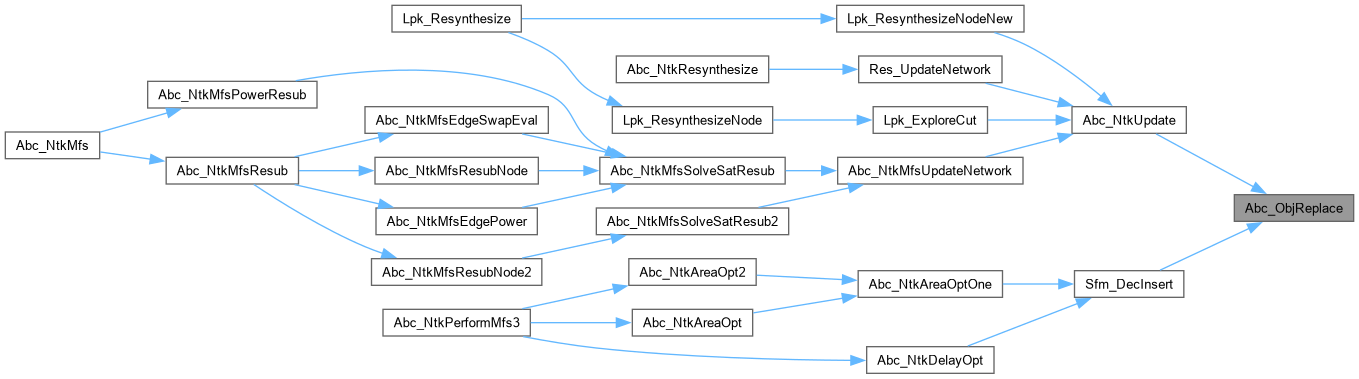

Here is the caller graph for this function:

Abc_ObjReplaceByConstant()

void Abc_ObjReplaceByConstant	(	Abc_Obj_t *	pNode,
		int	fConst1 )

Function*************************************************************

Synopsis [Replaces a node by a constant.]

Description []

SideEffects []

SeeAlso []

Definition at line 349 of file abcFanio.c.

{
    Abc_Obj_t * pNodeNew;
    assert( Abc_NtkIsLogic(pNode->pNtk) );
    assert( !Abc_ObjIsCo(pNode) );
    pNodeNew = fConst1 ? Abc_NtkCreateNodeConst1(pNode->pNtk) : Abc_NtkCreateNodeConst0(pNode->pNtk);
    // transfer the fanouts to the old node
    Abc_ObjTransferFanout( pNode, pNodeNew );
    // remove the old node
    if ( Abc_ObjIsNode(pNode) )
        Abc_NtkDeleteObj_rec( pNode, 1 );
}

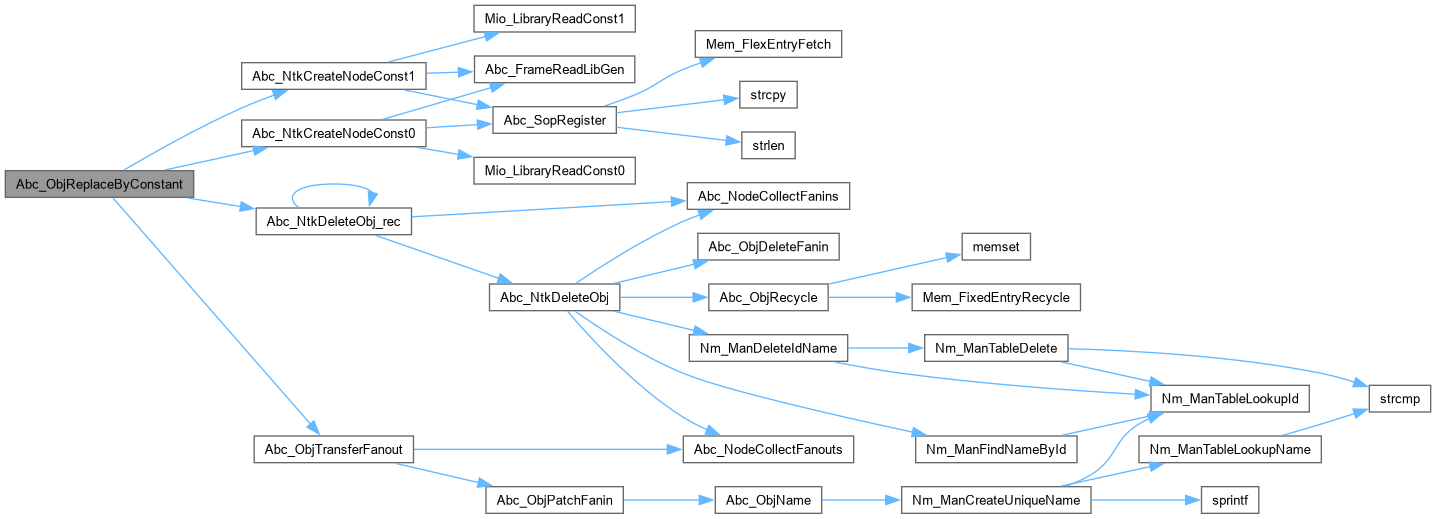

Here is the call graph for this function:

Abc_ObjTransferFanout()

void Abc_ObjTransferFanout	(	Abc_Obj_t *	pNodeFrom,
		Abc_Obj_t *	pNodeTo )

Function*************************************************************

Synopsis [Transfers fanout from the old node to the new node.]

Description []

SideEffects []

SeeAlso []

Definition at line 292 of file abcFanio.c.

{
    Vec_Ptr_t * vFanouts;
    int nFanoutsOld, i;
    assert( !Abc_ObjIsComplement(pNodeFrom) );
    assert( !Abc_ObjIsComplement(pNodeTo) );
    assert( !Abc_ObjIsPo(pNodeFrom) && !Abc_ObjIsPo(pNodeTo) );
    assert( pNodeFrom->pNtk == pNodeTo->pNtk );
    assert( pNodeFrom != pNodeTo );
    assert( !Abc_ObjIsNode(pNodeFrom) || Abc_ObjFanoutNum(pNodeFrom) > 0 );
    // get the fanouts of the old node
    nFanoutsOld = Abc_ObjFanoutNum(pNodeTo);
    vFanouts = Vec_PtrAlloc( nFanoutsOld );
    Abc_NodeCollectFanouts( pNodeFrom, vFanouts );
    // patch the fanin of each of them
    for ( i = 0; i < vFanouts->nSize; i++ )
        Abc_ObjPatchFanin( (Abc_Obj_t *)vFanouts->pArray[i], pNodeFrom, pNodeTo );
    assert( Abc_ObjFanoutNum(pNodeFrom) == 0 );
    assert( Abc_ObjFanoutNum(pNodeTo) == nFanoutsOld + vFanouts->nSize );
    Vec_PtrFree( vFanouts );
}

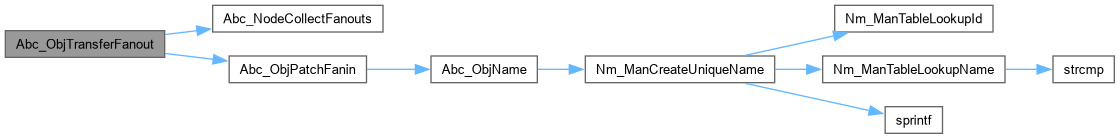

Here is the call graph for this function:

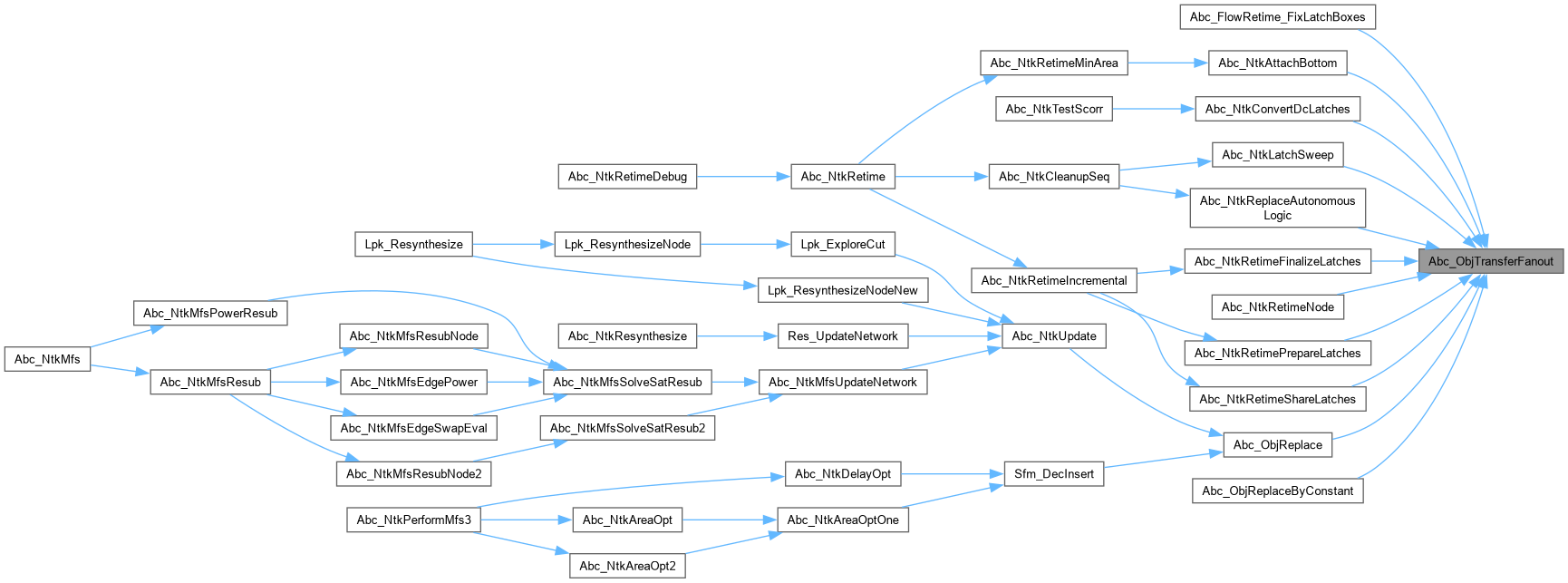

Here is the caller graph for this function:
