abcNetlist.c File Reference

#include "abc.h"
#include "base/main/main.h"

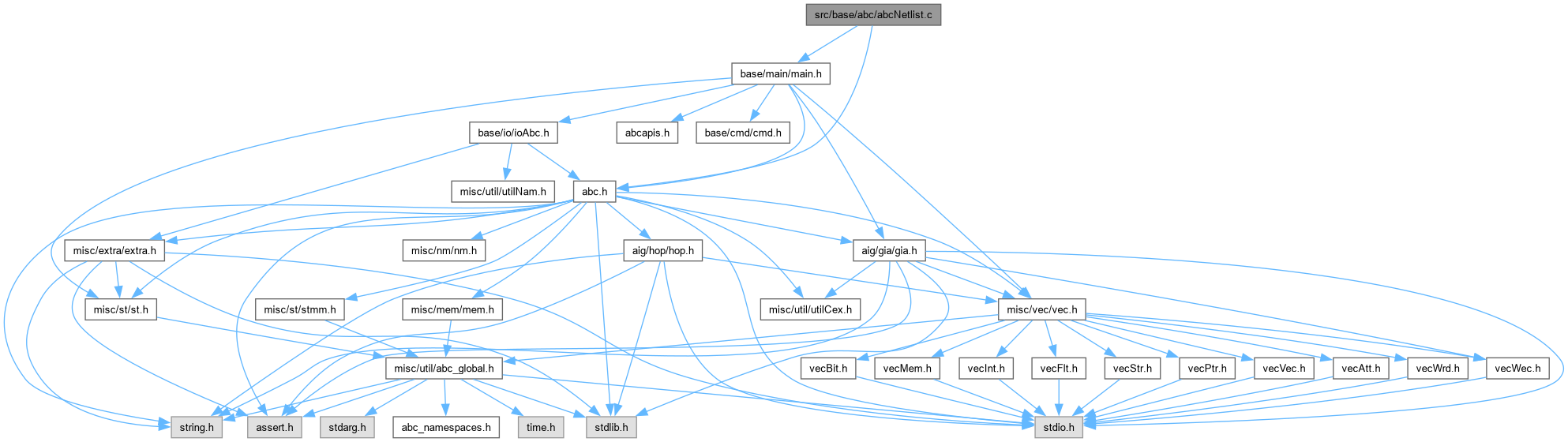

Include dependency graph for abcNetlist.c:

Go to the source code of this file.

Functions
Abc_Ntk_t *	Abc_NtkToLogic (Abc_Ntk_t *pNtk)
	FUNCTION DEFINITIONS ///.
Abc_Ntk_t *	Abc_NtkToNetlist (Abc_Ntk_t *pNtk)
Abc_Ntk_t *	Abc_NtkToNetlistBench (Abc_Ntk_t *pNtk)
Abc_Ntk_t *	Abc_NtkAigToLogicSopNand (Abc_Ntk_t *pNtk)

Function Documentation

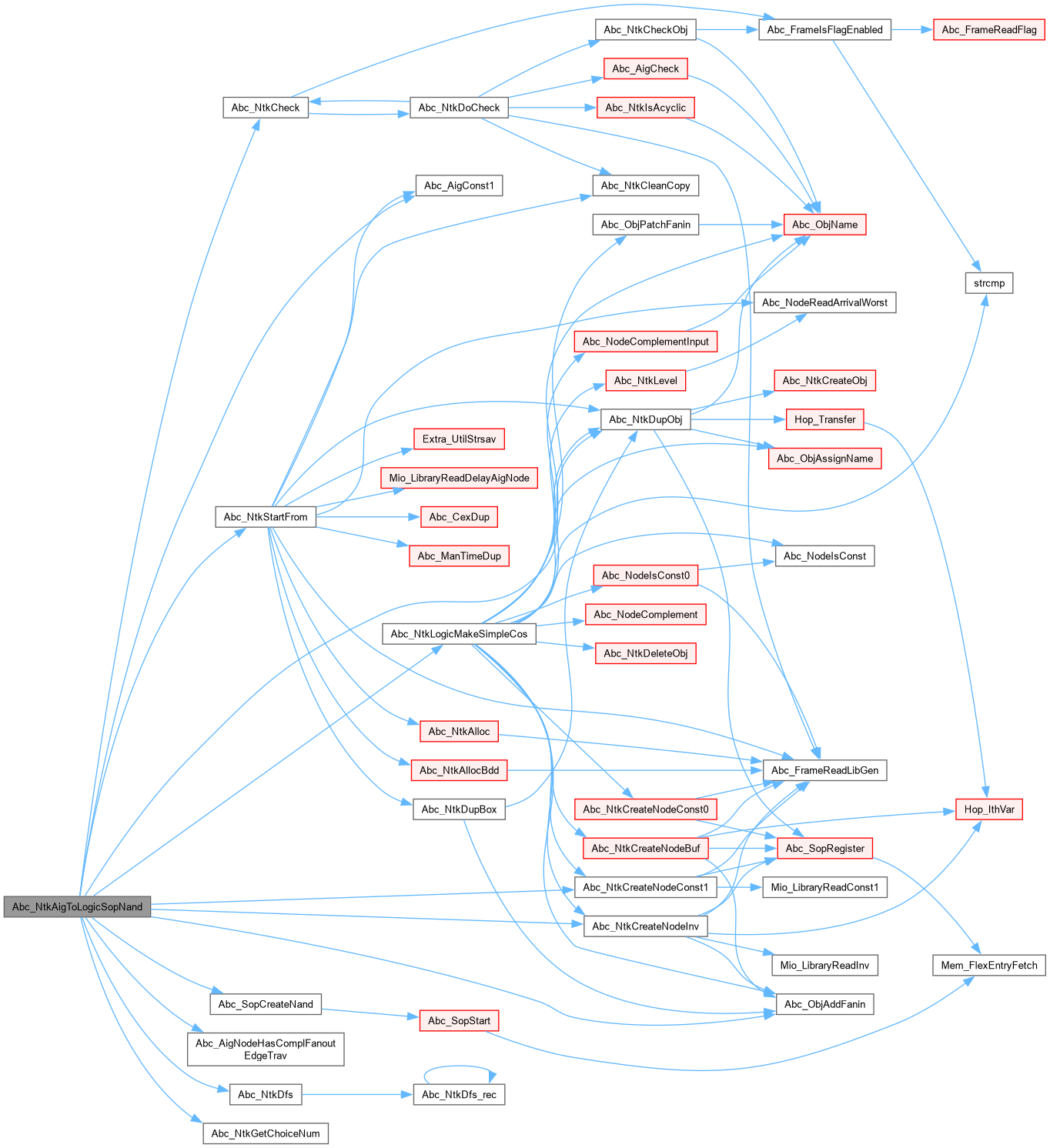

Abc_NtkAigToLogicSopNand()

Abc_Ntk_t * Abc_NtkAigToLogicSopNand

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Converts the AIG into the logic network with SOPs for bench writing.]

Description [This procedure does not copy the choices.]

SideEffects []

SeeAlso []

Definition at line 413 of file abcNetlist.c.

{
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin;
    Vec_Ptr_t * vNodes;
    int i, k;
    assert( Abc_NtkIsStrash(pNtk) );
    if ( Abc_NtkGetChoiceNum(pNtk) )
        printf( "Warning: Choice nodes are skipped.\n" );
    // convert complemented edges
    Abc_NtkForEachObj( pNtk, pObj, i )
        Abc_ObjForEachFanin( pObj, pFanin, k )
            if ( Abc_ObjIsNode(pFanin) )
                Abc_ObjXorFaninC( pObj, k );
    // start the network
    pNtkNew = Abc_NtkStartFrom( pNtk, ABC_NTK_LOGIC, ABC_FUNC_SOP );
    // collect the nodes to be used (marks all nodes with current TravId)
    vNodes = Abc_NtkDfs( pNtk, 0 );
    // create inverters for the constant node
    pObj = Abc_AigConst1(pNtk);
    if ( Abc_ObjFanoutNum(pObj) > 0 )
        pObj->pCopy = Abc_NtkCreateNodeConst1(pNtkNew);
    if ( Abc_AigNodeHasComplFanoutEdgeTrav(pObj) )
        pObj->pCopy->pCopy = Abc_NtkCreateNodeInv( pNtkNew, pObj->pCopy );
    // create inverters for the CIs
    Abc_NtkForEachCi( pNtk, pObj, i )
        if ( Abc_AigNodeHasComplFanoutEdgeTrav(pObj) )
            pObj->pCopy->pCopy = Abc_NtkCreateNodeInv( pNtkNew, pObj->pCopy );
    // duplicate the nodes, create node functions, and inverters
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        Abc_NtkDupObj( pNtkNew, pObj, 0 );
        pObj->pCopy->pData = Abc_SopCreateNand( (Mem_Flex_t *)pNtkNew->pManFunc, 2 );
        if ( Abc_AigNodeHasComplFanoutEdgeTrav(pObj) )
            pObj->pCopy->pCopy = Abc_NtkCreateNodeInv( pNtkNew, pObj->pCopy );
    }
    // connect the objects
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
        Abc_ObjForEachFanin( pObj, pFanin, k )
        {
            if ( Abc_ObjFaninC( pObj, k ) )
                Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy->pCopy );
            else
                Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
        }
    Vec_PtrFree( vNodes );
    // connect the COs
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        pFanin = Abc_ObjFanin0(pObj);
        if ( Abc_ObjFaninC0( pObj ) )
            Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy->pCopy );
        else
            Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
    }
    // fix the problem with complemented and duplicated CO edges
    Abc_NtkLogicMakeSimpleCos( pNtkNew, 0 );
    // convert complemented edges
    Abc_NtkForEachObj( pNtk, pObj, i )
        Abc_ObjForEachFanin( pObj, pFanin, k )
            if ( Abc_ObjIsNode(pFanin) )
                Abc_ObjXorFaninC( pObj, k );
    // duplicate the EXDC Ntk
    if ( pNtk->pExdc )
        printf( "Warning: The EXDc network is skipped.\n" );
    if ( !Abc_NtkCheck( pNtkNew ) )
        fprintf( stdout, "Abc_NtkAigToLogicSopBench(): Network check has failed.\n" );
    return pNtkNew;
}

Here is the call graph for this function:

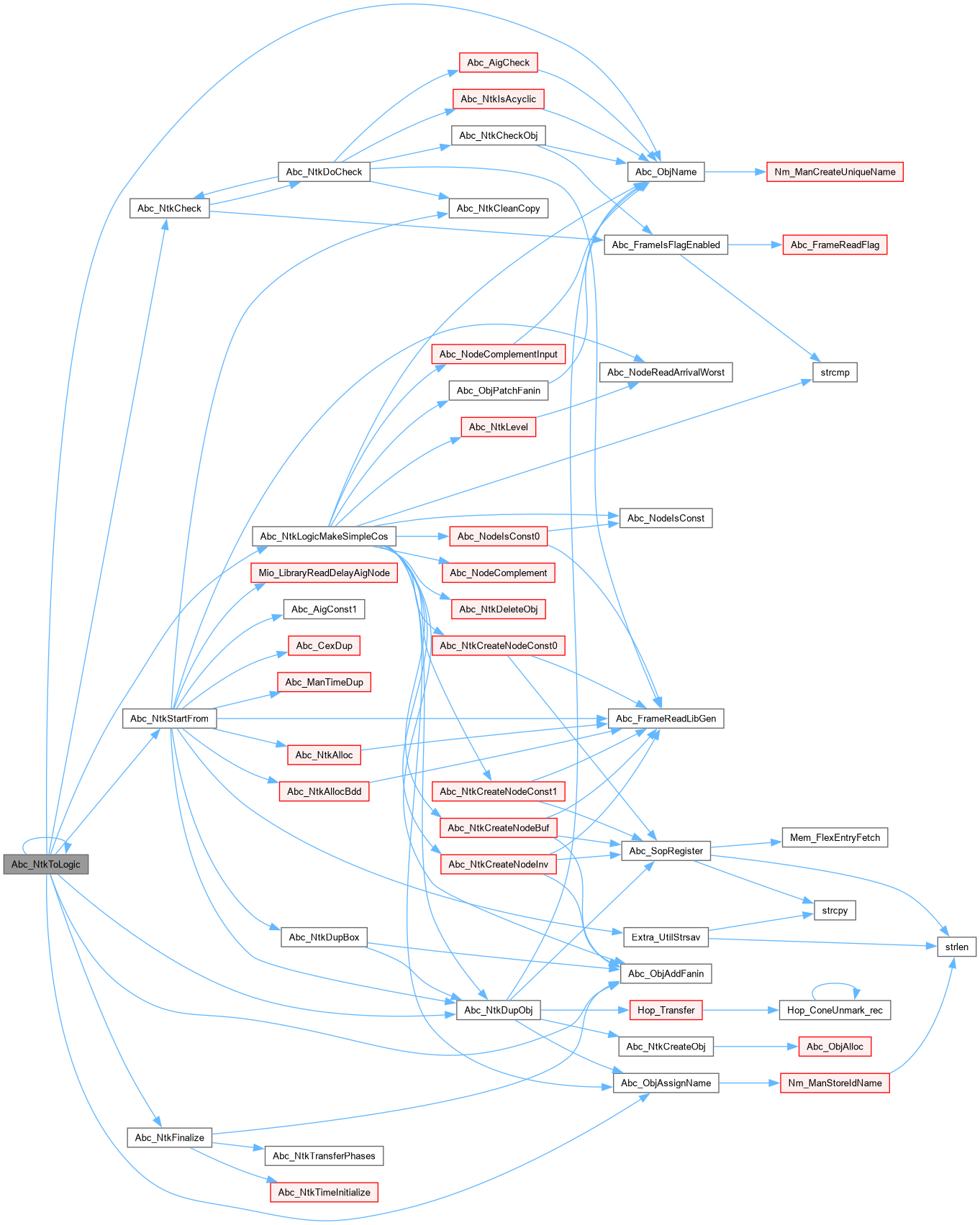

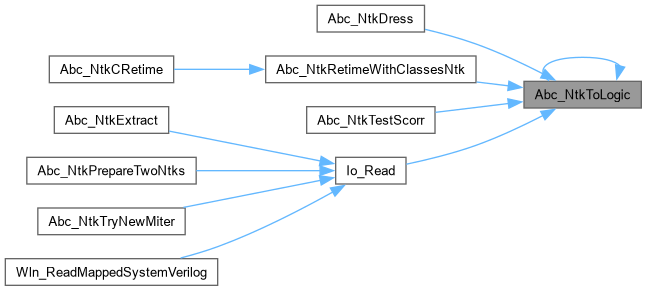

Abc_NtkToLogic()

Abc_Ntk_t * Abc_NtkToLogic

(

Abc_Ntk_t *

pNtk

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Transform the netlist into a logic network.]

Description []

SideEffects []

SeeAlso []

Definition at line 52 of file abcNetlist.c.

{
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin;
    int i, k;
    // consider the case of the AIG
    if ( Abc_NtkIsStrash(pNtk) )
        return Abc_NtkAigToLogicSop( pNtk );
    assert( Abc_NtkIsNetlist(pNtk) );
    // consider simple case when there is hierarchy
//    assert( pNtk->pDesign == NULL );
    assert( Abc_NtkWhiteboxNum(pNtk) == 0 );
    assert( Abc_NtkBlackboxNum(pNtk) == 0 );
    // start the network
    pNtkNew = Abc_NtkStartFrom( pNtk, ABC_NTK_LOGIC, pNtk->ntkFunc );
    // duplicate the nodes
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        Abc_NtkDupObj(pNtkNew, pObj, 0);
        Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(Abc_ObjFanout0(pObj)), NULL );
    }
    // reconnect the internal nodes in the new network
    Abc_NtkForEachNode( pNtk, pObj, i )
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Abc_ObjAddFanin( pObj->pCopy, Abc_ObjFanin0(pFanin)->pCopy );
    // collect the CO nodes
    Abc_NtkFinalize( pNtk, pNtkNew );
    // fix the problem with CO pointing directly to CIs
    Abc_NtkLogicMakeSimpleCos( pNtkNew, 0 );
    // duplicate EXDC
    if ( pNtk->pExdc )
        pNtkNew->pExdc = Abc_NtkToLogic( pNtk->pExdc );
    if ( !Abc_NtkCheck( pNtkNew ) )
        fprintf( stdout, "Abc_NtkToLogic(): Network check has failed.\n" );
    return pNtkNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

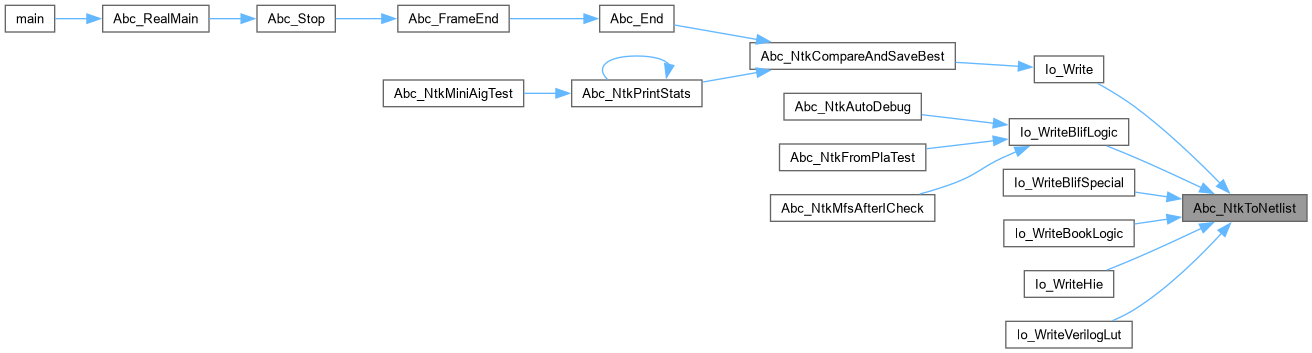

Abc_NtkToNetlist()

Abc_Ntk_t * Abc_NtkToNetlist

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Transform the logic network into a netlist.]

Description []

SideEffects []

SeeAlso []

Definition at line 100 of file abcNetlist.c.

{
    Abc_Ntk_t * pNtkNew, * pNtkTemp;
    assert( Abc_NtkIsLogic(pNtk) || Abc_NtkIsStrash(pNtk) );
    if ( Abc_NtkIsStrash(pNtk) )
    {
        pNtkTemp = Abc_NtkAigToLogicSop(pNtk);
        pNtkNew = Abc_NtkLogicToNetlist( pNtkTemp );
        Abc_NtkDelete( pNtkTemp );
        return pNtkNew;
    }
    return Abc_NtkLogicToNetlist( pNtk );
}

Here is the call graph for this function:

Here is the caller graph for this function:

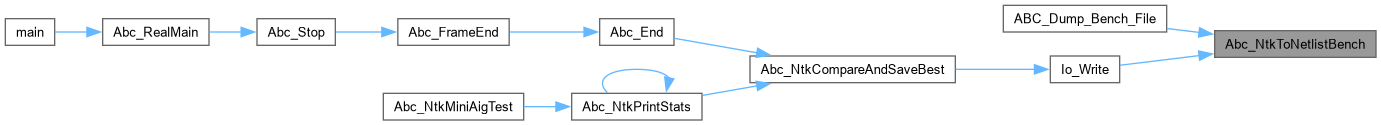

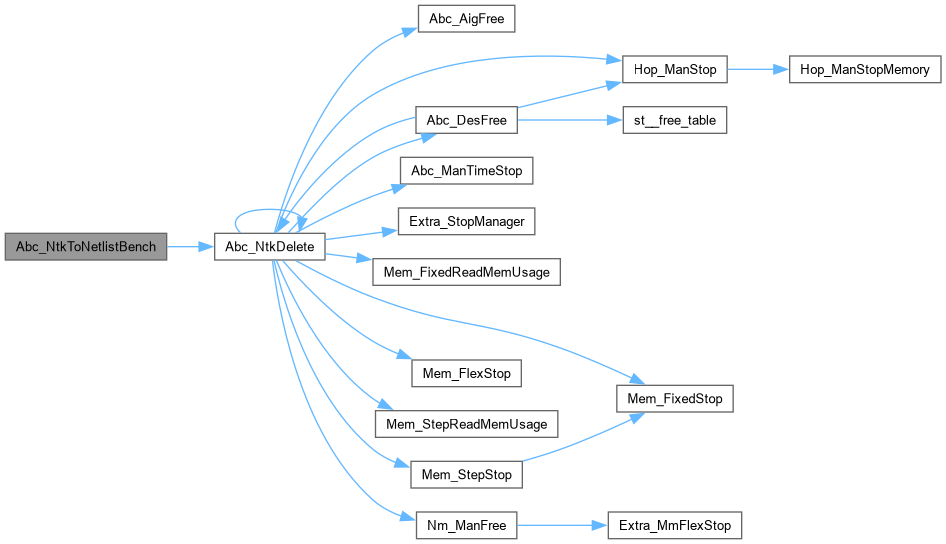

Abc_NtkToNetlistBench()

Abc_Ntk_t * Abc_NtkToNetlistBench

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Converts the AIG into the netlist.]

Description [This procedure does not copy the choices.]

SideEffects []

SeeAlso []

Definition at line 125 of file abcNetlist.c.

{
    Abc_Ntk_t * pNtkNew, * pNtkTemp;
    assert( Abc_NtkIsStrash(pNtk) );
    pNtkTemp = Abc_NtkAigToLogicSopBench( pNtk );
    pNtkNew = Abc_NtkLogicToNetlist( pNtkTemp );
    Abc_NtkDelete( pNtkTemp );
    return pNtkNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:
