abcReconv.c File Reference

#include "base/abc/abc.h"

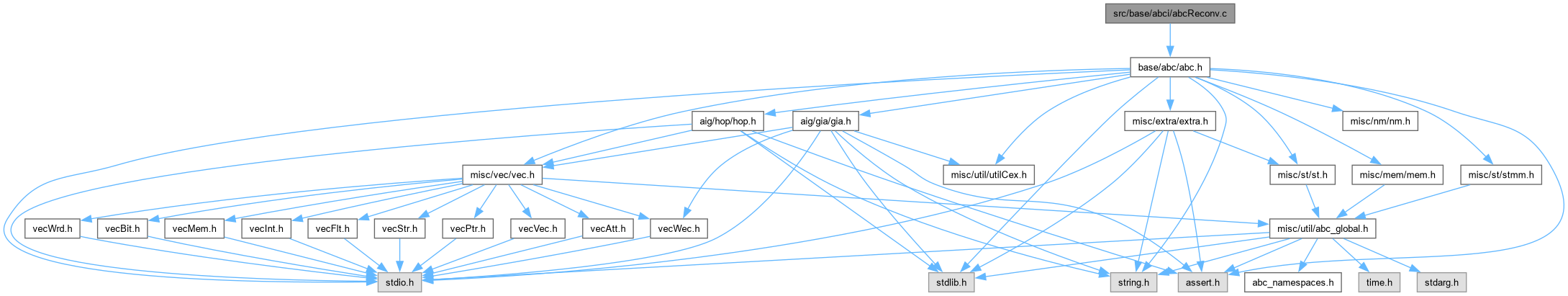

Include dependency graph for abcReconv.c:

Go to the source code of this file.

Classes
struct	Abc_ManCut_t_
	DECLARATIONS ///. More...

Functions
Vec_Ptr_t *	Abc_NodeFindCut (Abc_ManCut_t *p, Abc_Obj_t *pRoot, int fContain)
void	Abc_NodeConeCollect (Abc_Obj_t **ppRoots, int nRoots, Vec_Ptr_t *vLeaves, Vec_Ptr_t *vVisited, int fIncludeFanins)
Abc_ManCut_t *	Abc_NtkManCutStart (int nNodeSizeMax, int nConeSizeMax, int nNodeFanStop, int nConeFanStop)
void	Abc_NtkManCutStop (Abc_ManCut_t *p)
Vec_Ptr_t *	Abc_NtkManCutReadCutLarge (Abc_ManCut_t *p)
Vec_Ptr_t *	Abc_NtkManCutReadCutSmall (Abc_ManCut_t *p)
Vec_Ptr_t *	Abc_NtkManCutReadVisited (Abc_ManCut_t *p)
Vec_Ptr_t *	Abc_NodeCollectTfoCands (Abc_ManCut_t *p, Abc_Obj_t *pRoot, Vec_Ptr_t *vLeaves, int LevelMax)

Function Documentation

Abc_NodeCollectTfoCands()

Vec_Ptr_t * Abc_NodeCollectTfoCands	(	Abc_ManCut_t *	p,
		Abc_Obj_t *	pRoot,
		Vec_Ptr_t *	vLeaves,
		int	LevelMax )

Function*************************************************************

Synopsis [Collects the TFO of the cut in the topological order.]

Description [TFO of the cut is defined as a set of nodes, for which the cut is a cut, that is, every path from the collected nodes to the CIs goes through a node in the cut. The nodes are collected if their level does not exceed the given number (LevelMax). The nodes are returned in the topological order. If the root node is given, its MFFC is marked, so that the collected nodes do not contain any nodes in the MFFC.]

SideEffects []

SeeAlso []

Definition at line 699 of file abcReconv.c.

{
    Abc_Ntk_t * pNtk = pRoot->pNtk;
    Vec_Ptr_t * vVec;
    Abc_Obj_t * pNode, * pFanout;
    int i, k, v, LevelMin;
    assert( Abc_NtkIsStrash(pNtk) );

    // assuming that the structure is clean
    Vec_VecForEachLevel( p->vLevels, vVec, i )
        assert( vVec->nSize == 0 );

    // put fanins into the structure while labeling them
    Abc_NtkIncrementTravId( pNtk );
    LevelMin = -1;
    Vec_PtrForEachEntry( Abc_Obj_t *, vLeaves, pNode, i )
    {
        if ( pNode->Level > (unsigned)LevelMax )
            continue;
        Abc_NodeSetTravIdCurrent( pNode );
        Vec_VecPush( p->vLevels, pNode->Level, pNode );
        if ( LevelMin < (int)pNode->Level )
            LevelMin = pNode->Level;
    }
    assert( LevelMin >= 0 );

    // mark MFFC
    if ( pRoot )
        Abc_NodeMffcLabelAig( pRoot );

    // go through the levels up
    Vec_PtrClear( p->vNodesTfo );
    Vec_VecForEachEntryStart( Abc_Obj_t *, p->vLevels, pNode, i, k, LevelMin )
    {
        if ( i > LevelMax )
            break;
        // if the node is not marked, it is not a fanin
        if ( !Abc_NodeIsTravIdCurrent(pNode) )
        {
            // check if it belongs to the TFO
            if ( !Abc_NodeIsTravIdCurrent(Abc_ObjFanin0(pNode)) ||
                 !Abc_NodeIsTravIdCurrent(Abc_ObjFanin1(pNode)) )
                 continue;
            // save the node in the TFO and label it
            Vec_PtrPush( p->vNodesTfo, pNode );
            Abc_NodeSetTravIdCurrent( pNode );
        }
        // go through the fanouts and add them to the structure if they meet the conditions
        Abc_ObjForEachFanout( pNode, pFanout, v )
        {
            // skip if fanout is a CO or its level exceeds
            if ( Abc_ObjIsCo(pFanout) || pFanout->Level > (unsigned)LevelMax )
                continue;
            // skip if it is already added or if it is in MFFC
            if ( Abc_NodeIsTravIdCurrent(pFanout) )
                continue;
            // add it to the structure but do not mark it (until tested later)
            Vec_VecPushUnique( p->vLevels, pFanout->Level, pFanout );
        }
    }

    // clear the levelized structure
    Vec_VecForEachLevelStart( p->vLevels, vVec, i, LevelMin )
    {
        if ( i > LevelMax )
            break;
        Vec_PtrClear( vVec );
    }
    return p->vNodesTfo;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NodeConeCollect()

void Abc_NodeConeCollect	(	Abc_Obj_t **	ppRoots,
		int	nRoots,
		Vec_Ptr_t *	vLeaves,
		Vec_Ptr_t *	vVisited,
		int	fIncludeFanins )

Function*************************************************************

Synopsis [Get the nodes contained in the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 444 of file abcReconv.c.

{
    Abc_Obj_t * pTemp;
    int i;
    // mark the fanins of the cone
    Abc_NodesMark( vLeaves );
    // collect the nodes in the DFS order
    Vec_PtrClear( vVisited );
    // add the fanins
    if ( fIncludeFanins )
        Vec_PtrForEachEntry( Abc_Obj_t *, vLeaves, pTemp, i )
            Vec_PtrPush( vVisited, pTemp );
    // add other nodes
    for ( i = 0; i < nRoots; i++ )
        Abc_NodeConeMarkCollect_rec( ppRoots[i], vVisited );
    // unmark both sets
    Abc_NodesUnmark( vLeaves );
    Abc_NodesUnmark( vVisited );
}

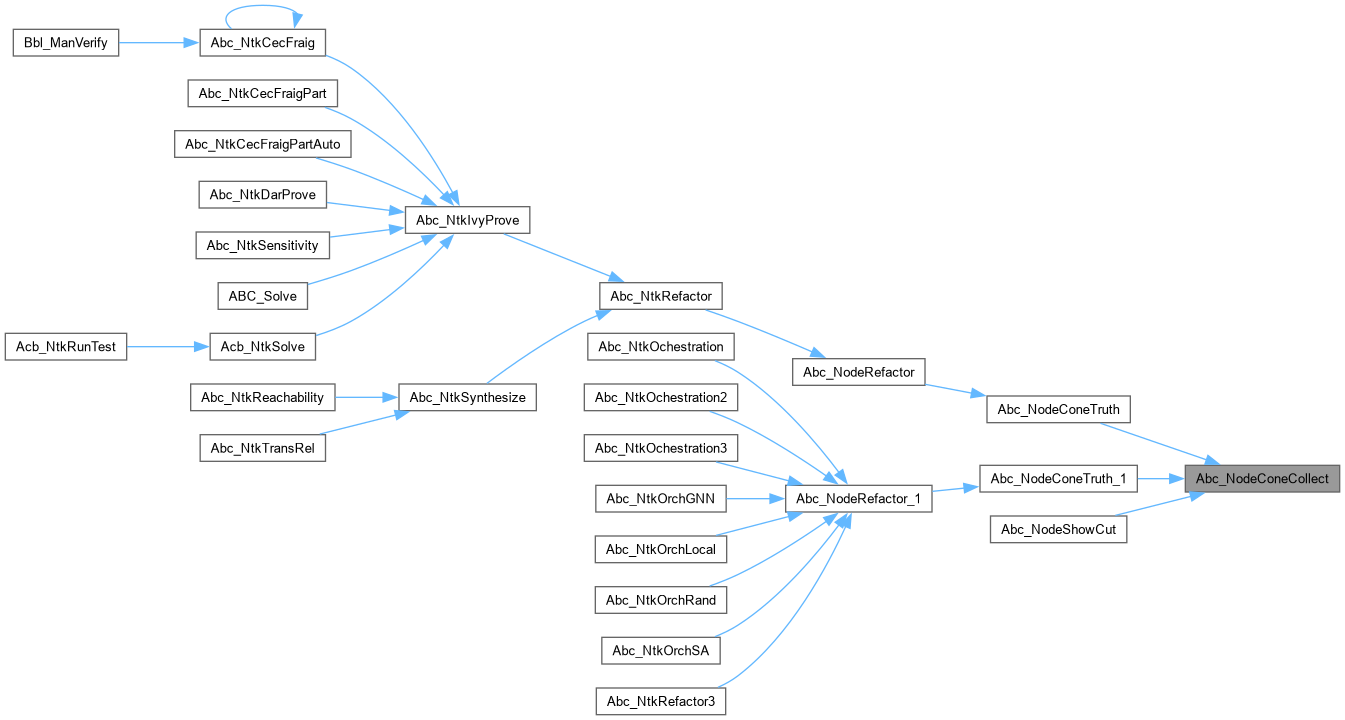

Here is the caller graph for this function:

Abc_NodeFindCut()

Vec_Ptr_t * Abc_NodeFindCut	(	Abc_ManCut_t *	p,
		Abc_Obj_t *	pRoot,
		int	fContain )

Function*************************************************************

Synopsis [Finds a fanin-limited, reconvergence-driven cut for the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 256 of file abcReconv.c.

{
    Abc_Obj_t * pNode;
    int i;

    assert( !Abc_ObjIsComplement(pRoot) );
    assert( Abc_ObjIsNode(pRoot) );

    // start the visited nodes and mark them
    Vec_PtrClear( p->vVisited );
    Vec_PtrPush( p->vVisited, pRoot );
    Vec_PtrPush( p->vVisited, Abc_ObjFanin0(pRoot) );
    Vec_PtrPush( p->vVisited, Abc_ObjFanin1(pRoot) );
    pRoot->fMarkB = 1;
    Abc_ObjFanin0(pRoot)->fMarkB = 1;
    Abc_ObjFanin1(pRoot)->fMarkB = 1;

    // start the cut
    Vec_PtrClear( p->vNodeLeaves );
    Vec_PtrPush( p->vNodeLeaves, Abc_ObjFanin0(pRoot) );
    Vec_PtrPush( p->vNodeLeaves, Abc_ObjFanin1(pRoot) );

    // compute the cut
    while ( Abc_NodeBuildCutLevelOne_int( p->vVisited, p->vNodeLeaves, p->nNodeSizeMax, p->nNodeFanStop ) );
    assert( Vec_PtrSize(p->vNodeLeaves) <= p->nNodeSizeMax );

    // return if containing cut is not requested
    if ( !fContain )
    {
        // unmark both fMarkA and fMarkB in tbe TFI
        Abc_NodesUnmarkB( p->vVisited );
        return p->vNodeLeaves;
    }

//printf( "\n\n\n" );
    // compute the containing cut
    assert( p->nNodeSizeMax < p->nConeSizeMax );
    // copy the current boundary
    Vec_PtrClear( p->vConeLeaves );
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vNodeLeaves, pNode, i )
        Vec_PtrPush( p->vConeLeaves, pNode );
    // compute the containing cut
    while ( Abc_NodeBuildCutLevelOne_int( p->vVisited, p->vConeLeaves, p->nConeSizeMax, p->nConeFanStop ) );
    assert( Vec_PtrSize(p->vConeLeaves) <= p->nConeSizeMax );
    // unmark TFI using fMarkA and fMarkB
    Abc_NodesUnmarkB( p->vVisited );
    return p->vNodeLeaves;
}

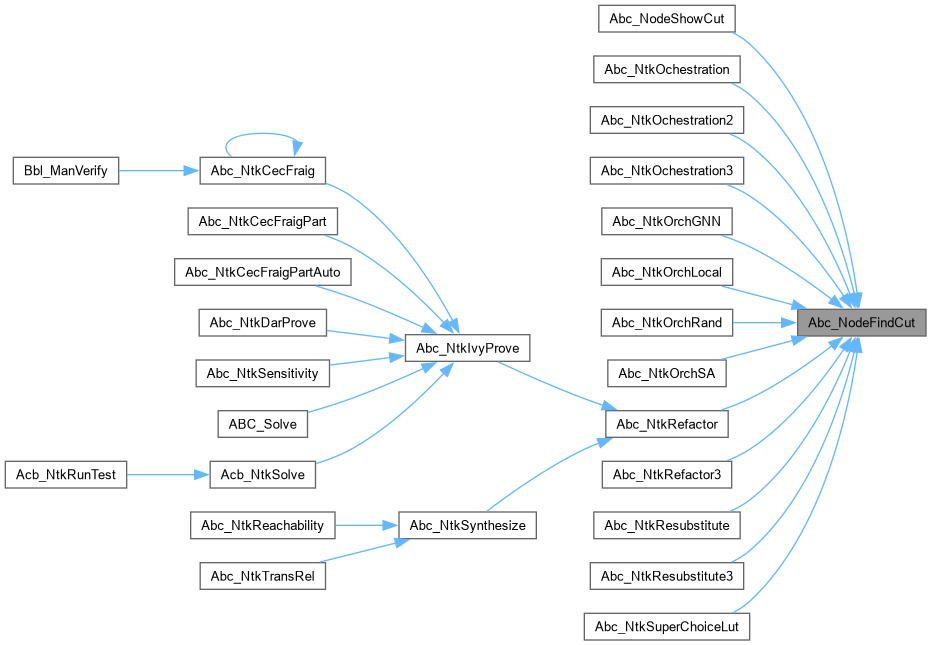

Here is the caller graph for this function:

Abc_NtkManCutReadCutLarge()

Vec_Ptr_t * Abc_NtkManCutReadCutLarge

(

Abc_ManCut_t *

p

)

Function*************************************************************

Synopsis [Returns the leaves of the cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 644 of file abcReconv.c.

{
    return p->vConeLeaves;
}

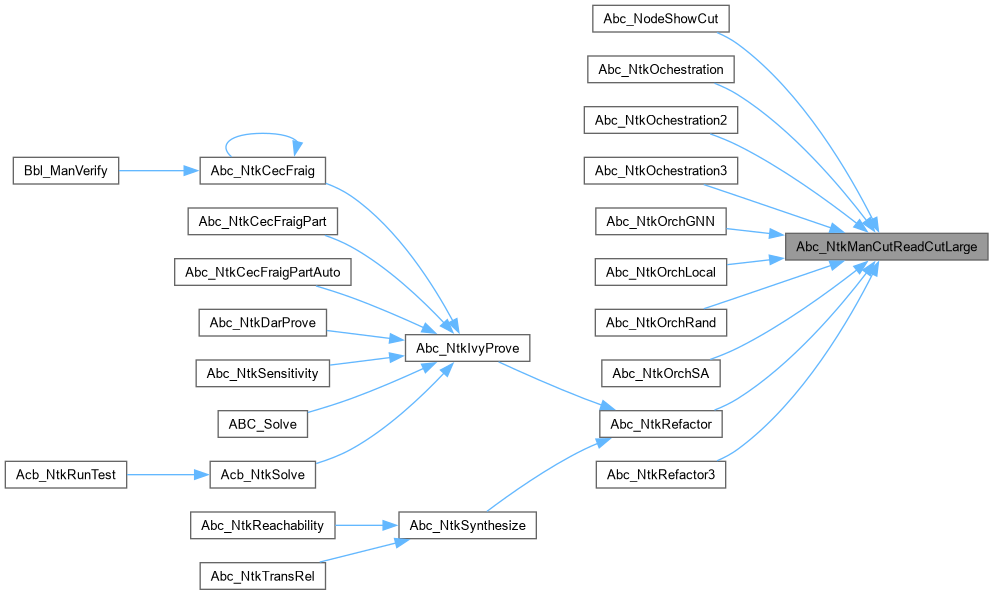

Here is the caller graph for this function:

Abc_NtkManCutReadCutSmall()

Vec_Ptr_t * Abc_NtkManCutReadCutSmall

(

Abc_ManCut_t *

p

)

Function*************************************************************

Synopsis [Returns the leaves of the cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 660 of file abcReconv.c.

{
    return p->vNodeLeaves;
}

Here is the caller graph for this function:

Abc_NtkManCutReadVisited()

Vec_Ptr_t * Abc_NtkManCutReadVisited

(

Abc_ManCut_t *

p

)

Function*************************************************************

Synopsis [Returns the leaves of the cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 676 of file abcReconv.c.

{
    return p->vVisited;
}

Here is the caller graph for this function:

Abc_NtkManCutStart()

Abc_ManCut_t * Abc_NtkManCutStart	(	int	nNodeSizeMax,
		int	nConeSizeMax,
		int	nNodeFanStop,
		int	nConeFanStop )

Function*************************************************************

Synopsis [Starts the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 595 of file abcReconv.c.

{
    Abc_ManCut_t * p;
    p = ABC_ALLOC( Abc_ManCut_t, 1 );
    memset( p, 0, sizeof(Abc_ManCut_t) );
    p->vNodeLeaves  = Vec_PtrAlloc( 100 );
    p->vConeLeaves  = Vec_PtrAlloc( 100 );
    p->vVisited     = Vec_PtrAlloc( 100 );
    p->vLevels      = Vec_VecAlloc( 100 );
    p->vNodesTfo    = Vec_PtrAlloc( 100 );
    p->nNodeSizeMax = nNodeSizeMax;
    p->nConeSizeMax = nConeSizeMax;
    p->nNodeFanStop = nNodeFanStop;
    p->nConeFanStop = nConeFanStop;
    return p;
}

Here is the call graph for this function:

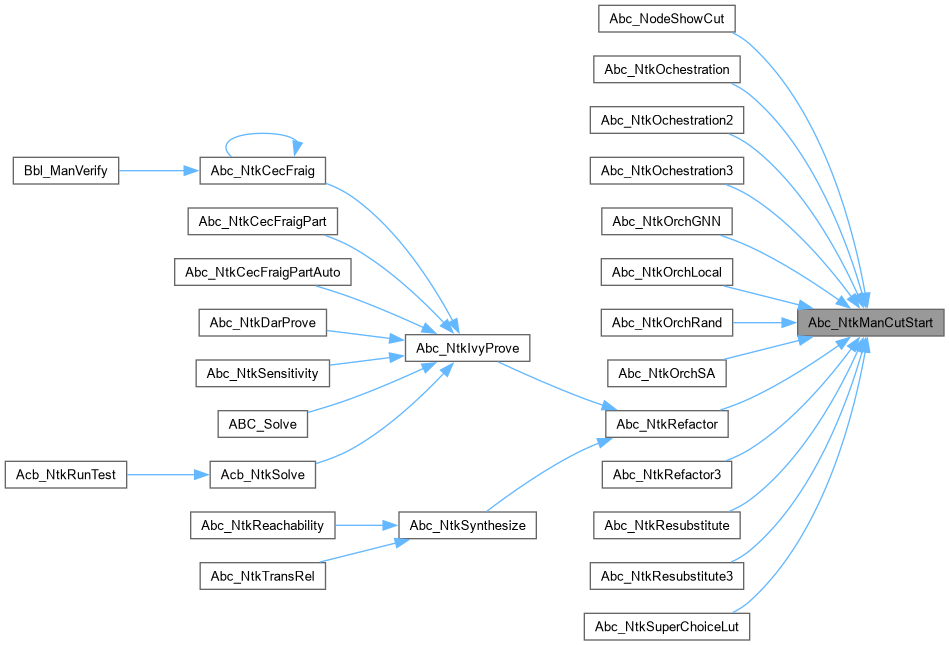

Here is the caller graph for this function:

Abc_NtkManCutStop()

void Abc_NtkManCutStop

(

Abc_ManCut_t *

p

)

Function*************************************************************

Synopsis [Stops the resynthesis manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 623 of file abcReconv.c.

{
    Vec_PtrFree( p->vNodeLeaves );
    Vec_PtrFree( p->vConeLeaves );
    Vec_PtrFree( p->vVisited    );
    Vec_VecFree( p->vLevels );
    Vec_PtrFree( p->vNodesTfo );
    ABC_FREE( p );
}

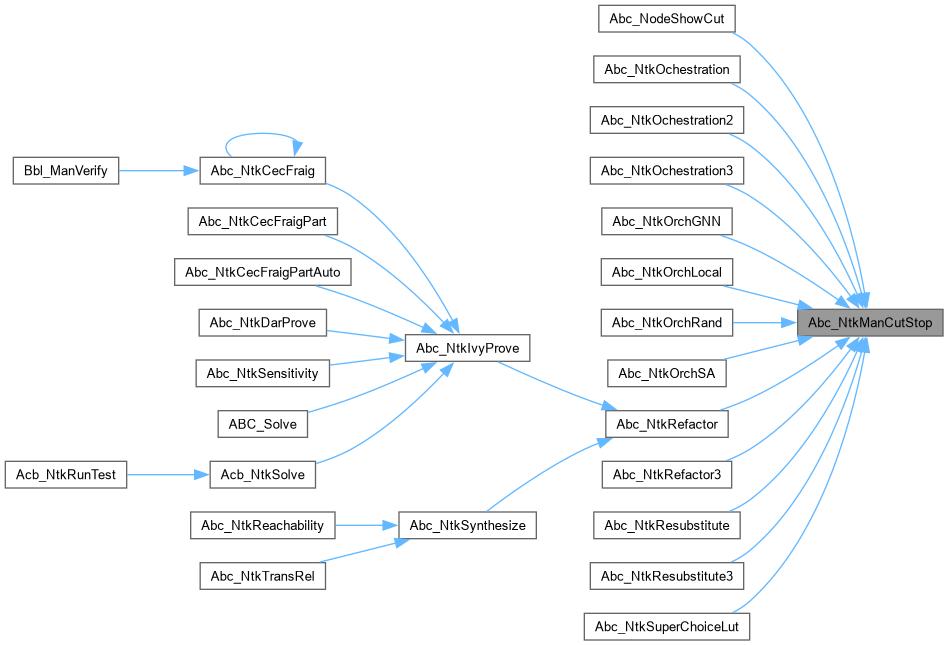

Here is the caller graph for this function:
