acecPo.c File Reference

#include "acecInt.h"
#include "misc/vec/vecWec.h"
#include "misc/vec/vecHsh.h"

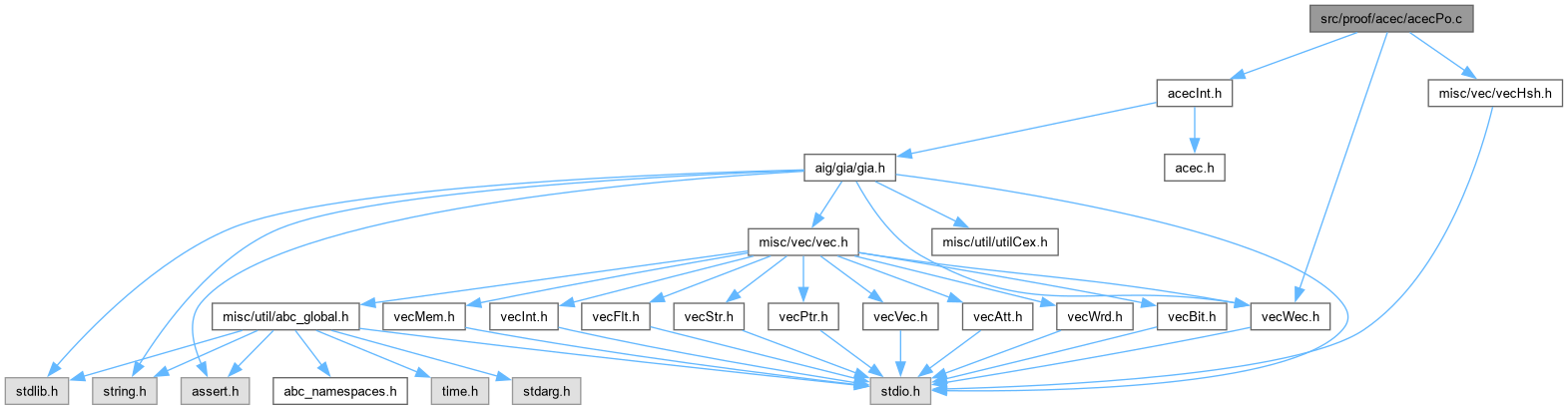

Include dependency graph for acecPo.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Acec_ParseSignatureMono (char *p, char *pStop, Vec_Int_t *vLevel)
	DECLARATIONS ///.
Vec_Wec_t *	Acec_ParseSignatureOne (char *p, char *pStop)
Vec_Wec_t *	Acec_ParseDistribute (Vec_Wec_t *vM1, Vec_Wec_t *vM2, Vec_Wec_t *vAdd)
Vec_Wec_t *	Acec_ParseSignature (char *p)
void	Acec_PrintSignature (Vec_Wec_t *vMonos)
void	Acec_ParseSignatureTest ()
void	Gia_PolynPrintMono (Vec_Int_t *vConst, Vec_Int_t *vMono, int Prev)
void	Gia_PolynPrint (Vec_Wec_t *vPolyn)
void	Gia_PolynPrintStats (Vec_Wec_t *vPolyn)
int	Gia_PolynGetResultCompare (int *p0, int *p1)
Vec_Wec_t *	Gia_PolynGetResult (Hsh_VecMan_t *pHashC, Hsh_VecMan_t *pHashM, Vec_Int_t *vCoefs)
Vec_Wec_t *	Gia_PolynBuildNew2 (Gia_Man_t *pGia, Vec_Int_t *vRootLits, int nExtra, Vec_Int_t *vLeaves, Vec_Int_t *vNodes, int fSigned, int fVerbose, int fVeryVerbose)
Vec_Wec_t *	Gia_PolynBuildNew (Gia_Man_t *pGia, Vec_Wec_t *vSign, Vec_Int_t *vRootLits, int nExtra, Vec_Int_t *vLeaves, Vec_Int_t *vNodes, int fSigned, int fVerbose, int fVeryVerbose)
void	Gia_PolynBuild2Test (Gia_Man_t *pGia, char *pSign, int nExtra, int fSigned, int fVerbose, int fVeryVerbose)

Function Documentation

Acec_ParseDistribute()

Vec_Wec_t * Acec_ParseDistribute	(	Vec_Wec_t *	vM1,
		Vec_Wec_t *	vM2,
		Vec_Wec_t *	vAdd )

Definition at line 88 of file acecPo.c.

{
    Vec_Wec_t * vMonos = Vec_WecAlloc( 10 );
    Vec_Int_t * vLevel1, * vLevel2, * vLevel;
    int i, k, n, Entry;
    Vec_WecForEachLevel( vM1, vLevel1, i )
    Vec_WecForEachLevel( vM2, vLevel2, k )
    {
        vLevel = Vec_WecPushLevel(vMonos);
        Vec_IntForEachEntryStop( vLevel1, Entry, n, Vec_IntSize(vLevel1)-1 )
            Vec_IntPush(vLevel, Entry);
        Vec_IntForEachEntryStop( vLevel2, Entry, n, Vec_IntSize(vLevel2)-1 )
            Vec_IntPush(vLevel, Entry);
        Vec_IntPush(vLevel, Vec_IntEntryLast(vLevel1)+Vec_IntEntryLast(vLevel2)-1);
    }
    Vec_WecForEachLevel( vAdd, vLevel1, k )
    {
        vLevel = Vec_WecPushLevel(vMonos);
        Vec_IntForEachEntry( vLevel1, Entry, n )
            Vec_IntPush(vLevel, Entry);
    }
    return vMonos;
}

Here is the caller graph for this function:

Acec_ParseSignature()

Vec_Wec_t * Acec_ParseSignature

(

char *

p

)

Definition at line 111 of file acecPo.c.

{
    Vec_Wec_t * vAdd = NULL, * vTemp1, * vTemp2, * vRes;
    if ( p[0] == '(' )
    {
        char * pStop = strstr(p, ")");
        if ( pStop == NULL )
            return NULL;
        vTemp1 = Acec_ParseSignatureOne( p, pStop );
        if ( pStop[1] == 0 )
            return vTemp1;
        if ( pStop[1] == '*' )
        {
            char * p2 = pStop + 2;
            char * pStop2 = strstr(p2, ")");
            if ( p2[0] != '(' )
                return NULL;
            if ( pStop2 == NULL )
                return NULL;
            vTemp2 = Acec_ParseSignatureOne( p2, pStop2 );
            if ( pStop2[1] == 0 )
            {
                vRes = Acec_ParseDistribute( vTemp1, vTemp2, vAdd );
                Vec_WecFree( vTemp1 );
                Vec_WecFree( vTemp2 );
                return vRes;
            }
            if ( pStop2[1] == '+' )
            {
                char * p3 = pStop2 + 2;
                char * pStop3 = strstr(p3, ")");
                if ( p3[0] != '(' )
                    return NULL;
                if ( pStop3 == NULL )
                    return NULL;
                vAdd = Acec_ParseSignatureOne( p3, pStop3 );
                vRes = Acec_ParseDistribute( vTemp1, vTemp2, vAdd );
                Vec_WecFree( vTemp1 );
                Vec_WecFree( vTemp2 );
                Vec_WecFree( vAdd );
                return vRes;
            }
            assert( 0 );
        }
        assert( 0 );
    }
    else
    {
        int Len = strlen(p);
        char * pCopy = ABC_ALLOC( char, Len+3 );
        pCopy[0] = '(';
        strcpy( pCopy+1, p );
        pCopy[Len+1] = ')';
        pCopy[Len+2] = '\0';
        vRes = Acec_ParseSignatureOne( pCopy, pCopy + Len + 1 );
        ABC_FREE( pCopy );
        return vRes;
    }
    return NULL;
}

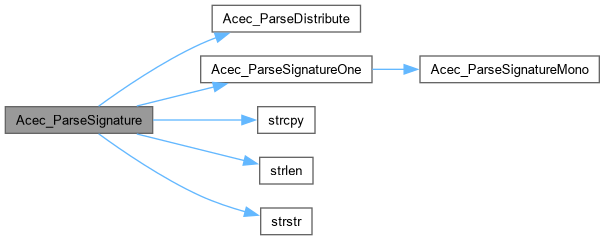

Here is the call graph for this function:

Here is the caller graph for this function:

Acec_ParseSignatureMono()

ABC_NAMESPACE_IMPL_START void Acec_ParseSignatureMono	(	char *	p,
		char *	pStop,
		Vec_Int_t *	vLevel )

DECLARATIONS ///.

CFile****************************************************************

FileName [acecPo.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [CEC for arithmetic circuits.]

Synopsis [Core procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

acecPo.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Parses signature given on the command line.]

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file acecPo.c.

{
    char * pTemp = p;
    int Const = ABC_INFINITY;
    int fMinus = pTemp[0] == '-';
    if ( pTemp[0] == '+' || pTemp[0] == '-' || pTemp[0] == '(' )
        pTemp++;
    while ( pTemp < pStop )
    {
        if ( pTemp[0] == 'i' ) // input
            Vec_IntPush( vLevel, -1-atoi(++pTemp) );
        else if ( pTemp[0] == 'o' ) // output
            Vec_IntPush( vLevel, atoi(++pTemp) );
        else // coefficient
        {
            assert( Const == ABC_INFINITY );
            Const = 1 + atoi(pTemp);
        }
        while ( pTemp[0] >= '0' && pTemp[0] <= '9' )
            pTemp++;
        assert( pTemp ==  pStop || pTemp[0] == '*' );
        pTemp++;
    }
    assert( Const != ABC_INFINITY );
    Vec_IntPush( vLevel, fMinus ? -Const : Const );
}

Here is the caller graph for this function:

Acec_ParseSignatureOne()

Vec_Wec_t * Acec_ParseSignatureOne	(	char *	p,
		char *	pStop )

Definition at line 72 of file acecPo.c.

{
    Vec_Wec_t * vMonos = Vec_WecAlloc( 10 );
    char * pTemp = p, * pNext;
    assert( p[0] == '(' && pStop[0] == ')' );
    while ( pTemp[0] != ')' )
    {
        for ( pNext = pTemp+1; pNext < pStop; pNext++ )
            if ( pNext[0] == '+' || pNext[0] == '-' )
                break;
        assert( pNext[0] == '+' || pNext[0] == '-' || pNext[0] == ')' );
        Acec_ParseSignatureMono( pTemp, pNext, Vec_WecPushLevel(vMonos) );
        pTemp = pNext;
    }
    return vMonos;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Acec_ParseSignatureTest()

void Acec_ParseSignatureTest

(

)

Definition at line 189 of file acecPo.c.

{
    char * pSign = "(4*o1+2*o2+1*o3)*(4*i4+2*i5+1*i6)+(4*o4+2*o5+1*o6)";
    Vec_Wec_t * vMonos = Acec_ParseSignature( pSign );
    Acec_PrintSignature( vMonos );
    Vec_WecFree( vMonos );
}

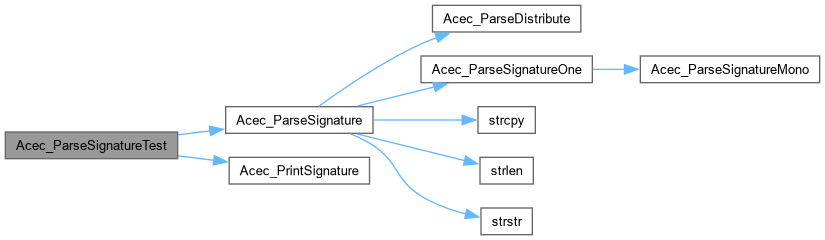

Here is the call graph for this function:

Acec_PrintSignature()

void Acec_PrintSignature

(

Vec_Wec_t *

vMonos

)

Definition at line 171 of file acecPo.c.

{
    Vec_Int_t * vLevel; int i, k, Entry;
    printf( "Output signature with %d monomials:\n", Vec_WecSize(vMonos) );
    Vec_WecForEachLevel( vMonos, vLevel, i )
    {
        printf( "  %s2^%d", Vec_IntEntryLast(vLevel) > 0 ? "+":"-", Abc_AbsInt(Vec_IntEntryLast(vLevel))-1 );
        Vec_IntForEachEntryStop( vLevel, Entry, k, Vec_IntSize(vLevel)-1 )
        {
            printf( " * " );
            if ( Entry < 0 )
                printf( "i%d", -Entry-1 );
            else
                printf( "o%d", Entry );
        }
        printf( "\n" );
    }
}

Here is the caller graph for this function:

Gia_PolynBuild2Test()

void Gia_PolynBuild2Test	(	Gia_Man_t *	pGia,
		char *	pSign,
		int	nExtra,
		int	fSigned,
		int	fVerbose,
		int	fVeryVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 804 of file acecPo.c.

{
    Vec_Wec_t * vPolyn;
    Vec_Int_t * vRootLits = Vec_IntAlloc( Gia_ManCoNum(pGia) );
    Vec_Int_t * vLeaves   = Vec_IntAlloc( Gia_ManCiNum(pGia) );
    Vec_Int_t * vNodes    = Vec_IntAlloc( Gia_ManAndNum(pGia) );
    Gia_Obj_t * pObj;
    Vec_Wec_t * vMonos = NULL;
    int i;

    if ( pSign != NULL && (vMonos = Acec_ParseSignature(pSign)) == NULL )
    {
        printf( "Canont parse the output signatures.\n" );
        return;
    }
    if ( vMonos && fVerbose )
        Acec_PrintSignature( vMonos );

    // print logic level
    if ( nExtra == -1 )
    {
        int LevelMax = -1, iMax = -1;
        Gia_ManLevelNum( pGia );
        Gia_ManForEachCo( pGia, pObj, i )
            if ( LevelMax < Gia_ObjLevel(pGia, pObj) )
            {
                LevelMax = Gia_ObjLevel(pGia, pObj);
                iMax = i;
            }
        nExtra = Gia_ManCoNum(pGia) - iMax - 1;
        printf( "Determined the number of extra outputs to be %d.\n", nExtra );
    }

    Gia_ManForEachObj( pGia, pObj, i )
        if ( Gia_ObjIsCi(pObj) )
            Vec_IntPush( vLeaves, i );
        else if ( Gia_ObjIsAnd(pObj) )
            Vec_IntPush( vNodes, i );
        else if ( Gia_ObjIsCo(pObj) )
            Vec_IntPush( vRootLits, Gia_ObjFaninLit0p(pGia, pObj) );

    vPolyn = Gia_PolynBuildNew( pGia, vMonos, vRootLits, nExtra, vLeaves, vNodes, fSigned, fVerbose, fVeryVerbose );
    //printf( "Polynomial has %d monomials.\n", Vec_WecSize(vPolyn)/2 );
    if ( fVerbose || fVeryVerbose )
        Gia_PolynPrintStats( vPolyn );
    if ( fVeryVerbose )
        Gia_PolynPrint( vPolyn );
    Vec_WecFree( vPolyn );

    Vec_IntFree( vRootLits );
    Vec_IntFree( vLeaves );
    Vec_IntFree( vNodes );
    Vec_WecFreeP( &vMonos );
}

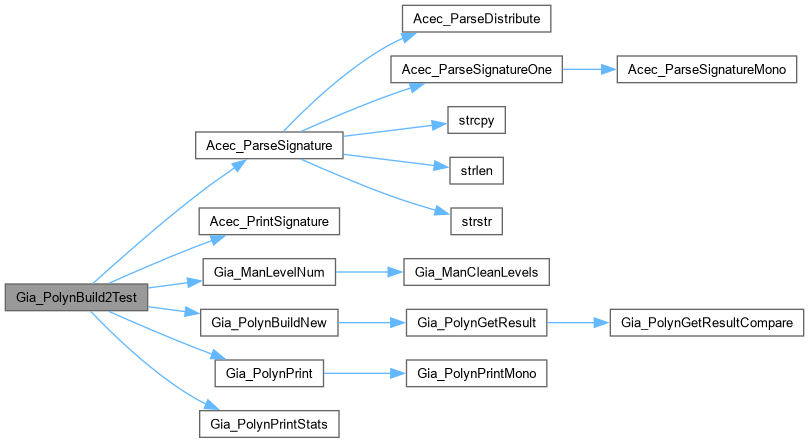

Here is the call graph for this function:

Gia_PolynBuildNew()

Vec_Wec_t * Gia_PolynBuildNew	(	Gia_Man_t *	pGia,
		Vec_Wec_t *	vSign,
		Vec_Int_t *	vRootLits,
		int	nExtra,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vNodes,
		int	fSigned,
		int	fVerbose,
		int	fVeryVerbose )

Definition at line 639 of file acecPo.c.

{
    abctime clk = Abc_Clock();
    Vec_Wec_t * vPolyn;
    Vec_Wec_t * vLit2Mono = Vec_WecStart( Gia_ManObjNum(pGia) ); // mapping AIG literals into monomials
    Hsh_VecMan_t * pHashC = Hsh_VecManStart( 1000 );    // hash table for constants
    Hsh_VecMan_t * pHashM = Hsh_VecManStart( 1000 );    // hash table for monomials
    Vec_Int_t * vCoefs    = Vec_IntAlloc( 1000 );       // monomial coefficients
    Vec_Int_t * vTempC[4],  * vTempM[4];                // temporary array
    int i, k, iObj, iLit, iMono, iConst, nMonos = 0, nBuilds = 0;
    for ( i = 0; i < 4; i++ )
        vTempC[i] = Vec_IntAlloc( 10 );
    for ( i = 0; i < 4; i++ )
        vTempM[i] = Vec_IntAlloc( 10 );

    // add 0-constant and 1-monomial
    Hsh_VecManAdd( pHashC, vTempC[0] );
    Hsh_VecManAdd( pHashM, vTempM[0] );
    Vec_IntPush( vCoefs, 0 );

    if ( nExtra )
        printf( "Assigning %d outputs from %d to %d rank %d.\n", nExtra, Vec_IntSize(vRootLits)-nExtra, Vec_IntSize(vRootLits)-1, Vec_IntSize(vRootLits)-nExtra );

    // create output signature
    if ( vSign )
    {
        Vec_Int_t * vLevel; int Entry, OutLit;
        Vec_WecForEachLevel( vSign, vLevel, i )
        {
            OutLit = -1;
            Vec_IntClear( vTempM[0] );
            Vec_IntFill( vTempC[0], 1, Vec_IntEntryLast(vLevel) );
            Vec_IntForEachEntryStop( vLevel, Entry, k, Vec_IntSize(vLevel)-1 )
            {
                if ( Entry < 0 ) // input
                    Vec_IntPushUniqueOrder( vTempM[0], Vec_IntEntry(vLeaves, -1-Entry) );
                else // output
                {
                    assert( OutLit == -1 ); // only one output literal is expected
                    OutLit = Vec_IntEntry(vRootLits, Entry);
                }
            }
            if ( OutLit == -1 )
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[0] );   // mono without out
            else if ( !Abc_LitIsCompl(OutLit) ) // positive literal
            {
                Vec_IntPushUniqueOrder( vTempM[0], Abc_Lit2Var(OutLit) );
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[0] );   // mono with pos out
            }
            else // negative literal
            {
                // first monomial
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[0] );   // mono without out
                // second monomial
                Vec_IntFill( vTempC[0], 1, -Vec_IntEntryLast(vLevel) );
                Vec_IntPushUniqueOrder( vTempM[0], Abc_Lit2Var(OutLit) );
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[0] );   // mono with neg out
            }
            nBuilds++;
        }
    }
    else
    Vec_IntForEachEntry( vRootLits, iLit, i )
    {
        int Value = 1 + Abc_MinInt( i, Vec_IntSize(vRootLits)-nExtra );
        Gia_PolynPrepare2( vTempC, vTempM, Abc_Lit2Var(iLit), Value );
        if ( fSigned && i >= Vec_IntSize(vRootLits)-nExtra-1 )
        {
            if ( fVeryVerbose ) printf( "Out %d : Negative   Value = %d\n", i, Value-1 );
            if ( Abc_LitIsCompl(iLit) )
            {
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[1], vTempM[0] );   // -C
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[1] );   //  C * Driver
                nBuilds++;
            }
            else
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[1], vTempM[1] );   // -C * Driver
        }
        else
        {
            if ( fVeryVerbose ) printf( "Out %d : Positive   Value = %d\n", i, Value-1 );
            if ( Abc_LitIsCompl(iLit) )
            {
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[0] );   //  C
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[1], vTempM[1] );   // -C * Driver
                nBuilds++;
            }
            else
                nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[1] );   //  C * Driver
        }
        nBuilds++;
    }

    // perform construction for internal nodes
    Vec_IntForEachEntryReverse( vNodes, iObj, i )
    {
        Gia_Obj_t * pObj = Gia_ManObj( pGia, iObj );
        Vec_Int_t * vArray = Vec_WecEntry( vLit2Mono, iObj );
        Vec_IntForEachEntry( vArray, iMono, k )
            if ( (iConst = Vec_IntEntry(vCoefs, iMono)) > 0 )
            {
                Vec_Int_t * vArrayC = Hsh_VecReadEntry( pHashC, iConst );
                Vec_Int_t * vArrayM = Hsh_VecReadEntry( pHashM, iMono );
                Gia_PolynPrepare4( vTempC, vTempM, vArrayC, vArrayM, iObj, Gia_ObjFaninId0(pObj, iObj), Gia_ObjFaninId1(pObj, iObj) );
                if ( Gia_ObjIsXor(pObj) )
                {
                }
                else if ( Gia_ObjFaninC0(pObj) && Gia_ObjFaninC1(pObj) )  //  C * (1 - x) * (1 - y)
                {
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[0] );   //  C * 1
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[1], vTempM[1] );   // -C * x
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[3], vTempM[2] );   // -C * y
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[2], vTempM[3] );   //  C * x * y
                    nBuilds += 3;
                }
                else if ( Gia_ObjFaninC0(pObj) && !Gia_ObjFaninC1(pObj) ) //  C * (1 - x) * y
                {
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[2] );   //  C * y
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[1], vTempM[3] );   // -C * x * y
                    nBuilds += 2;
                }
                else if ( !Gia_ObjFaninC0(pObj) && Gia_ObjFaninC1(pObj) ) //  C * x * (1 - y)
                {
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[1] );   //  C * x
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[1], vTempM[3] );   // -C * x * y
                    nBuilds++;
                }
                else
                    nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC[0], vTempM[3] ); //  C * x * y
                Vec_IntWriteEntry( vCoefs, iMono, 0 );
                nMonos--;
                nBuilds++;
            }
        //printf( "Obj %5d : nMonos = %6d  nUsed = %6d\n", iObj, nBuilds, nMonos );
    }

    // get the results
    vPolyn = Gia_PolynGetResult( pHashC, pHashM, vCoefs );

    printf( "HashC = %d. HashM = %d.  Total = %d. Left = %d.  Used = %d.  ",
        Hsh_VecSize(pHashC), Hsh_VecSize(pHashM), nBuilds, nMonos, Vec_WecSize(vPolyn)/2 );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );

    for ( i = 0; i < 4; i++ )
        Vec_IntFree( vTempC[i] );
    for ( i = 0; i < 4; i++ )
        Vec_IntFree( vTempM[i] );
    Vec_IntFree( vCoefs );
    Vec_WecFree( vLit2Mono );
    Hsh_VecManStop( pHashC );
    Hsh_VecManStop( pHashM );
    return vPolyn;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_PolynBuildNew2()

Vec_Wec_t * Gia_PolynBuildNew2	(	Gia_Man_t *	pGia,
		Vec_Int_t *	vRootLits,
		int	nExtra,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vNodes,
		int	fSigned,
		int	fVerbose,
		int	fVeryVerbose )

Definition at line 512 of file acecPo.c.

{
    abctime clk = Abc_Clock();
    Vec_Wec_t * vPolyn;
    Vec_Wec_t * vLit2Mono = Vec_WecStart( 2 * Gia_ManObjNum(pGia) ); // mapping AIG literals into monomials
    Hsh_VecMan_t * pHashC = Hsh_VecManStart( 1000 );    // hash table for constants
    Hsh_VecMan_t * pHashM = Hsh_VecManStart( 1000 );    // hash table for monomials
    Vec_Int_t * vCoefs    = Vec_IntAlloc( 1000 );       // monomial coefficients
    Vec_Int_t * vTempC    = Vec_IntAlloc( 10 );         // temporary array
    Vec_Int_t * vTempM    = Vec_IntAlloc( 10 );         // temporary array
    int i, k, iObj, iLit, iMono, nMonos = 0, nBuilds = 0;

    // add 0-constant and 1-monomial
    Hsh_VecManAdd( pHashC, vTempC );
    Hsh_VecManAdd( pHashM, vTempM );
    Vec_IntPush( vCoefs, 0 );

    // create output signature
    Vec_IntForEachEntry( vRootLits, iLit, i )
    {
        int Value = 1 + Abc_MinInt( i, Vec_IntSize(vRootLits)-nExtra );
        Vec_IntFill( vTempC, 1, (fSigned && i == Vec_IntSize(vRootLits)-1-nExtra) ? -Value : Value );
        Vec_IntFill( vTempM, 1, iLit );
        nMonos += Gia_PolynBuildAdd( pHashC, pHashM, vCoefs, vLit2Mono, vTempC, vTempM );
        nBuilds++;
    }

    // perform construction for internal nodes
    Vec_IntForEachEntryReverse( vNodes, iObj, i )
    {
        Gia_Obj_t * pObj = Gia_ManObj( pGia, iObj );
        int iLits[2] = { Abc_Var2Lit(iObj, 0),         Abc_Var2Lit(iObj, 1)         };
        int iFans[2] = { Gia_ObjFaninLit0(pObj, iObj), Gia_ObjFaninLit1(pObj, iObj) };
        // add inverter
        Vec_Int_t * vArray = Vec_WecEntry( vLit2Mono, iLits[1] );
        Vec_IntForEachEntry( vArray, iMono, k )
            if ( Vec_IntEntry(vCoefs, iMono) > 0 )
            {
                nMonos += Gia_PolynHandleOne( pHashC, pHashM, vCoefs, vLit2Mono, vTempC, vTempM, iMono, iLits[1], -1, -1 );
                nMonos += Gia_PolynHandleOne( pHashC, pHashM, vCoefs, vLit2Mono, vTempC, vTempM, iMono, iLits[1], iLits[0], -1 );
                Vec_IntWriteEntry( vCoefs, iMono, 0 );
                nMonos--;
                nBuilds++;
                nBuilds++;
            }
        // add AND gate
        vArray = Vec_WecEntry( vLit2Mono, iLits[0] );
        Vec_IntForEachEntry( vArray, iMono, k )
            if ( Vec_IntEntry(vCoefs, iMono) > 0 )
            {
                nMonos += Gia_PolynHandleOne( pHashC, pHashM, vCoefs, vLit2Mono, vTempC, vTempM, iMono, iLits[0], iFans[0], iFans[1] );
                Vec_IntWriteEntry( vCoefs, iMono, 0 );
                nMonos--;
                nBuilds++;
            }
        //printf( "Obj %5d : nMonos = %6d  nUsed = %6d\n", iObj, nBuilds, nMonos );
    }

    // complement leave nodes
    Vec_IntForEachEntry( vLeaves, iObj, i )
    {
        int iLits[2] = { Abc_Var2Lit(iObj, 0),  Abc_Var2Lit(iObj, 1) };
        // add inverter
        Vec_Int_t * vArray = Vec_WecEntry( vLit2Mono, iLits[1] );
        Vec_IntForEachEntry( vArray, iMono, k )
            if ( Vec_IntEntry(vCoefs, iMono) > 0 )
            {
                nMonos += Gia_PolynHandleOne( pHashC, pHashM, vCoefs, vLit2Mono, vTempC, vTempM, iMono, iLits[1], -1, -1 );
                nMonos += Gia_PolynHandleOne( pHashC, pHashM, vCoefs, vLit2Mono, vTempC, vTempM, iMono, iLits[1], iLits[0], -1 );
                Vec_IntWriteEntry( vCoefs, iMono, 0 );
                nMonos--;
                nBuilds++;
            }
    }

    // get the results
    vPolyn = Gia_PolynGetResult( pHashC, pHashM, vCoefs );

    printf( "HashC = %d. HashM = %d.  Total = %d. Left = %d.  Used = %d.  ",
        Hsh_VecSize(pHashC), Hsh_VecSize(pHashM), nBuilds, nMonos, Vec_WecSize(vPolyn)/2 );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );

    Vec_IntFree( vTempC );
    Vec_IntFree( vTempM );
    Vec_IntFree( vCoefs );
    Vec_WecFree( vLit2Mono );
    Hsh_VecManStop( pHashC );
    Hsh_VecManStop( pHashM );
    return vPolyn;
}

Here is the call graph for this function:

Gia_PolynGetResult()

Vec_Wec_t * Gia_PolynGetResult	(	Hsh_VecMan_t *	pHashC,
		Hsh_VecMan_t *	pHashM,
		Vec_Int_t *	vCoefs )

Definition at line 331 of file acecPo.c.

{
    Vec_Int_t * vClass, * vLevel, * vArray;
    Vec_Wec_t * vPolyn, * vSorted;
    int i, k, iConst, iMono, iFirst;
    // find the largest
    int nLargest = 0, nNonConst = 0;
    Vec_IntForEachEntry( vCoefs, iConst, iMono )
    {
        //Vec_IntPrint( Hsh_VecReadEntry(pHashM, iMono) );
        if ( iConst == 0 )
            continue;
        vArray = Hsh_VecReadEntry( pHashC, iConst );
        nLargest = Abc_MaxInt( nLargest, Abc_AbsInt(Vec_IntEntry(vArray, 0)) );
        nNonConst++;
    }
    // sort by the size of the largest coefficient
    vSorted = Vec_WecStart( nLargest+1 );
    Vec_IntForEachEntry( vCoefs, iConst, iMono )
    {
        if ( iConst == 0 )
            continue;
        vArray = Hsh_VecReadEntry( pHashC, iConst );
        vLevel = Vec_WecEntry( vSorted, Abc_AbsInt(Vec_IntEntry(vArray, 0)) );
        vArray = Hsh_VecReadEntry( pHashM, iMono );
        iFirst = Vec_IntSize(vArray) ? Vec_IntEntry(vArray, 0) : -1;
        Vec_IntPushThree( vLevel, iConst, iMono, iFirst );
    }
    // reload in the given order
    vPolyn = Vec_WecAlloc( 2*nNonConst );
    Vec_WecForEachLevel( vSorted, vClass, i )
    {
        // sort monomials by the index of the first variable
        qsort( Vec_IntArray(vClass), (size_t)(Vec_IntSize(vClass)/3), 12, (int (*)(const void *, const void *))Gia_PolynGetResultCompare );
        Vec_IntForEachEntryTriple( vClass, iConst, iMono, iFirst, k )
        {
            vArray = Hsh_VecReadEntry( pHashC, iConst );
            Vec_IntCheckUniqueOrderAbs( vArray );
            vLevel = Vec_WecPushLevel( vPolyn );
            Vec_IntGrow( vLevel, Vec_IntSize(vArray) );
            Vec_IntAppend( vLevel, vArray );

            vArray = Hsh_VecReadEntry( pHashM, iMono );
            Vec_IntCheckUniqueOrder( vArray );
            vLevel = Vec_WecPushLevel( vPolyn );
            Vec_IntGrow( vLevel, Vec_IntSize(vArray) );
            Vec_IntAppend( vLevel, vArray );
        }
    }
    assert( Vec_WecSize(vPolyn) == 2*nNonConst );
    Vec_WecFree( vSorted );
    return vPolyn;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_PolynGetResultCompare()

int Gia_PolynGetResultCompare	(	int *	p0,
		int *	p1 )

Function*************************************************************

Synopsis [Collects polynomial.]

Description [Collects non-trivial monomials in the increasing order of the absolute value of the their first coefficients.]

SideEffects []

SeeAlso []

Definition at line 325 of file acecPo.c.

{
    if ( p0[2] < p1[2] ) return -1;
    if ( p0[2] > p1[2] ) return  1;
    return 0;
}

Here is the caller graph for this function:

Gia_PolynPrint()

void Gia_PolynPrint

(

Vec_Wec_t *

vPolyn

)

Definition at line 269 of file acecPo.c.

{
    Vec_Int_t * vConst, * vMono;
    int i, Prev = -1;
    printf( "Polynomial with %d monomials:\n", Vec_WecSize(vPolyn)/2 );
    for ( i = 0; i < Vec_WecSize(vPolyn)/2; i++ )
    {
        vConst = Vec_WecEntry( vPolyn, 2*i+0 );
        vMono  = Vec_WecEntry( vPolyn, 2*i+1 );
        Gia_PolynPrintMono( vConst, vMono, Prev );
        Prev = Abc_AbsInt( Vec_IntEntry(vConst, 0) );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_PolynPrintMono()

void Gia_PolynPrintMono	(	Vec_Int_t *	vConst,
		Vec_Int_t *	vMono,
		int	Prev )

Function*************************************************************

Synopsis [Prints polynomial.]

Description []

SideEffects []

SeeAlso []

Definition at line 259 of file acecPo.c.

{
    int k, Entry;
    printf( "%c ", Prev != Abc_AbsInt(Vec_IntEntry(vConst, 0)) ? '|' : ' ' );
    Vec_IntForEachEntry( vConst, Entry, k )
        printf( "%s2^%d", Entry < 0 ? "-" : "+", Abc_AbsInt(Entry)-1 );
    Vec_IntForEachEntry( vMono, Entry, k )
        printf( " * i%d", Entry-1 );
    printf( "\n" );
}

Here is the caller graph for this function:

Gia_PolynPrintStats()

void Gia_PolynPrintStats

(

Vec_Wec_t *

vPolyn

)

Definition at line 282 of file acecPo.c.

{
    Vec_Int_t * vConst, * vCountsP, * vCountsN;
    int i, Entry, Max = 0;
    printf( "Input signature with %d monomials:\n", Vec_WecSize(vPolyn)/2 );
    for ( i = 0; i < Vec_WecSize(vPolyn)/2; i++ )
    {
        vConst = Vec_WecEntry( vPolyn, 2*i+0 );
        Max = Abc_MaxInt( Max, Abc_AbsInt(Abc_AbsInt(Vec_IntEntry(vConst, 0))) );
    }
    vCountsP = Vec_IntStart( Max + 1 );
    vCountsN = Vec_IntStart( Max + 1 );
    for ( i = 0; i < Vec_WecSize(vPolyn)/2; i++ )
    {
        vConst = Vec_WecEntry( vPolyn, 2*i+0 );
        Entry = Vec_IntEntry(vConst, 0);
        if ( Entry > 0 )
            Vec_IntAddToEntry( vCountsP, Entry, 1 );
        else
            Vec_IntAddToEntry( vCountsN, -Entry, 1 );
    }
    Vec_IntForEachEntry( vCountsN, Entry, i )
        if ( Entry )
            printf( "  -2^%d appears %d times\n", Abc_AbsInt(i)-1, Entry );
    Vec_IntForEachEntry( vCountsP, Entry, i )
        if ( Entry )
            printf( "  +2^%d appears %d times\n", Abc_AbsInt(i)-1, Entry );
    Vec_IntFree( vCountsP );
    Vec_IntFree( vCountsN );
}

Here is the caller graph for this function:
