acecUtil.c File Reference

#include "acecInt.h"

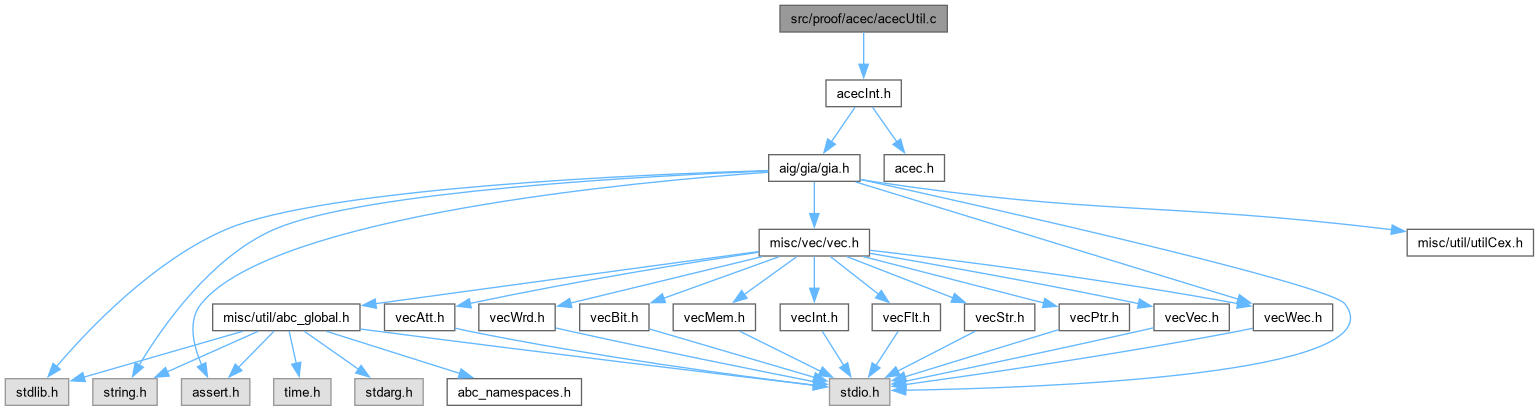

Include dependency graph for acecUtil.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Gia_PolynCollectXors_rec (Gia_Man_t *pGia, int iObj, Vec_Int_t *vXors)
	DECLARATIONS ///.
Vec_Int_t *	Gia_PolynCollectLastXor (Gia_Man_t *pGia, int fVerbose)
void	Gia_PolynAnalyzeXors (Gia_Man_t *pGia, int fVerbose)
Gia_Man_t *	Gia_ManDupTopMostRange (Gia_Man_t *p)

Function Documentation

Gia_ManDupTopMostRange()

Gia_Man_t * Gia_ManDupTopMostRange

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 104 of file acecUtil.c.

{
    Gia_Man_t * pNew;
    Vec_Int_t * vTops = Vec_IntAlloc( 10 );
    int i;
    for ( i = 45; i < 52; i++ )
        Vec_IntPush( vTops, Gia_ObjId( p, Gia_ObjFanin0(Gia_ManCo(p, i)) ) );
    pNew = Gia_ManDupAndConesLimit( p, Vec_IntArray(vTops), Vec_IntSize(vTops), 100 );
    Vec_IntFree( vTops );
    return pNew;
}

Here is the call graph for this function:

Gia_PolynAnalyzeXors()

void Gia_PolynAnalyzeXors	(	Gia_Man_t *	pGia,
		int	fVerbose )

Definition at line 69 of file acecUtil.c.

{
    int i, iDriver, Count = 0;
    Vec_Int_t * vXors = Vec_IntAlloc( 100 );
    if ( pGia->pMuxes == NULL )
    {
        printf( "AIG does not have XORs extracted.\n" );
        return;
    }
    assert( pGia->pMuxes );
    Gia_ManForEachCoDriverId( pGia, iDriver, i )
    {
        Vec_IntClear( vXors );
        Gia_ManIncrementTravId( pGia );
        Gia_PolynCollectXors_rec( pGia, iDriver, vXors );
        //printf( "%3d : ", i );
        //Vec_IntPrint( vXors );
        printf( "%d=%d  ", i, Vec_IntSize(vXors) );
        Count += Vec_IntSize(vXors);
    }
    printf( "Total = %d.\n", Count );
    Vec_IntFree( vXors );
}

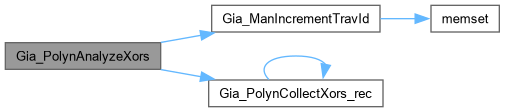

Here is the call graph for this function:

Gia_PolynCollectLastXor()

Vec_Int_t * Gia_PolynCollectLastXor	(	Gia_Man_t *	pGia,
		int	fVerbose )

Definition at line 57 of file acecUtil.c.

{
    Vec_Int_t * vXors = Vec_IntAlloc( 100 );
    Gia_Obj_t * pObj = Gia_ManCo( pGia, Gia_ManCoNum(pGia)-1 );
    ABC_FREE( pGia->pRefs );
    Gia_ManCreateRefs( pGia );
    Gia_ManIncrementTravId( pGia );
    Gia_PolynCollectXors_rec( pGia, Gia_ObjFaninId0p(pGia, pObj), vXors );
    Vec_IntReverseOrder( vXors );
    ABC_FREE( pGia->pRefs );
    return vXors;
}

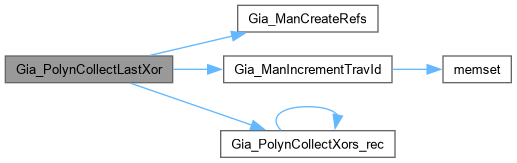

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_PolynCollectXors_rec()

ABC_NAMESPACE_IMPL_START void Gia_PolynCollectXors_rec	(	Gia_Man_t *	pGia,
		int	iObj,
		Vec_Int_t *	vXors )

DECLARATIONS ///.

CFile****************************************************************

FileName [acecUtil.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [CEC for arithmetic circuits.]

Synopsis [Various utilities.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

acecUtil.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file acecUtil.c.

{
    Gia_Obj_t * pObj = Gia_ManObj( pGia, iObj );
    if ( Gia_ObjIsTravIdCurrent(pGia, pObj) )
        return;
    Gia_ObjSetTravIdCurrent(pGia, pObj);
    if ( !Gia_ObjIsAnd(pObj) || !Gia_ObjIsXor(pObj) || Gia_ObjRefNum(pGia, pObj) > 1 )
        return;
    Gia_PolynCollectXors_rec( pGia, Gia_ObjFaninId0(pObj, iObj), vXors );
    Gia_PolynCollectXors_rec( pGia, Gia_ObjFaninId1(pObj, iObj), vXors );
    Vec_IntPushUnique( vXors, iObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:
