aigDoms.c File Reference

#include "aig.h"
#include "aig/saig/saig.h"

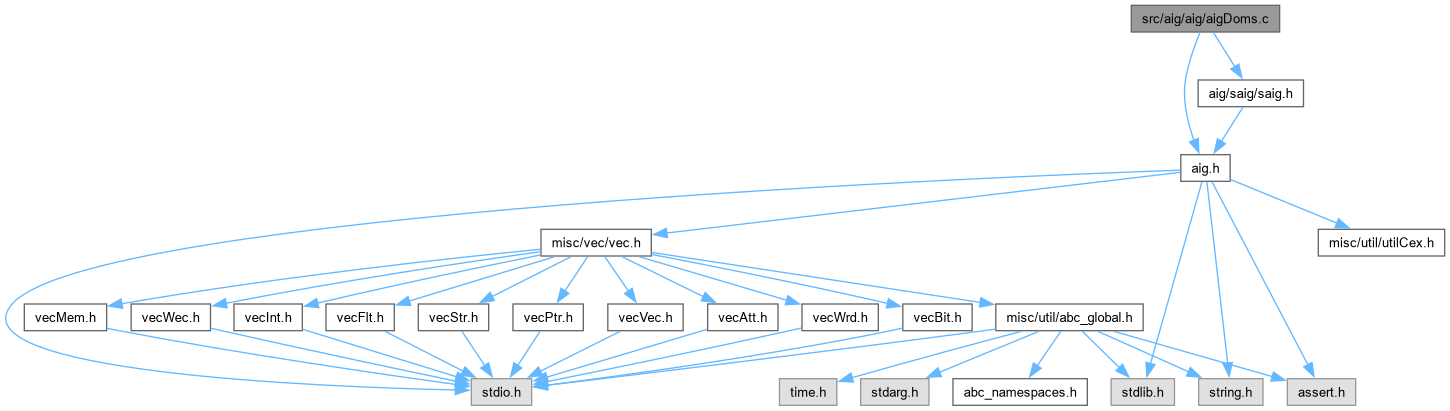

Include dependency graph for aigDoms.c:

Go to the source code of this file.

Classes
struct	Aig_Dom_t_
struct	Aig_Sto_t_

Macros
#define	Aig_DomForEachNode(pAig, pDom, pNode, i)

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Aig_Sto_t_	Aig_Sto_t
	DECLARATIONS ///.
typedef struct Aig_Dom_t_	Aig_Dom_t

Functions
Aig_Sto_t *	Aig_ManDomStart (Aig_Man_t *pAig, int Limit)
	FUNCTION DEFINITIONS ///.
void	Aig_ObjAddTriv (Aig_Sto_t *pSto, int Id, Vec_Ptr_t *vDoms)
Vec_Ptr_t *	Aig_ObjDomVecDup (Aig_Sto_t *pSto, Vec_Ptr_t *vDoms, int fSkip1)
void	Aig_ObjDomVecRecycle (Aig_Sto_t *pSto, Vec_Ptr_t *vDoms)
void	Aig_ObjDomPrint (Aig_Sto_t *pSto, Aig_Dom_t *pDom, int Num)
void	Aig_ObjDomVecPrint (Aig_Sto_t *pSto, Vec_Ptr_t *vDoms)
void	Aig_ManDomPrint (Aig_Sto_t *pSto)
void	Aig_ManDomStop (Aig_Sto_t *pSto)
int	Aig_ObjDomCheck (Aig_Dom_t *pDom)
int	Aig_ObjDomFilter (Aig_Sto_t *pSto, Vec_Ptr_t *vDoms, Aig_Dom_t *pDom)
int	Aig_ObjDomMergeTwo (Aig_Dom_t *pDom0, Aig_Dom_t *pDom1, Aig_Dom_t *pDom, int Limit)
Vec_Ptr_t *	Aig_ObjDomMerge (Aig_Sto_t *pSto, Vec_Ptr_t *vDoms0, Vec_Ptr_t *vDoms1)
void	Aig_ObjDomUnion (Aig_Sto_t *pSto, Vec_Ptr_t *vDoms2, Vec_Ptr_t *vDoms1)
void	Aig_ObjDomCompute (Aig_Sto_t *pSto, Aig_Obj_t *pObj)
int	Aig_ManMarkFlopTfi_rec (Aig_Man_t *p, Aig_Obj_t *pObj)
void	Aig_ManMarkFlopTfi (Aig_Man_t *p)
Aig_Sto_t *	Aig_ManComputeDomsFlops (Aig_Man_t *pAig, int Limit)
Aig_Sto_t *	Aig_ManComputeDomsPis (Aig_Man_t *pAig, int Limit)
Aig_Sto_t *	Aig_ManComputeDomsNodes (Aig_Man_t *pAig, int Limit)
Vec_Ptr_t *	Aig_ObjDomCollect (Aig_Sto_t *pSto, Vec_Int_t *vCut)
int	Aig_ObjDomVolume_rec (Aig_Man_t *p, Aig_Obj_t *pObj)
int	Aig_ObjDomVolume (Aig_Sto_t *pSto, Aig_Dom_t *pDom)
int	Aig_ObjDomDeref_rec (Aig_Obj_t *pNode)
int	Aig_ObjDomRef_rec (Aig_Obj_t *pNode)
int	Aig_ObjDomDomed (Aig_Sto_t *pSto, Aig_Dom_t *pDom)
Vec_Int_t *	Aig_ObjDomCollectLos (Aig_Sto_t *pSto)
void	Aig_ObjPoLogicDeref (Aig_Sto_t *pSto)
void	Aig_ObjPoLogicRef (Aig_Sto_t *pSto)
void	Aig_ObjDomFindGood (Aig_Sto_t *pSto)
void	Aig_ManComputeDomsTest2 (Aig_Man_t *pAig, int Num)
void	Aig_ManComputeDomsTest (Aig_Man_t *pAig)
void	Aig_ObjDomCount (Aig_Sto_t *pSto, Aig_Obj_t *pObj)
void	Aig_ManComputeDomsForCofactoring (Aig_Man_t *pAig)

Macro Definition Documentation

Aig_DomForEachNode

#define Aig_DomForEachNode	(		pAig,
			pDom,
			pNode,
			i )

Value:

    for ( i = 0; (i < pDom->nNodes) && ((pNode) = Aig_ManObj(pAig, (pDom)->pNodes[i])); i++ )

Definition at line 54 of file aigDoms.c.

#define Aig_DomForEachNode( pAig, pDom, pNode, i )                         \
    for ( i = 0; (i < pDom->nNodes) && ((pNode) = Aig_ManObj(pAig, (pDom)->pNodes[i])); i++ )

Typedef Documentation

Aig_Dom_t

typedef struct Aig_Dom_t_ Aig_Dom_t

Definition at line 31 of file aigDoms.c.

Aig_Sto_t

typedef typedefABC_NAMESPACE_IMPL_START struct Aig_Sto_t_ Aig_Sto_t

DECLARATIONS ///.

CFile****************************************************************

FileName [aigDoms.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [AIG package.]

Synopsis [Computing multi-output dominators.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

aigDoms.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

]

Definition at line 30 of file aigDoms.c.

Function Documentation

Aig_ManComputeDomsFlops()

Aig_Sto_t * Aig_ManComputeDomsFlops	(	Aig_Man_t *	pAig,
		int	Limit )

Function*************************************************************

Synopsis [Computes multi-node dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 621 of file aigDoms.c.

{
    Aig_Sto_t * pSto;
    Vec_Ptr_t * vNodes;
    Aig_Obj_t * pObj;
    int i;
    abctime clk = Abc_Clock();
    pSto = Aig_ManDomStart( pAig, Limit );
    // initialize flop inputs
    Saig_ManForEachLi( pAig, pObj, i )
        Aig_ObjAddTriv( pSto, pObj->Id, Vec_PtrAlloc(1) );
    // compute internal nodes
    vNodes = Aig_ManDfsReverse( pAig );
    Aig_ManMarkFlopTfi( pAig );
    Vec_PtrForEachEntry( Aig_Obj_t *, vNodes, pObj, i )
        if ( Aig_ObjIsTravIdCurrent(pSto->pAig, pObj) )
            Aig_ObjDomCompute( pSto, pObj );
    Vec_PtrFree( vNodes );
    // compute combinational inputs
    Aig_ManForEachCi( pAig, pObj, i )
        Aig_ObjDomCompute( pSto, pObj );
    // print statistics
    printf( "Nodes =%4d. Flops =%4d. Doms =%9d. Ave =%8.2f.   ",
        pSto->nDomNodes, Aig_ManRegNum(pSto->pAig), pSto->nDomsTotal,
//        pSto->nDomsFilter1, pSto->nDomsFilter2,
        1.0 * pSto->nDomsTotal / (pSto->nDomNodes + Aig_ManRegNum(pSto->pAig)) );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    return pSto;
}

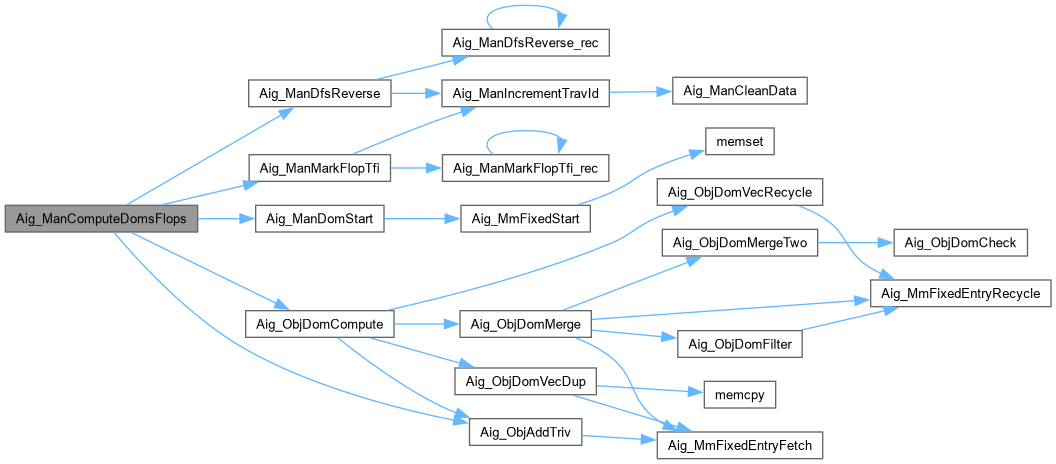

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManComputeDomsForCofactoring()

void Aig_ManComputeDomsForCofactoring

(

Aig_Man_t *

pAig

)

Function*************************************************************

Synopsis [Computes multi-node dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 1120 of file aigDoms.c.

{
    Vec_Ptr_t * vDoms;
    Aig_Sto_t * pSto;
    Aig_Obj_t * pObj;
    int i;
    Aig_ManFanoutStart( pAig );
    pSto = Aig_ManComputeDomsNodes( pAig, 1 );
    Aig_ManForEachObj( pAig, pObj, i )
    {
        if ( !Aig_ObjIsCi(pObj) && !Aig_ObjIsNode(pObj) )
            continue;
        if ( Aig_ObjRefs(pObj) < 10 )
            continue;
        vDoms = (Vec_Ptr_t *)Vec_PtrEntry( pSto->vDoms, Aig_ObjId(pObj) );
//        printf( "%6d : Level =%4d. Fanout =%6d.\n",
//            Aig_ObjId(pObj), Aig_ObjLevel(pObj), Aig_ObjRefs(pObj) );

        Aig_ObjDomCount( pSto, pObj );
    }
    Aig_ManDomStop( pSto );
    Aig_ManFanoutStop( pAig );
}

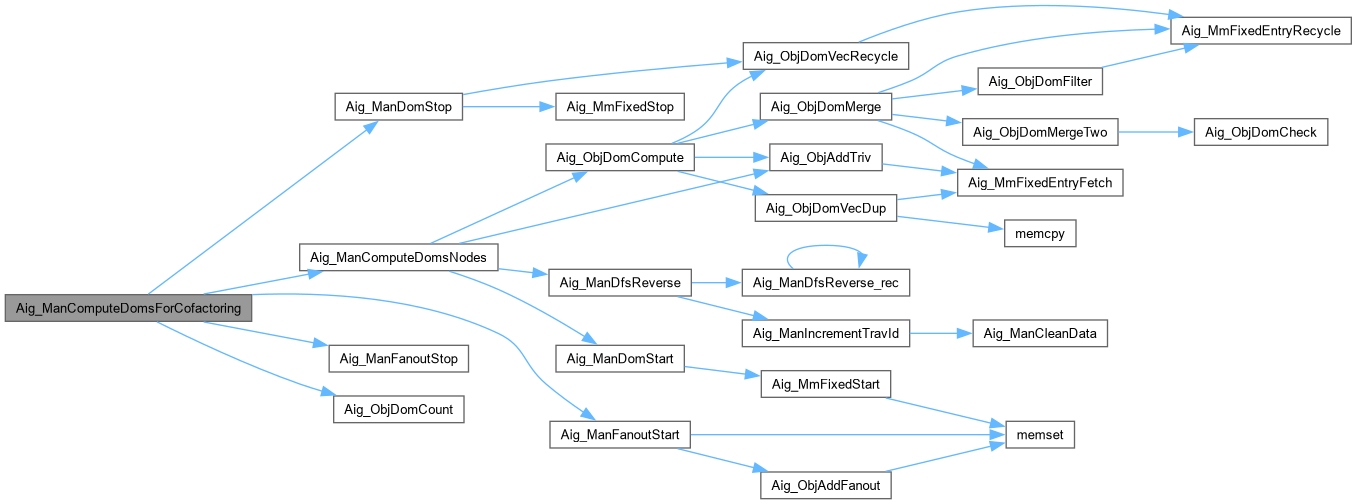

Here is the call graph for this function:

Aig_ManComputeDomsNodes()

Aig_Sto_t * Aig_ManComputeDomsNodes	(	Aig_Man_t *	pAig,
		int	Limit )

Function*************************************************************

Synopsis [Computes multi-node dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 703 of file aigDoms.c.

{
    Aig_Sto_t * pSto;
    Vec_Ptr_t * vNodes;
    Aig_Obj_t * pObj;
    int i;
    abctime clk = Abc_Clock();
    pSto = Aig_ManDomStart( pAig, Limit );
    // initialize flop inputs
    Aig_ManForEachCo( pAig, pObj, i )
        Aig_ObjAddTriv( pSto, pObj->Id, Vec_PtrAlloc(1) );
    // compute internal nodes
    vNodes = Aig_ManDfsReverse( pAig );
    Vec_PtrForEachEntry( Aig_Obj_t *, vNodes, pObj, i )
        Aig_ObjDomCompute( pSto, pObj );
    Vec_PtrFree( vNodes );
    // compute combinational inputs
    Aig_ManForEachCi( pAig, pObj, i )
        Aig_ObjDomCompute( pSto, pObj );
    // print statistics
    printf( "Nodes =%6d. Doms =%9d. Ave =%8.2f.   ",
        pSto->nDomNodes, pSto->nDomsTotal,
//        pSto->nDomsFilter1, pSto->nDomsFilter2,
        1.0 * pSto->nDomsTotal / pSto->nDomNodes );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    return pSto;
}

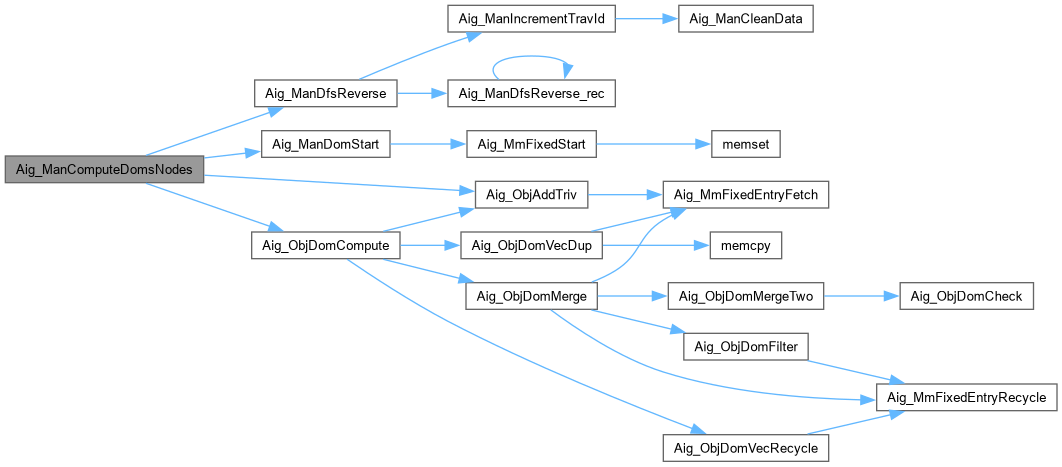

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManComputeDomsPis()

Aig_Sto_t * Aig_ManComputeDomsPis	(	Aig_Man_t *	pAig,
		int	Limit )

Function*************************************************************

Synopsis [Computes multi-node dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 662 of file aigDoms.c.

{
    Aig_Sto_t * pSto;
    Vec_Ptr_t * vNodes;
    Aig_Obj_t * pObj;
    int i;
    abctime clk = Abc_Clock();
    pSto = Aig_ManDomStart( pAig, Limit );
    // initialize flop inputs
    Aig_ManForEachCo( pAig, pObj, i )
        Aig_ObjAddTriv( pSto, pObj->Id, Vec_PtrAlloc(1) );
    // compute internal nodes
    vNodes = Aig_ManDfsReverse( pAig );
    Aig_ManMarkFlopTfi( pAig );
    Vec_PtrForEachEntry( Aig_Obj_t *, vNodes, pObj, i )
        if ( Aig_ObjIsTravIdCurrent(pSto->pAig, pObj) )
            Aig_ObjDomCompute( pSto, pObj );
    Vec_PtrFree( vNodes );
    // compute combinational inputs
    Saig_ManForEachPi( pAig, pObj, i )
        Aig_ObjDomCompute( pSto, pObj );
    // print statistics
    printf( "Nodes =%4d. PIs =%4d. Doms =%9d. Ave =%8.2f.   ",
        pSto->nDomNodes, Saig_ManPiNum(pSto->pAig), pSto->nDomsTotal,
//        pSto->nDomsFilter1, pSto->nDomsFilter2,
        1.0 * pSto->nDomsTotal / (pSto->nDomNodes + Saig_ManPiNum(pSto->pAig)) );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    return pSto;
}

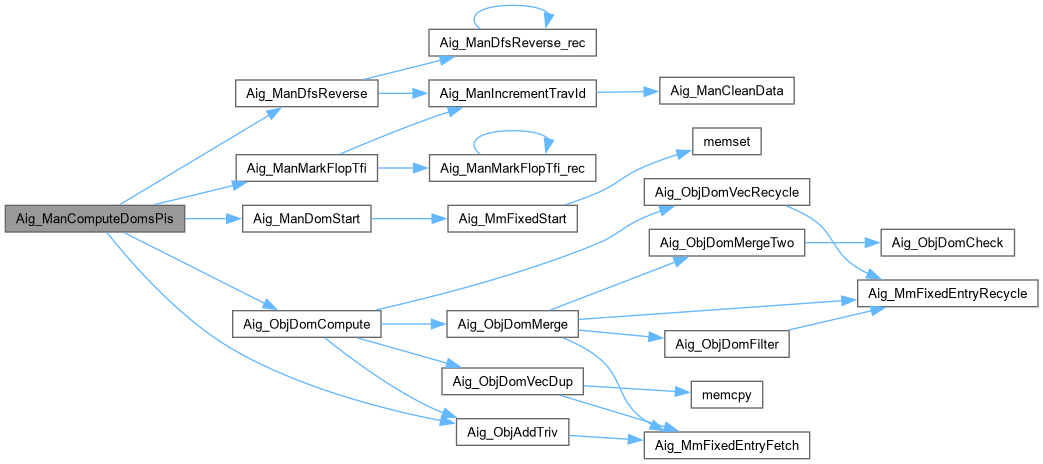

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManComputeDomsTest()

void Aig_ManComputeDomsTest

(

Aig_Man_t *

pAig

)

Function*************************************************************

Synopsis [Computes multi-node dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 1044 of file aigDoms.c.

{
    Aig_Sto_t * pSto;
    Aig_ManFanoutStart( pAig );
    pSto = Aig_ManComputeDomsPis( pAig, 1 );
    Aig_ManDomPrint( pSto );
    Aig_ManDomStop( pSto );
    Aig_ManFanoutStop( pAig );
}

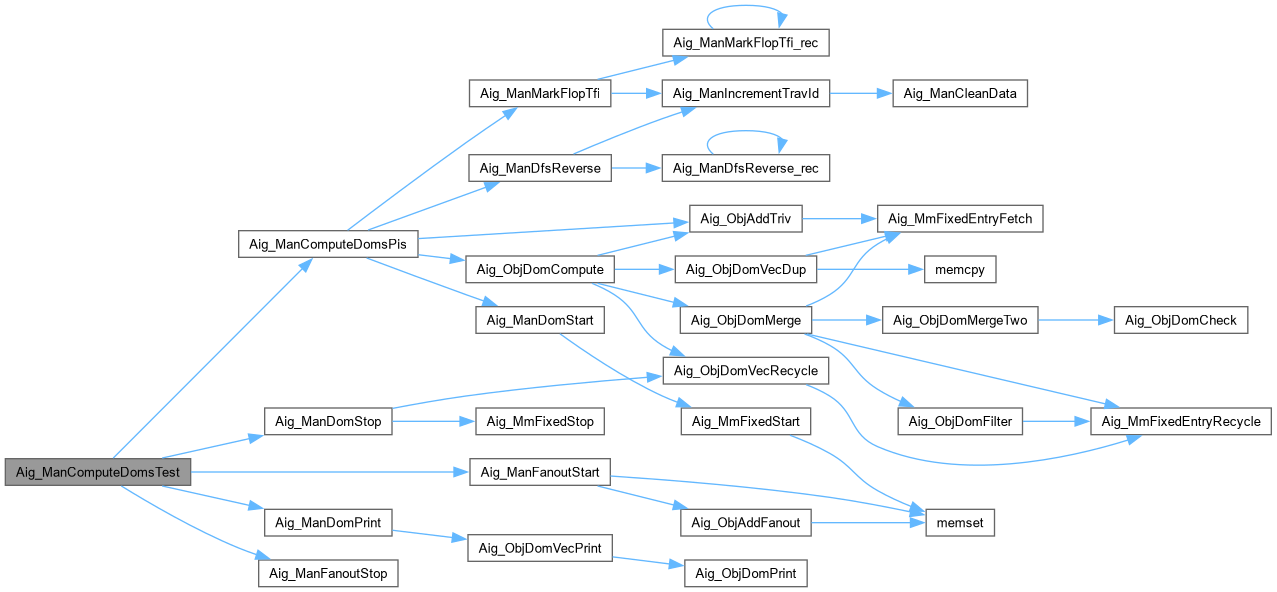

Here is the call graph for this function:

Aig_ManComputeDomsTest2()

void Aig_ManComputeDomsTest2	(	Aig_Man_t *	pAig,
		int	Num )

Function*************************************************************

Synopsis [Computes multi-node dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 1016 of file aigDoms.c.

{
    Aig_Sto_t * pSto;
//    int i;
//Aig_ManShow( pAig, 0, NULL );
    Aig_ManFanoutStart( pAig );
//    for ( i = 1; i < 9; i++ )
    {
        printf( "ITERATION %d:\n", Num );
        pSto = Aig_ManComputeDomsFlops( pAig, Num );
        Aig_ObjDomFindGood( pSto );
//        Aig_ManDomPrint( pSto );
        Aig_ManDomStop( pSto );
    }
    Aig_ManFanoutStop( pAig );
}

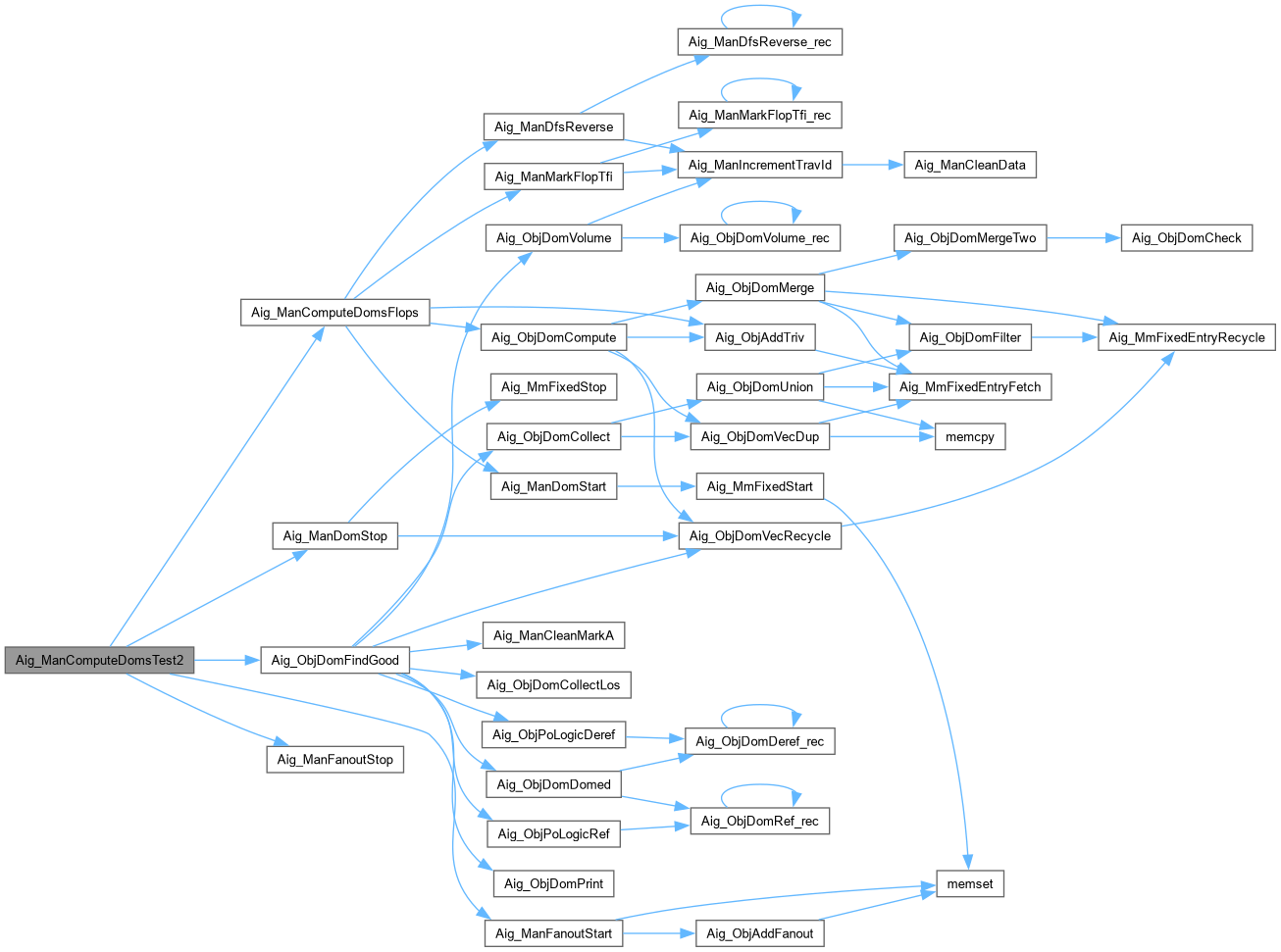

Here is the call graph for this function:

Aig_ManDomPrint()

void Aig_ManDomPrint

(

Aig_Sto_t *

pSto

)

Function*************************************************************

Synopsis [Computes multi-node dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 206 of file aigDoms.c.

{
    Aig_Obj_t * pObj;
    int i;
    Saig_ManForEachPi( pSto->pAig, pObj, i )
    {
        printf( "*** PI %4d %4d :\n", i, pObj->Id );
        Aig_ObjDomVecPrint( pSto, (Vec_Ptr_t *)Vec_PtrEntry(pSto->vDoms, pObj->Id) );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManDomStart()

Aig_Sto_t * Aig_ManDomStart	(	Aig_Man_t *	pAig,
		int	Limit )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Creates dominator manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 72 of file aigDoms.c.

{
    Aig_Sto_t * pSto;
    pSto = ABC_CALLOC( Aig_Sto_t, 1 );
    pSto->pAig     = pAig;
    pSto->Limit    = Limit;
    pSto->pMem     = Aig_MmFixedStart( sizeof(Aig_Dom_t) + sizeof(int) * Limit, 10000 );
    pSto->vDoms    = Vec_PtrStart( Aig_ManObjNumMax(pAig) );
    pSto->vFans    = Vec_IntAlloc( 100 );
    pSto->vTimes   = Vec_IntStart( Aig_ManObjNumMax(pAig) );
    return pSto;
}

Here is the call graph for this function:

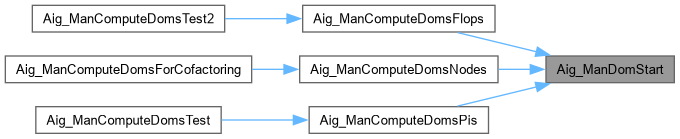

Here is the caller graph for this function:

Aig_ManDomStop()

void Aig_ManDomStop

(

Aig_Sto_t *

pSto

)

Function*************************************************************

Synopsis [Divides the circuit into well-balanced parts.]

Description []

SideEffects []

SeeAlso []

Definition at line 228 of file aigDoms.c.

{
    Vec_Ptr_t * vDoms;
    int i;
    Vec_PtrForEachEntry( Vec_Ptr_t *, pSto->vDoms, vDoms, i )
        if ( vDoms )
            Aig_ObjDomVecRecycle( pSto, vDoms );
    Vec_PtrFree( pSto->vDoms );
    Vec_IntFree( pSto->vFans );
    Vec_IntFree( pSto->vTimes );
    Aig_MmFixedStop( pSto->pMem, 0 );
    ABC_FREE( pSto );
}

Here is the call graph for this function:

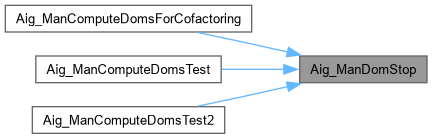

Here is the caller graph for this function:

Aig_ManMarkFlopTfi()

void Aig_ManMarkFlopTfi

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Marks the flop TFI with the current traversal ID.]

Description []

SideEffects []

SeeAlso []

Definition at line 601 of file aigDoms.c.

{
    Aig_Obj_t * pObj;
    int i;
    Aig_ManIncrementTravId( p );
    Saig_ManForEachLi( p, pObj, i )
        Aig_ManMarkFlopTfi_rec( p, pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManMarkFlopTfi_rec()

int Aig_ManMarkFlopTfi_rec	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Marks the flop TFI with the current traversal ID.]

Description []

SideEffects []

SeeAlso []

Definition at line 575 of file aigDoms.c.

{
    int Count;
    assert( !Aig_IsComplement(pObj) );
    if ( Aig_ObjIsTravIdCurrent(p, pObj) )
        return 0;
    Aig_ObjSetTravIdCurrent(p, pObj);
    if ( Aig_ObjIsCi(pObj) || Aig_ObjIsConst1(pObj) )
        return 1;
    Count = Aig_ManMarkFlopTfi_rec( p, Aig_ObjFanin0(pObj) );
    if ( Aig_ObjIsNode(pObj) )
        Count += Aig_ManMarkFlopTfi_rec( p, Aig_ObjFanin1(pObj) );
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjAddTriv()

void Aig_ObjAddTriv	(	Aig_Sto_t *	pSto,
		int	Id,
		Vec_Ptr_t *	vDoms )

Function*************************************************************

Synopsis [Adds trivial dominator.]

Description []

SideEffects []

SeeAlso []

Definition at line 96 of file aigDoms.c.

{
    Aig_Dom_t * pDom;
    pDom = (Aig_Dom_t *)Aig_MmFixedEntryFetch( pSto->pMem );
    pDom->uSign     = (1 << (Id % 63));
    pDom->nNodes    = 1;
    pDom->pNodes[0] = Id;
    Vec_PtrPushFirst( vDoms, pDom );
    assert( Vec_PtrEntry( pSto->vDoms, Id ) == NULL );
    Vec_PtrWriteEntry( pSto->vDoms, Id, vDoms );
}

Here is the call graph for this function:

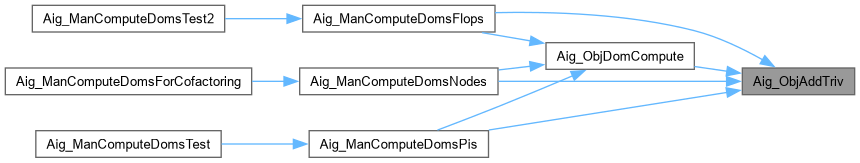

Here is the caller graph for this function:

Aig_ObjDomCheck()

int Aig_ObjDomCheck

(

Aig_Dom_t *

pDom

)

Function*************************************************************

Synopsis [Checks correctness of the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 254 of file aigDoms.c.

{
    int i;
    for ( i = 1; i < pDom->nNodes; i++ )
    {
        if ( pDom->pNodes[i-1] >= pDom->pNodes[i] )
        {
            Abc_Print( -1, "Aig_ObjDomCheck(): Cut has wrong ordering of inputs.\n" );
            return 0;
        }
        assert( pDom->pNodes[i-1] < pDom->pNodes[i] );
    }
    return 1;
}

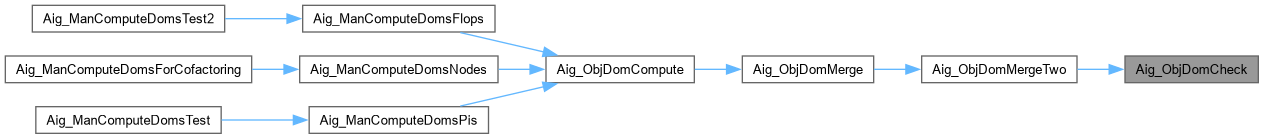

Here is the caller graph for this function:

Aig_ObjDomCollect()

Vec_Ptr_t * Aig_ObjDomCollect	(	Aig_Sto_t *	pSto,
		Vec_Int_t *	vCut )

Function*************************************************************

Synopsis [Collects dominators from the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 742 of file aigDoms.c.

{
    Vec_Ptr_t * vDoms0, * vDoms1, * vDoms2;
    int i, ObjId;
    vDoms0 = (Vec_Ptr_t *)Vec_PtrEntry( pSto->vDoms, Vec_IntEntry(vCut, 0) );
    vDoms2 = Aig_ObjDomVecDup( pSto, vDoms0, 1 );
    Vec_IntForEachEntryStart( vCut, ObjId, i, 1 )
    {
        vDoms1 = (Vec_Ptr_t *)Vec_PtrEntry( pSto->vDoms, ObjId );
        if ( vDoms1 == NULL )
            continue;
        Aig_ObjDomUnion( pSto, vDoms2, vDoms1 );
    }
    return vDoms2;
}

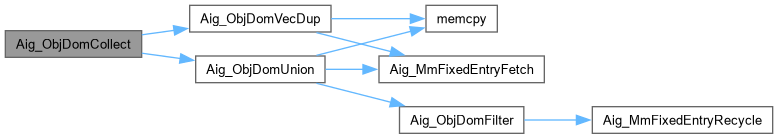

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjDomCollectLos()

Vec_Int_t * Aig_ObjDomCollectLos

(

Aig_Sto_t *

pSto

)

Function*************************************************************

Synopsis [Collects dominators from the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 915 of file aigDoms.c.

{
    Vec_Int_t * vCut;
    Aig_Obj_t * pObj;
    int i;
    vCut = Vec_IntAlloc( Aig_ManRegNum(pSto->pAig) );
    Saig_ManForEachLo( pSto->pAig, pObj, i )
    {
        Vec_IntPush( vCut, pObj->Id );
        pObj->fMarkA = 1;
    }
    return vCut;
}

Here is the caller graph for this function:

Aig_ObjDomCompute()

void Aig_ObjDomCompute	(	Aig_Sto_t *	pSto,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Computes multi-node dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 540 of file aigDoms.c.

{
    Vec_Ptr_t * vDoms0, * vDoms1, * vDoms2, * vDomsT;
    Aig_Obj_t * pFanout;
    int i, iFanout;
    pSto->nDomNodes += Aig_ObjIsNode(pObj);
    Vec_IntClear( pSto->vFans );
    Aig_ObjForEachFanout( pSto->pAig, pObj, pFanout, iFanout, i )
        if ( Aig_ObjIsTravIdCurrent(pSto->pAig, pFanout) )
            Vec_IntPush( pSto->vFans, iFanout>>1 );
    if ( Vec_IntSize(pSto->vFans) == 0 )
        return;
    vDoms0 = (Vec_Ptr_t *)Vec_PtrEntry( pSto->vDoms, Vec_IntEntry(pSto->vFans, 0) );
    vDoms2 = Aig_ObjDomVecDup( pSto, vDoms0, 0 );
    Vec_IntForEachEntryStart( pSto->vFans, iFanout, i, 1 )
    {
        vDoms1 = (Vec_Ptr_t *)Vec_PtrEntry( pSto->vDoms, iFanout );
        vDoms2 = Aig_ObjDomMerge( pSto, vDomsT = vDoms2, vDoms1 );
        Aig_ObjDomVecRecycle( pSto, vDomsT );
    }
    Aig_ObjAddTriv( pSto, pObj->Id, vDoms2 );
    pSto->nDomsTotal += Vec_PtrSize(vDoms2);
}

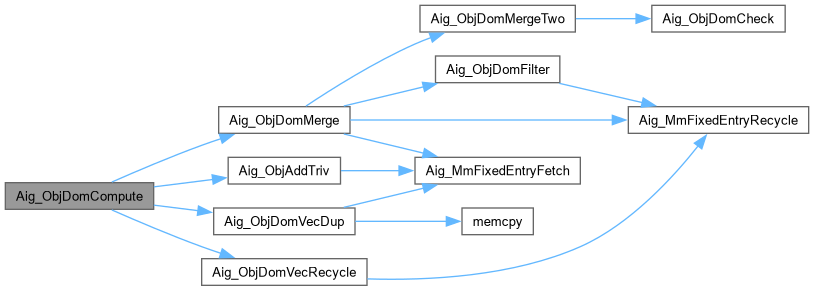

Here is the call graph for this function:

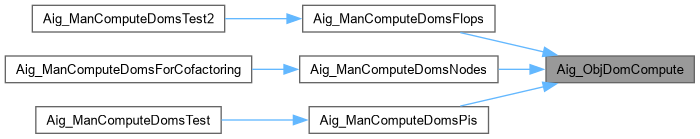

Here is the caller graph for this function:

Aig_ObjDomCount()

void Aig_ObjDomCount	(	Aig_Sto_t *	pSto,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Collects dominators from the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 1069 of file aigDoms.c.

{
    Aig_Dom_t * pDom;
    Aig_Obj_t * pFanout;
    Vec_Int_t * vSingles;
    Vec_Ptr_t * vDoms;
    int i, k, Entry, iFanout, fPrint = 0;
    vSingles = Vec_IntAlloc( 100 );
    // for each dominator of a fanout, count how many fanouts have it as a dominator
    Aig_ObjForEachFanout( pSto->pAig, pObj, pFanout, iFanout, i )
    {
        vDoms = (Vec_Ptr_t *)Vec_PtrEntry( pSto->vDoms, Aig_ObjId(pFanout) );
        Vec_PtrForEachEntryStart( Aig_Dom_t *, vDoms, pDom, k, 1 )
        {
//            printf( "Fanout %d  Dominator %d\n", Aig_ObjId(pFanout), pDom->pNodes[0] );
            Vec_IntAddToEntry( pSto->vTimes, pDom->pNodes[0], 1 );
            Vec_IntPushUnique( vSingles, pDom->pNodes[0] );
        }
    }
    // clear storage
    Vec_IntForEachEntry( vSingles, Entry, i )
    {
        if ( Vec_IntEntry(pSto->vTimes, Entry) > 5 )
        {
            if ( fPrint == 0 )
            {
                printf( "%6d : Level =%4d. Fanout =%6d.\n",
                    Aig_ObjId(pObj), Aig_ObjLevel(pObj), Aig_ObjRefs(pObj) );
            }
            fPrint = 1;
            printf( "%d(%d) ", Entry, Vec_IntEntry(pSto->vTimes, Entry) );
        }
        Vec_IntWriteEntry( pSto->vTimes, Entry, 0);
    }
    if ( fPrint )
        printf( "\n" );
    Vec_IntFree( vSingles );
}

Here is the caller graph for this function:

Aig_ObjDomDeref_rec()

int Aig_ObjDomDeref_rec

(

Aig_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Dereferences the node's MFFC.]

Description []

SideEffects []

SeeAlso []

Definition at line 823 of file aigDoms.c.

{
    int Counter = 0;
    assert( pNode->nRefs > 0 );
    if ( --pNode->nRefs > 0 )
        return 0;
    assert( pNode->nRefs == 0 );
    if ( pNode->fMarkA )
        return 1;
    if ( Aig_ObjIsCi(pNode) )
        return 0;
    Counter += Aig_ObjDomDeref_rec( Aig_ObjFanin0(pNode) );
    if ( Aig_ObjIsNode(pNode) )
    Counter += Aig_ObjDomDeref_rec( Aig_ObjFanin1(pNode) );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjDomDomed()

int Aig_ObjDomDomed	(	Aig_Sto_t *	pSto,
		Aig_Dom_t *	pDom )

Function*************************************************************

Synopsis [Count the number of nodes in the dominator.]

Description []

SideEffects []

SeeAlso []

Definition at line 879 of file aigDoms.c.

{
    Aig_Obj_t * pObj;
    int i, Counter0, Counter1;
    Counter0 = 0;
    Aig_DomForEachNode( pSto->pAig, pDom, pObj, i )
    {
        assert( !Aig_ObjIsCi(pObj) );
        Counter0 += Aig_ObjDomDeref_rec( Aig_ObjFanin0(pObj) );
        if ( Aig_ObjIsNode(pObj) )
        Counter0 += Aig_ObjDomDeref_rec( Aig_ObjFanin1(pObj) );
    }
    Counter1 = 0;
    Aig_DomForEachNode( pSto->pAig, pDom, pObj, i )
    {
        assert( !Aig_ObjIsCi(pObj) );
        Counter1 += Aig_ObjDomRef_rec( Aig_ObjFanin0(pObj) );
        if ( Aig_ObjIsNode(pObj) )
        Counter1 += Aig_ObjDomRef_rec( Aig_ObjFanin1(pObj) );
    }
    assert( Counter0 == Counter1 );
    return Counter0;
}

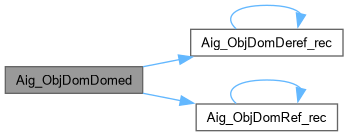

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjDomFilter()

int Aig_ObjDomFilter	(	Aig_Sto_t *	pSto,
		Vec_Ptr_t *	vDoms,
		Aig_Dom_t *	pDom )

Function*************************************************************

Synopsis [Returns 1 if the cut is contained.]

Description []

SideEffects []

SeeAlso []

Definition at line 306 of file aigDoms.c.

{
    Aig_Dom_t * pTemp;
    int i;
    Vec_PtrForEachEntry( Aig_Dom_t *, vDoms, pTemp, i )
    {
        if ( pTemp->nNodes > pDom->nNodes )
        {
            // do not fiter the first cut
            if ( i == 0 )
                continue;
            // skip the non-contained cuts
            if ( (pTemp->uSign & pDom->uSign) != pDom->uSign )
                continue;
            // check containment seriously
            if ( Aig_ObjDomCheckDominance( pDom, pTemp ) )
            {
                Vec_PtrRemove( vDoms, pTemp );
                Aig_MmFixedEntryRecycle( pSto->pMem, (char *)pTemp );
                i--;
                pSto->nDomsFilter1++;
            }
         }
        else
        {
            // skip the non-contained cuts
            if ( (pTemp->uSign & pDom->uSign) != pTemp->uSign )
                continue;
            // check containment seriously
            if ( Aig_ObjDomCheckDominance( pTemp, pDom ) )
            {
                pSto->nDomsFilter2++;
                return 1;
            }
        }
    }
    return 0;
}

Here is the call graph for this function:

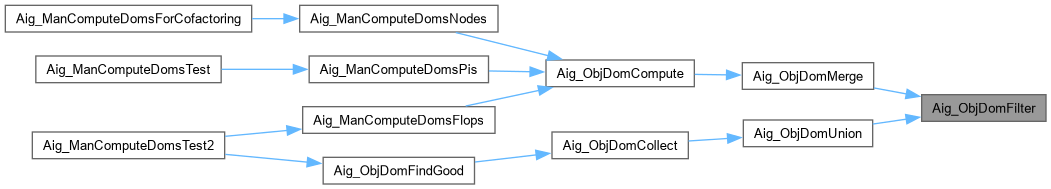

Here is the caller graph for this function:

Aig_ObjDomFindGood()

void Aig_ObjDomFindGood

(

Aig_Sto_t *

pSto

)

Function*************************************************************

Synopsis [Collects dominators from the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 978 of file aigDoms.c.

{
    Aig_Dom_t * pDom;
    Vec_Int_t * vCut;
    Vec_Ptr_t * vDoms;
    int i;
    vCut  = Aig_ObjDomCollectLos( pSto );
    vDoms = Aig_ObjDomCollect( pSto, vCut );
    Vec_IntFree( vCut );
    printf( "The cut has %d non-trivial %d-dominators.\n", Vec_PtrSize(vDoms), pSto->Limit );

    Aig_ObjPoLogicDeref( pSto );
    Vec_PtrForEachEntry( Aig_Dom_t *, vDoms, pDom, i )
    {
//        if ( Aig_ObjDomDomed(pSto, pDom) <= 1 )
//            continue;
        printf( "Vol =%3d.  ", Aig_ObjDomVolume(pSto, pDom) );
        printf( "Dom =%3d.  ", Aig_ObjDomDomed(pSto, pDom) );
        Aig_ObjDomPrint( pSto, pDom, i );
    }
    Aig_ObjPoLogicRef( pSto );

    Aig_ObjDomVecRecycle( pSto, vDoms );
    Aig_ManCleanMarkA( pSto->pAig );
}

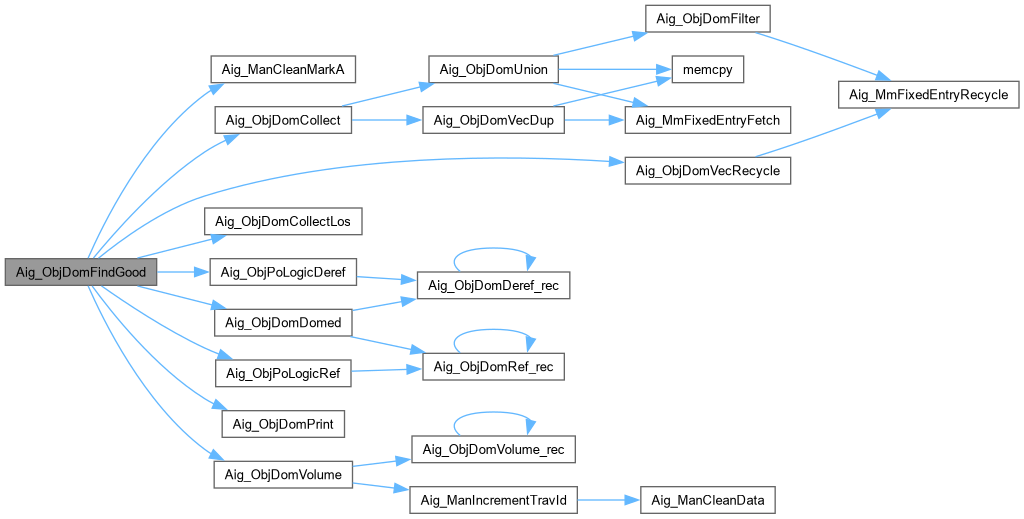

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjDomMerge()

Vec_Ptr_t * Aig_ObjDomMerge	(	Aig_Sto_t *	pSto,
		Vec_Ptr_t *	vDoms0,
		Vec_Ptr_t *	vDoms1 )

Function*************************************************************

Synopsis [Merge two arrays of dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 472 of file aigDoms.c.

{
    Vec_Ptr_t * vDoms;
    Aig_Dom_t * pDom0, * pDom1, * pDom;
    int i, k;
    vDoms = Vec_PtrAlloc( 16 );
    Vec_PtrForEachEntry( Aig_Dom_t *, vDoms0, pDom0, i )
    Vec_PtrForEachEntry( Aig_Dom_t *, vDoms1, pDom1, k )
    {
        if ( Aig_WordCountOnes( pDom0->uSign | pDom1->uSign ) > pSto->Limit )
            continue;
        // check if the cut exists
        pDom = (Aig_Dom_t *)Aig_MmFixedEntryFetch( pSto->pMem );
        if ( !Aig_ObjDomMergeTwo( pDom0, pDom1, pDom, pSto->Limit ) )
        {
            Aig_MmFixedEntryRecycle( pSto->pMem, (char *)pDom );
            continue;
        }
        // check if this cut is contained in any of the available cuts
        if ( Aig_ObjDomFilter( pSto, vDoms, pDom ) )
        {
            Aig_MmFixedEntryRecycle( pSto->pMem, (char *)pDom );
            continue;
        }
        Vec_PtrPush( vDoms, pDom );
    }
    return vDoms;
}

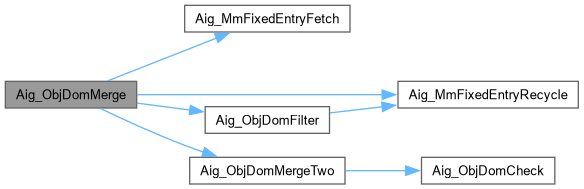

Here is the call graph for this function:

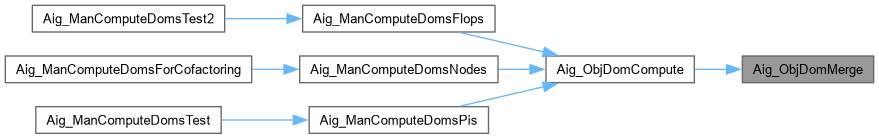

Here is the caller graph for this function:

Aig_ObjDomMergeTwo()

int Aig_ObjDomMergeTwo	(	Aig_Dom_t *	pDom0,
		Aig_Dom_t *	pDom1,
		Aig_Dom_t *	pDom,
		int	Limit )

Function*************************************************************

Synopsis [Prepares the object for FPGA mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 442 of file aigDoms.c.

{
    assert( Limit > 0 );
    if ( pDom0->nNodes < pDom1->nNodes )
    {
        if ( !Aig_ObjDomMergeOrdered( pDom1, pDom0, pDom, Limit ) )
            return 0;
    }
    else
    {
        if ( !Aig_ObjDomMergeOrdered( pDom0, pDom1, pDom, Limit ) )
            return 0;
    }
    pDom->uSign = pDom0->uSign | pDom1->uSign;
    assert( pDom->nNodes <= Limit );
    assert( Aig_ObjDomCheck( pDom ) );
    return 1;
}

Here is the call graph for this function:

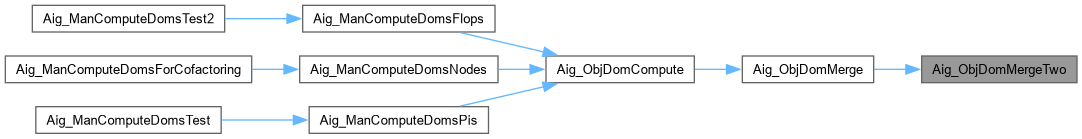

Here is the caller graph for this function:

Aig_ObjDomPrint()

void Aig_ObjDomPrint	(	Aig_Sto_t *	pSto,
		Aig_Dom_t *	pDom,
		int	Num )

Function*************************************************************

Synopsis [Duplicates the vector of doms.]

Description []

SideEffects []

SeeAlso []

Definition at line 165 of file aigDoms.c.

{
    int k;
    printf( "%4d : {", Num );
    for ( k = 0; k < pDom->nNodes; k++ )
        printf( " %4d", pDom->pNodes[k] );
    for ( ; k < pSto->Limit; k++ )
        printf( "     " );
    printf( " }\n" );
}

Here is the caller graph for this function:

Aig_ObjDomRef_rec()

int Aig_ObjDomRef_rec

(

Aig_Obj_t *

pNode

)

Function*************************************************************

Synopsis [References the node's MFFC.]

Description []

SideEffects []

SeeAlso []

Definition at line 851 of file aigDoms.c.

{
    int Counter = 0;
    assert( pNode->nRefs >= 0 );
    if ( pNode->nRefs++ > 0 )
        return 0;
    assert( pNode->nRefs == 1 );
    if ( pNode->fMarkA )
        return 1;
    if ( Aig_ObjIsCi(pNode) )
        return 0;
    Counter += Aig_ObjDomRef_rec( Aig_ObjFanin0(pNode) );
    if ( Aig_ObjIsNode(pNode) )
    Counter += Aig_ObjDomRef_rec( Aig_ObjFanin1(pNode) );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjDomUnion()

void Aig_ObjDomUnion	(	Aig_Sto_t *	pSto,
		Vec_Ptr_t *	vDoms2,
		Vec_Ptr_t *	vDoms1 )

Function*************************************************************

Synopsis [Union two arrays of dominators.]

Description []

SideEffects []

SeeAlso []

Definition at line 512 of file aigDoms.c.

{
    Aig_Dom_t * pDom1, * pDom2;
    int i;
    Vec_PtrForEachEntry( Aig_Dom_t *, vDoms1, pDom1, i )
    {
        if ( i == 0 )
            continue;
        if ( Aig_ObjDomFilter( pSto, vDoms2, pDom1 ) )
            continue;
        pDom2 = (Aig_Dom_t *)Aig_MmFixedEntryFetch( pSto->pMem );
        memcpy( pDom2, pDom1, sizeof(Aig_Dom_t) + sizeof(int) * pSto->Limit );
        Vec_PtrPush( vDoms2, pDom2 );
    }
}

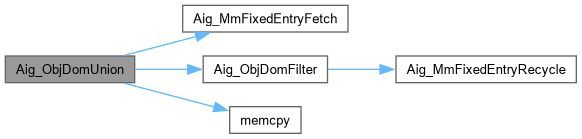

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjDomVecDup()

Vec_Ptr_t * Aig_ObjDomVecDup	(	Aig_Sto_t *	pSto,
		Vec_Ptr_t *	vDoms,
		int	fSkip1 )

Function*************************************************************

Synopsis [Duplicates vector of doms.]

Description []

SideEffects []

SeeAlso []

Definition at line 119 of file aigDoms.c.

{
    Vec_Ptr_t * vDoms2;
    Aig_Dom_t * pDom, * pDom2;
    int i;
    vDoms2 = Vec_PtrAlloc( 0 );
    Vec_PtrForEachEntryStart( Aig_Dom_t *, vDoms, pDom, i, fSkip1 )
    {
        pDom2 = (Aig_Dom_t *)Aig_MmFixedEntryFetch( pSto->pMem );
        memcpy( pDom2, pDom, sizeof(Aig_Dom_t) + sizeof(int) * pSto->Limit );
        Vec_PtrPush( vDoms2, pDom2 );
    }
    return vDoms2;
}

Here is the call graph for this function:

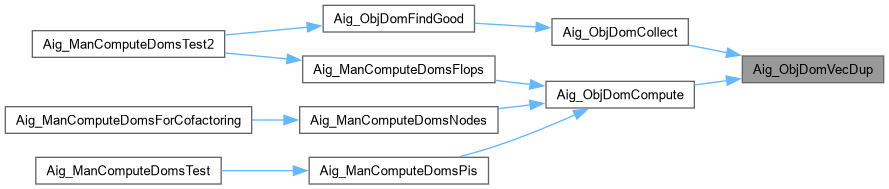

Here is the caller graph for this function:

Aig_ObjDomVecPrint()

void Aig_ObjDomVecPrint	(	Aig_Sto_t *	pSto,
		Vec_Ptr_t *	vDoms )

Function*************************************************************

Synopsis [Duplicates the vector of doms.]

Description []

SideEffects []

SeeAlso []

Definition at line 187 of file aigDoms.c.

{
    Aig_Dom_t * pDom;
    int i;
    Vec_PtrForEachEntry( Aig_Dom_t *, vDoms, pDom, i )
        Aig_ObjDomPrint( pSto, pDom, i );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjDomVecRecycle()

void Aig_ObjDomVecRecycle	(	Aig_Sto_t *	pSto,
		Vec_Ptr_t *	vDoms )

Function*************************************************************

Synopsis [Recycles vector of doms.]

Description []

SideEffects []

SeeAlso []

Definition at line 145 of file aigDoms.c.

{
    Aig_Dom_t * pDom;
    int i;
    Vec_PtrForEachEntry( Aig_Dom_t *, vDoms, pDom, i )
        Aig_MmFixedEntryRecycle( pSto->pMem, (char *)pDom );
    Vec_PtrFree( vDoms );
}

Here is the call graph for this function:

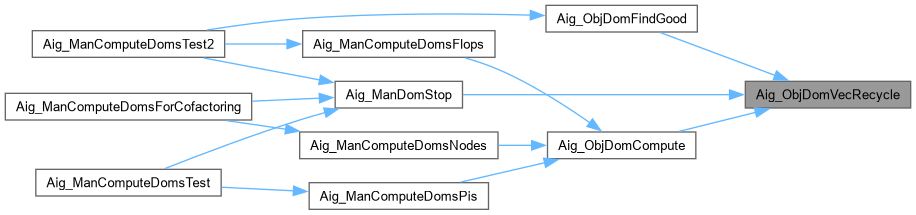

Here is the caller graph for this function:

Aig_ObjDomVolume()

int Aig_ObjDomVolume	(	Aig_Sto_t *	pSto,
		Aig_Dom_t *	pDom )

Function*************************************************************

Synopsis [Count the number of nodes in the dominator.]

Description []

SideEffects []

SeeAlso []

Definition at line 799 of file aigDoms.c.

{
    Aig_Obj_t * pObj;
    int i, Counter = 0;
    Aig_ManIncrementTravId( pSto->pAig );
    Aig_DomForEachNode( pSto->pAig, pDom, pObj, i )
        Counter += Aig_ObjDomVolume_rec( pSto->pAig, pObj );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjDomVolume_rec()

int Aig_ObjDomVolume_rec	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Marks the flop TFI with the current traversal ID.]

Description []

SideEffects []

SeeAlso []

Definition at line 770 of file aigDoms.c.

{
    int Count;
    assert( !Aig_IsComplement(pObj) );
    if ( Aig_ObjIsTravIdCurrent(p, pObj) )
        return 0;
    Aig_ObjSetTravIdCurrent(p, pObj);
    if ( pObj->fMarkA )
        return 1;
//    assert( !Aig_ObjIsCi(pObj) && !Aig_ObjIsConst1(pObj) );
    if ( Aig_ObjIsCi(pObj) || Aig_ObjIsConst1(pObj) )
        return 1;
    Count = Aig_ObjDomVolume_rec( p, Aig_ObjFanin0(pObj) );
    if ( Aig_ObjIsNode(pObj) )
        Count += Aig_ObjDomVolume_rec( p, Aig_ObjFanin1(pObj) );
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjPoLogicDeref()

void Aig_ObjPoLogicDeref

(

Aig_Sto_t *

pSto

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 940 of file aigDoms.c.

{
    Aig_Obj_t * pObj;
    int i;
    Saig_ManForEachPo( pSto->pAig, pObj, i )
        Aig_ObjDomDeref_rec( Aig_ObjFanin0(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjPoLogicRef()

void Aig_ObjPoLogicRef

(

Aig_Sto_t *

pSto

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 959 of file aigDoms.c.

{
    Aig_Obj_t * pObj;
    int i;
    Saig_ManForEachPo( pSto->pAig, pObj, i )
        Aig_ObjDomRef_rec( Aig_ObjFanin0(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:
