aigMan.c File Reference

#include "aig.h"
#include "misc/tim/tim.h"

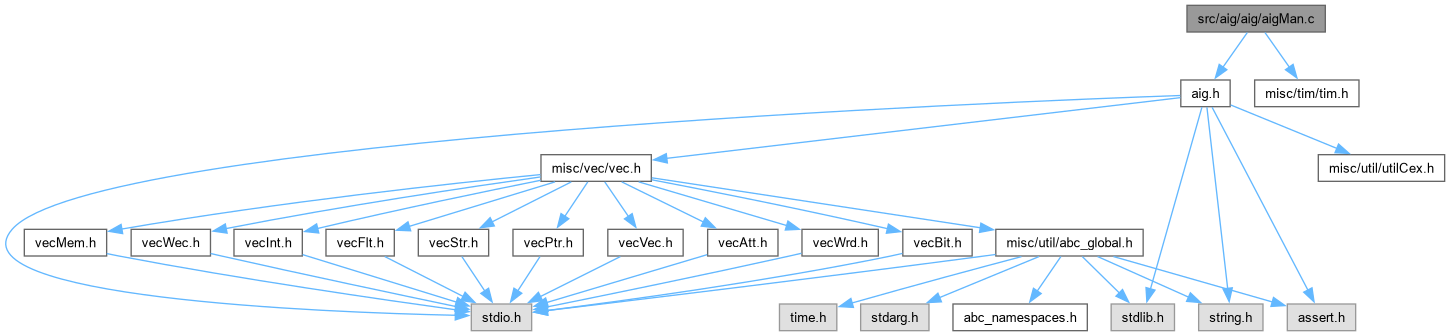

Include dependency graph for aigMan.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Aig_Man_t *	Aig_ManStart (int nNodesMax)
	DECLARATIONS ///.
Aig_Man_t *	Aig_ManStartFrom (Aig_Man_t *p)
Aig_Obj_t *	Aig_ManDup_rec (Aig_Man_t *pNew, Aig_Man_t *p, Aig_Obj_t *pObj)
Aig_Man_t *	Aig_ManExtractMiter (Aig_Man_t *p, Aig_Obj_t *pNode1, Aig_Obj_t *pNode2)
void	Aig_ManStop (Aig_Man_t *p)

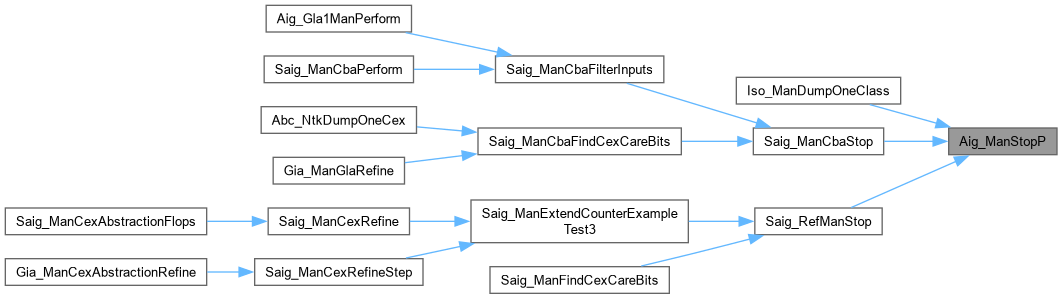

void	Aig_ManStopP (Aig_Man_t **p)
int	Aig_ManCleanup (Aig_Man_t *p)
int	Aig_ManAntiCleanup (Aig_Man_t *p)
int	Aig_ManCiCleanup (Aig_Man_t *p)
int	Aig_ManCoCleanup (Aig_Man_t *p)
void	Aig_ManPrintStats (Aig_Man_t *p)
void	Aig_ManReportImprovement (Aig_Man_t *p, Aig_Man_t *pNew)
void	Aig_ManSetRegNum (Aig_Man_t *p, int nRegs)
void	Aig_ManFlipFirstPo (Aig_Man_t *p)
void *	Aig_ManReleaseData (Aig_Man_t *p)

Function Documentation

Aig_ManAntiCleanup()

int Aig_ManAntiCleanup

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Adds POs for the nodes that otherwise would be dangling.]

Description [Returns the number of POs added.]

SideEffects []

SeeAlso []

Definition at line 293 of file aigMan.c.

{
    Aig_Obj_t * pNode;
    int i, nNodesOld = Aig_ManCoNum(p);
    Aig_ManForEachObj( p, pNode, i )
        if ( Aig_ObjIsNode(pNode) && Aig_ObjRefs(pNode) == 0 )
            Aig_ObjCreateCo( p, pNode );
    return nNodesOld - Aig_ManCoNum(p);
}

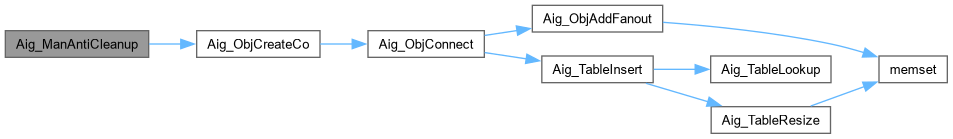

Here is the call graph for this function:

Aig_ManCiCleanup()

int Aig_ManCiCleanup

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Removes PIs without fanouts.]

Description [Returns the number of PIs removed.]

SideEffects []

SeeAlso []

Definition at line 314 of file aigMan.c.

{
    Aig_Obj_t * pObj;
    int i, k = 0, nPisOld = Aig_ManCiNum(p);
    Vec_PtrForEachEntry( Aig_Obj_t *, p->vCis, pObj, i )
    {
        if ( i >= Aig_ManCiNum(p) - Aig_ManRegNum(p) )
            Vec_PtrWriteEntry( p->vCis, k++, pObj );
        else if ( Aig_ObjRefs(pObj) > 0 )
            Vec_PtrWriteEntry( p->vCis, k++, pObj );
        else
            Vec_PtrWriteEntry( p->vObjs, pObj->Id, NULL );
    }
    Vec_PtrShrink( p->vCis, k );
    p->nObjs[AIG_OBJ_CI] = Vec_PtrSize( p->vCis );
    if ( Aig_ManRegNum(p) )
        p->nTruePis = Aig_ManCiNum(p) - Aig_ManRegNum(p);
    return nPisOld - Aig_ManCiNum(p);
}

Here is the caller graph for this function:

Aig_ManCleanup()

int Aig_ManCleanup

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Removes combinational logic that does not feed into POs.]

Description [Returns the number of dangling nodes removed.]

SideEffects []

SeeAlso []

Definition at line 265 of file aigMan.c.

{
    Vec_Ptr_t * vObjs;
    Aig_Obj_t * pNode;
    int i, nNodesOld = Aig_ManNodeNum(p);
    // collect roots of dangling nodes
    vObjs = Vec_PtrAlloc( 100 );
    Aig_ManForEachObj( p, pNode, i )
        if ( Aig_ObjIsNode(pNode) && Aig_ObjRefs(pNode) == 0 )
            Vec_PtrPush( vObjs, pNode );
    // recursively remove dangling nodes
    Vec_PtrForEachEntry( Aig_Obj_t *, vObjs, pNode, i )
        Aig_ObjDelete_rec( p, pNode, 1 );
    Vec_PtrFree( vObjs );
    return nNodesOld - Aig_ManNodeNum(p);
}

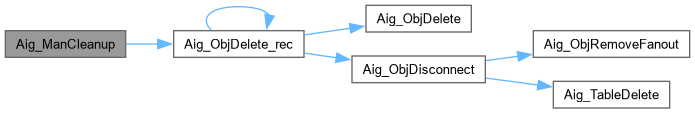

Here is the call graph for this function:

Aig_ManCoCleanup()

int Aig_ManCoCleanup

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Removes POs with constant input.]

Description [Returns the number of POs removed.]

SideEffects []

SeeAlso []

Definition at line 345 of file aigMan.c.

{
    Aig_Obj_t * pObj;
    int i, k = 0, nPosOld = Aig_ManCoNum(p);
    Vec_PtrForEachEntry( Aig_Obj_t *, p->vCos, pObj, i )
    {
        if ( i >= Aig_ManCoNum(p) - Aig_ManRegNum(p) )
            Vec_PtrWriteEntry( p->vCos, k++, pObj );
        else if ( !Aig_ObjIsConst1(Aig_ObjFanin0(pObj)) || !Aig_ObjFaninC0(pObj) ) // non-const or const1
            Vec_PtrWriteEntry( p->vCos, k++, pObj );
        else
        {
            Aig_ObjDisconnect( p, pObj );
            Vec_PtrWriteEntry( p->vObjs, pObj->Id, NULL );
        }
    }
    Vec_PtrShrink( p->vCos, k );
    p->nObjs[AIG_OBJ_CO] = Vec_PtrSize( p->vCos );
    if ( Aig_ManRegNum(p) )
        p->nTruePos = Aig_ManCoNum(p) - Aig_ManRegNum(p);
    return nPosOld - Aig_ManCoNum(p);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManDup_rec()

Aig_Obj_t * Aig_ManDup_rec	(	Aig_Man_t *	pNew,
		Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Duplicates the AIG manager recursively.]

Description []

SideEffects []

SeeAlso []

Definition at line 123 of file aigMan.c.

{
    Aig_Obj_t * pObjNew;
    if ( pObj->pData )
        return (Aig_Obj_t *)pObj->pData;
    Aig_ManDup_rec( pNew, p, Aig_ObjFanin0(pObj) );
    if ( Aig_ObjIsBuf(pObj) )
        return (Aig_Obj_t *)(pObj->pData = Aig_ObjChild0Copy(pObj));
    Aig_ManDup_rec( pNew, p, Aig_ObjFanin1(pObj) );
    pObjNew = Aig_Oper( pNew, Aig_ObjChild0Copy(pObj), Aig_ObjChild1Copy(pObj), Aig_ObjType(pObj) );
    return (Aig_Obj_t *)(pObj->pData = pObjNew);
}

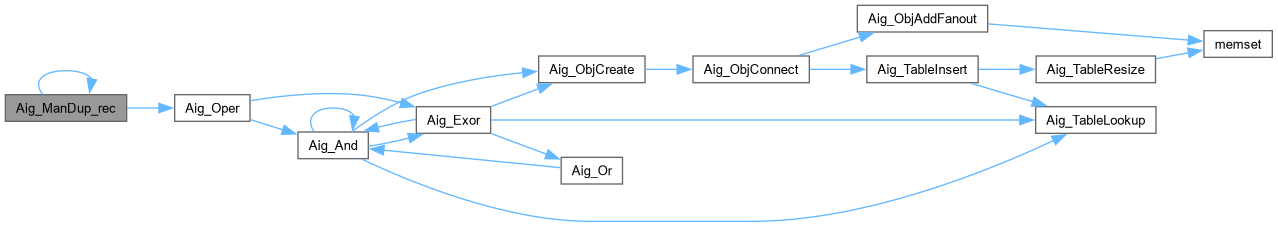

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManExtractMiter()

Aig_Man_t * Aig_ManExtractMiter	(	Aig_Man_t *	p,
		Aig_Obj_t *	pNode1,
		Aig_Obj_t *	pNode2 )

Function*************************************************************

Synopsis [Extracts the miter composed of XOR of the two nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 147 of file aigMan.c.

{
    Aig_Man_t * pNew;
    Aig_Obj_t * pObj;
    int i;
    // create the new manager
    pNew = Aig_ManStart( Aig_ManObjNumMax(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    // create the PIs
    Aig_ManCleanData( p );
    Aig_ManConst1(p)->pData = Aig_ManConst1(pNew);
    Aig_ManForEachCi( p, pObj, i )
        pObj->pData = Aig_ObjCreateCi(pNew);
    // dump the nodes
    Aig_ManDup_rec( pNew, p, pNode1 );
    Aig_ManDup_rec( pNew, p, pNode2 );
    // construct the EXOR
    pObj = Aig_Exor( pNew, (Aig_Obj_t *)pNode1->pData, (Aig_Obj_t *)pNode2->pData );
    pObj = Aig_NotCond( pObj, Aig_Regular(pObj)->fPhase ^ Aig_IsComplement(pObj) );
    // add the PO
    Aig_ObjCreateCo( pNew, pObj );
    // check the resulting network
    if ( !Aig_ManCheck(pNew) )
        printf( "Aig_ManExtractMiter(): The check has failed.\n" );
    return pNew;
}

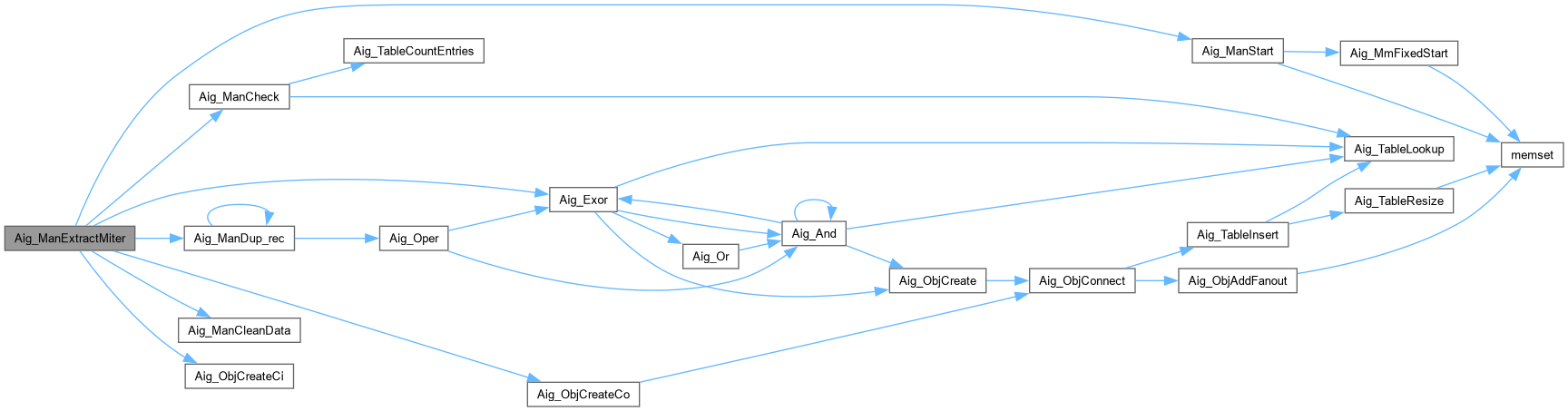

Here is the call graph for this function:

Aig_ManFlipFirstPo()

void Aig_ManFlipFirstPo

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 457 of file aigMan.c.

{
    Aig_ObjChild0Flip( Aig_ManCo(p, 0) );
}

Here is the caller graph for this function:

Aig_ManPrintStats()

void Aig_ManPrintStats

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 379 of file aigMan.c.

{
    int nChoices = Aig_ManChoiceNum(p);
    printf( "%-15s : ",      p->pName );
    printf( "pi = %5d  ",    Aig_ManCiNum(p)-Aig_ManRegNum(p) );
    printf( "po = %5d  ",    Aig_ManCoNum(p)-Aig_ManRegNum(p) );
    if ( Aig_ManRegNum(p) )
    printf( "lat = %5d  ", Aig_ManRegNum(p) );
    printf( "and = %7d  ",   Aig_ManAndNum(p) );
//    printf( "Eq = %7d  ",     Aig_ManHaigCounter(p) );
    if ( Aig_ManExorNum(p) )
    printf( "xor = %5d  ",    Aig_ManExorNum(p) );
    if ( nChoices )
    printf( "ch = %5d  ",  nChoices );
    if ( Aig_ManBufNum(p) )
    printf( "buf = %5d  ",    Aig_ManBufNum(p) );
//    printf( "Cre = %6d  ",  p->nCreated );
//    printf( "Del = %6d  ",  p->nDeleted );
//    printf( "Lev = %3d  ",  Aig_ManLevelNum(p) );
//    printf( "Max = %7d  ",  Aig_ManObjNumMax(p) );
    printf( "lev = %3d",  Aig_ManLevels(p) );
    printf( "\n" );
    fflush( stdout );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManReleaseData()

void * Aig_ManReleaseData

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 473 of file aigMan.c.

{
    void * pD = p->pData;
    p->pData = NULL;
    return pD;
}

Aig_ManReportImprovement()

void Aig_ManReportImprovement	(	Aig_Man_t *	p,
		Aig_Man_t *	pNew )

Function*************************************************************

Synopsis [Reports the reduction of the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 415 of file aigMan.c.

{
    printf( "REG: Beg = %5d. End = %5d. (R =%5.1f %%)  ",
        Aig_ManRegNum(p), Aig_ManRegNum(pNew),
        Aig_ManRegNum(p)? 100.0*(Aig_ManRegNum(p)-Aig_ManRegNum(pNew))/Aig_ManRegNum(p) : 0.0 );
    printf( "AND: Beg = %6d. End = %6d. (R =%5.1f %%)",
        Aig_ManNodeNum(p), Aig_ManNodeNum(pNew),
        Aig_ManNodeNum(p)? 100.0*(Aig_ManNodeNum(p)-Aig_ManNodeNum(pNew))/Aig_ManNodeNum(p) : 0.0 );
    printf( "\n" );
}

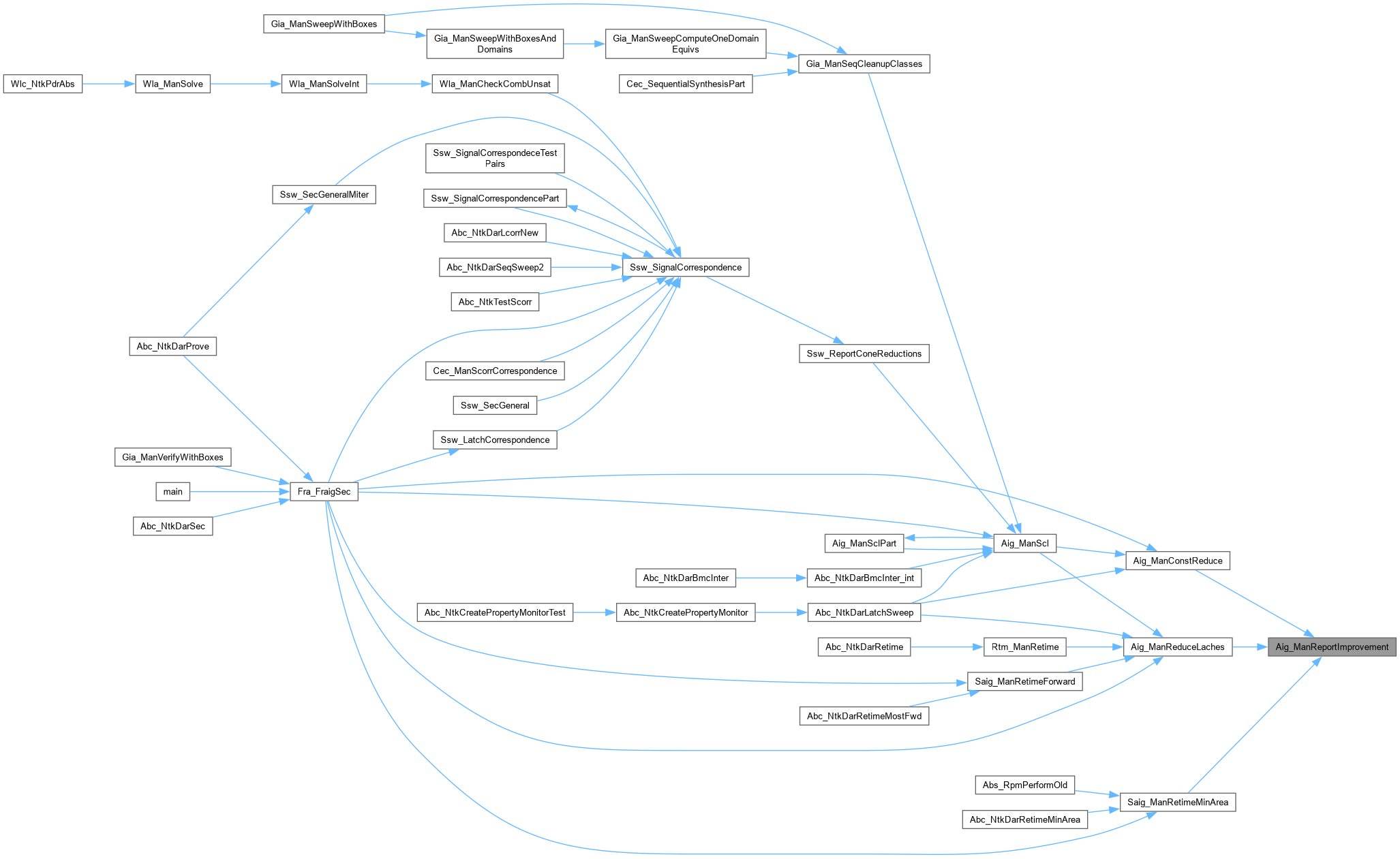

Here is the caller graph for this function:

Aig_ManSetRegNum()

void Aig_ManSetRegNum	(	Aig_Man_t *	p,
		int	nRegs )

Function*************************************************************

Synopsis [Sets the number of registers in the AIG manager.]

Description [This procedure should be called after the manager is fully constructed.]

SideEffects []

SeeAlso []

Definition at line 438 of file aigMan.c.

{
    p->nRegs = nRegs;
    p->nTruePis = Aig_ManCiNum(p) - nRegs;
    p->nTruePos = Aig_ManCoNum(p) - nRegs;
    Aig_ManSetCioIds( p );
}

Here is the call graph for this function:

Aig_ManStart()

ABC_NAMESPACE_IMPL_START Aig_Man_t * Aig_ManStart

(

int

nNodesMax

)

DECLARATIONS ///.

CFile****************************************************************

FileName [aigMan.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [AIG package.]

Synopsis [AIG manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

aigMan.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Starts the AIG manager.]

Description [The argument of this procedure is a soft limit on the the number of nodes, or 0 if the limit is unknown.]

SideEffects []

SeeAlso []

Definition at line 47 of file aigMan.c.

{
    Aig_Man_t * p;
    if ( nNodesMax <= 0 )
        nNodesMax = 10007;
    // start the manager
    p = ABC_ALLOC( Aig_Man_t, 1 );
    memset( p, 0, sizeof(Aig_Man_t) );
    // perform initializations
    p->nTravIds = 1;
    p->fCatchExor = 0;
    // allocate arrays for nodes
    p->vCis  = Vec_PtrAlloc( 100 );
    p->vCos  = Vec_PtrAlloc( 100 );
    p->vObjs = Vec_PtrAlloc( 1000 );
    p->vBufs = Vec_PtrAlloc( 100 );
    //--jlong -- begin
       p->unfold2_type_I = Vec_PtrAlloc( 4);
       p->unfold2_type_II = Vec_PtrAlloc( 4);
       //--jlong -- end
    // prepare the internal memory manager
    p->pMemObjs = Aig_MmFixedStart( sizeof(Aig_Obj_t), nNodesMax );
    // create the constant node
    p->pConst1 = Aig_ManFetchMemory( p );
    p->pConst1->Type = AIG_OBJ_CONST1;
    p->pConst1->fPhase = 1;
    p->nObjs[AIG_OBJ_CONST1]++;
    // start the table
    p->nTableSize = Abc_PrimeCudd( nNodesMax );
    p->pTable = ABC_ALLOC( Aig_Obj_t *, p->nTableSize );
    memset( p->pTable, 0, sizeof(Aig_Obj_t *) * p->nTableSize );
    return p;
}

Here is the call graph for this function:

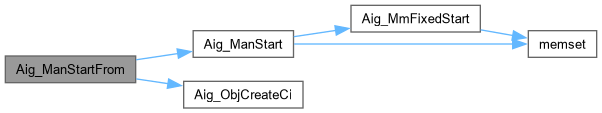

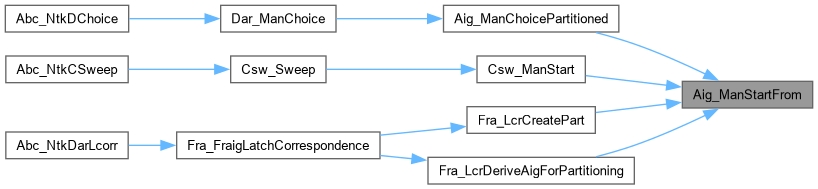

Aig_ManStartFrom()

Aig_Man_t * Aig_ManStartFrom

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Duplicates the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 92 of file aigMan.c.

{
    Aig_Man_t * pNew;
    Aig_Obj_t * pObj, * pObjNew;
    int i;
    // create the new manager
    pNew = Aig_ManStart( Aig_ManObjNumMax(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    // create the PIs
    Aig_ManConst1(p)->pData = Aig_ManConst1(pNew);
    Aig_ManForEachCi( p, pObj, i )
    {
        pObjNew = Aig_ObjCreateCi( pNew );
        pObjNew->Level = pObj->Level;
        pObj->pData = pObjNew;
    }
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManStop()

void Aig_ManStop

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 187 of file aigMan.c.

{
    Aig_Obj_t * pObj;
    int i;
    if ( p->time1 ) { ABC_PRT( "time1", p->time1 ); }
    if ( p->time2 ) { ABC_PRT( "time2", p->time2 ); }
    // make sure the nodes have clean marks
    Aig_ManForEachObj( p, pObj, i )
        assert( !pObj->fMarkA && !pObj->fMarkB );
    Tim_ManStopP( (Tim_Man_t **)&p->pManTime );
    if ( p->pFanData )
        Aig_ManFanoutStop( p );
    if ( p->pManExdc )
        Aig_ManStop( p->pManExdc );
//    Aig_TableProfile( p );
    Aig_MmFixedStop( p->pMemObjs, 0 );
    Vec_PtrFreeP( &p->vCis );
    Vec_PtrFreeP( &p->vCos );
    Vec_PtrFreeP( &p->vObjs );
    Vec_PtrFreeP( &p->vBufs );
    //--jlong -- begin
    Vec_PtrFreeP( &p->unfold2_type_I );
    Vec_PtrFreeP( &p->unfold2_type_II );
    //--jlong -- end
    Vec_IntFreeP( &p->vLevelR );
    Vec_VecFreeP( &p->vLevels );
    Vec_IntFreeP( &p->vFlopNums );
    Vec_IntFreeP( &p->vFlopReprs );
    Vec_VecFreeP( (Vec_Vec_t **)&p->vOnehots );
    Vec_VecFreeP( &p->vClockDoms );
    Vec_IntFreeP( &p->vProbs );
    Vec_IntFreeP( &p->vCiNumsOrig );
    Vec_PtrFreeP( &p->vMapped );
    if ( p->vSeqModelVec )
        Vec_PtrFreeFree( p->vSeqModelVec );
    ABC_FREE( p->pTerSimData );
    ABC_FREE( p->pFastSim );
    ABC_FREE( p->pData );
    ABC_FREE( p->pSeqModel );
    ABC_FREE( p->pName );
    ABC_FREE( p->pSpec );
    ABC_FREE( p->pObjCopies );
    ABC_FREE( p->pReprs );
    ABC_FREE( p->pEquivs );
    ABC_FREE( p->pTable );
    ABC_FREE( p );
}

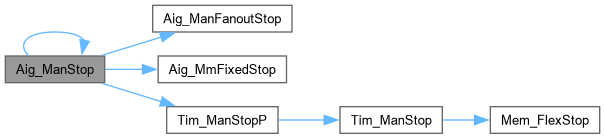

Here is the call graph for this function:

Aig_ManStopP()

void Aig_ManStopP

(

Aig_Man_t **

p

)

Function*************************************************************

Synopsis [Stops the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 246 of file aigMan.c.

{
    if ( *p == NULL )
        return;
    Aig_ManStop( *p );
    *p = NULL;
}

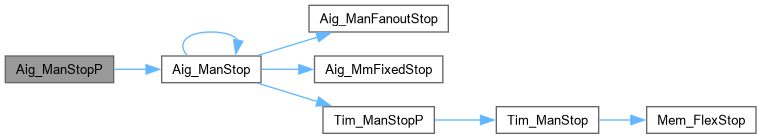

Here is the call graph for this function:

Here is the caller graph for this function:
