aigMffc.c File Reference
#include "aig.h"

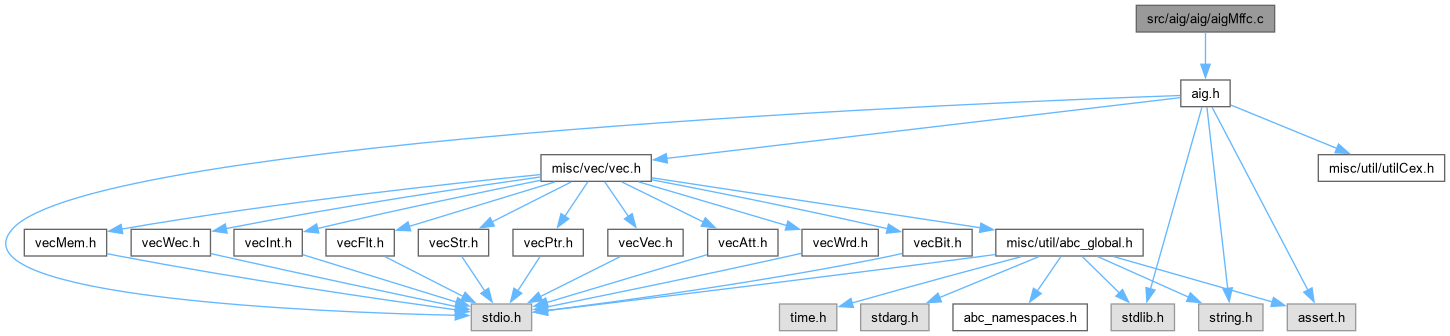

Include dependency graph for aigMffc.c:

Go to the source code of this file.

Functions

ABC_NAMESPACE_IMPL_START int Aig_NodeDeref_rec (Aig_Obj_t *pNode, unsigned LevelMin, float *pPower, float *pProbs)
 DECLARATIONS ///.

int Aig_NodeRef_rec (Aig_Obj_t *pNode, unsigned LevelMin)

int Aig_NodeRefLabel_rec (Aig_Man_t *p, Aig_Obj_t *pNode, unsigned LevelMin)

void Aig_NodeMffcSupp_rec (Aig_Man_t *p, Aig_Obj_t *pNode, unsigned LevelMin, Vec_Ptr_t *vSupp, int fTopmost, Aig_Obj_t *pObjSkip)

int Aig_NodeMffcSupp (Aig_Man_t *p, Aig_Obj_t *pNode, int LevelMin, Vec_Ptr_t *vSupp)

int Aig_NodeMffcLabel (Aig_Man_t *p, Aig_Obj_t *pNode, float *pPower)

int Aig_NodeMffcLabelCut (Aig_Man_t *p, Aig_Obj_t *pNode, Vec_Ptr_t *vLeaves)

int Aig_NodeMffcExtendCut (Aig_Man_t *p, Aig_Obj_t *pNode, Vec_Ptr_t *vLeaves, Vec_Ptr_t *vResult)


Function Documentation

◆ Aig_NodeDeref_rec()

ABC_NAMESPACE_IMPL_START int Aig_NodeDeref_rec ( Aig_Obj_t * pNode,
unsigned LevelMin,
float * pPower,
float * pProbs )

DECLARATIONS ///.

CFile****************************************************************

FileName [aigMffc.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [AIG package.]

Synopsis [Computation of MFFCs.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id
aigMffc.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Dereferences the node's MFFC.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file aigMffc.c.

46{
47 float Power0 = 0.0, Power1 = 0.0;
48 Aig_Obj_t * pFanin;
49 int Counter = 0;
50 if ( pProbs )
51 *pPower = 0.0;
52 if ( Aig_ObjIsCi(pNode) )
53 return 0;
54 // consider the first fanin
55 pFanin = Aig_ObjFanin0(pNode);
56 assert( pFanin->nRefs > 0 );
57 if ( --pFanin->nRefs == 0 && (!LevelMin || pFanin->Level > LevelMin) )
58 Counter += Aig_NodeDeref_rec( pFanin, LevelMin, &Power0, pProbs );
59 if ( pProbs )
60 *pPower += Power0 + 2.0 * pProbs[pFanin->Id] * (1.0 - pProbs[pFanin->Id]);
61 // skip the buffer
62 if ( Aig_ObjIsBuf(pNode) )
63 return Counter;
64 assert( Aig_ObjIsNode(pNode) );
65 // consider the second fanin
66 pFanin = Aig_ObjFanin1(pNode);
67 assert( pFanin->nRefs > 0 );
68 if ( --pFanin->nRefs == 0 && (!LevelMin || pFanin->Level > LevelMin) )
69 Counter += Aig_NodeDeref_rec( pFanin, LevelMin, &Power1, pProbs );
70 if ( pProbs )
71 *pPower += Power1 + 2.0 * pProbs[pFanin->Id] * (1.0 - pProbs[pFanin->Id]);
72 return Counter + 1;
73}
Aig_NodeDeref_rec
ABC_NAMESPACE_IMPL_START int Aig_NodeDeref_rec(Aig_Obj_t *pNode, unsigned LevelMin, float *pPower, float *pProbs)
DECLARATIONS ///.
Definition aigMffc.c:45
Aig_Obj_t
struct Aig_Obj_t_ Aig_Obj_t
Definition aig.h:51
Aig_Obj_t_::Id
int Id
Definition aig.h:85
Aig_Obj_t_::nRefs
unsigned int nRefs
Definition aig.h:81
Aig_Obj_t_::Level
unsigned Level
Definition aig.h:82
assert
#define assert(ex)
Definition util_old.h:213
Here is the call graph for this function:

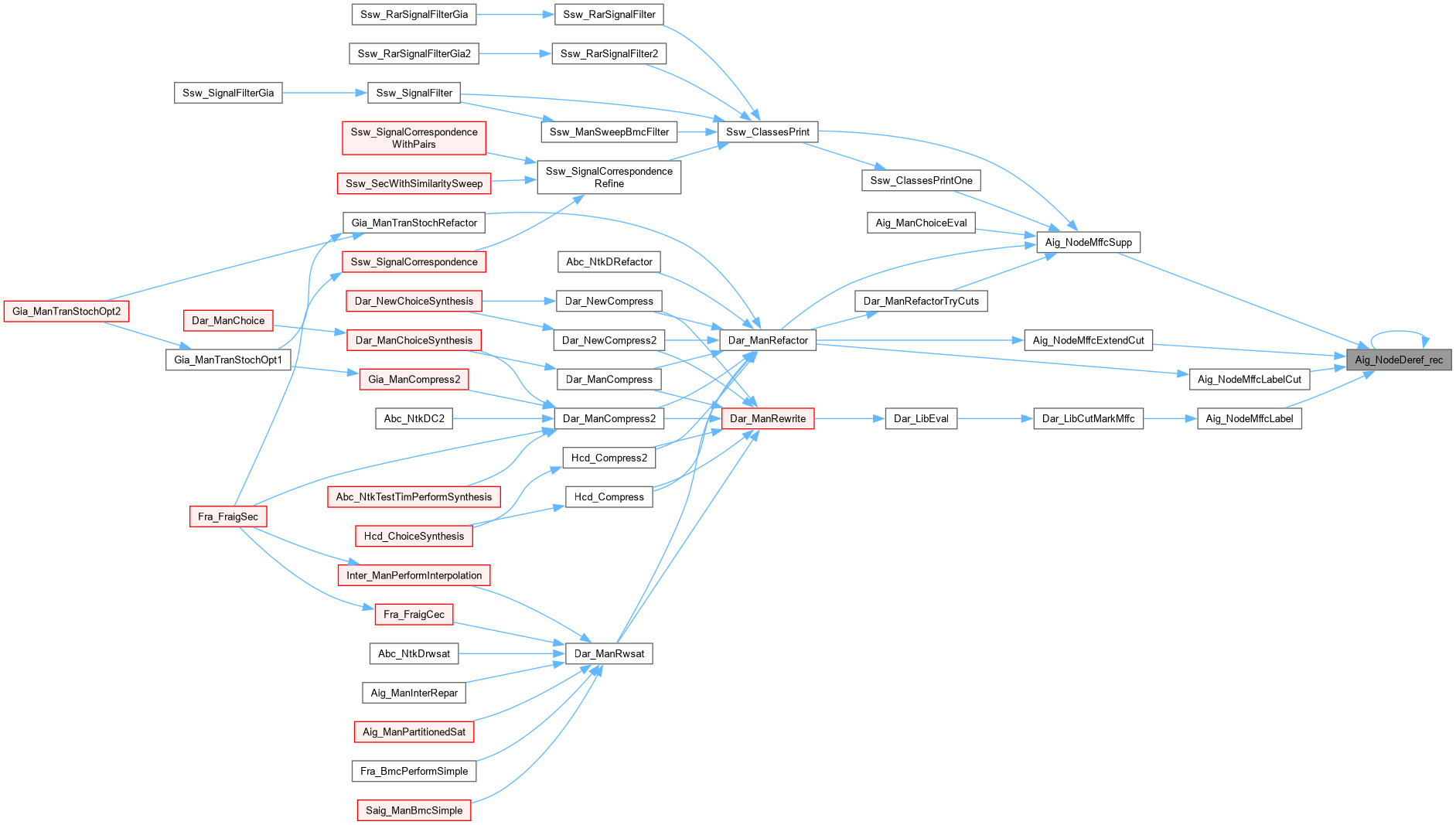

Here is the caller graph for this function:

◆ Aig_NodeMffcExtendCut()

int Aig_NodeMffcExtendCut ( Aig_Man_t * p,
Aig_Obj_t * pNode,
Vec_Ptr_t * vLeaves,
Vec_Ptr_t * vResult )

Function*************************************************************

Synopsis [Expands the cut by adding the most closely related node.]

Description [Returns 1 if the cut exists.]

SideEffects []

SeeAlso []

Definition at line 265 of file aigMffc.c.

266{
267 Aig_Obj_t * pObj, * pLeafBest;
268 int i, LevelMax, ConeSize1, ConeSize2, ConeCur1, ConeCur2, ConeBest;
269 // dereference the current cut
270 LevelMax = 0;
271 Vec_PtrForEachEntry( Aig_Obj_t *, vLeaves, pObj, i )
272 LevelMax = Abc_MaxInt( LevelMax, (int)pObj->Level );
273 if ( LevelMax == 0 )
274 return 0;
275 // dereference the cut
276 ConeSize1 = Aig_NodeDeref_rec( pNode, 0, NULL, NULL );
277 // try expanding each node in the boundary
278 ConeBest = ABC_INFINITY;
279 pLeafBest = NULL;
280 Vec_PtrForEachEntry( Aig_Obj_t *, vLeaves, pObj, i )
281 {
282 if ( (int)pObj->Level != LevelMax )
283 continue;
284 ConeCur1 = Aig_NodeDeref_rec( pObj, 0, NULL, NULL );
285 if ( ConeBest > ConeCur1 )
286 {
287 ConeBest = ConeCur1;
288 pLeafBest = pObj;
289 }
290 ConeCur2 = Aig_NodeRef_rec( pObj, 0 );
291 assert( ConeCur1 == ConeCur2 );
292 }
293 assert( pLeafBest != NULL );
294 assert( Aig_ObjIsNode(pLeafBest) );
295 // deref the best leaf
296 ConeCur1 = Aig_NodeDeref_rec( pLeafBest, 0, NULL, NULL );
297 // collect the cut nodes
298 Vec_PtrClear( vResult );
299 Aig_ManIncrementTravId( p );
300 Aig_NodeMffcSupp_rec( p, pNode, 0, vResult, 1, pLeafBest );
301 // ref the nodes
302 ConeCur2 = Aig_NodeRef_rec( pLeafBest, 0 );
303 assert( ConeCur1 == ConeCur2 );
304 // ref the original node
305 ConeSize2 = Aig_NodeRef_rec( pNode, 0 );
306 assert( ConeSize1 == ConeSize2 );
307 return 1;
308}
ABC_INFINITY
#define ABC_INFINITY
MACRO DEFINITIONS ///.
Definition abc_global.h:250
Aig_NodeMffcSupp_rec
void Aig_NodeMffcSupp_rec(Aig_Man_t *p, Aig_Obj_t *pNode, unsigned LevelMin, Vec_Ptr_t *vSupp, int fTopmost, Aig_Obj_t *pObjSkip)
Definition aigMffc.c:150
Aig_NodeRef_rec
int Aig_NodeRef_rec(Aig_Obj_t *pNode, unsigned LevelMin)
Definition aigMffc.c:86
Aig_ManIncrementTravId
void Aig_ManIncrementTravId(Aig_Man_t *p)
DECLARATIONS ///.
Definition aigUtil.c:44
p
Cube * p
Definition exorList.c:222
Vec_PtrForEachEntry
#define Vec_PtrForEachEntry(Type, vVec, pEntry, i)
MACRO DEFINITIONS ///.
Definition vecPtr.h:55
Here is the call graph for this function:

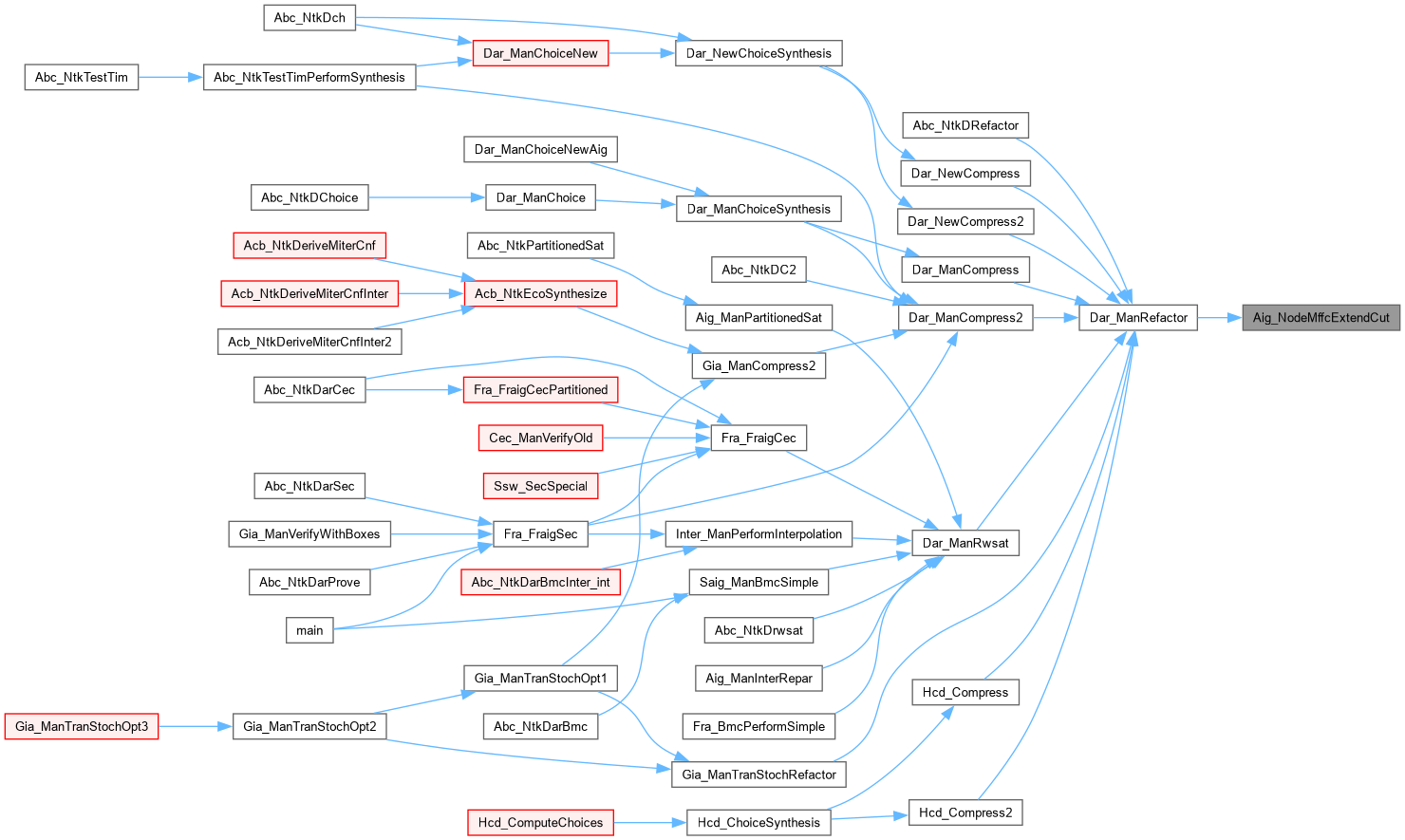

Here is the caller graph for this function:

◆ Aig_NodeMffcLabel()

int Aig_NodeMffcLabel ( Aig_Man_t * p,
Aig_Obj_t * pNode,
float * pPower )

Function*************************************************************

Synopsis [Labels the nodes in the MFFC.]

Description [Returns the number of internal nodes in the MFFC.]

SideEffects []

SeeAlso []

Definition at line 211 of file aigMffc.c.

212{
213 int ConeSize1, ConeSize2;
214 assert( (pPower != NULL) == (p->vProbs != NULL) );
215 assert( !Aig_IsComplement(pNode) );
216 assert( Aig_ObjIsNode(pNode) );
217 Aig_ManIncrementTravId( p );
218 ConeSize1 = Aig_NodeDeref_rec( pNode, 0, pPower, p->vProbs? (float *)p->vProbs->pArray : NULL );
219 ConeSize2 = Aig_NodeRefLabel_rec( p, pNode, 0 );
220 assert( ConeSize1 == ConeSize2 );
221 assert( ConeSize1 > 0 );
222 return ConeSize1;
223}
Aig_NodeRefLabel_rec
int Aig_NodeRefLabel_rec(Aig_Man_t *p, Aig_Obj_t *pNode, unsigned LevelMin)
Definition aigMffc.c:118

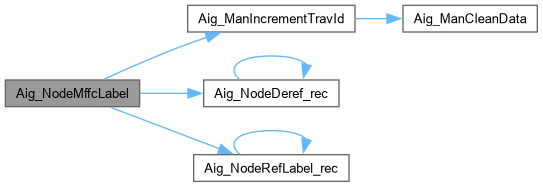

Here is the call graph for this function:

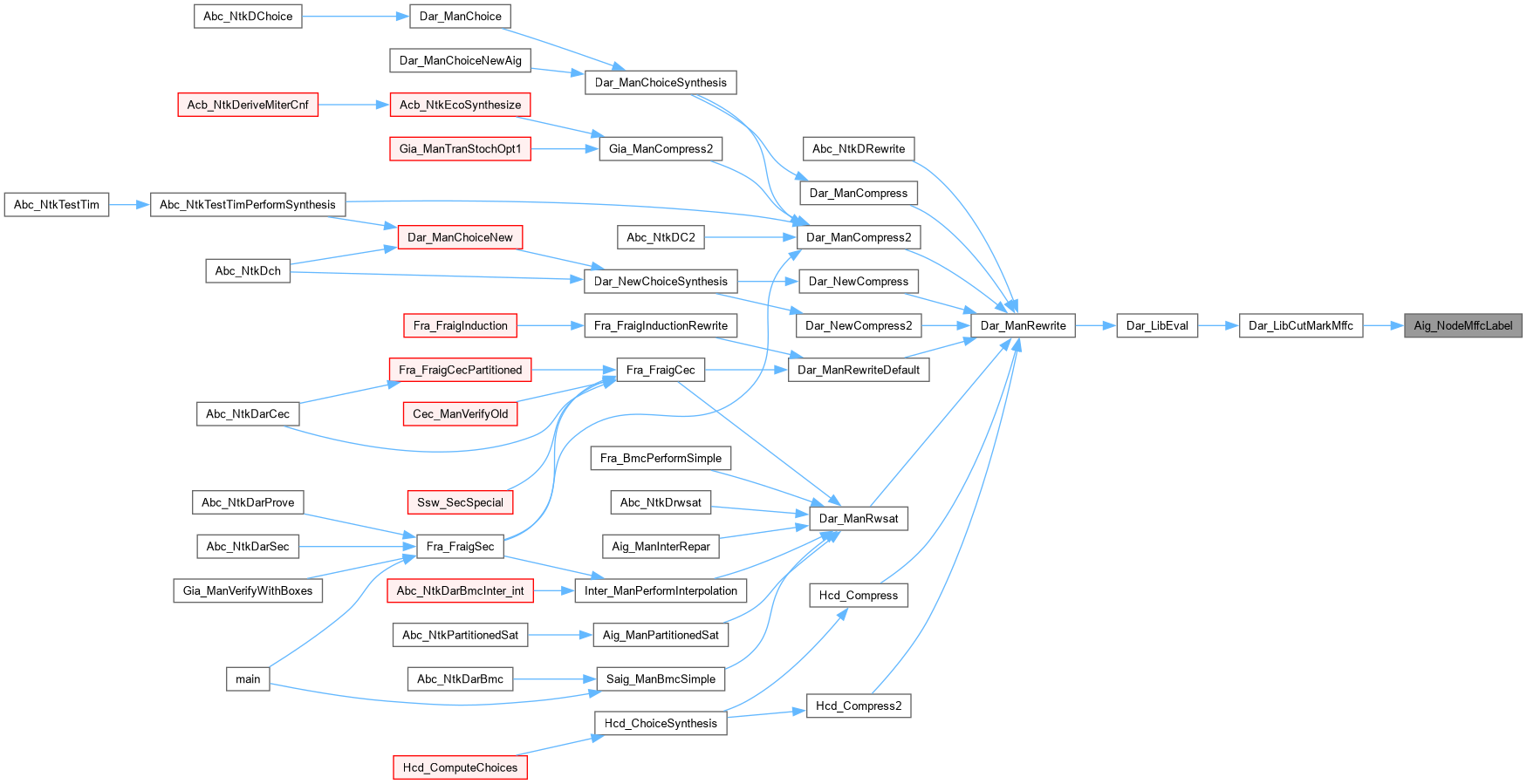

Here is the caller graph for this function:

◆ Aig_NodeMffcLabelCut()

int Aig_NodeMffcLabelCut ( Aig_Man_t * p,
Aig_Obj_t * pNode,
Vec_Ptr_t * vLeaves )

Function*************************************************************

Synopsis [Labels the nodes in the MFFC.]

Description [Returns the number of internal nodes in the MFFC.]

SideEffects []

SeeAlso []

Definition at line 236 of file aigMffc.c.

237{
238 Aig_Obj_t * pObj;
239 int i, ConeSize1, ConeSize2;
240 assert( !Aig_IsComplement(pNode) );
241 assert( Aig_ObjIsNode(pNode) );
242 Aig_ManIncrementTravId( p );
243 Vec_PtrForEachEntry( Aig_Obj_t *, vLeaves, pObj, i )
244 pObj->nRefs++;
245 ConeSize1 = Aig_NodeDeref_rec( pNode, 0, NULL, NULL );
246 ConeSize2 = Aig_NodeRefLabel_rec( p, pNode, 0 );
247 Vec_PtrForEachEntry( Aig_Obj_t *, vLeaves, pObj, i )
248 pObj->nRefs--;
249 assert( ConeSize1 == ConeSize2 );
250 assert( ConeSize1 > 0 );
251 return ConeSize1;
252}

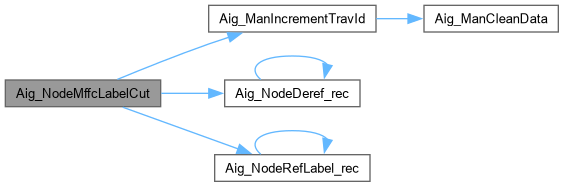

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Aig_NodeMffcSupp()

int Aig_NodeMffcSupp ( Aig_Man_t * p,
Aig_Obj_t * pNode,
int LevelMin,
Vec_Ptr_t * vSupp )

Function*************************************************************

Synopsis [Collects the support of depth-limited MFFC.]

Description [Returns the number of internal nodes in the MFFC.]

SideEffects []

SeeAlso []

Definition at line 179 of file aigMffc.c.

180{
181 int ConeSize1, ConeSize2;
182 if ( vSupp ) Vec_PtrClear( vSupp );
183 if ( !Aig_ObjIsNode(pNode) )
184 {
185 if ( Aig_ObjIsCi(pNode) && vSupp )
186 Vec_PtrPush( vSupp, pNode );
187 return 0;
188 }
189 assert( !Aig_IsComplement(pNode) );
190 assert( Aig_ObjIsNode(pNode) );
191 Aig_ManIncrementTravId( p );
192 ConeSize1 = Aig_NodeDeref_rec( pNode, LevelMin, NULL, NULL );
193 Aig_NodeMffcSupp_rec( p, pNode, LevelMin, vSupp, 1, NULL );
194 ConeSize2 = Aig_NodeRef_rec( pNode, LevelMin );
195 assert( ConeSize1 == ConeSize2 );
196 assert( ConeSize1 > 0 );
197 return ConeSize1;
198}

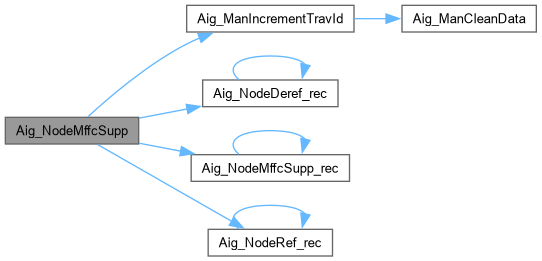

Here is the call graph for this function:

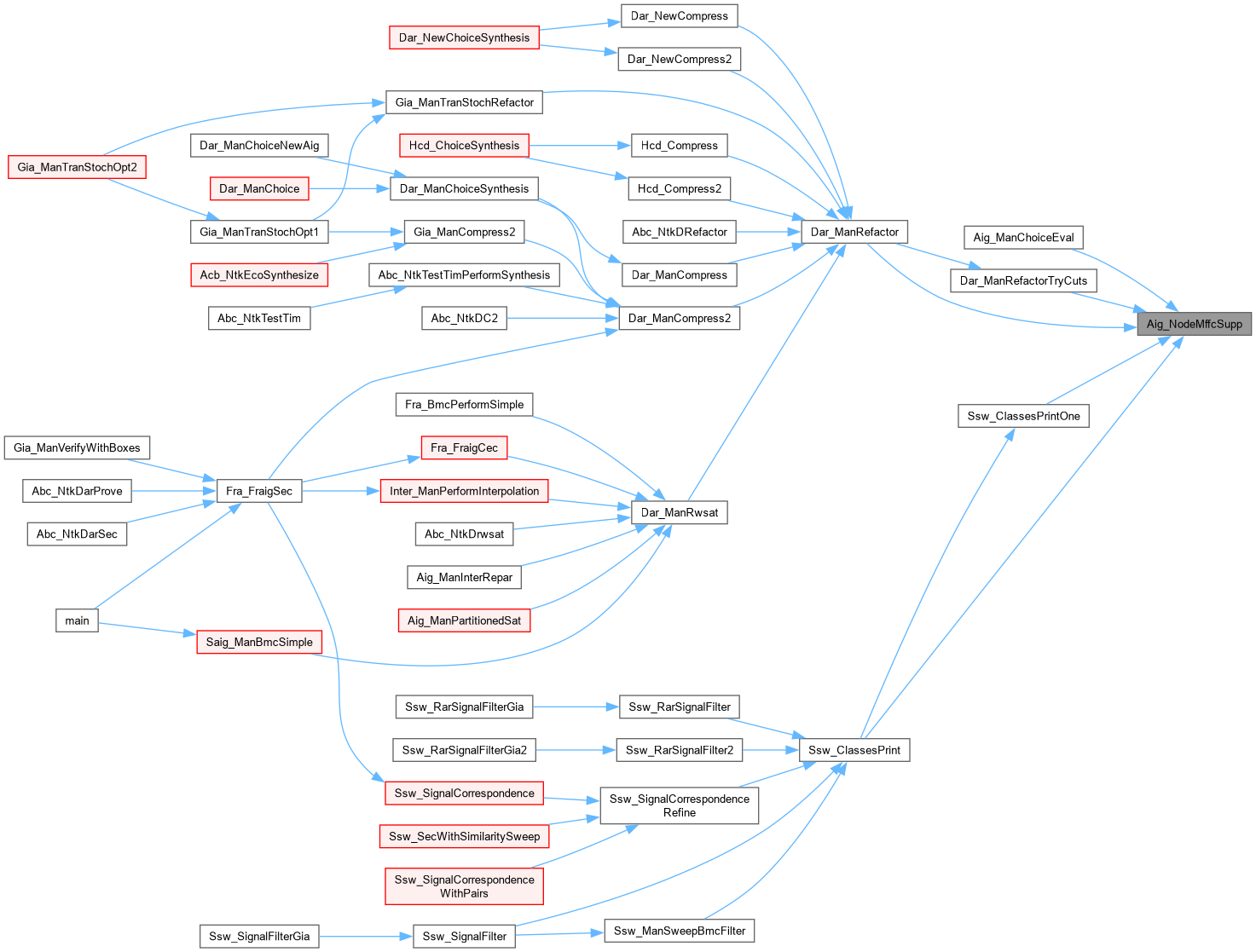

Here is the caller graph for this function:

◆ Aig_NodeMffcSupp_rec()

void Aig_NodeMffcSupp_rec ( Aig_Man_t * p,
Aig_Obj_t * pNode,
unsigned LevelMin,
Vec_Ptr_t * vSupp,
int fTopmost,
Aig_Obj_t * pObjSkip )

Function*************************************************************

Synopsis [Collects the internal and boundary nodes in the derefed MFFC.]

Description []

SideEffects []

SeeAlso []

Definition at line 150 of file aigMffc.c.

151{
152 // skip visited nodes
153 if ( Aig_ObjIsTravIdCurrent(p, pNode) )
154 return;
155 Aig_ObjSetTravIdCurrent(p, pNode);
156 // add to the new support nodes
157 if ( !fTopmost && pNode != pObjSkip && (Aig_ObjIsCi(pNode) || pNode->nRefs > 0 || pNode->Level <= LevelMin) )
158 {
159 if ( vSupp ) Vec_PtrPush( vSupp, pNode );
160 return;
161 }
162 assert( Aig_ObjIsNode(pNode) );
163 // recur on the children
164 Aig_NodeMffcSupp_rec( p, Aig_ObjFanin0(pNode), LevelMin, vSupp, 0, pObjSkip );
165 Aig_NodeMffcSupp_rec( p, Aig_ObjFanin1(pNode), LevelMin, vSupp, 0, pObjSkip );
166}
Here is the call graph for this function:

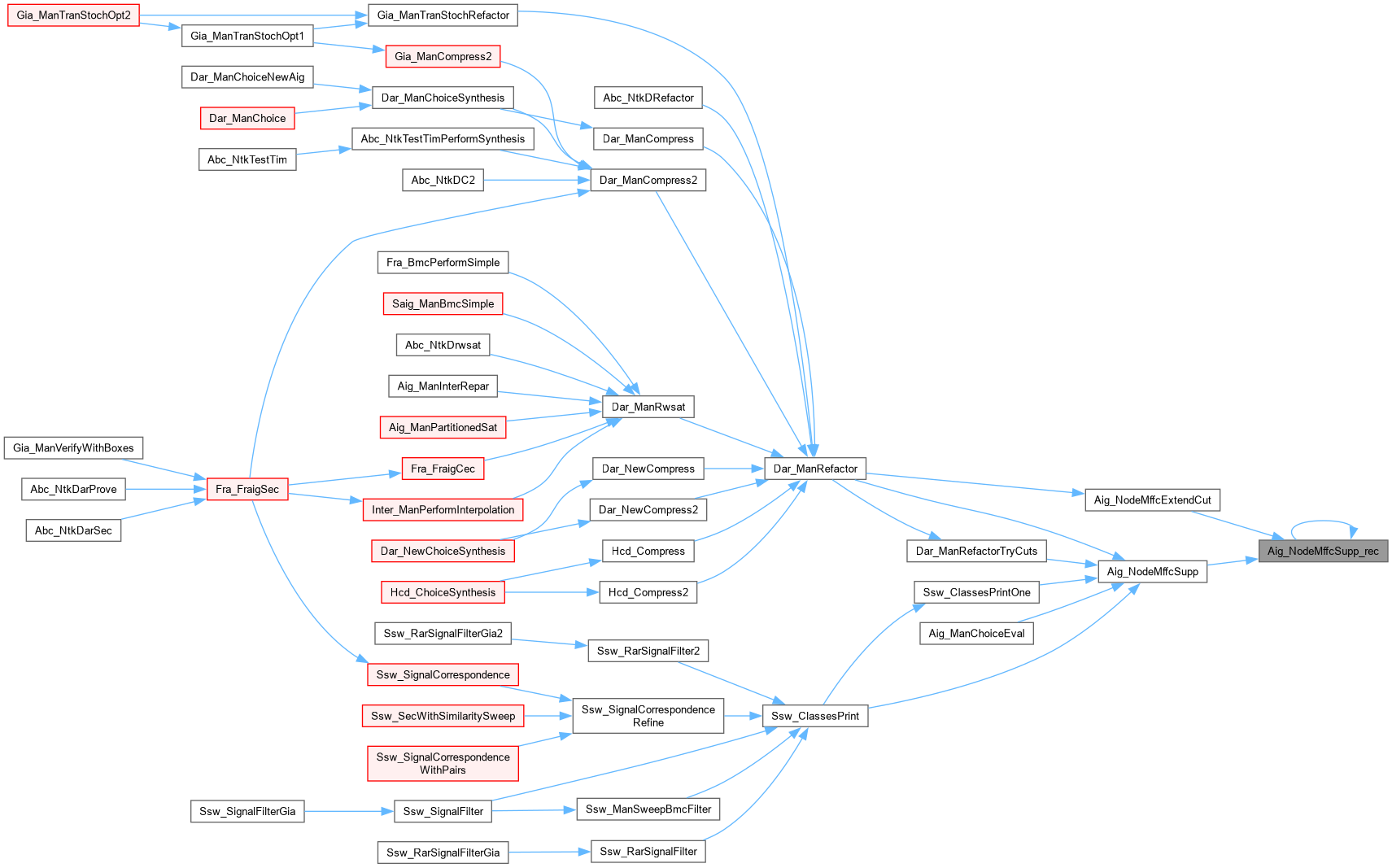

Here is the caller graph for this function:

◆ Aig_NodeRef_rec()

int Aig_NodeRef_rec ( Aig_Obj_t * pNode,
unsigned LevelMin )

Function*************************************************************

Synopsis [References the node's MFFC.]

Description []

SideEffects []

SeeAlso []

Definition at line 86 of file aigMffc.c.

87{
88 Aig_Obj_t * pFanin;
89 int Counter = 0;
90 if ( Aig_ObjIsCi(pNode) )
91 return 0;
92 // consider the first fanin
93 pFanin = Aig_ObjFanin0(pNode);
94 if ( pFanin->nRefs++ == 0 && (!LevelMin || pFanin->Level > LevelMin) )
95 Counter += Aig_NodeRef_rec( pFanin, LevelMin );
96 // skip the buffer
97 if ( Aig_ObjIsBuf(pNode) )
98 return Counter;
99 assert( Aig_ObjIsNode(pNode) );
100 // consider the second fanin
101 pFanin = Aig_ObjFanin1(pNode);
102 if ( pFanin->nRefs++ == 0 && (!LevelMin || pFanin->Level > LevelMin) )
103 Counter += Aig_NodeRef_rec( pFanin, LevelMin );
104 return Counter + 1;
105}
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Aig_NodeRefLabel_rec()

int Aig_NodeRefLabel_rec ( Aig_Man_t * p,
Aig_Obj_t * pNode,
unsigned LevelMin )

Function*************************************************************

Synopsis [References the node's MFFC.]

Description []

SideEffects []

SeeAlso []

Definition at line 118 of file aigMffc.c.

119{
120 Aig_Obj_t * pFanin;
121 int Counter = 0;
122 if ( Aig_ObjIsCi(pNode) )
123 return 0;
124 Aig_ObjSetTravIdCurrent( p, pNode );
125 // consider the first fanin
126 pFanin = Aig_ObjFanin0(pNode);
127 if ( pFanin->nRefs++ == 0 && (!LevelMin || pFanin->Level > LevelMin) )
128 Counter += Aig_NodeRefLabel_rec( p, pFanin, LevelMin );
129 if ( Aig_ObjIsBuf(pNode) )
130 return Counter;
131 assert( Aig_ObjIsNode(pNode) );
132 // consider the second fanin
133 pFanin = Aig_ObjFanin1(pNode);
134 if ( pFanin->nRefs++ == 0 && (!LevelMin || pFanin->Level > LevelMin) )
135 Counter += Aig_NodeRefLabel_rec( p, pFanin, LevelMin );
136 return Counter + 1;
137}
Here is the call graph for this function:

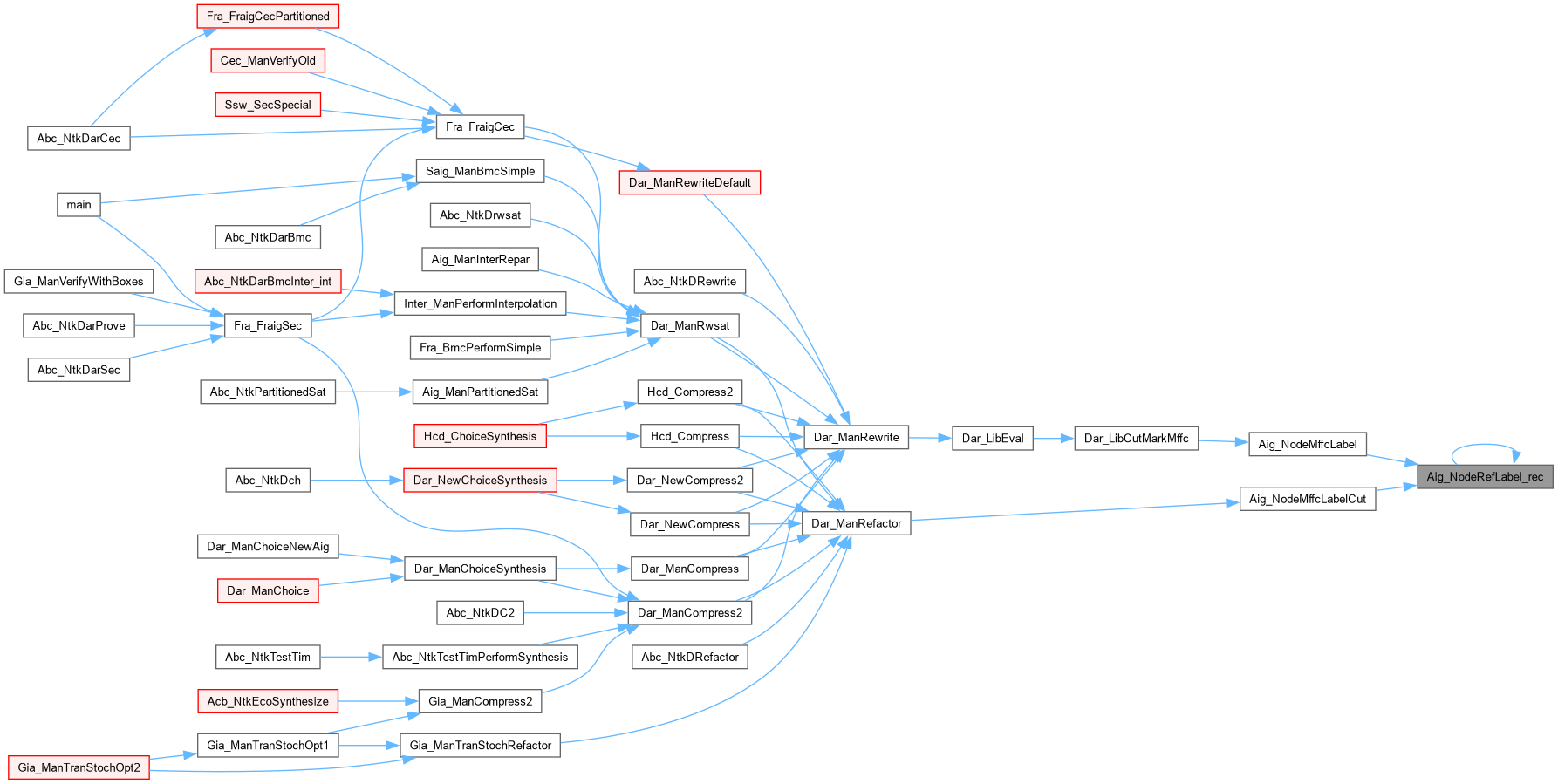

Here is the caller graph for this function:
