aigObj.c File Reference

#include "aig.h"

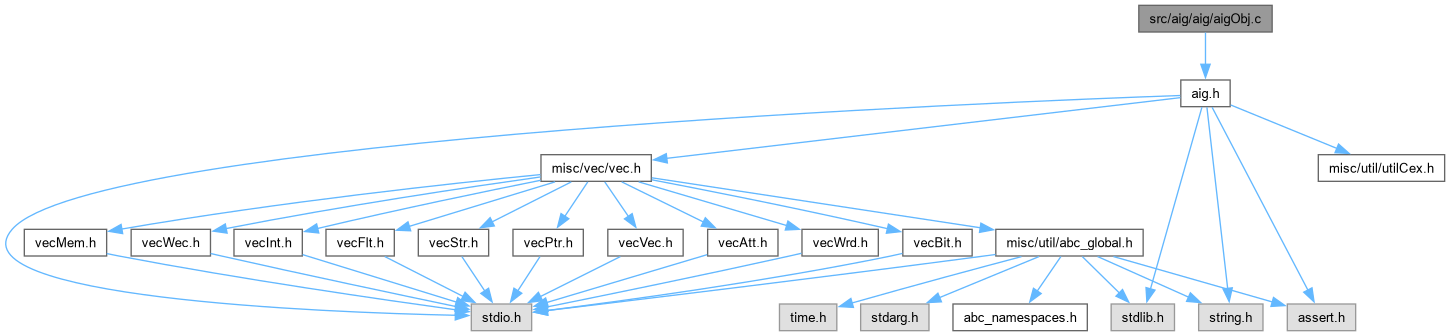

Include dependency graph for aigObj.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Aig_Obj_t *	Aig_ObjCreateCi (Aig_Man_t *p)
	DECLARATIONS ///.
Aig_Obj_t *	Aig_ObjCreateCo (Aig_Man_t *p, Aig_Obj_t *pDriver)
Aig_Obj_t *	Aig_ObjCreate (Aig_Man_t *p, Aig_Obj_t *pGhost)
void	Aig_ObjConnect (Aig_Man_t *p, Aig_Obj_t *pObj, Aig_Obj_t *pFan0, Aig_Obj_t *pFan1)
void	Aig_ObjDisconnect (Aig_Man_t *p, Aig_Obj_t *pObj)
void	Aig_ObjDelete (Aig_Man_t *p, Aig_Obj_t *pObj)
void	Aig_ObjDelete_rec (Aig_Man_t *p, Aig_Obj_t *pObj, int fFreeTop)
void	Aig_ObjDeletePo (Aig_Man_t *p, Aig_Obj_t *pObj)
void	Aig_ObjPatchFanin0 (Aig_Man_t *p, Aig_Obj_t *pObj, Aig_Obj_t *pFaninNew)
void	Aig_ObjPrint (Aig_Man_t *p, Aig_Obj_t *pObj)
void	Aig_NodeFixBufferFanins (Aig_Man_t *p, Aig_Obj_t *pObj, int fUpdateLevel)
int	Aig_ManPropagateBuffers (Aig_Man_t *p, int fUpdateLevel)
void	Aig_ObjReplace (Aig_Man_t *p, Aig_Obj_t *pObjOld, Aig_Obj_t *pObjNew, int fUpdateLevel)

Function Documentation

Aig_ManPropagateBuffers()

int Aig_ManPropagateBuffers	(	Aig_Man_t *	p,
		int	fUpdateLevel )

Function*************************************************************

Synopsis [Returns the number of dangling nodes removed.]

Description []

SideEffects []

SeeAlso []

Definition at line 432 of file aigObj.c.

{
    Aig_Obj_t * pObj;
    int nSteps;
    assert( p->pFanData );
    for ( nSteps = 0; Vec_PtrSize(p->vBufs) > 0; nSteps++ )
    {
        // get the node with a buffer fanin
        for ( pObj = (Aig_Obj_t *)Vec_PtrEntryLast(p->vBufs); Aig_ObjIsBuf(pObj); pObj = Aig_ObjFanout0(p, pObj) );
        // replace this node by a node without buffer
        Aig_NodeFixBufferFanins( p, pObj, fUpdateLevel );
        // stop if a cycle occured
        if ( nSteps > 1000000 )
        {
            printf( "Error: A cycle is encountered while propagating buffers.\n" );
            break;
        }
    }
    return nSteps;
}

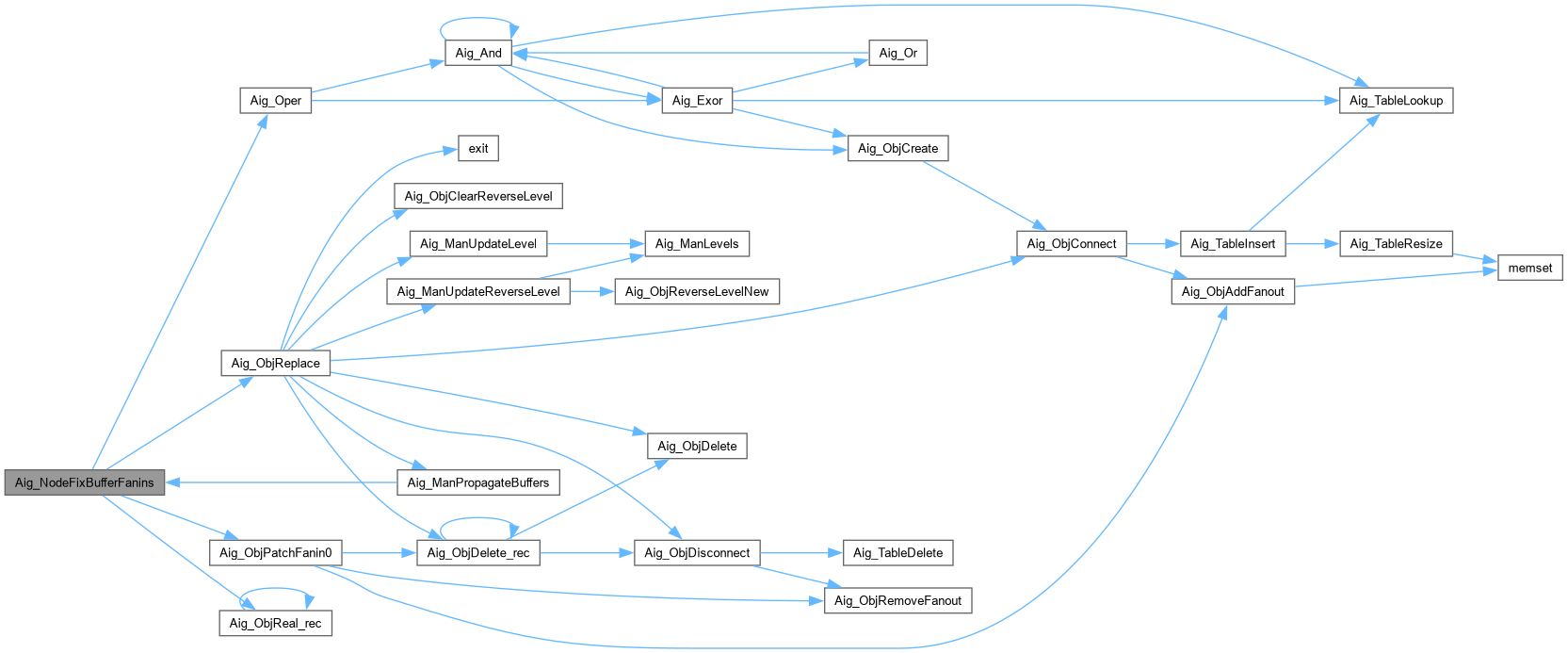

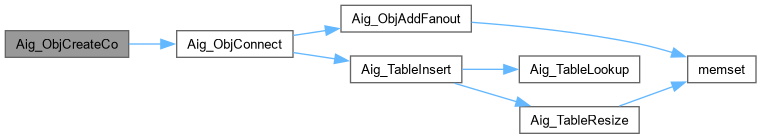

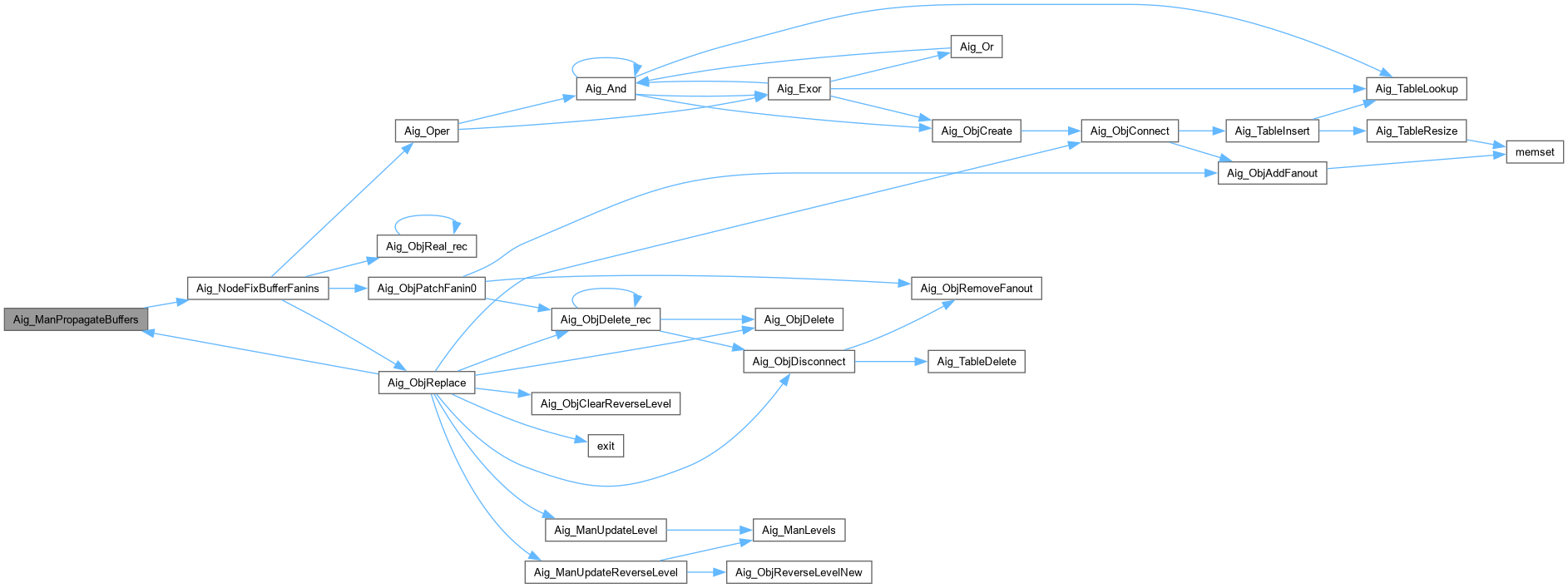

Here is the call graph for this function:

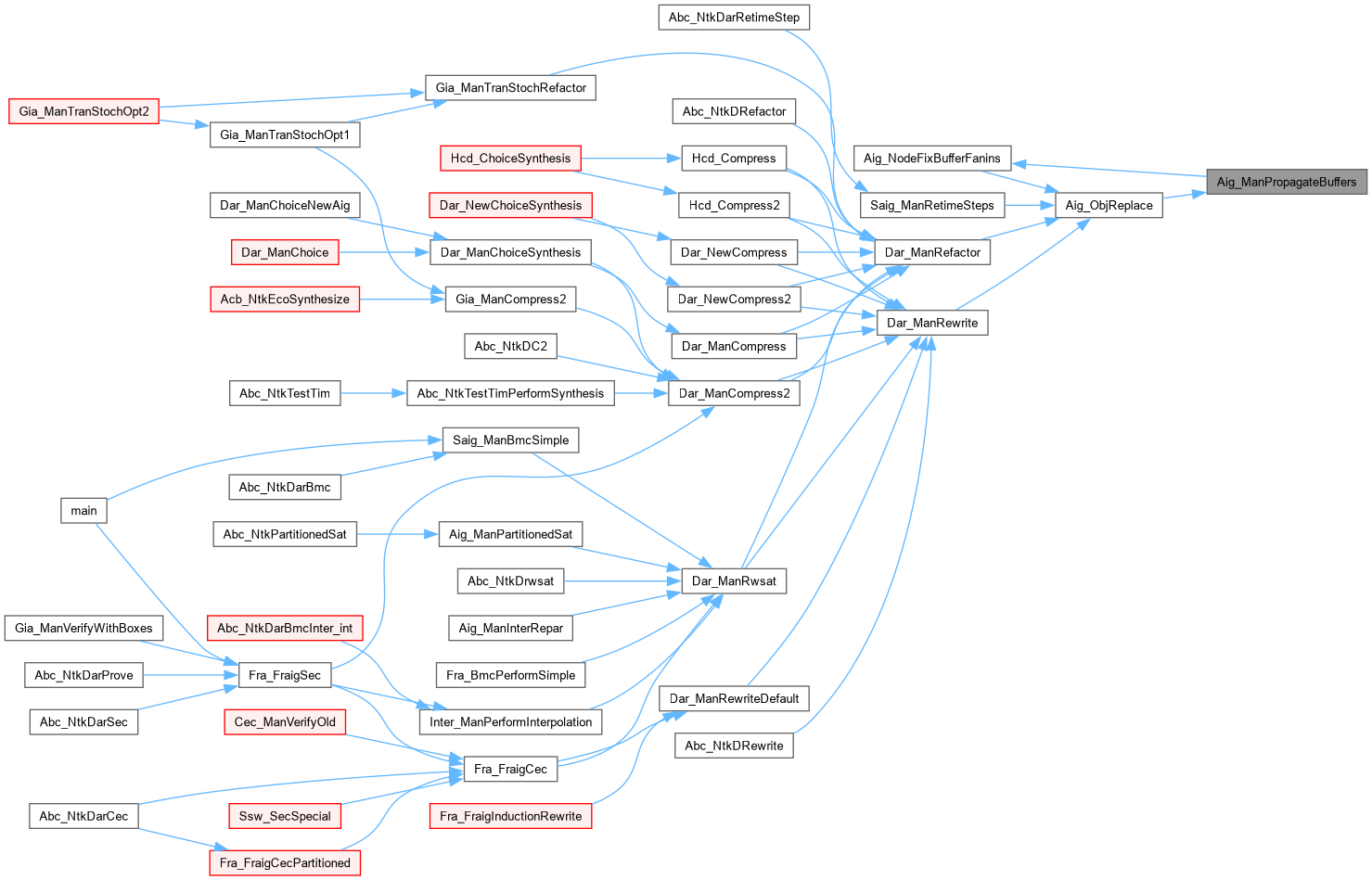

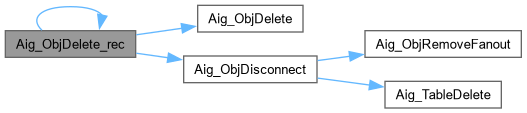

Here is the caller graph for this function:

Aig_NodeFixBufferFanins()

void Aig_NodeFixBufferFanins	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj,
		int	fUpdateLevel )

Function*************************************************************

Synopsis [Replaces node with a buffer fanin by a node without them.]

Description []

SideEffects []

SeeAlso []

Definition at line 393 of file aigObj.c.

{
    Aig_Obj_t * pFanReal0, * pFanReal1, * pResult = NULL;
    p->nBufFixes++;
    if ( Aig_ObjIsCo(pObj) )
    {
        assert( Aig_ObjIsBuf(Aig_ObjFanin0(pObj)) );
        pFanReal0 = Aig_ObjReal_rec( Aig_ObjChild0(pObj) );
        assert( Aig_ObjPhaseReal(Aig_ObjChild0(pObj)) == Aig_ObjPhaseReal(pFanReal0) );
        Aig_ObjPatchFanin0( p, pObj, pFanReal0 );
        return;
    }
    assert( Aig_ObjIsNode(pObj) );
    assert( Aig_ObjIsBuf(Aig_ObjFanin0(pObj)) || Aig_ObjIsBuf(Aig_ObjFanin1(pObj)) );
    // get the real fanins
    pFanReal0 = Aig_ObjReal_rec( Aig_ObjChild0(pObj) );
    pFanReal1 = Aig_ObjReal_rec( Aig_ObjChild1(pObj) );
    // get the new node
    if ( Aig_ObjIsNode(pObj) )
        pResult = Aig_Oper( p, pFanReal0, pFanReal1, Aig_ObjType(pObj) );
//    else if ( Aig_ObjIsLatch(pObj) )
//        pResult = Aig_Latch( p, pFanReal0, Aig_ObjInit(pObj) );
    else
        assert( 0 );
    // replace the node with buffer by the node without buffer
    Aig_ObjReplace( p, pObj, pResult, fUpdateLevel );
}

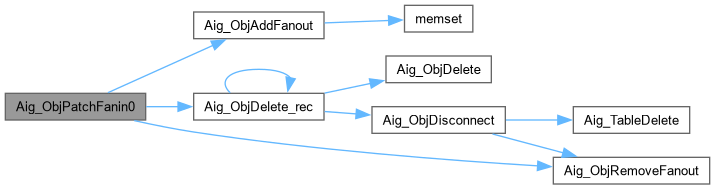

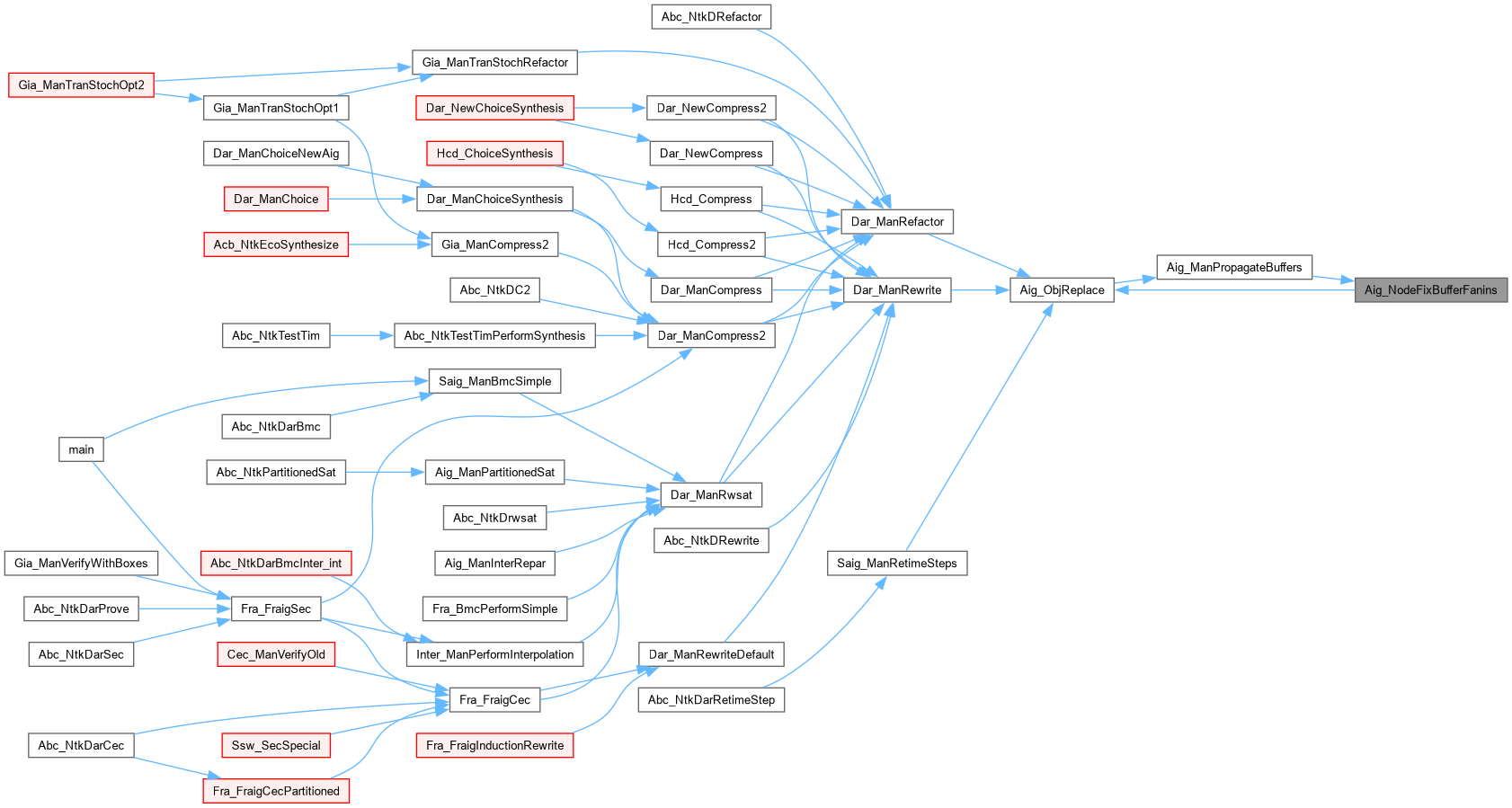

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjConnect()

void Aig_ObjConnect	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj,
		Aig_Obj_t *	pFan0,
		Aig_Obj_t *	pFan1 )

Function*************************************************************

Synopsis [Connect the object to the fanin.]

Description []

SideEffects []

SeeAlso []

Definition at line 126 of file aigObj.c.

{
    assert( !Aig_IsComplement(pObj) );
    assert( !Aig_ObjIsCi(pObj) );
    // add the first fanin
    pObj->pFanin0 = pFan0;
    pObj->pFanin1 = pFan1;
    // increment references of the fanins and add their fanouts
    if ( pFan0 != NULL )
    {
        assert( Aig_ObjFanin0(pObj)->Type > 0 );
        Aig_ObjRef( Aig_ObjFanin0(pObj) );
        if ( p->pFanData )
            Aig_ObjAddFanout( p, Aig_ObjFanin0(pObj), pObj );
    }
    if ( pFan1 != NULL )
    {
        assert( Aig_ObjFanin1(pObj)->Type > 0 );
        Aig_ObjRef( Aig_ObjFanin1(pObj) );
        if ( p->pFanData )
            Aig_ObjAddFanout( p, Aig_ObjFanin1(pObj), pObj );
    }
    // set level and phase
    pObj->Level = Aig_ObjLevelNew( pObj );
    pObj->fPhase = Aig_ObjPhaseReal(pFan0) & Aig_ObjPhaseReal(pFan1);
    // add the node to the structural hash table
    if ( p->pTable && Aig_ObjIsHash(pObj) )
        Aig_TableInsert( p, pObj );
    // add the node to the dynamically updated topological order
//    if ( p->pOrderData && Aig_ObjIsNode(pObj) )
//        Aig_ObjOrderInsert( p, pObj->Id );
    assert( !Aig_ObjIsNode(pObj) || pObj->Level > 0 );
}

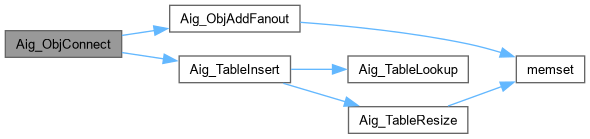

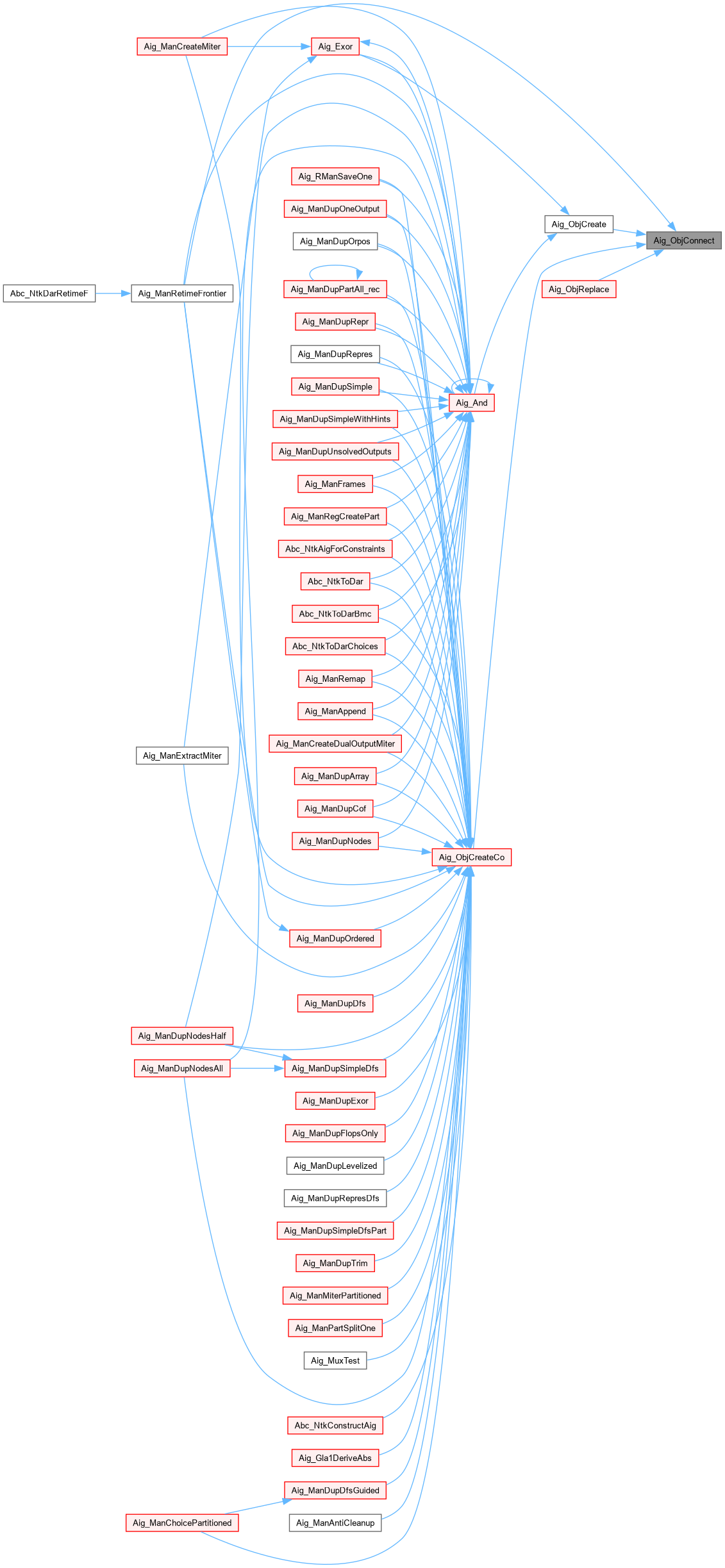

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjCreate()

Aig_Obj_t * Aig_ObjCreate	(	Aig_Man_t *	p,
		Aig_Obj_t *	pGhost )

Function*************************************************************

Synopsis [Create the new node assuming it does not exist.]

Description []

SideEffects []

SeeAlso []

Definition at line 89 of file aigObj.c.

{
    Aig_Obj_t * pObj;
    assert( !Aig_IsComplement(pGhost) );
    assert( Aig_ObjIsHash(pGhost) );
//    assert( pGhost == &p->Ghost );
    // get memory for the new object
    pObj = Aig_ManFetchMemory( p );
    pObj->Type = pGhost->Type;
    // add connections
    Aig_ObjConnect( p, pObj, pGhost->pFanin0, pGhost->pFanin1 );
    // update node counters of the manager
    p->nObjs[Aig_ObjType(pObj)]++;
    assert( pObj->pData == NULL );
    // create the power counter
    if ( p->vProbs )
    {
        float Prob0 = Abc_Int2Float( Vec_IntEntry( p->vProbs, Aig_ObjFaninId0(pObj) ) );
        float Prob1 = Abc_Int2Float( Vec_IntEntry( p->vProbs, Aig_ObjFaninId1(pObj) ) );
        Prob0 = Aig_ObjFaninC0(pObj)? 1.0 - Prob0 : Prob0;
        Prob1 = Aig_ObjFaninC1(pObj)? 1.0 - Prob1 : Prob1;
        Vec_IntSetEntry( p->vProbs, pObj->Id, Abc_Float2Int(Prob0 * Prob1) );
    }
    return pObj;
}

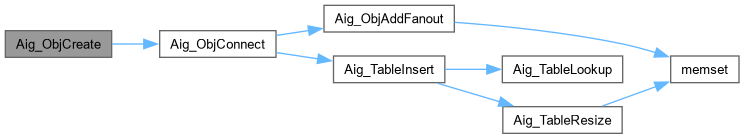

Here is the call graph for this function:

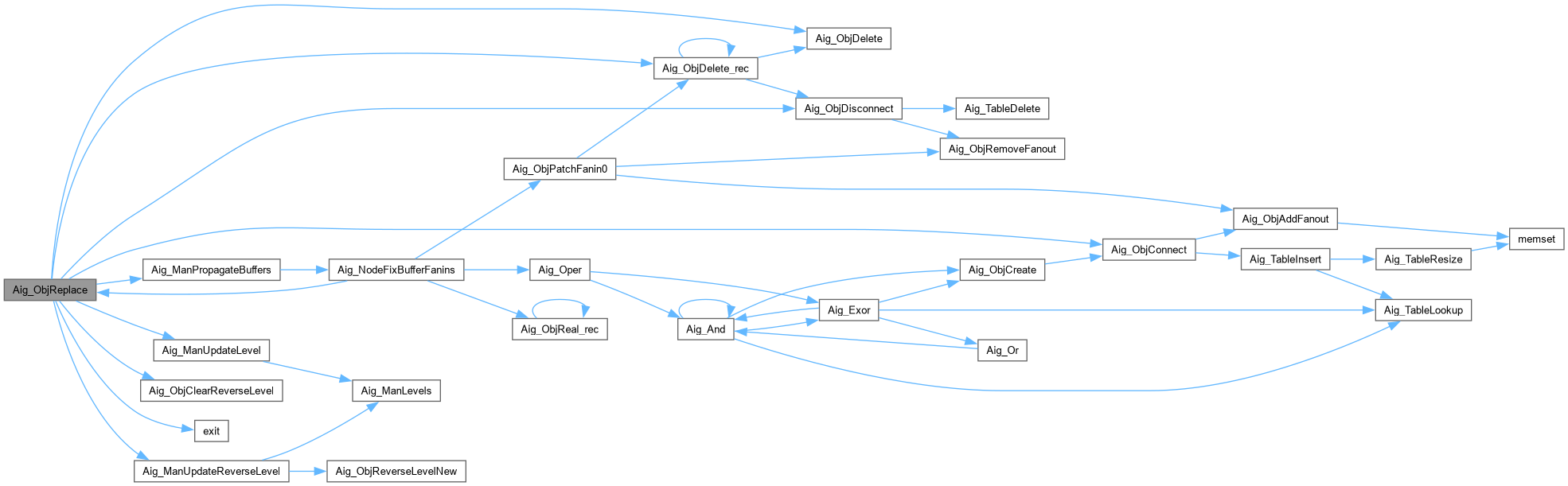

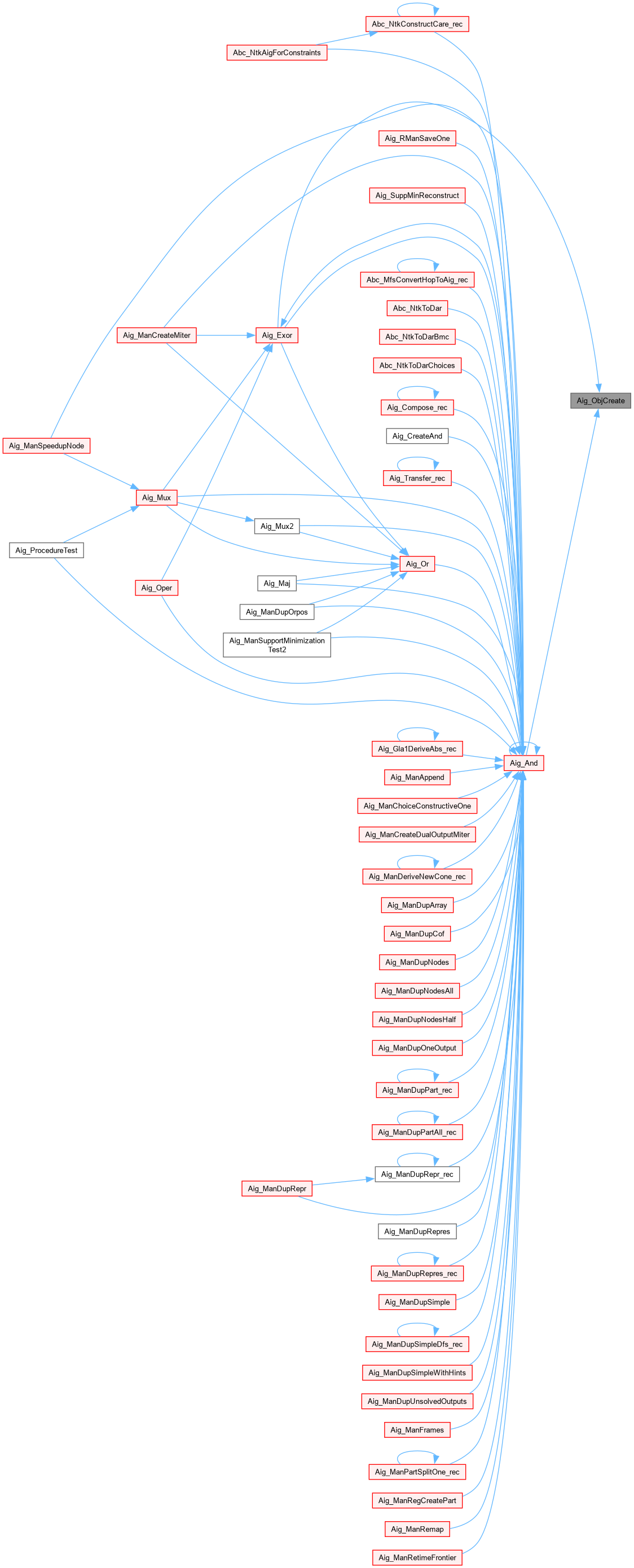

Here is the caller graph for this function:

Aig_ObjCreateCi()

ABC_NAMESPACE_IMPL_START Aig_Obj_t * Aig_ObjCreateCi

(

Aig_Man_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [aigObj.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [AIG package.]

Synopsis [Adding/removing objects.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

aigObj.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Creates primary input.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file aigObj.c.

{
    Aig_Obj_t * pObj;
    pObj = Aig_ManFetchMemory( p );
    pObj->Type = AIG_OBJ_CI;
    Vec_PtrPush( p->vCis, pObj );
    p->nObjs[AIG_OBJ_CI]++;
    return pObj;
}

Aig_ObjCreateCo()

Aig_Obj_t * Aig_ObjCreateCo	(	Aig_Man_t *	p,
		Aig_Obj_t *	pDriver )

Function*************************************************************

Synopsis [Creates primary output with the given driver.]

Description []

SideEffects []

SeeAlso []

Definition at line 66 of file aigObj.c.

{
    Aig_Obj_t * pObj;
    pObj = Aig_ManFetchMemory( p );
    pObj->Type = AIG_OBJ_CO;
    Vec_PtrPush( p->vCos, pObj );
    Aig_ObjConnect( p, pObj, pDriver, NULL );
    p->nObjs[AIG_OBJ_CO]++;
    return pObj;
}

Here is the call graph for this function:

Aig_ObjDelete()

void Aig_ObjDelete	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Deletes the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 209 of file aigObj.c.

{
    assert( !Aig_IsComplement(pObj) );
    assert( !Aig_ObjIsTerm(pObj) );
    assert( Aig_ObjRefs(pObj) == 0 );
    if ( p->pFanData && Aig_ObjIsBuf(pObj) )
        Vec_PtrRemove( p->vBufs, pObj );
    p->nObjs[pObj->Type]--;
    Vec_PtrWriteEntry( p->vObjs, pObj->Id, NULL );
    Aig_ManRecycleMemory( p, pObj );
}

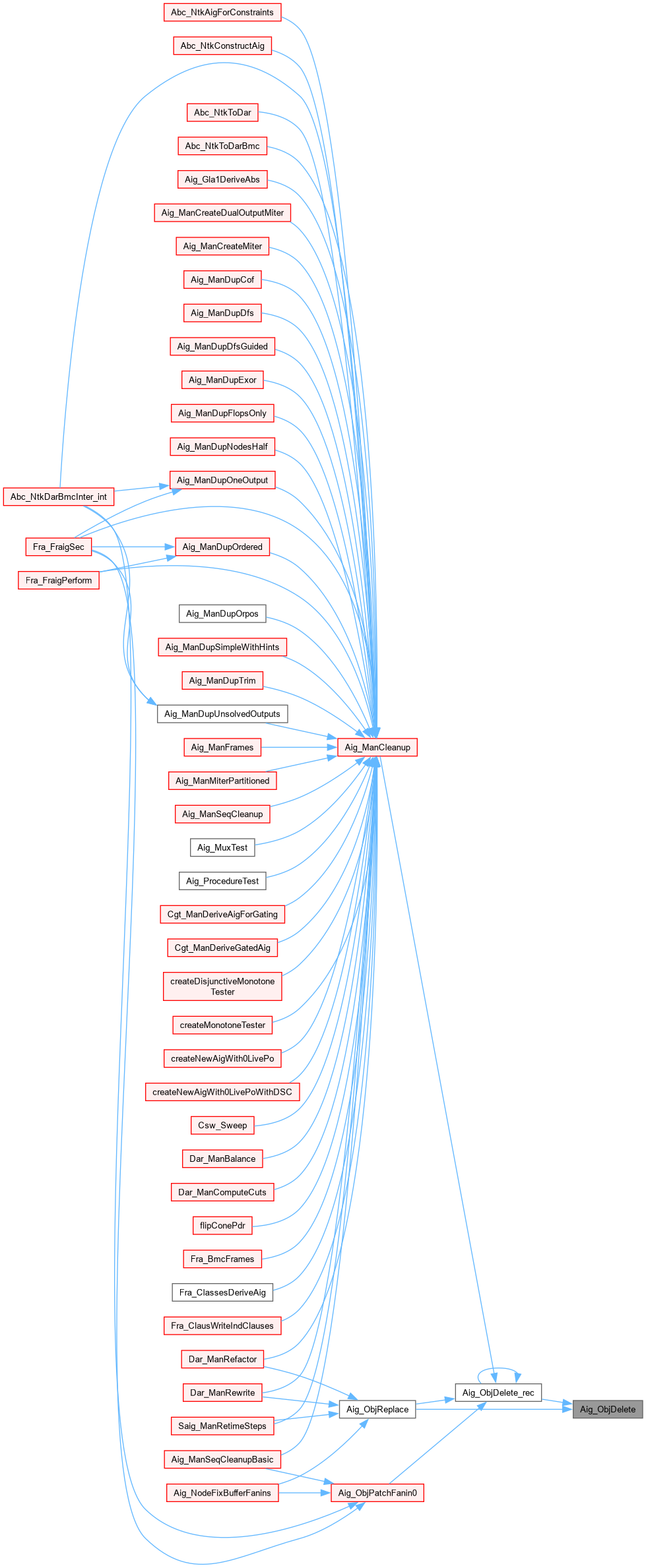

Here is the caller graph for this function:

Aig_ObjDelete_rec()

void Aig_ObjDelete_rec	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj,
		int	fFreeTop )

Function*************************************************************

Synopsis [Deletes the MFFC of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 232 of file aigObj.c.

{
    Aig_Obj_t * pFanin0, * pFanin1;
    assert( !Aig_IsComplement(pObj) );
    if ( Aig_ObjIsConst1(pObj) || Aig_ObjIsCi(pObj) )
        return;
    assert( !Aig_ObjIsCo(pObj) );
    pFanin0 = Aig_ObjFanin0(pObj);
    pFanin1 = Aig_ObjFanin1(pObj);
    Aig_ObjDisconnect( p, pObj );
    if ( fFreeTop )
        Aig_ObjDelete( p, pObj );
    if ( pFanin0 && !Aig_ObjIsNone(pFanin0) && Aig_ObjRefs(pFanin0) == 0 )
        Aig_ObjDelete_rec( p, pFanin0, 1 );
    if ( pFanin1 && !Aig_ObjIsNone(pFanin1) && Aig_ObjRefs(pFanin1) == 0 )
        Aig_ObjDelete_rec( p, pFanin1, 1 );
}

Here is the call graph for this function:

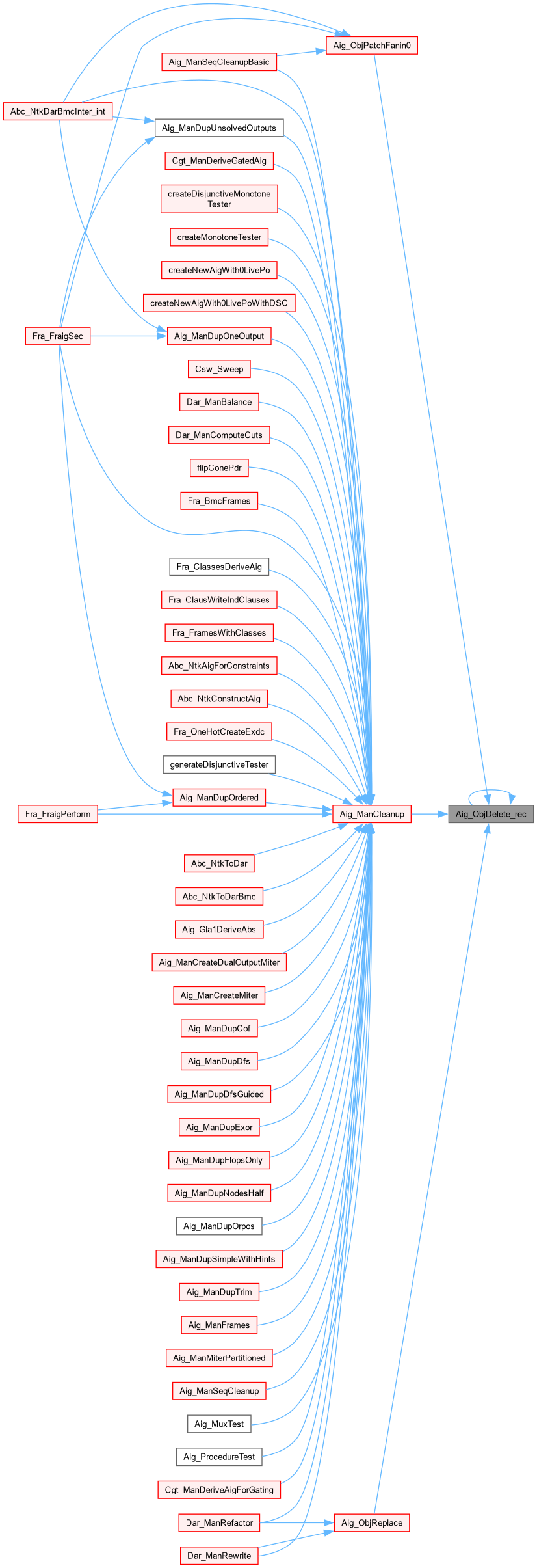

Here is the caller graph for this function:

Aig_ObjDeletePo()

void Aig_ObjDeletePo	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Deletes the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 261 of file aigObj.c.

{
    assert( Aig_ObjIsCo(pObj) );
    Aig_ObjDeref(Aig_ObjFanin0(pObj));
    pObj->pFanin0 = NULL;
    p->nObjs[pObj->Type]--;
    Vec_PtrWriteEntry( p->vObjs, pObj->Id, NULL );
    Aig_ManRecycleMemory( p, pObj );
}

Here is the caller graph for this function:

Aig_ObjDisconnect()

void Aig_ObjDisconnect	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Disconnects the object from the fanins.]

Description []

SideEffects []

SeeAlso []

Definition at line 171 of file aigObj.c.

{
    assert( !Aig_IsComplement(pObj) );
    // remove connections
    if ( pObj->pFanin0 != NULL )
    {
        if ( p->pFanData )
            Aig_ObjRemoveFanout( p, Aig_ObjFanin0(pObj), pObj );
        Aig_ObjDeref(Aig_ObjFanin0(pObj));
    }
    if ( pObj->pFanin1 != NULL )
    {
        if ( p->pFanData )
            Aig_ObjRemoveFanout( p, Aig_ObjFanin1(pObj), pObj );
        Aig_ObjDeref(Aig_ObjFanin1(pObj));
    }
    // remove the node from the structural hash table
    if ( p->pTable && Aig_ObjIsHash(pObj) )
        Aig_TableDelete( p, pObj );
    // add the first fanin
    pObj->pFanin0 = NULL;
    pObj->pFanin1 = NULL;
    // remove the node from the dynamically updated topological order
//    if ( p->pOrderData && Aig_ObjIsNode(pObj) )
//        Aig_ObjOrderRemove( p, pObj->Id );
}

Here is the call graph for this function:

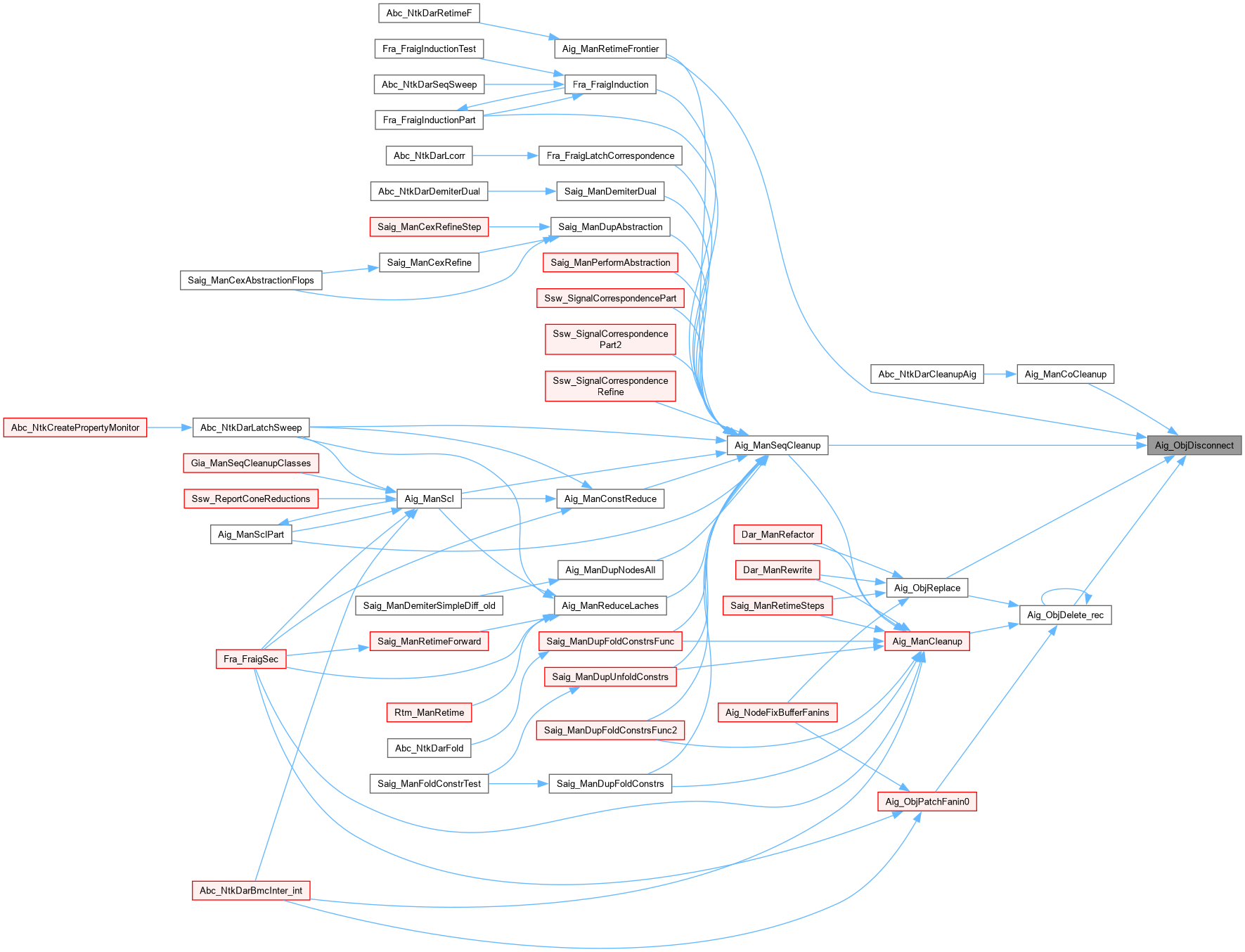

Here is the caller graph for this function:

Aig_ObjPatchFanin0()

void Aig_ObjPatchFanin0	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj,
		Aig_Obj_t *	pFaninNew )

Function*************************************************************

Synopsis [Replaces the first fanin of the node by the new fanin.]

Description []

SideEffects []

SeeAlso []

Definition at line 282 of file aigObj.c.

{
    Aig_Obj_t * pFaninOld;
    assert( !Aig_IsComplement(pObj) );
    assert( Aig_ObjIsCo(pObj) );
    pFaninOld = Aig_ObjFanin0(pObj);
    // decrement ref and remove fanout
    if ( p->pFanData )
        Aig_ObjRemoveFanout( p, pFaninOld, pObj );
    Aig_ObjDeref( pFaninOld );
    // update the fanin
    pObj->pFanin0 = pFaninNew;
    pObj->Level = Aig_ObjLevelNew( pObj );
    pObj->fPhase = Aig_ObjPhaseReal(pObj->pFanin0);
    // increment ref and add fanout
    if ( p->pFanData )
        Aig_ObjAddFanout( p, Aig_ObjFanin0(pObj), pObj );
    Aig_ObjRef( Aig_ObjFanin0(pObj) );
    // get rid of old fanin
    if ( !Aig_ObjIsCi(pFaninOld) && !Aig_ObjIsConst1(pFaninOld) && Aig_ObjRefs(pFaninOld) == 0 )
        Aig_ObjDelete_rec( p, pFaninOld, 1 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ObjPrint()

void Aig_ObjPrint	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Verbose printing of the AIG node.]

Description []

SideEffects []

SeeAlso []

Definition at line 316 of file aigObj.c.

{
    int fShowFanouts = 0;
    Aig_Obj_t * pTemp;
    if ( pObj == NULL )
    {
        printf( "Object is NULL." );
        return;
    }
    if ( Aig_IsComplement(pObj) )
    {
        printf( "Compl " );
        pObj = Aig_Not(pObj);
    }
    assert( !Aig_IsComplement(pObj) );
    printf( "Node %4d : ", Aig_ObjId(pObj) );
    if ( Aig_ObjIsConst1(pObj) )
        printf( "constant 1" );
    else if ( Aig_ObjIsCi(pObj) )
        printf( "PI" );
    else if ( Aig_ObjIsCo(pObj) )
        printf( "PO( %4d%s )", Aig_ObjFanin0(pObj)->Id, (Aig_ObjFaninC0(pObj)? "\'" : " ") );
    else if ( Aig_ObjIsBuf(pObj) )
        printf( "BUF( %d%s )", Aig_ObjFanin0(pObj)->Id, (Aig_ObjFaninC0(pObj)? "\'" : " ") );
    else
        printf( "AND( %4d%s, %4d%s )",
            Aig_ObjFanin0(pObj)->Id, (Aig_ObjFaninC0(pObj)? "\'" : " "),
            Aig_ObjFanin1(pObj)->Id, (Aig_ObjFaninC1(pObj)? "\'" : " ") );
    printf( " (refs = %3d)", Aig_ObjRefs(pObj) );
    if ( fShowFanouts && p->pFanData )
    {
        Aig_Obj_t * pFanout;
        int i;
        int iFan = -1; // Suppress "might be used uninitialized"
        printf( "\nFanouts:\n" );
        Aig_ObjForEachFanout( p, pObj, pFanout, iFan, i )
        {
            printf( "    " );
            printf( "Node %4d : ", Aig_ObjId(pFanout) );
            if ( Aig_ObjIsCo(pFanout) )
                printf( "PO( %4d%s )", Aig_ObjFanin0(pFanout)->Id, (Aig_ObjFaninC0(pFanout)? "\'" : " ") );
            else if ( Aig_ObjIsBuf(pFanout) )
                printf( "BUF( %d%s )", Aig_ObjFanin0(pFanout)->Id, (Aig_ObjFaninC0(pFanout)? "\'" : " ") );
            else
                printf( "AND( %4d%s, %4d%s )",
                    Aig_ObjFanin0(pFanout)->Id, (Aig_ObjFaninC0(pFanout)? "\'" : " "),
                    Aig_ObjFanin1(pFanout)->Id, (Aig_ObjFaninC1(pFanout)? "\'" : " ") );
            printf( "\n" );
        }
        return;
    }
    // there are choices
    if ( p->pEquivs && p->pEquivs[pObj->Id] )
    {
        // print equivalence class
        printf( "  { %4d ", pObj->Id );
        for ( pTemp = p->pEquivs[pObj->Id]; pTemp; pTemp = p->pEquivs[pTemp->Id] )
            printf( " %4d%s", pTemp->Id, (pTemp->fPhase != pObj->fPhase)? "\'" : " " );
        printf( " }" );
        return;
    }
    // this is a secondary node
    if ( p->pReprs && p->pReprs[pObj->Id] )
        printf( "  class of %d", pObj->Id );
}

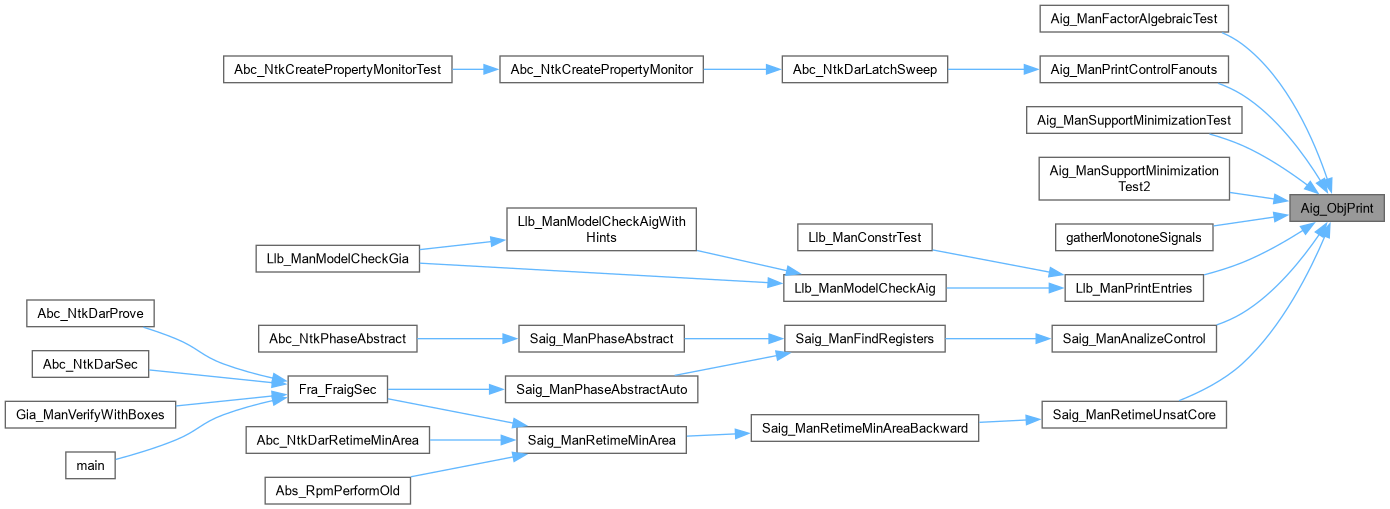

Here is the caller graph for this function:

Aig_ObjReplace()

void Aig_ObjReplace	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObjOld,
		Aig_Obj_t *	pObjNew,
		int	fUpdateLevel )

Function*************************************************************

Synopsis [Replaces one object by another.]

Description [The new object (pObjNew) should be used instead of the old object (pObjOld). If the new object is complemented or used, the buffer is added and the new object remains in the manager; otherwise, the new object is deleted.]

SideEffects []

SeeAlso []

Definition at line 467 of file aigObj.c.

{
    Aig_Obj_t * pObjNewR = Aig_Regular(pObjNew);
    // the object to be replaced cannot be complemented
    assert( !Aig_IsComplement(pObjOld) );
    // the object to be replaced cannot be a terminal
    assert( !Aig_ObjIsCi(pObjOld) && !Aig_ObjIsCo(pObjOld) );
    // the object to be used cannot be a buffer or a PO
    assert( !Aig_ObjIsBuf(pObjNewR) && !Aig_ObjIsCo(pObjNewR) );
    // the object cannot be the same
    assert( pObjOld != pObjNewR );
    // make sure object is not pointing to itself
    assert( pObjOld != Aig_ObjFanin0(pObjNewR) );
    assert( pObjOld != Aig_ObjFanin1(pObjNewR) );
    if ( pObjOld == Aig_ObjFanin0(pObjNewR) || pObjOld == Aig_ObjFanin1(pObjNewR) )
    {
        printf( "Aig_ObjReplace(): Internal error!\n" );
        exit(1);
    }
    // recursively delete the old node - but leave the object there
    pObjNewR->nRefs++;
    Aig_ObjDelete_rec( p, pObjOld, 0 );
    pObjNewR->nRefs--;
    // if the new object is complemented or already used, create a buffer
    p->nObjs[pObjOld->Type]--;
    if ( Aig_IsComplement(pObjNew) || Aig_ObjRefs(pObjNew) > 0 || !Aig_ObjIsNode(pObjNew) )
    {
        pObjOld->Type = AIG_OBJ_BUF;
        Aig_ObjConnect( p, pObjOld, pObjNew, NULL );
        p->nBufReplaces++;
    }
    else
    {
        Aig_Obj_t * pFanin0 = pObjNew->pFanin0;
        Aig_Obj_t * pFanin1 = pObjNew->pFanin1;
        int LevelOld = pObjOld->Level;
        pObjOld->Type = pObjNew->Type;
        Aig_ObjDisconnect( p, pObjNew );
        Aig_ObjConnect( p, pObjOld, pFanin0, pFanin1 );
        // delete the new object
        Aig_ObjDelete( p, pObjNew );
        // update levels
        if ( p->pFanData )
        {
            pObjOld->Level = LevelOld;
            Aig_ManUpdateLevel( p, pObjOld );
        }
        if ( fUpdateLevel )
        {
            Aig_ObjClearReverseLevel( p, pObjOld );
            Aig_ManUpdateReverseLevel( p, pObjOld );
        }
    }
    p->nObjs[pObjOld->Type]++;
    // store buffers if fanout is allocated
    if ( p->pFanData && Aig_ObjIsBuf(pObjOld) )
    {
        Vec_PtrPush( p->vBufs, pObjOld );
        p->nBufMax = Abc_MaxInt( p->nBufMax, Vec_PtrSize(p->vBufs) );
        Aig_ManPropagateBuffers( p, fUpdateLevel );
    }
}

Here is the call graph for this function:

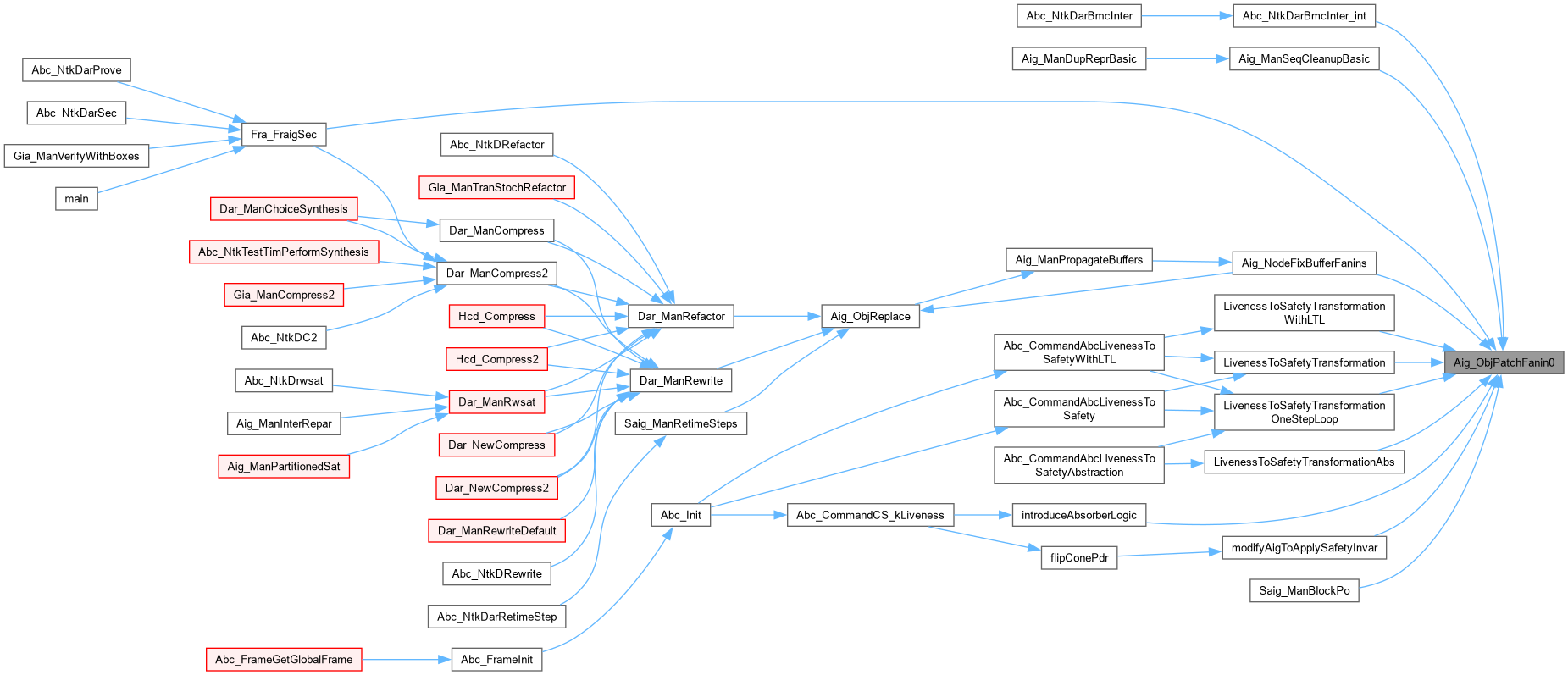

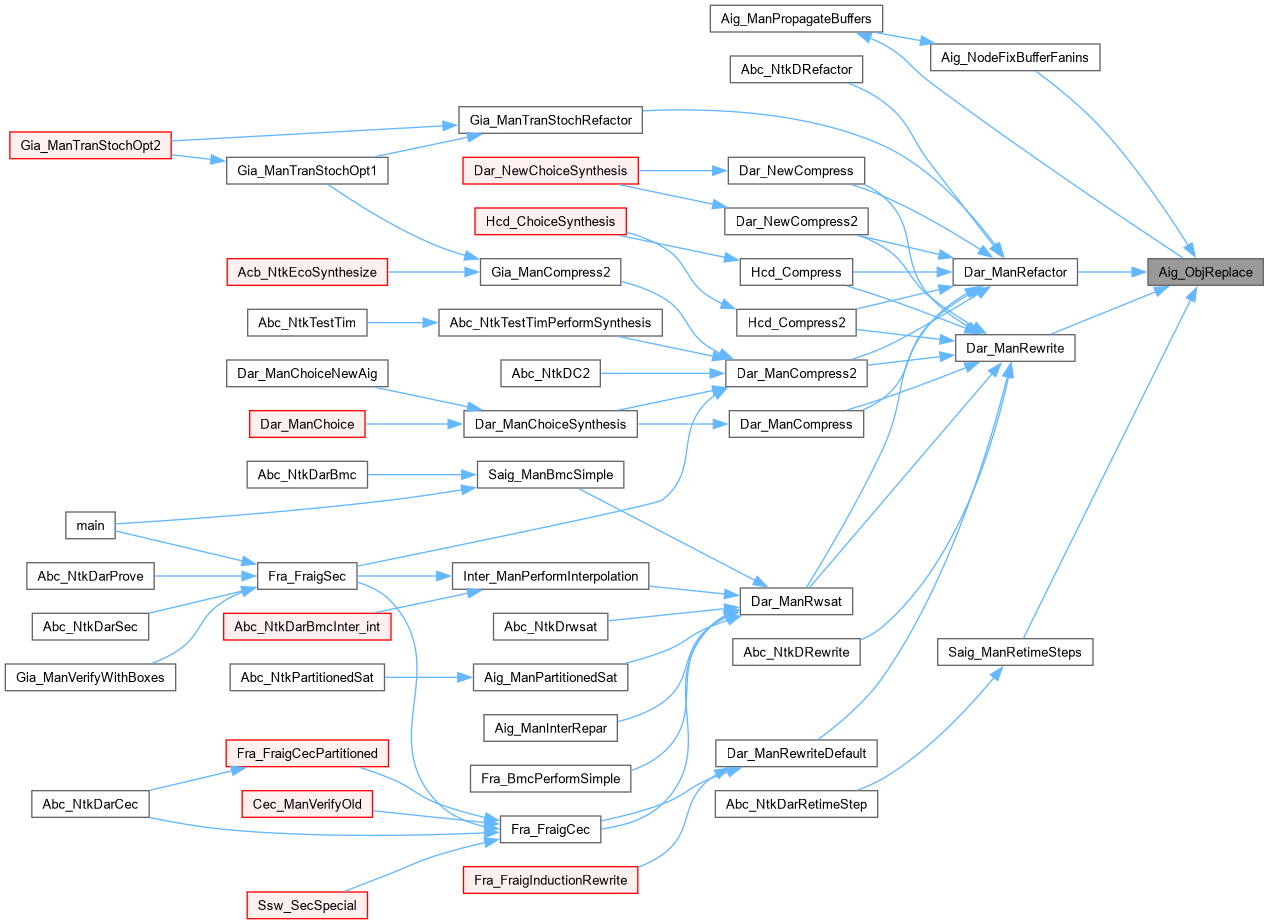

Here is the caller graph for this function:
