aigRet.c File Reference

#include "aig.h"

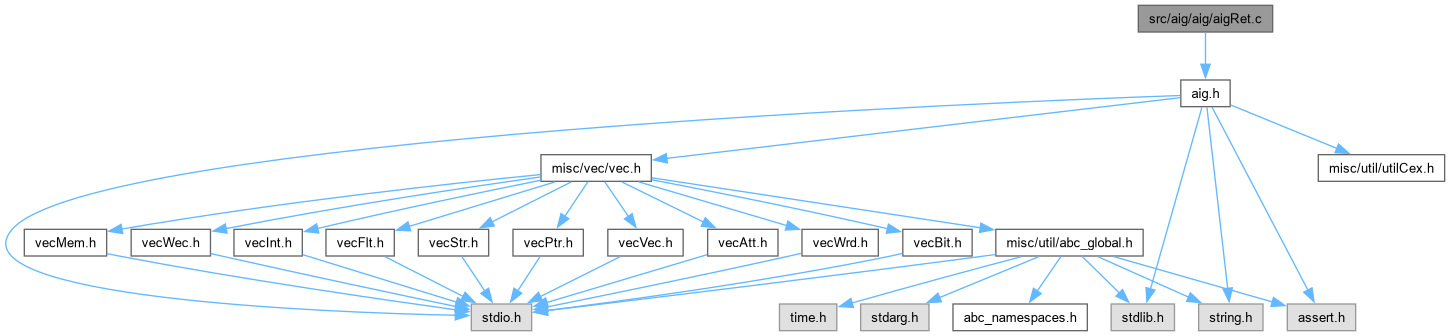

Include dependency graph for aigRet.c:

Go to the source code of this file.

Classes
struct	Rtm_Man_t_
struct	Rtm_Edg_t_
struct	Rtm_Obj_t_

Macros
#define	Rtm_ManForEachPi(p, pObj, i)
#define	Rtm_ManForEachPo(p, pObj, i)
#define	Rtm_ManForEachObj(p, pObj, i)
#define	Rtm_ObjForEachFanin(pObj, pFanin, i)
#define	Rtm_ObjForEachFanout(pObj, pFanout, i)
#define	Rtm_ObjForEachFaninEdge(pObj, pEdge, i)
#define	Rtm_ObjForEachFanoutEdge(pObj, pEdge, i)

Typedefs
typedef struct Rtm_Man_t_	Rtm_Man_t
typedef struct Rtm_Edg_t_	Rtm_Edg_t
typedef struct Rtm_Obj_t_	Rtm_Obj_t

Enumerations
enum	Rtm_Init_t { RTM_VAL_NONE , RTM_VAL_ZERO , RTM_VAL_ONE , RTM_VAL_VOID }
	DECLARATIONS ///. More...

Functions
void	Rtm_PrintEdge (Rtm_Man_t *p, Rtm_Edg_t *pEdge)
Rtm_Man_t *	Rtm_ManAlloc (Aig_Man_t *p)
void	Rtm_ManFree (Rtm_Man_t *p)
int	Rtm_ManLatchMax (Rtm_Man_t *p)
Rtm_Obj_t *	Rtm_ObjAlloc (Rtm_Man_t *pRtm, int nFanins, int nFanouts)
void	Rtm_ObjAddFanin (Rtm_Obj_t *pObj, Rtm_Obj_t *pFanin, int fCompl)
int	Rtm_ObjCheckRetimeFwd (Rtm_Obj_t *pObj)
int	Rtm_ObjCheckRetimeBwd (Rtm_Obj_t *pObj)
int	Rtm_ObjGetDegreeFwd (Rtm_Obj_t *pObj)
int	Rtm_ObjGetDegreeBwd (Rtm_Obj_t *pObj)
void	Rtm_ObjRetimeFwd (Rtm_Man_t *pRtm, Rtm_Obj_t *pObj)
void	Rtm_ObjRetimeBwd (Rtm_Man_t *pRtm, Rtm_Obj_t *pObj)
void	Rtm_ObjMarkAutoFwd_rec (Rtm_Obj_t *pObj)
int	Rtm_ManMarkAutoFwd (Rtm_Man_t *pRtm)
void	Rtm_ObjMarkAutoBwd_rec (Rtm_Obj_t *pObj)
int	Rtm_ManMarkAutoBwd (Rtm_Man_t *pRtm)
Rtm_Man_t *	Rtm_ManFromAig (Aig_Man_t *p)
Aig_Obj_t *	Rtm_ManToAig_rec (Aig_Man_t *pNew, Rtm_Man_t *pRtm, Rtm_Obj_t *pObjRtm, int *pLatches)
Aig_Man_t *	Rtm_ManToAig (Rtm_Man_t *pRtm)
Aig_Man_t *	Rtm_ManRetime (Aig_Man_t *p, int fForward, int nStepsMax, int fVerbose)

Macro Definition Documentation

Rtm_ManForEachObj

#define Rtm_ManForEachObj	(		p,
			pObj,
			i )

Value:

    Vec_PtrForEachEntry( Rtm_Obj_t *, p->vObjs, pObj, i )

Definition at line 127 of file aigRet.c.

#define Rtm_ManForEachObj( p, pObj, i )                                         \
    Vec_PtrForEachEntry( Rtm_Obj_t *, p->vObjs, pObj, i )

Rtm_ManForEachPi

#define Rtm_ManForEachPi	(		p,
			pObj,
			i )

Value:

    Vec_PtrForEachEntry( Rtm_Obj_t *, p->vPis, pObj, i )

Definition at line 121 of file aigRet.c.

#define Rtm_ManForEachPi( p, pObj, i )                                          \
    Vec_PtrForEachEntry( Rtm_Obj_t *, p->vPis, pObj, i )

Rtm_ManForEachPo

#define Rtm_ManForEachPo	(		p,
			pObj,
			i )

Value:

    Vec_PtrForEachEntry( Rtm_Obj_t *, p->vPos, pObj, i )

Definition at line 124 of file aigRet.c.

#define Rtm_ManForEachPo( p, pObj, i )                                          \
    Vec_PtrForEachEntry( Rtm_Obj_t *, p->vPos, pObj, i )

Rtm_ObjForEachFanin

#define Rtm_ObjForEachFanin	(		pObj,
			pFanin,
			i )

Value:

    for ( i = 0; i < (int)(pObj)->nFanins && ((pFanin = Rtm_ObjFanin(pObj, i)), 1); i++ )

Definition at line 130 of file aigRet.c.

#define Rtm_ObjForEachFanin( pObj, pFanin, i )                                  \
    for ( i = 0; i < (int)(pObj)->nFanins && ((pFanin = Rtm_ObjFanin(pObj, i)), 1); i++ )

Rtm_ObjForEachFaninEdge

#define Rtm_ObjForEachFaninEdge	(		pObj,
			pEdge,
			i )

Value:

    for ( i = 0; i < (int)(pObj)->nFanins && ((pEdge = Rtm_ObjEdge(pObj, i)), 1); i++ )

Definition at line 136 of file aigRet.c.

#define Rtm_ObjForEachFaninEdge( pObj, pEdge, i )                               \
    for ( i = 0; i < (int)(pObj)->nFanins && ((pEdge = Rtm_ObjEdge(pObj, i)), 1); i++ )

Rtm_ObjForEachFanout

#define Rtm_ObjForEachFanout	(		pObj,
			pFanout,
			i )

Value:

    for ( i = 0; i < (int)(pObj)->nFanouts && ((pFanout = Rtm_ObjFanout(pObj, i)), 1); i++ )

Definition at line 133 of file aigRet.c.

#define Rtm_ObjForEachFanout( pObj, pFanout, i )                                \
    for ( i = 0; i < (int)(pObj)->nFanouts && ((pFanout = Rtm_ObjFanout(pObj, i)), 1); i++ )

Rtm_ObjForEachFanoutEdge

#define Rtm_ObjForEachFanoutEdge	(		pObj,
			pEdge,
			i )

Value:

    for ( i = 0; i < (int)(pObj)->nFanouts && ((pEdge = Rtm_ObjFanoutEdge(pObj, i)), 1); i++ )

Definition at line 139 of file aigRet.c.

#define Rtm_ObjForEachFanoutEdge( pObj, pEdge, i )                              \
    for ( i = 0; i < (int)(pObj)->nFanouts && ((pEdge = Rtm_ObjFanoutEdge(pObj, i)), 1); i++ )

Typedef Documentation

Rtm_Edg_t

typedef struct Rtm_Edg_t_ Rtm_Edg_t

Definition at line 53 of file aigRet.c.

Rtm_Man_t

typedef struct Rtm_Man_t_ Rtm_Man_t

Definition at line 38 of file aigRet.c.

Rtm_Obj_t

typedef struct Rtm_Obj_t_ Rtm_Obj_t

Definition at line 60 of file aigRet.c.

Enumeration Type Documentation

Rtm_Init_t

enum Rtm_Init_t

DECLARATIONS ///.

CFile****************************************************************

FileName [aigRet.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [AIG package.]

Synopsis [Retiming of AIGs.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

aigRet.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

]

Enumerator
RTM_VAL_NONE
RTM_VAL_ZERO
RTM_VAL_ONE
RTM_VAL_VOID

Definition at line 31 of file aigRet.c.

             {
    RTM_VAL_NONE,                    // 0: non-existent value
    RTM_VAL_ZERO,                    // 1: initial value 0
    RTM_VAL_ONE,                     // 2: initial value 1
    RTM_VAL_VOID                     // 3: unused value
} Rtm_Init_t;

Function Documentation

Rtm_ManAlloc()

Rtm_Man_t * Rtm_ManAlloc

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Allocates the retiming manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 302 of file aigRet.c.

{
    Rtm_Man_t * pRtm;
    // start the manager
    pRtm = ABC_ALLOC( Rtm_Man_t, 1 );
    memset( pRtm, 0, sizeof(Rtm_Man_t) );
    // perform initializations
    pRtm->vObjs = Vec_PtrAlloc( Aig_ManObjNum(p) );
    pRtm->vPis  = Vec_PtrAlloc( Aig_ManCiNum(p) );
    pRtm->vPos  = Vec_PtrAlloc( Aig_ManCoNum(p) );
    pRtm->pMem  = Aig_MmFlexStart();
    return pRtm;
}

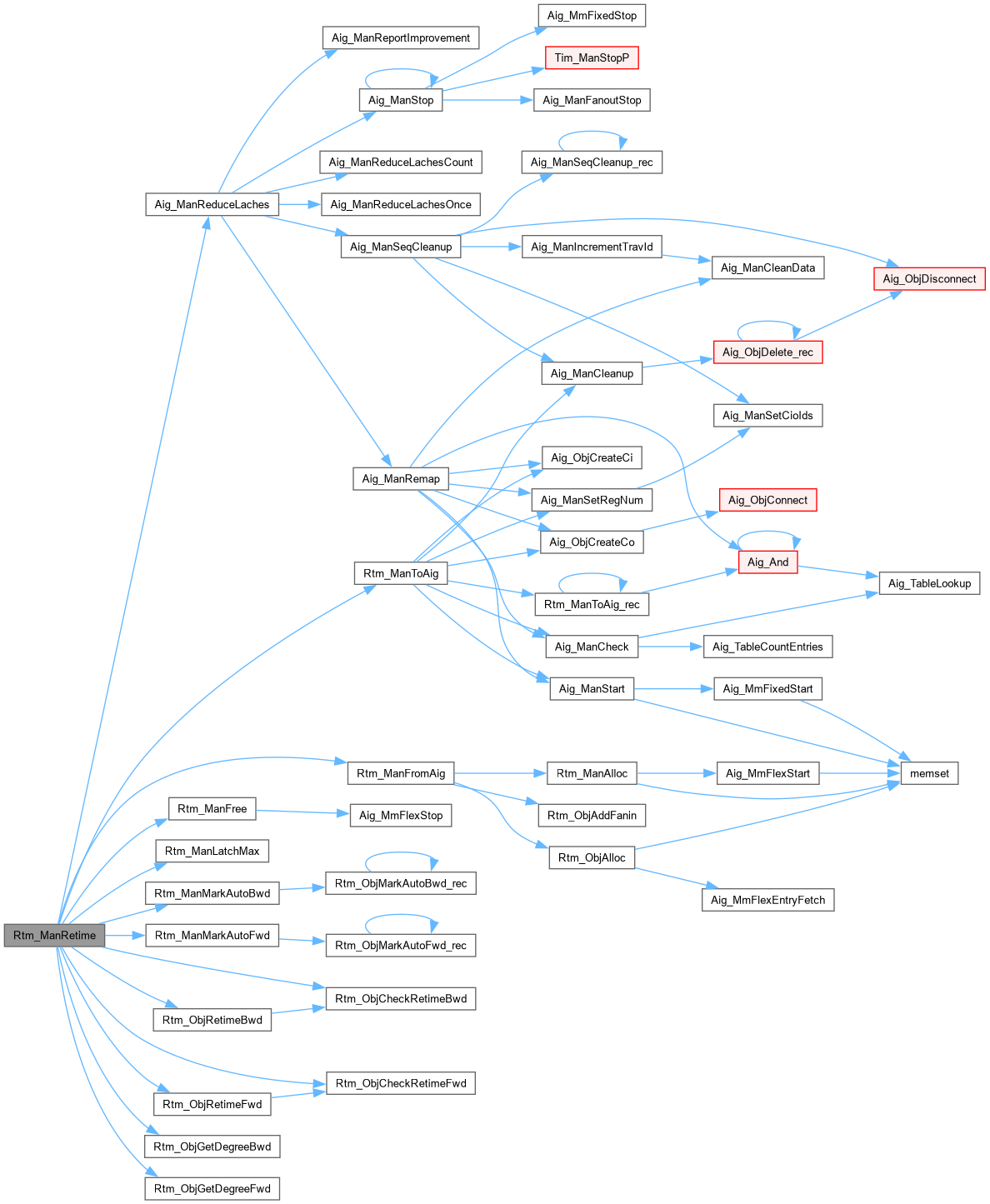

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ManFree()

void Rtm_ManFree

(

Rtm_Man_t *

p

)

Function*************************************************************

Synopsis [Allocates the retiming manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 327 of file aigRet.c.

{
    Vec_PtrFree( p->vObjs );
    Vec_PtrFree( p->vPis );
    Vec_PtrFree( p->vPos );
    Aig_MmFlexStop( p->pMem, 0 );
    ABC_FREE( p->pExtra );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ManFromAig()

Rtm_Man_t * Rtm_ManFromAig

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Derive retiming manager from the given AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 675 of file aigRet.c.

{
    Rtm_Man_t * pRtm;
    Aig_Obj_t * pObj, * pObjLi, * pObjLo;
    int i;
    assert( Aig_ManRegNum(p) > 0 );
    assert( Aig_ManBufNum(p) == 0 );
    // allocate the manager
    pRtm = Rtm_ManAlloc( p );
    // allocate objects
    pObj = Aig_ManConst1(p);
    pObj->pData = Rtm_ObjAlloc( pRtm, 0, pObj->nRefs );
    Aig_ManForEachPiSeq( p, pObj, i )
    {
        pObj->pData = Rtm_ObjAlloc( pRtm, 0, pObj->nRefs );
        Vec_PtrPush( pRtm->vPis, pObj->pData );
    }
    Aig_ManForEachPoSeq( p, pObj, i )
    {
        pObj->pData = Rtm_ObjAlloc( pRtm, 1, 0 );
        Vec_PtrPush( pRtm->vPos, pObj->pData );
    }
    Aig_ManForEachLoSeq( p, pObj, i )
        pObj->pData = Rtm_ObjAlloc( pRtm, 1, pObj->nRefs );
    Aig_ManForEachLiSeq( p, pObj, i )
        pObj->pData = Rtm_ObjAlloc( pRtm, 1, 1 );
    Aig_ManForEachNode( p, pObj, i )
        pObj->pData = Rtm_ObjAlloc( pRtm, 2, pObj->nRefs );
    // connect objects
    Aig_ManForEachPoSeq( p, pObj, i )
        Rtm_ObjAddFanin( (Rtm_Obj_t *)pObj->pData, (Rtm_Obj_t *)Aig_ObjFanin0(pObj)->pData, Aig_ObjFaninC0(pObj) );
    Aig_ManForEachLiSeq( p, pObj, i )
        Rtm_ObjAddFanin( (Rtm_Obj_t *)pObj->pData, (Rtm_Obj_t *)Aig_ObjFanin0(pObj)->pData, Aig_ObjFaninC0(pObj) );
    Aig_ManForEachLiLoSeq( p, pObjLi, pObjLo, i )
        Rtm_ObjAddFanin( (Rtm_Obj_t *)pObjLo->pData, (Rtm_Obj_t *)pObjLi->pData, 0 );
    Aig_ManForEachNode( p, pObj, i )
    {
        Rtm_ObjAddFanin( (Rtm_Obj_t *)pObj->pData, (Rtm_Obj_t *)Aig_ObjFanin0(pObj)->pData, Aig_ObjFaninC0(pObj) );
        Rtm_ObjAddFanin( (Rtm_Obj_t *)pObj->pData, (Rtm_Obj_t *)Aig_ObjFanin1(pObj)->pData, Aig_ObjFaninC1(pObj) );
    }
    return pRtm;
}

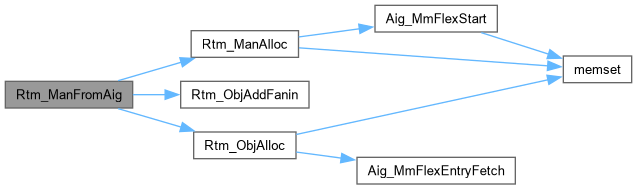

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ManLatchMax()

int Rtm_ManLatchMax

(

Rtm_Man_t *

p

)

Function*************************************************************

Synopsis [Counts the maximum number of latches on an edge.]

Description []

SideEffects []

SeeAlso []

Definition at line 348 of file aigRet.c.

{
    Rtm_Obj_t * pObj;
    Rtm_Edg_t * pEdge;
    int nLatchMax = 0, i, k;//, c, Val;
    Rtm_ManForEachObj( p, pObj, i )
    Rtm_ObjForEachFaninEdge( pObj, pEdge, k )
    {
/*
        for ( c = 0; c < (int)pEdge->nLats; c++ )
        {
            Val = Rtm_ObjGetOne( p, pEdge, c );
            assert( Val == 1 || Val == 2 );
        }
*/
        nLatchMax = Abc_MaxInt( nLatchMax, (int)pEdge->nLats );
    }
    return nLatchMax;
}

Here is the caller graph for this function:

Rtm_ManMarkAutoBwd()

int Rtm_ManMarkAutoBwd

(

Rtm_Man_t *

pRtm

)

Function*************************************************************

Synopsis [Marks the nodes unreachable from the POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 643 of file aigRet.c.

{
    Rtm_Obj_t * pObjRtm;
    int i, Counter = 0;
    // mark nodes reachable from the PIs
    pObjRtm = (Rtm_Obj_t *)Vec_PtrEntry( pRtm->vObjs, 0 );
    pObjRtm->fAuto = 1;
    Rtm_ManForEachPi( pRtm, pObjRtm, i )
        pObjRtm->fAuto = 1;
    Rtm_ManForEachPo( pRtm, pObjRtm, i )
        Rtm_ObjMarkAutoBwd_rec( pObjRtm );
    // count the number of autonomous nodes
    Rtm_ManForEachObj( pRtm, pObjRtm, i )
    {
        pObjRtm->fAuto = !pObjRtm->fAuto;
        Counter += pObjRtm->fAuto;
    }
    // mark the fanins of the autonomous nodes
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ManMarkAutoFwd()

int Rtm_ManMarkAutoFwd

(

Rtm_Man_t *

pRtm

)

Function*************************************************************

Synopsis [Marks the nodes unreachable from the PIs.]

Description []

SideEffects []

SeeAlso []

Definition at line 591 of file aigRet.c.

{
    Rtm_Obj_t * pObjRtm;
    int i, Counter = 0;
    // mark nodes reachable from the PIs
    pObjRtm = (Rtm_Obj_t *)Vec_PtrEntry( pRtm->vObjs, 0 );
    Rtm_ObjMarkAutoFwd_rec( pObjRtm );
    Rtm_ManForEachPi( pRtm, pObjRtm, i )
        Rtm_ObjMarkAutoFwd_rec( pObjRtm );
    // count the number of autonomous nodes
    Rtm_ManForEachObj( pRtm, pObjRtm, i )
    {
        pObjRtm->fAuto = !pObjRtm->fAuto;
        Counter += pObjRtm->fAuto;
    }
    // mark the fanins of the autonomous nodes
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ManRetime()

Aig_Man_t * Rtm_ManRetime	(	Aig_Man_t *	p,
		int	fForward,
		int	nStepsMax,
		int	fVerbose )

Function*************************************************************

Synopsis [Performs forward retiming with the given limit on depth.]

Description []

SideEffects []

SeeAlso []

Definition at line 834 of file aigRet.c.

{
    Vec_Ptr_t * vQueue;
    Aig_Man_t * pNew;
    Rtm_Man_t * pRtm;
    Rtm_Obj_t * pObj, * pNext;
    Aig_Obj_t * pObjAig;
    int i, k, nAutos, Degree, DegreeMax = 0;
    abctime clk;

    // create the retiming manager
clk = Abc_Clock();
    pRtm = Rtm_ManFromAig( p );
    // set registers
    Aig_ManForEachLoSeq( p, pObjAig, i )
        Rtm_ObjAddFirst( pRtm, Rtm_ObjEdge((Rtm_Obj_t *)pObjAig->pData, 0), fForward? RTM_VAL_ZERO : RTM_VAL_VOID );
    // detect and mark the autonomous components
    if ( fForward )
        nAutos = Rtm_ManMarkAutoFwd( pRtm );
    else
        nAutos = Rtm_ManMarkAutoBwd( pRtm );
    if ( fVerbose )
    {
        printf( "Detected %d autonomous objects. ", nAutos );
        ABC_PRT( "Time", Abc_Clock() - clk );
    }

    // set the current retiming number
    Rtm_ManForEachObj( pRtm, pObj, i )
    {
        assert( pObj->nFanins == pObj->Num );
        assert( pObj->nFanouts == pObj->Temp );
        pObj->Num = 0;
    }

clk = Abc_Clock();
    // put the LOs on the queue
    vQueue = Vec_PtrAlloc( 1000 );
    if ( fForward )
    {
        Aig_ManForEachLoSeq( p, pObjAig, i )
        {
            pObj = (Rtm_Obj_t *)pObjAig->pData;
            if ( pObj->fAuto )
                continue;
            pObj->fMark = 1;
            Vec_PtrPush( vQueue, pObj );
        }
    }
    else
    {
        Aig_ManForEachLiSeq( p, pObjAig, i )
        {
            pObj = (Rtm_Obj_t *)pObjAig->pData;
            if ( pObj->fAuto )
                continue;
            pObj->fMark = 1;
            Vec_PtrPush( vQueue, pObj );
        }
    }
    // perform retiming
    DegreeMax = 0;
    Vec_PtrForEachEntry( Rtm_Obj_t *, vQueue, pObj, i )
    {
        pObj->fMark = 0;
        // retime the node
        if ( fForward )
        {
            Rtm_ObjRetimeFwd( pRtm, pObj );
            // check if its fanouts should be retimed
            Rtm_ObjForEachFanout( pObj, pNext, k )
            {
                if ( pNext->fMark ) // skip aleady scheduled
                    continue;
                if ( pNext->Type ) // skip POs
                    continue;
                if ( !Rtm_ObjCheckRetimeFwd( pNext ) ) // skip non-retimable
                    continue;
                Degree = Rtm_ObjGetDegreeFwd( pNext );
                DegreeMax = Abc_MaxInt( DegreeMax, Degree );
                if ( Degree > nStepsMax ) // skip nodes with high degree
                    continue;
                pNext->fMark = 1;
                pNext->Num = Degree;
                Vec_PtrPush( vQueue, pNext );
            }
        }
        else
        {
            Rtm_ObjRetimeBwd( pRtm, pObj );
            // check if its fanouts should be retimed
            Rtm_ObjForEachFanin( pObj, pNext, k )
            {
                if ( pNext->fMark ) // skip aleady scheduled
                    continue;
                if ( pNext->nFanins == 0 ) // skip PIs
                    continue;
                if ( !Rtm_ObjCheckRetimeBwd( pNext ) ) // skip non-retimable
                    continue;
                Degree = Rtm_ObjGetDegreeBwd( pNext );
                DegreeMax = Abc_MaxInt( DegreeMax, Degree );
                if ( Degree > nStepsMax ) // skip nodes with high degree
                    continue;
                pNext->fMark = 1;
                pNext->Num = Degree;
                Vec_PtrPush( vQueue, pNext );
            }
        }
    }

    if ( fVerbose )
    {
        printf( "Performed %d %s latch moves of max depth %d and max latch count %d.\n",
            Vec_PtrSize(vQueue), fForward? "fwd":"bwd", DegreeMax, Rtm_ManLatchMax(pRtm) );
        printf( "Memory usage = %d.  ", pRtm->nExtraCur );
        ABC_PRT( "Time", Abc_Clock() - clk );
    }
    Vec_PtrFree( vQueue );

    // get the new manager
    pNew = Rtm_ManToAig( pRtm );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Rtm_ManFree( pRtm );
    // group the registers
clk = Abc_Clock();
    pNew = Aig_ManReduceLaches( pNew, fVerbose );
    if ( fVerbose )
    {
        ABC_PRT( "Register sharing time", Abc_Clock() - clk );
    }
    return pNew;
}

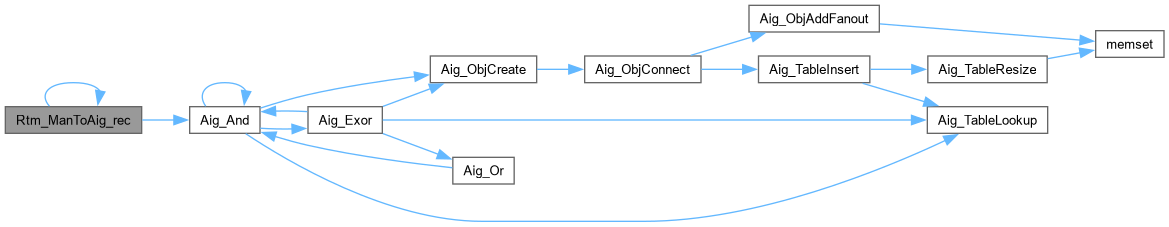

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ManToAig()

Aig_Man_t * Rtm_ManToAig

(

Rtm_Man_t *

pRtm

)

Function*************************************************************

Synopsis [Derive AIG manager after retiming.]

Description []

SideEffects []

SeeAlso []

Definition at line 765 of file aigRet.c.

{
    Aig_Man_t * pNew;
    Aig_Obj_t * pObjNew;
    Rtm_Obj_t * pObjRtm;
    Rtm_Edg_t * pEdge;
    int i, k, m, Val, nLatches, * pLatches;
    // count latches and mark the first latch on each edge
    pLatches = ABC_ALLOC( int, 2 * Vec_PtrSize(pRtm->vObjs) );
    nLatches = 0;
    Rtm_ManForEachObj( pRtm, pObjRtm, i )
    Rtm_ObjForEachFaninEdge( pObjRtm, pEdge, k )
    {
        pLatches[2*pObjRtm->Id + k] = Vec_PtrSize(pRtm->vPis) + nLatches;
        nLatches += pEdge->nLats;
    }
    // create the new manager
    pNew = Aig_ManStart( Vec_PtrSize(pRtm->vObjs) + nLatches );
    // create PIs/POs and latches
    pObjRtm = (Rtm_Obj_t *)Vec_PtrEntry( pRtm->vObjs, 0 );
    pObjRtm->pCopy = Aig_ManConst1(pNew);
    Rtm_ManForEachPi( pRtm, pObjRtm, i )
        pObjRtm->pCopy = Aig_ObjCreateCi(pNew);
    for ( i = 0; i < nLatches; i++ )
        Aig_ObjCreateCi(pNew);
    // create internal nodes
    Rtm_ManForEachObj( pRtm, pObjRtm, i )
        Rtm_ManToAig_rec( pNew, pRtm, pObjRtm, pLatches );
    // create POs
    Rtm_ManForEachPo( pRtm, pObjRtm, i )
        Aig_ObjCreateCo( pNew, (Aig_Obj_t *)pObjRtm->pCopy );
    // connect latches
    Rtm_ManForEachObj( pRtm, pObjRtm, i )
    Rtm_ObjForEachFaninEdge( pObjRtm, pEdge, k )
    {
        if ( pEdge->nLats == 0 )
            continue;
        pObjNew = (Aig_Obj_t *)Rtm_ObjFanin( pObjRtm, k )->pCopy;
        for ( m = 0; m < (int)pEdge->nLats; m++ )
        {
            Val = Rtm_ObjGetOne( pRtm, pEdge, pEdge->nLats - 1 - m );
            assert( Val == RTM_VAL_ZERO || Val == RTM_VAL_ONE || Val == RTM_VAL_VOID );
            pObjNew = Aig_NotCond( pObjNew, Val == RTM_VAL_ONE );
            Aig_ObjCreateCo( pNew, pObjNew );
            pObjNew = Aig_ManCi( pNew, pLatches[2*pObjRtm->Id + k] + m );
            pObjNew = Aig_NotCond( pObjNew, Val == RTM_VAL_ONE );
        }
//        assert( Aig_Regular(pObjNew)->nRefs > 0 );
    }
    ABC_FREE( pLatches );
    Aig_ManSetRegNum( pNew, nLatches );
    // remove useless nodes
    Aig_ManCleanup( pNew );
    if ( !Aig_ManCheck( pNew ) )
        printf( "Rtm_ManToAig: The network check has failed.\n" );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ManToAig_rec()

Aig_Obj_t * Rtm_ManToAig_rec	(	Aig_Man_t *	pNew,
		Rtm_Man_t *	pRtm,
		Rtm_Obj_t *	pObjRtm,
		int *	pLatches )

Function*************************************************************

Synopsis [Derive AIG manager after retiming.]

Description []

SideEffects []

SeeAlso []

Definition at line 729 of file aigRet.c.

{
    Rtm_Edg_t * pEdge;
    Aig_Obj_t * pRes, * pFanin;
    int k, Val;
    if ( pObjRtm->pCopy )
        return (Aig_Obj_t *)pObjRtm->pCopy;
    // get the inputs
    pRes = Aig_ManConst1( pNew );
    Rtm_ObjForEachFaninEdge( pObjRtm, pEdge, k )
    {
        if ( pEdge->nLats == 0 )
            pFanin = Rtm_ManToAig_rec( pNew, pRtm, Rtm_ObjFanin(pObjRtm, k), pLatches );
        else
        {
            Val = Rtm_ObjGetFirst( pRtm, pEdge );
            pFanin = Aig_ManCi( pNew, pLatches[2*pObjRtm->Id + k] + pEdge->nLats - 1 );
            pFanin = Aig_NotCond( pFanin, Val == RTM_VAL_ONE );
        }
        pFanin = Aig_NotCond( pFanin, k ? pObjRtm->fCompl1 : pObjRtm->fCompl0 );
        pRes = Aig_And( pNew, pRes, pFanin );
    }
    return (Aig_Obj_t *)(pObjRtm->pCopy = pRes);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ObjAddFanin()

void Rtm_ObjAddFanin	(	Rtm_Obj_t *	pObj,
		Rtm_Obj_t *	pFanin,
		int	fCompl )

Function*************************************************************

Synopsis [Allocates the retiming object.]

Description []

SideEffects []

SeeAlso []

Definition at line 404 of file aigRet.c.

{
    pObj->pFanio[ 2*pObj->nFanins ] = pFanin;
    pObj->pFanio[ 2*pObj->nFanins + 1 ] = NULL;
    pFanin->pFanio[ 2*(pFanin->Num + pFanin->nFanouts) ] = pObj;
    pFanin->pFanio[ 2*(pFanin->Num + pFanin->nFanouts) + 1 ] = pObj->pFanio + 2*pObj->nFanins + 1;
    if ( pObj->nFanins == 0 )
        pObj->fCompl0 = fCompl;
    else if ( pObj->nFanins == 1 )
        pObj->fCompl1 = fCompl;
    else
        assert( 0 );
    pObj->nFanins++;
    pFanin->nFanouts++;
    assert( pObj->nFanins <= pObj->Num );
    assert( pFanin->nFanouts <= pFanin->Temp );
}

Here is the caller graph for this function:

Rtm_ObjAlloc()

Rtm_Obj_t * Rtm_ObjAlloc	(	Rtm_Man_t *	pRtm,
		int	nFanins,
		int	nFanouts )

Function*************************************************************

Synopsis [Allocates the retiming object.]

Description []

SideEffects []

SeeAlso []

Definition at line 379 of file aigRet.c.

{
    Rtm_Obj_t * pObj;
    int Size = sizeof(Rtm_Obj_t) + sizeof(Rtm_Obj_t *) * (nFanins + nFanouts) * 2;
    pObj = (Rtm_Obj_t *)Aig_MmFlexEntryFetch( pRtm->pMem, Size );
    memset( pObj, 0, sizeof(Rtm_Obj_t) );
    pObj->Type = (int)(nFanins == 1 && nFanouts == 0); // mark PO
    pObj->Num  = nFanins;  // temporary
    pObj->Temp = nFanouts;
    pObj->Id = Vec_PtrSize(pRtm->vObjs);
    Vec_PtrPush( pRtm->vObjs, pObj );
    return pObj;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ObjCheckRetimeBwd()

int Rtm_ObjCheckRetimeBwd

(

Rtm_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Check the possibility of forward retiming.]

Description []

SideEffects []

SeeAlso []

Definition at line 454 of file aigRet.c.

{
    Rtm_Edg_t * pEdge;
    int i;
    Rtm_ObjForEachFanoutEdge( pObj, pEdge, i )
        if ( pEdge->nLats == 0 )
            return 0;
    return 1;
}

Here is the caller graph for this function:

Rtm_ObjCheckRetimeFwd()

int Rtm_ObjCheckRetimeFwd

(

Rtm_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Check the possibility of forward retiming.]

Description []

SideEffects []

SeeAlso []

Definition at line 433 of file aigRet.c.

{
    Rtm_Edg_t * pEdge;
    int i;
    Rtm_ObjForEachFaninEdge( pObj, pEdge, i )
        if ( pEdge->nLats == 0 )
            return 0;
    return 1;
}

Here is the caller graph for this function:

Rtm_ObjGetDegreeBwd()

int Rtm_ObjGetDegreeBwd

(

Rtm_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Check the possibility of forward retiming.]

Description []

SideEffects []

SeeAlso []

Definition at line 495 of file aigRet.c.

{
    Rtm_Obj_t * pFanout;
    int i, Degree = 0;
    Rtm_ObjForEachFanout( pObj, pFanout, i )
        Degree = Abc_MaxInt( Degree, (int)pFanout->Num );
    return Degree + 1;
}

Here is the caller graph for this function:

Rtm_ObjGetDegreeFwd()

int Rtm_ObjGetDegreeFwd

(

Rtm_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Check the possibility of forward retiming.]

Description []

SideEffects []

SeeAlso []

Definition at line 475 of file aigRet.c.

{
    Rtm_Obj_t * pFanin;
    int i, Degree = 0;
    Rtm_ObjForEachFanin( pObj, pFanin, i )
        Degree = Abc_MaxInt( Degree, (int)pFanin->Num );
    return Degree + 1;
}

Here is the caller graph for this function:

Rtm_ObjMarkAutoBwd_rec()

void Rtm_ObjMarkAutoBwd_rec

(

Rtm_Obj_t *

pObj

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 621 of file aigRet.c.

{
    Rtm_Obj_t * pFanin;
    int i;
    if ( pObj->fAuto )
        return;
    pObj->fAuto = 1;
    Rtm_ObjForEachFanin( pObj, pFanin, i )
        Rtm_ObjMarkAutoBwd_rec( pFanin );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ObjMarkAutoFwd_rec()

void Rtm_ObjMarkAutoFwd_rec

(

Rtm_Obj_t *

pObj

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 569 of file aigRet.c.

{
    Rtm_Obj_t * pFanout;
    int i;
    if ( pObj->fAuto )
        return;
    pObj->fAuto = 1;
    Rtm_ObjForEachFanout( pObj, pFanout, i )
        Rtm_ObjMarkAutoFwd_rec( pFanout );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ObjRetimeBwd()

void Rtm_ObjRetimeBwd	(	Rtm_Man_t *	pRtm,
		Rtm_Obj_t *	pObj )

Function*************************************************************

Synopsis [Performs forward retiming.]

Description []

SideEffects []

SeeAlso []

Definition at line 545 of file aigRet.c.

{
    Rtm_Edg_t * pEdge;
    int i;
    assert( Rtm_ObjCheckRetimeBwd(pObj) );
    // extract values and compute the result
    Rtm_ObjForEachFanoutEdge( pObj, pEdge, i )
        Rtm_ObjRemLast( pRtm, pEdge );
    // insert the result in the fanout values
    Rtm_ObjForEachFaninEdge( pObj, pEdge, i )
        Rtm_ObjAddFirst( pRtm, pEdge, RTM_VAL_VOID );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_ObjRetimeFwd()

void Rtm_ObjRetimeFwd	(	Rtm_Man_t *	pRtm,
		Rtm_Obj_t *	pObj )

Function*************************************************************

Synopsis [Performs forward retiming.]

Description []

SideEffects []

SeeAlso []

Definition at line 515 of file aigRet.c.

{
    Rtm_Init_t ValTotal, ValCur;
    Rtm_Edg_t * pEdge;
    int i;
    assert( Rtm_ObjCheckRetimeFwd(pObj) );
    // extract values and compute the result
    ValTotal = RTM_VAL_ONE;
    Rtm_ObjForEachFaninEdge( pObj, pEdge, i )
    {
        ValCur = Rtm_ObjRemFirst( pRtm, pEdge );
        ValCur = Rtm_InitNotCond( ValCur, i? pObj->fCompl1 : pObj->fCompl0 );
        ValTotal = Rtm_InitAnd( ValTotal, ValCur );
    }
    // insert the result in the fanout values
    Rtm_ObjForEachFanoutEdge( pObj, pEdge, i )
        Rtm_ObjAddLast( pRtm, pEdge, ValTotal );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Rtm_PrintEdge()

void Rtm_PrintEdge	(	Rtm_Man_t *	p,
		Rtm_Edg_t *	pEdge )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 277 of file aigRet.c.

{
//    unsigned LData = pEdge->LData;
    printf( "%d : ", (int)pEdge->nLats );
/*
    if ( pEdge->nLats > 10 )
        Extra_PrintBinary( stdout, p->pExtra + pEdge->LData, 2*(pEdge->nLats+1) );
    else
        Extra_PrintBinary( stdout, &LData, 2*(pEdge->nLats+1) );
*/
    printf( "\n" );
}
