aigTiming.c File Reference

#include "aig.h"

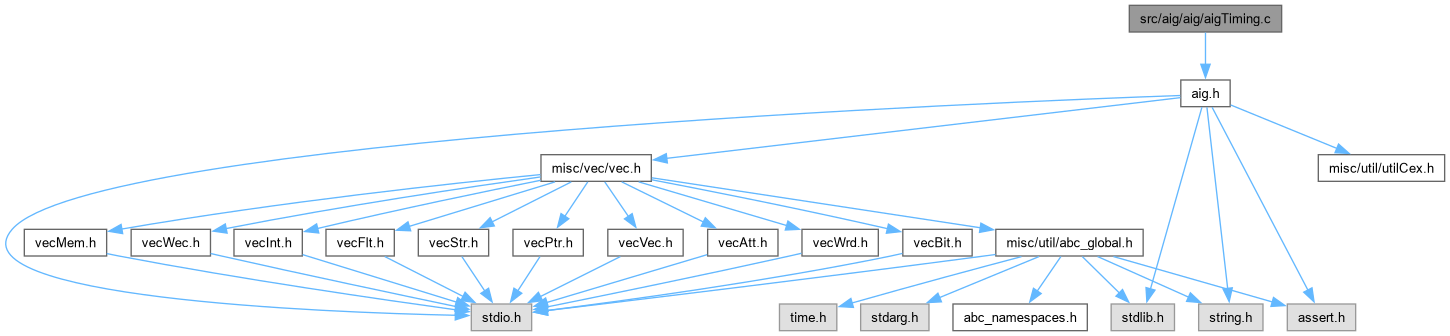

Include dependency graph for aigTiming.c:

Go to the source code of this file.

Functions
void	Aig_ObjClearReverseLevel (Aig_Man_t *p, Aig_Obj_t *pObj)
int	Aig_ObjRequiredLevel (Aig_Man_t *p, Aig_Obj_t *pObj)
int	Aig_ObjReverseLevelNew (Aig_Man_t *p, Aig_Obj_t *pObj)
void	Aig_ManStartReverseLevels (Aig_Man_t *p, int nMaxLevelIncrease)
void	Aig_ManStopReverseLevels (Aig_Man_t *p)
void	Aig_ManUpdateLevel (Aig_Man_t *p, Aig_Obj_t *pObjNew)
void	Aig_ManUpdateReverseLevel (Aig_Man_t *p, Aig_Obj_t *pObjNew)
void	Aig_ManVerifyLevel (Aig_Man_t *p)
void	Aig_ManVerifyReverseLevel (Aig_Man_t *p)

Function Documentation

Aig_ManStartReverseLevels()

void Aig_ManStartReverseLevels	(	Aig_Man_t *	p,
		int	nMaxLevelIncrease )

Function*************************************************************

Synopsis [Prepares for the computation of required levels.]

Description [This procedure should be called before the required times are used. It starts internal data structures, which records the level from the COs of the network nodes in reverse topologogical order.]

SideEffects []

SeeAlso []

Definition at line 142 of file aigTiming.c.

{
    Vec_Ptr_t * vNodes;
    Aig_Obj_t * pObj;
    int i;
    assert( p->pFanData != NULL );
    assert( p->vLevelR == NULL );
    // remember the maximum number of direct levels
    p->nLevelMax = Aig_ManLevels(p) + nMaxLevelIncrease;
    // start the reverse levels
    p->vLevelR = Vec_IntAlloc( 0 );
    Vec_IntFill( p->vLevelR, Aig_ManObjNumMax(p), 0 );
    // compute levels in reverse topological order
    vNodes = Aig_ManDfsReverse( p );
    Vec_PtrForEachEntry( Aig_Obj_t *, vNodes, pObj, i )
    {
        assert( pObj->fMarkA == 0 );
        Aig_ObjSetReverseLevel( p, pObj, Aig_ObjReverseLevelNew(p, pObj) );
    }
    Vec_PtrFree( vNodes );
}

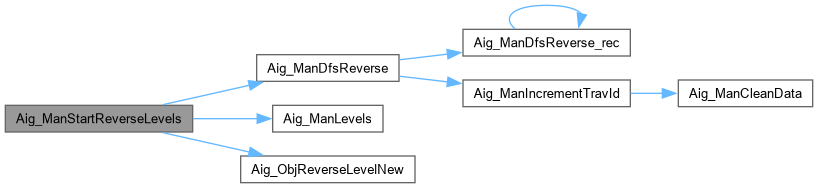

Here is the call graph for this function:

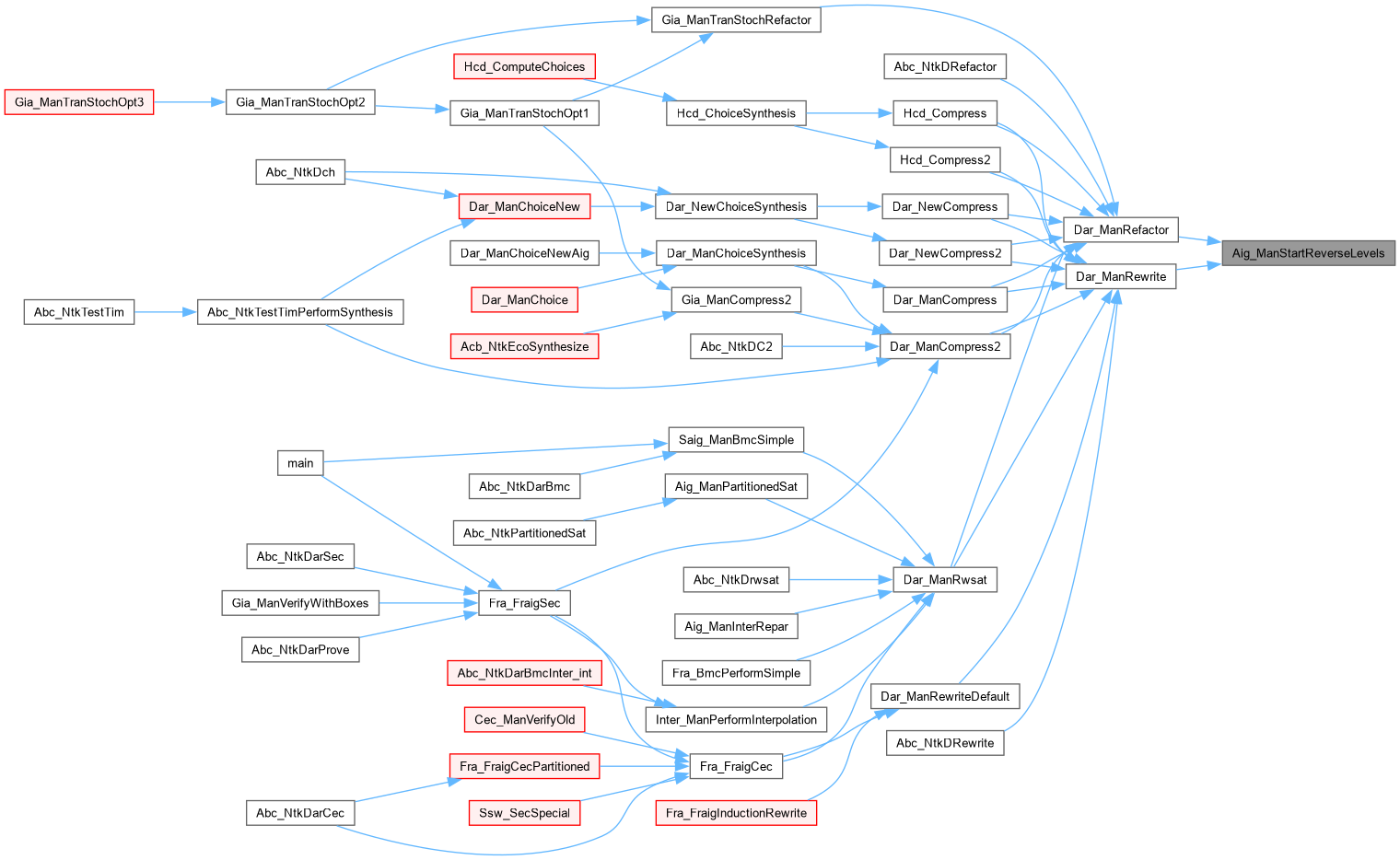

Here is the caller graph for this function:

Aig_ManStopReverseLevels()

void Aig_ManStopReverseLevels

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Cleans the data structures used to compute required levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 175 of file aigTiming.c.

{
    assert( p->vLevelR != NULL );
    Vec_IntFree( p->vLevelR );
    p->vLevelR = NULL;
    p->nLevelMax = 0;

}

Here is the caller graph for this function:

Aig_ManUpdateLevel()

void Aig_ManUpdateLevel	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObjNew )

Function*************************************************************

Synopsis [Incrementally updates level of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 195 of file aigTiming.c.

{
    Aig_Obj_t * pFanout, * pTemp;
    int iFanout = -1, LevelOld, Lev, k, m;
    assert( p->pFanData != NULL );
    assert( Aig_ObjIsNode(pObjNew) );
    // allocate level if needed
    if ( p->vLevels == NULL )
        p->vLevels = Vec_VecAlloc( Aig_ManLevels(p) + 8 );
    // check if level has changed
    LevelOld = Aig_ObjLevel(pObjNew);
    if ( LevelOld == Aig_ObjLevelNew(pObjNew) )
        return;
    // start the data structure for level update
    // we cannot fail to visit a node when using this structure because the
    // nodes are stored by their _old_ levels, which are assumed to be correct
    Vec_VecClear( p->vLevels );
    Vec_VecPush( p->vLevels, LevelOld, pObjNew );
    pObjNew->fMarkA = 1;
    // recursively update level
    Vec_VecForEachEntryStart( Aig_Obj_t *, p->vLevels, pTemp, Lev, k, LevelOld )
    {
        pTemp->fMarkA = 0;
        assert( Aig_ObjLevel(pTemp) == Lev );
        pTemp->Level = Aig_ObjLevelNew(pTemp);
        // if the level did not change, no need to check the fanout levels
        if ( Aig_ObjLevel(pTemp) == Lev )
            continue;
        // schedule fanout for level update
        Aig_ObjForEachFanout( p, pTemp, pFanout, iFanout, m )
        {
            if ( Aig_ObjIsNode(pFanout) && !pFanout->fMarkA )
            {
                assert( Aig_ObjLevel(pFanout) >= Lev );
                Vec_VecPush( p->vLevels, Aig_ObjLevel(pFanout), pFanout );
                pFanout->fMarkA = 1;
            }
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Aig_ManUpdateReverseLevel()

void Aig_ManUpdateReverseLevel	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObjNew )

Function*************************************************************

Synopsis [Incrementally updates level of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 247 of file aigTiming.c.

{
    Aig_Obj_t * pFanin, * pTemp;
    int LevelOld, LevFanin, Lev, k;
    assert( p->vLevelR != NULL );
    assert( Aig_ObjIsNode(pObjNew) );
    // allocate level if needed
    if ( p->vLevels == NULL )
        p->vLevels = Vec_VecAlloc( Aig_ManLevels(p) + 8 );
    // check if level has changed
    LevelOld = Aig_ObjReverseLevel(p, pObjNew);
    if ( LevelOld == Aig_ObjReverseLevelNew(p, pObjNew) )
        return;
    // start the data structure for level update
    // we cannot fail to visit a node when using this structure because the
    // nodes are stored by their _old_ levels, which are assumed to be correct
    Vec_VecClear( p->vLevels );
    Vec_VecPush( p->vLevels, LevelOld, pObjNew );
    pObjNew->fMarkA = 1;
    // recursively update level
    Vec_VecForEachEntryStart( Aig_Obj_t *, p->vLevels, pTemp, Lev, k, LevelOld )
    {
        pTemp->fMarkA = 0;
        LevelOld = Aig_ObjReverseLevel(p, pTemp);
        assert( LevelOld == Lev );
        Aig_ObjSetReverseLevel( p, pTemp, Aig_ObjReverseLevelNew(p, pTemp) );
        // if the level did not change, to need to check the fanout levels
        if ( Aig_ObjReverseLevel(p, pTemp) == Lev )
            continue;
        // schedule fanins for level update
        pFanin = Aig_ObjFanin0(pTemp);
        if ( Aig_ObjIsNode(pFanin) && !pFanin->fMarkA )
        {
            LevFanin = Aig_ObjReverseLevel( p, pFanin );
            assert( LevFanin >= Lev );
            Vec_VecPush( p->vLevels, LevFanin, pFanin );
            pFanin->fMarkA = 1;
        }
        pFanin = Aig_ObjFanin1(pTemp);
        if ( Aig_ObjIsNode(pFanin) && !pFanin->fMarkA )
        {
            LevFanin = Aig_ObjReverseLevel( p, pFanin );
            assert( LevFanin >= Lev );
            Vec_VecPush( p->vLevels, LevFanin, pFanin );
            pFanin->fMarkA = 1;
        }
    }
}

Here is the call graph for this function:

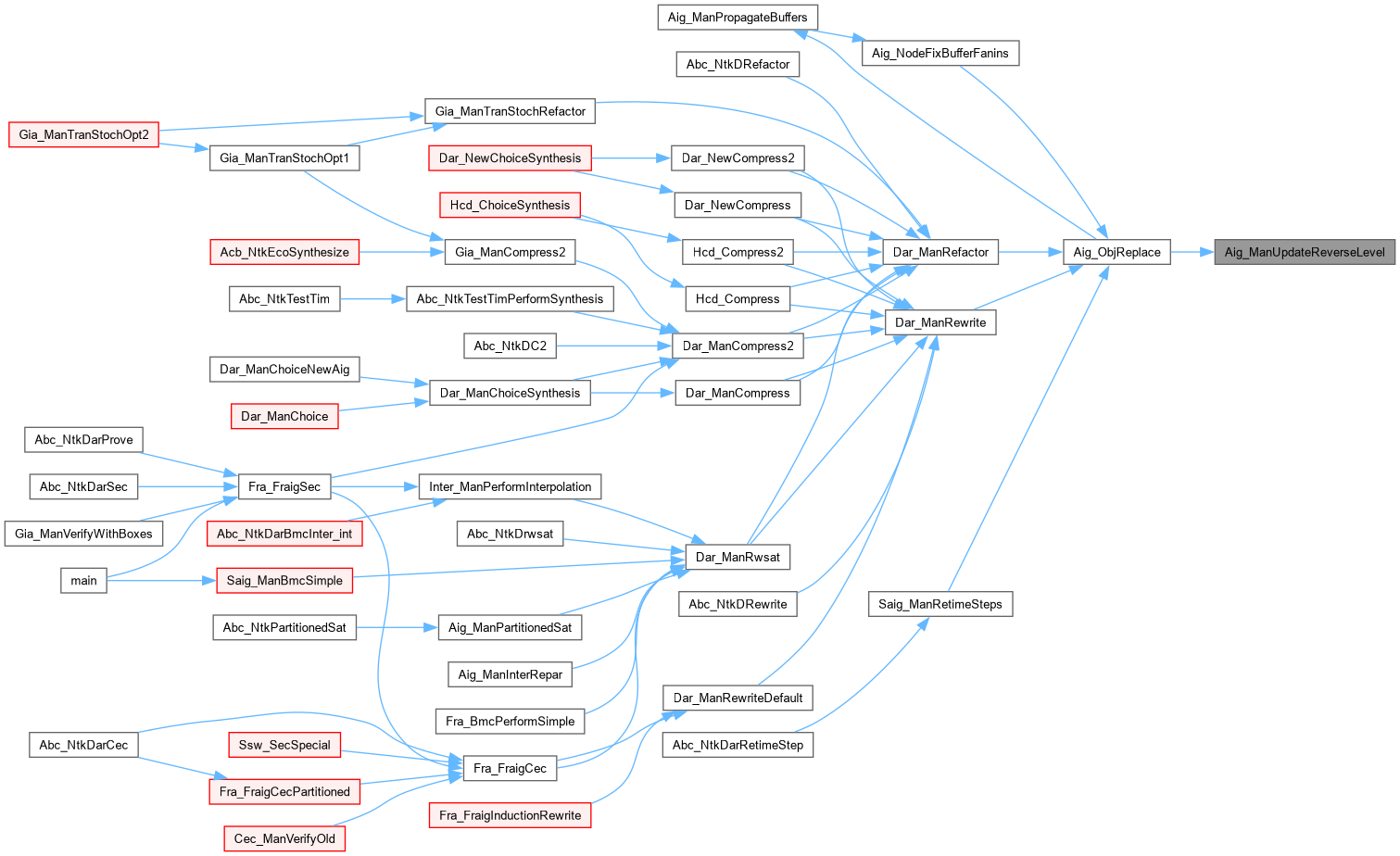

Here is the caller graph for this function:

Aig_ManVerifyLevel()

void Aig_ManVerifyLevel

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Verifies direct level of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 307 of file aigTiming.c.

{
    Aig_Obj_t * pObj;
    int i, Counter = 0;
    assert( p->pFanData );
    Aig_ManForEachNode( p, pObj, i )
        if ( Aig_ObjLevel(pObj) != Aig_ObjLevelNew(pObj) )
        {
            printf( "Level of node %6d should be %4d instead of %4d.\n",
                pObj->Id, Aig_ObjLevelNew(pObj), Aig_ObjLevel(pObj) );
            Counter++;
        }
    if ( Counter )
    printf( "Levels of %d nodes are incorrect.\n", Counter );
}

Aig_ManVerifyReverseLevel()

void Aig_ManVerifyReverseLevel

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Verifies reverse level of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 334 of file aigTiming.c.

{
    Aig_Obj_t * pObj;
    int i, Counter = 0;
    assert( p->vLevelR );
    Aig_ManForEachNode( p, pObj, i )
        if ( Aig_ObjLevel(pObj) != Aig_ObjLevelNew(pObj) )
        {
            printf( "Reverse level of node %6d should be %4d instead of %4d.\n",
                pObj->Id, Aig_ObjReverseLevelNew(p, pObj), Aig_ObjReverseLevel(p, pObj) );
            Counter++;
        }
    if ( Counter )
    printf( "Reverse levels of %d nodes are incorrect.\n", Counter );
}

Here is the call graph for this function:

Aig_ObjClearReverseLevel()

void Aig_ObjClearReverseLevel	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Resets reverse level of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 83 of file aigTiming.c.

{
    Aig_ObjSetReverseLevel( p, pObj, 0 );
}

Here is the caller graph for this function:

Aig_ObjRequiredLevel()

int Aig_ObjRequiredLevel	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Returns required level of the node.]

Description [Converts the reverse levels of the node into its required level as follows: ReqLevel(Node) = MaxLevels(Ntk) + 1 - LevelR(Node).]

SideEffects []

SeeAlso []

Definition at line 100 of file aigTiming.c.

{
    assert( p->vLevelR );
    return p->nLevelMax + 1 - Aig_ObjReverseLevel(p, pObj);
}

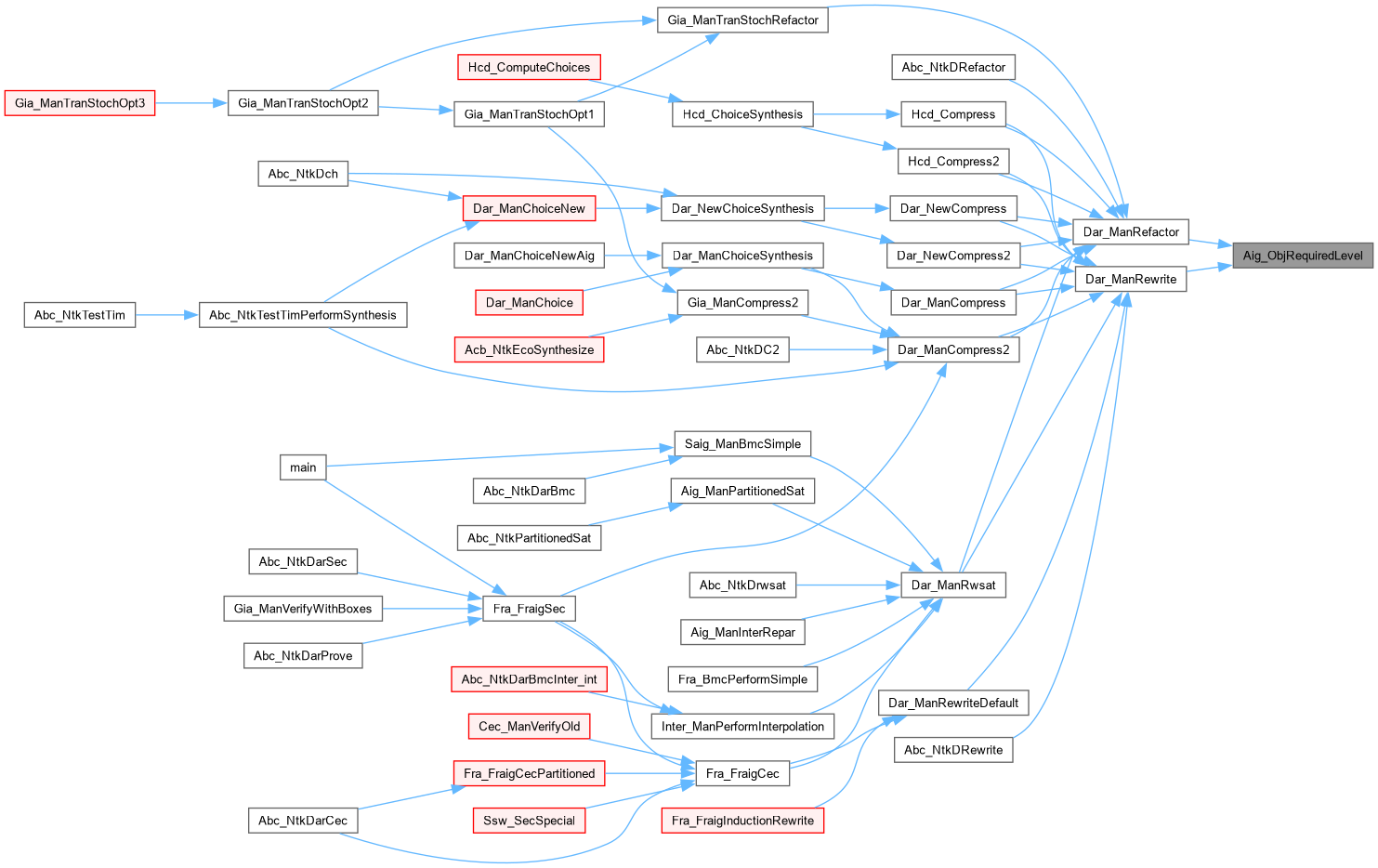

Here is the caller graph for this function:

Aig_ObjReverseLevelNew()

int Aig_ObjReverseLevelNew	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Computes the reverse level of the node using its fanout levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 117 of file aigTiming.c.

{
    Aig_Obj_t * pFanout;
    int i, iFanout = -1, LevelCur, Level = 0;
    Aig_ObjForEachFanout( p, pObj, pFanout, iFanout, i )
    {
        LevelCur = Aig_ObjReverseLevel( p, pFanout );
        Level = Abc_MaxInt( Level, LevelCur );
    }
    return Level + 1;
}

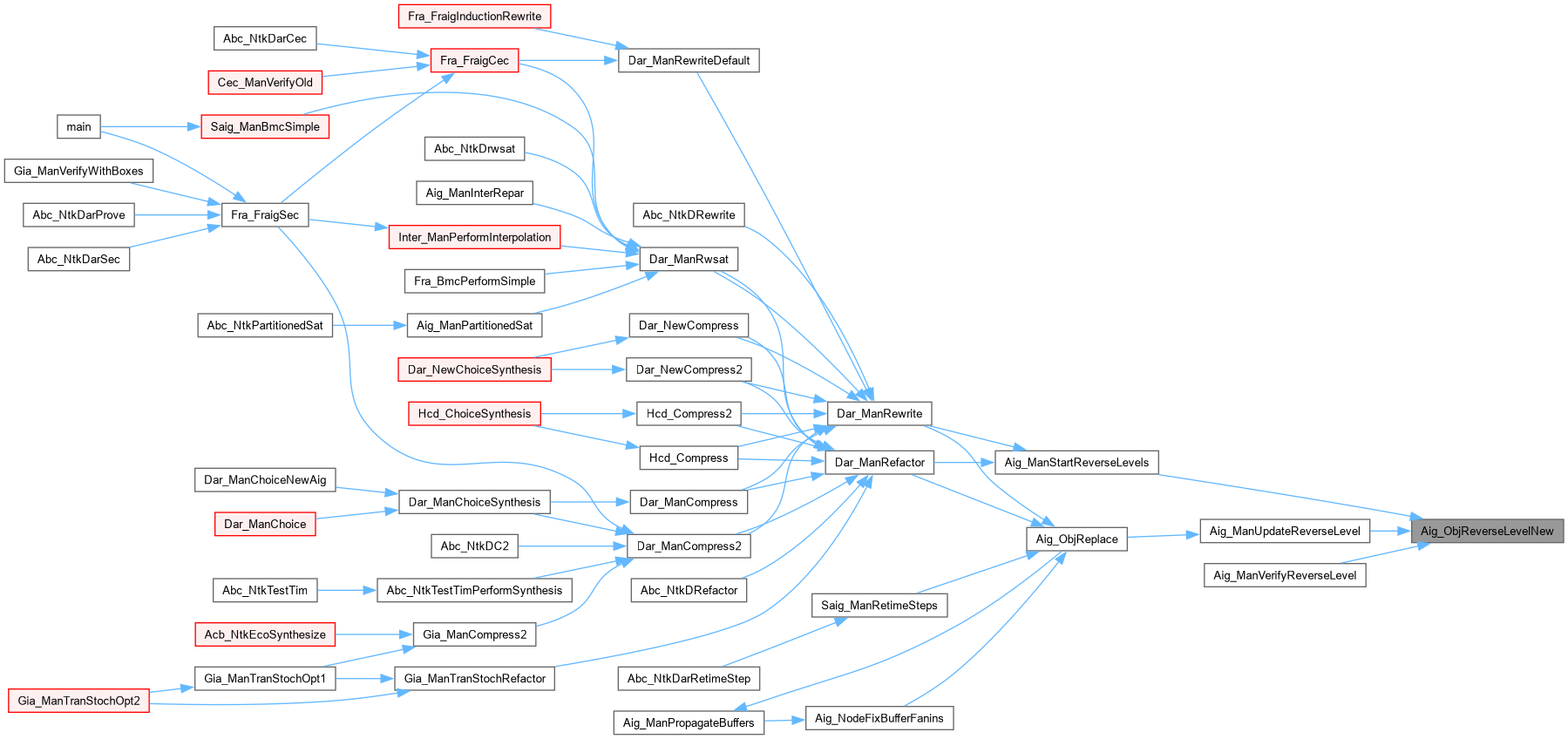

Here is the caller graph for this function:
