amapLib.c File Reference

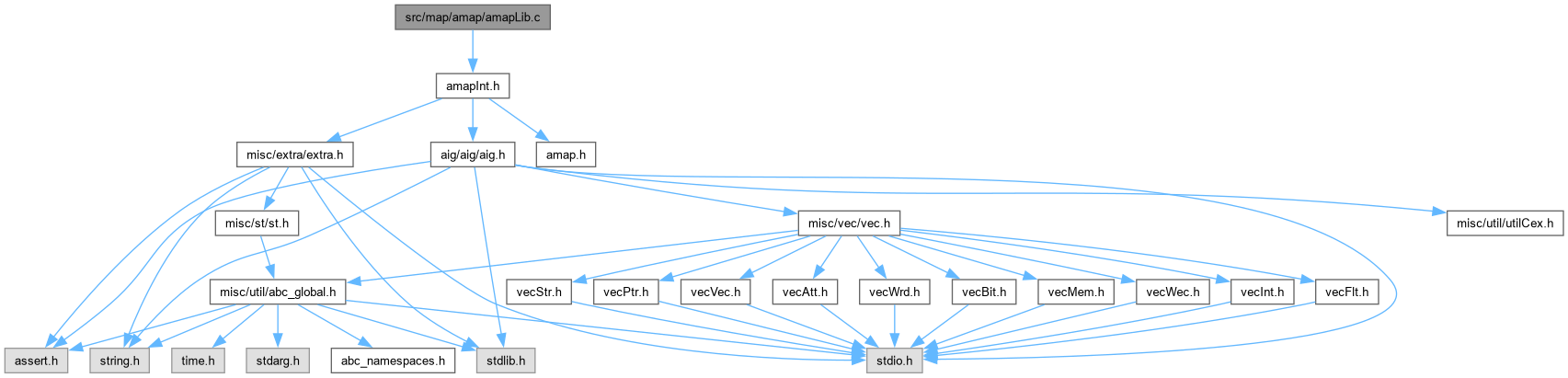

#include "amapInt.h"

Include dependency graph for amapLib.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Amap_Lib_t *	Amap_LibAlloc ()
	DECLARATIONS ///.
void	Amap_LibFree (Amap_Lib_t *p)
int	Amap_LibNumPinsMax (Amap_Lib_t *p)
void	Amap_LibWritePin (FILE *pFile, Amap_Pin_t *pPin)
void	Amap_LibWriteGate (FILE *pFile, Amap_Gat_t *pGate, int fPrintDsd)
void	Amap_LibWrite (FILE *pFile, Amap_Lib_t *pLib, int fPrintDsd)
int	Amap_LibCompareGatesByArea (Amap_Gat_t **pp1, Amap_Gat_t **pp2)
Vec_Ptr_t *	Amap_LibSortGatesByArea (Amap_Lib_t *pLib)
Amap_Gat_t *	Amap_LibFindGate (Amap_Lib_t *p, unsigned uTruth)
Vec_Ptr_t *	Amap_LibSelectGates (Amap_Lib_t *p, int fVerbose)
void	Amap_LibPrintSelectedGates (Amap_Lib_t *p, int fAllGates)
Amap_Lib_t *	Amap_LibReadAndPrepare (char *pFileName, char *pBuffer, int fVerbose, int fVeryVerbose)

Function Documentation

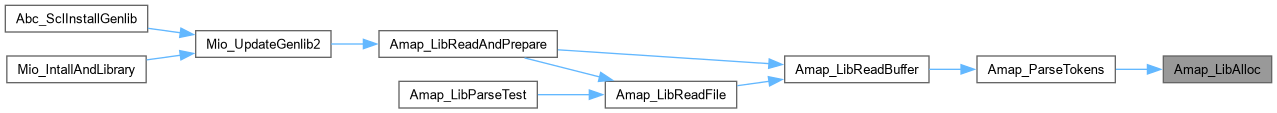

Amap_LibAlloc()

ABC_NAMESPACE_IMPL_START Amap_Lib_t * Amap_LibAlloc

(

)

DECLARATIONS ///.

CFile****************************************************************

FileName [amapLib.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Technology mapper for standard cells.]

Synopsis [Standard-cell library.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

amapLib.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Allocs a library.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file amapLib.c.

{
    Amap_Lib_t * p;
    p = (Amap_Lib_t *)ABC_ALLOC( Amap_Lib_t, 1 );
    memset( p, 0, sizeof(Amap_Lib_t) );
    p->vGates = Vec_PtrAlloc( 100 );
    p->pMemGates = Aig_MmFlexStart();
    p->pMemSet = Aig_MmFlexStart();
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Amap_LibCompareGatesByArea()

int Amap_LibCompareGatesByArea	(	Amap_Gat_t **	pp1,
		Amap_Gat_t **	pp2 )

Function*************************************************************

Synopsis [Compares two gates by area.]

Description []

SideEffects []

SeeAlso []

Definition at line 199 of file amapLib.c.

{
    double Diff = (*pp1)->dArea - (*pp2)->dArea;
    if ( Diff < 0.0 )
        return -1;
    if ( Diff > 0.0 )
        return 1;
    return 0;
}

Here is the caller graph for this function:

Amap_LibFindGate()

Amap_Gat_t * Amap_LibFindGate	(	Amap_Lib_t *	p,
		unsigned	uTruth )

Function*************************************************************

Synopsis [Finds min-area gate with the given function.]

Description []

SideEffects []

SeeAlso []

Definition at line 240 of file amapLib.c.

{
    Amap_Gat_t * pGate;
    int i;
    Vec_PtrForEachEntry( Amap_Gat_t *, p->vSorted, pGate, i )
    {
        if (( pGate == NULL ) || ( pGate->pFunc == NULL )) continue;
        if ( pGate->nPins <= 5 && pGate->pFunc[0] == uTruth )
            return pGate;
    }
    return NULL;
}

Here is the caller graph for this function:

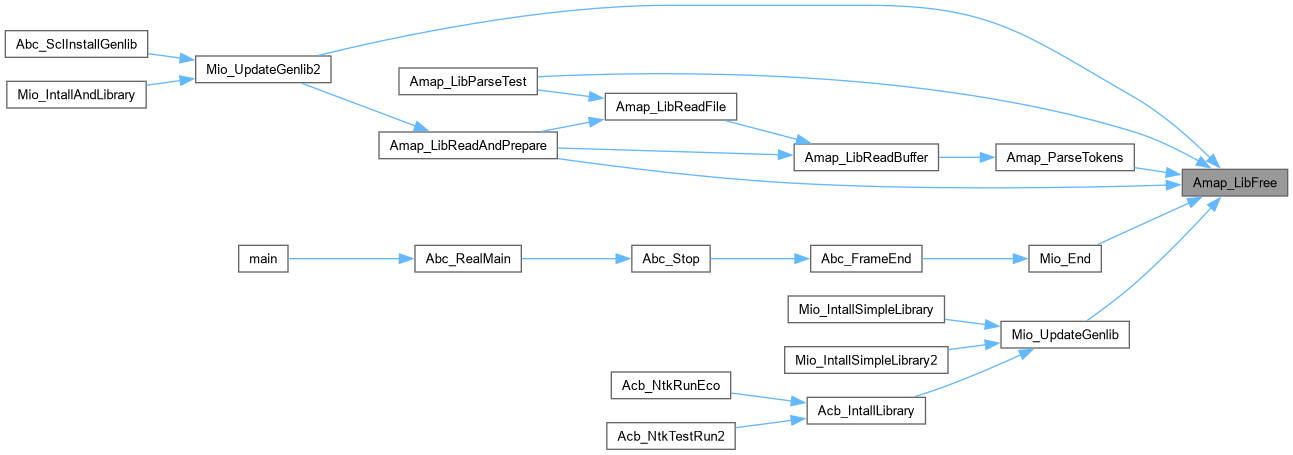

Amap_LibFree()

void Amap_LibFree

(

Amap_Lib_t *

p

)

Function*************************************************************

Synopsis [Deallocs a library.]

Description []

SideEffects []

SeeAlso []

Definition at line 67 of file amapLib.c.

{
    if ( p == NULL )
        return;
    if ( p->vSelect )
        Vec_PtrFree( p->vSelect );
    if ( p->vSorted )
        Vec_PtrFree( p->vSorted );
    if ( p->vGates )
        Vec_PtrFree( p->vGates );
    if ( p->vRules )
        Vec_VecFree( (Vec_Vec_t *)p->vRules );
    if ( p->vRulesX )
        Vec_VecFree( (Vec_Vec_t *)p->vRulesX );
    if ( p->vRules3 )
        Vec_IntFree( p->vRules3 );
    Aig_MmFlexStop( p->pMemGates, 0 );
    Aig_MmFlexStop( p->pMemSet, 0 );
    ABC_FREE( p->pRules );
    ABC_FREE( p->pRulesX );
    ABC_FREE( p->pNodes );
    ABC_FREE( p->pName );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

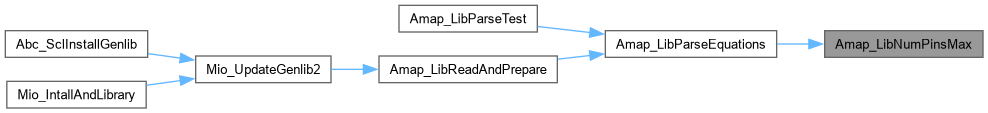

Amap_LibNumPinsMax()

int Amap_LibNumPinsMax

(

Amap_Lib_t *

p

)

Function*************************************************************

Synopsis [Returns the largest gate size.]

Description []

SideEffects []

SeeAlso []

Definition at line 103 of file amapLib.c.

{
    Amap_Gat_t * pGate;
    int i, Counter = 0;
    Amap_LibForEachGate( p, pGate, i )
        if ( Counter < (int)pGate->nPins )
            Counter = pGate->nPins;
    return Counter;
}

Here is the caller graph for this function:

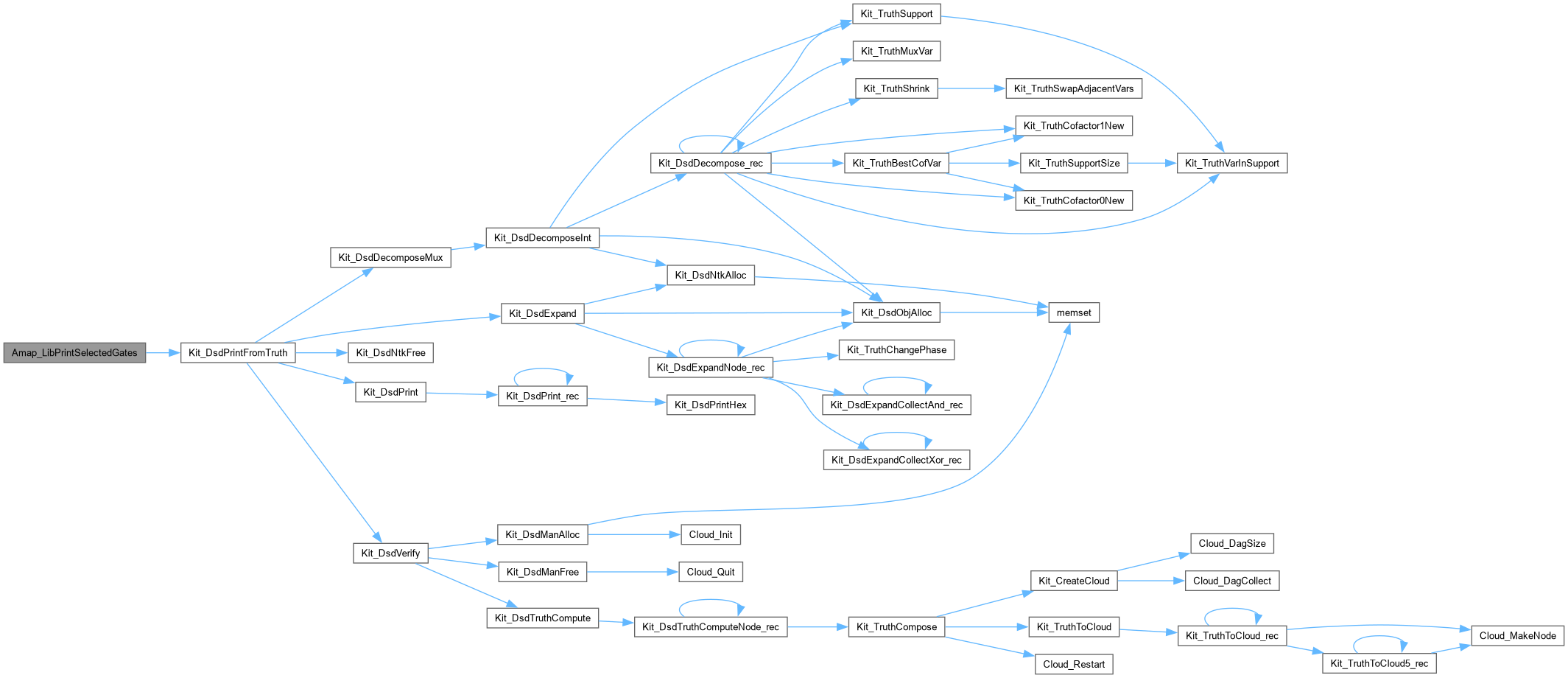

Amap_LibPrintSelectedGates()

void Amap_LibPrintSelectedGates	(	Amap_Lib_t *	p,
		int	fAllGates )

Function*************************************************************

Synopsis [Selects gates useful for area-only mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 305 of file amapLib.c.

{
    Vec_Ptr_t * vArray;
    Amap_Gat_t * pGate;
    int i;
    vArray = fAllGates? p->vGates : p->vSelect;
    Vec_PtrForEachEntry( Amap_Gat_t *, vArray, pGate, i )
    {
        printf( "%3d :%12s %d %9.2f  ", i, pGate->pName, pGate->nPins, pGate->dArea );
        printf( "%4s=%40s  ", pGate->pOutName, pGate->pForm );
        printf( "DSD: " );
        Kit_DsdPrintFromTruth( pGate->pFunc, pGate->nPins );
        printf( "\n" );
    }
}

Here is the call graph for this function:

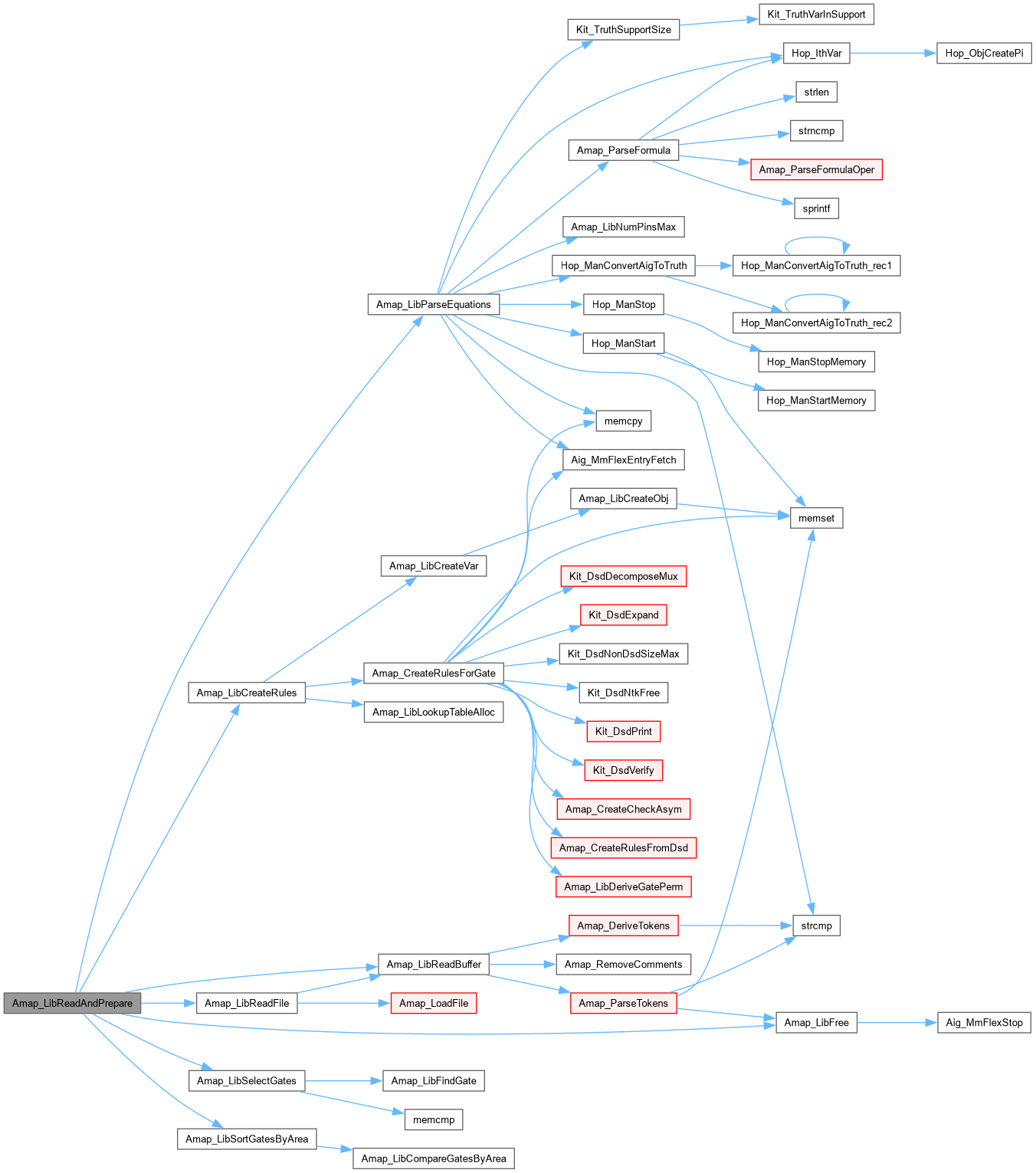

Amap_LibReadAndPrepare()

Amap_Lib_t * Amap_LibReadAndPrepare	(	char *	pFileName,
		char *	pBuffer,
		int	fVerbose,
		int	fVeryVerbose )

Function*************************************************************

Synopsis [Parses equations for the gates.]

Description []

SideEffects []

SeeAlso []

Definition at line 332 of file amapLib.c.

{
    Amap_Lib_t * p;
    abctime clk = Abc_Clock();
    if ( pBuffer == NULL )
        p = Amap_LibReadFile( pFileName, fVerbose );
    else
    {
        p = Amap_LibReadBuffer( pBuffer, fVerbose );
        if ( p )
            p->pName = Abc_UtilStrsav( pFileName );
    }
    if ( fVerbose )
        printf( "Read %d gates from file \"%s\".\n", Vec_PtrSize(p->vGates), pFileName );
    if ( p == NULL )
        return NULL;
    if ( !Amap_LibParseEquations( p, fVerbose ) )
    {
        Amap_LibFree( p );
        return NULL;
    }
    p->vSorted = Amap_LibSortGatesByArea( p );
    p->vSelect = Amap_LibSelectGates( p, fVerbose );
    if ( fVerbose )
    {
        printf( "Selected %d functionally unique gates. ", Vec_PtrSize(p->vSelect) );
        ABC_PRT( "Time", Abc_Clock() - clk );
//       Amap_LibPrintSelectedGates( p, 0 );
    }
    clk = Abc_Clock();
    Amap_LibCreateRules( p, fVeryVerbose );
    if ( fVerbose )
    {
        printf( "Created %d rules and %d matches. ", p->nNodes, p->nSets );
        ABC_PRT( "Time", Abc_Clock() - clk );
    }
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Amap_LibSelectGates()

Vec_Ptr_t * Amap_LibSelectGates	(	Amap_Lib_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis [Selects gates useful for area-only mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 264 of file amapLib.c.

{
    Vec_Ptr_t * vSelect;
    Amap_Gat_t * pGate, * pGate2;
    int i, k;//, clk = Abc_Clock();
    p->pGate0   = Amap_LibFindGate( p, 0 );
    p->pGate1   = Amap_LibFindGate( p, ~0 );
    p->pGateBuf = Amap_LibFindGate( p, 0xAAAAAAAA );
    p->pGateInv = Amap_LibFindGate( p, ~0xAAAAAAAA );
    vSelect = Vec_PtrAlloc( 100 );
    Vec_PtrForEachEntry( Amap_Gat_t *, p->vSorted, pGate, i )
    {
        if ( pGate->pFunc == NULL || pGate->pTwin != NULL )
            continue;
        Vec_PtrForEachEntryStop( Amap_Gat_t *, p->vSorted, pGate2, k, i )
        {
            if ( pGate2->pFunc == NULL || pGate2->pTwin != NULL )
                continue;
            if ( pGate2->nPins != pGate->nPins )
                continue;
            if ( !memcmp( pGate2->pFunc, pGate->pFunc, sizeof(unsigned) * Abc_TruthWordNum(pGate->nPins) ) )
                break;
        }
        if ( k < i )
            continue;
        Vec_PtrPush( vSelect, pGate );
    }
    return vSelect;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Amap_LibSortGatesByArea()

Vec_Ptr_t * Amap_LibSortGatesByArea

(

Amap_Lib_t *

pLib

)

Function*************************************************************

Synopsis [Compares gates by area.]

Description []

SideEffects []

SeeAlso []

Definition at line 220 of file amapLib.c.

{
    Vec_Ptr_t * vSorted;
    vSorted = Vec_PtrDup( pLib->vGates );
    qsort( (void *)Vec_PtrArray(vSorted), (size_t)Vec_PtrSize(vSorted), sizeof(void *),
            (int (*)(const void *, const void *)) Amap_LibCompareGatesByArea );
    return vSorted;
}

Here is the call graph for this function:

Here is the caller graph for this function:

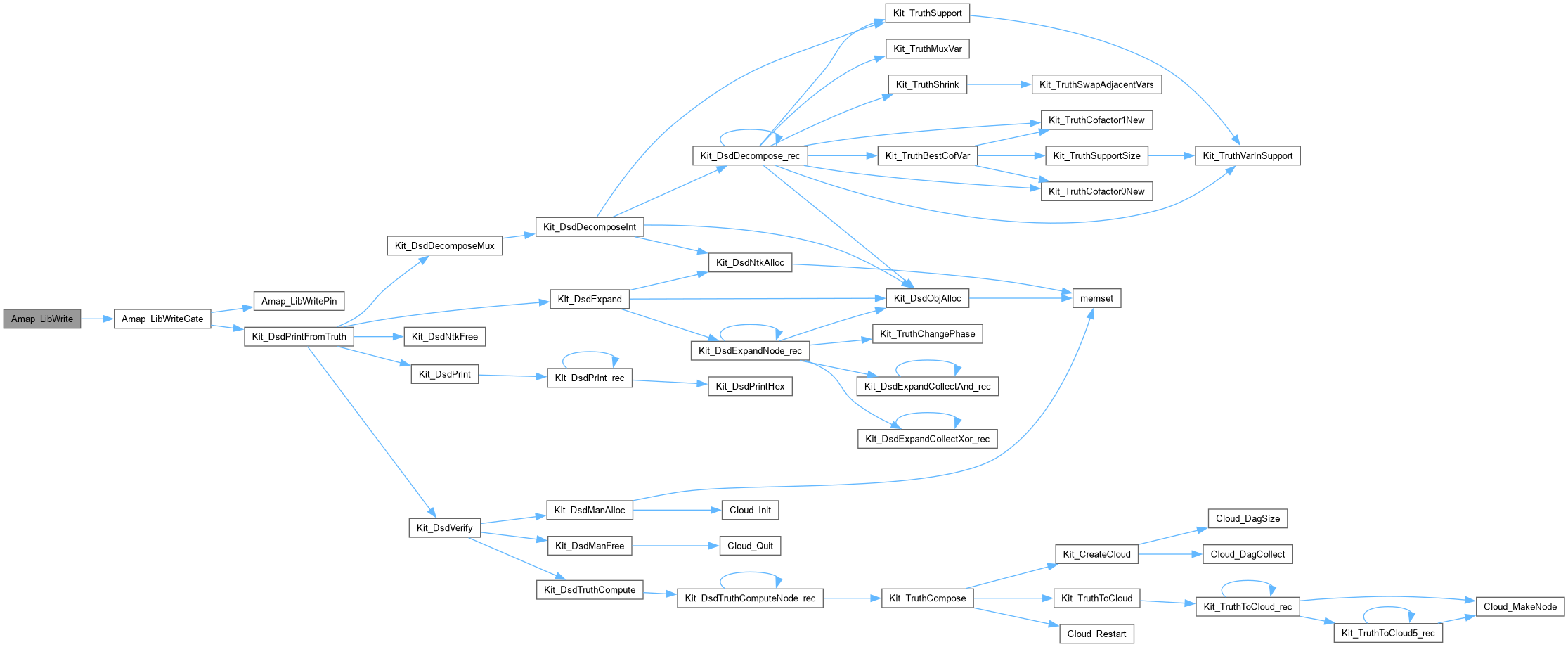

Amap_LibWrite()

void Amap_LibWrite	(	FILE *	pFile,
		Amap_Lib_t *	pLib,
		int	fPrintDsd )

Function*************************************************************

Synopsis [Writes library.]

Description []

SideEffects []

SeeAlso []

Definition at line 179 of file amapLib.c.

{
    Amap_Gat_t * pGate;
    int i;
    fprintf( pFile, "# The genlib library \"%s\".\n", pLib->pName );
    Amap_LibForEachGate( pLib, pGate, i )
        Amap_LibWriteGate( pFile, pGate, fPrintDsd );
}

Here is the call graph for this function:

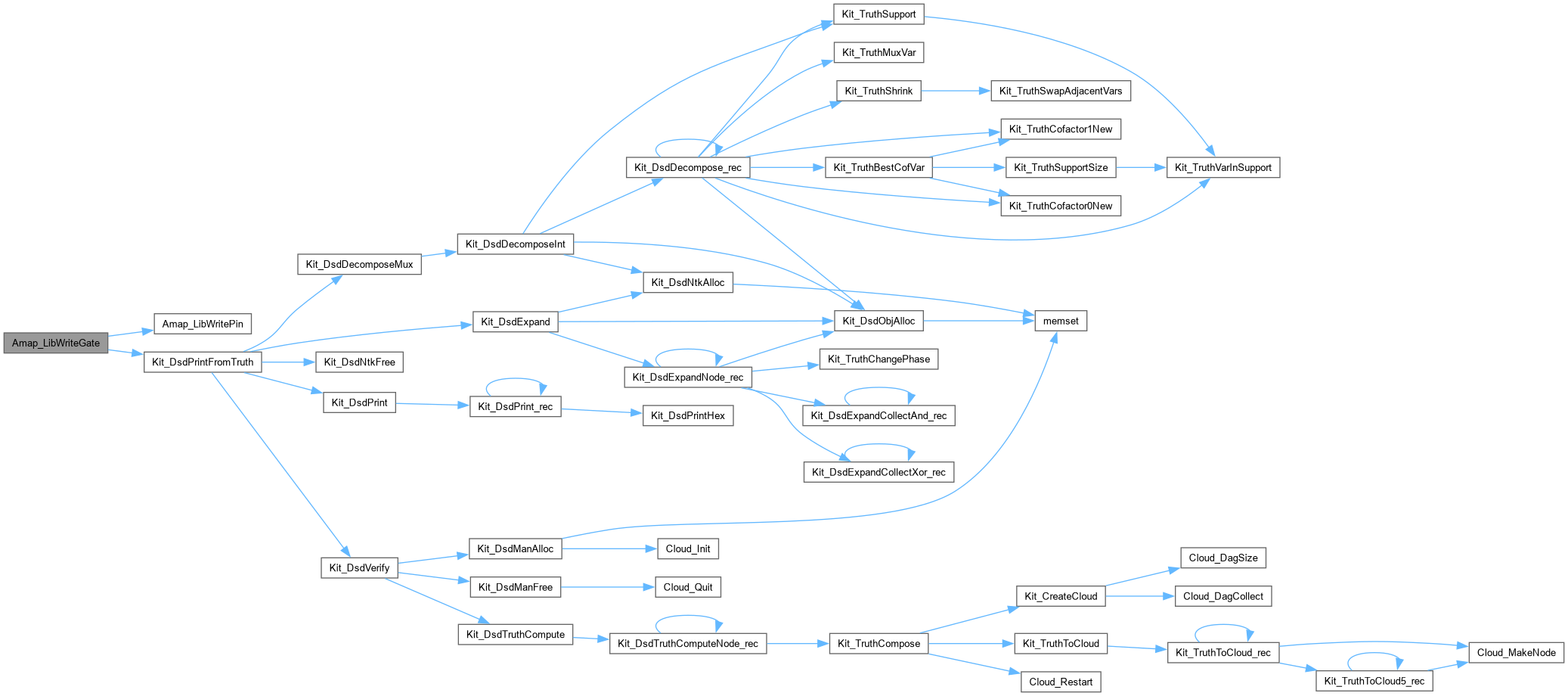

Amap_LibWriteGate()

void Amap_LibWriteGate	(	FILE *	pFile,
		Amap_Gat_t *	pGate,
		int	fPrintDsd )

Function*************************************************************

Synopsis [Writes one gate.]

Description []

SideEffects []

SeeAlso []

Definition at line 150 of file amapLib.c.

{
    Amap_Pin_t * pPin;
    fprintf( pFile, "GATE " );
    fprintf( pFile, "%12s ",      pGate->pName );
    fprintf( pFile, "%10.2f   ",  pGate->dArea );
    fprintf( pFile, "%s=%s;\n",   pGate->pOutName,    pGate->pForm );
    if ( fPrintDsd )
    {
        if ( pGate->pFunc == NULL )
            printf( "Truth table is not available.\n" );
        else
            Kit_DsdPrintFromTruth( pGate->pFunc, pGate->nPins );
    }
    Amap_GateForEachPin( pGate, pPin )
        Amap_LibWritePin( pFile, pPin );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Amap_LibWritePin()

void Amap_LibWritePin	(	FILE *	pFile,
		Amap_Pin_t *	pPin )

Function*************************************************************

Synopsis [Writes one pin.]

Description []

SideEffects []

SeeAlso []

Definition at line 124 of file amapLib.c.

{
    char * pPhaseNames[10] = { "UNKNOWN", "INV", "NONINV" };
    fprintf( pFile, "    PIN " );
    fprintf( pFile, "%9s ",     pPin->pName );
    fprintf( pFile, "%10s ",    pPhaseNames[pPin->Phase] );
    fprintf( pFile, "%6d ",     (int)pPin->dLoadInput );
    fprintf( pFile, "%6d ",     (int)pPin->dLoadMax );
    fprintf( pFile, "%6.2f ",   pPin->dDelayBlockRise );
    fprintf( pFile, "%6.2f ",   pPin->dDelayFanoutRise );
    fprintf( pFile, "%6.2f ",   pPin->dDelayBlockFall );
    fprintf( pFile, "%6.2f",    pPin->dDelayFanoutFall );
    fprintf( pFile, "\n" );
}

Here is the caller graph for this function:
