amapParse.c File Reference

#include "amapInt.h"
#include "aig/hop/hop.h"
#include "bool/kit/kit.h"

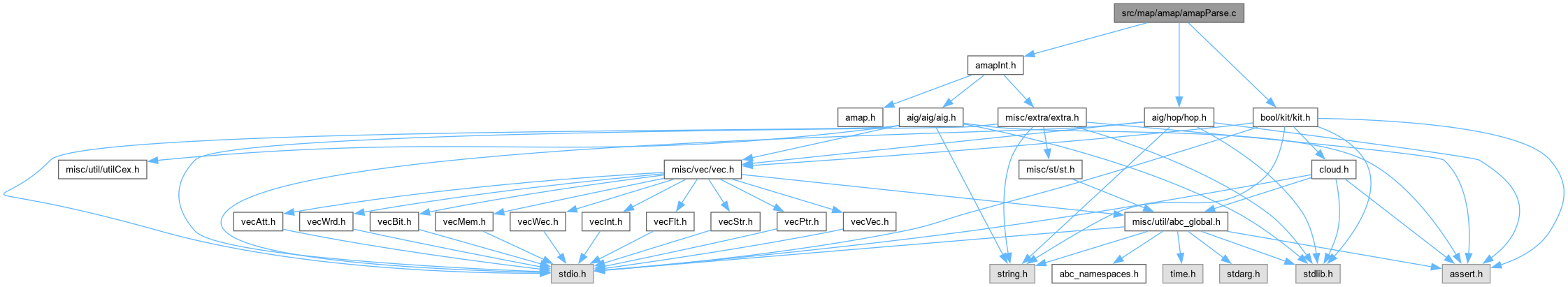

Include dependency graph for amapParse.c:

Go to the source code of this file.

Macros
#define	AMAP_EQN_SYM_OPEN   '('
	DECLARATIONS ///.
#define	AMAP_EQN_SYM_CLOSE   ')'
#define	AMAP_EQN_SYM_CONST0   '0'
#define	AMAP_EQN_SYM_CONST1   '1'
#define	AMAP_EQN_SYM_NEG   '!'
#define	AMAP_EQN_SYM_NEGAFT   '\''
#define	AMAP_EQN_SYM_AND   '*'
#define	AMAP_EQN_SYM_AND2   '&'
#define	AMAP_EQN_SYM_XOR   '^'
#define	AMAP_EQN_SYM_OR   '+'
#define	AMAP_EQN_SYM_OR2   '|'
#define	AMAP_EQN_OPER_NEG   10
#define	AMAP_EQN_OPER_AND   9
#define	AMAP_EQN_OPER_XOR   8
#define	AMAP_EQN_OPER_OR   7
#define	AMAP_EQN_OPER_MARK   1
#define	AMAP_EQN_FLAG_START   1
#define	AMAP_EQN_FLAG_VAR   2
#define	AMAP_EQN_FLAG_OPER   3
#define	AMAP_EQN_FLAG_ERROR   4

Functions
Hop_Obj_t *	Amap_ParseFormulaOper (Hop_Man_t *pMan, Vec_Ptr_t *pStackFn, int Oper)
	FUNCTION DEFINITIONS ///.
Hop_Obj_t *	Amap_ParseFormula (FILE *pOutput, char *pFormInit, Vec_Ptr_t *vVarNames, Hop_Man_t *pMan, char *pGateName)
int	Amap_LibParseEquations (Amap_Lib_t *p, int fVerbose)
void	Amap_LibParseTest (char *pFileName)

Macro Definition Documentation

AMAP_EQN_FLAG_ERROR

#define AMAP_EQN_FLAG_ERROR   4

Definition at line 56 of file amapParse.c.

AMAP_EQN_FLAG_OPER

#define AMAP_EQN_FLAG_OPER   3

Definition at line 55 of file amapParse.c.

AMAP_EQN_FLAG_START

#define AMAP_EQN_FLAG_START   1

Definition at line 53 of file amapParse.c.

AMAP_EQN_FLAG_VAR

#define AMAP_EQN_FLAG_VAR   2

Definition at line 54 of file amapParse.c.

AMAP_EQN_OPER_AND

#define AMAP_EQN_OPER_AND   9

Definition at line 47 of file amapParse.c.

AMAP_EQN_OPER_MARK

#define AMAP_EQN_OPER_MARK   1

Definition at line 50 of file amapParse.c.

AMAP_EQN_OPER_NEG

#define AMAP_EQN_OPER_NEG   10

Definition at line 46 of file amapParse.c.

AMAP_EQN_OPER_OR

#define AMAP_EQN_OPER_OR   7

Definition at line 49 of file amapParse.c.

AMAP_EQN_OPER_XOR

#define AMAP_EQN_OPER_XOR   8

Definition at line 48 of file amapParse.c.

AMAP_EQN_SYM_AND

#define AMAP_EQN_SYM_AND   '*'

Definition at line 39 of file amapParse.c.

AMAP_EQN_SYM_AND2

#define AMAP_EQN_SYM_AND2   '&'

Definition at line 40 of file amapParse.c.

AMAP_EQN_SYM_CLOSE

#define AMAP_EQN_SYM_CLOSE   ')'

Definition at line 34 of file amapParse.c.

AMAP_EQN_SYM_CONST0

#define AMAP_EQN_SYM_CONST0   '0'

Definition at line 35 of file amapParse.c.

AMAP_EQN_SYM_CONST1

#define AMAP_EQN_SYM_CONST1   '1'

Definition at line 36 of file amapParse.c.

AMAP_EQN_SYM_NEG

#define AMAP_EQN_SYM_NEG   '!'

Definition at line 37 of file amapParse.c.

AMAP_EQN_SYM_NEGAFT

#define AMAP_EQN_SYM_NEGAFT   '\''

Definition at line 38 of file amapParse.c.

AMAP_EQN_SYM_OPEN

#define AMAP_EQN_SYM_OPEN   '('

DECLARATIONS ///.

CFile****************************************************************

FileName [amapParse.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Technology mapper for standard cells.]

Synopsis [Parses representations of gates.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

amapParse.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 33 of file amapParse.c.

AMAP_EQN_SYM_OR

#define AMAP_EQN_SYM_OR   '+'

Definition at line 42 of file amapParse.c.

AMAP_EQN_SYM_OR2

#define AMAP_EQN_SYM_OR2   '|'

Definition at line 43 of file amapParse.c.

AMAP_EQN_SYM_XOR

#define AMAP_EQN_SYM_XOR   '^'

Definition at line 41 of file amapParse.c.

Function Documentation

Amap_LibParseEquations()

int Amap_LibParseEquations	(	Amap_Lib_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis [Parses equations for the gates.]

Description []

SideEffects []

SeeAlso []

Definition at line 392 of file amapParse.c.

{
//    extern int Kit_TruthSupportSize( unsigned * pTruth, int nVars );
    Hop_Man_t * pMan;
    Hop_Obj_t * pObj;
    Vec_Ptr_t * vNames;
    Vec_Int_t * vTruth;
    Amap_Gat_t * pGate;
    Amap_Pin_t * pPin;
    unsigned * pTruth;
    int i, nPinMax;
    nPinMax = Amap_LibNumPinsMax(p);
    if ( nPinMax > AMAP_MAXINS )
        printf( "Gates with more than %d inputs will be ignored.\n", AMAP_MAXINS );
    vTruth = Vec_IntAlloc( 1 << 16 );
    vNames = Vec_PtrAlloc( 100 );
    pMan = Hop_ManStart();
    Hop_IthVar( pMan, nPinMax - 1 );
    Vec_PtrForEachEntry( Amap_Gat_t *, p->vGates, pGate, i )
    {
        if ( pGate->nPins == 0 )
        {
            pGate->pFunc = (unsigned *)Aig_MmFlexEntryFetch( p->pMemGates, 4 );
            if ( strcmp( pGate->pForm, AMAP_STRING_CONST0 ) == 0 )
                pGate->pFunc[0] = 0;
            else if ( strcmp( pGate->pForm, AMAP_STRING_CONST1 ) == 0 )
                pGate->pFunc[0] = ~0;
            else
            {
                printf( "Cannot parse formula \"%s\" of gate \"%s\" with no pins.\n", pGate->pForm, pGate->pName );
                break;
            }
            continue;
        }
        if ( pGate->nPins > AMAP_MAXINS )
            continue;
        Vec_PtrClear( vNames );
        Amap_GateForEachPin( pGate, pPin )
            Vec_PtrPush( vNames, pPin->pName );
        pObj = Amap_ParseFormula( stdout, pGate->pForm, vNames, pMan, pGate->pName );
        if ( pObj == NULL )
            break;
        pTruth = Hop_ManConvertAigToTruth( pMan, pObj, pGate->nPins, vTruth, 0 );
        if ( Kit_TruthSupportSize(pTruth, pGate->nPins) < (int)pGate->nPins )
        {
            if ( fVerbose )
                printf( "Skipping gate \"%s\" because its output \"%s\" does not depend on all input variables.\n", pGate->pName, pGate->pForm );
            continue;
        }
        pGate->pFunc = (unsigned *)Aig_MmFlexEntryFetch( p->pMemGates, sizeof(unsigned)*Abc_TruthWordNum(pGate->nPins) );
        memcpy( pGate->pFunc, pTruth, sizeof(unsigned)*Abc_TruthWordNum(pGate->nPins) );
    }
    Vec_PtrFree( vNames );
    Vec_IntFree( vTruth );
    Hop_ManStop( pMan );
    return i == Vec_PtrSize(p->vGates);
}

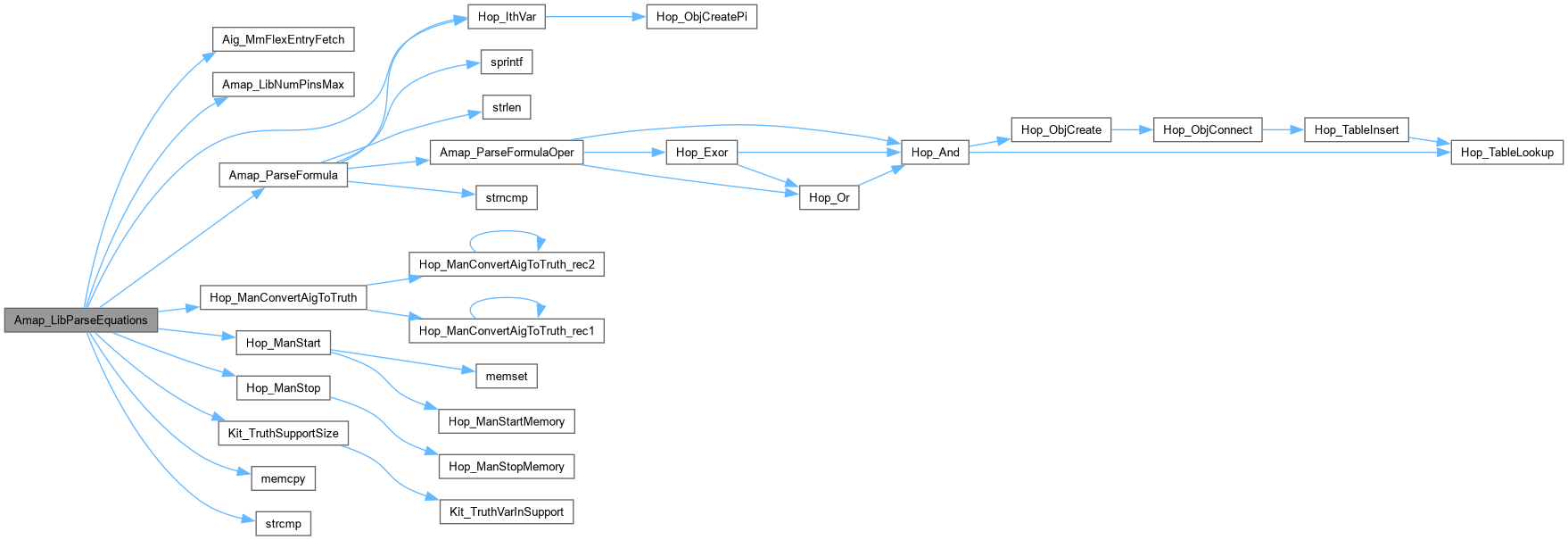

Here is the call graph for this function:

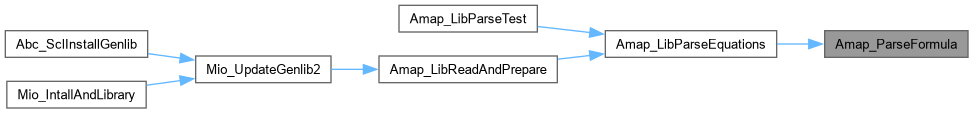

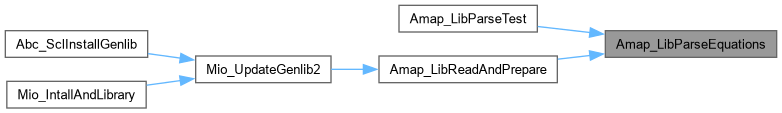

Here is the caller graph for this function:

Amap_LibParseTest()

void Amap_LibParseTest

(

char *

pFileName

)

Function*************************************************************

Synopsis [Parses equations for the gates.]

Description []

SideEffects []

SeeAlso []

Definition at line 461 of file amapParse.c.

{
    int fVerbose = 0;
    Amap_Lib_t * p;
    abctime clk = Abc_Clock();
    p = Amap_LibReadFile( pFileName, fVerbose );
    if ( p == NULL )
        return;
    Amap_LibParseEquations( p, fVerbose );
    Amap_LibFree( p );
    ABC_PRT( "Total time", Abc_Clock() - clk );
}

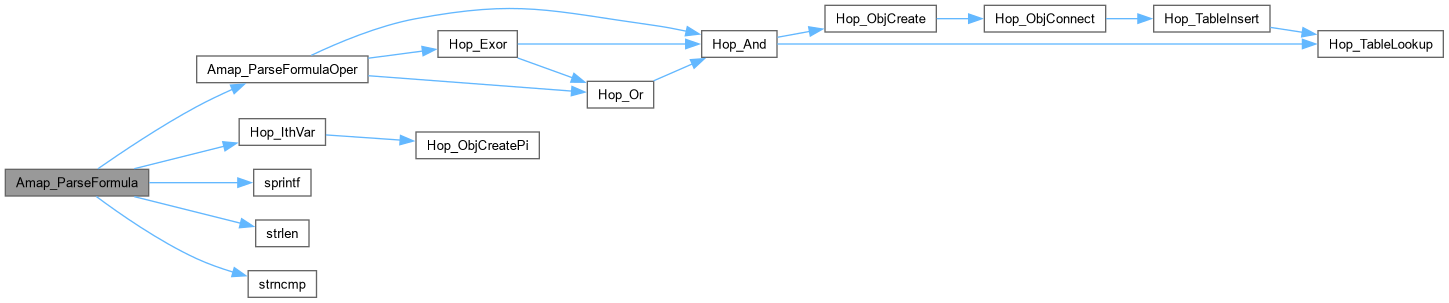

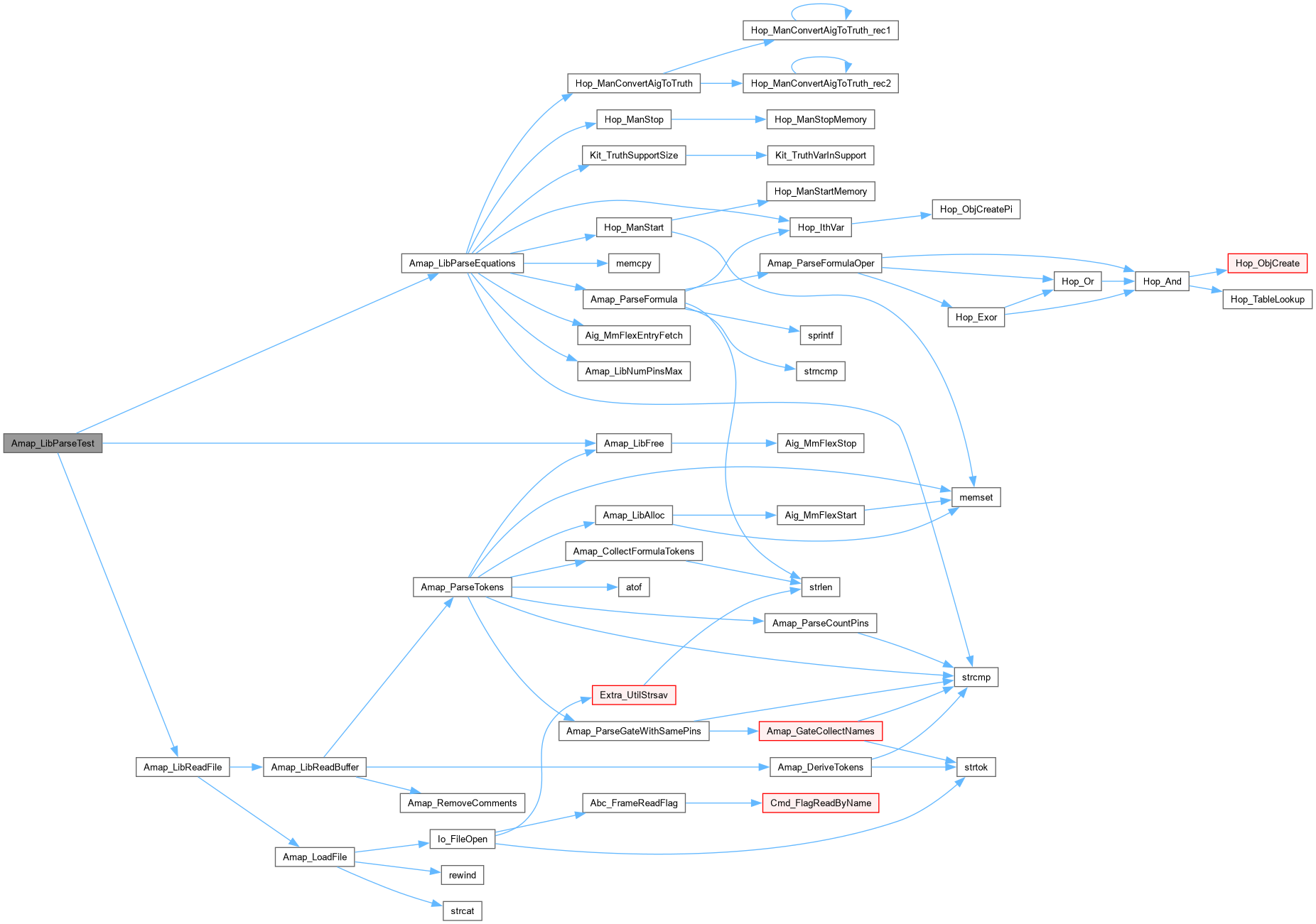

Here is the call graph for this function:

Amap_ParseFormula()

Hop_Obj_t * Amap_ParseFormula	(	FILE *	pOutput,
		char *	pFormInit,
		Vec_Ptr_t *	vVarNames,
		Hop_Man_t *	pMan,
		char *	pGateName )

Function*************************************************************

Synopsis [Derives the AIG corresponding to the equation.]

Description [Takes the stream to output messages, the formula, the vector of variable names and the AIG manager.]

SideEffects []

SeeAlso []

Definition at line 106 of file amapParse.c.

{
    char * pFormula;
    Vec_Ptr_t * pStackFn;
    Vec_Int_t * pStackOp;
    Hop_Obj_t * gFunc;
    char * pTemp, * pName;
    int nParans, fFound, Flag;
    int Oper, Oper1, Oper2;
    int i, v;

    // make sure that the number of opening and closing parentheses is the same
    nParans = 0;
    for ( pTemp = pFormInit; *pTemp; pTemp++ )
        if ( *pTemp == '(' )
            nParans++;
        else if ( *pTemp == ')' )
            nParans--;
    if ( nParans != 0 )
    {
        fprintf( pOutput, "Amap_ParseFormula(): Different number of opening and closing parentheses ().\n" );
        return NULL;
    }

    // copy the formula
    pFormula = ABC_ALLOC( char, strlen(pFormInit) + 3 );
    sprintf( pFormula, "(%s)", pFormInit );

    // start the stacks
    pStackFn = Vec_PtrAlloc( 100 );
    pStackOp = Vec_IntAlloc( 100 );

    Flag = AMAP_EQN_FLAG_START;
    for ( pTemp = pFormula; *pTemp; pTemp++ )
    {
        switch ( *pTemp )
        {
        // skip all spaces, tabs, and end-of-lines
        case ' ':
        case '\t':
        case '\r':
        case '\n':
            continue;
        case AMAP_EQN_SYM_CONST0:
            Vec_PtrPush( pStackFn, Hop_ManConst0(pMan) );  // Cudd_Ref( b0 );
            if ( Flag == AMAP_EQN_FLAG_VAR )
            {
                fprintf( pOutput, "Amap_ParseFormula(): No operation symbol before constant 0.\n" );
                Flag = AMAP_EQN_FLAG_ERROR;
                break;
            }
            Flag = AMAP_EQN_FLAG_VAR;
            break;
        case AMAP_EQN_SYM_CONST1:
            Vec_PtrPush( pStackFn, Hop_ManConst1(pMan) );  //  Cudd_Ref( b1 );
            if ( Flag == AMAP_EQN_FLAG_VAR )
            {
                fprintf( pOutput, "Amap_ParseFormula(): No operation symbol before constant 1.\n" );
                Flag = AMAP_EQN_FLAG_ERROR;
                break;
            }
            Flag = AMAP_EQN_FLAG_VAR;
            break;
        case AMAP_EQN_SYM_NEG:
            if ( Flag == AMAP_EQN_FLAG_VAR )
            {// if NEGBEF follows a variable, AND is assumed
                Vec_IntPush( pStackOp, AMAP_EQN_OPER_AND );
                Flag = AMAP_EQN_FLAG_OPER;
            }
            Vec_IntPush( pStackOp, AMAP_EQN_OPER_NEG );
            break;
        case AMAP_EQN_SYM_NEGAFT:
            if ( Flag != AMAP_EQN_FLAG_VAR )
            {// if there is no variable before NEGAFT, it is an error
                fprintf( pOutput, "Amap_ParseFormula(): No variable is specified before the negation suffix.\n" );
                Flag = AMAP_EQN_FLAG_ERROR;
                break;
            }
            else // if ( Flag == PARSE_FLAG_VAR )
                Vec_PtrPush( pStackFn, Hop_Not( (Hop_Obj_t *)Vec_PtrPop(pStackFn) ) );
            break;
        case AMAP_EQN_SYM_AND:
        case AMAP_EQN_SYM_AND2:
        case AMAP_EQN_SYM_OR:
        case AMAP_EQN_SYM_OR2:
        case AMAP_EQN_SYM_XOR:
            if ( Flag != AMAP_EQN_FLAG_VAR )
            {
                fprintf( pOutput, "Amap_ParseFormula(): There is no variable before AND, EXOR, or OR.\n" );
                Flag = AMAP_EQN_FLAG_ERROR;
                break;
            }
            if ( *pTemp == AMAP_EQN_SYM_AND || *pTemp == AMAP_EQN_SYM_AND2 )
                Vec_IntPush( pStackOp, AMAP_EQN_OPER_AND );
            else if ( *pTemp == AMAP_EQN_SYM_OR || *pTemp == AMAP_EQN_SYM_OR2 )
                Vec_IntPush( pStackOp, AMAP_EQN_OPER_OR );
            else //if ( *pTemp == AMAP_EQN_SYM_XOR )
                Vec_IntPush( pStackOp, AMAP_EQN_OPER_XOR );
            Flag = AMAP_EQN_FLAG_OPER;
            break;
        case AMAP_EQN_SYM_OPEN:
            if ( Flag == AMAP_EQN_FLAG_VAR )
            {
                Vec_IntPush( pStackOp, AMAP_EQN_OPER_AND );
//                fprintf( pOutput, "Amap_ParseFormula(): An opening parenthesis follows a var without operation sign.\n" );
//                Flag = AMAP_EQN_FLAG_ERROR;
//              break;
            }
            Vec_IntPush( pStackOp, AMAP_EQN_OPER_MARK );
            // after an opening bracket, it feels like starting over again
            Flag = AMAP_EQN_FLAG_START;
            break;
        case AMAP_EQN_SYM_CLOSE:
            if ( Vec_IntSize( pStackOp ) != 0 )
            {
                while ( 1 )
                {
                    if ( Vec_IntSize( pStackOp ) == 0 )
                    {
                        fprintf( pOutput, "Amap_ParseFormula(): There is no opening parenthesis\n" );
                        Flag = AMAP_EQN_FLAG_ERROR;
                        break;
                    }
                    Oper = Vec_IntPop( pStackOp );
                    if ( Oper == AMAP_EQN_OPER_MARK )
                        break;

                    // perform the given operation
                    if ( Amap_ParseFormulaOper( pMan, pStackFn, Oper ) == NULL )
                    {
                        fprintf( pOutput, "Amap_ParseFormula(): Unknown operation\n" );
                        ABC_FREE( pFormula );
                        Vec_PtrFreeP( &pStackFn );
                        Vec_IntFreeP( &pStackOp );
                        return NULL;
                    }
                }
            }
            else
            {
                fprintf( pOutput, "Amap_ParseFormula(): There is no opening parenthesis\n" );
                Flag = AMAP_EQN_FLAG_ERROR;
                break;
            }
            if ( Flag != AMAP_EQN_FLAG_ERROR )
                Flag = AMAP_EQN_FLAG_VAR;
            break;


        default:
            // scan the next name
            for ( i = 0; pTemp[i] &&
                         pTemp[i] != ' ' && pTemp[i] != '\t' && pTemp[i] != '\r' && pTemp[i] != '\n' &&
                         pTemp[i] != AMAP_EQN_SYM_AND && pTemp[i] != AMAP_EQN_SYM_AND2 && pTemp[i] != AMAP_EQN_SYM_OR && pTemp[i] != AMAP_EQN_SYM_OR2 &&
                         pTemp[i] != AMAP_EQN_SYM_XOR && pTemp[i] != AMAP_EQN_SYM_NEGAFT && pTemp[i] != AMAP_EQN_SYM_CLOSE;
                  i++ )
              {
                    if ( pTemp[i] == AMAP_EQN_SYM_NEG || pTemp[i] == AMAP_EQN_SYM_OPEN )
                    {
                        fprintf( pOutput, "Amap_ParseFormula(): The negation sign or an opening parenthesis inside the variable name.\n" );
                        Flag = AMAP_EQN_FLAG_ERROR;
                        break;
                    }
              }
            // variable name is found
            fFound = 0;
            Vec_PtrForEachEntry( char *, vVarNames, pName, v )
                if ( strncmp(pTemp, pName, i) == 0 && strlen(pName) == (unsigned)i )
                {
                    pTemp += i-1;
                    fFound = 1;
                    break;
                }
            if ( !fFound )
            {
                fprintf( pOutput, "Amap_ParseFormula(): The parser cannot find var \"%s\" in the input var list of gate \"%s\".\n", pTemp, pGateName );
                Flag = AMAP_EQN_FLAG_ERROR;
                break;
            }
/*
            if ( Flag == AMAP_EQN_FLAG_VAR )
            {
                fprintf( pOutput, "Amap_ParseFormula(): The variable name \"%s\" follows another var without operation sign.\n", pTemp );
                Flag = AMAP_EQN_FLAG_ERROR;
                break;
            }
*/
            if ( Flag == AMAP_EQN_FLAG_VAR )
                Vec_IntPush( pStackOp, AMAP_EQN_OPER_AND );

            Vec_PtrPush( pStackFn, Hop_IthVar( pMan, v ) ); // Cudd_Ref( pbVars[v] );
            Flag = AMAP_EQN_FLAG_VAR;
            break;
        }

        if ( Flag == AMAP_EQN_FLAG_ERROR )
            break;      // error exit
        else if ( Flag == AMAP_EQN_FLAG_START )
            continue;  //  go on parsing
        else if ( Flag == AMAP_EQN_FLAG_VAR )
            while ( 1 )
            {  // check if there are negations in the OpStack
                if ( Vec_IntSize( pStackOp ) == 0 )
                    break;
                Oper = Vec_IntPop( pStackOp );
                if ( Oper != AMAP_EQN_OPER_NEG )
                {
                    Vec_IntPush( pStackOp, Oper );
                    break;
                }
                else
                {
                      Vec_PtrPush( pStackFn, Hop_Not((Hop_Obj_t *)Vec_PtrPop(pStackFn)) );
                }
            }
        else // if ( Flag == AMAP_EQN_FLAG_OPER )
            while ( 1 )
            {  // execute all the operations in the OpStack
               // with precedence higher or equal than the last one
                Oper1 = Vec_IntPop( pStackOp ); // the last operation
                if ( Vec_IntSize( pStackOp ) == 0 )
                {  // if it is the only operation, push it back
                    Vec_IntPush( pStackOp, Oper1 );
                    break;
                }
                Oper2 = Vec_IntPop( pStackOp ); // the operation before the last one
                if ( Oper2 >= Oper1 )
                {  // if Oper2 precedence is higher or equal, execute it
                    if ( Amap_ParseFormulaOper( pMan, pStackFn, Oper2 ) == NULL )
                    {
                        fprintf( pOutput, "Amap_ParseFormula(): Unknown operation\n" );
                        ABC_FREE( pFormula );
                        Vec_PtrFreeP( &pStackFn );
                        Vec_IntFreeP( &pStackOp );
                        return NULL;
                    }
                    Vec_IntPush( pStackOp,  Oper1 );     // push the last operation back
                }
                else
                {  // if Oper2 precedence is lower, push them back and done
                    Vec_IntPush( pStackOp, Oper2 );
                    Vec_IntPush( pStackOp, Oper1 );
                    break;
                }
            }
    }

    if ( Flag != AMAP_EQN_FLAG_ERROR )
    {
        if ( Vec_PtrSize(pStackFn) != 0 )
        {
            gFunc = (Hop_Obj_t *)Vec_PtrPop(pStackFn);
            if ( Vec_PtrSize(pStackFn) == 0 )
                if ( Vec_IntSize( pStackOp ) == 0 )
                {
//                    Cudd_Deref( gFunc );
                    ABC_FREE( pFormula );
                    Vec_PtrFreeP( &pStackFn );
                    Vec_IntFreeP( &pStackOp );
                    return gFunc;
                }
                else
                    fprintf( pOutput, "Amap_ParseFormula(): Something is left in the operation stack\n" );
            else
                fprintf( pOutput, "Amap_ParseFormula(): Something is left in the function stack\n" );
        }
        else
            fprintf( pOutput, "Amap_ParseFormula(): The input string is empty\n" );
    }
    ABC_FREE( pFormula );
    Vec_PtrFreeP( &pStackFn );
    Vec_IntFreeP( &pStackOp );
    return NULL;
}

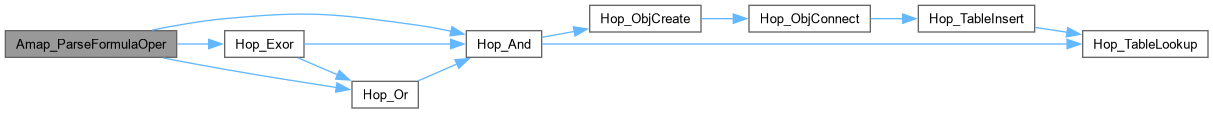

Here is the call graph for this function:

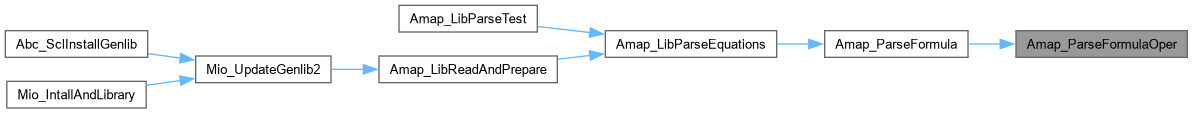

Here is the caller graph for this function:

Amap_ParseFormulaOper()

Hop_Obj_t * Amap_ParseFormulaOper	(	Hop_Man_t *	pMan,
		Vec_Ptr_t *	pStackFn,
		int	Oper )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Performs the operation on the top entries in the stack.]

Description []

SideEffects []

SeeAlso []

Definition at line 73 of file amapParse.c.

{
    Hop_Obj_t * gArg1, * gArg2, * gFunc;
    // perform the given operation
    gArg2 = (Hop_Obj_t *)Vec_PtrPop( pStackFn );
    gArg1 = (Hop_Obj_t *)Vec_PtrPop( pStackFn );
    if ( Oper == AMAP_EQN_OPER_AND )
        gFunc = Hop_And( pMan, gArg1, gArg2 );
    else if ( Oper == AMAP_EQN_OPER_OR )
        gFunc = Hop_Or( pMan, gArg1, gArg2 );
    else if ( Oper == AMAP_EQN_OPER_XOR )
        gFunc = Hop_Exor( pMan, gArg1, gArg2 );
    else
        return NULL;
//    Cudd_Ref( gFunc );
//    Cudd_RecursiveDeref( dd, gArg1 );
//    Cudd_RecursiveDeref( dd, gArg2 );
    Vec_PtrPush( pStackFn,  gFunc );
    return gFunc;
}

Here is the call graph for this function:

Here is the caller graph for this function:
