bmcCexMin2.c File Reference
#include "aig/gia/gia.h"
#include "bmc.h"

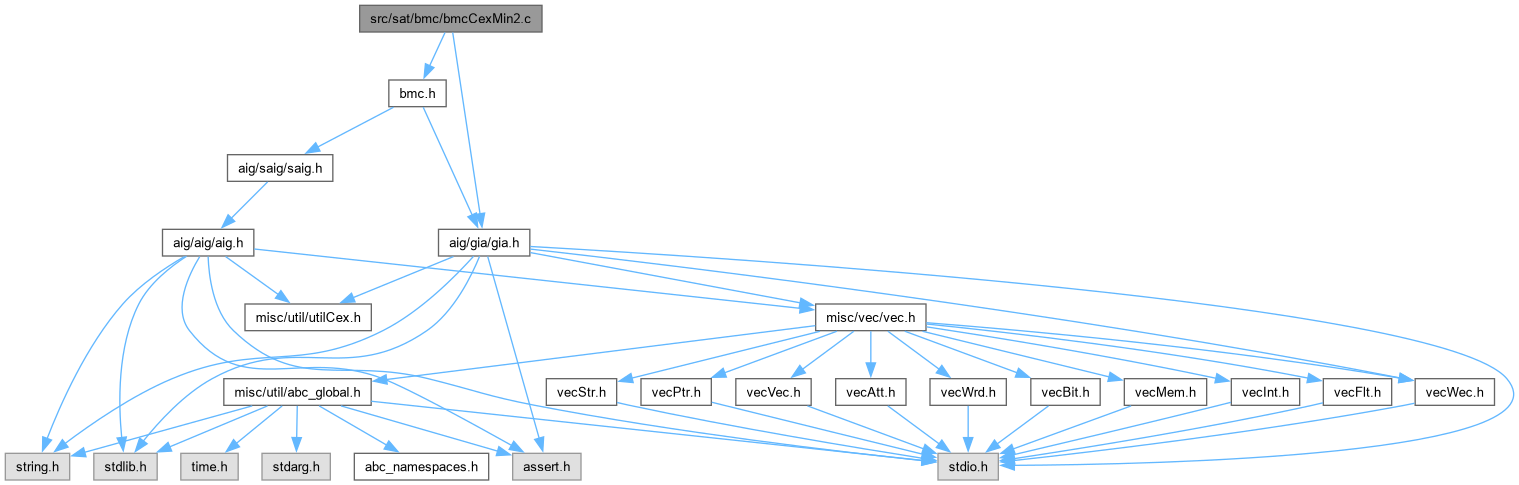

Include dependency graph for bmcCexMin2.c:

Go to the source code of this file.

Functions

int Gia_ManAnnotateUnrolling (Gia_Man_t *p, Abc_Cex_t *pCex, int fJustMax)
 FUNCTION DEFINITIONS ///.

Gia_Man_t * Gia_ManCreateUnate (Gia_Man_t *p, Abc_Cex_t *pCex, int iFrame, int nRealPis, int fUseAllObjects)

Abc_Cex_t * Gia_ManCexMin (Gia_Man_t *p, Abc_Cex_t *pCex, int iFrameStart, int nRealPis, int fJustMax, int fUseAll, int fVerbose)


Function Documentation

◆ Gia_ManAnnotateUnrolling()

int Gia_ManAnnotateUnrolling ( Gia_Man_t * p,
Abc_Cex_t * pCex,
int fJustMax )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Annotates the unrolling with CEX value/priority.]

Description []

SideEffects []

SeeAlso []

Definition at line 72 of file bmcCexMin2.c.

73{
74 Gia_Obj_t * pObj, * pObjRi, * pObjRo;
75 int RetValue, f, k, Value, Value0, Value1, iBit;
76 // start storage for internal info
77 assert( p->vTruths == NULL );
78 p->nTtWords = Abc_BitWordNum( 2 * Gia_ManObjNum(p) );
79 p->vTruths = Vec_IntStart( (pCex->iFrame + 1) * p->nTtWords );
80 // assign values to all objects (const0 and RO in frame0 are assigned 0)
81 Gia_ManCleanMark0(p);
82 for ( f = 0, iBit = pCex->nRegs; f <= pCex->iFrame; f++ )
83 {
84 Gia_ManForEachPi( p, pObj, k )
85 if ( (pObj->fMark0 = Abc_InfoHasBit(pCex->pData, iBit++)) )
86 Gia_ManAddTwo( p, f, pObj, 1 );
87 Gia_ManForEachAnd( p, pObj, k )
88 if ( (pObj->fMark0 = (Gia_ObjFanin0(pObj)->fMark0 ^ Gia_ObjFaninC0(pObj)) & (Gia_ObjFanin1(pObj)->fMark0 ^ Gia_ObjFaninC1(pObj))) )
89 Gia_ManAddTwo( p, f, pObj, 1 );
90 Gia_ManForEachCo( p, pObj, k )
91 if ( (pObj->fMark0 = Gia_ObjFanin0(pObj)->fMark0 ^ Gia_ObjFaninC0(pObj)) )
92 Gia_ManAddTwo( p, f, pObj, 1 );
93 if ( f == pCex->iFrame )
94 break;
95 Gia_ManForEachRiRo( p, pObjRi, pObjRo, k )
96 if ( (pObjRo->fMark0 = pObjRi->fMark0) )
97 Gia_ManAddTwo( p, f+1, pObjRo, 1 );
98 }
99 assert( iBit == pCex->nBits );
100 // check the output value
101 RetValue = Gia_ManPo(p, pCex->iPo)->fMark0;
102 if ( RetValue != 1 )
103 printf( "Counter-example is invalid.\n" );
104 // assign justification to nodes
105 Gia_ManCleanMark0(p);
106 pObj = Gia_ManPo(p, pCex->iPo);
107 pObj->fMark0 = 1;
108 Gia_ManAddTwo( p, pCex->iFrame, pObj, 2 );
109 for ( f = pCex->iFrame; f >= 0; f-- )
110 {
111 // transfer to CO drivers
112 Gia_ManForEachCo( p, pObj, k )
113 if ( (Gia_ObjFanin0(pObj)->fMark0 = pObj->fMark0) )
114 {
115 pObj->fMark0 = 0;
116 Gia_ManAddTwo( p, f, Gia_ObjFanin0(pObj), 2 );
117 }
118 // compute justification
119 Gia_ManForEachAndReverse( p, pObj, k )
120 {
121 if ( !pObj->fMark0 )
122 continue;
123 pObj->fMark0 = 0;
124 Value = (1 & Gia_ManGetTwo(p, f, pObj));
125 Value0 = (1 & Gia_ManGetTwo(p, f, Gia_ObjFanin0(pObj))) ^ Gia_ObjFaninC0(pObj);
126 Value1 = (1 & Gia_ManGetTwo(p, f, Gia_ObjFanin1(pObj))) ^ Gia_ObjFaninC1(pObj);
127 if ( Value0 == Value1 )
128 {
129 assert( Value == (Value0 & Value1) );
130 if ( fJustMax || Value == 1 )
131 {
132 Gia_ObjFanin0(pObj)->fMark0 = Gia_ObjFanin1(pObj)->fMark0 = 1;
133 Gia_ManAddTwo( p, f, Gia_ObjFanin0(pObj), 2 );
134 Gia_ManAddTwo( p, f, Gia_ObjFanin1(pObj), 2 );
135 }
136 else
137 {
138 Gia_ObjFanin0(pObj)->fMark0 = 1;
139 Gia_ManAddTwo( p, f, Gia_ObjFanin0(pObj), 2 );
140 }
141 }
142 else if ( Value0 == 0 )
143 {
144 assert( Value == 0 );
145 Gia_ObjFanin0(pObj)->fMark0 = 1;
146 Gia_ManAddTwo( p, f, Gia_ObjFanin0(pObj), 2 );
147 }
148 else if ( Value1 == 0 )
149 {
150 assert( Value == 0 );
151 Gia_ObjFanin1(pObj)->fMark0 = 1;
152 Gia_ManAddTwo( p, f, Gia_ObjFanin1(pObj), 2 );
153 }
154 else assert( 0 );
155 }
156 if ( f == 0 )
157 break;
158 // transfer to RIs
159 Gia_ManForEachPi( p, pObj, k )
160 pObj->fMark0 = 0;
161 Gia_ManForEachRiRo( p, pObjRi, pObjRo, k )
162 if ( (pObjRi->fMark0 = pObjRo->fMark0) )
163 {
164 pObjRo->fMark0 = 0;
165 Gia_ManAddTwo( p, f-1, pObjRi, 2 );
166 }
167 }
168 Gia_ManCleanMark0(p);
169 return RetValue;
170}
p
Cube * p
Definition exorList.c:222
Gia_ManForEachAnd
#define Gia_ManForEachAnd(p, pObj, i)
Definition gia.h:1214
Gia_ManForEachAndReverse
#define Gia_ManForEachAndReverse(p, pObj, i)
Definition gia.h:1222
Gia_ManForEachPi
#define Gia_ManForEachPi(p, pObj, i)
Definition gia.h:1248
Gia_Obj_t
struct Gia_Obj_t_ Gia_Obj_t
Definition gia.h:76
Gia_ManCleanMark0
void Gia_ManCleanMark0(Gia_Man_t *p)
Definition giaUtil.c:256
Gia_ManForEachCo
#define Gia_ManForEachCo(p, pObj, i)
Definition gia.h:1236
Gia_ManForEachRiRo
#define Gia_ManForEachRiRo(p, pObjRi, pObjRo, i)
Definition gia.h:1256
Gia_Obj_t_::fMark0
unsigned fMark0
Definition gia.h:81
assert
#define assert(ex)
Definition util_old.h:213

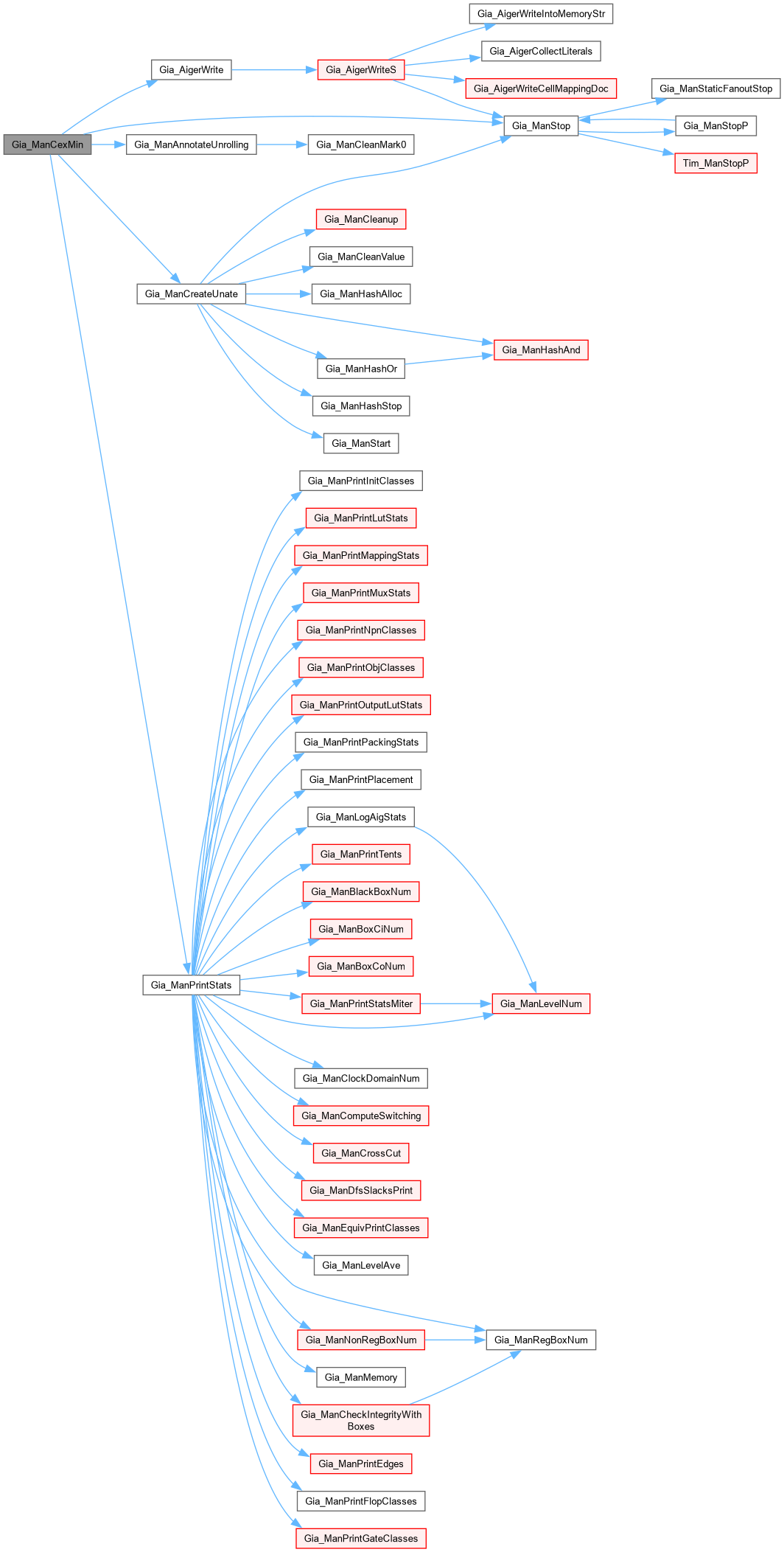

Here is the call graph for this function:

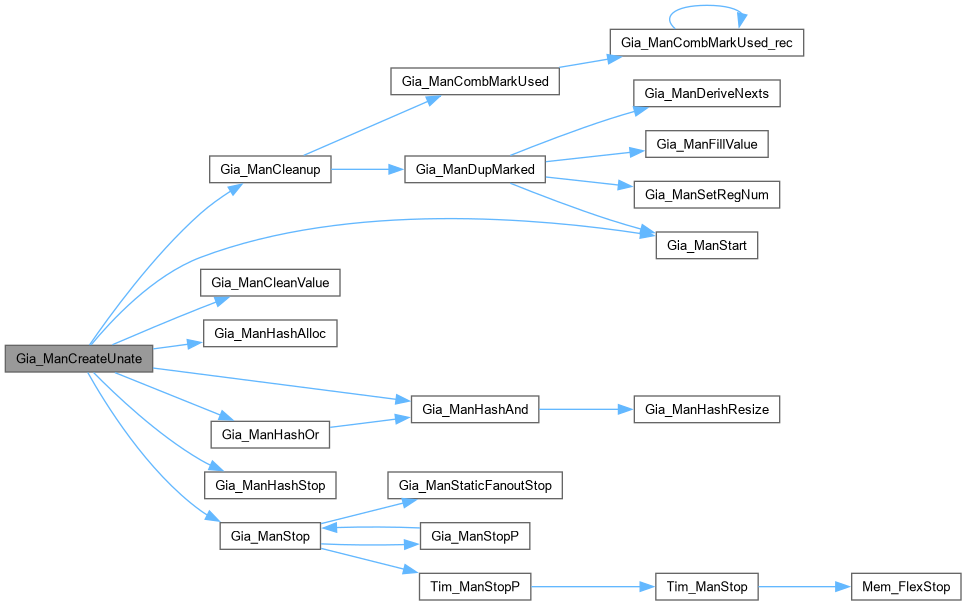

Here is the caller graph for this function:

◆ Gia_ManCexMin()

Abc_Cex_t * Gia_ManCexMin ( Gia_Man_t * p,
Abc_Cex_t * pCex,
int iFrameStart,
int nRealPis,
int fJustMax,
int fUseAll,
int fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 317 of file bmcCexMin2.c.

318{
319 Gia_Man_t * pNew;
320 int f, RetValue;
321 // check CEX
322 assert( pCex->nPis == Gia_ManPiNum(p) );
323// assert( pCex->nRegs == Gia_ManRegNum(p) );
324 assert( pCex->iPo < Gia_ManPoNum(p) );
325 // check frames
326 assert( iFrameStart >= 0 && iFrameStart <= pCex->iFrame );
327 // check primary inputs
328 assert( nRealPis < Gia_ManPiNum(p) );
329 // prepare
330 RetValue = Gia_ManAnnotateUnrolling( p, pCex, fJustMax );
331 if ( nRealPis >= 0 ) // refinement
332 {
333 pNew = Gia_ManCreateUnate( p, pCex, iFrameStart, nRealPis, fUseAll );
334 printf( "%3d : ", iFrameStart );
335 Gia_ManPrintStats( pNew, NULL );
336 if ( fVerbose )
337 Gia_AigerWrite( pNew, "temp.aig", 0, 0, 0 );
338 Gia_ManStop( pNew );
339 }
340 else // CEX min
341 {
342 for ( f = pCex->iFrame; f >= iFrameStart; f-- )
343 {
344 pNew = Gia_ManCreateUnate( p, pCex, f, -1, fUseAll );
345 printf( "%3d : ", f );
346 Gia_ManPrintStats( pNew, NULL );
347 if ( fVerbose )
348 Gia_AigerWrite( pNew, "temp.aig", 0, 0, 0 );
349 Gia_ManStop( pNew );
350 }
351 }
352 Vec_IntFreeP( &p->vTruths );
353 p->nTtWords = 0;
354 return NULL;
355}
Gia_ManCreateUnate
Gia_Man_t * Gia_ManCreateUnate(Gia_Man_t *p, Abc_Cex_t *pCex, int iFrame, int nRealPis, int fUseAllObjects)
Definition bmcCexMin2.c:183
Gia_ManAnnotateUnrolling
int Gia_ManAnnotateUnrolling(Gia_Man_t *p, Abc_Cex_t *pCex, int fJustMax)
FUNCTION DEFINITIONS ///.
Definition bmcCexMin2.c:72
Gia_ManStop
void Gia_ManStop(Gia_Man_t *p)
Definition giaMan.c:82
Gia_Man_t
struct Gia_Man_t_ Gia_Man_t
Definition gia.h:96
Gia_ManPrintStats
void Gia_ManPrintStats(Gia_Man_t *p, Gps_Par_t *pPars)
Definition giaMan.c:495
Gia_AigerWrite
void Gia_AigerWrite(Gia_Man_t *p, char *pFileName, int fWriteSymbols, int fCompact, int fWriteNewLine)
Definition giaAiger.c:1595
Here is the call graph for this function:
Here is the caller graph for this function:
