cnfMap.c File Reference

#include "cnf.h"

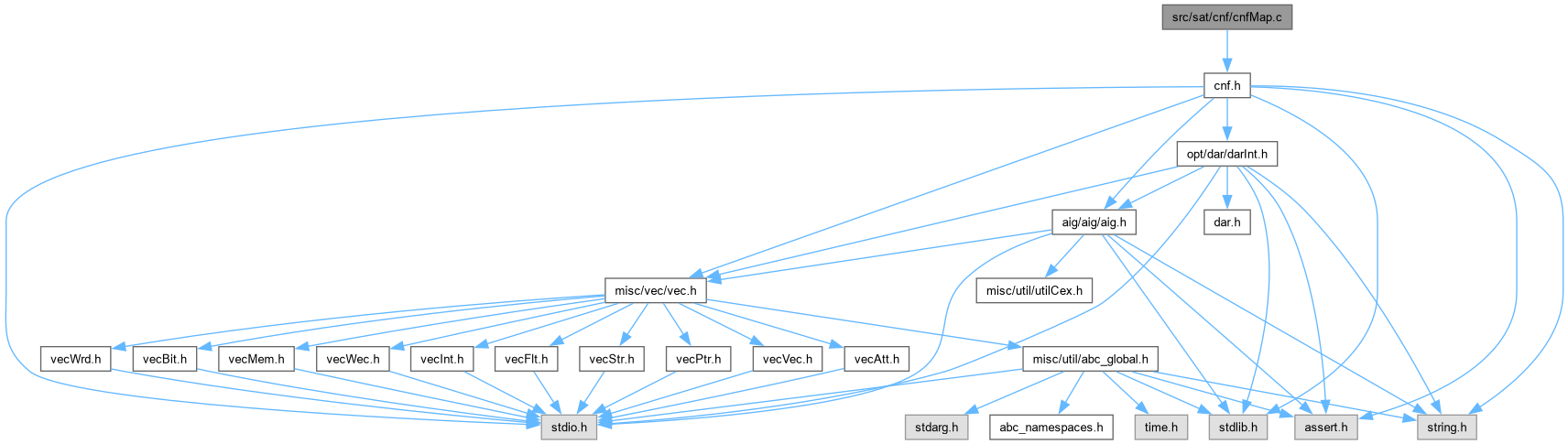

Include dependency graph for cnfMap.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Cnf_CutAssignAreaFlow (Cnf_Man_t *p, Dar_Cut_t *pCut, int *pAreaFlows)
	DECLARATIONS ///.
int	Cnf_CutSuperAreaFlow (Vec_Ptr_t *vSuper, int *pAreaFlows)
void	Cnf_DeriveMapping (Cnf_Man_t *p)

Function Documentation

Cnf_CutAssignAreaFlow()

ABC_NAMESPACE_IMPL_START void Cnf_CutAssignAreaFlow	(	Cnf_Man_t *	p,
		Dar_Cut_t *	pCut,
		int *	pAreaFlows )

DECLARATIONS ///.

CFile****************************************************************

FileName [cnfMap.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [AIG-to-CNF conversion.]

Synopsis []

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

cnfMap.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Computes area flow of the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file cnfMap.c.

{
    Aig_Obj_t * pLeaf;
    int i;
    pCut->Value = 0;
//    pCut->uSign = 100 * Cnf_CutSopCost( p, pCut );
    pCut->uSign = 10 * Cnf_CutSopCost( p, pCut );
    Dar_CutForEachLeaf( p->pManAig, pCut, pLeaf, i )
    {
        pCut->Value += pLeaf->nRefs;
        if ( !Aig_ObjIsNode(pLeaf) )
            continue;
        assert( pLeaf->nRefs > 0 );
        pCut->uSign += pAreaFlows[pLeaf->Id] / (pLeaf->nRefs? pLeaf->nRefs : 1);
    }
}

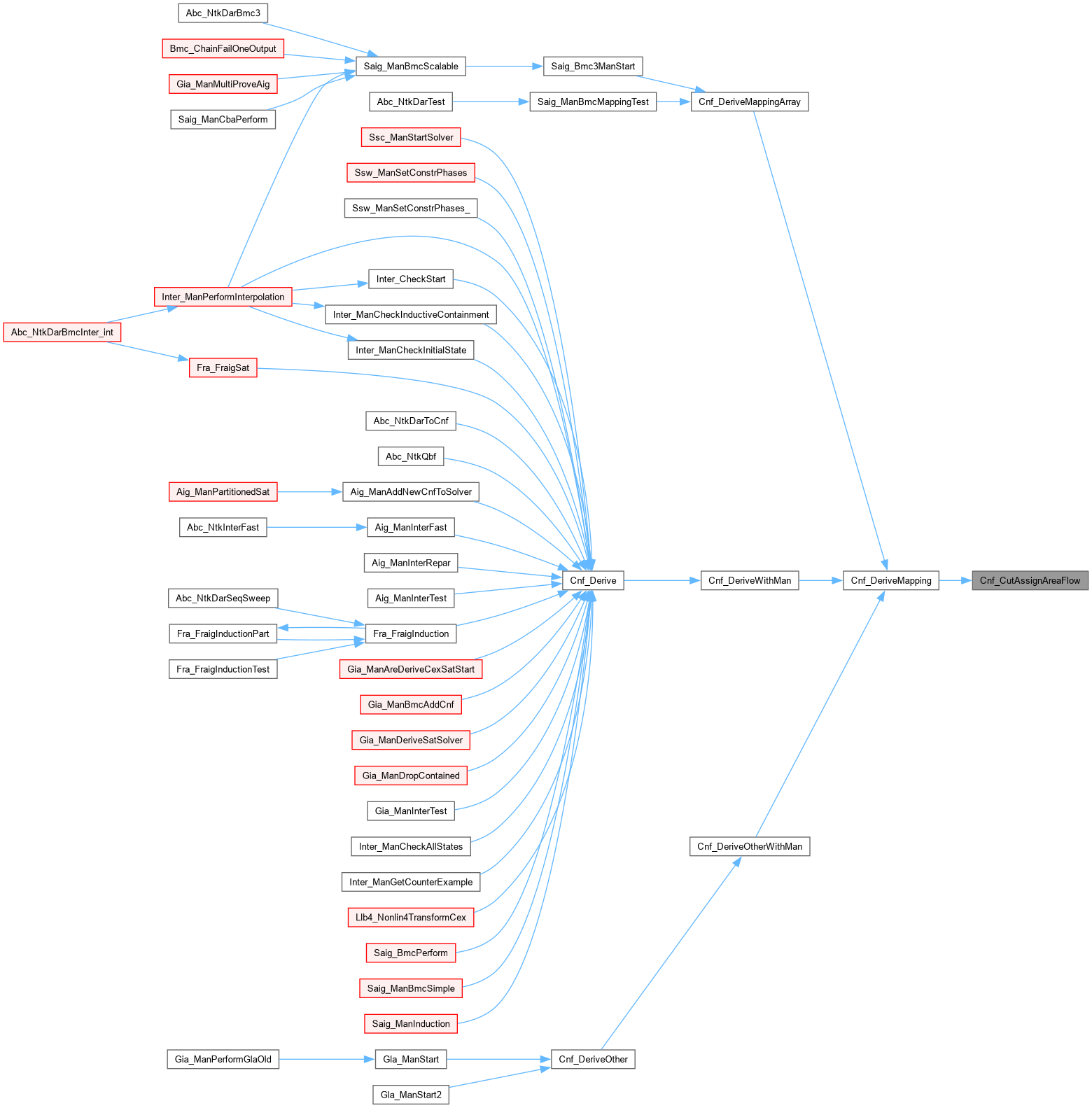

Here is the caller graph for this function:

Cnf_CutSuperAreaFlow()

int Cnf_CutSuperAreaFlow	(	Vec_Ptr_t *	vSuper,
		int *	pAreaFlows )

Function*************************************************************

Synopsis [Computes area flow of the supergate.]

Description []

SideEffects []

SeeAlso []

Definition at line 73 of file cnfMap.c.

{
    Aig_Obj_t * pLeaf;
    int i, nAreaFlow;
    nAreaFlow = 100 * (Vec_PtrSize(vSuper) + 1);
    Vec_PtrForEachEntry( Aig_Obj_t *, vSuper, pLeaf, i )
    {
        pLeaf = Aig_Regular(pLeaf);
        if ( !Aig_ObjIsNode(pLeaf) )
            continue;
        assert( pLeaf->nRefs > 0 );
        nAreaFlow += pAreaFlows[pLeaf->Id] / (pLeaf->nRefs? pLeaf->nRefs : 1);
    }
    return nAreaFlow;
}

Cnf_DeriveMapping()

void Cnf_DeriveMapping

(

Cnf_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 100 of file cnfMap.c.

{
    Vec_Ptr_t * vSuper;
    Aig_Obj_t * pObj;
    Dar_Cut_t * pCut, * pCutBest;
    int i, k, AreaFlow, * pAreaFlows;
    // allocate area flows
    pAreaFlows = ABC_ALLOC( int, Aig_ManObjNumMax(p->pManAig) );
    memset( pAreaFlows, 0, sizeof(int) * Aig_ManObjNumMax(p->pManAig) );
    // visit the nodes in the topological order and update their best cuts
    vSuper = Vec_PtrAlloc( 100 );
    Aig_ManForEachNode( p->pManAig, pObj, i )
    {
        // go through the cuts
        pCutBest = NULL;
        Dar_ObjForEachCut( pObj, pCut, k )
        {
            pCut->fBest = 0;
            if ( k == 0 )
                continue;
            Cnf_CutAssignAreaFlow( p, pCut, pAreaFlows );
            if ( pCutBest == NULL || pCutBest->uSign > pCut->uSign ||
                (pCutBest->uSign == pCut->uSign && pCutBest->Value < pCut->Value) )
                 pCutBest = pCut;
        }
        // check the big cut
//        Aig_ObjCollectSuper( pObj, vSuper );
        // get the area flow of this cut
//        AreaFlow = Cnf_CutSuperAreaFlow( vSuper, pAreaFlows );
        AreaFlow = ABC_INFINITY;
        if ( AreaFlow >= (int)pCutBest->uSign )
        {
            pAreaFlows[pObj->Id] = pCutBest->uSign;
            pCutBest->fBest = 1;
        }
        else
        {
            pAreaFlows[pObj->Id] = AreaFlow;
            pObj->fMarkB = 1; // mark the special node
        }
    }
    Vec_PtrFree( vSuper );
    ABC_FREE( pAreaFlows );

/*
    // compute the area of mapping
    AreaFlow = 0;
    Aig_ManForEachCo( p->pManAig, pObj, i )
        AreaFlow += Dar_ObjBestCut(Aig_ObjFanin0(pObj))->uSign / 100 / Aig_ObjFanin0(pObj)->nRefs;
    printf( "Area of the network = %d.\n", AreaFlow );
*/
}

Here is the call graph for this function:

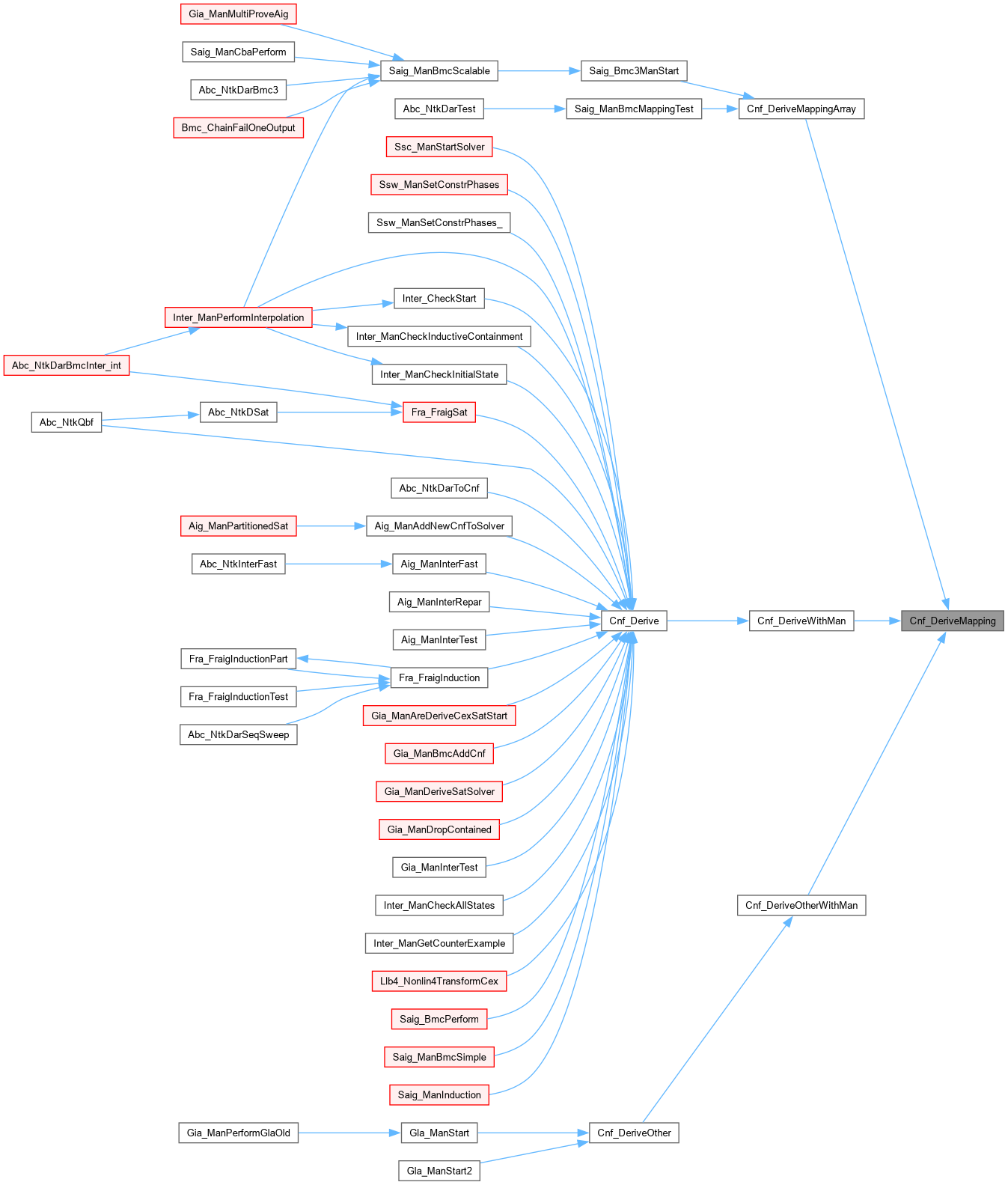

Here is the caller graph for this function:
