covMinUtil.c File Reference

#include "covInt.h"

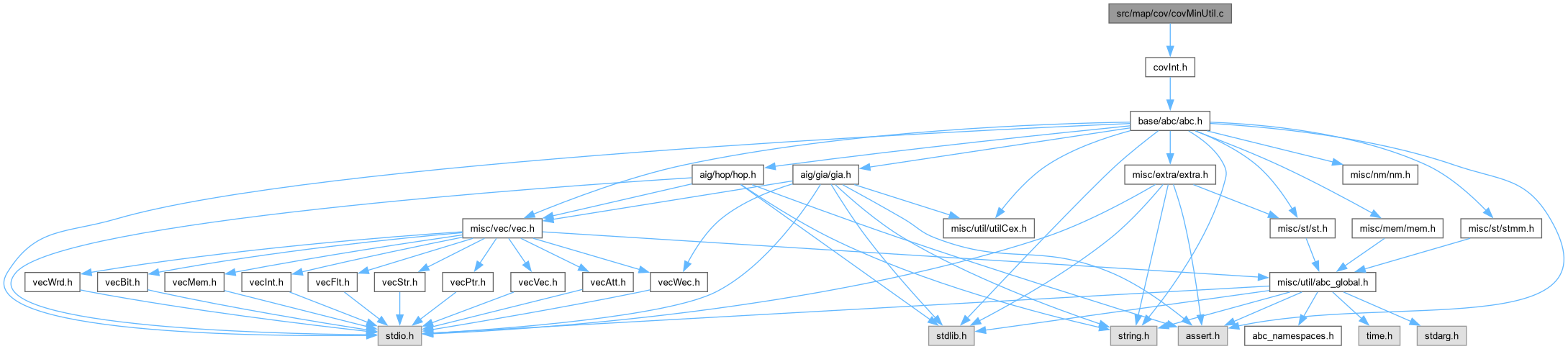

Include dependency graph for covMinUtil.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Min_CubeCreate (Vec_Str_t *vCover, Min_Cube_t *pCube, char Type)
	DECLARATIONS ///.
void	Min_CoverCreate (Vec_Str_t *vCover, Min_Cube_t *pCover, char Type)
void	Min_CubeWrite (FILE *pFile, Min_Cube_t *pCube)
void	Min_CoverWrite (FILE *pFile, Min_Cube_t *pCover)
void	Min_CoverWriteStore (FILE *pFile, Min_Man_t *p)
void	Min_CoverWriteFile (Min_Cube_t *pCover, char *pName, int fEsop)
void	Min_CoverCheck (Min_Man_t *p)
int	Min_CubeCheck (Min_Cube_t *pCube)
Min_Cube_t *	Min_CoverCollect (Min_Man_t *p, int nSuppSize)
void	Min_CoverExpand (Min_Man_t *p, Min_Cube_t *pCover)
int	Min_CoverSuppVarNum (Min_Man_t *p, Min_Cube_t *pCover)

Function Documentation

Min_CoverCheck()

void Min_CoverCheck

(

Min_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 223 of file covMinUtil.c.

{
    Min_Cube_t * pCube;
    int i;
    for ( i = 0; i <= p->nVars; i++ )
        Min_CoverForEachCube( p->ppStore[i], pCube )
            assert( i == (int)pCube->nLits );
}

Min_CoverCollect()

Min_Cube_t * Min_CoverCollect	(	Min_Man_t *	p,
		int	nSuppSize )

Function*************************************************************

Synopsis [Converts the cover from the sorted structure.]

Description []

SideEffects []

SeeAlso []

Definition at line 264 of file covMinUtil.c.

{
    Min_Cube_t * pCov = NULL, ** ppTail = &pCov;
    Min_Cube_t * pCube, * pCube2;
    int i;
    for ( i = 0; i <= nSuppSize; i++ )
    {
        Min_CoverForEachCubeSafe( p->ppStore[i], pCube, pCube2 )
        {
            assert( i == (int)pCube->nLits );
            *ppTail = pCube;
            ppTail = &pCube->pNext;
            assert( pCube->uData[0] ); // not a bubble
        }
    }
    *ppTail = NULL;
    return pCov;
}

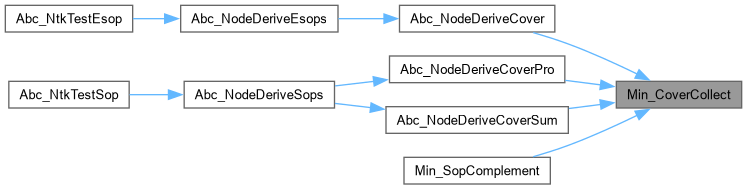

Here is the caller graph for this function:

Min_CoverCreate()

void Min_CoverCreate	(	Vec_Str_t *	vCover,
		Min_Cube_t *	pCover,
		char	Type )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 85 of file covMinUtil.c.

{
    Min_Cube_t * pCube;
    assert( pCover != NULL );
    Vec_StrClear( vCover );
    Min_CoverForEachCube( pCover, pCube )
        Min_CubeCreate( vCover, pCube, Type );
    Vec_StrPush( vCover, 0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Min_CoverExpand()

void Min_CoverExpand	(	Min_Man_t *	p,
		Min_Cube_t *	pCover )

Function*************************************************************

Synopsis [Sorts the cover in the increasing number of literals.]

Description []

SideEffects []

SeeAlso []

Definition at line 294 of file covMinUtil.c.

{
    Min_Cube_t * pCube, * pCube2;
    Min_ManClean( p, p->nVars );
    Min_CoverForEachCubeSafe( pCover, pCube, pCube2 )
    {
        pCube->pNext = p->ppStore[pCube->nLits];
        p->ppStore[pCube->nLits] = pCube;
        p->nCubes++;
    }
}

Here is the call graph for this function:

Min_CoverSuppVarNum()

int Min_CoverSuppVarNum	(	Min_Man_t *	p,
		Min_Cube_t *	pCover )

Function*************************************************************

Synopsis [Sorts the cover in the increasing number of literals.]

Description []

SideEffects []

SeeAlso []

Definition at line 317 of file covMinUtil.c.

{
    Min_Cube_t * pCube;
    int i, Counter;
    if ( pCover == NULL )
        return 0;
    // clean the cube
    for ( i = 0; i < (int)pCover->nWords; i++ )
        p->pTemp->uData[i]  = ~((unsigned)0);
    // add the bit data
    Min_CoverForEachCube( pCover, pCube )
        for ( i = 0; i < (int)pCover->nWords; i++ )
            p->pTemp->uData[i] &= pCube->uData[i];
    // count the vars
    Counter = 0;
    for ( i = 0; i < (int)pCover->nVars; i++ )
        Counter += ( Min_CubeGetVar(p->pTemp, i) != 3 );
    return Counter;
}

Min_CoverWrite()

void Min_CoverWrite	(	FILE *	pFile,
		Min_Cube_t *	pCover )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 140 of file covMinUtil.c.

{
    Min_Cube_t * pCube;
    Min_CoverForEachCube( pCover, pCube )
        Min_CubeWrite( pFile, pCube );
    printf( "\n" );
}

Here is the call graph for this function:

Min_CoverWriteFile()

void Min_CoverWriteFile	(	Min_Cube_t *	pCover,
		char *	pName,
		int	fEsop )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 190 of file covMinUtil.c.

{
    char Buffer[1000];
    Min_Cube_t * pCube;
    FILE * pFile;
    int i;
    sprintf( Buffer, "%s.%s", pName, fEsop? "esop" : "pla" );
    for ( i = strlen(Buffer) - 1; i >= 0; i-- )
        if ( Buffer[i] == '<' || Buffer[i] == '>' )
            Buffer[i] = '_';
    pFile = fopen( Buffer, "w" );
    fprintf( pFile, "# %s cover for output %s generated by ABC on %s\n", fEsop? "ESOP":"SOP", pName, Extra_TimeStamp() );
    fprintf( pFile, ".i %d\n", pCover? pCover->nVars : 0 );
    fprintf( pFile, ".o %d\n", 1 );
    fprintf( pFile, ".p %d\n", Min_CoverCountCubes(pCover) );
    if ( fEsop ) fprintf( pFile, ".type esop\n" );
    Min_CoverForEachCube( pCover, pCube )
        Min_CubeWrite( pFile, pCube );
    fprintf( pFile, ".e\n" );
    fclose( pFile );
}

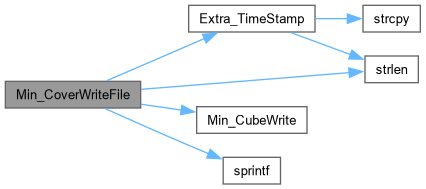

Here is the call graph for this function:

Min_CoverWriteStore()

void Min_CoverWriteStore	(	FILE *	pFile,
		Min_Man_t *	p )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 159 of file covMinUtil.c.

{
    Min_Cube_t * pCube;
    int i;
    for ( i = 0; i <= p->nVars; i++ )
    {
        Min_CoverForEachCube( p->ppStore[i], pCube )
        {
            printf( "%2d : ", i );
            if ( pCube == p->pBubble )
            {
                printf( "Bubble\n" );
                continue;
            }
            Min_CubeWrite( pFile, pCube );
        }
    }
    printf( "\n" );
}

Here is the call graph for this function:

Min_CubeCheck()

int Min_CubeCheck

(

Min_Cube_t *

pCube

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 244 of file covMinUtil.c.

{
    int i;
    for ( i = 0; i < (int)pCube->nVars; i++ )
        if ( Min_CubeGetVar( pCube, i ) == 0 )
            return 0;
    return 1;
}

Here is the caller graph for this function:

Min_CubeCreate()

ABC_NAMESPACE_IMPL_START void Min_CubeCreate	(	Vec_Str_t *	vCover,
		Min_Cube_t *	pCube,
		char	Type )

DECLARATIONS ///.

CFile****************************************************************

FileName [covMinUtil.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Mapping into network of SOPs/ESOPs.]

Synopsis [Utilities.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

covMinUtil.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file covMinUtil.c.

{
    int i;
    assert( (int)pCube->nLits == Min_CubeCountLits(pCube) );
    for ( i = 0; i < (int)pCube->nVars; i++ )
        if ( Min_CubeHasBit(pCube, i*2) )
        {
            if ( Min_CubeHasBit(pCube, i*2+1) )
//                fprintf( pFile, "-" );
                Vec_StrPush( vCover, '-' );
            else
//                fprintf( pFile, "0" );
                Vec_StrPush( vCover, '0' );
        }
        else
        {
            if ( Min_CubeHasBit(pCube, i*2+1) )
 //               fprintf( pFile, "1" );
                Vec_StrPush( vCover, '1' );
            else
//                fprintf( pFile, "?" );
                Vec_StrPush( vCover, '?' );
        }
//    fprintf( pFile, " 1\n" );
    Vec_StrPush( vCover, ' ' );
    Vec_StrPush( vCover, Type );
    Vec_StrPush( vCover, '\n' );
}

Here is the caller graph for this function:

Min_CubeWrite()

void Min_CubeWrite	(	FILE *	pFile,
		Min_Cube_t *	pCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 106 of file covMinUtil.c.

{
    int i;
    assert( (int)pCube->nLits == Min_CubeCountLits(pCube) );
    for ( i = 0; i < (int)pCube->nVars; i++ )
        if ( Min_CubeHasBit(pCube, i*2) )
        {
            if ( Min_CubeHasBit(pCube, i*2+1) )
                fprintf( pFile, "-" );
            else
                fprintf( pFile, "0" );
        }
        else
        {
            if ( Min_CubeHasBit(pCube, i*2+1) )
                fprintf( pFile, "1" );
            else
                fprintf( pFile, "?" );
        }
    fprintf( pFile, " 1\n" );
//    fprintf( pFile, " %d\n", pCube->nLits );
}

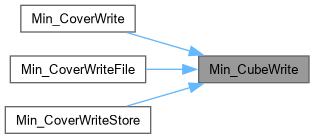

Here is the caller graph for this function:
