cutMan.c File Reference

#include "cutInt.h"

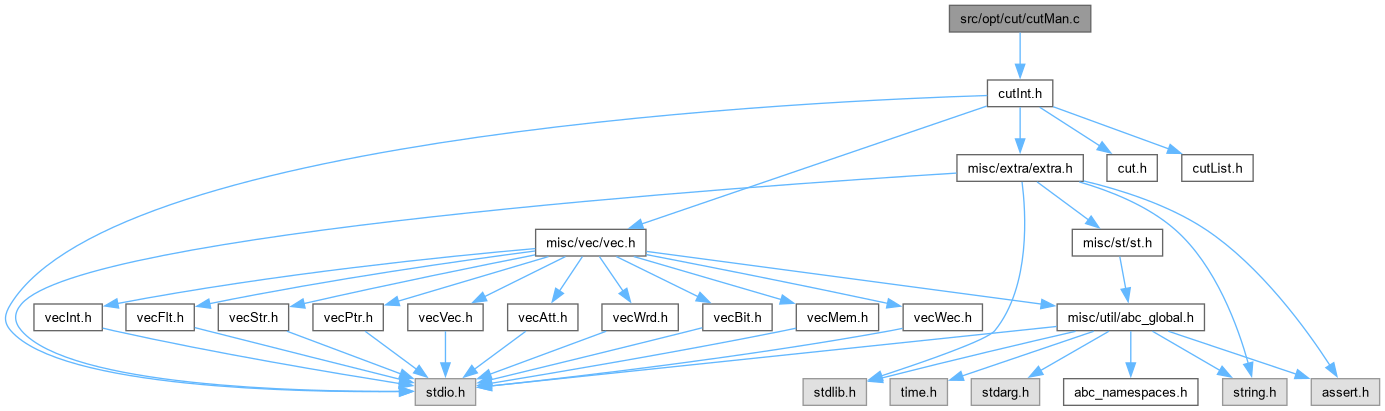

Include dependency graph for cutMan.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Npn_StartTruth8 (uint8 uTruths[][32])
	DECLARATIONS ///.
Cut_Man_t *	Cut_ManStart (Cut_Params_t *pParams)
	FUNCTION DEFINITIONS ///.
void	Cut_ManStop (Cut_Man_t *p)
void	Cut_ManPrintStats (Cut_Man_t *p)
void	Cut_ManPrintStatsToFile (Cut_Man_t *p, char *pFileName, abctime TimeTotal)
void	Cut_ManSetFanoutCounts (Cut_Man_t *p, Vec_Int_t *vFanCounts)
void	Cut_ManSetNodeAttrs (Cut_Man_t *p, Vec_Int_t *vNodeAttrs)
int	Cut_ManReadVarsMax (Cut_Man_t *p)
Cut_Params_t *	Cut_ManReadParams (Cut_Man_t *p)
Vec_Int_t *	Cut_ManReadNodeAttrs (Cut_Man_t *p)
void	Cut_ManIncrementDagNodes (Cut_Man_t *p)

Function Documentation

Cut_ManIncrementDagNodes()

void Cut_ManIncrementDagNodes

(

Cut_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 309 of file cutMan.c.

{
    p->nNodesDag++;
}

Here is the caller graph for this function:

Cut_ManPrintStats()

void Cut_ManPrintStats

(

Cut_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 155 of file cutMan.c.

{
    if ( p->pReady )
    {
        Cut_CutRecycle( p, p->pReady );
        p->pReady = NULL;
    }
    printf( "Cut computation statistics:\n" );
    printf( "Current cuts      = %8d. (Trivial = %d.)\n", p->nCutsCur-p->nCutsTriv, p->nCutsTriv );
    printf( "Peak cuts         = %8d.\n", p->nCutsPeak );
    printf( "Total allocated   = %8d.\n", p->nCutsAlloc );
    printf( "Total deallocated = %8d.\n", p->nCutsDealloc );
    printf( "Cuts filtered     = %8d.\n", p->nCutsFilter );
    printf( "Nodes saturated   = %8d. (Max cuts = %d.)\n", p->nCutsLimit, p->pParams->nKeepMax );
    printf( "Cuts per node     = %8.1f\n", ((float)(p->nCutsCur-p->nCutsTriv))/p->nNodes );
    printf( "The cut size      = %8d bytes.\n", p->EntrySize );
    printf( "Peak memory       = %8.2f MB.\n", (float)p->nCutsPeak * p->EntrySize / (1<<20) );
    printf( "Total nodes       = %8d.\n", p->nNodes );
    if ( p->pParams->fDag || p->pParams->fTree )
    {
    printf( "DAG nodes         = %8d.\n", p->nNodesDag );
    printf( "Tree nodes        = %8d.\n", p->nNodes - p->nNodesDag );
    }
    printf( "Nodes w/o cuts    = %8d.\n", p->nNodesNoCuts );
    if ( p->pParams->fMap && !p->pParams->fSeq )
    printf( "Mapping delay     = %8d.\n", p->nDelayMin );

    ABC_PRT( "Merge ", p->timeMerge );
    ABC_PRT( "Union ", p->timeUnion );
    ABC_PRT( "Filter", p->timeFilter );
    ABC_PRT( "Truth ", p->timeTruth );
    ABC_PRT( "Map   ", p->timeMap );
//    printf( "Nodes = %d. Multi = %d.  Cuts = %d. Multi = %d.\n",
//        p->nNodes, p->nNodesMulti, p->nCutsCur-p->nCutsTriv, p->nCutsMulti );
//    printf( "Count0 = %d. Count1 = %d. Count2 = %d.\n\n", p->Count0, p->Count1, p->Count2 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cut_ManPrintStatsToFile()

void Cut_ManPrintStatsToFile	(	Cut_Man_t *	p,
		char *	pFileName,
		abctime	TimeTotal )

Function*************************************************************

Synopsis [Prints some interesting stats.]

Description []

SideEffects []

SeeAlso []

Definition at line 204 of file cutMan.c.

{
    FILE * pTable;
    pTable = fopen( "cut_stats.txt", "a+" );
    fprintf( pTable, "%-20s ", pFileName );
    fprintf( pTable, "%8d ", p->nNodes );
    fprintf( pTable, "%6.1f ", ((float)(p->nCutsCur))/p->nNodes );
    fprintf( pTable, "%6.2f ", ((float)(100.0 * p->nCutsLimit))/p->nNodes );
    fprintf( pTable, "%6.2f ", (float)p->nCutsPeak * p->EntrySize / (1<<20) );
    fprintf( pTable, "%6.2f ", (float)(TimeTotal)/(float)(CLOCKS_PER_SEC) );
    fprintf( pTable, "\n" );
    fclose( pTable );
}

Cut_ManReadNodeAttrs()

Vec_Int_t * Cut_ManReadNodeAttrs

(

Cut_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 293 of file cutMan.c.

{
    return p->vNodeAttrs;
}

Here is the caller graph for this function:

Cut_ManReadParams()

Cut_Params_t * Cut_ManReadParams

(

Cut_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 277 of file cutMan.c.

{
    return p->pParams;
}

Here is the caller graph for this function:

Cut_ManReadVarsMax()

int Cut_ManReadVarsMax

(

Cut_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 261 of file cutMan.c.

{
    return p->pParams->nVarsMax;
}

Cut_ManSetFanoutCounts()

void Cut_ManSetFanoutCounts	(	Cut_Man_t *	p,
		Vec_Int_t *	vFanCounts )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 229 of file cutMan.c.

{
    p->vFanCounts = vFanCounts;
}

Here is the caller graph for this function:

Cut_ManSetNodeAttrs()

void Cut_ManSetNodeAttrs	(	Cut_Man_t *	p,
		Vec_Int_t *	vNodeAttrs )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 245 of file cutMan.c.

{
    p->vNodeAttrs = vNodeAttrs;
}

Here is the caller graph for this function:

Cut_ManStart()

Cut_Man_t * Cut_ManStart

(

Cut_Params_t *

pParams

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Starts the cut manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file cutMan.c.

{
    Cut_Man_t * p;
//    extern int nTruthDsd;
//    nTruthDsd = 0;
    assert( pParams->nVarsMax >= 3 && pParams->nVarsMax <= CUT_SIZE_MAX );
    p = ABC_ALLOC( Cut_Man_t, 1 );
    memset( p, 0, sizeof(Cut_Man_t) );
    // set and correct parameters
    p->pParams = pParams;
    // prepare storage for cuts
    p->vCutsNew = Vec_PtrAlloc( pParams->nIdsMax );
    Vec_PtrFill( p->vCutsNew, pParams->nIdsMax, NULL );
    // prepare storage for sequential cuts
    if ( pParams->fSeq )
    {
        p->pParams->fFilter = 1;
        p->vCutsOld = Vec_PtrAlloc( pParams->nIdsMax );
        Vec_PtrFill( p->vCutsOld, pParams->nIdsMax, NULL );
        p->vCutsTemp = Vec_PtrAlloc( pParams->nCutSet );
        Vec_PtrFill( p->vCutsTemp, pParams->nCutSet, NULL );
        if ( pParams->fTruth && pParams->nVarsMax > 5 )
        {
            pParams->fTruth = 0;
            printf( "Skipping computation of truth tables for sequential cuts with more than 5 inputs.\n" );
        }
    }
    // entry size
    p->EntrySize = sizeof(Cut_Cut_t) + pParams->nVarsMax * sizeof(int);
    if ( pParams->fTruth )
    {
        if ( pParams->nVarsMax > 14 )
        {
            pParams->fTruth = 0;
            printf( "Skipping computation of truth table for more than %d inputs.\n", 14 );
        }
        else
        {
            p->nTruthWords = Cut_TruthWords( pParams->nVarsMax );
            p->EntrySize += p->nTruthWords * sizeof(unsigned);
        }
        p->puTemp[0] = ABC_ALLOC( unsigned, 4 * p->nTruthWords );
        p->puTemp[1] = p->puTemp[0] + p->nTruthWords;
        p->puTemp[2] = p->puTemp[1] + p->nTruthWords;
        p->puTemp[3] = p->puTemp[2] + p->nTruthWords;
    }
    // enable cut computation recording
    if ( pParams->fRecord )
    {
        p->vNodeCuts   = Vec_IntStart( pParams->nIdsMax );
        p->vNodeStarts = Vec_IntStart( pParams->nIdsMax );
        p->vCutPairs   = Vec_IntAlloc( 0 );
    }
    // allocate storage for delays
    if ( pParams->fMap && !p->pParams->fSeq )
    {
        p->vDelays = Vec_IntStart( pParams->nIdsMax );
        p->vDelays2 = Vec_IntStart( pParams->nIdsMax );
        p->vCutsMax = Vec_PtrStart( pParams->nIdsMax );
    }
    // memory for cuts
    p->pMmCuts = Extra_MmFixedStart( p->EntrySize );
    p->vTemp = Vec_PtrAlloc( 100 );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cut_ManStop()

void Cut_ManStop

(

Cut_Man_t *

p

)

Function*************************************************************

Synopsis [Stops the cut manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 124 of file cutMan.c.

{
    if ( p->vCutsNew )    Vec_PtrFree( p->vCutsNew );
    if ( p->vCutsOld )    Vec_PtrFree( p->vCutsOld );
    if ( p->vCutsTemp )   Vec_PtrFree( p->vCutsTemp );
    if ( p->vFanCounts )  Vec_IntFree( p->vFanCounts );
    if ( p->vTemp )       Vec_PtrFree( p->vTemp );

    if ( p->vCutsMax )    Vec_PtrFree( p->vCutsMax );
    if ( p->vDelays )     Vec_IntFree( p->vDelays );
    if ( p->vDelays2 )    Vec_IntFree( p->vDelays2 );
    if ( p->vNodeCuts )   Vec_IntFree( p->vNodeCuts );
    if ( p->vNodeStarts ) Vec_IntFree( p->vNodeStarts );
    if ( p->vCutPairs )   Vec_IntFree( p->vCutPairs );
    if ( p->puTemp[0] )   ABC_FREE( p->puTemp[0] );

    Extra_MmFixedStop( p->pMmCuts );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Npn_StartTruth8()

ABC_NAMESPACE_IMPL_START void Npn_StartTruth8 ( uint8 uTruths[][32] )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [cutMan.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [K-feasible cut computation package.]

Synopsis [Cut manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cutMan.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]
