darBalance.c File Reference

#include "darInt.h"
#include "misc/tim/tim.h"

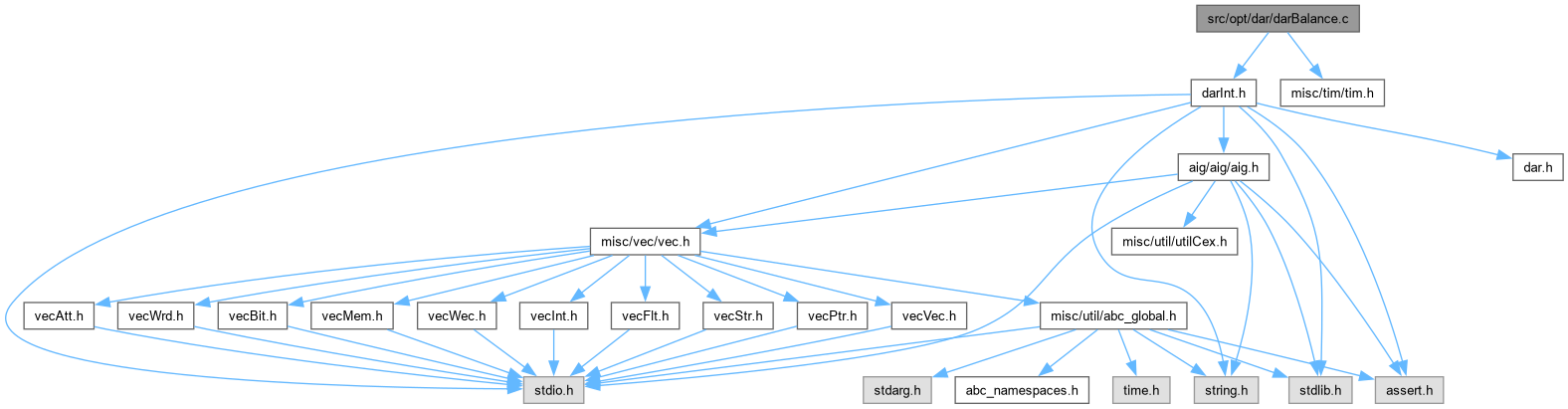

Include dependency graph for darBalance.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Dar_ObjCompareLits (Aig_Obj_t **pp1, Aig_Obj_t **pp2)
	DECLARATIONS ///.
void	Dar_BalanceUniqify (Aig_Obj_t *pObj, Vec_Ptr_t *vNodes, int fExor)
void	Dar_BalanceCone_rec (Aig_Obj_t *pRoot, Aig_Obj_t *pObj, Vec_Ptr_t *vSuper)
Vec_Ptr_t *	Dar_BalanceCone (Aig_Obj_t *pObj, Vec_Vec_t *vStore, int Level)
int	Dar_BalanceFindLeft (Vec_Ptr_t *vSuper)
void	Dar_BalancePermute (Aig_Man_t *p, Vec_Ptr_t *vSuper, int LeftBound, int fExor)
int	Aig_NodeCompareLevelsDecrease (Aig_Obj_t **pp1, Aig_Obj_t **pp2)
void	Dar_BalancePushUniqueOrderByLevel (Vec_Ptr_t *vStore, Aig_Obj_t *pObj, int fExor)
Aig_Obj_t *	Dar_BalanceBuildSuper (Aig_Man_t *p, Vec_Ptr_t *vSuper, Aig_Type_t Type, int fUpdateLevel)
int	Aig_BaseSize (Aig_Man_t *p, Aig_Obj_t *pObj, int nLutSize)
Aig_Obj_t *	Dar_BalanceBuildSuperTop (Aig_Man_t *p, Vec_Ptr_t *vSuper, Aig_Type_t Type, int fUpdateLevel, int nLutSize)
Aig_Obj_t *	Dar_Balance_rec (Aig_Man_t *pNew, Aig_Obj_t *pObjOld, Vec_Vec_t *vStore, int Level, int fUpdateLevel)
Aig_Man_t *	Dar_ManBalance (Aig_Man_t *p, int fUpdateLevel)
Aig_Man_t *	Dar_ManBalanceXor (Aig_Man_t *pAig, int fExor, int fUpdateLevel, int fVerbose)
void	Dar_BalancePrintStats (Aig_Man_t *p)

Function Documentation

Aig_BaseSize()

int Aig_BaseSize	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj,
		int	nLutSize )

Function*************************************************************

Synopsis [Returns affective support size.]

Description []

SideEffects []

SeeAlso []

Definition at line 433 of file darBalance.c.

{
    int nBaseSize;
    pObj = Aig_Regular(pObj);
    if ( Aig_ObjIsConst1(pObj) )
        return 0;
    if ( Aig_ObjLevel(pObj) >= nLutSize )
        return 1;
    nBaseSize = Aig_SupportSize( p, pObj );
    if ( nBaseSize >= nLutSize )
        return 1;
    return nBaseSize;
}

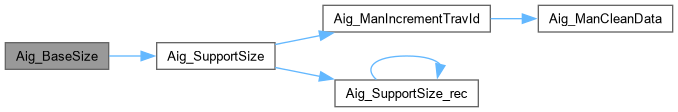

Here is the call graph for this function:

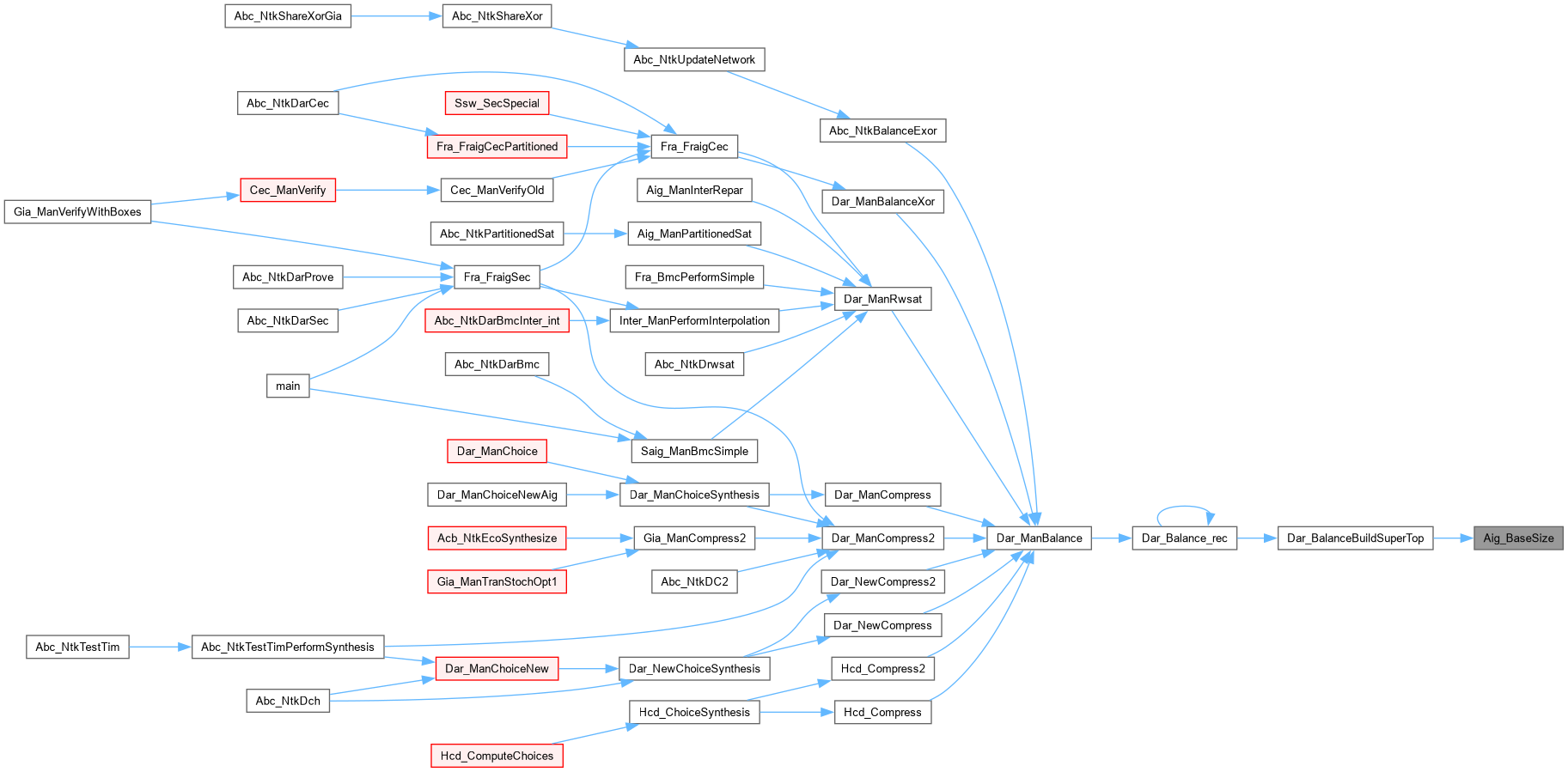

Here is the caller graph for this function:

Aig_NodeCompareLevelsDecrease()

int Aig_NodeCompareLevelsDecrease	(	Aig_Obj_t **	pp1,
		Aig_Obj_t **	pp2 )

Function*************************************************************

Synopsis [Procedure used for sorting the nodes in decreasing order of levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 340 of file darBalance.c.

{
    int Diff = Aig_ObjLevel(Aig_Regular(*pp1)) - Aig_ObjLevel(Aig_Regular(*pp2));
    if ( Diff > 0 )
        return -1;
    if ( Diff < 0 )
        return 1;
    Diff = Aig_ObjId(Aig_Regular(*pp1)) - Aig_ObjId(Aig_Regular(*pp2));
    if ( Diff > 0 )
        return -1;
    if ( Diff < 0 )
        return 1;
    return 0;
}

Here is the caller graph for this function:

Dar_Balance_rec()

Aig_Obj_t * Dar_Balance_rec	(	Aig_Man_t *	pNew,
		Aig_Obj_t *	pObjOld,
		Vec_Vec_t *	vStore,
		int	Level,
		int	fUpdateLevel )

Function*************************************************************

Synopsis [Returns the new node constructed.]

Description []

SideEffects []

SeeAlso []

Definition at line 502 of file darBalance.c.

{
    Aig_Obj_t * pObjNew;
    Vec_Ptr_t * vSuper;
    int i;
    assert( !Aig_IsComplement(pObjOld) );
    assert( !Aig_ObjIsBuf(pObjOld) );
    // return if the result is known
    if ( pObjOld->pData )
        return (Aig_Obj_t *)pObjOld->pData;
    assert( Aig_ObjIsNode(pObjOld) );
    // get the implication supergate
    vSuper = Dar_BalanceCone( pObjOld, vStore, Level );
    // check if supergate contains two nodes in the opposite polarity
    if ( vSuper->nSize == 0 )
        return (Aig_Obj_t *)(pObjOld->pData = Aig_ManConst0(pNew));
    // for each old node, derive the new well-balanced node
    for ( i = 0; i < Vec_PtrSize(vSuper); i++ )
    {
        pObjNew = Dar_Balance_rec( pNew, Aig_Regular((Aig_Obj_t *)vSuper->pArray[i]), vStore, Level + 1, fUpdateLevel );
        if ( pObjNew == NULL )
            return NULL;
        vSuper->pArray[i] = Aig_NotCond( pObjNew, Aig_IsComplement((Aig_Obj_t *)vSuper->pArray[i]) );
    }
    // check for exactly one node
    if ( vSuper->nSize == 1 )
        return (Aig_Obj_t *)Vec_PtrEntry(vSuper, 0);
    // build the supergate
#ifdef USE_LUTSIZE_BALANCE
    pObjNew = Dar_BalanceBuildSuperTop( pNew, vSuper, Aig_ObjType(pObjOld), fUpdateLevel, 6 );
#else
    pObjNew = Dar_BalanceBuildSuper( pNew, vSuper, Aig_ObjType(pObjOld), fUpdateLevel );
#endif
    if ( pNew->Time2Quit && !(Aig_Regular(pObjNew)->Id & 255) && Abc_Clock() > pNew->Time2Quit )
        return NULL;
    // make sure the balanced node is not assigned
//    assert( pObjOld->Level >= Aig_Regular(pObjNew)->Level );
    assert( pObjOld->pData == NULL );
    return (Aig_Obj_t *)(pObjOld->pData = pObjNew);
}

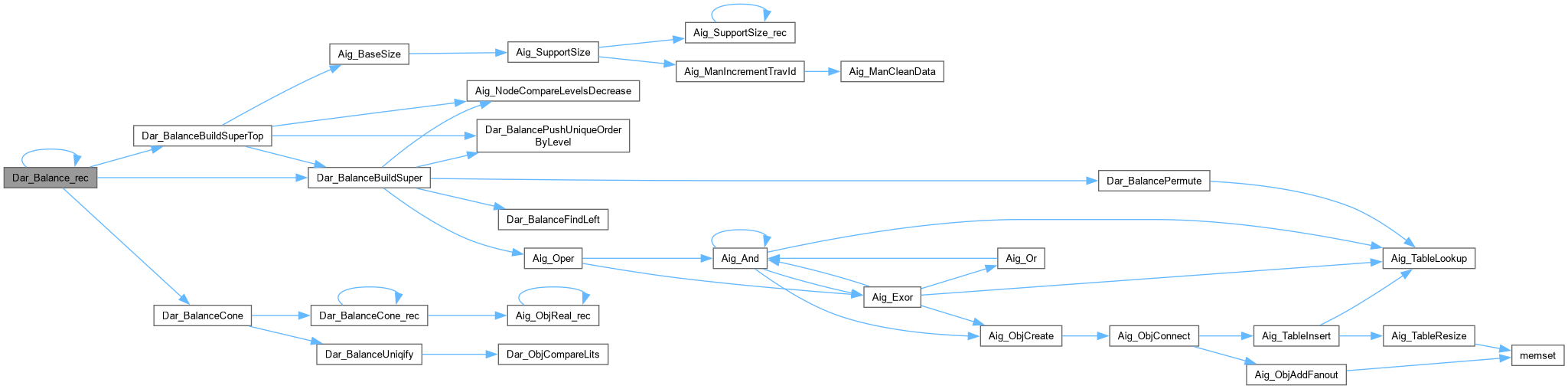

Here is the call graph for this function:

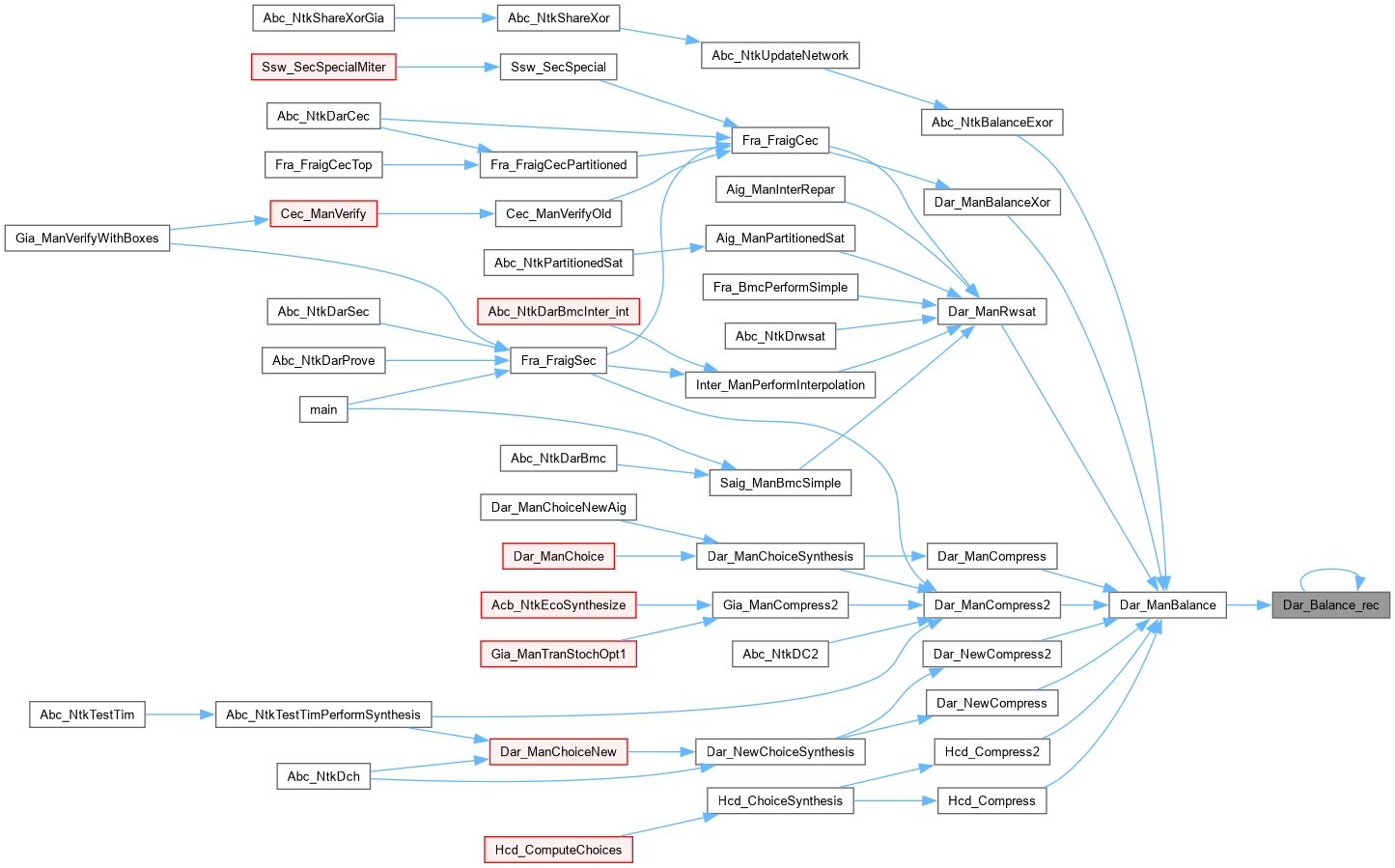

Here is the caller graph for this function:

Dar_BalanceBuildSuper()

Aig_Obj_t * Dar_BalanceBuildSuper	(	Aig_Man_t *	p,
		Vec_Ptr_t *	vSuper,
		Aig_Type_t	Type,
		int	fUpdateLevel )

Function*************************************************************

Synopsis [Builds implication supergate.]

Description []

SideEffects []

SeeAlso []

Definition at line 399 of file darBalance.c.

{
    Aig_Obj_t * pObj1, * pObj2;
    int LeftBound;
    assert( vSuper->nSize > 1 );
    // sort the new nodes by level in the decreasing order
    Vec_PtrSort( vSuper, (int (*)(const void *, const void *))Aig_NodeCompareLevelsDecrease );
    // balance the nodes
    while ( vSuper->nSize > 1 )
    {
        // find the left bound on the node to be paired
        LeftBound = (!fUpdateLevel)? 0 : Dar_BalanceFindLeft( vSuper );
        // find the node that can be shared (if no such node, randomize choice)
        Dar_BalancePermute( p, vSuper, LeftBound, Type == AIG_OBJ_EXOR );
        // pull out the last two nodes
        pObj1 = (Aig_Obj_t *)Vec_PtrPop(vSuper);
        pObj2 = (Aig_Obj_t *)Vec_PtrPop(vSuper);
        Dar_BalancePushUniqueOrderByLevel( vSuper, Aig_Oper(p, pObj1, pObj2, Type), Type == AIG_OBJ_EXOR );
    }
    return vSuper->nSize ? (Aig_Obj_t *)Vec_PtrEntry(vSuper, 0) : Aig_ManConst0(p);
}

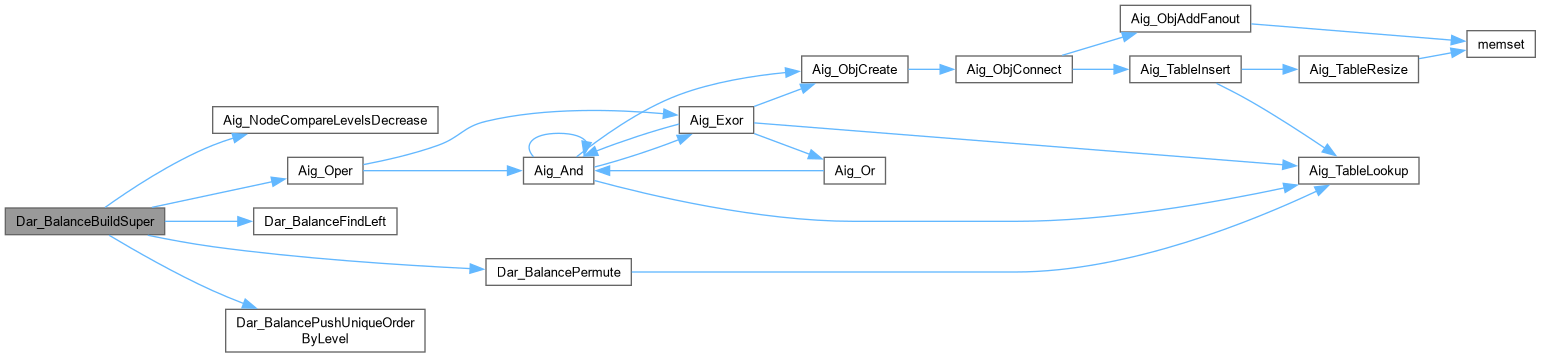

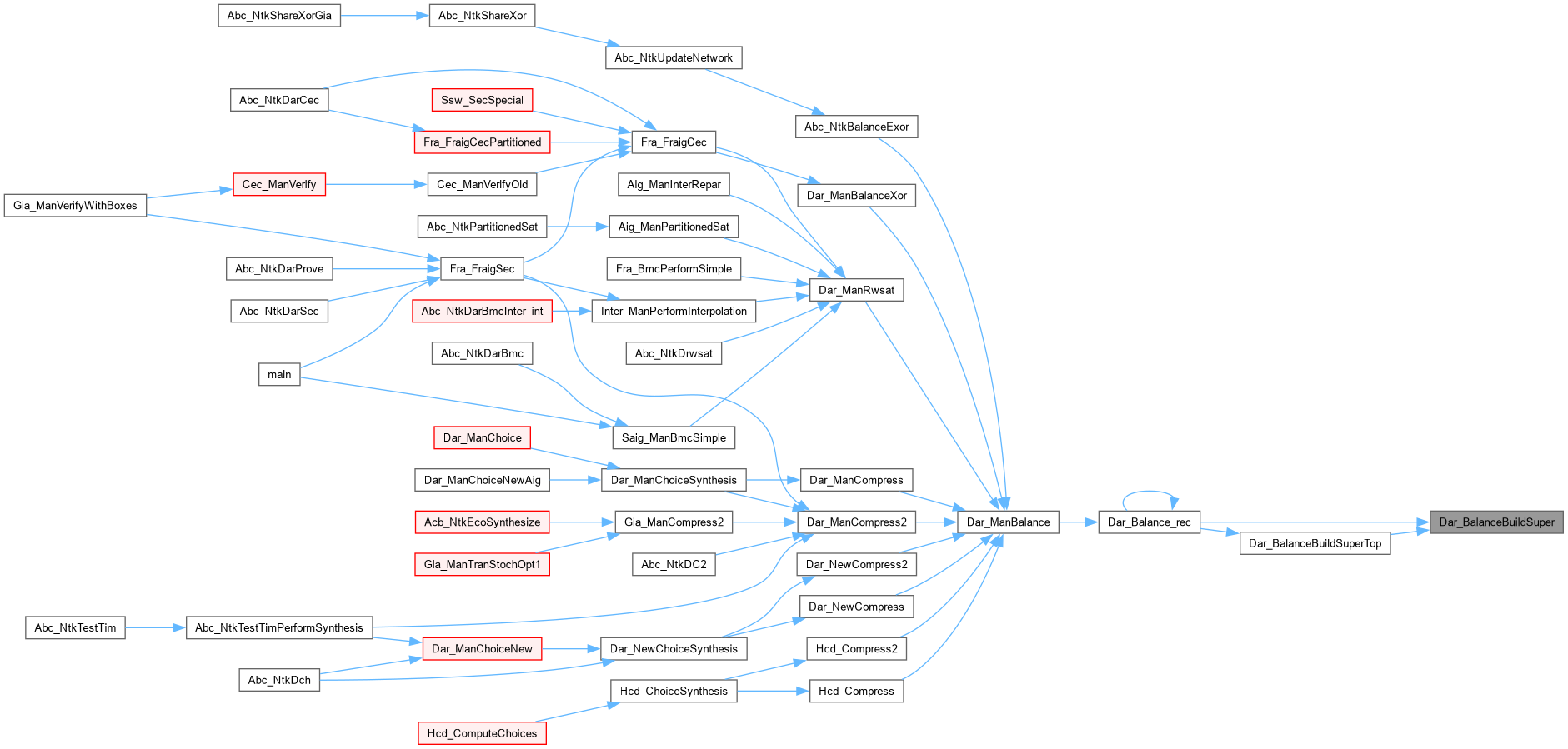

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_BalanceBuildSuperTop()

Aig_Obj_t * Dar_BalanceBuildSuperTop	(	Aig_Man_t *	p,
		Vec_Ptr_t *	vSuper,
		Aig_Type_t	Type,
		int	fUpdateLevel,
		int	nLutSize )

Function*************************************************************

Synopsis [Builds implication supergate.]

Description []

SideEffects []

SeeAlso []

Definition at line 458 of file darBalance.c.

{
    Vec_Ptr_t * vSubset;
    Aig_Obj_t * pObj;
    int i, nBaseSizeAll, nBaseSize;
    assert( vSuper->nSize > 1 );
    // sort the new nodes by level in the decreasing order
    Vec_PtrSort( vSuper, (int (*)(const void *, const void *))Aig_NodeCompareLevelsDecrease );
    // add one LUT at a time
    while ( Vec_PtrSize(vSuper) > 1 )
    {
        // isolate the group of nodes with nLutSize inputs
        nBaseSizeAll = 0;
        vSubset = Vec_PtrAlloc( nLutSize );
        Vec_PtrForEachEntryReverse( Aig_Obj_t *, vSuper, pObj, i )
        {
            nBaseSize = Aig_BaseSize( p, pObj, nLutSize );
            if ( nBaseSizeAll + nBaseSize > nLutSize && Vec_PtrSize(vSubset) > 1 )
                break;
            nBaseSizeAll += nBaseSize;
            Vec_PtrPush( vSubset, pObj );
        }
        // remove them from vSuper
        Vec_PtrShrink( vSuper, Vec_PtrSize(vSuper) - Vec_PtrSize(vSubset) );
        // create the new supergate
        pObj = Dar_BalanceBuildSuper( p, vSubset, Type, fUpdateLevel );
        Vec_PtrFree( vSubset );
        // add the new output
        Dar_BalancePushUniqueOrderByLevel( vSuper, pObj, Type == AIG_OBJ_EXOR );
    }
    return (Aig_Obj_t *)Vec_PtrEntry(vSuper, 0);
}

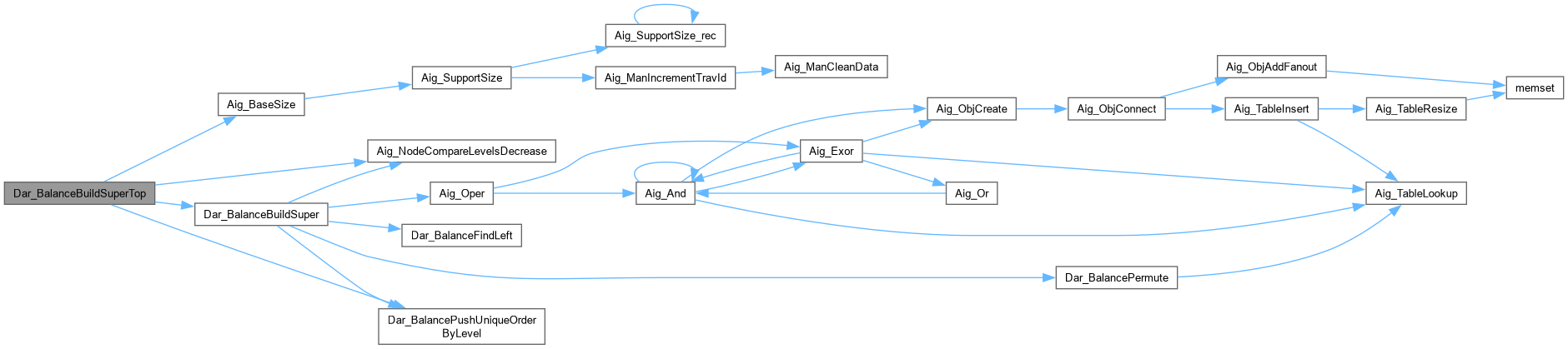

Here is the call graph for this function:

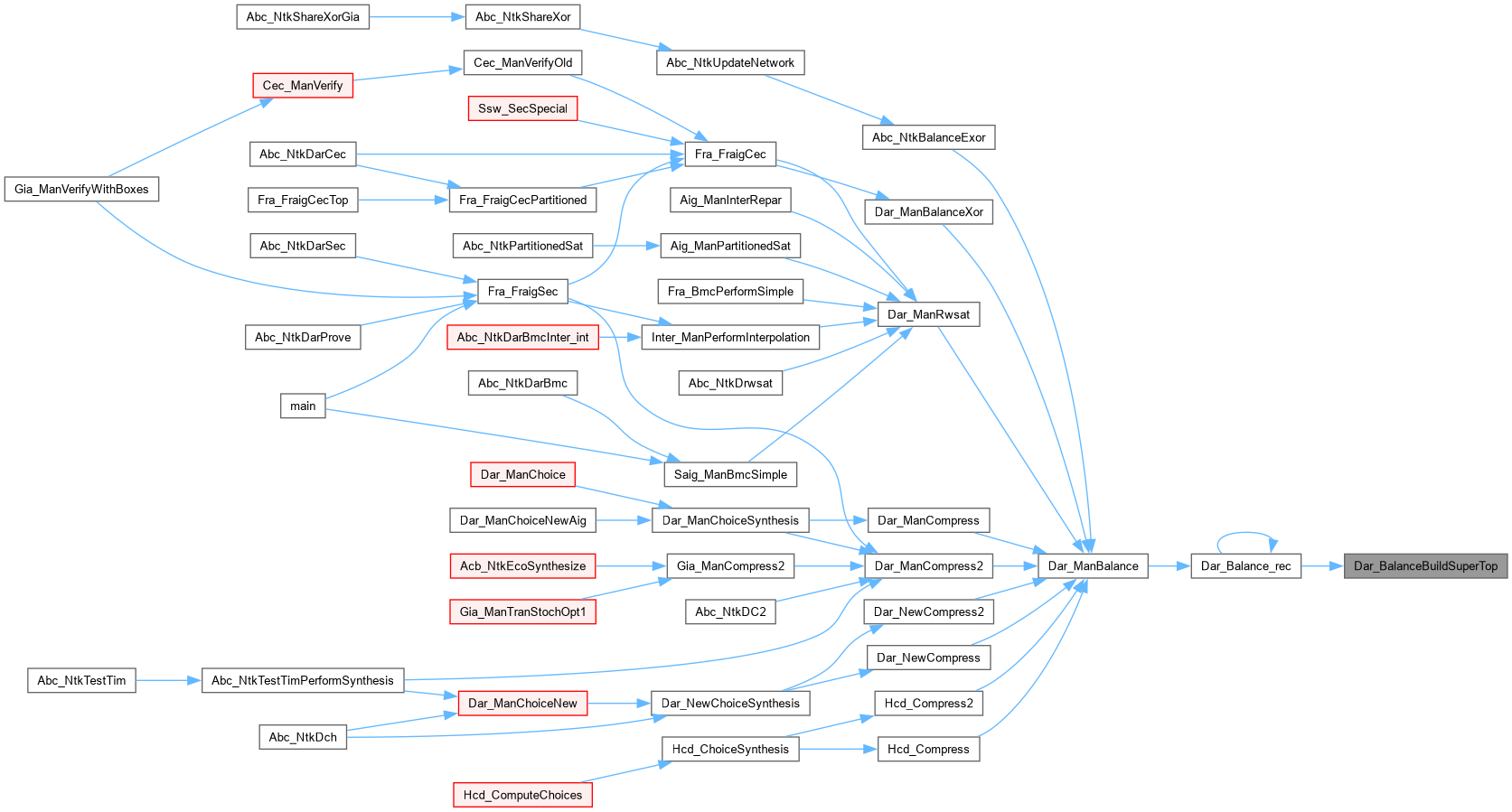

Here is the caller graph for this function:

Dar_BalanceCone()

Vec_Ptr_t * Dar_BalanceCone	(	Aig_Obj_t *	pObj,
		Vec_Vec_t *	vStore,
		int	Level )

Definition at line 119 of file darBalance.c.

{
    Vec_Ptr_t * vNodes;
    assert( !Aig_IsComplement(pObj) );
    assert( Aig_ObjIsNode(pObj) );
    // extend the storage
    if ( Vec_VecSize( vStore ) <= Level )
        Vec_VecPush( vStore, Level, 0 );
    // get the temporary array of nodes
    vNodes = Vec_VecEntry( vStore, Level );
    Vec_PtrClear( vNodes );
    // collect the nodes in the implication supergate
    Dar_BalanceCone_rec( pObj, pObj, vNodes );
    // remove duplicates
    Dar_BalanceUniqify( pObj, vNodes, Aig_ObjIsExor(pObj) );
    return vNodes;
}

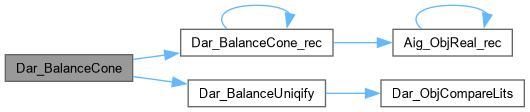

Here is the call graph for this function:

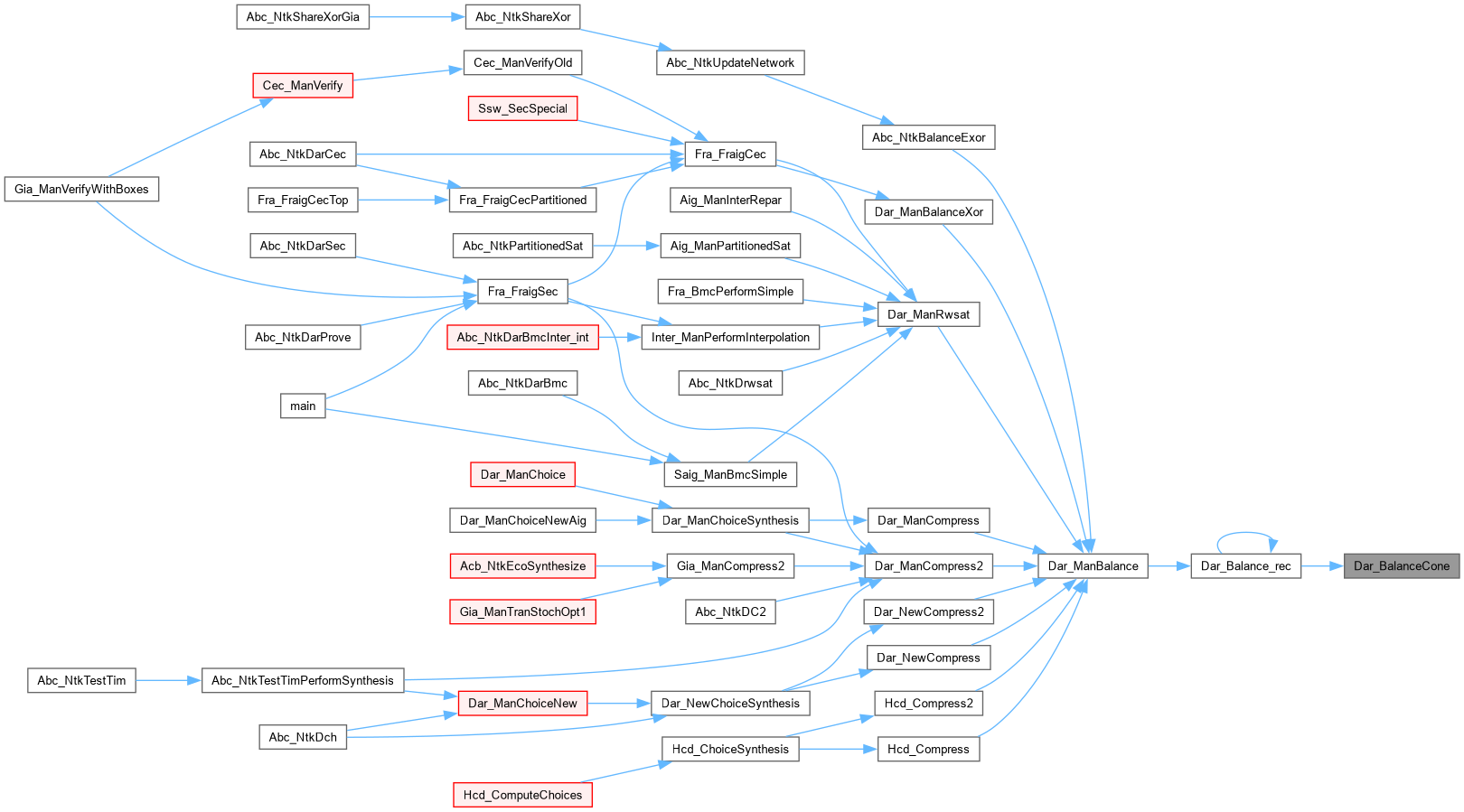

Here is the caller graph for this function:

Dar_BalanceCone_rec()

void Dar_BalanceCone_rec	(	Aig_Obj_t *	pRoot,
		Aig_Obj_t *	pObj,
		Vec_Ptr_t *	vSuper )

Function*************************************************************

Synopsis [Collects the nodes of the supergate.]

Description []

SideEffects []

SeeAlso []

Definition at line 106 of file darBalance.c.

{
    if ( pObj != pRoot && (Aig_IsComplement(pObj) || Aig_ObjType(pObj) != Aig_ObjType(pRoot) || Aig_ObjRefs(pObj) > 1 || Vec_PtrSize(vSuper) > 10000) )
        Vec_PtrPush( vSuper, pObj );
    else
    {
        assert( !Aig_IsComplement(pObj) );
        assert( Aig_ObjIsNode(pObj) );
        // go through the branches
        Dar_BalanceCone_rec( pRoot, Aig_ObjReal_rec( Aig_ObjChild0(pObj) ), vSuper );
        Dar_BalanceCone_rec( pRoot, Aig_ObjReal_rec( Aig_ObjChild1(pObj) ), vSuper );
    }
}

Here is the call graph for this function:

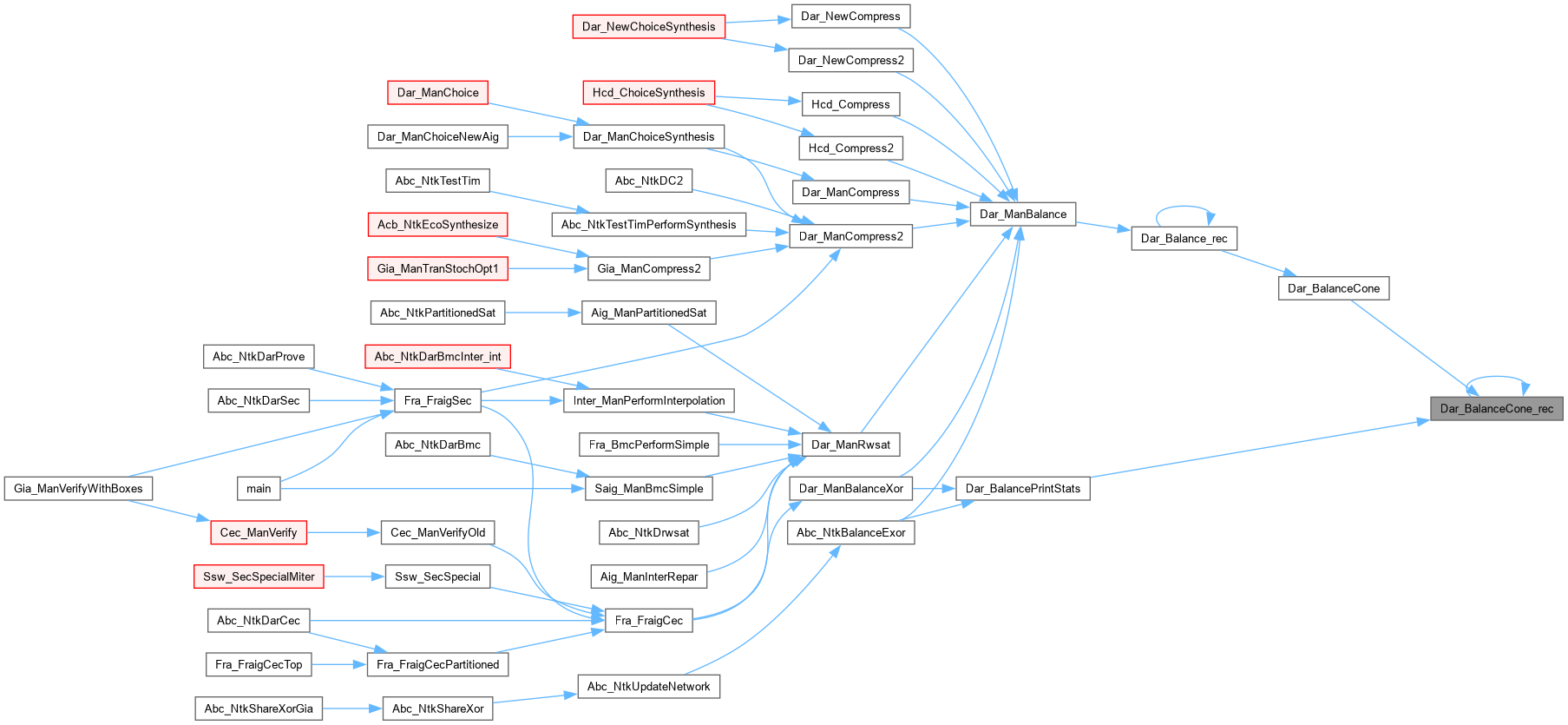

Here is the caller graph for this function:

Dar_BalanceFindLeft()

int Dar_BalanceFindLeft

(

Vec_Ptr_t *

vSuper

)

Function*************************************************************

Synopsis [Collects the nodes of the supergate.]

Description []

SideEffects []

SeeAlso [] Function*************************************************************

Synopsis [Finds the left bound on the next candidate to be paired.]

Description [The nodes in the array are in the decreasing order of levels. The last node in the array has the smallest level. By default it would be paired with the next node on the left. However, it may be possible to pair it with some other node on the left, in such a way that the new node is shared. This procedure finds the index of the left-most node, which can be paired with the last node.]

SideEffects []

SeeAlso []

Definition at line 236 of file darBalance.c.

{
    Aig_Obj_t * pObjRight, * pObjLeft;
    int Current;
    // if two or less nodes, pair with the first
    if ( Vec_PtrSize(vSuper) < 3 )
        return 0;
    // set the pointer to the one before the last
    Current = Vec_PtrSize(vSuper) - 2;
    pObjRight = (Aig_Obj_t *)Vec_PtrEntry( vSuper, Current );
    // go through the nodes to the left of this one
    for ( Current--; Current >= 0; Current-- )
    {
        // get the next node on the left
        pObjLeft = (Aig_Obj_t *)Vec_PtrEntry( vSuper, Current );
        // if the level of this node is different, quit the loop
        if ( Aig_ObjLevel(Aig_Regular(pObjLeft)) != Aig_ObjLevel(Aig_Regular(pObjRight)) )
            break;
    }
    Current++;
    // get the node, for which the equality holds
    pObjLeft = (Aig_Obj_t *)Vec_PtrEntry( vSuper, Current );
    assert( Aig_ObjLevel(Aig_Regular(pObjLeft)) == Aig_ObjLevel(Aig_Regular(pObjRight)) );
    return Current;
}

Here is the caller graph for this function:

Dar_BalancePermute()

void Dar_BalancePermute	(	Aig_Man_t *	p,
		Vec_Ptr_t *	vSuper,
		int	LeftBound,
		int	fExor )

Function*************************************************************

Synopsis [Moves closer to the end the node that is best for sharing.]

Description [If there is no node with sharing, randomly chooses one of the legal nodes.]

SideEffects []

SeeAlso []

Definition at line 274 of file darBalance.c.

{
    Aig_Obj_t * pObj1, * pObj2, * pObj3, * pGhost;
    int RightBound, i;
    // get the right bound
    RightBound = Vec_PtrSize(vSuper) - 2;
    assert( LeftBound <= RightBound );
    if ( LeftBound == RightBound )
        return;
    // get the two last nodes
    pObj1 = (Aig_Obj_t *)Vec_PtrEntry( vSuper, RightBound + 1 );
    pObj2 = (Aig_Obj_t *)Vec_PtrEntry( vSuper, RightBound     );
    if ( Aig_Regular(pObj1) == p->pConst1 || Aig_Regular(pObj2) == p->pConst1 || Aig_Regular(pObj1) == Aig_Regular(pObj2) )
        return;
    // find the first node that can be shared
    for ( i = RightBound; i >= LeftBound; i-- )
    {
        pObj3 = (Aig_Obj_t *)Vec_PtrEntry( vSuper, i );
        if ( Aig_Regular(pObj3) == p->pConst1 )
        {
            Vec_PtrWriteEntry( vSuper, i,          pObj2 );
            Vec_PtrWriteEntry( vSuper, RightBound, pObj3 );
            return;
        }
        if ( Aig_Regular(pObj1) == Aig_Regular(pObj3) )
        {
            if ( pObj3 == pObj2 )
                return;
            Vec_PtrWriteEntry( vSuper, i,          pObj2 );
            Vec_PtrWriteEntry( vSuper, RightBound, pObj3 );
            return;
        }
        pGhost = Aig_ObjCreateGhost( p, pObj1, pObj3, fExor? AIG_OBJ_EXOR : AIG_OBJ_AND );
        if ( Aig_TableLookup( p, pGhost ) )
        {
            if ( pObj3 == pObj2 )
                return;
            Vec_PtrWriteEntry( vSuper, i,          pObj2 );
            Vec_PtrWriteEntry( vSuper, RightBound, pObj3 );
            return;
        }
    }
/*
    // we did not find the node to share, randomize choice
    {
        int Choice = Aig_ManRandom(0) % (RightBound - LeftBound + 1);
        pObj3 = Vec_PtrEntry( vSuper, LeftBound + Choice );
        if ( pObj3 == pObj2 )
            return;
        Vec_PtrWriteEntry( vSuper, LeftBound + Choice, pObj2 );
        Vec_PtrWriteEntry( vSuper, RightBound,         pObj3 );
    }
*/
}

Here is the call graph for this function:

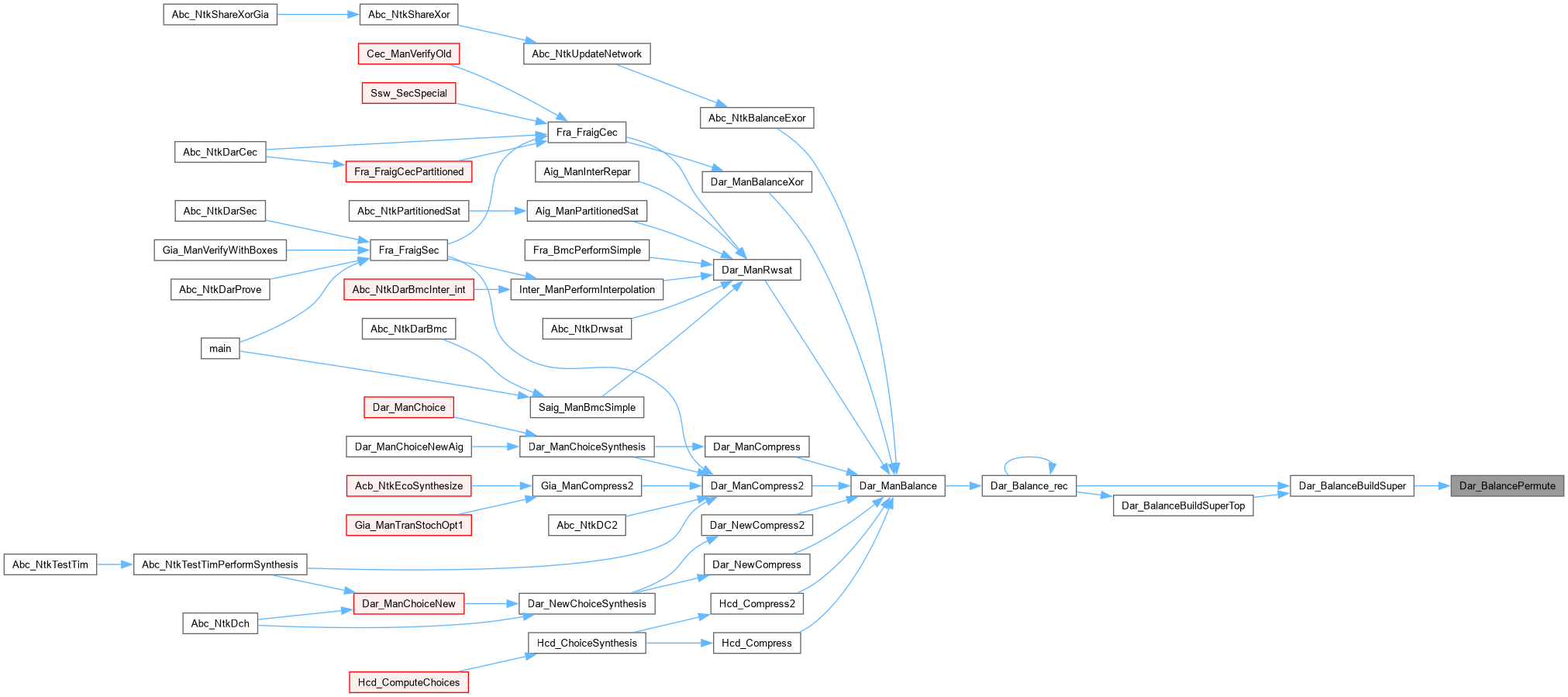

Here is the caller graph for this function:

Dar_BalancePrintStats()

void Dar_BalancePrintStats

(

Aig_Man_t *

p

)

Function*************************************************************

Synopsis [Inserts a new node in the order by levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 716 of file darBalance.c.

{
    Vec_Ptr_t * vSuper;
    Aig_Obj_t * pObj, * pTemp;
    int i, k;
    if ( Aig_ManExorNum(p) == 0 )
    {
        printf( "There is no EXOR gates.\n" );
        return;
    }
    Aig_ManForEachExor( p, pObj, i )
    {
        Aig_ObjFanin0(pObj)->fMarkA = 1;
        Aig_ObjFanin1(pObj)->fMarkA = 1;
        assert( !Aig_ObjFaninC0(pObj) );
        assert( !Aig_ObjFaninC1(pObj) );
    }
    vSuper = Vec_PtrAlloc( 1000 );
    Aig_ManForEachExor( p, pObj, i )
    {
        if ( pObj->fMarkA && pObj->nRefs == 1 )
            continue;
        Vec_PtrClear( vSuper );
        Dar_BalanceCone_rec( pObj, pObj, vSuper );
        Vec_PtrForEachEntry( Aig_Obj_t *, vSuper, pTemp, k )
            pTemp->fMarkB = 0;
        if ( Vec_PtrSize(vSuper) < 3 )
            continue;
        printf( "  %d(", Vec_PtrSize(vSuper) );
        Vec_PtrForEachEntry( Aig_Obj_t *, vSuper, pTemp, k )
            printf( " %d", pTemp->Level );
        printf( " )" );
    }
    Vec_PtrFree( vSuper );
    Aig_ManForEachObj( p, pObj, i )
        pObj->fMarkA = 0;
    printf( "\n" );
}

Here is the call graph for this function:

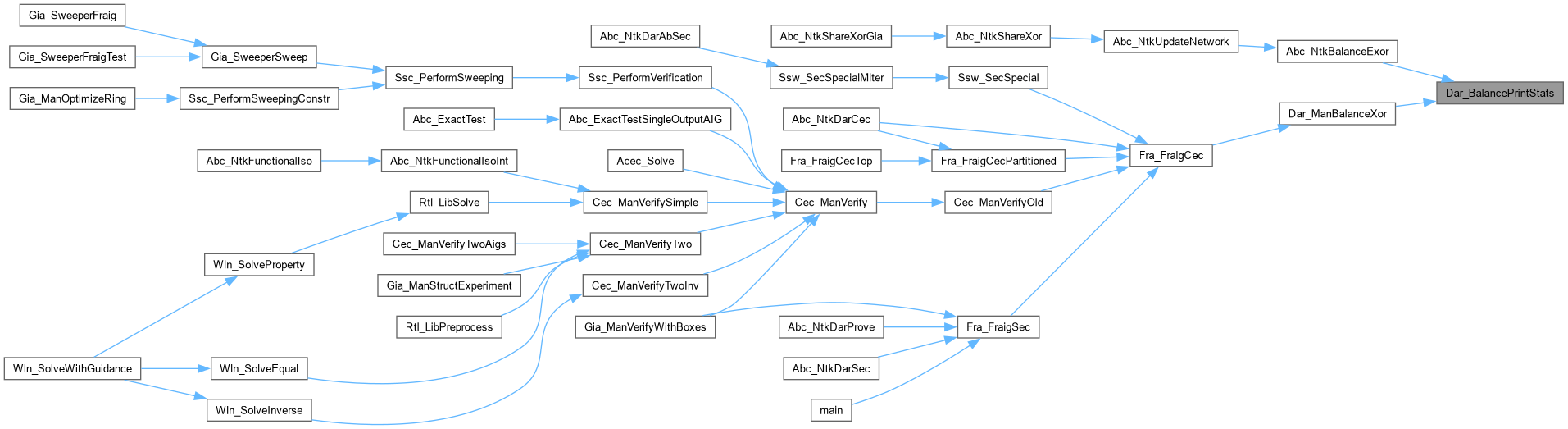

Here is the caller graph for this function:

Dar_BalancePushUniqueOrderByLevel()

void Dar_BalancePushUniqueOrderByLevel	(	Vec_Ptr_t *	vStore,
		Aig_Obj_t *	pObj,
		int	fExor )

Function*************************************************************

Synopsis [Inserts a new node in the order by levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 366 of file darBalance.c.

{
    Aig_Obj_t * pObj1, * pObj2;
    int i;
    if ( Vec_PtrPushUnique(vStore, pObj) )
    {
        if ( fExor )
            Vec_PtrRemove(vStore, pObj);
        return;
    }
    // find the p of the node
    for ( i = vStore->nSize-1; i > 0; i-- )
    {
        pObj1 = (Aig_Obj_t *)vStore->pArray[i  ];
        pObj2 = (Aig_Obj_t *)vStore->pArray[i-1];
        if ( Aig_ObjLevel(Aig_Regular(pObj1)) <= Aig_ObjLevel(Aig_Regular(pObj2)) )
            break;
        vStore->pArray[i  ] = pObj2;
        vStore->pArray[i-1] = pObj1;
    }
}

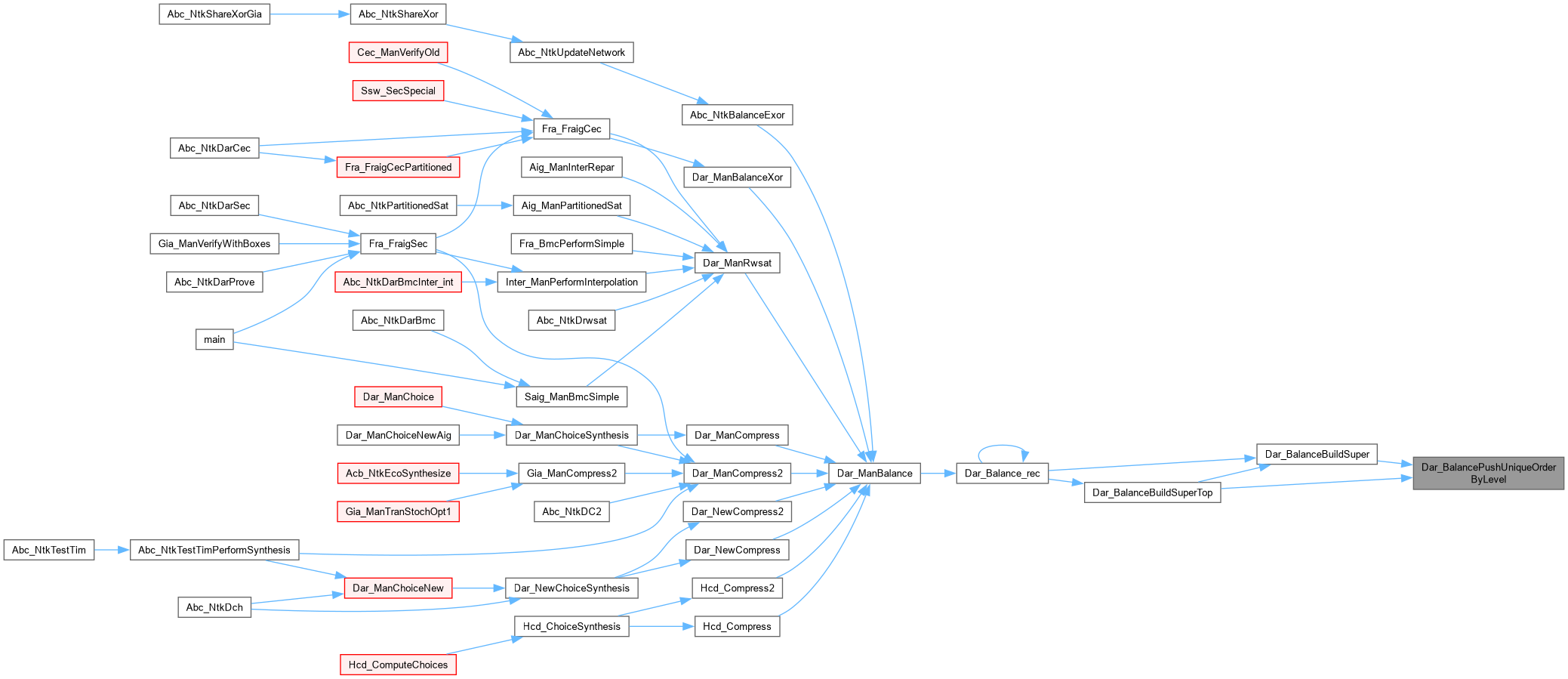

Here is the caller graph for this function:

Dar_BalanceUniqify()

void Dar_BalanceUniqify	(	Aig_Obj_t *	pObj,
		Vec_Ptr_t *	vNodes,
		int	fExor )

Definition at line 57 of file darBalance.c.

{
    Aig_Obj_t * pTemp, * pTempNext;
    int i, k;
    // sort the nodes by their literal
    Vec_PtrSort( vNodes, (int (*)(const void *, const void *))Dar_ObjCompareLits );
    // remove duplicates
    k = 0;
    Vec_PtrForEachEntry( Aig_Obj_t *, vNodes, pTemp, i )
    {
        if ( i + 1 == Vec_PtrSize(vNodes) )
        {
            Vec_PtrWriteEntry( vNodes, k++, pTemp );
            break;
        }
        pTempNext = (Aig_Obj_t *)Vec_PtrEntry( vNodes, i+1 );
        if ( !fExor && pTemp == Aig_Not(pTempNext) ) // pos_lit & neg_lit = 0
        {
            Vec_PtrClear( vNodes );
            return;
        }
        if ( pTemp != pTempNext )  // save if different
            Vec_PtrWriteEntry( vNodes, k++, pTemp );
        else if ( fExor ) // in case of XOR, remove identical
            i++;
    }
    Vec_PtrShrink( vNodes, k );
    if ( Vec_PtrSize(vNodes) < 2 )
        return;
    // check that there is no duplicates
    pTemp = (Aig_Obj_t *)Vec_PtrEntry( vNodes, 0 );
    Vec_PtrForEachEntryStart( Aig_Obj_t *, vNodes, pTempNext, i, 1 )
    {
        assert( pTemp != pTempNext );
        pTemp = pTempNext;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ManBalance()

Aig_Man_t * Dar_ManBalance	(	Aig_Man_t *	p,
		int	fUpdateLevel )

Function*************************************************************

Synopsis [Performs algebraic balancing of the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 554 of file darBalance.c.

{
    Aig_Man_t * pNew;
    Aig_Obj_t * pObj, * pDriver, * pObjNew;
    Vec_Vec_t * vStore;
    int i;
    assert( Aig_ManVerifyTopoOrder(p) );
    // create the new manager
    pNew = Aig_ManStart( Aig_ManObjNumMax(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    pNew->nAsserts = p->nAsserts;
    pNew->nConstrs = p->nConstrs;
    pNew->nBarBufs = p->nBarBufs;
    pNew->Time2Quit = p->Time2Quit;
    if ( p->vFlopNums )
        pNew->vFlopNums = Vec_IntDup( p->vFlopNums );
    // map the PI nodes
    Aig_ManCleanData( p );
    Aig_ManConst1(p)->pData = Aig_ManConst1(pNew);
    vStore = Vec_VecAlloc( 50 );
    if ( p->pManTime != NULL )
    {
        float arrTime;
        Tim_ManIncrementTravId( (Tim_Man_t *)p->pManTime );
        Aig_ManSetCioIds( p );
        Aig_ManForEachObj( p, pObj, i )
        {
            if ( Aig_ObjIsNode(pObj) || Aig_ObjIsConst1(pObj) )
                continue;
            if ( Aig_ObjIsCi(pObj) )
            {
                // copy the PI
                pObjNew = Aig_ObjCreateCi(pNew);
                pObj->pData = pObjNew;
                // set the arrival time of the new PI
                arrTime = Tim_ManGetCiArrival( (Tim_Man_t *)p->pManTime, Aig_ObjCioId(pObj) );
                pObjNew->Level = (int)arrTime;
            }
            else if ( Aig_ObjIsCo(pObj) )
            {
                // perform balancing
                pDriver = Aig_ObjReal_rec( Aig_ObjChild0(pObj) );
                pObjNew = Dar_Balance_rec( pNew, Aig_Regular(pDriver), vStore, 0, fUpdateLevel );
                if ( pObjNew == NULL )
                {
                    Vec_VecFree( vStore );
                    Aig_ManStop( pNew );
                    return NULL;
                }
                pObjNew = Aig_NotCond( pObjNew, Aig_IsComplement(pDriver) );
                // save arrival time of the output
                arrTime = (float)Aig_Regular(pObjNew)->Level;
                Tim_ManSetCoArrival( (Tim_Man_t *)p->pManTime, Aig_ObjCioId(pObj), arrTime );
                // create PO
                pObjNew = Aig_ObjCreateCo( pNew, pObjNew );
            }
            else
                assert( 0 );
        }
        Aig_ManCleanCioIds( p );
        pNew->pManTime = Tim_ManDup( (Tim_Man_t *)p->pManTime, 0 );
    }
    else
    {
        Aig_ManForEachCi( p, pObj, i )
        {
            pObjNew = Aig_ObjCreateCi(pNew);
            pObjNew->Level = pObj->Level;
            pObj->pData = pObjNew;
        }
        if ( p->nBarBufs == 0 )
        {
            Aig_ManForEachCo( p, pObj, i )
            {
                pDriver = Aig_ObjReal_rec( Aig_ObjChild0(pObj) );
                pObjNew = Dar_Balance_rec( pNew, Aig_Regular(pDriver), vStore, 0, fUpdateLevel );
                if ( pObjNew == NULL )
                {
                    Vec_VecFree( vStore );
                    Aig_ManStop( pNew );
                    return NULL;
                }
                pObjNew = Aig_NotCond( pObjNew, Aig_IsComplement(pDriver) );
                pObjNew = Aig_ObjCreateCo( pNew, pObjNew );
            }
        }
        else
        {
            Vec_Ptr_t * vLits = Vec_PtrStart( Aig_ManCoNum(p) );
            Aig_ManForEachCo( p, pObj, i )
            {
                int k = i < p->nBarBufs ? Aig_ManCoNum(p) - p->nBarBufs + i : i - p->nBarBufs;
                pObj = Aig_ManCo( p, k );
                pDriver = Aig_ObjReal_rec( Aig_ObjChild0(pObj) );
                pObjNew = Dar_Balance_rec( pNew, Aig_Regular(pDriver), vStore, 0, fUpdateLevel );
                if ( pObjNew == NULL )
                {
                    Vec_VecFree( vStore );
                    Aig_ManStop( pNew );
                    return NULL;
                }
                pObjNew = Aig_NotCond( pObjNew, Aig_IsComplement(pDriver) );
                Vec_PtrWriteEntry( vLits, k, pObjNew );
                if ( i < p->nBarBufs )
                    Aig_ManCi(pNew, Aig_ManCiNum(p) - p->nBarBufs + i)->Level = Aig_Regular(pObjNew)->Level;
            }
            Aig_ManForEachCo( p, pObj, i )
                Aig_ObjCreateCo( pNew, (Aig_Obj_t *)Vec_PtrEntry(vLits, i) );
            Vec_PtrFree(vLits);
        }
    }
    Vec_VecFree( vStore );
    // remove dangling nodes
    Aig_ManCleanup( pNew );
    Aig_ManSetRegNum( pNew, Aig_ManRegNum(p) );
    // check the resulting AIG
    if ( !Aig_ManCheck(pNew) )
        printf( "Dar_ManBalance(): The check has failed.\n" );
    return pNew;
}

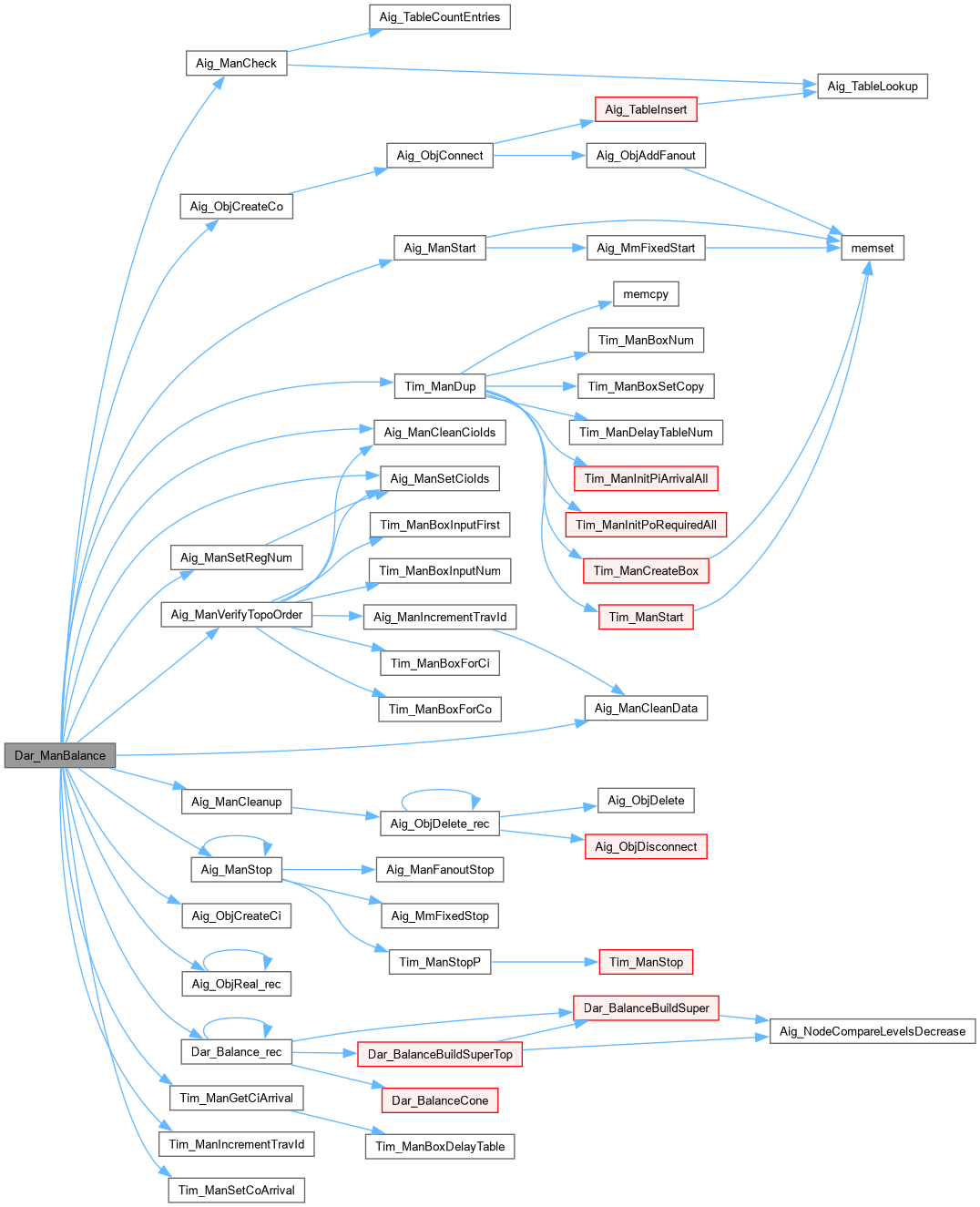

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ManBalanceXor()

Aig_Man_t * Dar_ManBalanceXor	(	Aig_Man_t *	pAig,
		int	fExor,
		int	fUpdateLevel,
		int	fVerbose )

Function*************************************************************

Synopsis [Reproduces script "compress2".]

Description []

SideEffects []

SeeAlso []

Definition at line 687 of file darBalance.c.

{
    Aig_Man_t * pAigXor, * pRes;
    if ( fExor )
    {
        pAigXor = Aig_ManDupExor( pAig );
        if ( fVerbose )
            Dar_BalancePrintStats( pAigXor );
        pRes = Dar_ManBalance( pAigXor, fUpdateLevel );
        Aig_ManStop( pAigXor );
    }
    else
    {
        pRes = Dar_ManBalance( pAig, fUpdateLevel );
    }
    return pRes;
}

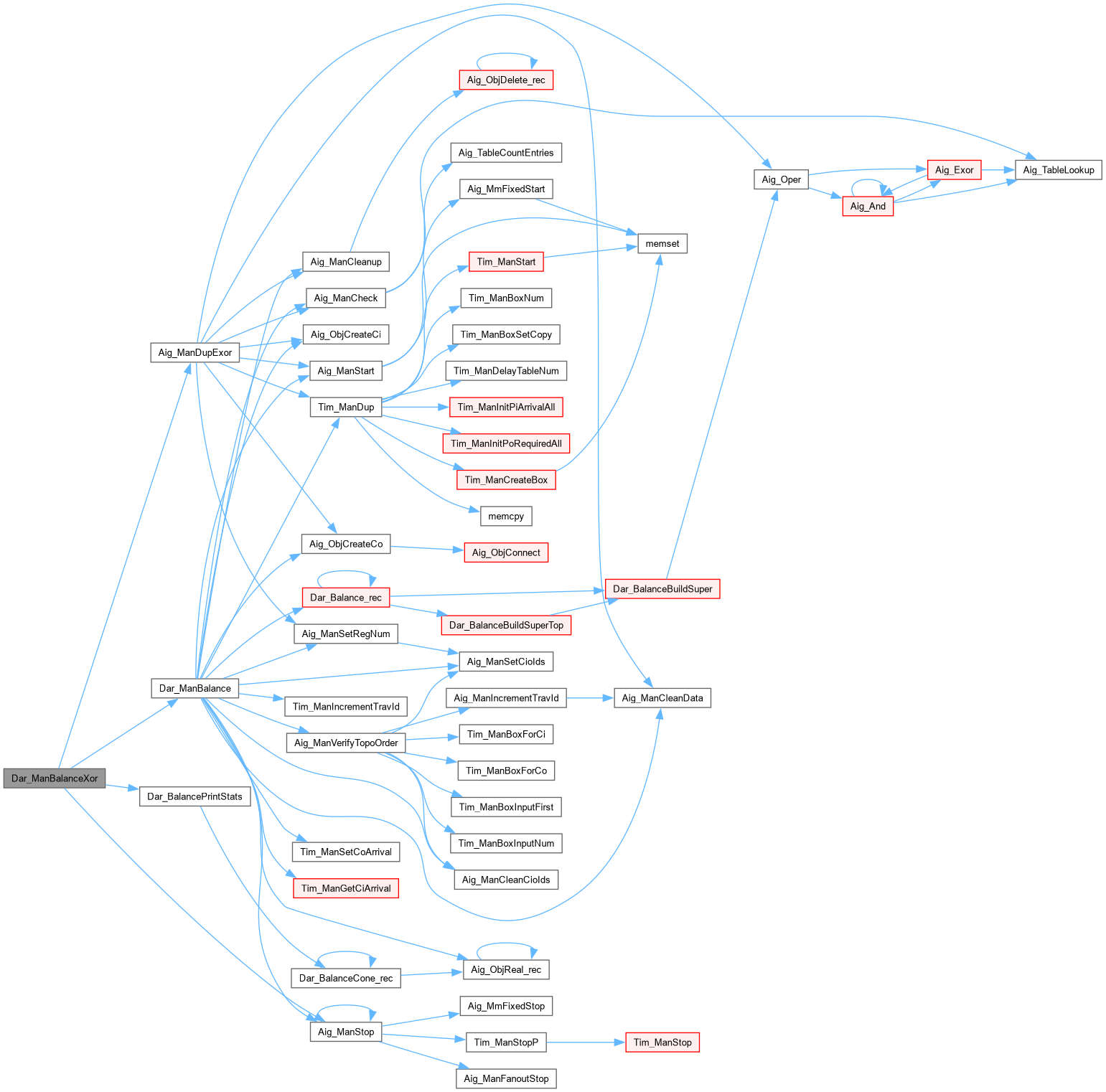

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ObjCompareLits()

ABC_NAMESPACE_IMPL_START int Dar_ObjCompareLits	(	Aig_Obj_t **	pp1,
		Aig_Obj_t **	pp2 )

DECLARATIONS ///.

CFile****************************************************************

FileName [darBalance.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [DAG-aware AIG rewriting.]

Synopsis [Algebraic AIG balancing.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

darBalance.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Uniqifies the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 48 of file darBalance.c.

{
    int Diff = Aig_ObjToLit(*pp1) - Aig_ObjToLit(*pp2);
    if ( Diff < 0 )
        return -1;
    if ( Diff > 0 )
        return 1;
    return 0;
}

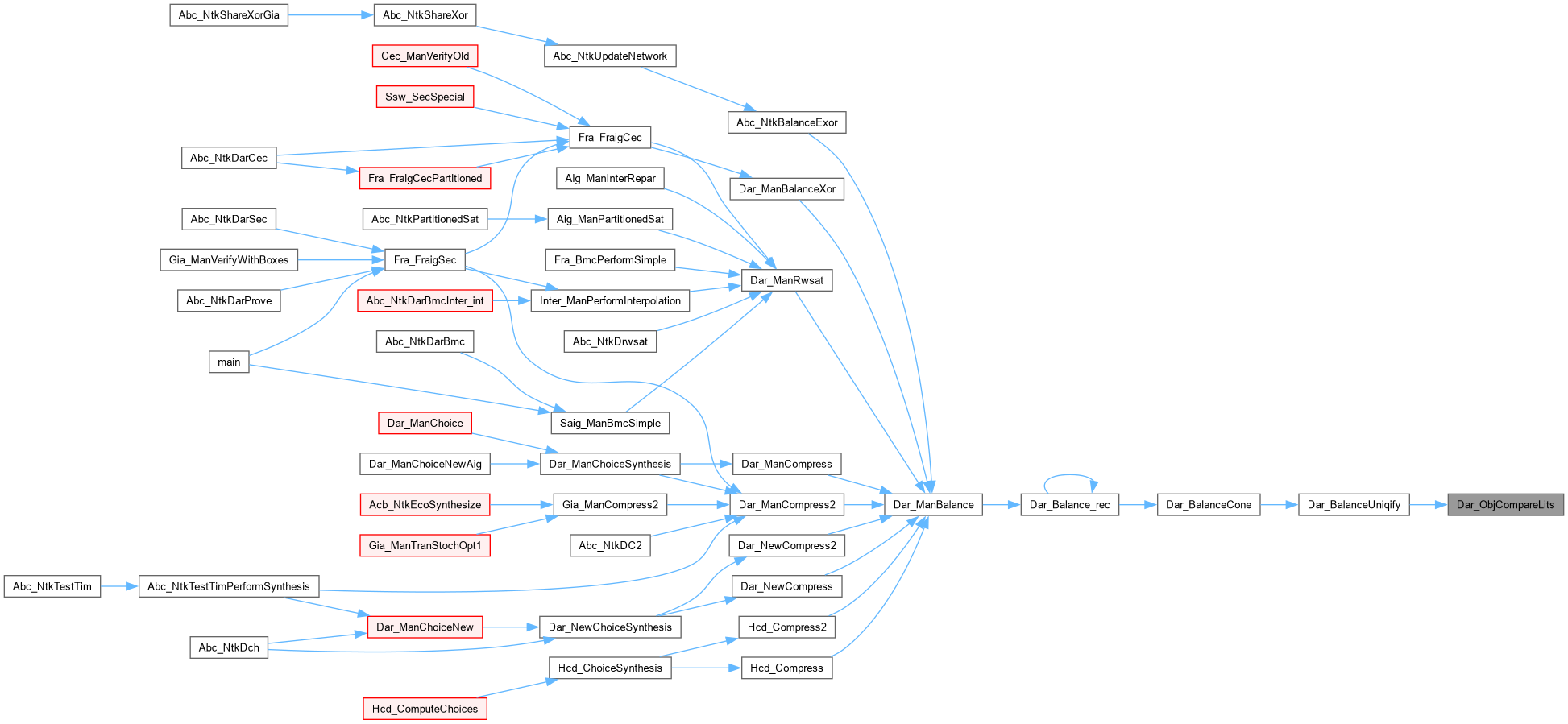

Here is the caller graph for this function:
