decPrint.c File Reference

#include "base/abc/abc.h"
#include "dec.h"

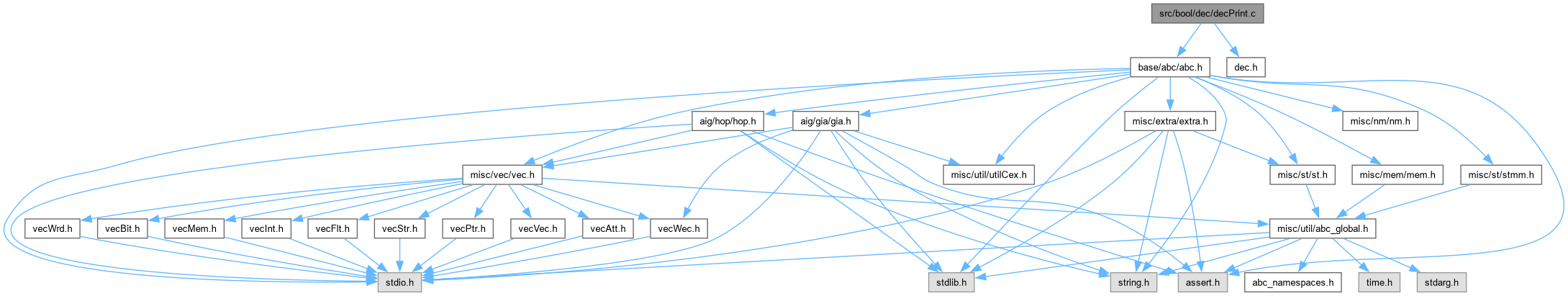

Include dependency graph for decPrint.c:

Go to the source code of this file.

Functions
void	Dec_GraphPrint (FILE *pFile, Dec_Graph_t *pGraph, char *pNamesIn[], char *pNameOut)
	FUNCTION DEFINITIONS ///.
void	Dec_GraphPrint2_rec (FILE *pFile, Dec_Graph_t *pGraph, Dec_Node_t *pNode, int fCompl, char *pNamesIn[], int *pPos, int LitSizeMax)

Function Documentation

Dec_GraphPrint()

void Dec_GraphPrint	(	FILE *	pFile,
		Dec_Graph_t *	pGraph,
		char *	pNamesIn[],
		char *	pNameOut )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Prints the decomposition graph.]

Description []

SideEffects []

SeeAlso []

Definition at line 49 of file decPrint.c.

{
    Vec_Ptr_t * vNamesIn = NULL;
    int LitSizeMax, LitSizeCur, Pos, i;

    // create the names if not given by the user
    if ( pNamesIn == NULL )
    {
        vNamesIn = Abc_NodeGetFakeNames( Dec_GraphLeaveNum(pGraph) );
        pNamesIn = (char **)vNamesIn->pArray;
    }
    if ( pNameOut == NULL )
        pNameOut = "F";

    // get the size of the longest literal
    LitSizeMax = 0;
    for ( i = 0; i < Dec_GraphLeaveNum(pGraph); i++ )
    {
        LitSizeCur = strlen(pNamesIn[i]);
        if ( LitSizeMax < LitSizeCur )
            LitSizeMax = LitSizeCur;
    }
    if ( LitSizeMax > 50 )
        LitSizeMax = 20;

    // write the decomposition graph (factored form)
    if ( Dec_GraphIsConst(pGraph) ) // constant
    {
        Pos = Dec_GraphPrintOutputName( pFile, pNameOut );
        fprintf( pFile, "Constant %d", !Dec_GraphIsComplement(pGraph) );
    }
    else if ( Dec_GraphIsVar(pGraph) ) // literal
    {
        Pos = Dec_GraphPrintOutputName( pFile, pNameOut );
        Dec_GraphPrintGetLeafName( pFile, Dec_GraphVarInt(pGraph), Dec_GraphIsComplement(pGraph), pNamesIn );
    }
    else
    {
        Pos = Dec_GraphPrintOutputName( pFile, pNameOut );
        Dec_GraphPrint_rec( pFile, pGraph, Dec_GraphNodeLast(pGraph), Dec_GraphIsComplement(pGraph), pNamesIn, &Pos, LitSizeMax );
    }
    fprintf( pFile, "\n" );

    if ( vNamesIn )
        Abc_NodeFreeNames( vNamesIn );
}

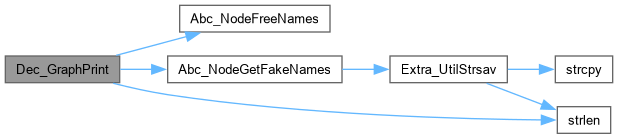

Here is the call graph for this function:

Here is the caller graph for this function:

Dec_GraphPrint2_rec()

void Dec_GraphPrint2_rec	(	FILE *	pFile,
		Dec_Graph_t *	pGraph,
		Dec_Node_t *	pNode,
		int	fCompl,
		char *	pNamesIn[],
		int *	pPos,
		int	LitSizeMax )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 107 of file decPrint.c.

{
    Dec_Node_t * pNode0, * pNode1;
    pNode0 = Dec_GraphNode(pGraph, pNode->eEdge0.Node);
    pNode1 = Dec_GraphNode(pGraph, pNode->eEdge1.Node);
    if ( Dec_GraphNodeIsVar(pGraph, pNode) ) // FT_NODE_LEAF )
    {
        (*pPos) += Dec_GraphPrintGetLeafName( pFile, Dec_GraphNodeInt(pGraph,pNode), fCompl, pNamesIn );
        return;
    }
    if ( !pNode->fNodeOr ) // FT_NODE_AND )
    {
        if ( !pNode0->fNodeOr ) // != FT_NODE_OR )
            Dec_GraphPrint_rec( pFile, pGraph, pNode0, pNode->fCompl0, pNamesIn, pPos, LitSizeMax );
        else
        {
            fprintf( pFile, "(" );
            (*pPos)++;
            Dec_GraphPrint_rec( pFile, pGraph, pNode0, pNode->fCompl0, pNamesIn, pPos, LitSizeMax );
            fprintf( pFile, ")" );
            (*pPos)++;
        }
        fprintf( pFile, " " );
        (*pPos)++;

        Dec_GraphPrintUpdatePos( pFile, pPos, LitSizeMax );

        if ( !pNode1->fNodeOr ) // != FT_NODE_OR )
            Dec_GraphPrint_rec( pFile, pGraph, pNode1, pNode->fCompl1, pNamesIn, pPos, LitSizeMax );
        else
        {
            fprintf( pFile, "(" );
            (*pPos)++;
            Dec_GraphPrint_rec( pFile, pGraph, pNode1, pNode->fCompl1, pNamesIn, pPos, LitSizeMax );
            fprintf( pFile, ")" );
            (*pPos)++;
        }
        return;
    }
    if ( pNode->fNodeOr ) // FT_NODE_OR )
    {
        Dec_GraphPrint_rec( pFile, pGraph, pNode0, pNode->fCompl0, pNamesIn, pPos, LitSizeMax );
        fprintf( pFile, " + " );
        (*pPos) += 3;

        Dec_GraphPrintUpdatePos( pFile, pPos, LitSizeMax );

        Dec_GraphPrint_rec( pFile, pGraph, pNode1, pNode->fCompl1, pNamesIn, pPos, LitSizeMax );
        return;
    }
    assert( 0 );
}
