exor.c File Reference

#include "exor.h"
#include "base/abc/abc.h"

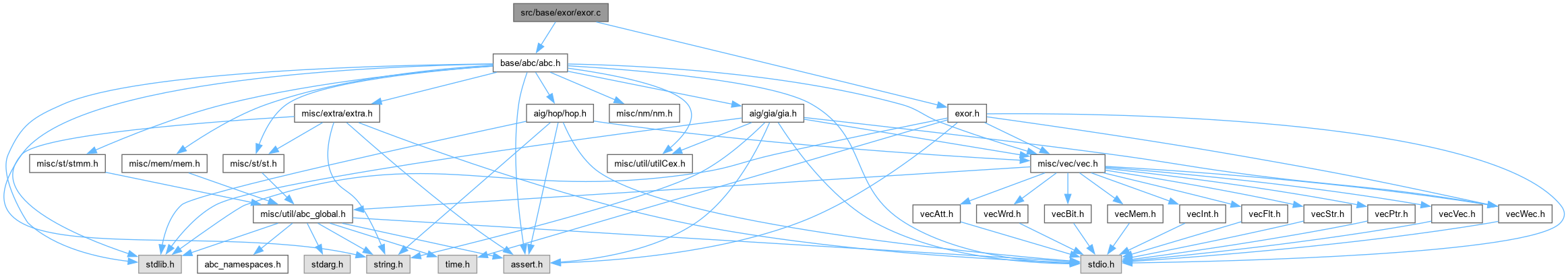

Include dependency graph for exor.c:

Go to the source code of this file.

Functions
int	GetQCost (int nVars, int nNegs)
	EXTERNAL FUNCTIONS ///.
void	GetQCostTest ()
int	ComputeQCost (Vec_Int_t *vCube)
int	ComputeQCostBits (Cube *p)
int	ToffoliGateCount (int controls, int lines)
int	ComputeQCostTcount (Vec_Int_t *vCube)
int	ComputeQCostTcountBits (Cube *p)
int	ReduceEsopCover ()
void	AddCubesToStartingCover (Vec_Wec_t *vEsop)
int	Exorcism (Vec_Wec_t *vEsop, int nIns, int nOuts, char *pFileNameOut)
int	Abc_ExorcismMain (Vec_Wec_t *vEsop, int nIns, int nOuts, char *pFileNameOut, int Quality, int Verbosity, int nCubesMax, int fUseQCost)
Vec_Wec_t *	Abc_ExorcismNtk2Esop (Abc_Ntk_t *pNtk)

Variables
ABC_NAMESPACE_IMPL_START cinfo	g_CoverInfo
	GLOBAL VARIABLES ///.
int	s_fDecreaseLiterals

Function Documentation

Abc_ExorcismMain()

int Abc_ExorcismMain	(	Vec_Wec_t *	vEsop,
		int	nIns,
		int	nOuts,
		char *	pFileNameOut,
		int	Quality,
		int	Verbosity,
		int	nCubesMax,
		int	fUseQCost )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 927 of file exor.c.

{
    memset( &g_CoverInfo, 0, sizeof(cinfo) );
    g_CoverInfo.Quality = Quality;
    g_CoverInfo.Verbosity = Verbosity;
    g_CoverInfo.nCubesMax = nCubesMax;
    g_CoverInfo.fUseQCost = fUseQCost;
    if ( fUseQCost )
        s_fDecreaseLiterals = 1;
    if ( g_CoverInfo.Verbosity )
    {
        printf( "\nEXORCISM, Ver.4.7: Exclusive Sum-of-Product Minimizer\n" );
        printf( "by Alan Mishchenko, Portland State University, July-September 2000\n\n" );
        printf( "Incoming ESOP has %d inputs, %d outputs, and %d cubes.\n", nIns, nOuts, Vec_WecSize(vEsop) );
    }
    PrepareBitSetModule();
    if ( Exorcism( vEsop, nIns, nOuts, pFileNameOut ) == 0 )
    {
        printf( "Something went wrong when minimizing the cover\n" );
        return 0;
    }
    return 1;
}

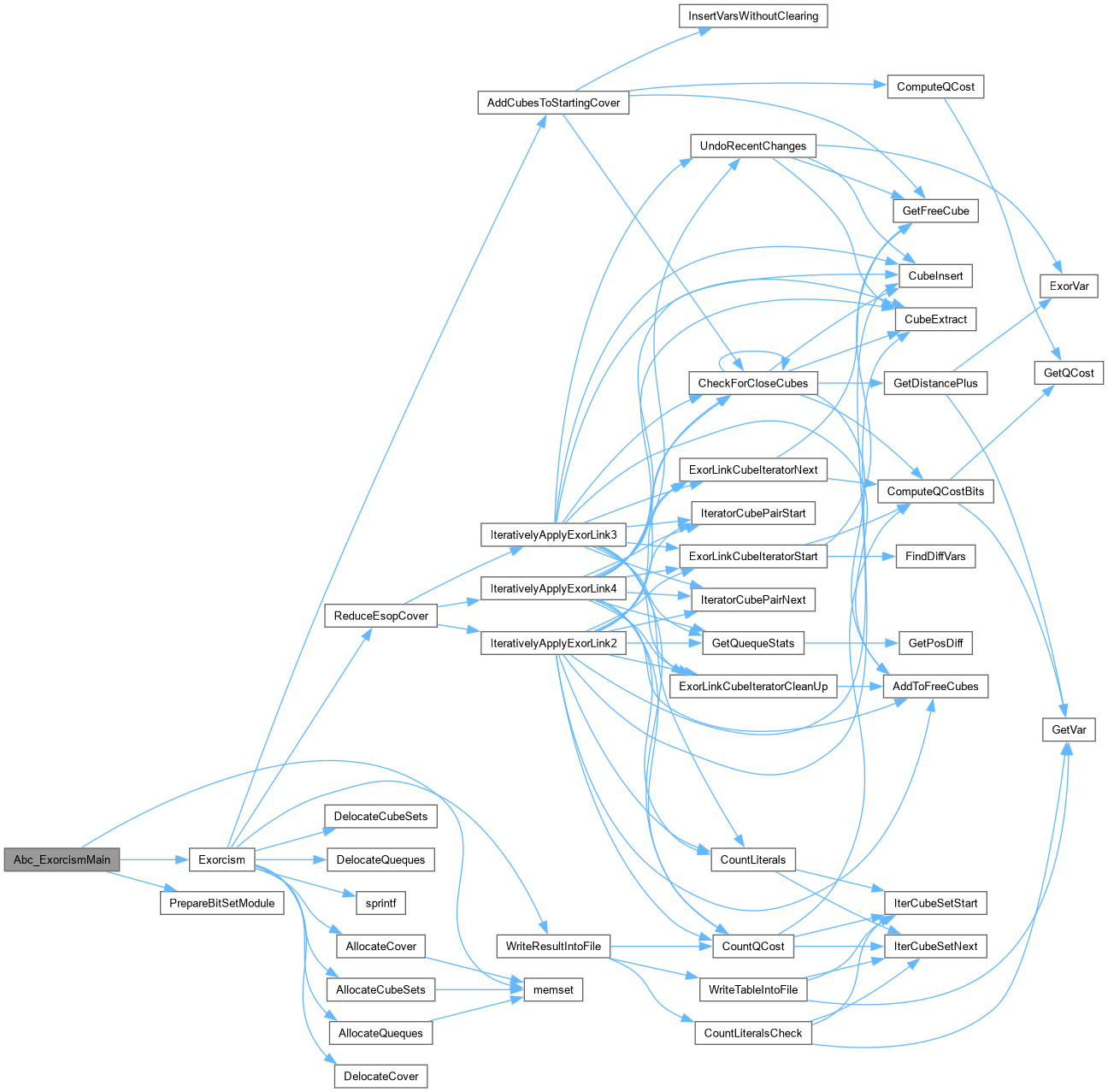

Here is the call graph for this function:

Abc_ExorcismNtk2Esop()

Vec_Wec_t * Abc_ExorcismNtk2Esop

(

Abc_Ntk_t *

pNtk

)

Definition at line 951 of file exor.c.

{
    Vec_Wec_t * vEsop = NULL;
    Abc_Obj_t * pNode, * pFanin, * pDriver;
    char * pCube;
    int nIns, nOuts, nProducts, nFanins, i, k;

    nIns = Abc_NtkCiNum( pNtk );
    nOuts = Abc_NtkCoNum( pNtk );

    nProducts = 0;
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        pDriver = Abc_ObjFanin0Ntk( Abc_ObjFanin0(pNode) );
        if ( !Abc_ObjIsNode(pDriver) )
        {
            nProducts++;
            continue;
        }
        if ( Abc_NodeIsConst(pDriver) )
        {
            if ( Abc_NodeIsConst1(pDriver) )
                nProducts++;
            continue;
        }
        nProducts += Abc_SopGetCubeNum((char *)pDriver->pData);
    }

    Abc_NtkForEachCi( pNtk, pNode, i )
        pNode->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)i;

    vEsop = Vec_WecAlloc( nProducts+1 );

    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        pDriver = Abc_ObjFanin0Ntk( Abc_ObjFanin0(pNode) );
        if ( Abc_NodeIsConst(pDriver) ) continue;

        nFanins = Abc_ObjFaninNum(pDriver);
        Abc_SopForEachCube( (char *)pDriver->pData, nFanins, pCube )
        {
            Vec_Int_t *vCubeIn = Vec_WecPushLevel( vEsop );
            Vec_IntGrow( vCubeIn, nIns+2 );

            Abc_ObjForEachFanin( pDriver, pFanin, k )
            {
                pFanin = Abc_ObjFanin0Ntk(pFanin);
                assert( (int)(ABC_PTRUINT_T)pFanin->pCopy < nIns );
                if ( pCube[k] == '0' )
                {
                    Vec_IntPush( vCubeIn, 2*k + 1 );
                }
                else if ( pCube[k] == '1' )
                {
                    Vec_IntPush( vCubeIn, 2*k );
                }
            }
            Vec_IntPush( vCubeIn, -( i + 1 ) );
        }
    }

    return vEsop;
}

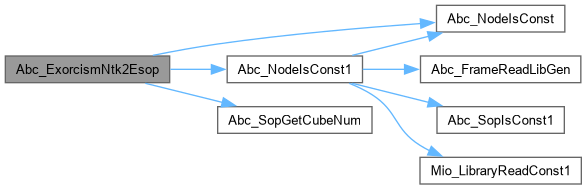

Here is the call graph for this function:

AddCubesToStartingCover()

void AddCubesToStartingCover

(

Vec_Wec_t *

vEsop

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 702 of file exor.c.

{
    Vec_Int_t * vCube;
    Cube * pNew;
    int * s_Level2Var;
    int * s_LevelValues;
    int c, i, k, Lit, Out;

    s_Level2Var = ABC_ALLOC( int, g_CoverInfo.nVarsIn );
    s_LevelValues = ABC_ALLOC( int, g_CoverInfo.nVarsIn );

    for ( i = 0; i < g_CoverInfo.nVarsIn; i++ )
        s_Level2Var[i] = i;

    g_CoverInfo.nLiteralsBefore = 0;
    g_CoverInfo.QCostBefore = 0;
    Vec_WecForEachLevel( vEsop, vCube, c )
    {
        // get the output of this cube
        Out = -Vec_IntPop(vCube) - 1;

        // fill in the cube with blanks
        for ( i = 0; i < g_CoverInfo.nVarsIn; i++ )
            s_LevelValues[i] = VAR_ABS;
        Vec_IntForEachEntry( vCube, Lit, k )
        {
            if ( Abc_LitIsCompl(Lit) )
                s_LevelValues[Abc_Lit2Var(Lit)] = VAR_NEG;
            else
                s_LevelValues[Abc_Lit2Var(Lit)] = VAR_POS;
        }

        // get the new cube
        pNew = GetFreeCube();
        // consider the need to clear the cube
        if ( pNew->pCubeDataIn[0] ) // this is a recycled cube
        {
            for ( i = 0; i < g_CoverInfo.nWordsIn; i++ )
                pNew->pCubeDataIn[i] = 0;
            for ( i = 0; i < g_CoverInfo.nWordsOut; i++ )
                pNew->pCubeDataOut[i] = 0;
        }

        InsertVarsWithoutClearing( pNew, s_Level2Var, g_CoverInfo.nVarsIn, s_LevelValues, Out );
        // set literal counts
        pNew->a = Vec_IntSize(vCube);
        pNew->z = 1;
        pNew->q = ComputeQCost(vCube);
        // set the ID
        pNew->ID = g_CoverInfo.cIDs++;
        // skip through zero-ID
        if ( g_CoverInfo.cIDs == 256 )
            g_CoverInfo.cIDs = 1;

        // add this cube to storage
        CheckForCloseCubes( pNew, 1 );

        g_CoverInfo.nLiteralsBefore += Vec_IntSize(vCube);
        g_CoverInfo.QCostBefore += ComputeQCost(vCube);
    }
    ABC_FREE( s_Level2Var );
    ABC_FREE( s_LevelValues );

    assert ( g_CoverInfo.nCubesInUse + g_CoverInfo.nCubesFree == g_CoverInfo.nCubesAlloc );
}

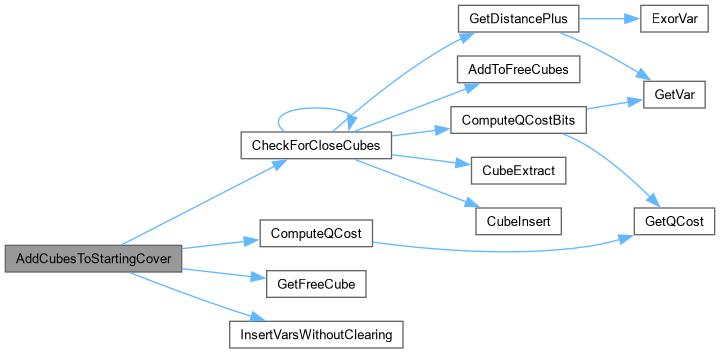

Here is the call graph for this function:

Here is the caller graph for this function:

ComputeQCost()

int ComputeQCost

(

Vec_Int_t *

vCube

)

Definition at line 132 of file exor.c.

{
    int i, Entry, nLitsN = 0;
    Vec_IntForEachEntry( vCube, Entry, i )
        nLitsN += Abc_LitIsCompl(Entry);
    return GetQCost( Vec_IntSize(vCube), nLitsN );
}

Here is the call graph for this function:

Here is the caller graph for this function:

ComputeQCostBits()

int ComputeQCostBits

(

Cube *

p

)

Definition at line 139 of file exor.c.

{
    extern varvalue GetVar( Cube* pC, int Var );
    int v, nLits = 0, nLitsN = 0;
    for ( v = 0; v < g_CoverInfo.nVarsIn; v++ )
    {
        int Value = GetVar( p, v );
        if ( Value == VAR_NEG )
            nLitsN++;
        else if ( Value == VAR_POS )
            nLits++;
    }
    nLits += nLitsN;
    return GetQCost( nLits, nLitsN );
}

Here is the call graph for this function:

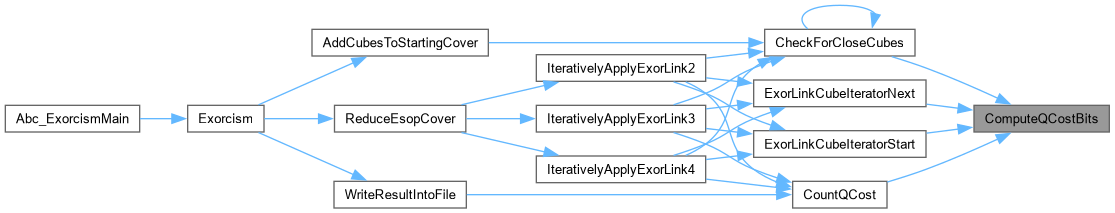

Here is the caller graph for this function:

ComputeQCostTcount()

int ComputeQCostTcount

(

Vec_Int_t *

vCube

)

Definition at line 175 of file exor.c.

{
    return 7 * ToffoliGateCount( Vec_IntSize( vCube ), g_CoverInfo.nVarsIn + 1 );
}

Here is the call graph for this function:

ComputeQCostTcountBits()

int ComputeQCostTcountBits

(

Cube *

p

)

Definition at line 179 of file exor.c.

{
    extern varvalue GetVar( Cube* pC, int Var );
    int v, nLits = 0;
    for ( v = 0; v < g_CoverInfo.nVarsIn; v++ )
        if ( GetVar( p, v ) != VAR_ABS )
            nLits++;
    return 7 * ToffoliGateCount( nLits, g_CoverInfo.nVarsIn + 1 );

    /* maybe just: 7 * ToffoliGateCount( p->a, g_CoverInfo.nVarsIn + 1 ); */
}

Here is the call graph for this function:

Exorcism()

int Exorcism	(	Vec_Wec_t *	vEsop,
		int	nIns,
		int	nOuts,
		char *	pFileNameOut )

Function*************************************************************

Synopsis [Performs heuristic minimization of ESOPs.]

Description [Returns 1 on success, 0 on failure.]

SideEffects []

SeeAlso []

Definition at line 779 of file exor.c.

{
    abctime clk1;
    int RemainderBits;
    int TotalWords;
    int MemTemp, MemTotal;

    // STEPS of HEURISTIC ESOP MINIMIZATION
    // STEP 1: determine the size of the starting cover
    assert( nIns > 0 );
    // inputs
    RemainderBits = (nIns*2)%(sizeof(unsigned)*8);
    TotalWords    = (nIns*2)/(sizeof(unsigned)*8) + (RemainderBits > 0);
    g_CoverInfo.nVarsIn  = nIns;
    g_CoverInfo.nWordsIn = TotalWords;
    // outputs
    RemainderBits = (nOuts)%(sizeof(unsigned)*8);
    TotalWords    = (nOuts)/(sizeof(unsigned)*8) + (RemainderBits > 0);
    g_CoverInfo.nVarsOut  = nOuts;
    g_CoverInfo.nWordsOut = TotalWords;
    g_CoverInfo.cIDs = 1;

    // cubes
    clk1 = Abc_Clock();
//  g_CoverInfo.nCubesBefore = CountTermsInPseudoKroneckerCover( g_Func.dd, nOuts );
    g_CoverInfo.nCubesBefore = Vec_WecSize(vEsop);
    g_CoverInfo.TimeStart = Abc_Clock() - clk1;

    if ( g_CoverInfo.Verbosity )
    {
    printf( "Starting cover generation time is %.2f sec\n", TICKS_TO_SECONDS(g_CoverInfo.TimeStart) );
    printf( "The number of cubes in the starting cover is %d\n", g_CoverInfo.nCubesBefore );
    }

    if ( g_CoverInfo.nCubesBefore > g_CoverInfo.nCubesMax )
    {
        printf( "\nThe size of the starting cover is more than %d cubes. Quitting...\n", g_CoverInfo.nCubesMax );
        return 0;
    }

    // STEP 2: prepare internal data structures
    g_CoverInfo.nCubesAlloc = g_CoverInfo.nCubesBefore + ADDITIONAL_CUBES;

    // allocate cube cover
    MemTotal = 0;
    MemTemp = AllocateCover( g_CoverInfo.nCubesAlloc, g_CoverInfo.nWordsIn, g_CoverInfo.nWordsOut );
    if ( MemTemp == 0 )
    {
        printf( "Unexpected memory allocation problem. Quitting...\n" );
        return 0;
    }
    else
        MemTotal += MemTemp;

    // allocate cube sets
    MemTemp = AllocateCubeSets( g_CoverInfo.nVarsIn, g_CoverInfo.nVarsOut );
    if ( MemTemp == 0 )
    {
        printf( "Unexpected memory allocation problem. Quitting...\n" );
        return 0;
    }
    else
        MemTotal += MemTemp;

    // allocate adjacency queques
    MemTemp = AllocateQueques( g_CoverInfo.nCubesAlloc*g_CoverInfo.nCubesAlloc/CUBE_PAIR_FACTOR );
    if ( MemTemp == 0 )
    {
        printf( "Unexpected memory allocation problem. Quitting...\n" );
        return 0;
    }
    else
        MemTotal += MemTemp;

    if ( g_CoverInfo.Verbosity )
    printf( "Dynamically allocated memory is %dK\n",  MemTotal/1000 );

    // STEP 3: write the cube cover into the allocated storage
    clk1 = Abc_Clock();
    if ( g_CoverInfo.Verbosity )
    printf( "Generating the starting cover...\n" );
    AddCubesToStartingCover( vEsop );

    // STEP 4: iteratively improve the cover
    if ( g_CoverInfo.Verbosity )
    printf( "Performing minimization...\n" );
    clk1 = Abc_Clock();
    ReduceEsopCover();
    g_CoverInfo.TimeMin = Abc_Clock() - clk1;
//  g_Func.TimeMin = (float)(Abc_Clock() - clk1)/(float)(CLOCKS_PER_SEC);
    if ( g_CoverInfo.Verbosity )
    {
    printf( "\nMinimization time is %.2f sec\n", TICKS_TO_SECONDS(g_CoverInfo.TimeMin) );
    printf( "\nThe number of cubes after minimization is %d\n", g_CoverInfo.nCubesInUse );
    }

    // STEP 5: save the cover into file
    // if option is MULTI_OUTPUT, the output is written into the output file;
    // if option is SINGLE_NODE, the output is added to the input file
    // and written into the output file; in this case, the minimized nodes is
    // also stored in the temporary file "temp.blif" for verification

    // create the file name and write the output
    {
        char Buffer[1000];
        sprintf( Buffer, "%s", pFileNameOut ? pFileNameOut : "temp.esop" );
        WriteResultIntoFile( Buffer );
        if ( g_CoverInfo.Verbosity )
            printf( "Minimized cover has been written into file <%s>\n", Buffer );
    }

    // STEP 6: delocate memory
    DelocateCubeSets();
    DelocateCover();
    DelocateQueques();

    // return success
    return 1;
}

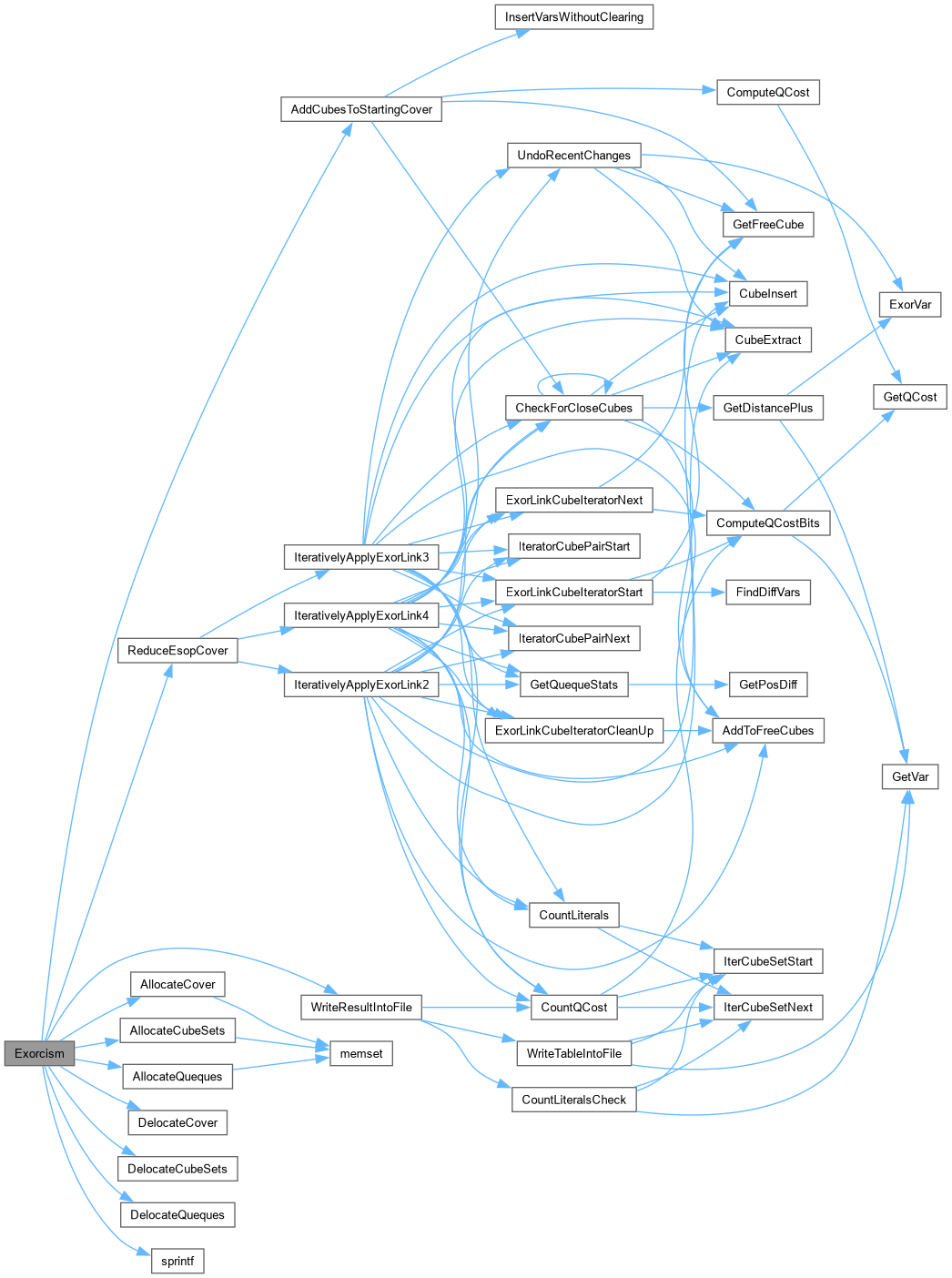

Here is the call graph for this function:

Here is the caller graph for this function:

GetQCost()

int GetQCost	(	int	nVars,
		int	nNegs )

EXTERNAL FUNCTIONS ///.

FUNCTION main() /// Function*************************************************************

Synopsis [Number of negative literals.]

Description []

SideEffects []

SeeAlso []

Definition at line 96 of file exor.c.

{
    int Extra;
    assert( nVars >= nNegs );
    if ( nVars == 0 )
        return 1;
    if ( nVars == 1 )
    {
        if ( nNegs == 0 )  return 1;
        if ( nNegs == 1 )  return 2;
    }
    if ( nVars == 2 )
    {
        if ( nNegs <= 1 )  return 5;
        if ( nNegs == 2 )  return 6;
    }
    if ( nVars == 3 )
    {
        if ( nNegs <= 1 )  return 14;
        if ( nNegs == 2 )  return 16;
        if ( nNegs == 3 )  return 18;
    }
    Extra = nNegs - nVars/2;
    return 20 + 12 * (nVars - 4) + (Extra > 0 ? 2 * Extra : 0);

}

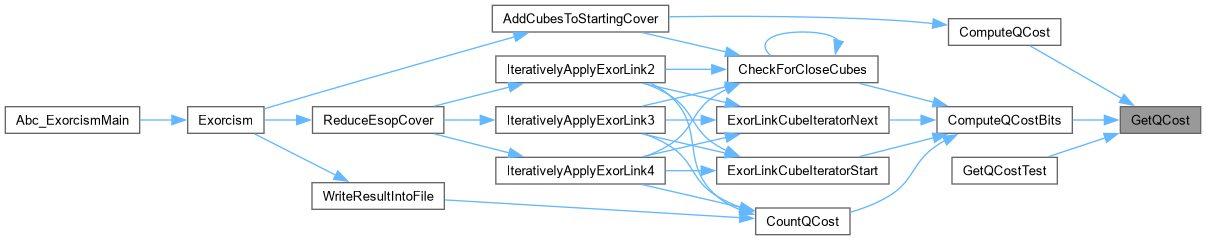

Here is the caller graph for this function:

GetQCostTest()

void GetQCostTest

(

)

Definition at line 122 of file exor.c.

{
    int i, k, Limit = 10;
    for ( i = 0; i < Limit; i++ )
    {
        for ( k = 0; k <= i; k++ )
            printf( "%4d ", GetQCost(i, k) );
        printf( "\n" );
    }
}

Here is the call graph for this function:

ReduceEsopCover()

int ReduceEsopCover

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 203 of file exor.c.

{
    // SIMPLIFICATION

    int nIterWithoutImprovement = 0;
    int nIterCount = 0;
    int GainTotal;
    int z;

    do
    {
//START:
        if ( g_CoverInfo.Verbosity == 2 )
            printf( "\nITERATION #%d\n\n", ++nIterCount );
        else if ( g_CoverInfo.Verbosity == 1 )
            printf( "." );

        GainTotal  = 0;
        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        if ( nIterWithoutImprovement > (int)(g_CoverInfo.Quality>0) )
        {
            GainTotal += IterativelyApplyExorLink2( 1|2|0 );
            GainTotal += IterativelyApplyExorLink3( 1|2|0 );
            GainTotal += IterativelyApplyExorLink2( 1|2|4 );
            GainTotal += IterativelyApplyExorLink3( 1|2|4 );
            GainTotal += IterativelyApplyExorLink2( 1|2|4 );
            GainTotal += IterativelyApplyExorLink4( 1|2|4 );
            GainTotal += IterativelyApplyExorLink2( 1|2|4 );
            GainTotal += IterativelyApplyExorLink4( 1|2|0 );

            GainTotal += IterativelyApplyExorLink2( 1|2|0 );
            GainTotal += IterativelyApplyExorLink3( 1|2|0 );
            GainTotal += IterativelyApplyExorLink2( 1|2|4 );
            GainTotal += IterativelyApplyExorLink3( 1|2|4 );
            GainTotal += IterativelyApplyExorLink2( 1|2|4 );
            GainTotal += IterativelyApplyExorLink4( 1|2|4 );
            GainTotal += IterativelyApplyExorLink2( 1|2|4 );
            GainTotal += IterativelyApplyExorLink4( 1|2|0 );
        }

        if ( GainTotal )
            nIterWithoutImprovement = 0;
        else
            nIterWithoutImprovement++;

//      if ( g_CoverInfo.Quality >= 2 && nIterWithoutImprovement == 2 )
//          s_fDecreaseLiterals = 1;
    }
    while ( nIterWithoutImprovement < 1 + g_CoverInfo.Quality );


    // improve the literal count
    s_fDecreaseLiterals = 1;
    for ( z = 0; z < 1; z++ )
    {
        if ( g_CoverInfo.Verbosity == 2 )
            printf( "\nITERATION #%d\n\n", ++nIterCount );
        else if ( g_CoverInfo.Verbosity == 1 )
            printf( "." );

        GainTotal  = 0;
        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

        GainTotal += IterativelyApplyExorLink2( 1|2|0 );
        GainTotal += IterativelyApplyExorLink3( 1|2|0 );

//      if ( GainTotal )
//      {
//          nIterWithoutImprovement = 0;
//          goto START;
//      }
    }


/*  ////////////////////////////////////////////////////////////////////
    // Print statistics
    printf( "\nShallow simplification time is ";
    cout << (float)(clk2 - clk1)/(float)(CLOCKS_PER_SEC) << " sec\n" );
    printf( "Deep simplification time is ";
    cout << (float)(Abc_Clock() - clk2)/(float)(CLOCKS_PER_SEC) << " sec\n" );
    printf( "Cover after iterative simplification = " << s_nCubesInUse << endl;
    printf( "Reduced by initial cube writing      = " << g_CoverInfo.nCubesBefore-nCubesAfterWriting << endl;
    printf( "Reduced by shallow simplification    = " << nCubesAfterWriting-nCubesAfterShallow << endl;
    printf( "Reduced by deep simplification       = " << nCubesAfterWriting-s_nCubesInUse << endl;

//  printf( "\nThe total number of cubes created = " << g_CoverInfo.cIDs << endl;
//  printf( "Total number of places in a queque = " << s_nPosAlloc << endl;
//  printf( "Minimum free places in queque-2 = " << s_nPosMax[0] << endl;
//  printf( "Minimum free places in queque-3 = " << s_nPosMax[1] << endl;
//  printf( "Minimum free places in queque-4 = " << s_nPosMax[2] << endl;
*/

    // write the number of cubes into cover information
    assert ( g_CoverInfo.nCubesInUse + g_CoverInfo.nCubesFree == g_CoverInfo.nCubesAlloc );

//  printf( "\nThe output cover is\n" );
//  PrintCoverDebug( cout );

    return 0;
}

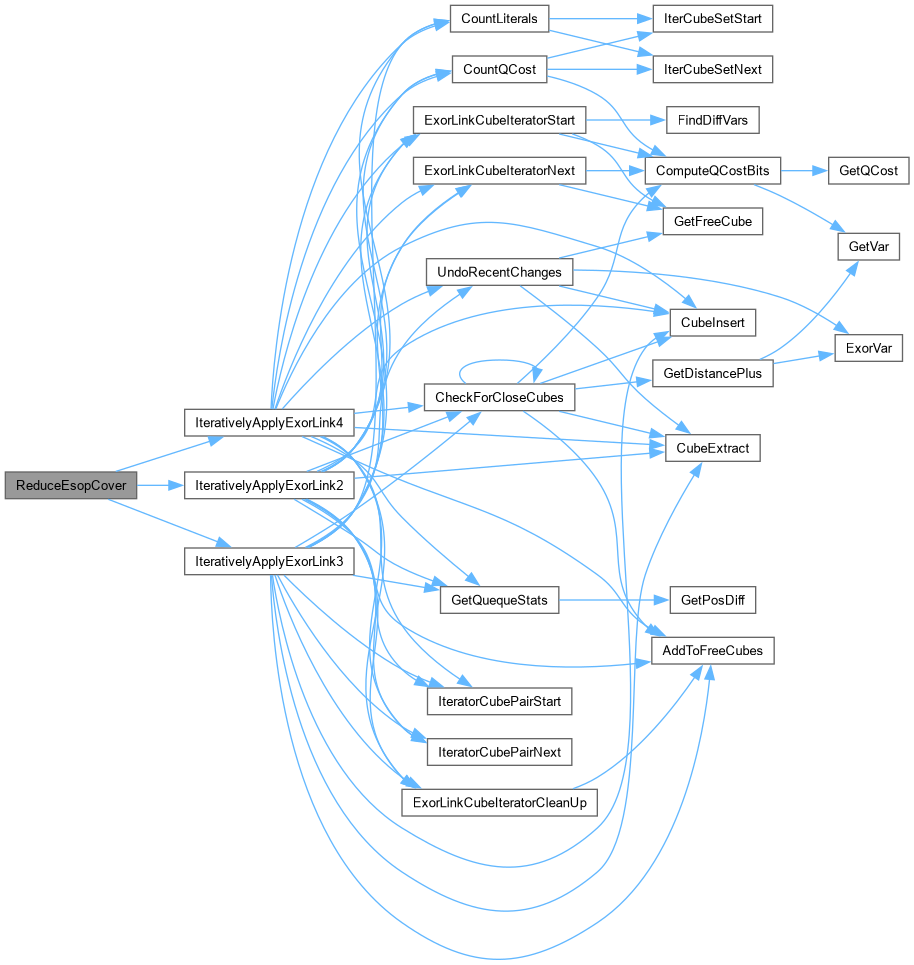

Here is the call graph for this function:

Here is the caller graph for this function:

ToffoliGateCount()

int ToffoliGateCount	(	int	controls,
		int	lines )

Definition at line 154 of file exor.c.

{
    switch ( controls )
    {
    case 0u:
    case 1u:
        return 0;
        break;
    case 2u:
        return 1;
        break;
    case 3u:
        return 4;
        break;
    case 4u:
        return ( ( ( lines + 1 ) / 2 ) >= controls ) ? 8 : 10;
        break;
    default:
        return ( ( ( lines + 1 ) / 2 ) >= controls ) ? 4 * ( controls - 2 ) : 8 * ( controls - 3 );
    }
}

Here is the caller graph for this function:

Variable Documentation

g_CoverInfo

ABC_NAMESPACE_IMPL_START cinfo g_CoverInfo

GLOBAL VARIABLES ///.

EXTERNAL VARIABLES ////.

EXTERNAL VARIABLES ///.

EXTERNAL FUNCTIONS ///.

MACRO DEFINITIONS ///.

CFile****************************************************************

FileName [exor.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Exclusive sum-of-product minimization.]

Synopsis [Main procedure.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

exor.c,v 1.0 2005/06/20 00:00:00 alanmi Exp

]

                                                            ///
            Implementation of EXORCISM - 4                  ///
        An Exclusive Sum-of-Product Minimizer               ///
         Alan Mishchenko  <alanmi@ee.pdx.edu>               ///
                                                            ///

                                                            ///
                   Main Module                              ///
          ESOP Minimization Task Coordinator                ///
                                                            ///
    1) interprets command line                              ///
    2) calls the approapriate reading procedure             ///
    3) calls the minimization module                        ///
                                                            ///

Ver. 1.0. Started - July 18, 2000. Last update - July 20, 2000 /// Ver. 1.1. Started - July 24, 2000. Last update - July 29, 2000 /// Ver. 1.4. Started - Aug 10, 2000. Last update - Aug 26, 2000 /// Ver. 1.6. Started - Sep 11, 2000. Last update - Sep 15, 2000 /// Ver. 1.7. Started - Sep 20, 2000. Last update - Sep 23, 2000 /// ///

This software was tested with the BDD package "CUDD", v.2.3.0 /// by Fabio Somenzi /// http://vlsi.colorado.edu/~fabio/ ///

Definition at line 58 of file exor.c.

s_fDecreaseLiterals

int s_fDecreaseLiterals

extern

Definition at line 247 of file exorList.c.
