extraLutCas.h File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include "aig/miniaig/miniaig.h"
#include "bdd/cudd/cuddInt.h"
#include "bdd/dsd/dsd.h"

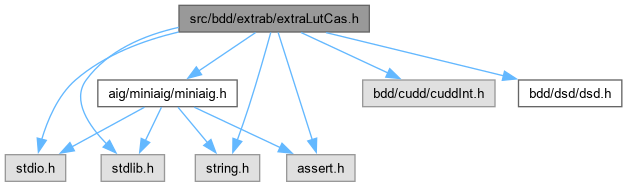

Include dependency graph for extraLutCas.h:

Go to the source code of this file.

Macros
#define	Mini_AigForEachNonPo(p, i)

Functions
void	Abc_LutCasCollapseDeref (DdManager *dd, Vec_Ptr_t *vFuncs)
Vec_Ptr_t *	Abc_LutCasCollapse (Mini_Aig_t *p, DdManager *dd, int nBddLimit, int fVerbose)
Vec_Ptr_t *	Abc_LutBddScan (DdManager *dd, DdNode *bFunc, int nVars)
char *	Abc_LutBddToTruth (Vec_Ptr_t *vFuncs)
char *	Abc_NtkPrecomputeData ()
int	Abc_NtkDecPatCount (int iFirst, int nStep, int MyuMax, char *pDecPat, char *pPermInfo)
int	Abc_NtkDecPatDecompose_rec (int Mask, int nMaskVars, int iStart, int nVars, int nDiffs, int nRails, char *pDecPat, char *pPermInfo)
int	Abc_NtkDecPatDecompose (int nVars, int nRails, char *pDecPat, char *pPermInfo)
int	Abc_NtkCascadeDecompose (int nVars, int nRails, char *pDecPat, char *pPermInfo)
Vec_Ptr_t *	Abc_LutCasFakeNames (int nNames)
void	Abc_LutCasPrintDsd (DdManager *dd, DdNode *bFunc, int fVerbose)
DdNode *	Abc_LutCasBuildBdds (Mini_Aig_t *p, DdManager **pdd, int fReorder)

Macro Definition Documentation

Mini_AigForEachNonPo

#define Mini_AigForEachNonPo	(		p,
			i )

Value:

for (i = 1; i < Mini_AigNodeNum(p); i++) if ( Mini_AigNodeIsPo(p, i) ) {} else

CFile****************************************************************

FileName [extraLutCas.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [extra]

Synopsis [LUT cascade decomposition.]

Description [LUT cascade decomposition.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - August 6, 2024.]

Revision [

Id

extraLutCas.h,v 1.00 2024/08/06 00:00:00 alanmi Exp

]

Definition at line 60 of file extraLutCas.h.

Function Documentation

Abc_LutBddScan()

Vec_Ptr_t * Abc_LutBddScan	(	DdManager *	dd,
		DdNode *	bFunc,
		int	nVars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 126 of file extraLutCas.h.

{
    Vec_Ptr_t * vRes = Vec_PtrAlloc( 1 << nVars );
    Vec_Ptr_t * vRes2 = Vec_PtrAlloc( 1 << nVars );
    Vec_PtrPush( vRes, bFunc );
    int v, Level = Cudd_ReadPerm( dd, Cudd_NodeReadIndex(bFunc) );
    for ( v = 0; v < dd->size; v++ )
        printf( "%2d : perm = %d  invperm = %d\n", v, dd->perm[v], dd->invperm[v] );
    for ( v = 0; v < nVars; v++ )
    {
        int i, LevelCur = Level + v;
        Vec_PtrClear( vRes2 );
        DdNode * bTemp;
        Vec_PtrForEachEntry( DdNode *, vRes, bTemp, i )  {
            int LevelTemp = Cudd_ReadPerm( dd, Cudd_NodeReadIndex(bTemp) );
            if ( LevelTemp == LevelCur ) {
                Vec_PtrPush( vRes2, Cudd_NotCond(Cudd_E(bTemp), Cudd_IsComplement(bTemp)) );
                Vec_PtrPush( vRes2, Cudd_NotCond(Cudd_T(bTemp), Cudd_IsComplement(bTemp)) );
            }
            else if ( LevelTemp > LevelCur ) {
                Vec_PtrPush( vRes2, bTemp );
                Vec_PtrPush( vRes2, bTemp );
            }
            else assert( 0 );
        }
        ABC_SWAP( Vec_Ptr_t *, vRes, vRes2 );
        //Vec_PtrForEachEntry( DdNode *, vRes, bTemp, i )
        //    printf( "%p ", bTemp );
        //printf( "\n" );
    }
    Vec_PtrFree( vRes2 );
    assert( Vec_PtrSize(vRes) == (1 << nVars) );
    return vRes;
}

Abc_LutBddToTruth()

char * Abc_LutBddToTruth

(

Vec_Ptr_t *

vFuncs

)

Definition at line 160 of file extraLutCas.h.

{
    assert( Vec_PtrSize(vFuncs) <= 256 );
    char * pRes = ABC_CALLOC( char, Vec_PtrSize(vFuncs)+1 );
    void * pTemp, * pStore[256] = {Vec_PtrEntry(vFuncs, 0)};
    int i, k, nStore = 1; pRes[0] = 'a';
    Vec_PtrForEachEntryStart( void *, vFuncs, pTemp, i, 1 ) {
        for ( k = 0; k < nStore; k++ )
            if ( pStore[k] == pTemp )
                break;
        if ( k == nStore )
            pStore[nStore++] = pTemp;
        pRes[i] = 'a' + (char)k;
    }
    return pRes;
}

Abc_LutCasBuildBdds()

DdNode * Abc_LutCasBuildBdds	(	Mini_Aig_t *	p,
		DdManager **	pdd,
		int	fReorder )

Definition at line 320 of file extraLutCas.h.

{
    DdManager * dd = Cudd_Init( Mini_AigPiNum(p), 0, CUDD_UNIQUE_SLOTS, CUDD_CACHE_SLOTS, 0 );
    if ( fReorder ) Cudd_AutodynEnable( dd,  CUDD_REORDER_SYMM_SIFT );
    Vec_Ptr_t * vFuncs = Abc_LutCasCollapse( p, dd, 10000, 0 );
    if ( fReorder ) Cudd_AutodynDisable( dd );
    if ( vFuncs == NULL ) {
        Extra_StopManager( dd );
        return NULL;
    }
    DdNode * bNode = (DdNode *)Vec_PtrEntry(vFuncs, 0);
    Vec_PtrFree(vFuncs);
    *pdd = dd;
    return bNode;
}

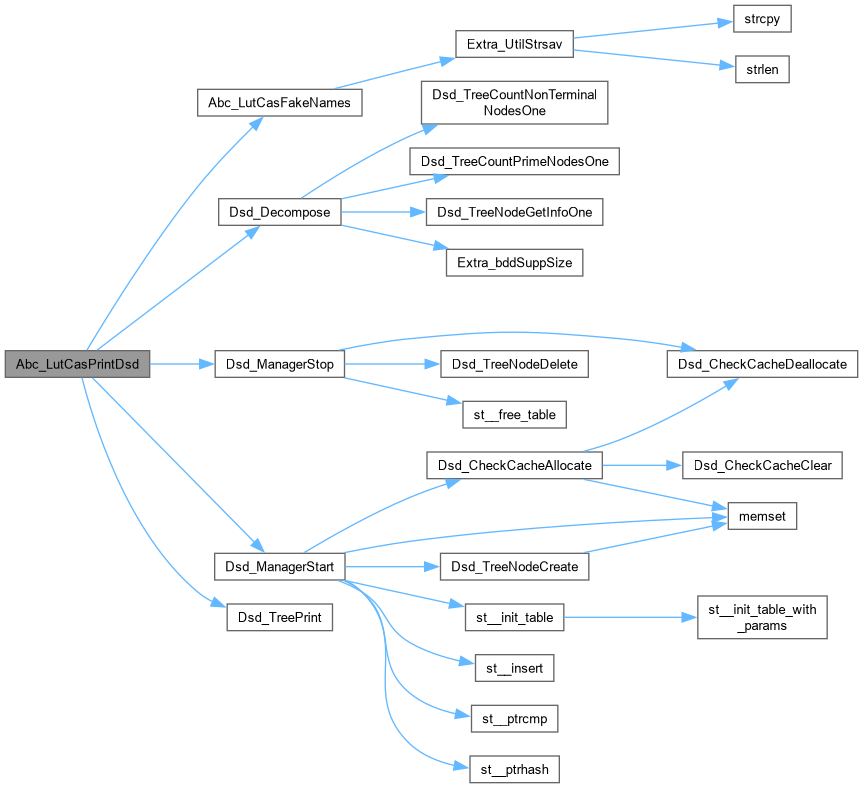

Here is the call graph for this function:

Abc_LutCasCollapse()

Vec_Ptr_t * Abc_LutCasCollapse	(	Mini_Aig_t *	p,
		DdManager *	dd,
		int	nBddLimit,
		int	fVerbose )

Definition at line 81 of file extraLutCas.h.

{
    DdNode * bFunc0, * bFunc1, * bFunc;  int Id, nOuts = 0;
    Vec_Ptr_t * vFuncs = Vec_PtrStart( Mini_AigNodeNum(p) );
    Vec_PtrWriteEntry( vFuncs, 0, Cudd_ReadLogicZero(dd) ), Cudd_Ref(Cudd_ReadLogicZero(dd));
    Mini_AigForEachPi( p, Id )
      Vec_PtrWriteEntry( vFuncs, Id, Cudd_bddIthVar(dd,Id-1) ), Cudd_Ref(Cudd_bddIthVar(dd,Id-1));
    Mini_AigForEachAnd( p, Id ) {
        bFunc0 = Cudd_NotCond( (DdNode *)Vec_PtrEntry(vFuncs, Mini_AigLit2Var(Mini_AigNodeFanin0(p, Id))), Mini_AigLitIsCompl(Mini_AigNodeFanin0(p, Id)) );
        bFunc1 = Cudd_NotCond( (DdNode *)Vec_PtrEntry(vFuncs, Mini_AigLit2Var(Mini_AigNodeFanin1(p, Id))), Mini_AigLitIsCompl(Mini_AigNodeFanin1(p, Id)) );
        bFunc  = Cudd_bddAndLimit( dd, bFunc0, bFunc1, nBddLimit );
        if ( bFunc == NULL )
        {
            Abc_LutCasCollapseDeref( dd, vFuncs );
            return NULL;
        }
        Cudd_Ref( bFunc );
        Vec_PtrWriteEntry( vFuncs, Id, bFunc );
    }
    Mini_AigForEachPo( p, Id ) {
        bFunc0 = Cudd_NotCond( (DdNode *)Vec_PtrEntry(vFuncs, Mini_AigLit2Var(Mini_AigNodeFanin0(p, Id))), Mini_AigLitIsCompl(Mini_AigNodeFanin0(p, Id)) );
        Vec_PtrWriteEntry( vFuncs, Id, bFunc0 ); Cudd_Ref( bFunc0 );
    }
    Mini_AigForEachNonPo( p, Id ) {
      bFunc = (DdNode *)Vec_PtrEntry(vFuncs, Id);
      Cudd_RecursiveDeref( dd, bFunc );
      Vec_PtrWriteEntry( vFuncs, Id, NULL );
    }
    Mini_AigForEachPo( p, Id )
        Vec_PtrWriteEntry( vFuncs, nOuts++, Vec_PtrEntry(vFuncs, Id) );
    Vec_PtrShrink( vFuncs, nOuts );
    return vFuncs;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_LutCasCollapseDeref()

void Abc_LutCasCollapseDeref	(	DdManager *	dd,
		Vec_Ptr_t *	vFuncs )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 73 of file extraLutCas.h.

{
    DdNode * bFunc; int i;
    Vec_PtrForEachEntry( DdNode *, vFuncs, bFunc, i )
        if ( bFunc )
            Cudd_RecursiveDeref( dd, bFunc );
    Vec_PtrFree( vFuncs );
}

Here is the caller graph for this function:

Abc_LutCasFakeNames()

Vec_Ptr_t * Abc_LutCasFakeNames

(

int

nNames

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 280 of file extraLutCas.h.

{
    Vec_Ptr_t * vNames;
    char Buffer[5];
    int i;

    vNames = Vec_PtrAlloc( nNames );
    for ( i = 0; i < nNames; i++ )
    {
        if ( nNames < 26 )
        {
            Buffer[0] = 'a' + i;
            Buffer[1] = 0;
        }
        else
        {
            Buffer[0] = 'a' + i%26;
            Buffer[1] = '0' + i/26;
            Buffer[2] = 0;
        }
        Vec_PtrPush( vNames, Extra_UtilStrsav(Buffer) );
    }
    return vNames;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_LutCasPrintDsd()

void Abc_LutCasPrintDsd	(	DdManager *	dd,
		DdNode *	bFunc,
		int	fVerbose )

Definition at line 304 of file extraLutCas.h.

{
    Dsd_Manager_t * pManDsd = Dsd_ManagerStart( dd, dd->size, 0 );
    Dsd_Decompose( pManDsd, &bFunc, 1 );
    if ( fVerbose )
    {
        Vec_Ptr_t * vNamesCi = Abc_LutCasFakeNames( dd->size );
        Vec_Ptr_t * vNamesCo = Abc_LutCasFakeNames( 1 );
        char ** ppNamesCi = (char **)Vec_PtrArray( vNamesCi );
        char ** ppNamesCo = (char **)Vec_PtrArray( vNamesCo );
        Dsd_TreePrint( stdout, pManDsd, ppNamesCi, ppNamesCo, 0, -1, 0 );
        Vec_PtrFreeFree( vNamesCi );
        Vec_PtrFreeFree( vNamesCo );
    }
    Dsd_ManagerStop( pManDsd );
}

Here is the call graph for this function:

Abc_NtkCascadeDecompose()

int Abc_NtkCascadeDecompose	(	int	nVars,
		int	nRails,
		char *	pDecPat,
		char *	pPermInfo )

Definition at line 262 of file extraLutCas.h.

{
    return 0;
}

Abc_NtkDecPatCount()

int Abc_NtkDecPatCount	(	int	iFirst,
		int	nStep,
		int	MyuMax,
		char *	pDecPat,
		char *	pPermInfo )

Definition at line 210 of file extraLutCas.h.

{
    int s, k, nPats = 1;
    char Pats[256] = { pDecPat[(int)pPermInfo[iFirst]] };
    assert( MyuMax <= 256 );
    for ( s = 1; s < nStep; s++ ) {
        char Entry = pDecPat[(int)pPermInfo[iFirst+s]];
        for ( k = 0; k < nPats; k++ )
            if ( Pats[k] == Entry )
                break;
        if ( k < nPats )
            continue;
        if ( nPats == MyuMax )
            return MyuMax + 1;
        assert( nPats < 256 );
        Pats[nPats++] = Entry;
    }
    return nPats;
}

Here is the caller graph for this function:

Abc_NtkDecPatDecompose()

int Abc_NtkDecPatDecompose	(	int	nVars,
		int	nRails,
		char *	pDecPat,
		char *	pPermInfo )

Definition at line 252 of file extraLutCas.h.

{
    int BoundSet = ~(~0 << nVars);
    int Myu = Abc_NtkDecPatCount( 0, 1 << nVars, 256, pDecPat, pPermInfo + 256*BoundSet );
    int Log2 = Abc_Base2Log( Myu );
    if ( Log2 <= nRails )
        return BoundSet;
    return Abc_NtkDecPatDecompose_rec( BoundSet, nVars, 0, nVars, Log2 - nRails, nRails, pDecPat, pPermInfo );
}

Here is the call graph for this function:

Abc_NtkDecPatDecompose_rec()

int Abc_NtkDecPatDecompose_rec	(	int	Mask,
		int	nMaskVars,
		int	iStart,
		int	nVars,
		int	nDiffs,
		int	nRails,
		char *	pDecPat,
		char *	pPermInfo )

Definition at line 229 of file extraLutCas.h.

{
    if ( nDiffs == 0 || iStart == nVars )
        return 0;
    int v, m, nMints = 1 << nVars;
    for ( v = iStart; v < nVars; v++ ) {
        int MaskThis = Mask & ~(1 << v);
        int nStep = 1 << (nMaskVars - 1);
        int MyuMax = 0;
        for ( m = 0; m < nMints; m += nStep ) {
            int MyuCur = Abc_NtkDecPatCount( m, nStep, 1 << nDiffs, pDecPat, pPermInfo+256*MaskThis );
            MyuMax = Abc_MaxInt( MyuMax, MyuCur );
        }
        if ( MyuMax > (1 << nDiffs) )
            continue;
        if ( MyuMax <= (1 << nRails) )
            return MaskThis;
        MaskThis = Abc_NtkDecPatDecompose_rec( MaskThis, nMaskVars-1, v+1, nVars, nDiffs-1, nRails, pDecPat, pPermInfo );
        if ( MaskThis )
            return MaskThis;
    }
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkPrecomputeData()

char * Abc_NtkPrecomputeData

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 188 of file extraLutCas.h.

{
    char * pRes = ABC_CALLOC( char, 1 << 16 );
    int i, k, b;
    for ( i = 0; i < 256; i++ ) {
        int nOnes = __builtin_popcount(i);
        char * pTemp = pRes + 256*i;
        for ( k = 0; k < 256; k++ ) {
            int iMask = 0, Counts[2] = {nOnes, 0};
            for ( b = 0; b < 8; Counts[(i >> b++)&1]++ )
                if ( (k >> b) & 1 )
                    iMask |= 1 << Counts[(i >> b)&1];
            pTemp[iMask] = (char)k;
            assert( Counts[1] == nOnes );
        }
    }
    for ( i = 0; i < 16; i++, printf("\n") )
    for ( printf("%x : ", i), k = 0; k < 16; k++ )
        printf( "%x=%x ", k, (int)pRes[i*256+k] );
    return pRes;
}
