extraUtilCanon.c File Reference

#include "extra.h"

Include dependency graph for extraUtilCanon.c:

Go to the source code of this file.

Functions
int	Extra_TruthCanonFastN (int nVarsMax, int nVarsReal, unsigned *pt, unsigned **pptRes, char **ppfRes)
void	Map_Var3Print ()
void	Map_Var3Test ()
void	Map_Var4Test ()

Function Documentation

Extra_TruthCanonFastN()

int Extra_TruthCanonFastN	(	int	nVarsMax,
		int	nVarsReal,
		unsigned *	pt,
		unsigned **	pptRes,
		char **	ppfRes )

AutomaticEnd Function********************************************************************

Synopsis [Computes the N-canonical form of the Boolean function up to 6 inputs.]

Description [The N-canonical form is defined as the truth table with the minimum integer value. This function exhaustively enumerates through the complete set of 2^N phase assignments. Returns pointers to the static storage to the truth table and phases. This data should be used before the function is called again.]

SideEffects []

SeeAlso []

Definition at line 374 of file extraUtilCanon.c.

{
    static unsigned uTruthStore6[2];
    int RetValue;
    assert( nVarsMax <= 6 );
    assert( nVarsReal <= nVarsMax );
    RetValue = Extra_TruthCanonN_rec( nVarsReal <= 3? 3: nVarsReal, (unsigned char *)pt, pptRes, ppfRes, 0 );
    if ( nVarsMax == 6 && nVarsReal < nVarsMax )
    {
        uTruthStore6[0] = **pptRes;
        uTruthStore6[1] = **pptRes;
        *pptRes = uTruthStore6;
    }
    return RetValue;
}

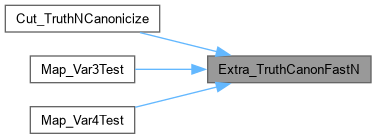

Here is the caller graph for this function:

Map_Var3Print()

void Map_Var3Print

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 585 of file extraUtilCanon.c.

{
    extern void Extra_Truth3VarN( unsigned ** puCanons, char *** puPhases, char ** ppCounters );

    unsigned * uCanons;
    char ** uPhases;
    char * pCounters;
    int i, k;

    Extra_Truth3VarN( &uCanons, &uPhases, &pCounters );

    for ( i = 0; i < 256; i++ )
    {
        if ( i % 8 == 0 )
            printf( "\n" );
        Extra_PrintHex( stdout, uCanons + i, 5 );
        printf( ", " );
    }
    printf( "\n" );

    for ( i = 0; i < 256; i++ )
    {
        printf( "%3d */  { %2d,   ", i, pCounters[i] );
        for ( k = 0; k < pCounters[i]; k++ )
            printf( "%s%d", k? ", ":"", uPhases[i][k] );
        printf( " }\n" );
    }
    printf( "\n" );
}

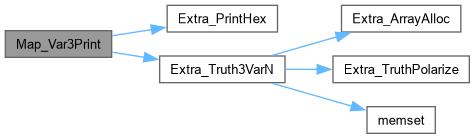

Here is the call graph for this function:

Map_Var3Test()

void Map_Var3Test

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 626 of file extraUtilCanon.c.

{
    extern void Extra_Truth3VarN( unsigned ** puCanons, char *** puPhases, char ** ppCounters );

    unsigned * uCanons;
    char ** uPhases;
    char * pCounters;
    int i;
    unsigned * ptRes;
    char * pfRes;
    unsigned uTruth;
    int Count;

    Extra_Truth3VarN( &uCanons, &uPhases, &pCounters );

    for ( i = 0; i < 256; i++ )
    {
        uTruth = i;
        Count =  Extra_TruthCanonFastN( 5, 3, &uTruth, &ptRes, &pfRes );
    }
}

Here is the call graph for this function:

Map_Var4Test()

void Map_Var4Test

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 659 of file extraUtilCanon.c.

{
    extern void Extra_Truth4VarN( unsigned short ** puCanons, char *** puPhases, char ** ppCounters, int PhaseMax );

    unsigned short * uCanons;
    char ** uPhases;
    char * pCounters;
    int i;
    unsigned * ptRes;
    char * pfRes;
    unsigned uTruth;
    int Count;

    Extra_Truth4VarN( &uCanons, &uPhases, &pCounters, 16 );

    for ( i = 0; i < 256*256; i++ )
    {
        uTruth = i;
        Count =  Extra_TruthCanonFastN( 5, 4, &uTruth, &ptRes, &pfRes );
    }
}

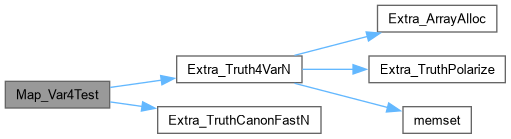

Here is the call graph for this function:
