fraigFanout.c File Reference

#include "fraigInt.h"

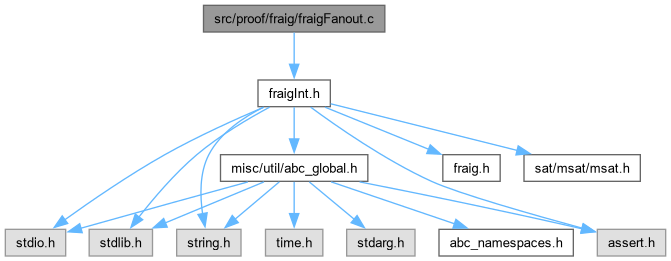

Include dependency graph for fraigFanout.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Fraig_NodeAddFaninFanout (Fraig_Node_t *pFanin, Fraig_Node_t *pFanout)
	DECLARATIONS ///.
void	Fraig_NodeRemoveFaninFanout (Fraig_Node_t *pFanin, Fraig_Node_t *pFanoutToRemove)
void	Fraig_NodeTransferFanout (Fraig_Node_t *pNodeFrom, Fraig_Node_t *pNodeTo)
int	Fraig_NodeGetFanoutNum (Fraig_Node_t *pNode)

Function Documentation

Fraig_NodeAddFaninFanout()

ABC_NAMESPACE_IMPL_START void Fraig_NodeAddFaninFanout	(	Fraig_Node_t *	pFanin,
		Fraig_Node_t *	pFanout )

DECLARATIONS ///.

CFile****************************************************************

FileName [fraigFanout.c]

PackageName [FRAIG: Functionally reduced AND-INV graphs.]

Synopsis [Procedures to manipulate fanouts of the FRAIG nodes.]

Author [Alan Mishchenko alanm.nosp@m.i@ee.nosp@m.cs.be.nosp@m.rkel.nosp@m.ey.ed.nosp@m.u]

Affiliation [UC Berkeley]

Date [Ver. 2.0. Started - October 1, 2004]

Revision [

Id

fraigFanout.c,v 1.5 2005/07/08 01:01:31 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Add the fanout to the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file fraigFanout.c.

{
    Fraig_Node_t * pPivot;

    // pFanins is a fanin of pFanout
    assert( !Fraig_IsComplement(pFanin) );
    assert( !Fraig_IsComplement(pFanout) );
    assert( Fraig_Regular(pFanout->p1) == pFanin || Fraig_Regular(pFanout->p2) == pFanin );

    pPivot = pFanin->pFanPivot;
    if ( pPivot == NULL )
    {
        pFanin->pFanPivot = pFanout;
        return;
    }

    if ( Fraig_Regular(pPivot->p1) == pFanin )
    {
        if ( Fraig_Regular(pFanout->p1) == pFanin )
        {
            pFanout->pFanFanin1 = pPivot->pFanFanin1;
            pPivot->pFanFanin1  = pFanout;
        }
        else // if ( Fraig_Regular(pFanout->p2) == pFanin )
        {
            pFanout->pFanFanin2 = pPivot->pFanFanin1;
            pPivot->pFanFanin1  = pFanout;
        }
    }
    else // if ( Fraig_Regular(pPivot->p2) == pFanin )
    {
        assert( Fraig_Regular(pPivot->p2) == pFanin );
        if ( Fraig_Regular(pFanout->p1) == pFanin )
        {
            pFanout->pFanFanin1 = pPivot->pFanFanin2;
            pPivot->pFanFanin2  = pFanout;
        }
        else // if ( Fraig_Regular(pFanout->p2) == pFanin )
        {
            pFanout->pFanFanin2 = pPivot->pFanFanin2;
            pPivot->pFanFanin2  = pFanout;
        }
    }
}

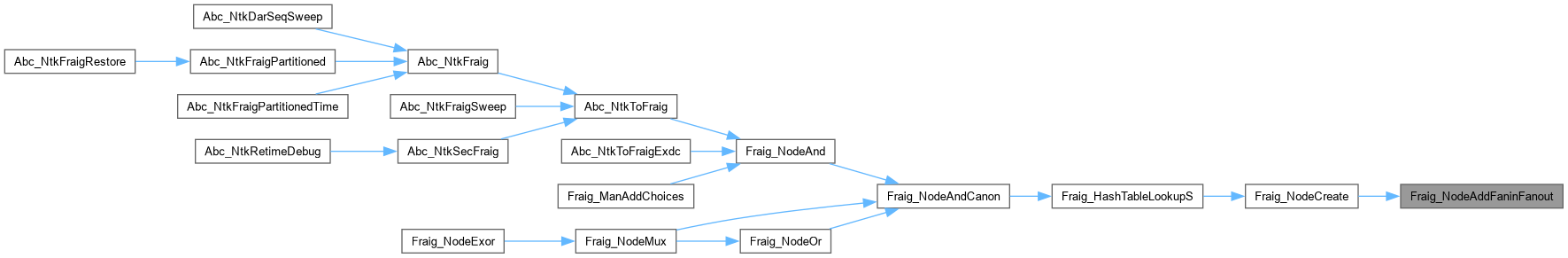

Here is the caller graph for this function:

Fraig_NodeGetFanoutNum()

int Fraig_NodeGetFanoutNum

(

Fraig_Node_t *

pNode

)

Function*************************************************************

Synopsis [Returns the number of fanouts of a node.]

Description []

SideEffects []

SeeAlso []

Definition at line 164 of file fraigFanout.c.

{
    Fraig_Node_t * pFanout;
    int Counter = 0;
    Fraig_NodeForEachFanout( pNode, pFanout )
        Counter++;
    return Counter;
}

Fraig_NodeRemoveFaninFanout()

void Fraig_NodeRemoveFaninFanout	(	Fraig_Node_t *	pFanin,
		Fraig_Node_t *	pFanoutToRemove )

Function*************************************************************

Synopsis [Add the fanout to the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 101 of file fraigFanout.c.

{
    Fraig_Node_t * pFanout, * pFanout2, ** ppFanList;
    // start the linked list of fanouts
    ppFanList = &pFanin->pFanPivot;
    // go through the fanouts
    Fraig_NodeForEachFanoutSafe( pFanin, pFanout, pFanout2 )
    {
        // skip the fanout-to-remove
        if ( pFanout == pFanoutToRemove )
            continue;
        // add useful fanouts to the list
        *ppFanList = pFanout;
        ppFanList = Fraig_NodeReadNextFanoutPlace( pFanin, pFanout );
    }
    *ppFanList = NULL;
}

Fraig_NodeTransferFanout()

void Fraig_NodeTransferFanout	(	Fraig_Node_t *	pNodeFrom,
		Fraig_Node_t *	pNodeTo )

Function*************************************************************

Synopsis [Transfers fanout to a different node.]

Description [Assumes that the other node currently has no fanouts.]

SideEffects []

SeeAlso []

Definition at line 130 of file fraigFanout.c.

{
    Fraig_Node_t * pFanout;
    assert( pNodeTo->pFanPivot == NULL );
    assert( pNodeTo->pFanFanin1 == NULL );
    assert( pNodeTo->pFanFanin2 == NULL );
    // go through the fanouts and update their fanins
    Fraig_NodeForEachFanout( pNodeFrom, pFanout )
    {
        if ( Fraig_Regular(pFanout->p1) == pNodeFrom )
            pFanout->p1 = Fraig_NotCond( pNodeTo, Fraig_IsComplement(pFanout->p1) );
        else if ( Fraig_Regular(pFanout->p2) == pNodeFrom )
            pFanout->p2 = Fraig_NotCond( pNodeTo, Fraig_IsComplement(pFanout->p2) );
    }
    // move the pointers
    pNodeTo->pFanPivot  = pNodeFrom->pFanPivot;
    pNodeTo->pFanFanin1 = pNodeFrom->pFanFanin1;
    pNodeTo->pFanFanin2 = pNodeFrom->pFanFanin2;
    pNodeFrom->pFanPivot  = NULL;
    pNodeFrom->pFanFanin1 = NULL;
    pNodeFrom->pFanFanin2 = NULL;
}
