fraigUtil.c File Reference

#include "fraigInt.h"
#include <limits.h>

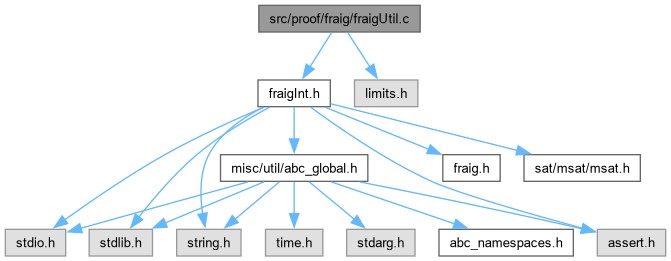

Include dependency graph for fraigUtil.c:

Go to the source code of this file.

Functions
Fraig_NodeVec_t *	Fraig_Dfs (Fraig_Man_t *pMan, int fEquiv)
	FUNCTION DEFINITIONS ///.
Fraig_NodeVec_t *	Fraig_DfsOne (Fraig_Man_t *pMan, Fraig_Node_t *pNode, int fEquiv)
Fraig_NodeVec_t *	Fraig_DfsNodes (Fraig_Man_t *pMan, Fraig_Node_t **ppNodes, int nNodes, int fEquiv)
int	Fraig_CountNodes (Fraig_Man_t *pMan, int fEquiv)
int	Fraig_CheckTfi (Fraig_Man_t *pMan, Fraig_Node_t *pOld, Fraig_Node_t *pNew)
int	Fraig_CheckTfi2 (Fraig_Man_t *pMan, Fraig_Node_t *pOld, Fraig_Node_t *pNew)
void	Fraig_ManMarkRealFanouts (Fraig_Man_t *p)
int	Fraig_BitStringCountOnes (unsigned *pString, int nWords)
int	Fraig_ManCheckConsistency (Fraig_Man_t *p)
void	Fraig_PrintNode (Fraig_Man_t *p, Fraig_Node_t *pNode)
void	Fraig_PrintBinary (FILE *pFile, unsigned *pSign, int nBits)
int	Fraig_GetMaxLevel (Fraig_Man_t *pMan)
int	Fraig_MappingUpdateLevel_rec (Fraig_Man_t *pMan, Fraig_Node_t *pNode, int fMaximum)
void	Fraig_MappingSetChoiceLevels (Fraig_Man_t *pMan, int fMaximum)
void	Fraig_ManReportChoices (Fraig_Man_t *pMan)
int	Fraig_NodeIsExorType (Fraig_Node_t *pNode)
int	Fraig_NodeIsMuxType (Fraig_Node_t *pNode)
int	Fraig_NodeIsExor (Fraig_Node_t *pNode)
Fraig_Node_t *	Fraig_NodeRecognizeMux (Fraig_Node_t *pNode, Fraig_Node_t **ppNodeT, Fraig_Node_t **ppNodeE)
int	Fraig_ManCountExors (Fraig_Man_t *pMan)
int	Fraig_ManCountMuxes (Fraig_Man_t *pMan)
int	Fraig_NodeSimsContained (Fraig_Man_t *pMan, Fraig_Node_t *pNode1, Fraig_Node_t *pNode2)
int	Fraig_CountPis (Fraig_Man_t *p, Msat_IntVec_t *vVarNums)
int	Fraig_ManPrintRefs (Fraig_Man_t *pMan)
int	Fraig_NodeIsInSupergate (Fraig_Node_t *pOld, Fraig_Node_t *pNew)
void	Fraig_CollectSupergate_rec (Fraig_Node_t *pNode, Fraig_NodeVec_t *vSuper, int fFirst, int fStopAtMux)
Fraig_NodeVec_t *	Fraig_CollectSupergate (Fraig_Node_t *pNode, int fStopAtMux)
void	Fraig_ManIncrementTravId (Fraig_Man_t *pMan)
void	Fraig_NodeSetTravIdCurrent (Fraig_Man_t *pMan, Fraig_Node_t *pNode)
int	Fraig_NodeIsTravIdCurrent (Fraig_Man_t *pMan, Fraig_Node_t *pNode)
int	Fraig_NodeIsTravIdPrevious (Fraig_Man_t *pMan, Fraig_Node_t *pNode)

Function Documentation

Fraig_BitStringCountOnes()

int Fraig_BitStringCountOnes	(	unsigned *	pString,
		int	nWords )

Function*************************************************************

Synopsis [Creates the constant 1 node.]

Description []

SideEffects []

SeeAlso []

Definition at line 288 of file fraigUtil.c.

{
    unsigned char * pSuppBytes = (unsigned char *)pString;
    int i, nOnes, nBytes = sizeof(unsigned) * nWords;
    // count the number of ones in the simulation vector
    for ( i = nOnes = 0; i < nBytes; i++ )
        nOnes += bit_count[pSuppBytes[i]];
    return nOnes;
}

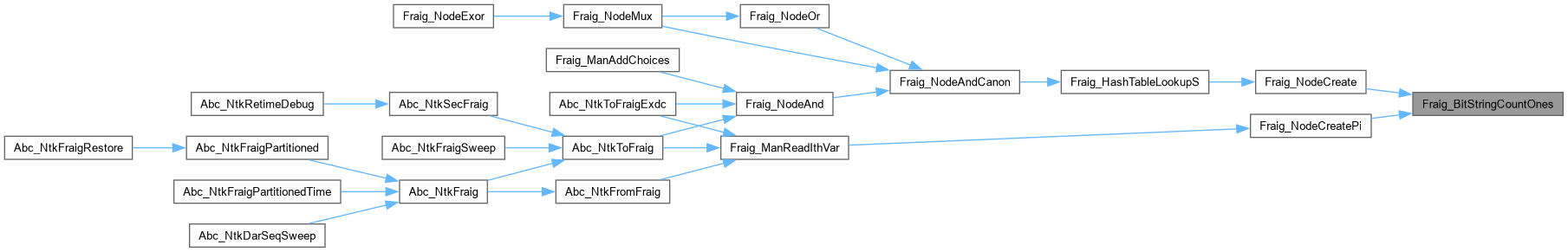

Here is the caller graph for this function:

Fraig_CheckTfi()

int Fraig_CheckTfi	(	Fraig_Man_t *	pMan,
		Fraig_Node_t *	pOld,
		Fraig_Node_t *	pNew )

Function*************************************************************

Synopsis [Returns 1 if pOld is in the TFI of pNew.]

Description []

SideEffects []

SeeAlso []

Definition at line 173 of file fraigUtil.c.

{
    assert( !Fraig_IsComplement(pOld) );
    assert( !Fraig_IsComplement(pNew) );
    pMan->nTravIds++;
    return Fraig_CheckTfi_rec( pMan, pNew, pOld );
}

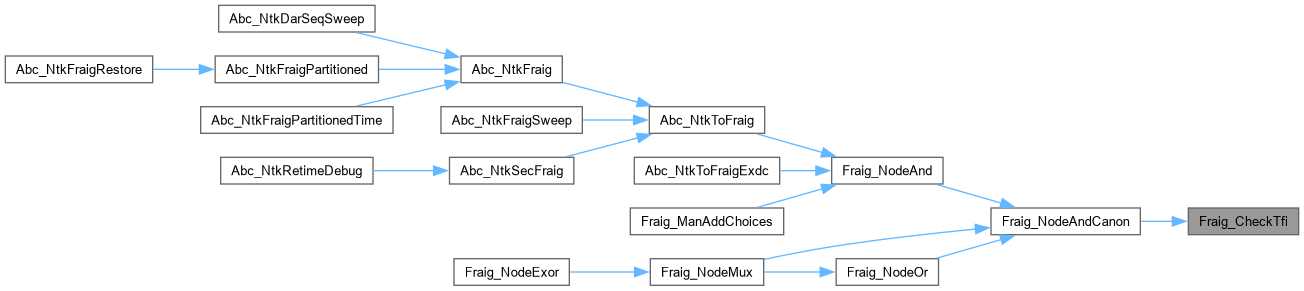

Here is the caller graph for this function:

Fraig_CheckTfi2()

int Fraig_CheckTfi2	(	Fraig_Man_t *	pMan,
		Fraig_Node_t *	pOld,
		Fraig_Node_t *	pNew )

Function*************************************************************

Synopsis [Returns 1 if pOld is in the TFI of pNew.]

Description []

SideEffects []

SeeAlso []

Definition at line 226 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vNodes;
    int RetValue;
    vNodes = Fraig_DfsOne( pMan, pNew, 1 );
    RetValue = (pOld->TravId == pMan->nTravIds);
    Fraig_NodeVecFree( vNodes );
    return RetValue;
}

Here is the call graph for this function:

Fraig_CollectSupergate()

Fraig_NodeVec_t * Fraig_CollectSupergate	(	Fraig_Node_t *	pNode,
		int	fStopAtMux )

Function*************************************************************

Synopsis [Returns the array of nodes to be combined into one multi-input AND-gate.]

Description []

SideEffects []

SeeAlso []

Definition at line 960 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vSuper;
    vSuper = Fraig_NodeVecAlloc( 8 );
    Fraig_CollectSupergate_rec( pNode, vSuper, 1, fStopAtMux );
    return vSuper;
}

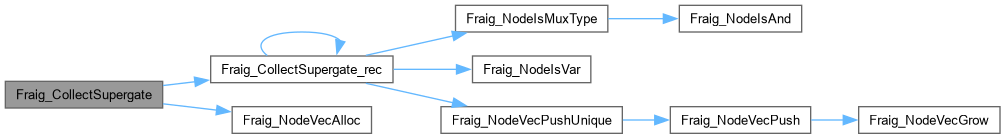

Here is the call graph for this function:

Fraig_CollectSupergate_rec()

void Fraig_CollectSupergate_rec	(	Fraig_Node_t *	pNode,
		Fraig_NodeVec_t *	vSuper,
		int	fFirst,
		int	fStopAtMux )

Function*************************************************************

Synopsis [Returns the array of nodes to be combined into one multi-input AND-gate.]

Description []

SideEffects []

SeeAlso []

Definition at line 933 of file fraigUtil.c.

{
    // if the new node is complemented or a PI, another gate begins
//    if ( Fraig_IsComplement(pNode) || Fraig_NodeIsVar(pNode) || Fraig_NodeIsMuxType(pNode) )
    if ( (!fFirst && Fraig_Regular(pNode)->nRefs > 1) ||
          Fraig_IsComplement(pNode) || Fraig_NodeIsVar(pNode) ||
          (fStopAtMux && Fraig_NodeIsMuxType(pNode)) )
    {
        Fraig_NodeVecPushUnique( vSuper, pNode );
        return;
    }
    // go through the branches
    Fraig_CollectSupergate_rec( pNode->p1, vSuper, 0, fStopAtMux );
    Fraig_CollectSupergate_rec( pNode->p2, vSuper, 0, fStopAtMux );
}

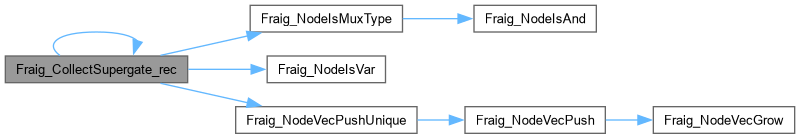

Here is the call graph for this function:

Here is the caller graph for this function:

Fraig_CountNodes()

int Fraig_CountNodes	(	Fraig_Man_t *	pMan,
		int	fEquiv )

Function*************************************************************

Synopsis [Computes the DFS ordering of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 152 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vNodes;
    int RetValue;
    vNodes = Fraig_Dfs( pMan, fEquiv );
    RetValue = vNodes->nSize;
    Fraig_NodeVecFree( vNodes );
    return RetValue;
}

Here is the call graph for this function:

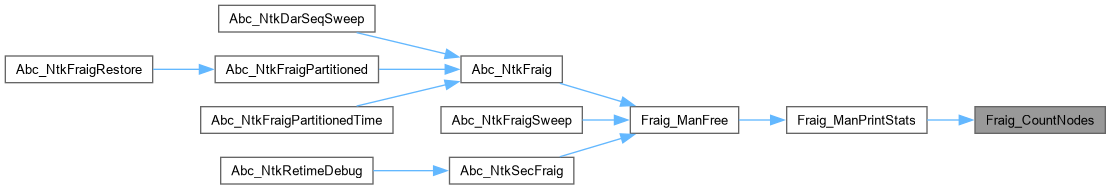

Here is the caller graph for this function:

Fraig_CountPis()

int Fraig_CountPis	(	Fraig_Man_t *	p,
		Msat_IntVec_t *	vVarNums )

Function*************************************************************

Synopsis [Count the number of PI variables.]

Description []

SideEffects []

SeeAlso []

Definition at line 817 of file fraigUtil.c.

{
    int * pVars, nVars, i, Counter;

    nVars = Msat_IntVecReadSize(vVarNums);
    pVars = Msat_IntVecReadArray(vVarNums);
    Counter = 0;
    for ( i = 0; i < nVars; i++ )
        Counter += Fraig_NodeIsVar( p->vNodes->pArray[pVars[i]] );
    return Counter;
}

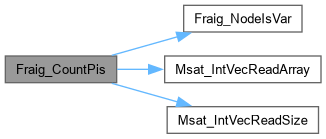

Here is the call graph for this function:

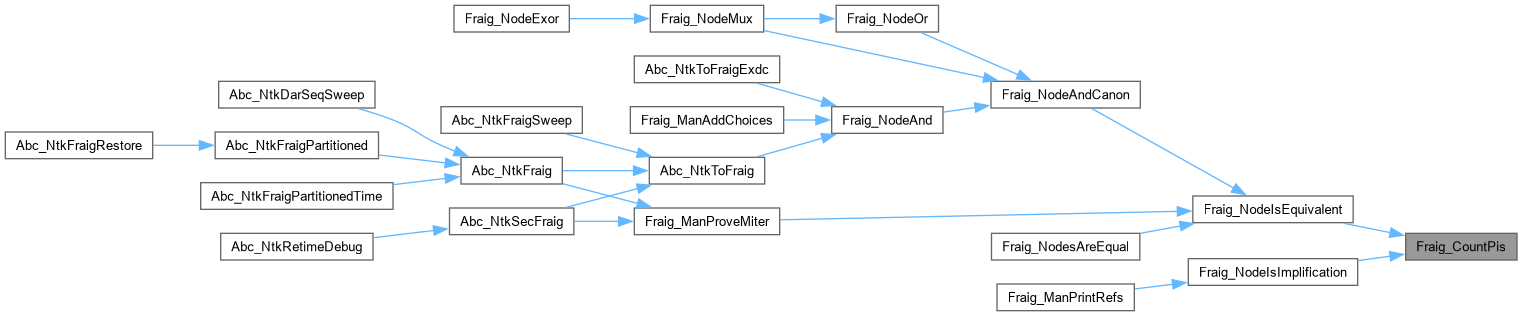

Here is the caller graph for this function:

Fraig_Dfs()

Fraig_NodeVec_t * Fraig_Dfs	(	Fraig_Man_t *	pMan,
		int	fEquiv )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Computes the DFS ordering of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 58 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vNodes;
    int i;
    pMan->nTravIds++;
    vNodes = Fraig_NodeVecAlloc( 100 );
    for ( i = 0; i < pMan->vOutputs->nSize; i++ )
        Fraig_Dfs_rec( pMan, Fraig_Regular(pMan->vOutputs->pArray[i]), vNodes, fEquiv );
    return vNodes;
}

Here is the call graph for this function:

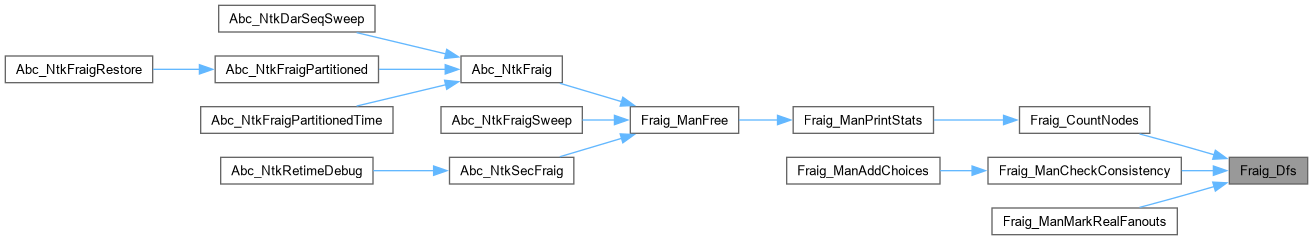

Here is the caller graph for this function:

Fraig_DfsNodes()

Fraig_NodeVec_t * Fraig_DfsNodes	(	Fraig_Man_t *	pMan,
		Fraig_Node_t **	ppNodes,
		int	nNodes,
		int	fEquiv )

Function*************************************************************

Synopsis [Computes the DFS ordering of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 100 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vNodes;
    int i;
    pMan->nTravIds++;
    vNodes = Fraig_NodeVecAlloc( 100 );
    for ( i = 0; i < nNodes; i++ )
        Fraig_Dfs_rec( pMan, Fraig_Regular(ppNodes[i]), vNodes, fEquiv );
    return vNodes;
}

Here is the call graph for this function:

Fraig_DfsOne()

Fraig_NodeVec_t * Fraig_DfsOne	(	Fraig_Man_t *	pMan,
		Fraig_Node_t *	pNode,
		int	fEquiv )

Function*************************************************************

Synopsis [Computes the DFS ordering of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 80 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vNodes;
    pMan->nTravIds++;
    vNodes = Fraig_NodeVecAlloc( 100 );
    Fraig_Dfs_rec( pMan, Fraig_Regular(pNode), vNodes, fEquiv );
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fraig_GetMaxLevel()

int Fraig_GetMaxLevel

(

Fraig_Man_t *

pMan

)

Function*************************************************************

Synopsis [Sets up the mask.]

Description []

SideEffects []

SeeAlso []

Definition at line 428 of file fraigUtil.c.

{
    int nLevelMax, i;
    nLevelMax = 0;
    for ( i = 0; i < pMan->vOutputs->nSize; i++ )
        nLevelMax = nLevelMax > Fraig_Regular(pMan->vOutputs->pArray[i])->Level?
                nLevelMax : Fraig_Regular(pMan->vOutputs->pArray[i])->Level;
    return nLevelMax;
}

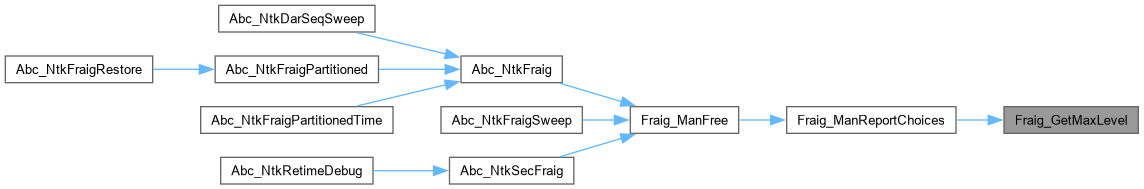

Here is the caller graph for this function:

Fraig_ManCheckConsistency()

int Fraig_ManCheckConsistency

(

Fraig_Man_t *

p

)

Function*************************************************************

Synopsis [Verify one useful property.]

Description [This procedure verifies one useful property. After the FRAIG construction with choice nodes is over, each primary node should have fanins that are primary nodes. The primary nodes is the one that does not have pNode->pRepr set to point to another node.]

SideEffects []

SeeAlso []

Definition at line 312 of file fraigUtil.c.

{
    Fraig_Node_t * pNode;
    Fraig_NodeVec_t * pVec;
    int i;
    pVec = Fraig_Dfs( p, 0 );
    for ( i = 0; i < pVec->nSize; i++ )
    {
        pNode = pVec->pArray[i];
        if ( Fraig_NodeIsVar(pNode) )
        {
            if ( pNode->pRepr )
                printf( "Primary input %d is a secondary node.\n", pNode->Num );
        }
        else if ( Fraig_NodeIsConst(pNode) )
        {
            if ( pNode->pRepr )
                printf( "Constant 1 %d is a secondary node.\n", pNode->Num );
        }
        else
        {
            if ( pNode->pRepr )
                printf( "Internal node %d is a secondary node.\n", pNode->Num );
            if ( Fraig_Regular(pNode->p1)->pRepr )
                printf( "Internal node %d has first fanin %d that is a secondary node.\n",
                    pNode->Num, Fraig_Regular(pNode->p1)->Num );
            if ( Fraig_Regular(pNode->p2)->pRepr )
                printf( "Internal node %d has second fanin %d that is a secondary node.\n",
                    pNode->Num, Fraig_Regular(pNode->p2)->Num );
        }
    }
    Fraig_NodeVecFree( pVec );
    return 1;
}

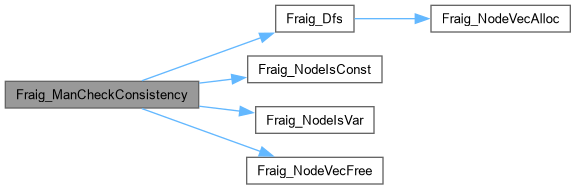

Here is the call graph for this function:

Here is the caller graph for this function:

Fraig_ManCountExors()

int Fraig_ManCountExors

(

Fraig_Man_t *

pMan

)

Function*************************************************************

Synopsis [Counts the number of EXOR type nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 742 of file fraigUtil.c.

{
    int i, nExors;
    nExors = 0;
    for ( i = 0; i < pMan->vNodes->nSize; i++ )
        nExors += Fraig_NodeIsExorType( pMan->vNodes->pArray[i] );
    return nExors;

}

Here is the call graph for this function:

Here is the caller graph for this function:

Fraig_ManCountMuxes()

int Fraig_ManCountMuxes

(

Fraig_Man_t *

pMan

)

Function*************************************************************

Synopsis [Counts the number of EXOR type nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 763 of file fraigUtil.c.

{
    int i, nMuxes;
    nMuxes = 0;
    for ( i = 0; i < pMan->vNodes->nSize; i++ )
        nMuxes += Fraig_NodeIsMuxType( pMan->vNodes->pArray[i] );
    return nMuxes;

}

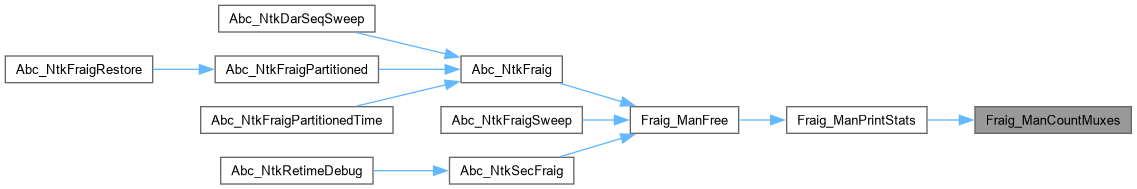

Here is the call graph for this function:

Here is the caller graph for this function:

Fraig_ManIncrementTravId()

void Fraig_ManIncrementTravId

(

Fraig_Man_t *

pMan

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 980 of file fraigUtil.c.

{
    pMan->nTravIds2++;
}

Here is the caller graph for this function:

Fraig_ManMarkRealFanouts()

void Fraig_ManMarkRealFanouts

(

Fraig_Man_t *

p

)

Function*************************************************************

Synopsis [Sets the number of fanouts (none, one, or many).]

Description [This procedure collects the nodes reachable from the POs of the AIG and sets the type of fanout counter (none, one, or many) for each node. This procedure is useful to determine fanout-free cones of AND-nodes, which is helpful for rebalancing the AIG (see procedure Fraig_ManRebalance, or something like that).]

SideEffects []

SeeAlso []

Definition at line 251 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vNodes;
    Fraig_Node_t * pNodeR;
    int i;
    // collect the nodes reachable
    vNodes = Fraig_Dfs( p, 0 );
    // clean the fanouts field
    for ( i = 0; i < vNodes->nSize; i++ )
    {
        vNodes->pArray[i]->nFanouts = 0;
        vNodes->pArray[i]->pData0 = NULL;
    }
    // mark reachable nodes by setting the two-bit counter pNode->nFans
    for ( i = 0; i < vNodes->nSize; i++ )
    {
        pNodeR = Fraig_Regular(vNodes->pArray[i]->p1);
        if ( pNodeR && ++pNodeR->nFanouts == 3 )
            pNodeR->nFanouts = 2;
        pNodeR = Fraig_Regular(vNodes->pArray[i]->p2);
        if ( pNodeR && ++pNodeR->nFanouts == 3 )
            pNodeR->nFanouts = 2;
    }
    Fraig_NodeVecFree( vNodes );
}

Here is the call graph for this function:

Fraig_ManPrintRefs()

int Fraig_ManPrintRefs

(

Fraig_Man_t *

pMan

)

Function*************************************************************

Synopsis [Counts the number of EXOR type nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 842 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vPivots;
    Fraig_Node_t * pNode, * pNode2;
    int i, k, Counter, nProved;
    abctime clk;

    vPivots = Fraig_NodeVecAlloc( 1000 );
    for ( i = 0; i < pMan->vNodes->nSize; i++ )
    {
        pNode = pMan->vNodes->pArray[i];

        if ( pNode->nOnes == 0 || pNode->nOnes == (unsigned)pMan->nWordsRand * 32 )
            continue;

        if ( pNode->nRefs > 5 )
        {
            Fraig_NodeVecPush( vPivots, pNode );
//            printf( "Node %6d : nRefs = %2d   Level = %3d.\n", pNode->Num, pNode->nRefs, pNode->Level );
        }
    }
    printf( "Total nodes = %d. Referenced nodes = %d.\n", pMan->vNodes->nSize, vPivots->nSize );

clk = Abc_Clock();
    // count implications
    Counter = nProved = 0;
    for ( i = 0; i < vPivots->nSize; i++ )
        for ( k = i+1; k < vPivots->nSize; k++ )
        {
            pNode  = vPivots->pArray[i];
            pNode2 = vPivots->pArray[k];
            if ( Fraig_NodeSimsContained( pMan, pNode, pNode2 ) )
            {
                if ( Fraig_NodeIsImplification( pMan, pNode, pNode2, -1 ) )
                    nProved++;
                Counter++;
            }
            else if ( Fraig_NodeSimsContained( pMan, pNode2, pNode ) )
            {
                if ( Fraig_NodeIsImplification( pMan, pNode2, pNode, -1 ) )
                    nProved++;
                Counter++;
            }
        }
    printf( "Number of candidate pairs = %d.  Proved = %d.\n", Counter, nProved );
//ABC_PRT( "Time", Abc_Clock() - clk );
    return 0;
}

Here is the call graph for this function:

Fraig_ManReportChoices()

void Fraig_ManReportChoices

(

Fraig_Man_t *

pMan

)

Function*************************************************************

Synopsis [Reports statistics on choice nodes.]

Description [The number of choice nodes is the number of primary nodes, which has pNextE set to a pointer. The number of choices is the number of entries in the equivalent-node lists of the primary nodes.]

SideEffects []

SeeAlso []

Definition at line 520 of file fraigUtil.c.

{
    Fraig_Node_t * pNode, * pTemp;
    int nChoiceNodes, nChoices;
    int i, LevelMax1, LevelMax2;

    // report the number of levels
    LevelMax1 = Fraig_GetMaxLevel( pMan );
    Fraig_MappingSetChoiceLevels( pMan, 0 );
    LevelMax2 = Fraig_GetMaxLevel( pMan );

    // report statistics about choices
    nChoiceNodes = nChoices = 0;
    for ( i = 0; i < pMan->vNodes->nSize; i++ )
    {
        pNode = pMan->vNodes->pArray[i];
        if ( pNode->pRepr == NULL && pNode->pNextE != NULL )
        { // this is a choice node = the primary node that has equivalent nodes
            nChoiceNodes++;
            for ( pTemp = pNode; pTemp; pTemp = pTemp->pNextE )
                nChoices++;
        }
    }
    printf( "Maximum level: Original = %d. Reduced due to choices = %d.\n", LevelMax1, LevelMax2 );
    printf( "Choice stats:  Choice nodes = %d. Total choices = %d.\n", nChoiceNodes, nChoices );
}

Here is the call graph for this function:

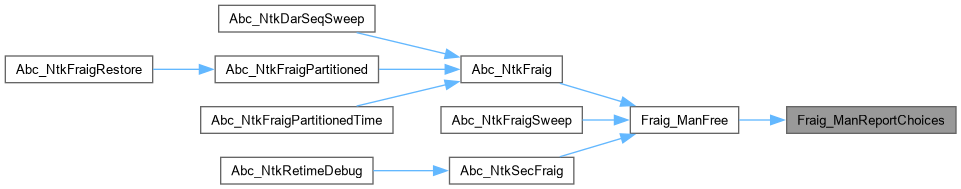

Here is the caller graph for this function:

Fraig_MappingSetChoiceLevels()

void Fraig_MappingSetChoiceLevels	(	Fraig_Man_t *	pMan,
		int	fMaximum )

Function*************************************************************

Synopsis [Resets the levels of the nodes in the choice graph.]

Description [Makes the level of the choice nodes to be equal to the maximum of the level of the nodes in the equivalence class. This way sorting by level leads to the reverse topological order, which is needed for the required time computation.]

SideEffects []

SeeAlso []

Definition at line 499 of file fraigUtil.c.

{
    int i;
    pMan->nTravIds++;
    for ( i = 0; i < pMan->vOutputs->nSize; i++ )
        Fraig_MappingUpdateLevel_rec( pMan, Fraig_Regular(pMan->vOutputs->pArray[i]), fMaximum );
}

Here is the call graph for this function:

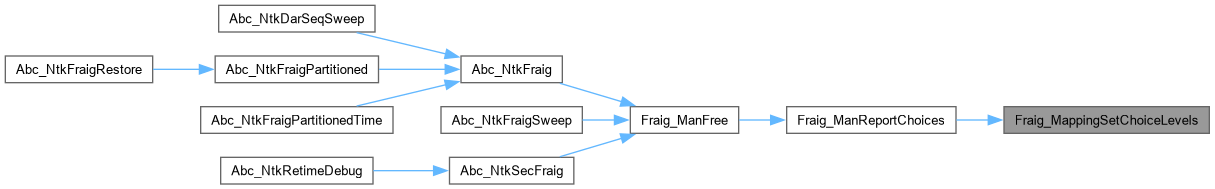

Here is the caller graph for this function:

Fraig_MappingUpdateLevel_rec()

int Fraig_MappingUpdateLevel_rec	(	Fraig_Man_t *	pMan,
		Fraig_Node_t *	pNode,
		int	fMaximum )

Function*************************************************************

Synopsis [Analyses choice nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 449 of file fraigUtil.c.

{
    Fraig_Node_t * pTemp;
    int Level1, Level2, LevelE;
    assert( !Fraig_IsComplement(pNode) );
    if ( !Fraig_NodeIsAnd(pNode) )
        return pNode->Level;
    // skip the visited node
    if ( pNode->TravId == pMan->nTravIds )
        return pNode->Level;
    pNode->TravId = pMan->nTravIds;
    // compute levels of the children nodes
    Level1 = Fraig_MappingUpdateLevel_rec( pMan, Fraig_Regular(pNode->p1), fMaximum );
    Level2 = Fraig_MappingUpdateLevel_rec( pMan, Fraig_Regular(pNode->p2), fMaximum );
    pNode->Level = 1 + Abc_MaxInt( Level1, Level2 );
    if ( pNode->pNextE )
    {
        LevelE = Fraig_MappingUpdateLevel_rec( pMan, pNode->pNextE, fMaximum );
        if ( fMaximum )
        {
            if ( pNode->Level < LevelE )
                pNode->Level = LevelE;
        }
        else
        {
            if ( pNode->Level > LevelE )
                pNode->Level = LevelE;
        }
        // set the level of all equivalent nodes to be the same minimum
        if ( pNode->pRepr == NULL ) // the primary node
            for ( pTemp = pNode->pNextE; pTemp; pTemp = pTemp->pNextE )
                pTemp->Level = pNode->Level;
    }
    return pNode->Level;
}

Here is the call graph for this function:

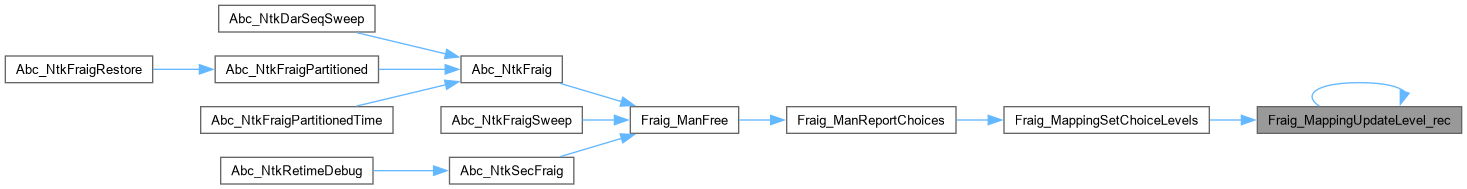

Here is the caller graph for this function:

Fraig_NodeIsExor()

int Fraig_NodeIsExor

(

Fraig_Node_t *

pNode

)

Function*************************************************************

Synopsis [Returns 1 if the node is EXOR, 0 if it is NEXOR.]

Description [The node should be EXOR type and not complemented.]

SideEffects []

SeeAlso []

Definition at line 633 of file fraigUtil.c.

{
    Fraig_Node_t * pNode1;
    assert( !Fraig_IsComplement(pNode) );
    assert( Fraig_NodeIsExorType(pNode) );
    assert( Fraig_IsComplement(pNode->p1) );
    // get children
    pNode1 = Fraig_Regular(pNode->p1);
    return Fraig_IsComplement(pNode1->p1) == Fraig_IsComplement(pNode1->p2);
}

Here is the call graph for this function:

Fraig_NodeIsExorType()

int Fraig_NodeIsExorType

(

Fraig_Node_t *

pNode

)

Function*************************************************************

Synopsis [Returns 1 if the node is the root of EXOR/NEXOR gate.]

Description [The node can be complemented.]

SideEffects []

SeeAlso []

Definition at line 558 of file fraigUtil.c.

{
    Fraig_Node_t * pNode1, * pNode2;
    // make the node regular (it does not matter for EXOR/NEXOR)
    pNode = Fraig_Regular(pNode);
    // if the node or its children are not ANDs or not compl, this cannot be EXOR type
    if ( !Fraig_NodeIsAnd(pNode) )
        return 0;
    if ( !Fraig_NodeIsAnd(pNode->p1) || !Fraig_IsComplement(pNode->p1) )
        return 0;
    if ( !Fraig_NodeIsAnd(pNode->p2) || !Fraig_IsComplement(pNode->p2) )
        return 0;

    // get children
    pNode1 = Fraig_Regular(pNode->p1);
    pNode2 = Fraig_Regular(pNode->p2);
    assert( pNode1->Num < pNode2->Num );

    // compare grandchildren
    return pNode1->p1 == Fraig_Not(pNode2->p1) && pNode1->p2 == Fraig_Not(pNode2->p2);
}

Here is the call graph for this function:

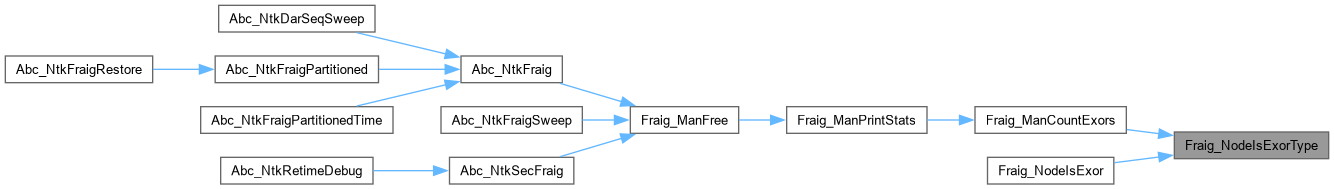

Here is the caller graph for this function:

Fraig_NodeIsInSupergate()

int Fraig_NodeIsInSupergate	(	Fraig_Node_t *	pOld,
		Fraig_Node_t *	pNew )

Function*************************************************************

Synopsis [Checks if pNew exists among the implication fanins of pOld.]

Description [If pNew is an implication fanin of pOld, returns 1. If Fraig_Not(pNew) is an implication fanin of pOld, return -1. Otherwise returns 0.]

SideEffects []

SeeAlso []

Definition at line 905 of file fraigUtil.c.

{
    int RetValue1, RetValue2;
    if ( Fraig_Regular(pOld) == Fraig_Regular(pNew) )
        return (pOld == pNew)? 1 : -1;
    if ( Fraig_IsComplement(pOld) || Fraig_NodeIsVar(pOld) )
        return 0;
    RetValue1 = Fraig_NodeIsInSupergate( pOld->p1, pNew );
    RetValue2 = Fraig_NodeIsInSupergate( pOld->p2, pNew );
    if ( RetValue1 == -1 || RetValue2 == -1 )
        return -1;
    if ( RetValue1 ==  1 || RetValue2 ==  1 )
        return 1;
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fraig_NodeIsMuxType()

int Fraig_NodeIsMuxType

(

Fraig_Node_t *

pNode

)

Function*************************************************************

Synopsis [Returns 1 if the node is the root of MUX or EXOR/NEXOR.]

Description [The node can be complemented.]

SideEffects []

SeeAlso []

Definition at line 591 of file fraigUtil.c.

{
    Fraig_Node_t * pNode1, * pNode2;

    // make the node regular (it does not matter for EXOR/NEXOR)
    pNode = Fraig_Regular(pNode);
    // if the node or its children are not ANDs or not compl, this cannot be EXOR type
    if ( !Fraig_NodeIsAnd(pNode) )
        return 0;
    if ( !Fraig_NodeIsAnd(pNode->p1) || !Fraig_IsComplement(pNode->p1) )
        return 0;
    if ( !Fraig_NodeIsAnd(pNode->p2) || !Fraig_IsComplement(pNode->p2) )
        return 0;

    // get children
    pNode1 = Fraig_Regular(pNode->p1);
    pNode2 = Fraig_Regular(pNode->p2);
    assert( pNode1->Num < pNode2->Num );

    // compare grandchildren
    // node is an EXOR/NEXOR
    if ( pNode1->p1 == Fraig_Not(pNode2->p1) && pNode1->p2 == Fraig_Not(pNode2->p2) )
        return 1;

    // otherwise the node is MUX iff it has a pair of equal grandchildren
    return pNode1->p1 == Fraig_Not(pNode2->p1) ||
           pNode1->p1 == Fraig_Not(pNode2->p2) ||
           pNode1->p2 == Fraig_Not(pNode2->p1) ||
           pNode1->p2 == Fraig_Not(pNode2->p2);
}

Here is the call graph for this function:

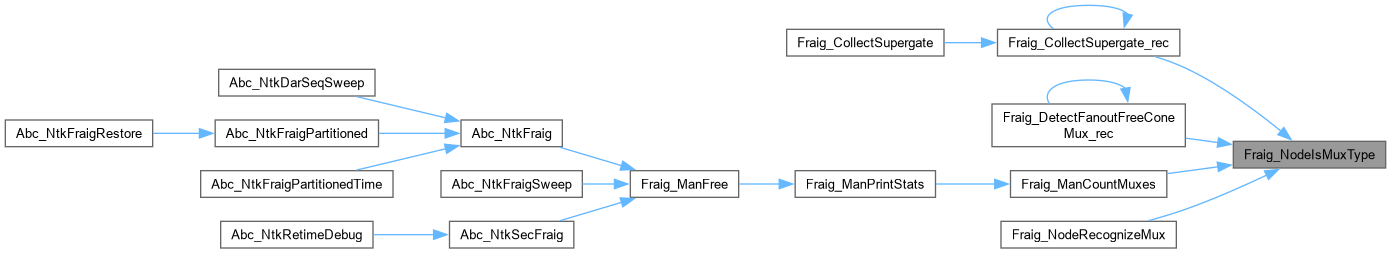

Here is the caller graph for this function:

Fraig_NodeIsTravIdCurrent()

int Fraig_NodeIsTravIdCurrent	(	Fraig_Man_t *	pMan,
		Fraig_Node_t *	pNode )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1012 of file fraigUtil.c.

{
    return pNode->TravId2 == pMan->nTravIds2;
}

Here is the caller graph for this function:

Fraig_NodeIsTravIdPrevious()

int Fraig_NodeIsTravIdPrevious	(	Fraig_Man_t *	pMan,
		Fraig_Node_t *	pNode )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1028 of file fraigUtil.c.

{
    return pNode->TravId2 == pMan->nTravIds2 - 1;
}

Fraig_NodeRecognizeMux()

Fraig_Node_t * Fraig_NodeRecognizeMux	(	Fraig_Node_t *	pNode,
		Fraig_Node_t **	ppNodeT,
		Fraig_Node_t **	ppNodeE )

Function*************************************************************

Synopsis [Recognizes what nodes are control and data inputs of a MUX.]

Description [If the node is a MUX, returns the control variable C. Assigns nodes T and E to be the then and else variables of the MUX. Node C is never complemented. Nodes T and E can be complemented. This function also recognizes EXOR/NEXOR gates as MUXes.]

SideEffects []

SeeAlso []

Definition at line 658 of file fraigUtil.c.

{
    Fraig_Node_t * pNode1, * pNode2;
    assert( !Fraig_IsComplement(pNode) );
    assert( Fraig_NodeIsMuxType(pNode) );
    // get children
    pNode1 = Fraig_Regular(pNode->p1);
    pNode2 = Fraig_Regular(pNode->p2);
    // find the control variable
    if ( pNode1->p1 == Fraig_Not(pNode2->p1) )
    {
        if ( Fraig_IsComplement(pNode1->p1) )
        { // pNode2->p1 is positive phase of C
            *ppNodeT = Fraig_Not(pNode2->p2);
            *ppNodeE = Fraig_Not(pNode1->p2);
            return pNode2->p1;
        }
        else
        { // pNode1->p1 is positive phase of C
            *ppNodeT = Fraig_Not(pNode1->p2);
            *ppNodeE = Fraig_Not(pNode2->p2);
            return pNode1->p1;
        }
    }
    else if ( pNode1->p1 == Fraig_Not(pNode2->p2) )
    {
        if ( Fraig_IsComplement(pNode1->p1) )
        { // pNode2->p2 is positive phase of C
            *ppNodeT = Fraig_Not(pNode2->p1);
            *ppNodeE = Fraig_Not(pNode1->p2);
            return pNode2->p2;
        }
        else
        { // pNode1->p1 is positive phase of C
            *ppNodeT = Fraig_Not(pNode1->p2);
            *ppNodeE = Fraig_Not(pNode2->p1);
            return pNode1->p1;
        }
    }
    else if ( pNode1->p2 == Fraig_Not(pNode2->p1) )
    {
        if ( Fraig_IsComplement(pNode1->p2) )
        { // pNode2->p1 is positive phase of C
            *ppNodeT = Fraig_Not(pNode2->p2);
            *ppNodeE = Fraig_Not(pNode1->p1);
            return pNode2->p1;
        }
        else
        { // pNode1->p2 is positive phase of C
            *ppNodeT = Fraig_Not(pNode1->p1);
            *ppNodeE = Fraig_Not(pNode2->p2);
            return pNode1->p2;
        }
    }
    else if ( pNode1->p2 == Fraig_Not(pNode2->p2) )
    {
        if ( Fraig_IsComplement(pNode1->p2) )
        { // pNode2->p2 is positive phase of C
            *ppNodeT = Fraig_Not(pNode2->p1);
            *ppNodeE = Fraig_Not(pNode1->p1);
            return pNode2->p2;
        }
        else
        { // pNode1->p2 is positive phase of C
            *ppNodeT = Fraig_Not(pNode1->p1);
            *ppNodeE = Fraig_Not(pNode2->p1);
            return pNode1->p2;
        }
    }
    assert( 0 ); // this is not MUX
    return NULL;
}

Here is the call graph for this function:

Fraig_NodeSetTravIdCurrent()

void Fraig_NodeSetTravIdCurrent	(	Fraig_Man_t *	pMan,
		Fraig_Node_t *	pNode )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 996 of file fraigUtil.c.

{
    pNode->TravId2 = pMan->nTravIds2;
}

Here is the caller graph for this function:

Fraig_NodeSimsContained()

int Fraig_NodeSimsContained	(	Fraig_Man_t *	pMan,
		Fraig_Node_t *	pNode1,
		Fraig_Node_t *	pNode2 )

Function*************************************************************

Synopsis [Returns 1 if siminfo of Node1 is contained in siminfo of Node2.]

Description []

SideEffects []

SeeAlso []

Definition at line 784 of file fraigUtil.c.

{
    unsigned * pUnsigned1, * pUnsigned2;
    int i;

    // compare random siminfo
    pUnsigned1 = pNode1->puSimR;
    pUnsigned2 = pNode2->puSimR;
    for ( i = 0; i < pMan->nWordsRand; i++ )
        if ( pUnsigned1[i] & ~pUnsigned2[i] )
            return 0;

    // compare systematic siminfo
    pUnsigned1 = pNode1->puSimD;
    pUnsigned2 = pNode2->puSimD;
    for ( i = 0; i < pMan->iWordStart; i++ )
        if ( pUnsigned1[i] & ~pUnsigned2[i] )
            return 0;

    return 1;
}

Here is the caller graph for this function:

Fraig_PrintBinary()

void Fraig_PrintBinary	(	FILE *	pFile,
		unsigned *	pSign,
		int	nBits )

Function*************************************************************

Synopsis [Prints the bit string.]

Description []

SideEffects []

SeeAlso []

Definition at line 402 of file fraigUtil.c.

{
    int Remainder, nWords;
    int w, i;

    Remainder = (nBits%(sizeof(unsigned)*8));
    nWords    = (nBits/(sizeof(unsigned)*8)) + (Remainder>0);

    for ( w = nWords-1; w >= 0; w-- )
        for ( i = ((w == nWords-1 && Remainder)? Remainder-1: 31); i >= 0; i-- )
            fprintf( pFile, "%c", '0' + (int)((pSign[w] & (1<<i)) > 0) );

//  fprintf( pFile, "\n" );
}

Here is the caller graph for this function:

Fraig_PrintNode()

void Fraig_PrintNode	(	Fraig_Man_t *	p,
		Fraig_Node_t *	pNode )

Function*************************************************************

Synopsis [Prints the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 358 of file fraigUtil.c.

{
    Fraig_NodeVec_t * vNodes;
    Fraig_Node_t * pTemp;
    int fCompl1, fCompl2, i;

    vNodes = Fraig_DfsOne( p, pNode, 0 );
    for ( i = 0; i < vNodes->nSize; i++ )
    {
        pTemp = vNodes->pArray[i];
        if ( Fraig_NodeIsVar(pTemp) )
        {
            printf( "%3d : PI          ", pTemp->Num );
            Fraig_PrintBinary( stdout, (unsigned *)&pTemp->puSimR, 20 );
            printf( "   " );
            Fraig_PrintBinary( stdout, (unsigned *)&pTemp->puSimD, 20 );
            printf( "  %d\n", pTemp->fInv );
            continue;
        }

        fCompl1 = Fraig_IsComplement(pTemp->p1);
        fCompl2 = Fraig_IsComplement(pTemp->p2);
        printf( "%3d : %c%3d %c%3d   ", pTemp->Num,
            (fCompl1? '-':'+'), Fraig_Regular(pTemp->p1)->Num,
            (fCompl2? '-':'+'), Fraig_Regular(pTemp->p2)->Num );
        Fraig_PrintBinary( stdout, (unsigned *)&pTemp->puSimR, 20 );
        printf( "   " );
        Fraig_PrintBinary( stdout, (unsigned *)&pTemp->puSimD, 20 );
        printf( "  %d\n", pTemp->fInv );
    }
    Fraig_NodeVecFree( vNodes );
}

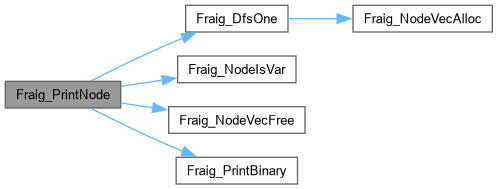

Here is the call graph for this function:
