fxu.h File Reference

#include "misc/vec/vec.h"

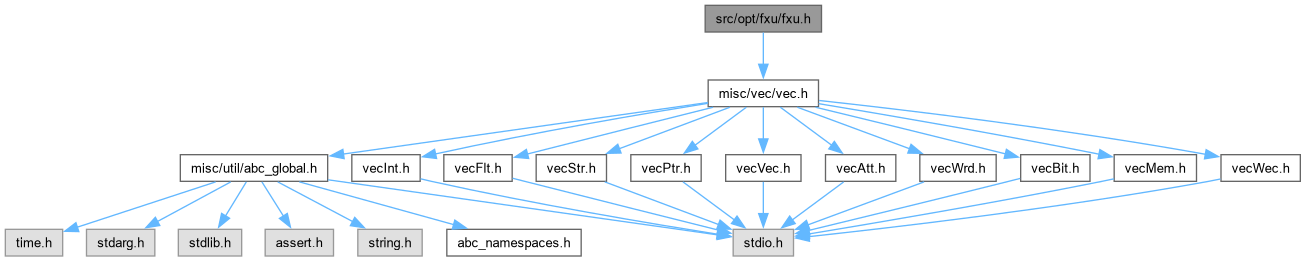

Include dependency graph for fxu.h:

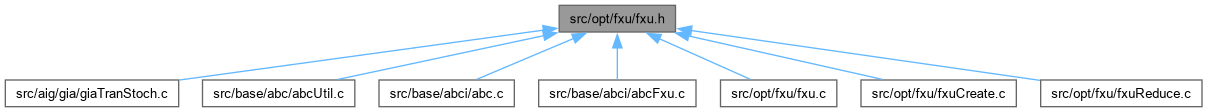

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	FxuDataStruct

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct FxuDataStruct	Fxu_Data_t
	INCLUDES ///.

Functions
void	Abc_NtkSetDefaultFxParams (Fxu_Data_t *p)
	MACRO DEFINITIONS ///.
int	Abc_NtkFastExtract (Abc_Ntk_t *pNtk, Fxu_Data_t *p)
void	Abc_NtkFxuFreeInfo (Fxu_Data_t *p)

Typedef Documentation

Fxu_Data_t

typedef typedefABC_NAMESPACE_HEADER_START struct FxuDataStruct Fxu_Data_t

INCLUDES ///.

CFile****************************************************************

FileName [fxu.h]

PackageName [MVSIS 2.0: Multi-valued logic synthesis system.]

Synopsis [External declarations of fast extract for unate covers.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - February 1, 2003.]

Revision [

Id

fxu.h,v 1.0 2003/02/01 00:00:00 alanmi Exp

] PARAMETERS /// STRUCTURE DEFINITIONS ///

Definition at line 42 of file fxu.h.

Function Documentation

Abc_NtkFastExtract()

int Abc_NtkFastExtract ( Abc_Ntk_t * pNtk, Fxu_Data_t * p )

extern

Function*************************************************************

Synopsis [Performs fast_extract on the current network.]

Description [Takes the network and the maximum number of nodes to extract. Uses the concurrent double-cube and single cube divisor extraction procedure. Modifies the network in the end, after extracting all nodes. Note that Ntk_NetworkSweep() may increase the performance of this procedure because the single-literal nodes will not be created in the sparse matrix. Returns 1 if the network has been changed.]

SideEffects []

SeeAlso []

Definition at line 83 of file abcFxu.c.

{
    assert( Abc_NtkIsLogic(pNtk) );
    // if the network is already in the SOP form, it may come from BLIF file
    // and it may not be SCC-free, in which case FXU will not work correctly
    if ( Abc_NtkIsSopLogic(pNtk) )
    { // to make sure the SOPs are SCC-free
//        Abc_NtkSopToBdd(pNtk);
//        Abc_NtkBddToSop(pNtk, 1);
    }
    // get the network in the SOP form
    if ( !Abc_NtkToSop(pNtk, -1, ABC_INFINITY) )
    {
        printf( "Abc_NtkFastExtract(): Converting to SOPs has failed.\n" );
        return 0;
    }
    // check if the network meets the requirements
    if ( !Abc_NtkFxuCheck(pNtk) )
    {
        printf( "Abc_NtkFastExtract: Nodes have duplicated or complemented fanins. FXU is not performed.\n" );
        return 0;
    }
    // sweep removes useless nodes
    Abc_NtkCleanup( pNtk, 0 );
    // collect information about the covers
    Abc_NtkFxuCollectInfo( pNtk, p );
    // call the fast extract procedure
    if ( Fxu_FastExtract(p) > 0 )
    {
        // update the network
        Abc_NtkFxuReconstruct( pNtk, p );
        // make sure everything is okay
        if ( !Abc_NtkCheck( pNtk ) )
            printf( "Abc_NtkFastExtract: The network check has failed.\n" );
        return 1;
    }
    else
        printf( "Warning: The network has not been changed by \"fx\".\n" );
    return 0;
}

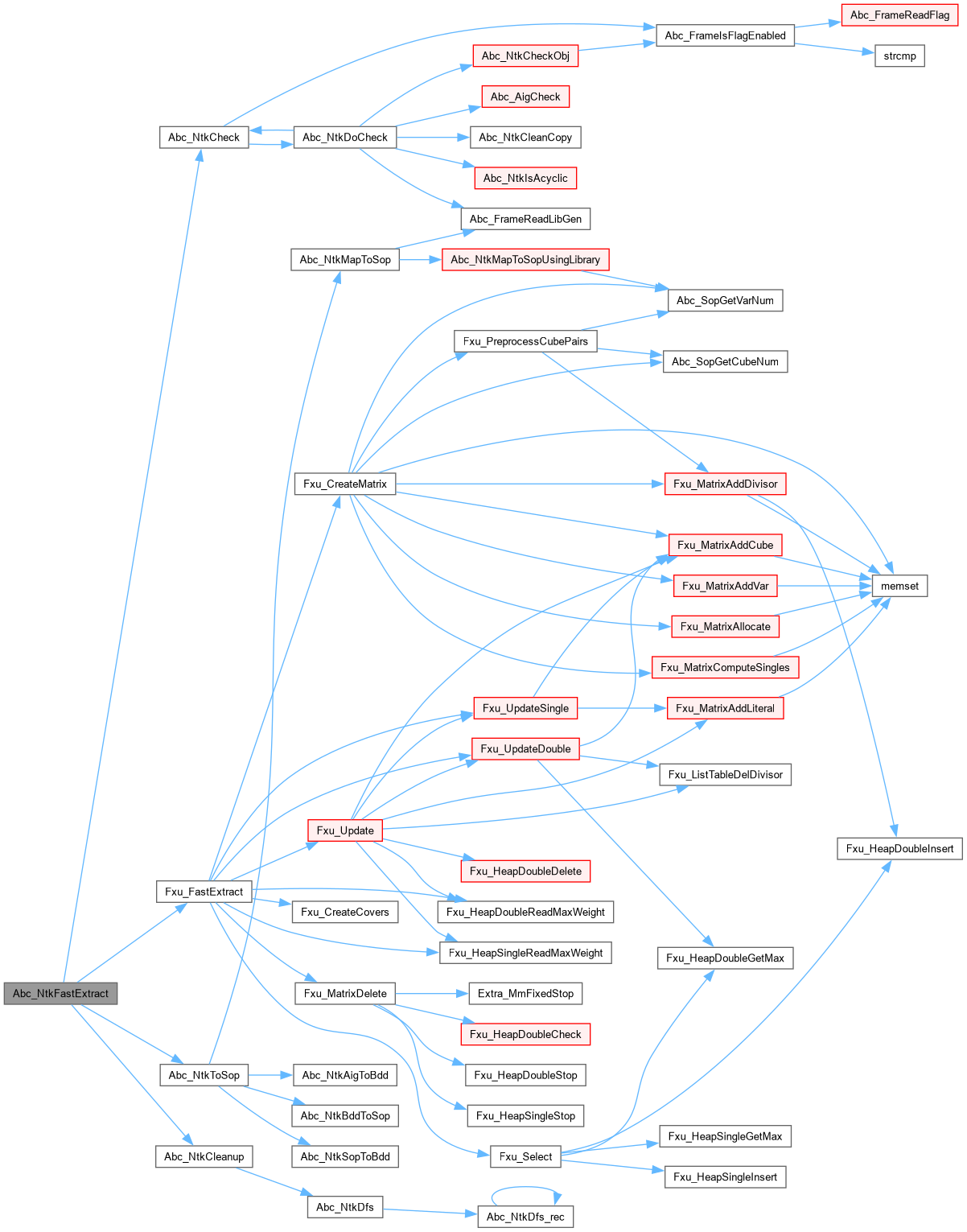

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkFxuFreeInfo()

void Abc_NtkFxuFreeInfo ( Fxu_Data_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 207 of file abcFxu.c.

{
    int i;
    // free the arrays of new fanins
    if ( p->vFaninsNew )
        for ( i = 0; i < p->vFaninsNew->nSize; i++ )
            if ( p->vFaninsNew->pArray[i] )
                Vec_IntFree( (Vec_Int_t *)p->vFaninsNew->pArray[i] );
    // free the arrays
    if ( p->vSops      ) Vec_PtrFree( p->vSops      );
    if ( p->vSopsNew   ) Vec_PtrFree( p->vSopsNew   );
    if ( p->vFanins    ) Vec_PtrFree( p->vFanins    );
    if ( p->vFaninsNew ) Vec_PtrFree( p->vFaninsNew );
//    ABC_FREE( p );
}

Here is the caller graph for this function:

Abc_NtkSetDefaultFxParams()

void Abc_NtkSetDefaultFxParams ( Fxu_Data_t * p )

extern

MACRO DEFINITIONS ///.

FUNCTION DEFINITIONS ///

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis [Sets default values of the FXU parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 52 of file abcFxu.c.

{
    memset( p, 0, sizeof(Fxu_Data_t) );
    p->nSingleMax =  20000;
    p->nPairsMax  =  30000;
    p->nNodesExt  =1000000;
    p->WeightMin  =      0;
    p->LitCountMax=      4;
    p->fOnlyS     =      0;
    p->fOnlyD     =      0;
    p->fUse0      =      0;
    p->fUseCompl  =      1;
    p->fVerbose   =      0;
}

Here is the call graph for this function:

Here is the caller graph for this function:
