giaBalAig.c File Reference

#include "gia.h"
#include "misc/vec/vecHash.h"
#include "misc/vec/vecQue.h"
#include "opt/dau/dau.h"

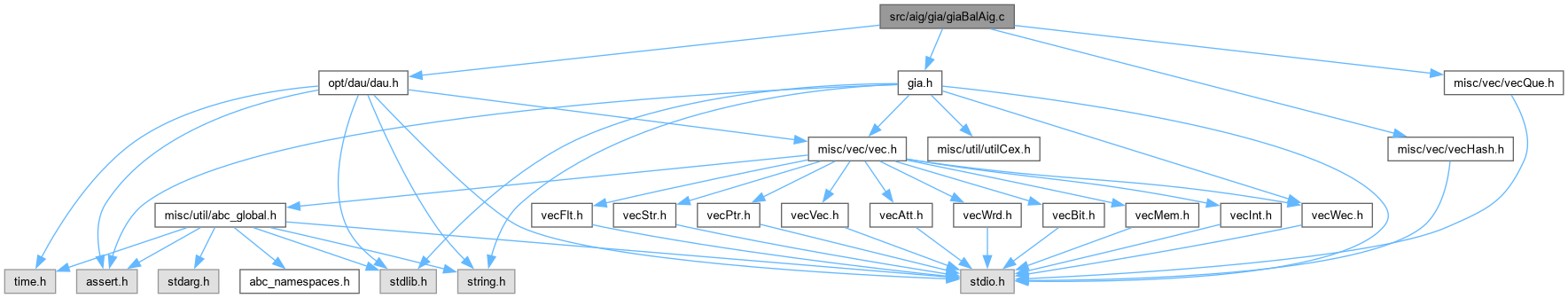

Include dependency graph for giaBalAig.c:

Go to the source code of this file.

Classes
struct	Dam_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Dam_Man_t_	Dam_Man_t
	DECLARATIONS ///.

Functions
void	Gia_ManSimplifyXor (Vec_Int_t *vSuper)
	FUNCTION DEFINITIONS ///.
void	Gia_ManSimplifyAnd (Vec_Int_t *vSuper)
void	Gia_ManSuperCollectXor_rec (Gia_Man_t *p, Gia_Obj_t *pObj, int fStrict)
void	Gia_ManSuperCollectAnd_rec (Gia_Man_t *p, Gia_Obj_t *pObj, int fStrict)
void	Gia_ManSuperCollect (Gia_Man_t *p, Gia_Obj_t *pObj, int fStrict)
int	Gia_ManFindSharedNode (Gia_Man_t *pNew, Vec_Int_t *vSuper, int iLit0)
void	Gia_ManPrepareLastTwo (Gia_Man_t *pNew, Vec_Int_t *vSuper)
void	Gia_ManCreateGate (Gia_Man_t *pNew, Gia_Obj_t *pObj, Vec_Int_t *vSuper)
int	Gia_ManBalanceGate (Gia_Man_t *pNew, Gia_Obj_t *pObj, Vec_Int_t *vSuper, int *pLits, int nLits)
void	Gia_ManBalance_rec (Gia_Man_t *pNew, Gia_Man_t *p, Gia_Obj_t *pObj, int fStrict)
Gia_Man_t *	Gia_ManBalanceInt (Gia_Man_t *p, int fStrict)
Gia_Man_t *	Gia_ManBalance (Gia_Man_t *p, int fSimpleAnd, int fStrict, int fVerbose)
Dam_Man_t *	Dam_ManAlloc (Gia_Man_t *pGia)
void	Dam_ManFree (Dam_Man_t *p)
void	Dam_ManCollectSets_rec (Dam_Man_t *p, int Id)
void	Dam_ManCollectSets (Dam_Man_t *p)
int	Dam_ManDivSlack (Dam_Man_t *p, int iLit0, int iLit1, int LevR)
void	Dam_ManCreateMultiRefs (Dam_Man_t *p, Vec_Int_t **pvRefsAnd, Vec_Int_t **pvRefsXor)
void	Dam_ManCreatePairs (Dam_Man_t *p, int fVerbose)
void	Dam_ManMultiAig_rec (Dam_Man_t *pMan, Gia_Man_t *pNew, Gia_Man_t *p, Gia_Obj_t *pObj)
Gia_Man_t *	Dam_ManMultiAig (Dam_Man_t *pMan)
void	Dam_PrintDiv (Dam_Man_t *p, int iDiv)
void	Dam_PrintQue (Dam_Man_t *p)
int	Dam_ManUpdateNode (Dam_Man_t *p, int iObj, int iLit0, int iLit1, int iLitNew, Vec_Int_t *vDivs)
void	Dam_ManUpdate (Dam_Man_t *p, int iDiv)
Gia_Man_t *	Dam_ManAreaBalanceInt (Gia_Man_t *pGia, Vec_Int_t *vCiLevels, int nNewNodesMax, int fVerbose, int fVeryVerbose)
Gia_Man_t *	Gia_ManAreaBalance (Gia_Man_t *p, int fSimpleAnd, int nNewNodesMax, int fVerbose, int fVeryVerbose)

Typedef Documentation

Dam_Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Dam_Man_t_ Dam_Man_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaBalance.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [AIG balancing.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaBalance.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 34 of file giaBalAig.c.

Function Documentation

Dam_ManAlloc()

Dam_Man_t * Dam_ManAlloc

(

Gia_Man_t *

pGia

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 474 of file giaBalAig.c.

{
    Dam_Man_t * p;
    p = ABC_CALLOC( Dam_Man_t, 1 );
    p->clkStart = Abc_Clock();
    p->vVisit = Vec_IntAlloc( 1000 );
    p->pGia = pGia;
    return p;
}

Here is the caller graph for this function:

Dam_ManAreaBalanceInt()

Gia_Man_t * Dam_ManAreaBalanceInt	(	Gia_Man_t *	pGia,
		Vec_Int_t *	vCiLevels,
		int	nNewNodesMax,
		int	fVerbose,
		int	fVeryVerbose )

Function*************************************************************

Synopsis [Perform extraction for multi-input AND/XOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 1013 of file giaBalAig.c.

{
    Gia_Man_t * pNew;
    Dam_Man_t * p;
    int i, iDiv;
    p = Dam_ManAlloc( pGia );
    p->nLevelMax = Gia_ManSetLevels( p->pGia, vCiLevels );
    p->vNodLevR = Gia_ManReverseLevel( p->pGia );
    Vec_IntFillExtra( p->pGia->vLevels, 3*Gia_ManObjNum(p->pGia)/2, 0 );
    Dam_ManCreatePairs( p, fVerbose );
    for ( i = 0; i < nNewNodesMax && Vec_QueTopPriority(p->vQue) >= 2; i++ )
    {
        iDiv = Vec_QuePop(p->vQue);
        if ( fVeryVerbose )
            Dam_PrintDiv( p, iDiv );
        Dam_ManUpdate( p, iDiv );
    }
    if ( fVeryVerbose )
        Dam_PrintDiv( p, 0 );
    pNew = Dam_ManMultiAig( p );
    if ( fVerbose )
    {
        int nDivsAll = Hash_IntManEntryNum(p->vHash);
        int nDivsUsed = p->nDivs;
        printf( "Div:  " );
        printf( "  Total =%9d (%6.2f %%) ",   nDivsAll,   100.0 * nDivsAll    / Abc_MaxInt(nDivsAll, 1) );
        printf( "  Used =%9d (%6.2f %%)",     nDivsUsed,  100.0 * nDivsUsed   / Abc_MaxInt(nDivsAll, 1) );
        printf( "  Gain =%6d (%6.2f %%)",     p->nGain,   100.0 * p->nGain / Abc_MaxInt(p->nAnds, 1) );
        printf( "  GainX = %d  ",             p->nGainX  );
        Abc_PrintTime( 1, "Time", Abc_Clock() - p->clkStart );
    }
    Dam_ManFree( p );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dam_ManCollectSets()

void Dam_ManCollectSets

(

Dam_Man_t *

p

)

Definition at line 547 of file giaBalAig.c.

{
    Gia_Obj_t * pObj;
    int i;
    Gia_ManCreateRefs( p->pGia );
    p->vNod2Set  = Vec_IntStart( Gia_ManObjNum(p->pGia) );
    p->vSetStore = Vec_IntAlloc( Gia_ManObjNum(p->pGia) );
    Vec_IntPush( p->vSetStore, -1 );
    Vec_IntClear( p->vVisit );
    Gia_ManForEachCo( p->pGia, pObj, i )
        Dam_ManCollectSets_rec( p, Gia_ObjFaninId0p(p->pGia, pObj) );
    ABC_FREE( p->pGia->pRefs );
    Gia_ManForEachObjVec( p->vVisit, p->pGia, pObj, i )
        pObj->fMark0 = 0;
}

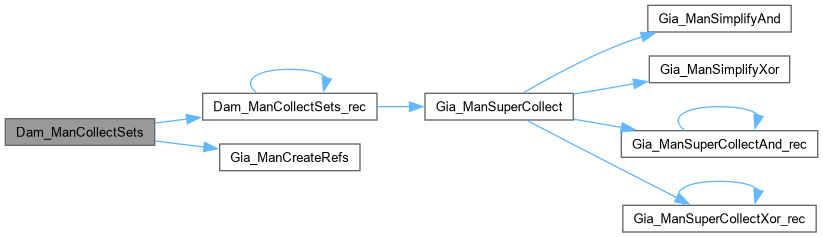

Here is the call graph for this function:

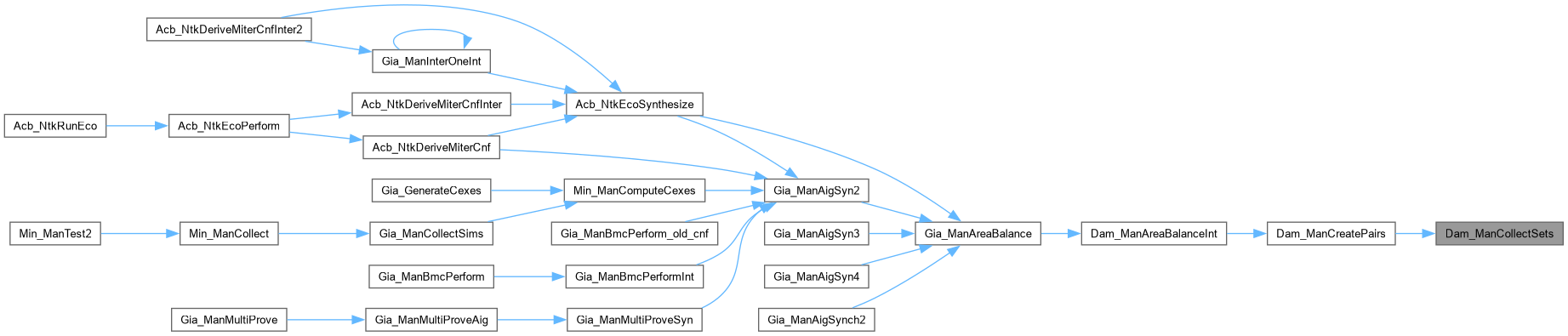

Here is the caller graph for this function:

Dam_ManCollectSets_rec()

void Dam_ManCollectSets_rec	(	Dam_Man_t *	p,
		int	Id )

Function*************************************************************

Synopsis [Collect initial multi-input gates.]

Description []

SideEffects []

SeeAlso []

Definition at line 509 of file giaBalAig.c.

{
    Gia_Obj_t * pObj;
    int i, iBeg, iEnd, iLit;
    if ( Dam_ObjHand(p, Id) || Id == 0 )
        return;
    pObj = Gia_ManObj(p->pGia, Id);
    if ( Gia_ObjIsCi(pObj) )
        return;
    if ( Gia_ObjIsBuf(pObj) )
    {
        Dam_ManCollectSets_rec( p, Gia_ObjFaninId0(pObj, Id) );
        return;
    }
    if ( Gia_ObjIsMux(p->pGia, pObj) )
    {
        if ( pObj->fMark0 )
            return;
        pObj->fMark0 = 1;
        Vec_IntPush( p->vVisit, Id );
        Dam_ManCollectSets_rec( p, Gia_ObjFaninId0(pObj, Id) );
        Dam_ManCollectSets_rec( p, Gia_ObjFaninId1(pObj, Id) );
        Dam_ManCollectSets_rec( p, Gia_ObjFaninId2(p->pGia, Id) );
        p->nAnds += 3;
        return;
    }
    Gia_ManSuperCollect( p->pGia, pObj, 0 );
    Vec_IntWriteEntry( p->vNod2Set, Id, Vec_IntSize(p->vSetStore) );
    Vec_IntPush( p->vSetStore, Vec_IntSize(p->pGia->vSuper) );
    p->nAnds += (1 + 2 * Gia_ObjIsXor(pObj)) * (Vec_IntSize(p->pGia->vSuper) - 1);
    // save entries
    iBeg = Vec_IntSize( p->vSetStore );
    Vec_IntAppend( p->vSetStore, p->pGia->vSuper );
    iEnd = Vec_IntSize( p->vSetStore );
    // call recursively
    Vec_IntForEachEntryStartStop( p->vSetStore, iLit, i, iBeg, iEnd )
        Dam_ManCollectSets_rec( p, Abc_Lit2Var(iLit) );
}

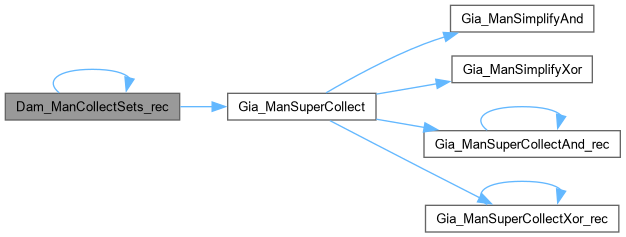

Here is the call graph for this function:

Here is the caller graph for this function:

Dam_ManCreateMultiRefs()

void Dam_ManCreateMultiRefs	(	Dam_Man_t *	p,
		Vec_Int_t **	pvRefsAnd,
		Vec_Int_t **	pvRefsXor )

Definition at line 581 of file giaBalAig.c.

{
    Vec_Int_t * vRefsAnd, * vRefsXor;
    Gia_Obj_t * pObj;
    int i, k, * pSet;
    vRefsAnd = Vec_IntStart( 2 * Gia_ManObjNum(p->pGia) );
    vRefsXor = Vec_IntStart( Gia_ManObjNum(p->pGia) );
    Gia_ManForEachAnd( p->pGia, pObj, i )
    {
        if ( !Dam_ObjHand(p, i) )
            continue;
        pSet = Dam_ObjSet(p, i);
        if ( Gia_ObjIsXor(pObj) )
            for ( k = 1; k <= pSet[0]; k++ )
            {
                assert( !Abc_LitIsCompl(pSet[k]) );
                Vec_IntAddToEntry( vRefsXor, Abc_Lit2Var(pSet[k]), 1 );
            }
        else if ( Gia_ObjIsAndReal(p->pGia, pObj) )
            for ( k = 1; k <= pSet[0]; k++ )
                Vec_IntAddToEntry( vRefsAnd, pSet[k], 1 );
        else assert( 0 );
    }
    *pvRefsAnd = vRefsAnd;
    *pvRefsXor = vRefsXor;
}

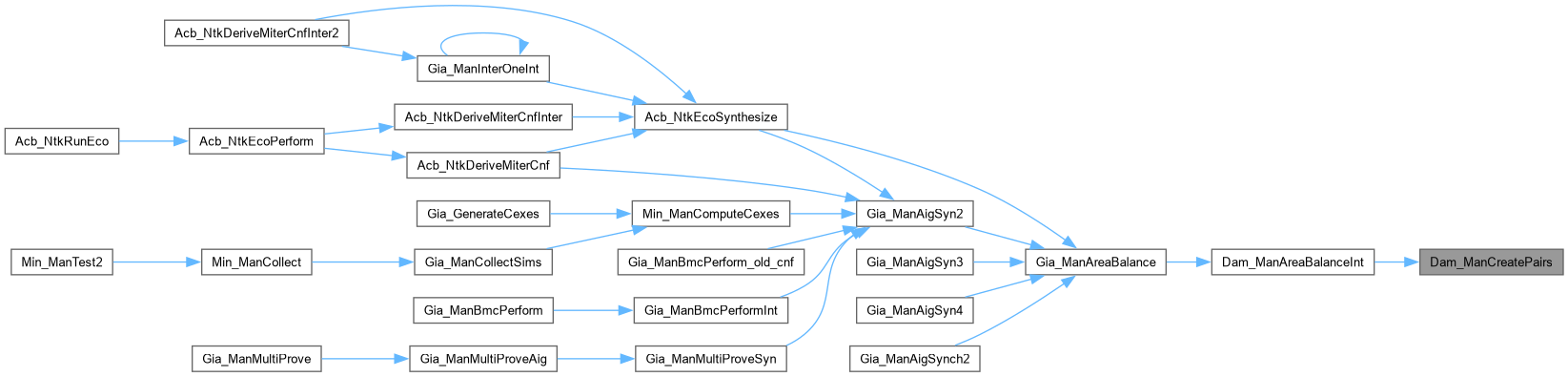

Here is the caller graph for this function:

Dam_ManCreatePairs()

void Dam_ManCreatePairs	(	Dam_Man_t *	p,
		int	fVerbose )

Definition at line 607 of file giaBalAig.c.

{
    Gia_Obj_t * pObj;
    Hash_IntMan_t * vHash;
    Vec_Int_t * vRefsAnd, * vRefsXor, * vSuper, * vDivs, * vRemap, * vLevRMax;
    int i, j, k, Num, FanK, FanJ, nRefs, iNode, iDiv, * pSet;
    int nPairsAll = 0, nPairsTried = 0, nPairsUsed = 0, nPairsXor = 0;
    int nDivsAll = 0, nDivsUsed = 0, nDivsXor = 0;
    Dam_ManCollectSets( p );
    vSuper = p->pGia->vSuper;
    vDivs  = Vec_IntAlloc( Gia_ManObjNum(p->pGia) );
    vHash  = Hash_IntManStart( Gia_ManObjNum(p->pGia)/2 );
    vLevRMax = Vec_IntStart( 1000 );
    Dam_ManCreateMultiRefs( p, &vRefsAnd, &vRefsXor );
    Gia_ManForEachAnd( p->pGia, pObj, i )
    {
        if ( !Dam_ObjHand(p, i) )
            continue;
        pSet = Dam_ObjSet(p, i);
        nPairsAll += pSet[0] * (pSet[0] - 1) / 2;
        Vec_IntClear(vSuper);
        if ( Gia_ObjIsXor(pObj) )
        {
            for ( k = 1; k <= pSet[0]; k++ )
                if ( Vec_IntEntry(vRefsXor, Abc_Lit2Var(pSet[k])) > 1 )
                    Vec_IntPush( vSuper, pSet[k] );
        }
        else if ( Gia_ObjIsAndReal(p->pGia, pObj) )
        {
            for ( k = 1; k <= pSet[0]; k++ )
                if ( Vec_IntEntry(vRefsAnd, pSet[k]) > 1 )
                    Vec_IntPush( vSuper, pSet[k] );
        }
        else assert( 0 );
        if ( Vec_IntSize(vSuper) < 2 )
            continue;
        // enumerate pairs
        nPairsTried += Vec_IntSize(vSuper) * (Vec_IntSize(vSuper) - 1) / 2;
        Vec_IntPush( vDivs, -i ); // remember node
        Vec_IntForEachEntry( vSuper, FanK, k )
        Vec_IntForEachEntryStart( vSuper, FanJ, j, k+1 )
        {
            if ( (FanK > FanJ) ^ Gia_ObjIsXor(pObj) )
                Num = Hash_Int2ManInsert( vHash, FanJ, FanK, 0 );
            else
                Num = Hash_Int2ManInsert( vHash, FanK, FanJ, 0 );
            if ( Hash_Int2ObjInc( vHash, Num ) == 1 )
            {
                nDivsUsed++;
                nDivsXor += Gia_ObjIsXor(pObj);
            }
            Vec_IntPush( vDivs, Num ); // remember devisor
            // update reverse level
            if ( Num >= Vec_IntSize(vLevRMax) )
                Vec_IntFillExtra( vLevRMax, 3 * Vec_IntSize(vLevRMax) / 2, 0 );
            Vec_IntUpdateEntry( vLevRMax, Num, Vec_IntEntry(p->vNodLevR, i) );
        }
    }
    Vec_IntFree( vRefsAnd );
    Vec_IntFree( vRefsXor );
//    Hash_IntManProfile( vHash );
    // remove entries that appear only once
    p->vHash     = Hash_IntManStart( 3 * nDivsUsed /2 );
    p->vCounts   = Vec_FltAlloc( 2 * nDivsUsed );           Vec_FltPush( p->vCounts, ABC_INFINITY );
    p->vQue      = Vec_QueAlloc( Vec_FltCap(p->vCounts) );
    Vec_QueSetPriority( p->vQue, Vec_FltArrayP(p->vCounts) );
    // mapping div to node
    p->vDiv2Nod  = Vec_IntAlloc( 2 * nDivsUsed );           Vec_IntPush( p->vDiv2Nod, ABC_INFINITY );
    p->vNodStore = Vec_IntAlloc( Gia_ManObjNum(p->pGia) );  Vec_IntPush( p->vNodStore, -1 );
    nDivsAll     = Hash_IntManEntryNum(vHash);
    vRemap       = Vec_IntStartFull( nDivsAll+1 );
    for ( i = 1; i <= nDivsAll; i++ )
    {
        nRefs = Hash_IntObjData2(vHash, i);
        if ( nRefs < 2 )
            continue;
        nPairsUsed += nRefs;
        if ( Hash_IntObjData0(vHash, i) > Hash_IntObjData1(vHash, i) )
            nPairsXor += nRefs;
        Num = Hash_Int2ManInsert( p->vHash, Hash_IntObjData0(vHash, i), Hash_IntObjData1(vHash, i), 0 );
        assert( Num == Hash_IntManEntryNum(p->vHash) );
        assert( Num == Vec_FltSize(p->vCounts) );
        Vec_FltPush( p->vCounts, nRefs + 0.005*Dam_ManDivSlack(p, Hash_IntObjData0(vHash, i), Hash_IntObjData1(vHash, i), Vec_IntEntry(vLevRMax, i)) );
        Vec_QuePush( p->vQue, Num );
        // remember divisors
        assert( Num == Vec_IntSize(p->vDiv2Nod) );
        Vec_IntPush( p->vDiv2Nod, Vec_IntSize(p->vNodStore) );
        Vec_IntPush( p->vNodStore, 0 );
        Vec_IntFillExtra( p->vNodStore, Vec_IntSize(p->vNodStore) + nRefs, -1 );
        // remember entry
        Vec_IntWriteEntry( vRemap, i, Num );
    }
    assert( Vec_FltSize(p->vCounts) == Hash_IntManEntryNum(p->vHash)+1 );
    assert( Vec_IntSize(p->vDiv2Nod) == nDivsUsed+1 );
    Hash_IntManStop( vHash );
    Vec_IntFree( vLevRMax );
    // fill in the divisors
    iNode = -1;
    Vec_IntForEachEntry( vDivs, iDiv, i )
    {
        if ( iDiv < 0 )
        {
            iNode = -iDiv;
            continue;
        }
        Num = Vec_IntEntry( vRemap, iDiv );
        if ( Num == -1 )
            continue;
        pSet = Dam_DivSet( p, Num );
        pSet[++pSet[0]] = iNode;
    }
    Vec_IntFree( vRemap );
    Vec_IntFree( vDivs );
    // create storage for reverse level of divisor during update
    p->vDivLevR = Vec_IntStart( 2 * nDivsUsed );
    // make sure divisors are added correctly
//    for ( i = 1; i <= nDivsUsed; i++ )
//        assert( Dam_DivSet(p, i)[0] == Vec_FltEntry(p->vCounts, i)+1 );
    if ( !fVerbose )
        return;
    // print stats
    printf( "Pairs:" );
    printf( "  Total =%9d (%6.2f %%)", nPairsAll,   100.0 * nPairsAll   / Abc_MaxInt(nPairsAll, 1) );
    printf( "  Tried =%9d (%6.2f %%)", nPairsTried, 100.0 * nPairsTried / Abc_MaxInt(nPairsAll, 1) );
    printf( "  Used =%9d (%6.2f %%)",  nPairsUsed,  100.0 * nPairsUsed  / Abc_MaxInt(nPairsAll, 1) );
    printf( "  Xor =%9d (%6.2f %%)",   nPairsXor,   100.0 * nPairsXor   / Abc_MaxInt(nPairsAll, 1) );
    printf( "\n" );
    printf( "Div:  " );
    printf( "  Total =%9d (%6.2f %%)", nDivsAll,    100.0 * nDivsAll    / Abc_MaxInt(nDivsAll, 1) );
    printf( "  Tried =%9d (%6.2f %%)", nDivsAll,    100.0 * nDivsAll    / Abc_MaxInt(nDivsAll, 1) );
    printf( "  Used =%9d (%6.2f %%)",  nDivsUsed,   100.0 * nDivsUsed   / Abc_MaxInt(nDivsAll, 1) );
    printf( "  Xor =%9d (%6.2f %%)",   nDivsXor,    100.0 * nDivsXor    / Abc_MaxInt(nDivsAll, 1) );
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dam_ManDivSlack()

int Dam_ManDivSlack	(	Dam_Man_t *	p,
		int	iLit0,
		int	iLit1,
		int	LevR )

Function*************************************************************

Synopsis [Create divisors.]

Description []

SideEffects []

SeeAlso []

Definition at line 574 of file giaBalAig.c.

{
    int Lev0 = Gia_ObjLevel(p->pGia, Gia_ManObj(p->pGia, Abc_Lit2Var(iLit0)));
    int Lev1 = Gia_ObjLevel(p->pGia, Gia_ManObj(p->pGia, Abc_Lit2Var(iLit1)));
    int Slack = p->nLevelMax - LevR - Abc_MaxInt(Lev0, Lev1) - 1 - (int)(iLit0 > iLit1);
    return Abc_MinInt( Slack, 100 );
}

Here is the caller graph for this function:

Dam_ManFree()

void Dam_ManFree

(

Dam_Man_t *

p

)

Definition at line 483 of file giaBalAig.c.

{
    Vec_IntFreeP( &p->vVisit );
    Vec_IntFreeP( &p->vDivLevR );
    Vec_IntFreeP( &p->vNodLevR );
    Vec_IntFreeP( &p->vNod2Set );
    Vec_IntFreeP( &p->vDiv2Nod );
    Vec_IntFreeP( &p->vSetStore );
    Vec_IntFreeP( &p->vNodStore );
    Vec_FltFreeP( &p->vCounts );
    Vec_QueFreeP( &p->vQue );
    Hash_IntManStop( p->vHash );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Dam_ManMultiAig()

Gia_Man_t * Dam_ManMultiAig

(

Dam_Man_t *

pMan

)

Definition at line 787 of file giaBalAig.c.

{
    Gia_Man_t * p = pMan->pGia;
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    int i;
    // start the new manager
    pNew = Gia_ManStart( 2*Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    pNew->pMuxes = ABC_CALLOC( unsigned, pNew->nObjsAlloc );
    pNew->vLevels = Vec_IntStart( pNew->nObjsAlloc );
    // create constant and inputs
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachCi( p, pObj, i )
    {
        pObj->Value = Gia_ManAppendCi( pNew );
        Vec_IntWriteEntry( pNew->vLevels, Abc_Lit2Var(pObj->Value), Gia_ObjLevel(p, pObj) );
    }
    // create internal nodes
    Gia_ManHashStart( pNew );
    Gia_ManForEachBuf( p, pObj, i )
    {
        Dam_ManMultiAig_rec( pMan, pNew, p, Gia_ObjFanin0(pObj) );
        pObj->Value = Gia_ManAppendBuf( pNew, Gia_ObjFanin0Copy(pObj) );
        Gia_ObjSetGateLevel( pNew, Gia_ManObj(pNew, Abc_Lit2Var(pObj->Value)) );
    }
    Gia_ManForEachCo( p, pObj, i )
    {
        Dam_ManMultiAig_rec( pMan, pNew, p, Gia_ObjFanin0(pObj) );
        pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    }
//    assert( Gia_ManObjNum(pNew) <= Gia_ManObjNum(p) );
    Gia_ManHashStop( pNew );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    // perform cleanup
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    return pNew;
}

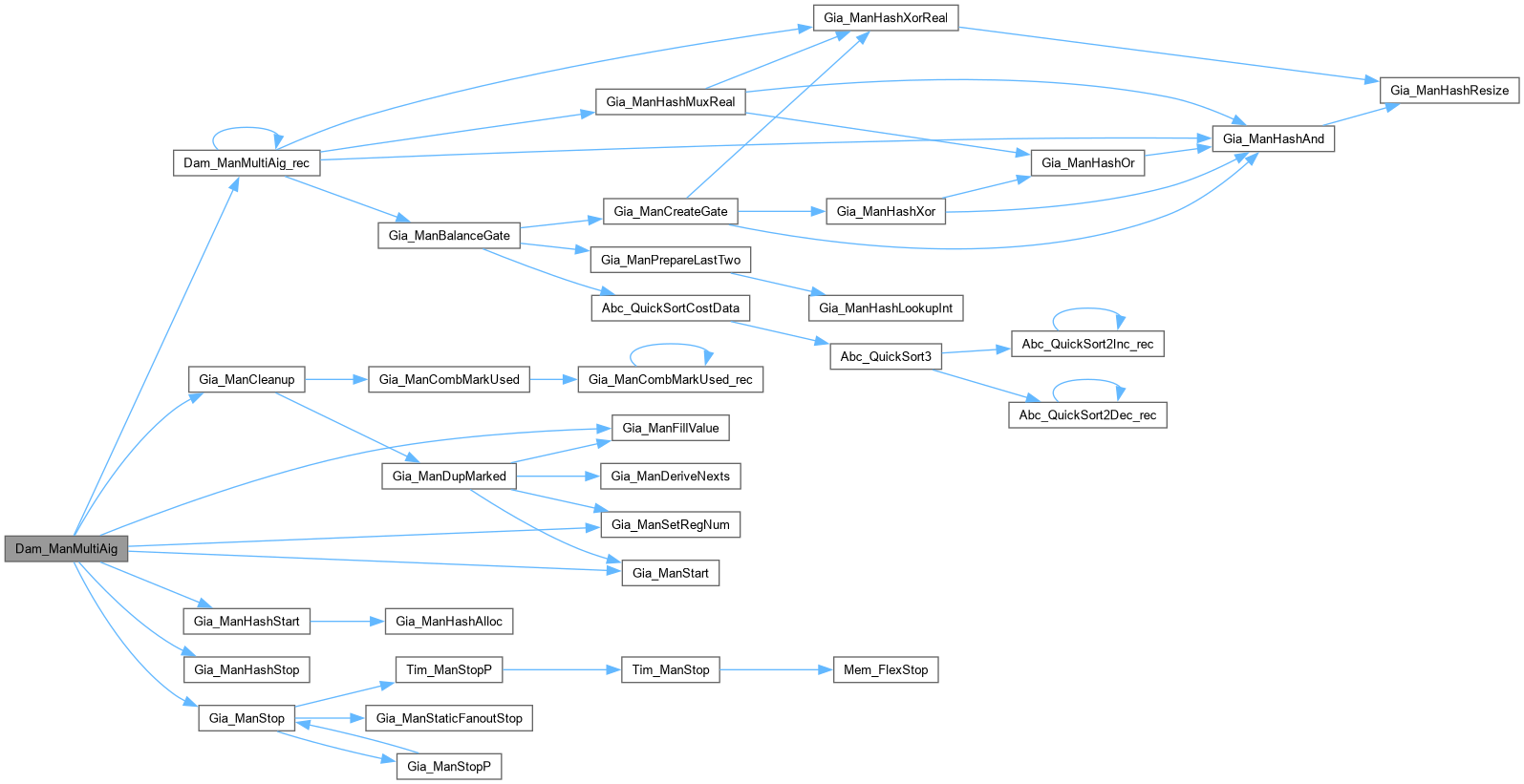

Here is the call graph for this function:

Here is the caller graph for this function:

Dam_ManMultiAig_rec()

void Dam_ManMultiAig_rec	(	Dam_Man_t *	pMan,
		Gia_Man_t *	pNew,
		Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Derives new AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 753 of file giaBalAig.c.

{
    int i, * pSet;
    if ( ~pObj->Value )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    pSet = Dam_ObjSet(pMan, Gia_ObjId(p, pObj));
    if ( pSet == NULL )
    {
        Dam_ManMultiAig_rec( pMan, pNew, p, Gia_ObjFanin0(pObj) );
        Dam_ManMultiAig_rec( pMan, pNew, p, Gia_ObjFanin1(pObj) );
        if ( Gia_ObjIsMux(p, pObj) )
        {
            Dam_ManMultiAig_rec( pMan, pNew, p, Gia_ObjFanin2(p, pObj) );
            pObj->Value = Gia_ManHashMuxReal( pNew, Gia_ObjFanin2Copy(p, pObj), Gia_ObjFanin1Copy(pObj), Gia_ObjFanin0Copy(pObj) );
        }
        else if ( Gia_ObjIsXor(pObj) )
            pObj->Value = Gia_ManHashXorReal( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        else
            pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        Gia_ObjSetGateLevel( pNew, Gia_ManObj(pNew, Abc_Lit2Var(pObj->Value)) );
        return;
    }
    assert( Gia_ObjIsXor(pObj) || Gia_ObjIsAndReal(p, pObj) );
    // call recursively
    for ( i = 1; i <= pSet[0]; i++ )
    {
        Gia_Obj_t * pTemp = Gia_ManObj( p, Abc_Lit2Var(pSet[i]) );
        Dam_ManMultiAig_rec( pMan, pNew, p, pTemp );
        pSet[i] = Abc_LitNotCond( pTemp->Value, Abc_LitIsCompl(pSet[i]) );
    }
    // create balanced gate
    pObj->Value = Gia_ManBalanceGate( pNew, pObj, p->vSuper, pSet + 1, pSet[0] );
}

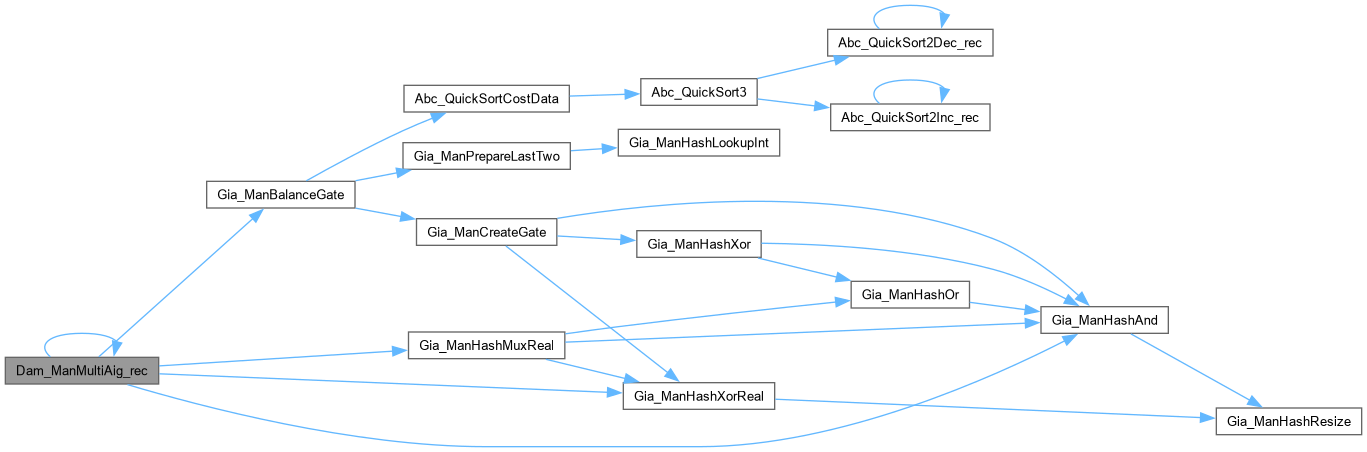

Here is the call graph for this function:

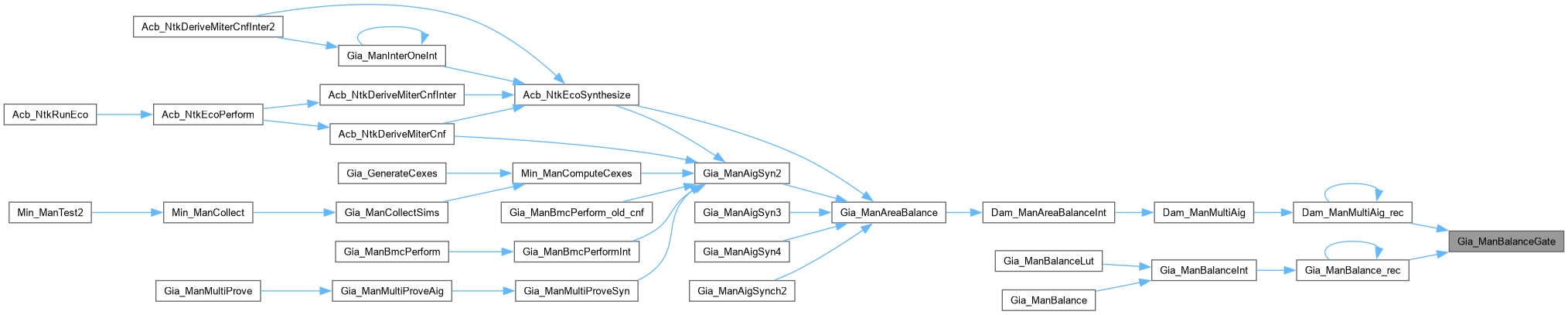

Here is the caller graph for this function:

Dam_ManUpdate()

void Dam_ManUpdate	(	Dam_Man_t *	p,
		int	iDiv )

Definition at line 937 of file giaBalAig.c.

{
    Vec_Int_t * vDivs = p->pGia->vSuper;
    int iLit0 = Hash_IntObjData0(p->vHash, iDiv);
    int iLit1 = Hash_IntObjData1(p->vHash, iDiv);
    int i, iLitNew, * pSet, * pNods = Dam_DivSet( p, iDiv );
    int nPresent = 0, nPairsStart, nPairsStop, pPairsNew, nRefs;
    int fThisIsXor = (iLit0 > iLit1), iDivTemp, iNode;
//    Dam_PrintQue( p );
    if ( fThisIsXor )
        iLitNew = Gia_ManAppendXorReal( p->pGia, iLit0, iLit1 );
    else
        iLitNew = Gia_ManAppendAnd( p->pGia, iLit0, iLit1 );
    Gia_ObjSetGateLevel( p->pGia, Gia_ManObj(p->pGia, Abc_Lit2Var(iLitNew)) );
//    printf( "%d ", Gia_ObjLevel(p->pGia, Gia_ManObj(p->pGia, Abc_Lit2Var(iLitNew))) );
    // replace entries
    assert( pNods[0] >= 2 );
    nPairsStart = Hash_IntManEntryNum(p->vHash) + 1;
    Vec_IntClear( vDivs );
    for ( i = 1; i <= pNods[0]; i++ )
        nPresent += Dam_ManUpdateNode( p, pNods[i], iLit0, iLit1, iLitNew, vDivs );
    nPairsStop = Hash_IntManEntryNum(p->vHash) + 1;
    // extend arrayvs
    pPairsNew = 0;
    Vec_FltFillExtra( p->vCounts, nPairsStop, 0 );
    Vec_IntFillExtra( p->vDiv2Nod, nPairsStop, -1 );
    for ( i = nPairsStart; i < nPairsStop; i++ )
    {
        nRefs = Hash_IntObjData2(p->vHash, i);
        if ( nRefs < 2 )
            continue;
        Vec_FltWriteEntry( p->vCounts, i, nRefs + 0.001*Dam_ManDivSlack(p, Hash_IntObjData0(p->vHash, i), Hash_IntObjData1(p->vHash, i), Vec_IntEntry(p->vDivLevR, i)) );
        Vec_QuePush( p->vQue, i );
        // remember divisors
        Vec_IntWriteEntry( p->vDiv2Nod, i, Vec_IntSize(p->vNodStore) );
        Vec_IntPush( p->vNodStore, 0 );
        Vec_IntFillExtra( p->vNodStore, Vec_IntSize(p->vNodStore) + nRefs, -1 );
        pPairsNew++;
    }
//    printf( "Added %d new pairs\n", pPairsNew );
    // fill in the divisors
    iNode = -1;
    Vec_IntForEachEntry( vDivs, iDivTemp, i )
    {
        if ( iDivTemp < 0 )
        {
            iNode = -iDivTemp;
            continue;
        }
        if ( Vec_IntEntry(p->vDiv2Nod, iDivTemp) == -1 )
            continue;
        pSet = Dam_DivSet( p, iDivTemp );
        pSet[++pSet[0]] = iNode;
    }
    // make sure divisors are added correctly
    for ( i = nPairsStart; i < nPairsStop; i++ )
        if ( Vec_IntEntry(p->vDiv2Nod, i) > 0 )
            assert( Dam_DivSet(p, i)[0] == Hash_IntObjData2(p->vHash, i) );
    // update costs
    Vec_FltWriteEntry( p->vCounts, iDiv, 0 );
    p->nGain += (1 + 2 * fThisIsXor) * (nPresent - 1);
    p->nGainX += 3 * fThisIsXor * (nPresent - 1);
    p->nDivs++;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dam_ManUpdateNode()

int Dam_ManUpdateNode	(	Dam_Man_t *	p,
		int	iObj,
		int	iLit0,
		int	iLit1,
		int	iLitNew,
		Vec_Int_t *	vDivs )

Definition at line 878 of file giaBalAig.c.

{
    int * pSet = Dam_ObjSet( p, iObj );
    int i, k, c, Num, iLit, iLit2, fPres;
    // check if literal can be found
    for ( i = 1; i <= pSet[0]; i++ )
        if ( pSet[i] == iLit0 )
            break;
    if ( i > pSet[0] )
        return 0;
    // check if literal can be found
    for ( i = 1; i <= pSet[0]; i++ )
        if ( pSet[i] == iLit1 )
            break;
    if ( i > pSet[0] )
        return 0;
    // compact literals
    Vec_IntPush( vDivs, -iObj );
    for ( k = i = 1; i <= pSet[0]; i++ )
    {
        if ( iLit0 == pSet[i] || iLit1 == pSet[i] )
            continue;
        pSet[k++] = iLit = pSet[i];
        // reduce weights of the divisors
        fPres = 0;
        for ( c = 0; c < 2; c++ )
        {
            iLit2 = c ? iLit1 : iLit0;
            if ( (iLit > iLit2) ^ (iLit0 > iLit1) )
                Num = *Hash_Int2ManLookup( p->vHash, iLit2, iLit );
            else
                Num = *Hash_Int2ManLookup( p->vHash, iLit, iLit2 );
            if ( Num > 0 )
            {
                Vec_FltAddToEntry( p->vCounts, Num, -1 );
                if ( Vec_QueIsMember(p->vQue, Num) )
                {
                    Vec_QueUpdate( p->vQue, Num );
                    fPres |= (1 << c);
                }
            }
        }
        if ( fPres != 3 )
            continue;
        if ( (iLit > iLitNew) ^ (iLit0 > iLit1) )
            Num = Hash_Int2ManInsert( p->vHash, iLitNew, iLit, 0 );
        else
            Num = Hash_Int2ManInsert( p->vHash, iLit, iLitNew, 0 );
        Hash_Int2ObjInc( p->vHash, Num );
        Vec_IntPush( vDivs, Num );
        // update reverse level
        if ( Num >= Vec_IntSize(p->vDivLevR) )
            Vec_IntFillExtra( p->vDivLevR, 3 * Vec_IntSize(p->vDivLevR) / 2, 0 );
        Vec_IntUpdateEntry( p->vDivLevR, Num, Vec_IntEntry(p->vNodLevR, iObj) );
    }
    pSet[k] = iLitNew;
    pSet[0] = k;
    return 1;
}

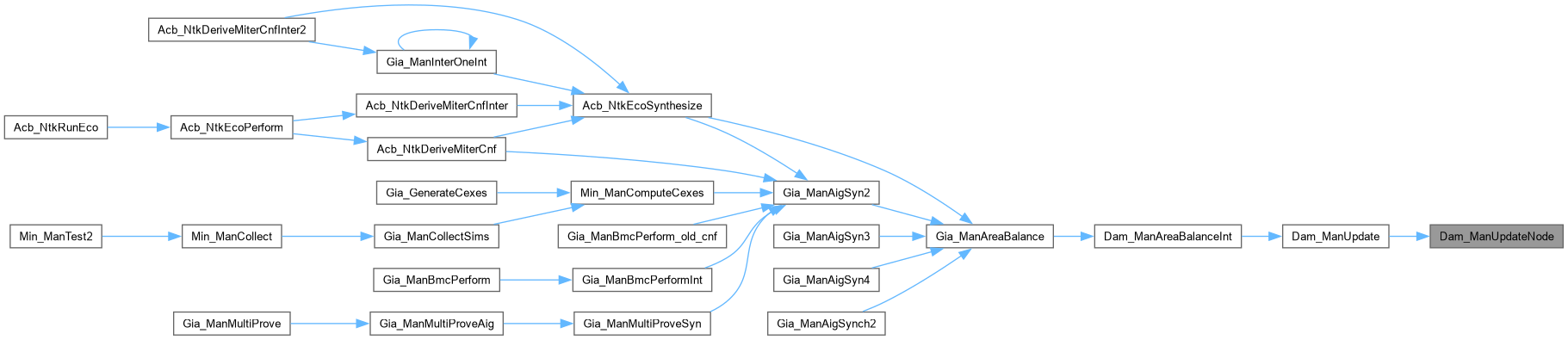

Here is the caller graph for this function:

Dam_PrintDiv()

void Dam_PrintDiv	(	Dam_Man_t *	p,
		int	iDiv )

Function*************************************************************

Synopsis [Updates the data-structure after extracting one divisor.]

Description []

SideEffects []

SeeAlso []

Definition at line 840 of file giaBalAig.c.

{
    if ( iDiv == 0 )
        printf( "Final statistics after extracting %6d divisors:          ", p->nDivs );
    else
    {
        char Buffer[100];
        int iData0 = Hash_IntObjData0(p->vHash, iDiv);
        int iData1 = Hash_IntObjData1(p->vHash, iDiv);
        printf( "Div%5d : ",  p->nDivs+1 );
        printf( "D%-8d = ",   iDiv );
        sprintf( Buffer, "%c%d", Abc_LitIsCompl(iData0)? '!':' ', Abc_Lit2Var(iData0) );
        printf( "%8s ",   Buffer );
        printf( "%c  ",     (iData0 < iData1) ? '*' : '+' );
        sprintf( Buffer, "%c%d", Abc_LitIsCompl(iData1)? '!':' ', Abc_Lit2Var(iData1) );
        printf( "%8s   ", Buffer );
        printf( "Weight %9.2f  ", Vec_FltEntry(p->vCounts, iDiv) );
    }
    printf( "Divs =%8d  ",  Hash_IntManEntryNum(p->vHash) );
    printf( "Ands =%8d  ",  p->nAnds - p->nGain );
    Abc_PrintTime( 1, "Time", Abc_Clock() - p->clkStart );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dam_PrintQue()

void Dam_PrintQue

(

Dam_Man_t *

p

)

Definition at line 862 of file giaBalAig.c.

{
    int i;
    printf( "Divisor queue: \n" );
    for ( i = 1; i <= Hash_IntManEntryNum(p->vHash); i++ )
    {
        int iLit0 = Hash_IntObjData0(p->vHash, i);
        int iLit1 = Hash_IntObjData1(p->vHash, i);
        printf( "Div %7d : ",     i );
        printf( "Weight %9.2f  ", Vec_FltEntry(p->vCounts, i) );
        printf( "F = %c%c ",      Abc_LitIsCompl(iLit0) ? '!': ' ', 'a' + Abc_Lit2Var(iLit0)-1 );
        printf( "%c ",            (Hash_IntObjData0(p->vHash, i) < Hash_IntObjData1(p->vHash, i)) ? '*':'+' );
        printf( "%c%c   ",        Abc_LitIsCompl(iLit1) ? '!': ' ', 'a' + Abc_Lit2Var(iLit1)-1 );
        printf( "\n" );
    }
}

Gia_ManAreaBalance()

Gia_Man_t * Gia_ManAreaBalance	(	Gia_Man_t *	p,
		int	fSimpleAnd,
		int	nNewNodesMax,
		int	fVerbose,
		int	fVeryVerbose )

Definition at line 1047 of file giaBalAig.c.

{
    Gia_Man_t * pNew0, * pNew, * pNew1, * pNew2;
    Vec_Int_t * vCiLevels;
    // set arrival times for the input of the new AIG
    if ( p->vCiArrs )
    {
        int i, Id, And2Delay = p->And2Delay ? p->And2Delay : 1;
        Vec_IntFreeP( &p->vLevels );
        p->vLevels = Vec_IntStart( Gia_ManObjNum(p) );
        Gia_ManForEachCiId( p, Id, i )
            Vec_IntWriteEntry( p->vLevels, Id, Vec_IntEntry(p->vCiArrs, i)/And2Delay );
    }
    else if ( p->vInArrs )
    {
        int i, Id, And2Delay = p->And2Delay ? p->And2Delay : 1;
        Gia_ManForEachCiId( p, Id, i )
            Vec_IntWriteEntry( p->vLevels, Id, (int)(Vec_FltEntry(p->vInArrs, i)/And2Delay) );
    }
    // determine CI levels
    if ( p->pManTime && p->vLevels == NULL )
        Gia_ManLevelWithBoxes( p );
    vCiLevels = Gia_ManGetCiLevels( p );
    // get the starting manager
    pNew0 = Gia_ManHasMapping(p) ? (Gia_Man_t *)Dsm_ManDeriveGia(p, 0) : Gia_ManDup(p);
    Gia_ManTransferTiming( pNew0, p );
    if ( fVerbose )     Gia_ManPrintStats( pNew0, NULL );
    // derive internal manager
    pNew = fSimpleAnd ? Gia_ManDup( pNew0 ) : Gia_ManDupMuxes( pNew0, 2 );
    Gia_ManTransferTiming( pNew, pNew0 );
    if ( fVerbose )     Gia_ManPrintStats( pNew, NULL );
    if ( pNew0 != p ) Gia_ManStop( pNew0 );
    // perform the operation
    pNew1 = Dam_ManAreaBalanceInt( pNew, vCiLevels, nNewNodesMax, fVerbose, fVeryVerbose );
    Gia_ManTransferTiming( pNew1, pNew );
    if ( fVerbose )     Gia_ManPrintStats( pNew1, NULL );
    Gia_ManStop( pNew );
    Vec_IntFreeP( &vCiLevels );
    // derive the final result
    pNew2 = Gia_ManDupNoMuxes( pNew1, 0 );
    Gia_ManTransferTiming( pNew2, pNew1 );
    if ( fVerbose )     Gia_ManPrintStats( pNew2, NULL );
    Gia_ManStop( pNew1 );
    // normalize if needed
    if ( !Gia_ManIsNormalized(pNew2) )
    {
        pNew2 = Gia_ManDupNormalize( pNew1 = pNew2, 0 );
        Gia_ManTransferTiming( pNew2, pNew1 );
        Gia_ManStop( pNew1 );
    }
    //Gia_ManTransferTiming( pNew2, p );
    return pNew2;
}

Here is the call graph for this function:

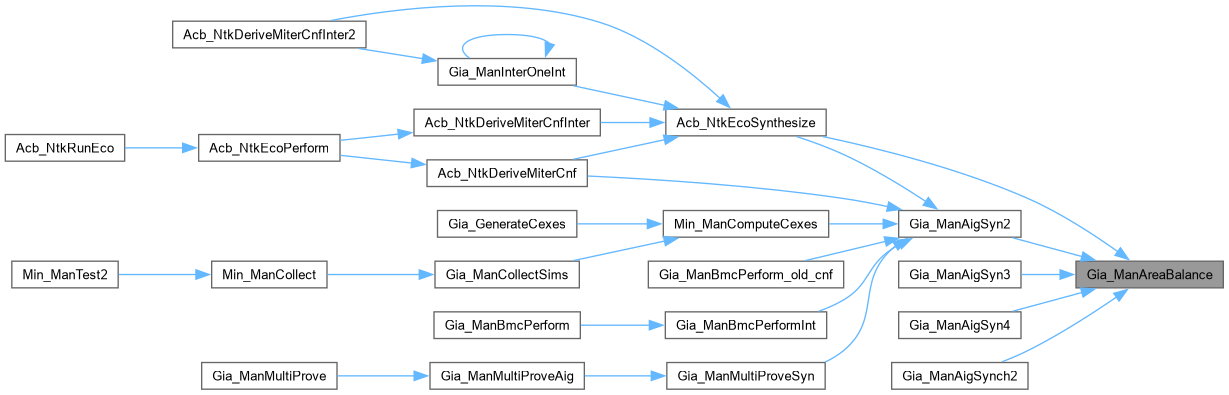

Here is the caller graph for this function:

Gia_ManBalance()

Gia_Man_t * Gia_ManBalance	(	Gia_Man_t *	p,
		int	fSimpleAnd,
		int	fStrict,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 441 of file giaBalAig.c.

{
    Gia_Man_t * pNew, * pNew1, * pNew2;
    if ( fVerbose )      Gia_ManPrintStats( p, NULL );
    pNew = fSimpleAnd ? Gia_ManDup( p ) : Gia_ManDupMuxes( p, 2 );
    Gia_ManTransferTiming( pNew, p );
    if ( fVerbose )      Gia_ManPrintStats( pNew, NULL );
    pNew1 = Gia_ManBalanceInt( pNew, fStrict );
    Gia_ManTransferTiming( pNew1, pNew );
    if ( fVerbose )      Gia_ManPrintStats( pNew1, NULL );
    Gia_ManStop( pNew );
    pNew2 = Gia_ManDupNoMuxes( pNew1, 0 );
    Gia_ManTransferTiming( pNew2, pNew1 );
    if ( fVerbose )      Gia_ManPrintStats( pNew2, NULL );
    Gia_ManStop( pNew1 );
    return pNew2;
}

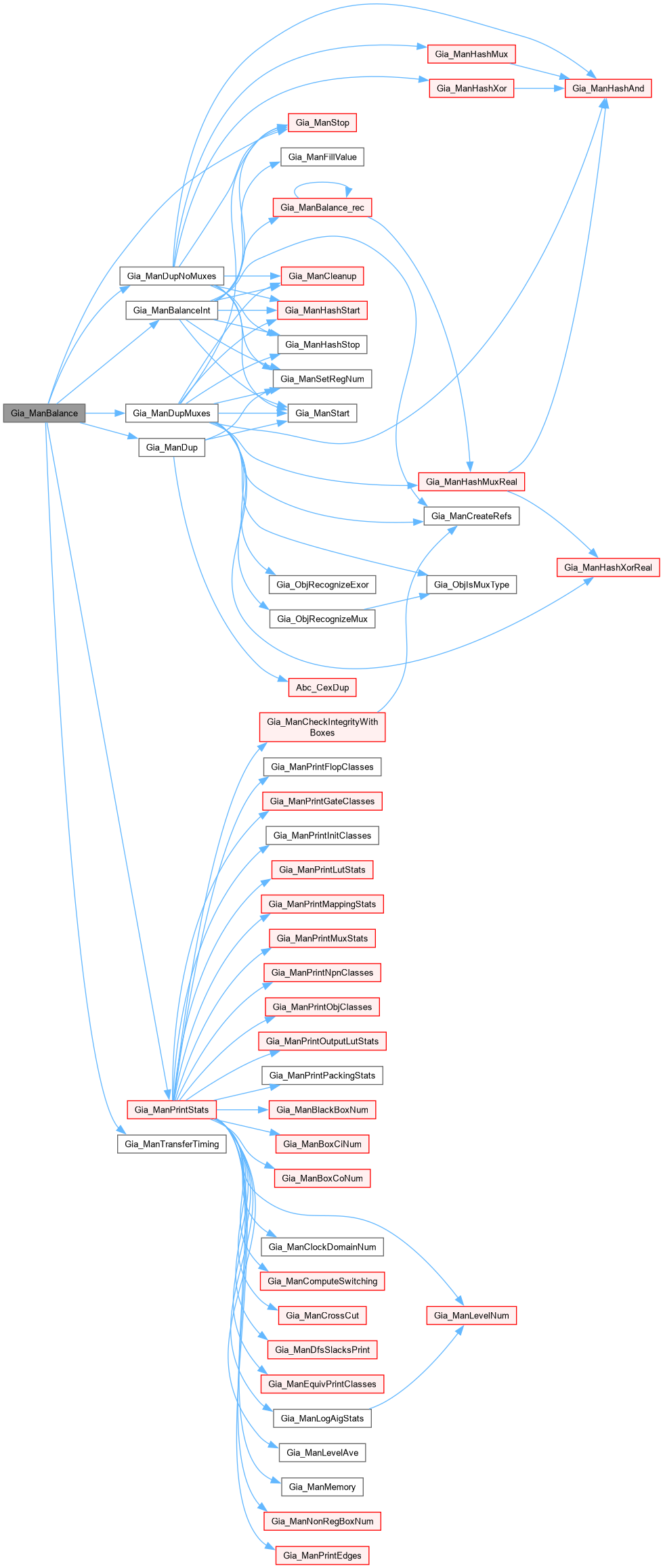

Here is the call graph for this function:

Gia_ManBalance_rec()

void Gia_ManBalance_rec	(	Gia_Man_t *	pNew,
		Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	fStrict )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 341 of file giaBalAig.c.

{
    int i, iLit, iBeg, iEnd;
    if ( ~pObj->Value )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    assert( !Gia_ObjIsBuf(pObj) );
    // handle MUX
    if ( Gia_ObjIsMux(p, pObj) )
    {
        Gia_ManBalance_rec( pNew, p, Gia_ObjFanin0(pObj), fStrict );
        Gia_ManBalance_rec( pNew, p, Gia_ObjFanin1(pObj), fStrict );
        Gia_ManBalance_rec( pNew, p, Gia_ObjFanin2(p, pObj), fStrict );
        pObj->Value = Gia_ManHashMuxReal( pNew, Gia_ObjFanin2Copy(p, pObj), Gia_ObjFanin1Copy(pObj), Gia_ObjFanin0Copy(pObj) );
        Gia_ObjSetGateLevel( pNew, Gia_ManObj(pNew, Abc_Lit2Var(pObj->Value)) );
        return;
    }
    // find supergate
    Gia_ManSuperCollect( p, pObj, fStrict );
    // save entries
    if ( p->vStore == NULL )
        p->vStore = Vec_IntAlloc( 1000 );
    iBeg = Vec_IntSize( p->vStore );
    Vec_IntAppend( p->vStore, p->vSuper );
    iEnd = Vec_IntSize( p->vStore );
    // call recursively
    Vec_IntForEachEntryStartStop( p->vStore, iLit, i, iBeg, iEnd )
    {
        Gia_Obj_t * pTemp = Gia_ManObj( p, Abc_Lit2Var(iLit) );
        Gia_ManBalance_rec( pNew, p, pTemp, fStrict );
        Vec_IntWriteEntry( p->vStore, i, Abc_LitNotCond(pTemp->Value, Abc_LitIsCompl(iLit)) );
    }
    assert( Vec_IntSize(p->vStore) == iEnd );
    // consider general case
    pObj->Value = Gia_ManBalanceGate( pNew, pObj, p->vSuper, Vec_IntEntryP(p->vStore, iBeg), iEnd-iBeg );
    Vec_IntShrink( p->vStore, iBeg );
}

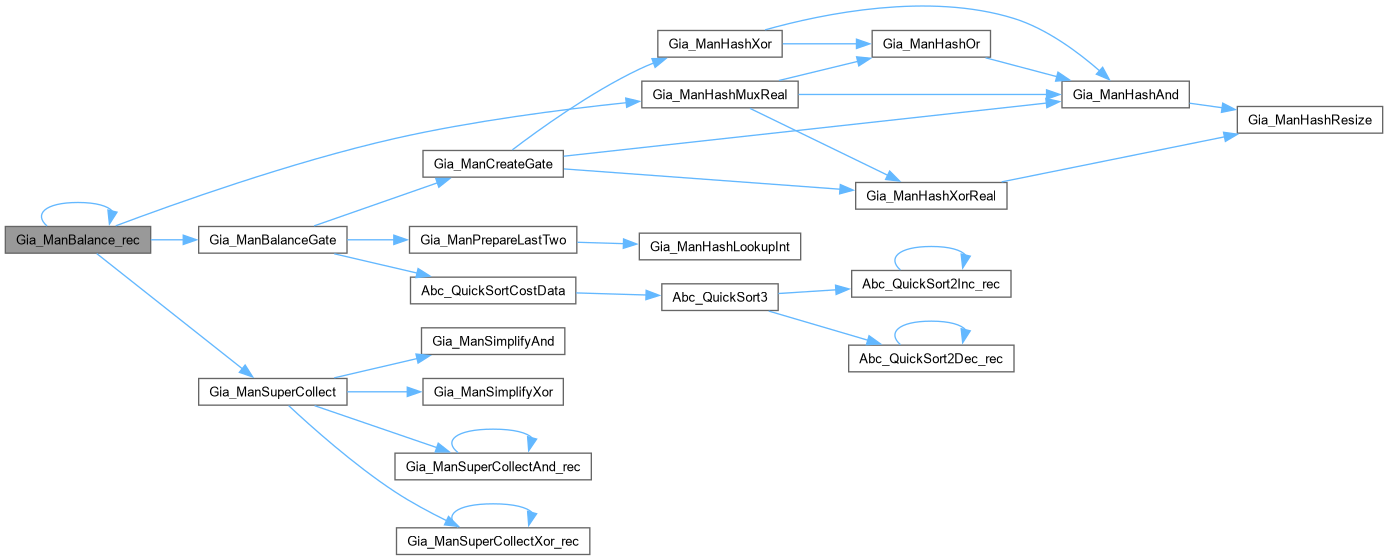

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManBalanceGate()

int Gia_ManBalanceGate	(	Gia_Man_t *	pNew,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vSuper,
		int *	pLits,
		int	nLits )

Definition at line 285 of file giaBalAig.c.

{
    assert( !Gia_ObjIsBuf(pObj) );
    Vec_IntClear( vSuper );
    if ( nLits == 1 )
        Vec_IntPush( vSuper, pLits[0] );
    else if ( nLits == 2 )
    {
        Vec_IntPush( vSuper, pLits[0] );
        Vec_IntPush( vSuper, pLits[1] );
        Gia_ManCreateGate( pNew, pObj, vSuper );
    }
    else if ( nLits > 2 )
    {
        // collect levels
        int i, * pArray, * pPerm; //int iLit;
        for ( i = 0; i < nLits; i++ )
            Vec_IntPush( vSuper, Gia_ObjLevelId(pNew, Abc_Lit2Var(pLits[i])) );
        // sort by level
        Vec_IntGrow( vSuper, 4 * nLits );
        pArray = Vec_IntArray( vSuper );
        pPerm = pArray + nLits;
        Abc_QuickSortCostData( pArray, nLits, 1, (word *)(pArray + 2 * nLits), pPerm );
        // collect in the increasing order of level
        for ( i = 0; i < nLits; i++ )
            Vec_IntWriteEntry( vSuper, i, pLits[pPerm[i]] );
        Vec_IntShrink( vSuper, nLits );
/*
        Vec_IntForEachEntry( vSuper, iLit, i )
            printf( "%d ", Gia_ObjLevel(pNew, Gia_ManObj( pNew, Abc_Lit2Var(iLit) )) );
        printf( "\n" );
*/
        // perform incremental extraction
        while ( Vec_IntSize(vSuper) > 1 )
        {
            if ( !Gia_ObjIsXor(pObj) )
                Gia_ManPrepareLastTwo( pNew, vSuper );
            Gia_ManCreateGate( pNew, pObj, vSuper );
        }
    }
    // consider trivial case
    assert( Vec_IntSize(vSuper) == 1 );
    return Vec_IntEntry(vSuper, 0);
}

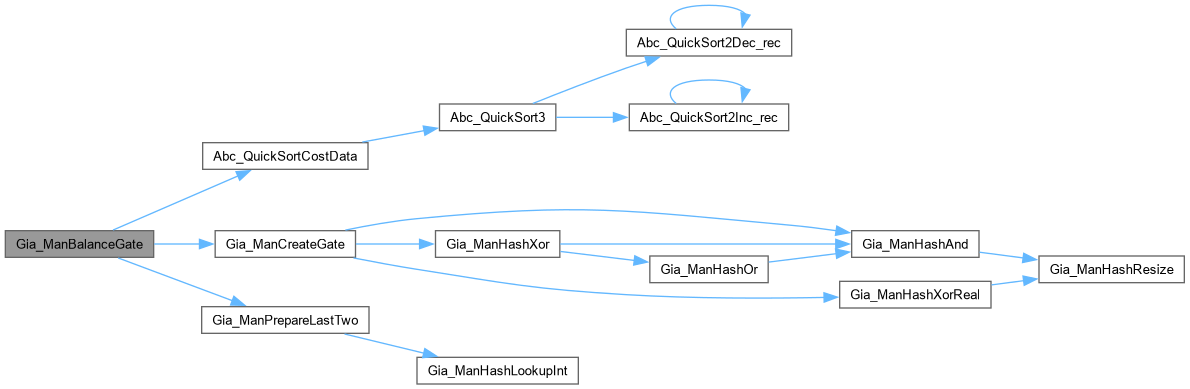

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManBalanceInt()

Gia_Man_t * Gia_ManBalanceInt	(	Gia_Man_t *	p,
		int	fStrict )

Definition at line 378 of file giaBalAig.c.

{
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    int i;
    Gia_ManFillValue( p );
    Gia_ManCreateRefs( p );
    // start the new manager
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    pNew->pMuxes = ABC_CALLOC( unsigned, pNew->nObjsAlloc );
    pNew->vLevels = Vec_IntStart( pNew->nObjsAlloc );
    // create constant and inputs
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachCi( p, pObj, i )
        pObj->Value = Gia_ManAppendCi( pNew );
    // set arrival times for the input of the new AIG
    if ( p->vCiArrs )
    {
        int Id, And2Delay = p->And2Delay ? p->And2Delay : 1;
        Gia_ManForEachCiId( pNew, Id, i )
            Vec_IntWriteEntry( pNew->vLevels, Id, Vec_IntEntry(p->vCiArrs, i)/And2Delay );
    }
    else if ( p->vInArrs )
    {
        int Id, And2Delay = p->And2Delay ? p->And2Delay : 1;
        Gia_ManForEachCiId( pNew, Id, i )
            Vec_IntWriteEntry( pNew->vLevels, Id, (int)(Vec_FltEntry(p->vInArrs, i)/And2Delay) );
    }
    // create internal nodes
    Gia_ManHashStart( pNew );
    Gia_ManForEachBuf( p, pObj, i )
    {
        Gia_ManBalance_rec( pNew, p, Gia_ObjFanin0(pObj), fStrict );
        pObj->Value = Gia_ManAppendBuf( pNew, Gia_ObjFanin0Copy(pObj) );
        Gia_ObjSetGateLevel( pNew, Gia_ManObj(pNew, Abc_Lit2Var(pObj->Value)) );
    }
    Gia_ManForEachCo( p, pObj, i )
    {
        Gia_ManBalance_rec( pNew, p, Gia_ObjFanin0(pObj), fStrict );
        pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    }
    assert( !fStrict || Gia_ManObjNum(pNew) <= Gia_ManObjNum(p) );
    Gia_ManHashStop( pNew );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    // perform cleanup
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    return pNew;
}

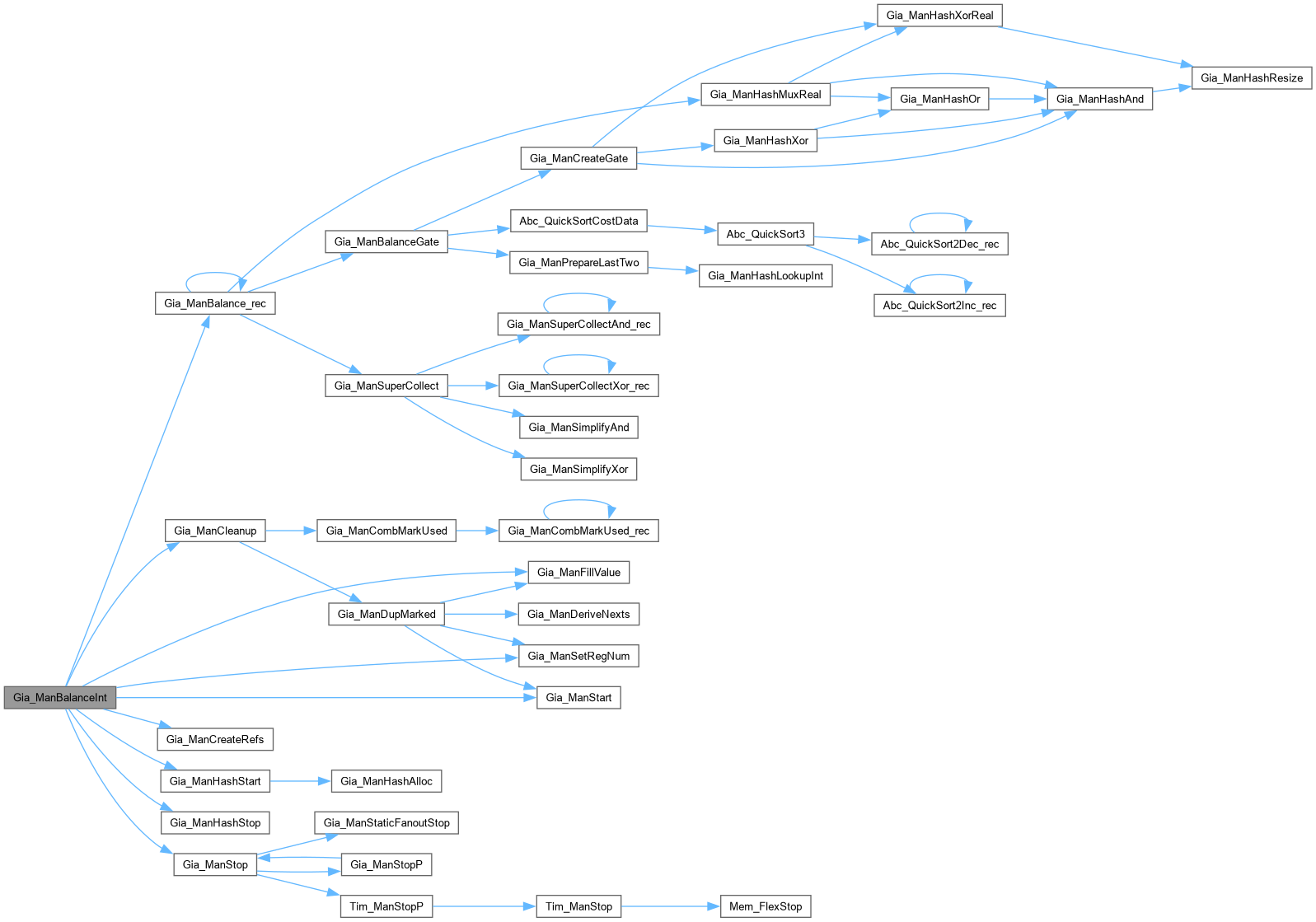

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCreateGate()

void Gia_ManCreateGate	(	Gia_Man_t *	pNew,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vSuper )

Definition at line 260 of file giaBalAig.c.

{
    int iLit0 = Vec_IntPop(vSuper);
    int iLit1 = Vec_IntPop(vSuper);
//    int iLit1 = Gia_ManFindSharedNode(pNew, vSuper, iLit0);
    int iLit, i;
    if ( !Gia_ObjIsXor(pObj) )
        iLit = Gia_ManHashAnd( pNew, iLit0, iLit1 );
    else if ( pNew->pMuxes )
        iLit = Gia_ManHashXorReal( pNew, iLit0, iLit1 );
    else
        iLit = Gia_ManHashXor( pNew, iLit0, iLit1 );
    Vec_IntPush( vSuper, iLit );
    Gia_ObjSetGateLevel( pNew, Gia_ManObj(pNew, Abc_Lit2Var(iLit)) );
    // shift to the corrent location
    for ( i = Vec_IntSize(vSuper)-1; i > 0; i-- )
    {
        int iLit1 = Vec_IntEntry(vSuper, i);
        int iLit2 = Vec_IntEntry(vSuper, i-1);
        if ( Gia_ObjLevelId(pNew, Abc_Lit2Var(iLit1)) <= Gia_ObjLevelId(pNew, Abc_Lit2Var(iLit2)) )
            break;
        Vec_IntWriteEntry( vSuper, i,   iLit2 );
        Vec_IntWriteEntry( vSuper, i-1, iLit1 );
    }
}

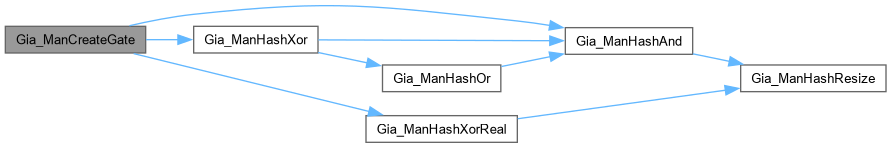

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFindSharedNode()

int Gia_ManFindSharedNode	(	Gia_Man_t *	pNew,
		Vec_Int_t *	vSuper,
		int	iLit0 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 204 of file giaBalAig.c.

{
    int i, iLit1 = Vec_IntEntryLast(vSuper);
    // iterate through the nodes whose level is equal to that of the last one
    int iLit1Level = Gia_ObjLevelId(pNew, Abc_Lit2Var(iLit1));
    for ( i = Vec_IntSize(vSuper)-1; i >= 0; i-- )
    {
        int iLit2 = Vec_IntEntry(vSuper, i);
        if ( iLit1Level != Gia_ObjLevelId(pNew, Abc_Lit2Var(iLit2)) )
            break;
        if ( Abc_Lit2Var(iLit0) != Abc_Lit2Var(iLit2) && !Gia_ManHashLookupInt(pNew, iLit0, iLit2) ) // new node
            continue;
        // swap iLit2 and iLit1
        if ( iLit2 != iLit1 )
        {
            Vec_IntWriteEntry( vSuper, i, iLit1 );
            Vec_IntWriteEntry( vSuper, Vec_IntSize(vSuper)-1, iLit2 );
        }
        break;
    }
    return Vec_IntPop(vSuper);
}

Here is the call graph for this function:

Gia_ManPrepareLastTwo()

void Gia_ManPrepareLastTwo	(	Gia_Man_t *	pNew,
		Vec_Int_t *	vSuper )

Definition at line 226 of file giaBalAig.c.

{
    int i, k, Stop, Lit1, Lit2, Level1, Level2, * pArray;
    int nSize = Vec_IntSize(vSuper);
    if ( nSize == 2 )
        return;
    assert( nSize > 2 );
    Level1 = Gia_ObjLevelId( pNew, Abc_Lit2Var(Vec_IntEntry(vSuper, nSize-2)) );
    // find the first one with Level1
    for ( Stop = nSize-3; Stop >= 0; Stop-- )
    {
        Level2 = Gia_ObjLevelId( pNew, Abc_Lit2Var(Vec_IntEntry(vSuper, Stop)) );
        if ( Level1 != Level2 )
            break;
    }
    if ( Stop == nSize-3 )
        return;
    // avoid worst-case quadratic behavior by looking at the last 8 nodes
    Stop = Abc_MaxInt( Stop, nSize - 9 );
    for ( i = nSize - 1; i > Stop; i-- )
        for ( k = i - 1; k > Stop; k-- )
        {
            Lit1 = Vec_IntEntry(vSuper, i);
            Lit2 = Vec_IntEntry(vSuper, k);
            if ( Abc_Lit2Var(Lit1) != Abc_Lit2Var(Lit2) && !Gia_ManHashLookupInt(pNew, Lit1, Lit2) ) // new node
                continue;
            // move Lit1 to be last and Lit2 to be the one before
            pArray = Vec_IntArray( vSuper );
            if ( i != nSize-1 )
                ABC_SWAP( int, pArray[i], pArray[nSize-1] );
            if ( k != nSize-2 )
                ABC_SWAP( int, pArray[k], pArray[nSize-2] );
        }
}

Here is the call graph for this function:

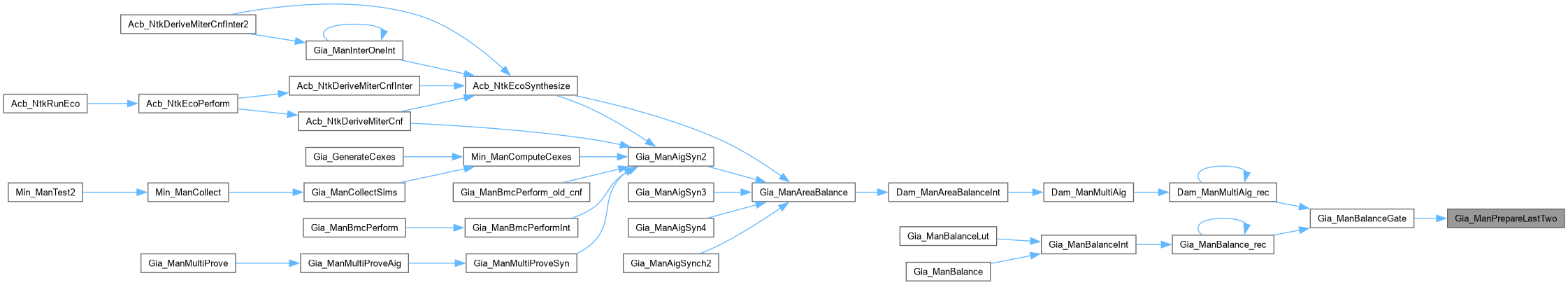

Here is the caller graph for this function:

Gia_ManSimplifyAnd()

void Gia_ManSimplifyAnd

(

Vec_Int_t *

vSuper

)

Definition at line 98 of file giaBalAig.c.

{
    int i, k = 0, Prev = -1, This;
    Vec_IntForEachEntry( vSuper, This, i )
    {
        if ( This == 0 )
            { Vec_IntFill(vSuper, 1, 0); return; }
        if ( This == 1 )
            continue;
        if ( Prev == -1 || Abc_Lit2Var(Prev) != Abc_Lit2Var(This) )
            Vec_IntWriteEntry( vSuper, k++, This ), Prev = This;
        else if ( Prev != This )
            { Vec_IntFill(vSuper, 1, 0); return; }
    }
    Vec_IntShrink( vSuper, k );
    if ( Vec_IntSize( vSuper ) == 0 )
        Vec_IntPush( vSuper, 1 );
}

Here is the caller graph for this function:

Gia_ManSimplifyXor()

void Gia_ManSimplifyXor

(

Vec_Int_t *

vSuper

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Simplify multi-input AND/XOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 78 of file giaBalAig.c.

{
    int i, k = 0, Prev = -1, This, fCompl = 0;
    Vec_IntForEachEntry( vSuper, This, i )
    {
        if ( This == 0 )
            continue;
        if ( This == 1 )
            fCompl ^= 1;
        else if ( Prev != This )
            Vec_IntWriteEntry( vSuper, k++, This ), Prev = This;
        else
            Prev = -1, k--;
    }
    Vec_IntShrink( vSuper, k );
    if ( Vec_IntSize( vSuper ) == 0 )
        Vec_IntPush( vSuper, fCompl );
    else if ( fCompl )
        Vec_IntWriteEntry( vSuper, 0, Abc_LitNot(Vec_IntEntry(vSuper, 0)) );
}

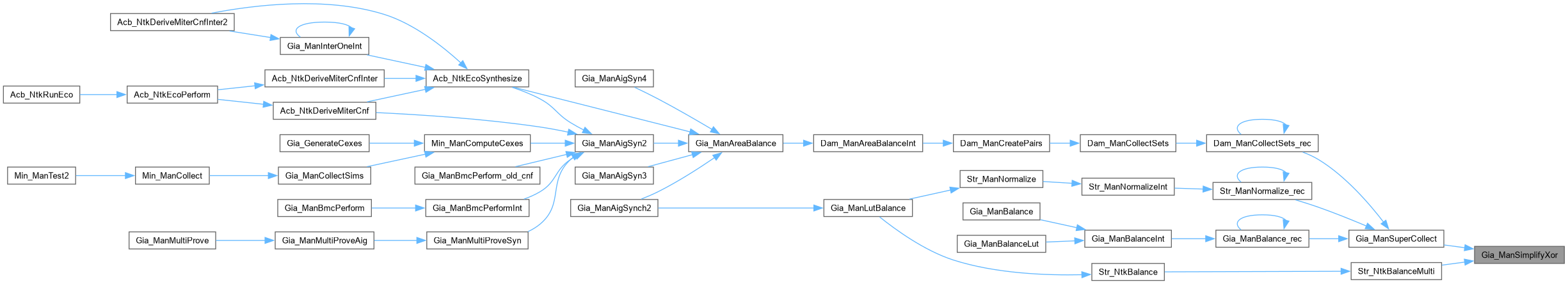

Here is the caller graph for this function:

Gia_ManSuperCollect()

void Gia_ManSuperCollect	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	fStrict )

Definition at line 159 of file giaBalAig.c.

{
//    int nSize;
    if ( p->vSuper == NULL )
        p->vSuper = Vec_IntAlloc( 1000 );
    else
        Vec_IntClear( p->vSuper );
    if ( Gia_ObjIsXor(pObj) )
    {
        assert( !Gia_ObjFaninC0(pObj) && !Gia_ObjFaninC1(pObj) );
        Gia_ManSuperCollectXor_rec( p, Gia_ObjFanin0(pObj), fStrict );
        Gia_ManSuperCollectXor_rec( p, Gia_ObjFanin1(pObj), fStrict );
//        nSize = Vec_IntSize(vSuper);
        Vec_IntSort( p->vSuper, 0 );
        Gia_ManSimplifyXor( p->vSuper );
//        if ( nSize != Vec_IntSize(vSuper) )
//            printf( "X %d->%d  ", nSize, Vec_IntSize(vSuper) );
    }
    else if ( Gia_ObjIsAndReal(p, pObj) )
    {
        Gia_ManSuperCollectAnd_rec( p, Gia_ObjChild0(pObj), fStrict );
        Gia_ManSuperCollectAnd_rec( p, Gia_ObjChild1(pObj), fStrict );
//        nSize = Vec_IntSize(vSuper);
        Vec_IntSort( p->vSuper, 0 );
        Gia_ManSimplifyAnd( p->vSuper );
//        if ( nSize != Vec_IntSize(vSuper) )
//            printf( "A %d->%d  ", nSize, Vec_IntSize(vSuper) );
    }
    else assert( 0 );
//    if ( nSize > 10 )
//        printf( "%d ", nSize );
    assert( Vec_IntSize(p->vSuper) > 0 );
}

Here is the call graph for this function:

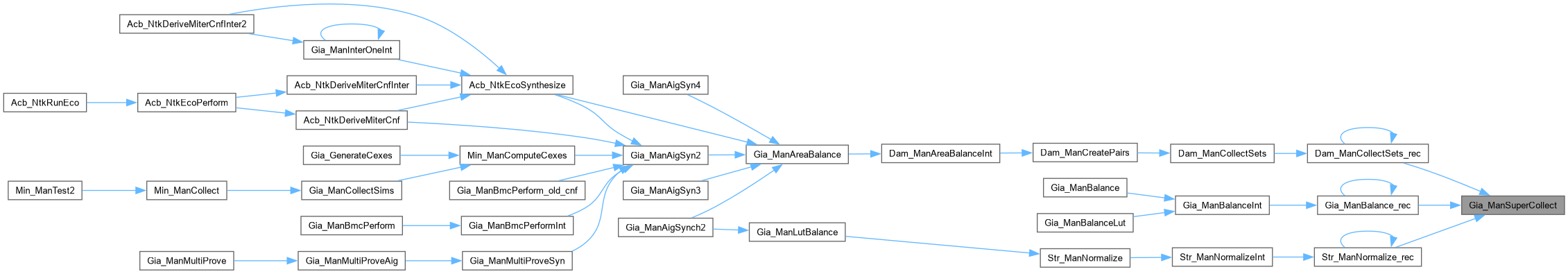

Here is the caller graph for this function:

Gia_ManSuperCollectAnd_rec()

void Gia_ManSuperCollectAnd_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	fStrict )

Definition at line 144 of file giaBalAig.c.

{
    if ( Gia_IsComplement(pObj) ||
        !Gia_ObjIsAndReal(p, pObj) ||
        (fStrict && Gia_ObjRefNum(p, pObj) > 1) ||
        Gia_ObjRefNum(p, pObj) > 2 ||
        (Gia_ObjRefNum(p, pObj) == 2 && (Gia_ObjRefNum(p, Gia_ObjFanin0(pObj)) == 1 || Gia_ObjRefNum(p, Gia_ObjFanin1(pObj)) == 1)) ||
        Vec_IntSize(p->vSuper) > 50 )
    {
        Vec_IntPush( p->vSuper, Gia_ObjToLit(p, pObj) );
        return;
    }
    Gia_ManSuperCollectAnd_rec( p, Gia_ObjChild0(pObj), fStrict );
    Gia_ManSuperCollectAnd_rec( p, Gia_ObjChild1(pObj), fStrict );
}

Here is the call graph for this function:

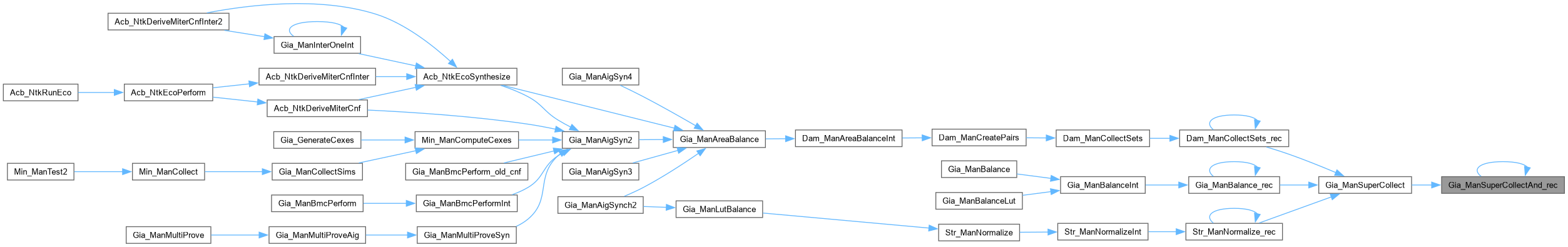

Here is the caller graph for this function:

Gia_ManSuperCollectXor_rec()

void Gia_ManSuperCollectXor_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	fStrict )

Function*************************************************************

Synopsis [Collect multi-input AND/XOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 128 of file giaBalAig.c.

{
    assert( !Gia_IsComplement(pObj) );
    if ( !Gia_ObjIsXor(pObj) ||
        (fStrict && Gia_ObjRefNum(p, pObj) > 1) ||
        Gia_ObjRefNum(p, pObj) > 2 ||
        (Gia_ObjRefNum(p, pObj) == 2 && (Gia_ObjRefNum(p, Gia_ObjFanin0(pObj)) == 1 || Gia_ObjRefNum(p, Gia_ObjFanin1(pObj)) == 1)) ||
        Vec_IntSize(p->vSuper) > 50 )
    {
        Vec_IntPush( p->vSuper, Gia_ObjToLit(p, pObj) );
        return;
    }
    assert( !Gia_ObjFaninC0(pObj) && !Gia_ObjFaninC1(pObj) );
    Gia_ManSuperCollectXor_rec( p, Gia_ObjFanin0(pObj), fStrict );
    Gia_ManSuperCollectXor_rec( p, Gia_ObjFanin1(pObj), fStrict );
}

Here is the call graph for this function:

Here is the caller graph for this function:
