giaBidec.c File Reference

#include "gia.h"
#include "bool/bdc/bdc.h"

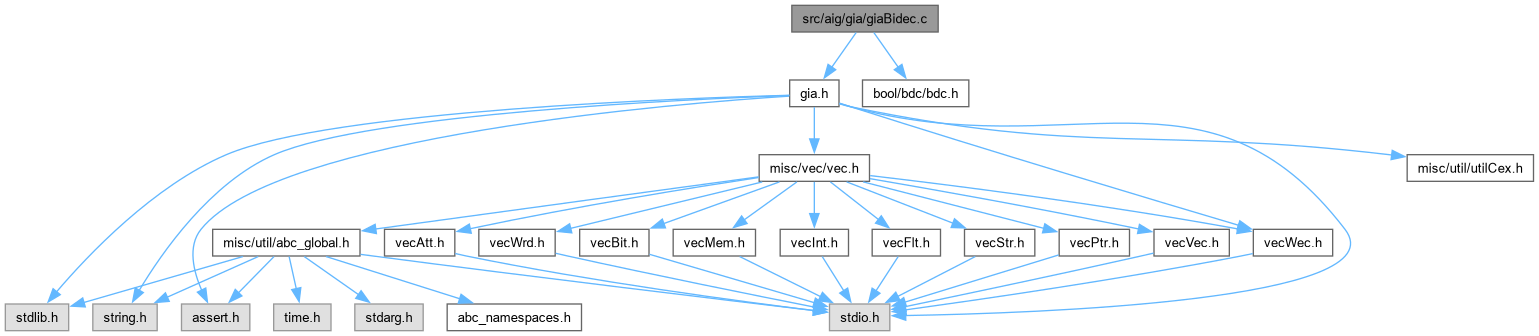

Include dependency graph for giaBidec.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START unsigned *	Gia_ManConvertAigToTruth_rec (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Int_t *vTruth, int nWords, Vec_Int_t *vVisited)
	DECLARATIONS ///.
unsigned *	Gia_ManConvertAigToTruth (Gia_Man_t *p, Gia_Obj_t *pRoot, Vec_Int_t *vLeaves, Vec_Int_t *vTruth, Vec_Int_t *vVisited)
int	Gia_ObjPerformBidec (Bdc_Man_t *pManDec, Gia_Man_t *pNew, Gia_Man_t *p, Gia_Obj_t *pRoot, Vec_Int_t *vLeaves, Vec_Int_t *vTruth, Vec_Int_t *vVisited)
Gia_Man_t *	Gia_ManPerformBidec (Gia_Man_t *p, int fVerbose)

Function Documentation

Gia_ManConvertAigToTruth()

unsigned * Gia_ManConvertAigToTruth	(	Gia_Man_t *	p,
		Gia_Obj_t *	pRoot,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vTruth,
		Vec_Int_t *	vVisited )

Function*************************************************************

Synopsis [Computes truth table of the node.]

Description [Assumes that the structural support is no more than 8 inputs. Uses array vTruth to store temporary truth tables. The returned pointer should be used immediately.]

SideEffects []

SeeAlso []

Definition at line 90 of file giaBidec.c.

{
    static unsigned uTruths[8][8] = { // elementary truth tables
        { 0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA,0xAAAAAAAA },
        { 0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC,0xCCCCCCCC },
        { 0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0,0xF0F0F0F0 },
        { 0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00,0xFF00FF00 },
        { 0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000,0xFFFF0000 },
        { 0x00000000,0xFFFFFFFF,0x00000000,0xFFFFFFFF,0x00000000,0xFFFFFFFF,0x00000000,0xFFFFFFFF },
        { 0x00000000,0x00000000,0xFFFFFFFF,0xFFFFFFFF,0x00000000,0x00000000,0xFFFFFFFF,0xFFFFFFFF },
        { 0x00000000,0x00000000,0x00000000,0x00000000,0xFFFFFFFF,0xFFFFFFFF,0xFFFFFFFF,0xFFFFFFFF }
    };
    Gia_Obj_t * pObj;
    Vec_Ptr_t * vTtElems = NULL;
    unsigned * pTruth;//, * pTruth2;
    int i, nWords, nVars;
    // get the number of variables and words
    nVars  = Vec_IntSize( vLeaves );
    nWords = Abc_TruthWordNum( nVars );
    // check the case of a constant
    if ( Gia_ObjIsConst0( Gia_Regular(pRoot) ) )
    {
        Vec_IntClear( vTruth );
        // get room for the truth table
        pTruth = Vec_IntFetch( vTruth, nWords );
        if ( !Gia_IsComplement(pRoot) )
            Gia_ManTruthClear( pTruth, nVars );
        else
            Gia_ManTruthFill( pTruth, nVars );
        return pTruth;
    }
    // if the number of variables is more than 8, allocate truth tables
    if ( nVars > 8 )
        vTtElems = Vec_PtrAllocTruthTables( nVars );
    // assign elementary truth tables
    Vec_IntClear( vTruth );
    Vec_IntClear( vVisited );
    Gia_ManForEachObjVec( vLeaves, p, pObj, i )
    {
        // get room for the truth table
        pTruth = Vec_IntFetch( vTruth, nWords );
        // assign elementary variable
        if ( vTtElems )
            Gia_ManTruthCopy( pTruth, (unsigned *)Vec_PtrEntry(vTtElems, i), nVars );
        else
            Gia_ManTruthCopy( pTruth, uTruths[i], nVars );
        // save the visited node
        Vec_IntSetEntry( p->vTruths, Gia_ObjId(p, pObj), Vec_IntSize(vVisited) );
        Vec_IntPush( vVisited, Gia_ObjId(p, pObj) );
    }
    if ( vTtElems )
        Vec_PtrFree( vTtElems );
    // clear the marks and compute the truth table
//    pTruth2 = Gia_ManConvertAigToTruth_rec( p, Gia_Regular(pRoot), vTruth, nWords, vVisited );
    pTruth = Gia_ManConvertAigToTruth_rec( p, Gia_Regular(pRoot), vTruth, nWords, vVisited );
    // copy the result
//    Gia_ManTruthCopy( pTruth, pTruth2, nVars );
    if ( Gia_IsComplement(pRoot) )
        Gia_ManTruthNot( pTruth, pTruth, nVars );
    // clean truth tables
    Gia_ManForEachObjVec( vVisited, p, pObj, i )
        Vec_IntSetEntry( p->vTruths, Gia_ObjId(p, pObj), -1 );
    return pTruth;
}

Here is the call graph for this function:

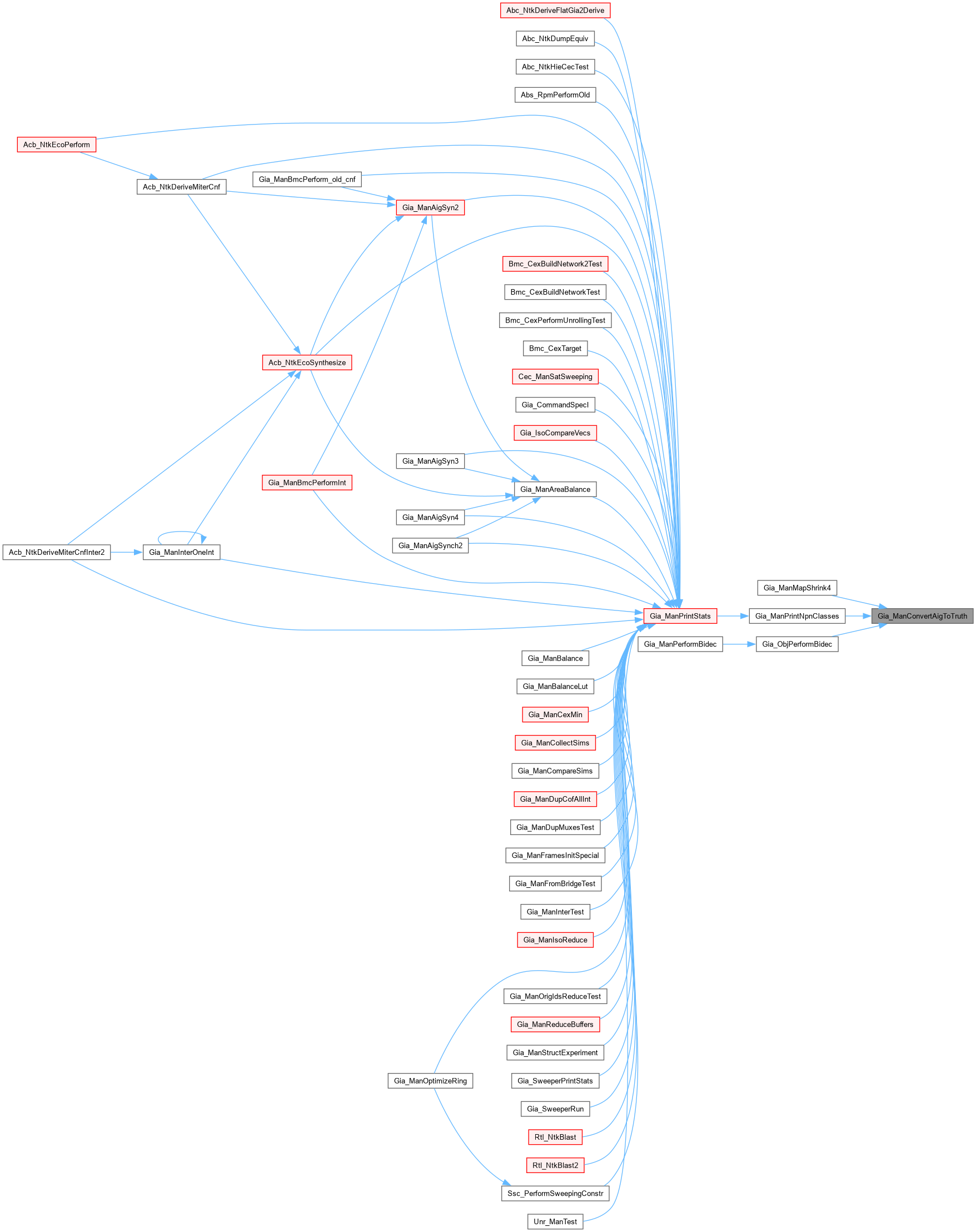

Here is the caller graph for this function:

Gia_ManConvertAigToTruth_rec()

ABC_NAMESPACE_IMPL_START unsigned * Gia_ManConvertAigToTruth_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vTruth,
		int	nWords,
		Vec_Int_t *	vVisited )

DECLARATIONS ///.

CFile****************************************************************

FileName [giaBidec.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Application of bi-decomposition to AIG minimization.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaBidec.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Computes truth table of the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file giaBidec.c.

{
    unsigned * pTruth, * pTruth0, * pTruth1;
    int i;
    assert( !Gia_IsComplement(pObj) );
    if ( Vec_IntGetEntry(p->vTruths, Gia_ObjId(p, pObj)) != -1 )
        return (unsigned *)Vec_IntEntryP( vTruth, nWords * Vec_IntGetEntry(p->vTruths, Gia_ObjId(p, pObj)) );
    // compute the truth tables of the fanins
    pTruth0 = Gia_ManConvertAigToTruth_rec( p, Gia_ObjFanin0(pObj), vTruth, nWords, vVisited );
    pTruth1 = Gia_ManConvertAigToTruth_rec( p, Gia_ObjFanin1(pObj), vTruth, nWords, vVisited );
    // get room for the truth table
    pTruth = Vec_IntFetch( vTruth, nWords );
    // create the truth table of the node
    if ( !Gia_ObjFaninC0(pObj) && !Gia_ObjFaninC1(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = pTruth0[i] & pTruth1[i];
    else if ( !Gia_ObjFaninC0(pObj) && Gia_ObjFaninC1(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = pTruth0[i] & ~pTruth1[i];
    else if ( Gia_ObjFaninC0(pObj) && !Gia_ObjFaninC1(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = ~pTruth0[i] & pTruth1[i];
    else // if ( Gia_ObjFaninC0(pObj) && Gia_ObjFaninC1(pObj) )
        for ( i = 0; i < nWords; i++ )
            pTruth[i] = ~pTruth0[i] & ~pTruth1[i];
    // save the visited node
    Vec_IntSetEntry( p->vTruths, Gia_ObjId(p, pObj), Vec_IntSize(vVisited) );
    Vec_IntPush( vVisited, Gia_ObjId(p, pObj) );
    return pTruth;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPerformBidec()

Gia_Man_t * Gia_ManPerformBidec	(	Gia_Man_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 233 of file giaBidec.c.

{
    Bdc_Man_t * pManDec;
    Bdc_Par_t Pars = {0}, * pPars = &Pars;
    Vec_Int_t * vLeaves, * vTruth, * vVisited;
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    int i;//, clk = Abc_Clock();
    pPars->nVarsMax = Gia_ManLutSizeMax( p );
    pPars->fVerbose = fVerbose;
    if ( pPars->nVarsMax < 2 )
    {
        printf( "Resynthesis is not performed when nodes have less than 2 inputs.\n" );
        return NULL;
    }
    if ( pPars->nVarsMax > 15 )
    {
        printf( "Resynthesis is not performed when nodes have more than 15 inputs.\n" );
        return NULL;
    }
    vLeaves  = Vec_IntAlloc( 0 );
    vTruth   = Vec_IntAlloc( (1<<16) );
    vVisited = Vec_IntAlloc( 0 );
    // clean the old manager
    Gia_ManCleanTruth( p );
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    // start the new manager
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManHashAlloc( pNew );
//    Gia_ManCleanLevels( pNew, Gia_ManObjNum(p) );
    pManDec = Bdc_ManAlloc( pPars );
    Gia_ManForEachObj1( p, pObj, i )
    {
        if ( Gia_ObjIsCi(pObj) ) // transfer the CI level (is it needed?)
            pObj->Value = Gia_ManAppendCi( pNew );
        else if ( Gia_ObjIsCo(pObj) )
            pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
        else if ( Gia_ObjIsLut(p, i) )
            pObj->Value = Gia_ObjPerformBidec( pManDec, pNew, p, pObj, vLeaves, vTruth, vVisited );
    }
    Bdc_ManFree( pManDec );
    // cleanup the AIG
    Gia_ManHashStop( pNew );
    // check the presence of dangling nodes
    if ( Gia_ManHasDangling(pNew) )
    {
        pNew = Gia_ManCleanup( pTemp = pNew );
        if ( Gia_ManAndNum(pNew) != Gia_ManAndNum(pTemp) )
            printf( "Gia_ManPerformBidec() node count before and after: %6d and %6d.\n", Gia_ManAndNum(pNew), Gia_ManAndNum(pTemp) );
        Gia_ManStop( pTemp );
    }
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    Vec_IntFree( vLeaves );
    Vec_IntFree( vTruth );
    Vec_IntFree( vVisited );
    if ( fVerbose )
    {
//        printf( "Total gain in AIG nodes = %d.  ", Gia_ManObjNum(p)-Gia_ManObjNum(pNew) );
//        ABC_PRT( "Total runtime", Abc_Clock() - clk );
    }
    return pNew;
}

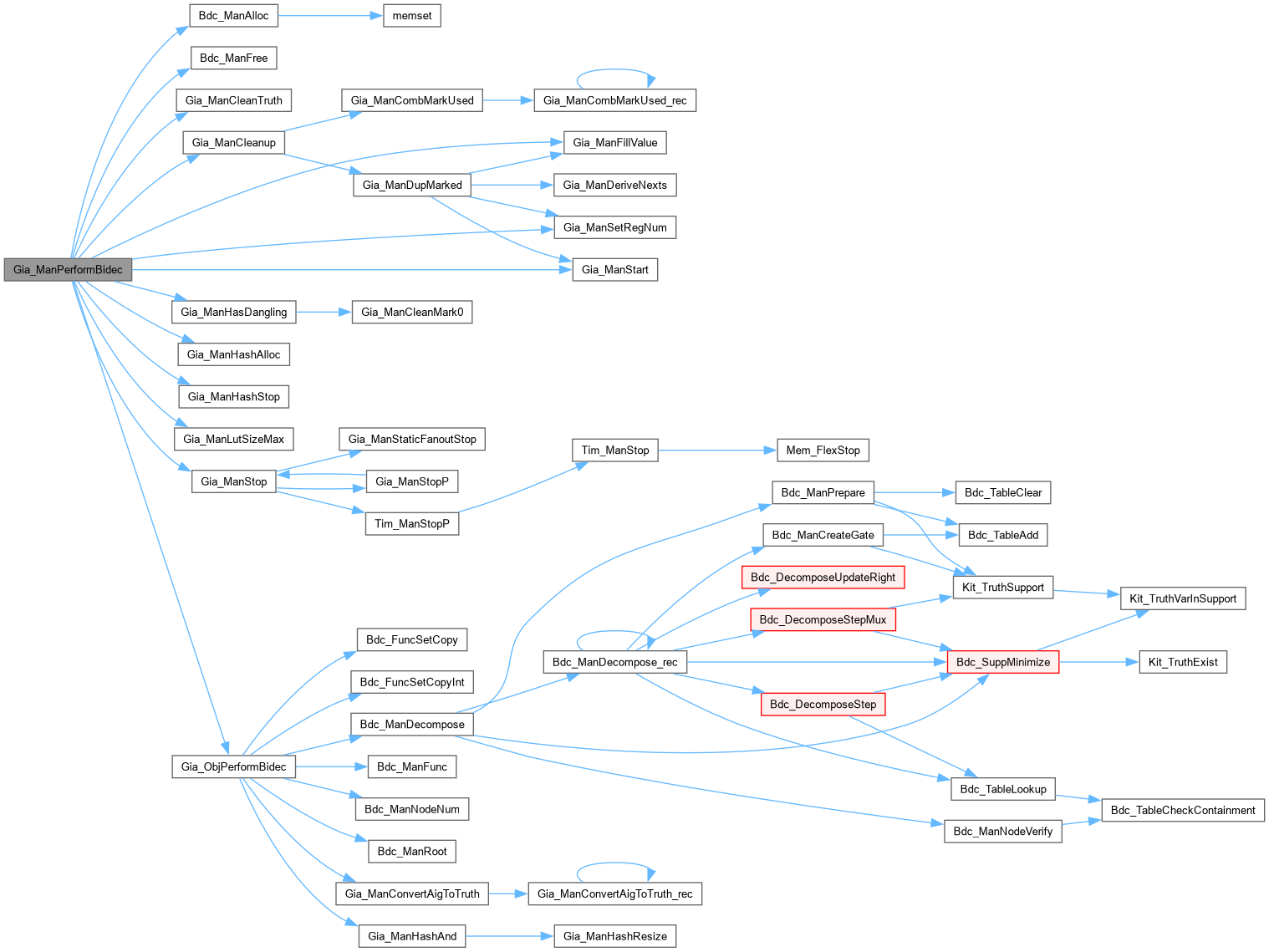

Here is the call graph for this function:

Gia_ObjPerformBidec()

int Gia_ObjPerformBidec	(	Bdc_Man_t *	pManDec,
		Gia_Man_t *	pNew,
		Gia_Man_t *	p,
		Gia_Obj_t *	pRoot,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vTruth,
		Vec_Int_t *	vVisited )

Function*************************************************************

Synopsis [Resynthesizes nodes using bi-decomposition.]

Description []

SideEffects []

SeeAlso []

Definition at line 166 of file giaBidec.c.

{
    unsigned * pTruth;
    Bdc_Fun_t * pFunc;
    Gia_Obj_t * pFanin;
    int i, iFan, nVars, nNodes;
    // collect leaves of this gate
    Vec_IntClear( vLeaves );
    Gia_LutForEachFanin( p, Gia_ObjId(p, pRoot), iFan, i )
        Vec_IntPush( vLeaves, iFan );
    nVars = Vec_IntSize( vLeaves );
    assert( nVars < 16 );
    // derive truth table
    pTruth = Gia_ManConvertAigToTruth( p, pRoot, vLeaves, vTruth, vVisited );
//Extra_PrintBinary( stdout, pTruth, (1<<nVars) ); printf( "\n" );
    if ( Gia_ManTruthIsConst0(pTruth, nVars) )
    {
//printf( "Node %d is const0\n", Gia_ObjId(p, pRoot) );
        return 0;
    }
    if ( Gia_ManTruthIsConst1(pTruth, nVars) )
    {
//printf( "Node %d is const1\n", Gia_ObjId(p, pRoot) );
        return 1;
    }
    // decompose truth table
    Bdc_ManDecompose( pManDec, pTruth, NULL, nVars, NULL, 1000 );
/*
if ( Bdc_ManNodeNum(pManDec) == 0 )
    printf( "Node %d has 0 bidec nodes\n", Gia_ObjId(p, pRoot) );
if ( Kit_TruthSupportSize(pTruth, nVars) != nVars )
{
    printf( "Node %d has %d fanins and %d supp size\n", Gia_ObjId(p, pRoot), nVars, Kit_TruthSupportSize(pTruth, nVars) );
    Gia_LutForEachFanin( p, Gia_ObjId(p, pRoot), iFan, i )
    {
        printf( "%d  ", Kit_TruthVarInSupport(pTruth, nVars, i) );
        Gia_ObjPrint( p, Gia_ManObj(p, iFan) );
    }
//    Gia_ManPrintStats( p, 0 );
}
*/
    // convert back into HOP
    Bdc_FuncSetCopy( Bdc_ManFunc( pManDec, 0 ), Gia_ManConst1(pNew) );
    Gia_ManForEachObjVec( vLeaves, p, pFanin, i )
        Bdc_FuncSetCopyInt( Bdc_ManFunc( pManDec, i+1 ), Gia_ObjValue(pFanin) );
    nNodes = Bdc_ManNodeNum( pManDec );
    for ( i = nVars + 1; i < nNodes; i++ )
    {
        pFunc = Bdc_ManFunc( pManDec, i );
        Bdc_FuncSetCopyInt( pFunc, Gia_ManHashAnd( pNew, Bdc_FunFanin0Copy(pFunc), Bdc_FunFanin1Copy(pFunc) ) );
    }
    return Bdc_FunObjCopy( Bdc_ManRoot(pManDec) );
}

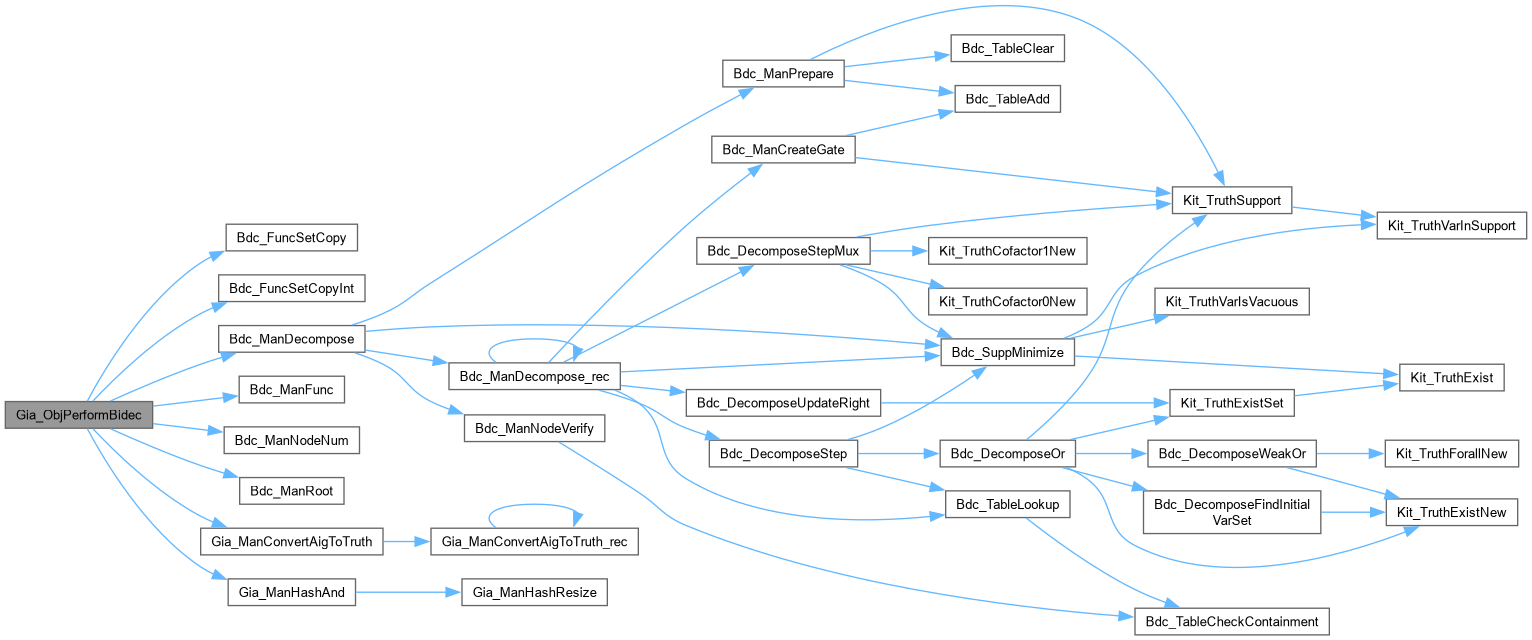

Here is the call graph for this function:

Here is the caller graph for this function:
