#include "gia.h"
#include "misc/tim/tim.h"
#include "misc/vec/vecWec.h"
#include "proof/cec/cec.h"

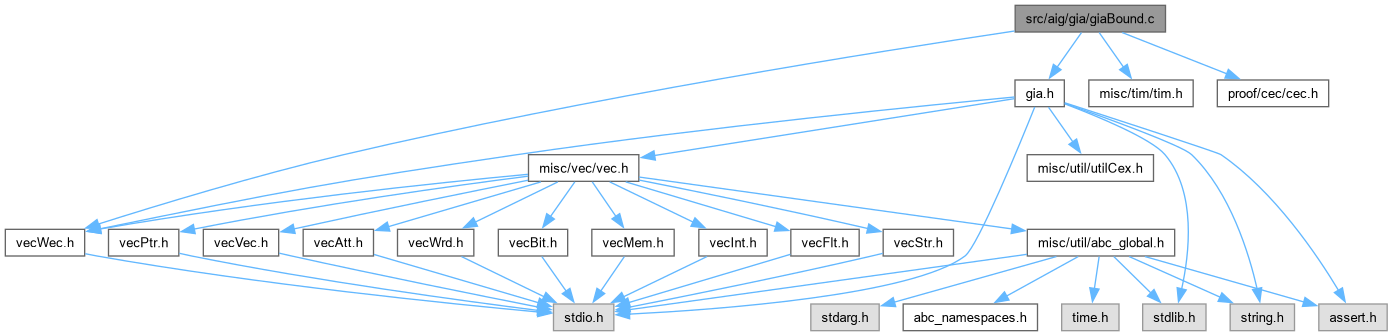

Include dependency graph for giaBound.c:

Classes
struct	Bnd_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Bnd_Man_t_	Bnd_Man_t
	DECLARATIONS ///.

Functions
void	Bnd_ManSetEqOut (int eq)
	FUNCTION DEFINITIONS ///.

void	Bnd_ManSetEqRes (int eq)

Vec_Int_t *	Bnd_ManSpec2Impl (int id)

int	Bnd_ManSpec2ImplNum (int id)

Vec_Int_t *	Bnd_ManImpl2Spec (int id)

int	Bnd_ManImpl2SpecNum (int id)

Bnd_Man_t *	Bnd_ManStart (Gia_Man_t pSpec, Gia_Man_t pImpl, int fVerbose)

void	Bnd_ManStop ()

int	Bnd_ManGetNInternal ()

int	Bnd_ManGetNExtra ()

void	Bnd_ManMap (int iLit, int id, int spec)

void	Bnd_ManMerge (int id_repr, int id_obj, int phaseDiff)

void	Bnd_ManFinalizeMappings ()

void	Bnd_ManPrintMappings ()

void	Bnd_ManPrintBound ()

void	Bnd_ManPrintStats ()

int	Bnd_ManCheckBound (Gia_Man_t *p, int fVerbose)

int	Bnd_CheckFlagRec (Gia_Man_t p, Gia_Obj_t pObj, Vec_Int_t *vFlag)

int	Bnd_ManCheckExtBound (Gia_Man_t p, Vec_Int_t vEI, Vec_Int_t *vEO)

void	Bnd_ManFindBound (Gia_Man_t p, Gia_Man_t pImpl)

Gia_Man_t *	Bnd_ManCutBoundary (Gia_Man_t p, Vec_Int_t vEI, Vec_Int_t vEO, Vec_Bit_t vEI_phase, Vec_Bit_t *vEO_phase)

Gia_Man_t *	Bnd_ManGenSpecOut (Gia_Man_t *p)

Gia_Man_t *	Bnd_ManGenImplOut (Gia_Man_t *p)

void	Bnd_AddNodeRec (Gia_Man_t p, Gia_Man_t pNew, Gia_Obj_t *pObj, int fSkipStrash)

Gia_Man_t *	Bnd_ManGenPatched (Gia_Man_t pOut, Gia_Man_t pSpec, Gia_Man_t *pPatch)

Gia_Man_t *	Bnd_ManGenPatched1 (Gia_Man_t pOut, Gia_Man_t pSpec)

Gia_Man_t *	Bnd_ManGenPatched2 (Gia_Man_t pImpl, Gia_Man_t pPatch, int fSkipStrash, int fVerbose)

Gia_Man_t *	Bnd_ManStackGias (Gia_Man_t pSpec, Gia_Man_t pImpl)

int	Bnd_ManCheckCoMerged (Gia_Man_t *p)

Variables
Bnd_Man_t *	pBnd = 0
	DECLARATIONS ///.

Typedef Documentation

◆ Bnd_Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Bnd_Man_t_ Bnd_Man_t

DECLARATIONS ///.

Definition at line 13 of file giaBound.c.

Function Documentation

◆ Bnd_AddNodeRec()

void Bnd_AddNodeRec	(	Gia_Man_t *	p,
		Gia_Man_t *	pNew,
		Gia_Obj_t *	pObj,
		int	fSkipStrash )

Definition at line 881 of file giaBound.c.

{
    // TODO does this mean constant zero node?
    if ( pObj -> Value != ~0 ) return;

    for( int i = 0; i < Gia_ObjFaninNum(p, pObj); i++  )
    {
        Bnd_AddNodeRec( p, pNew, Gia_ObjFanin(pObj, i), fSkipStrash );
    }

    if ( Gia_ObjIsAnd(pObj) )
    {
        if ( fSkipStrash )
        {
            if ( Gia_ObjIsBuf(pObj) ) pObj -> Value = Gia_ManAppendBuf( pNew, Gia_ObjFanin0Copy(pObj) );
            else pObj -> Value = Gia_ManAppendAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        }
        else
        {
            pObj -> Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        }
    }
    else
    {
        assert( Gia_ObjIsCo(pObj) );
        // if ( Gia_ObjIsCi(pObj) ) printf("Ci with value ~0 encountered (id = %d)\n", Gia_ObjId(p, pObj) );
        pObj -> Value = Gia_ObjFanin0Copy(pObj);
    }
}

Here is the call graph for this function:

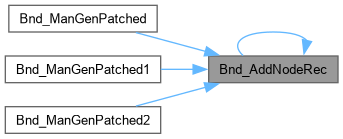

Here is the caller graph for this function:

◆ Bnd_CheckFlagRec()

int Bnd_CheckFlagRec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vFlag )

Definition at line 476 of file giaBound.c.

{
    int id = Gia_ObjId(p, pObj);
    if ( Vec_IntEntry(vFlag, id) == 1 ) return 1;
    if ( Vec_IntEntry(vFlag, id) == 2 ) return 0;

    Vec_IntSetEntry(vFlag, id, 1);

    int ret = 1;
    for( int i = 0; i < Gia_ObjFaninNum(p, pObj); i++ )
    {
        if ( !Bnd_CheckFlagRec( p, Gia_ObjFanin(pObj, i), vFlag ) )
        {
            ret = 0;
            break;
        }
    }
    return ret;

}

Here is the call graph for this function:

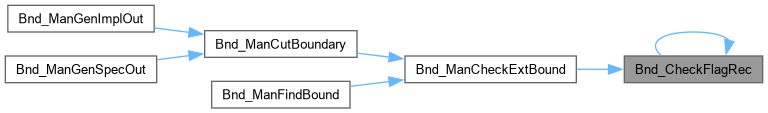

Here is the caller graph for this function:

◆ Bnd_ManCheckBound()

int Bnd_ManCheckBound	(	Gia_Man_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description [check if the given boundary is valid. Return 0 if the boundary is invalid. Return k if the boundary is valid and there're k boundary inputs. Can be called even if Bnd_Man_t is not created]

SideEffects []

SeeAlso []

Definition at line 379 of file giaBound.c.

{
    int i;
    Gia_Obj_t *pObj;
    int valid = 1;
    int nBI = 0, nBO = 0, nInternal = 0;

    if ( fVerbose ) printf( "Checking boundary... \n");

    Vec_Int_t *vPath;
    vPath = Vec_IntAlloc( Gia_ManObjNum(p) );
    Vec_IntFill( vPath, Gia_ManObjNum(p), 0 );
    int path;

    Gia_ManForEachObjReverse1( p , pObj, i )
    {
        if ( Gia_ObjIsCo( pObj ) )
        {
            Vec_IntSetEntry( vPath, Gia_ObjId( p, pObj ), 1 );
        }

        path = Vec_IntEntry( vPath, Gia_ObjId(p, pObj) );
        // printf("path = %d\n", path);

        if ( path >= 8 )
        {
            valid = 0;
            printf("there're more than 2 bufs in a path\n");
            break;
        }


        if( Gia_ObjIsBuf( pObj ) )
        {
            Vec_IntSetEntry( vPath, Gia_ObjId( p, Gia_ObjFanin0( pObj ) ), Vec_IntEntry( vPath, Gia_ObjId(p, Gia_ObjFanin0( pObj ) ) ) | path << 1 );
            if ( path == 1 )  // boundary input
            {
                // TODO: record BIs here since they may not be in the first n buffers
                nBO ++;
            }
        }
        else if ( Gia_ObjFaninNum( p, pObj ) >= 1 )
        {
            Vec_IntSetEntry( vPath, Gia_ObjId( p, Gia_ObjFanin0( pObj ) ), Vec_IntEntry( vPath, Gia_ObjId(p, Gia_ObjFanin0( pObj ) ) ) | path );
            if ( Gia_ObjFaninNum( p, pObj ) >= 2 )
            {
                assert( Gia_ObjFaninNum( p, pObj ) <= 2  );
                Vec_IntSetEntry( vPath, Gia_ObjId( p, Gia_ObjFanin1( pObj ) ), Vec_IntEntry( vPath, Gia_ObjId(p, Gia_ObjFanin1( pObj ) ) ) | path );
            }
            if ( path == 2 )  // inside boundary
            {
                // TODO: record BIs here since they may not be in the first n buffers
                nInternal ++;
            }
        }
        else // PI or const, check validity
        {
            if ( (Vec_IntEntry( vPath, Gia_ObjId(p, pObj) ) | 5) != 5 )
            {
                valid = 0;
                printf("incorrect buf number at pi %d\n", Vec_IntEntry(vPath, Gia_ObjId(p, pObj)) );
                break;
            }
        }
    }

    nBI = Gia_ManBufNum(p) - nBO;

    if ( !valid )
    {
        printf("invalid boundary\n");
        return 0;
    }
    else if ( nBI == 0 )
    {
        printf("no boundary\n");
        return 0;
    }
    else
    {
        if ( fVerbose )
        {
            printf("valid boundary (");
            printf("#BI = %d\t#BO = %d\t", nBI, Gia_ManBufNum(p)- nBI);
            printf("#Internal = %d)\n", nInternal );
        }
        if ( pBnd )
        {
            pBnd -> nBI = nBI;
            pBnd -> nBO = nBO;
            pBnd -> nInternal = nInternal;
        }
        return nBI;
    }
}

Here is the caller graph for this function:

◆ Bnd_ManCheckCoMerged()

int Bnd_ManCheckCoMerged ( Gia_Man_t * p )

Definition at line 1352 of file giaBound.c.

{
    int nCO = Gia_ManCoNum(p)/2;

    Gia_Obj_t* pObj1;
    Gia_Obj_t* pObj2;

    for ( int i = 0; i < nCO; i++ )
    {
        pObj1 = Gia_ManCo(p, i);
        pObj2 = Gia_ManCo(p, i + nCO);
        if ( Gia_ObjFaninLit0p(p, pObj1) != Gia_ObjFaninLit0p(p, pObj2) ) return 0;
    }
    return 1;
}

◆ Bnd_ManCheckExtBound()

int Bnd_ManCheckExtBound	(	Gia_Man_t *	p,
		Vec_Int_t *	vEI,
		Vec_Int_t *	vEO )

Function*************************************************************

Synopsis []

Description [check if combnational loop exist in the extended boundary]

SideEffects []

SeeAlso []

Definition at line 508 of file giaBound.c.

{
    Vec_Int_t *vFlag = Vec_IntAlloc( Gia_ManObjNum(p) );
    Vec_IntFill( vFlag, Gia_ManObjNum(p), 0 );
    int success = 1;
    int i, id;

    Vec_IntForEachEntry( vEO, id, i )
    {
        Vec_IntSetEntry( vFlag, id, 2 );
    }

    Vec_IntForEachEntry( vEI, id, i )
    {
        if ( Vec_IntEntry(vFlag, id) == 2 ) continue; // BI connected to BO directly

        if ( !Bnd_CheckFlagRec( p, Gia_ManObj(p, id), vFlag ) )
        {
            success = 0;
            break;
        }
    }


    Vec_IntFree(vFlag);
    return success;
}

Here is the call graph for this function:

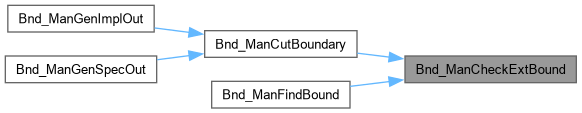

Here is the caller graph for this function:

◆ Bnd_ManCutBoundary()

Gia_Man_t * Bnd_ManCutBoundary	(	Gia_Man_t *	p,
		Vec_Int_t *	vEI,
		Vec_Int_t *	vEO,
		Vec_Bit_t *	vEI_phase,
		Vec_Bit_t *	vEO_phase )

Function*************************************************************

Synopsis []

Description [create circuit with the boundary changed to CI/CO]

SideEffects []

SeeAlso []

Definition at line 780 of file giaBound.c.

{
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    Vec_Int_t * vValue;
    int i, id, lit;

    // check if the boundary has loop (EO cannot be in the TFC of EI )
    if ( !Bnd_ManCheckExtBound( p, vEI, vEO ) )
    {
        printf("Combinational loop exist\n");
        pBnd -> combLoop_impl = 1;
        return 0;
    }

    // initialize
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew -> pName = ABC_ALLOC( char, strlen(p->pName)+10);
    sprintf( pNew -> pName, "%s_out", p -> pName );
    Gia_ManHashStart( pNew );
    Gia_ManFillValue(p);
    Gia_ManConst0(p) -> Value = 0;


    // record the original value for eo
    vValue = Vec_IntAlloc( Gia_ManObjNum(p) );
    Vec_IntFill( vValue, Gia_ManObjNum(p), -1 );

    // create ci for ci and eo
    Gia_ManForEachCi( p, pObj, i )
    {
        pObj -> Value = Gia_ManAppendCi( pNew );
    }
    Vec_IntForEachEntry( vEO, id, i )
    {
        if( Gia_ManObj(p, id) -> Value != ~0 )
        {
            Vec_IntSetEntry( vValue, id, Gia_ManObj(p, id) -> Value );
        }
        Gia_ManObj( p, id ) -> Value = Gia_ManAppendCi(pNew);
        if ( vEO_phase && Vec_BitEntry( vEO_phase, i ) )
        {
            Gia_ManObj( p, id ) -> Value ^= 1;
        }
    }

    // add aig nodes
    Gia_ManForEachAnd(p, pObj, i)
    {
        if ( pObj -> Value != ~0 ) continue;
        pObj -> Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
    }

    // create co for co and ei
    Gia_ManForEachCo(p, pObj, i)
    {
        Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    }
    Vec_IntForEachEntry( vEI, id, i )
    {
        pObj = Gia_ManObj(p, id);
        // lit = Gia_ManObj(p, id)->Value;
        if ( Gia_ObjIsAnd(pObj) ) lit = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        else
        {
            assert(Gia_ObjIsCi(pObj) || Gia_ObjIsConst0(pObj));
            if ( Vec_IntEntry(vValue, id) != -1 )
            {
                lit = Vec_IntEntry( vValue, id );   // EI at PI and EI merged with EO
            }
            else {
                lit = pObj -> Value;    // EI at PI
            }
        }
        if ( vEI_phase && Vec_BitEntry( vEI_phase, i ) ) lit ^= 1;
        Gia_ManAppendCo( pNew, lit );
    }

    // clean up
    Vec_IntFree( vValue );
    Gia_ManHashStop( pNew );
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    return pNew;

}

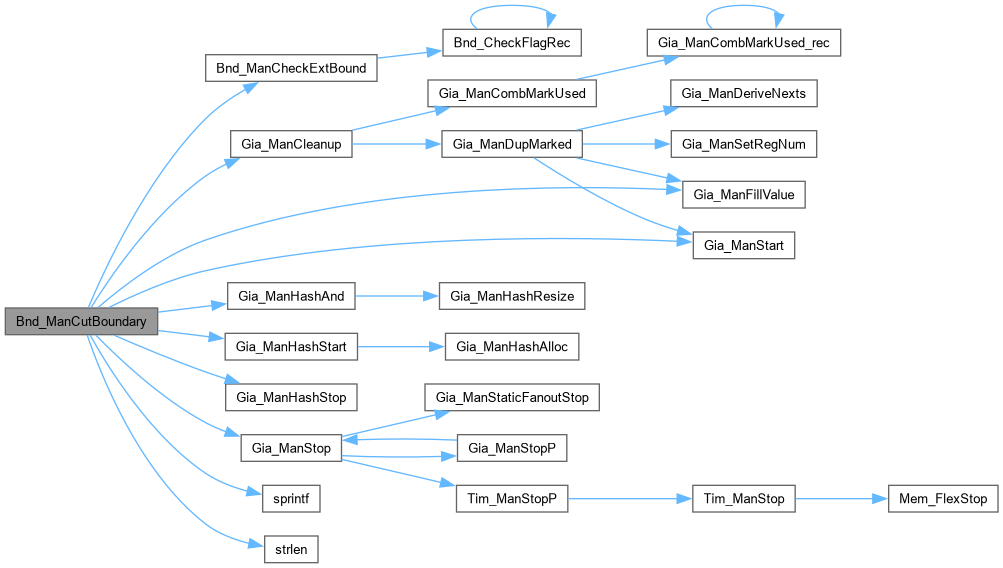

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Bnd_ManFinalizeMappings()

void Bnd_ManFinalizeMappings ( )

Definition at line 232 of file giaBound.c.

{

    Vec_Ptr_t* vBmiter2Spec = pBnd -> vBmiter2Spec;
    Vec_Ptr_t* vBmiter2Impl = pBnd -> vBmiter2Impl;

    Vec_Int_t *vSpec, *vImpl;
    int i, j, id;

    pBnd -> nMerged_impl = 0;
    pBnd -> nMerged_spec = 0;


    for( i = 0; i < Vec_PtrSize(vBmiter2Spec); i++ )
    {
        vSpec = (Vec_Int_t *)Vec_PtrEntry( vBmiter2Spec, i );
        vImpl = (Vec_Int_t *)Vec_PtrEntry( vBmiter2Impl, i );

        Vec_IntForEachEntry( vSpec, id, j )
        {
            // vSpec2Bmiter
            Vec_IntSetEntry( pBnd->vSpec2Bmiter, id, i );
        }

        Vec_IntForEachEntry( vImpl, id, j )
        {
            // vImpl2Bmiter
            Vec_IntSetEntry( pBnd->vImpl2Bmiter, id, i );
        }

        // count number of nodes merged into the same circuit
        if ( Vec_IntSize(vSpec) != 0 )
        {
            pBnd->nMerged_spec += Vec_IntSize(vSpec) - 1;
        }
        if ( Vec_IntSize(vImpl) != 0 )
        {
            pBnd->nMerged_impl += Vec_IntSize(vImpl) - 1;
        }
    }

}

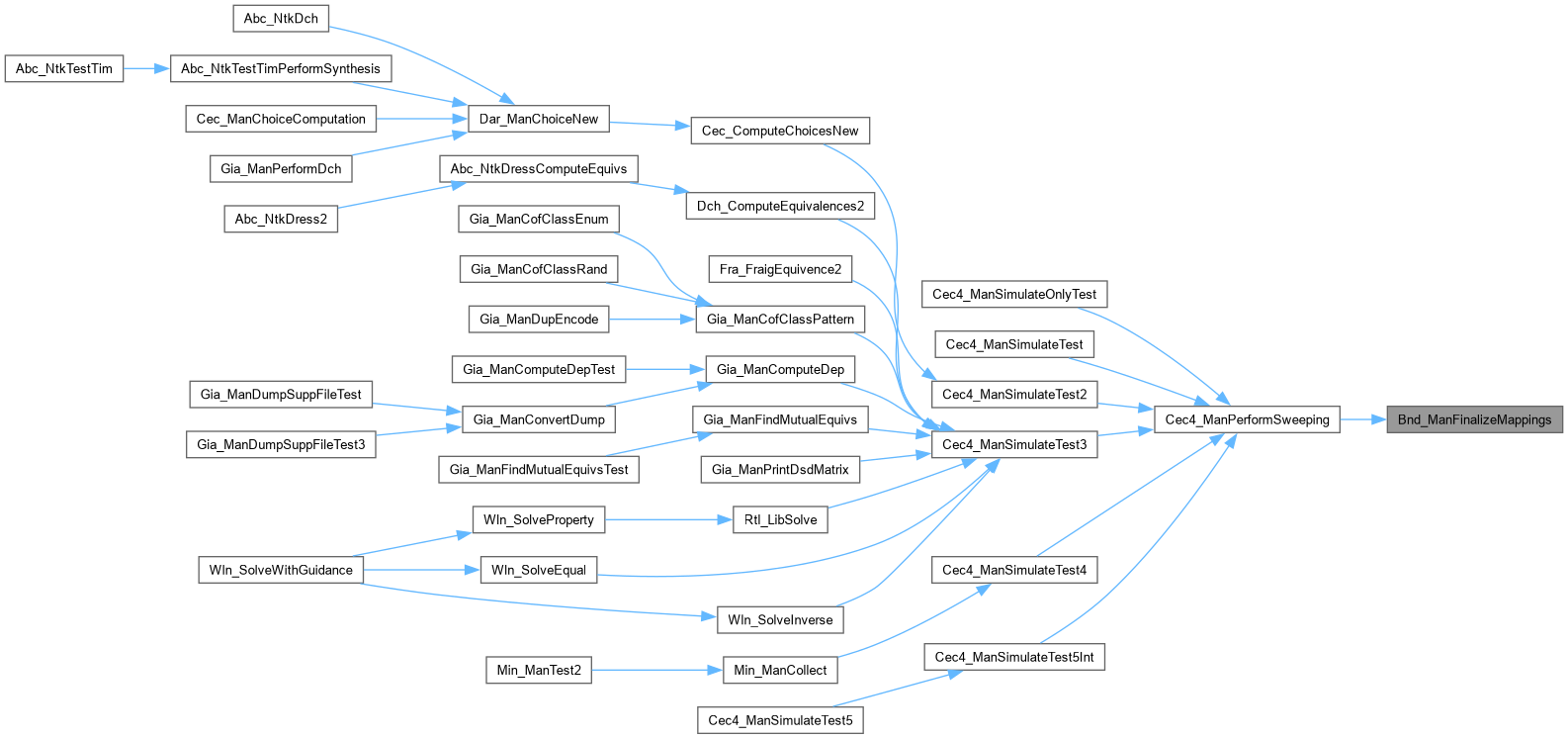

Here is the caller graph for this function:

◆ Bnd_ManFindBound()

void Bnd_ManFindBound	(	Gia_Man_t *	p,
		Gia_Man_t *	pImpl )

Function*************************************************************

Synopsis []

Description [find the extended boundary in spec and compute the corresponding boundary in impl]

SideEffects []

SeeAlso []

Definition at line 549 of file giaBound.c.

{
    Vec_Int_t  *vFlag;
    Vec_Ptr_t *vQ;
    Gia_Obj_t *pObj;
    int i, j, id, cnt;

    Vec_Int_t *vAI = Vec_IntAlloc(16);
    Vec_Int_t *vAO = Vec_IntAlloc(16);

    Vec_Bit_t *vSpec2Impl_phase = pBnd -> vSpec2Impl_phase;
    Vec_Int_t *vBI = pBnd -> vBI;
    Vec_Int_t *vBO = pBnd -> vBO;
    Vec_Int_t *vEI_spec = pBnd -> vEI_spec;
    Vec_Int_t *vEO_spec = pBnd -> vEO_spec;
    Vec_Int_t *vEI_impl = pBnd -> vEI_impl;
    Vec_Int_t *vEO_impl = pBnd -> vEO_impl;
    Vec_Bit_t *vEI_phase = pBnd -> vEI_phase;
    Vec_Bit_t *vEO_phase = pBnd -> vEO_phase;


    // prepare to compute extended boundary
    vQ = Vec_PtrAlloc(16);
    vFlag = Vec_IntAlloc( Gia_ManObjNum(p) );
    Vec_IntFill( vFlag, Gia_ManObjNum(p), 0 );

    Gia_ManStaticFanoutStart(p);

    // save bo, bi
    cnt = 0;
    Gia_ManForEachBuf(p, pObj, i)
    {
        if ( cnt < pBnd -> nBI )
        {
            Vec_IntPush( vBI, Gia_ObjId(p, Gia_ObjFanin0(pObj) ) );
        }
        else
        {
            Vec_IntPush( vBO, Gia_ObjId(p, pObj) );
        }
        cnt++;
    }

    // compute EO, travse with flag 1
    Vec_IntForEachEntry( vBO, id, i )
    {
        if ( Bnd_ManSpec2ImplNum(id) == 0 ) // BO not matched
        {
            Vec_PtrPush( vQ, Gia_ManObj(p, id) );
        }
        else
        {
            Vec_IntPush(vEO_spec, id);
        }
    }
    if ( pBnd -> fVerbose )  printf("%d BO doesn't match. ", Vec_PtrSize(vQ) );
    pBnd -> nBO_miss = Vec_PtrSize(vQ);

    int cnt_extra = - Vec_PtrSize(vQ);
    while( Vec_PtrSize(vQ) > 0 )
    {
        pObj = (Gia_Obj_t *)Vec_PtrPop(vQ);
        id = Gia_ObjId( p, pObj );

        if ( Vec_IntEntry( vFlag, id  ) == 1 ) continue;
        Vec_IntSetEntry( vFlag, id, 1 );

        // printf("%d\n", id);

        if ( Bnd_ManSpec2ImplNum(id) != 0 )    // matched
        {
            Vec_IntPush( vEO_spec, id );
            Vec_IntPush( vAO, id );
        }
        else
        {
            for( j = 0; j < Gia_ObjFanoutNum(p, pObj); j++ )
            {
                Vec_PtrPush( vQ, Gia_ObjFanout(p, pObj, j) );
                // printf("\t%d\n", Gia_ObjId( p1, Gia_ObjFanout(p1, pObj, j) ) );
            }
        }
    }
    // printf("%d AO found with %d extra nodes\n", Vec_IntSize(vAO) , cnt_extra );
    if ( pBnd -> fVerbose ) printf("%d AO found\n", Vec_IntSize(vAO) );


    // mark TFOC of BO with flag 1 to prevent them from being selected into EI
    // stop at CO
    Vec_IntForEachEntry( pBnd -> vBO, id, i )
    {
        Vec_PtrPush( vQ, Gia_ManObj(p, id) );
    }
    Vec_IntForEachEntry( vFlag, id, i )
    {
        Vec_IntSetEntry( vFlag, id, 0 );
    }
    while( Vec_PtrSize(vQ) > 0 )
    {
        pObj = (Gia_Obj_t *)Vec_PtrPop(vQ);
        id = Gia_ObjId( p, pObj );

        if ( Vec_IntEntry( vFlag, id  ) == 1 ) continue;
        Vec_IntSetEntry( vFlag, id, 1 );

        for( j = 0; j < Gia_ObjFanoutNum(p, pObj); j++ )
        {
            Vec_PtrPush( vQ, Gia_ObjFanout(p, pObj, j) );
        }
    }



    // compute EI,  traverse with flag 2

    // add unmatched BI to queue
    Vec_IntForEachEntry( vBI, id, i )
    {
        if ( Bnd_ManSpec2ImplNum(id) == 0 ) // BO not matched
        {
            Vec_PtrPush( vQ, Gia_ManObj(p, id) );
        }
        else
        {
            Vec_IntPush(vEI_spec, id);
        }
    }
    if ( pBnd -> fVerbose ) printf("%d BI doesn't match. ", Vec_PtrSize(vQ) );
    pBnd -> nBI_miss = Vec_PtrSize(vQ);
    cnt_extra -= Vec_PtrSize(vQ);

    // add AO to queue
    Vec_IntForEachEntry( vAO, id, i )
    {
        Vec_PtrPush( vQ, Gia_ManObj(p, id) );
    }

    // set flag 2 for BO
    Vec_IntForEachEntry( vBO, id, i )
    {
        Vec_IntSetEntry( vFlag, id, 2 );
    }

    // traverse down from AI and unmatched BI
    while( Vec_PtrSize(vQ) > 0 )
    {
        pObj = (Gia_Obj_t *)Vec_PtrPop(vQ);
        id = Gia_ObjId( p, pObj );

        if ( Vec_IntEntry( vFlag, id  ) == 2 ) continue;
        cnt_extra ++;

        // printf("%d\n", id);

        if ( Vec_IntEntry(vFlag, id) != 1 && Bnd_ManSpec2ImplNum(id) != 0 )    // matched
        {
            Vec_IntPush( vEI_spec, id );
            Vec_IntPush( vAI, id );
        }
        else
        {
            for( j = 0; j < Gia_ObjFaninNum(p, pObj); j++ )
            {
                Vec_PtrPush( vQ, Gia_ObjFanin(pObj, j) );
                // printf("\t%d\n", Gia_ObjId( p1, Gia_ObjFanout(p1, pObj, j) ) );
            }
        }

        Vec_IntSetEntry( vFlag, id, 2 );
    }
    if ( pBnd -> fVerbose ) printf("%d AI found with %d extra nodes in total\n", Vec_IntSize(vAI) , cnt_extra );
    pBnd -> nExtra = cnt_extra;


    // gen vEI_impl, vEO_impl, vEI_phase, vEO_phase
    Vec_IntForEachEntry( vEI_spec, id, i )
    {
        Vec_IntPush( vEI_impl, Vec_IntEntry( Bnd_ManSpec2Impl(id) , 0 ) );
        Vec_BitPush( vEI_phase, Vec_BitEntry( vSpec2Impl_phase, id ) );
    }
    Vec_IntForEachEntry( vEO_spec, id, i )
    {
        Vec_IntPush( vEO_impl, Vec_IntEntry( Bnd_ManSpec2Impl(id), 0 ) );
        Vec_BitPush( vEO_phase, Vec_BitEntry( vSpec2Impl_phase, id ) );
    }


    // count number of choice of boundary
    Vec_IntForEachEntry( vEO_spec, id, i )
    {
        pBnd -> nChoice_impl += Bnd_ManSpec2ImplNum( id ) - 1;
    }
    Vec_IntForEachEntry( vEO_impl, id, i )
    {
        pBnd -> nChoice_spec += Bnd_ManImpl2SpecNum( id ) - 1;
    }

    // print
    if ( pBnd -> fVerbose )
    {
        printf("#EI = %d\t#EO = %d\t#Extra Node = %d\n", Vec_IntSize(vEI_spec) , Vec_IntSize(vEO_spec), cnt_extra );
        Bnd_ManPrintBound();
    }

    // check boundary has comb loop
    if ( !Bnd_ManCheckExtBound( p, vEI_spec, vEO_spec ) )
    {

        printf("Combinational loop exist\n");
        pBnd -> combLoop_spec = 1;

    }


    // clean up
    Vec_IntFree(vAI);
    Vec_IntFree(vAO);
}

Here is the call graph for this function:

◆ Bnd_ManGenImplOut()

Gia_Man_t * Bnd_ManGenImplOut ( Gia_Man_t * p )

Definition at line 873 of file giaBound.c.

{
    if ( pBnd -> fVerbose ) printf("Generating impl_out with given boundary.\n");
    Gia_Man_t *pNew = Bnd_ManCutBoundary( p, pBnd->vEI_impl, pBnd->vEO_impl, pBnd->vEI_phase, pBnd->vEO_phase );
    if (!pNew) pBnd -> combLoop_impl = 1;
    return pNew;
}

Here is the call graph for this function:

◆ Bnd_ManGenPatched()

Gia_Man_t * Bnd_ManGenPatched	(	Gia_Man_t *	pOut,
		Gia_Man_t *	pSpec,
		Gia_Man_t *	pPatch )

Function*************************************************************

Synopsis []

Description [perform ECO directly (not used)]

SideEffects []

SeeAlso []

Definition at line 922 of file giaBound.c.

{

    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    int i, id, cnt;
    Vec_Int_t *vBI_patch, *vBO_patch;

    pBnd -> nNode_patch = Gia_ManAndNotBufNum( pPatch );

    pNew = Gia_ManStart( Gia_ManObjNum(pOut) + Gia_ManObjNum( pSpec ) + Gia_ManObjNum(pPatch) );
    pNew -> pName = ABC_ALLOC( char, strlen(pOut->pName)+3);
    sprintf( pNew -> pName, "%s_p", pOut -> pName );
    Gia_ManHashStart( pNew );
    Gia_ManFillValue(pOut);
    Gia_ManFillValue(pSpec);
    Gia_ManFillValue(pPatch);
    Gia_ManConst0(pOut)->Value = 0;
    Gia_ManConst0(pSpec)->Value = 0;
    Gia_ManConst0(pPatch)->Value = 0;

    // get bi and bo in patch
    cnt = 0;
    vBI_patch = Vec_IntAlloc(16);
    vBO_patch = Vec_IntAlloc(16);
    Gia_ManForEachBuf( pPatch, pObj, i )
    {
        if ( cnt < pBnd -> nBI )
        {
            Vec_IntPush( vBI_patch, Gia_ObjId( pPatch, pObj ) );
        }
        else
        {

            Vec_IntPush( vBO_patch, Gia_ObjId( pPatch, pObj ) );
        }
        cnt ++;
    }
    assert( Vec_IntSize( vBI_patch ) == Vec_IntSize(pBnd->vBI) );
    assert( Vec_IntSize( vBO_patch ) == Vec_IntSize(pBnd->vBO) );


    // add Impl (real) PI
    for ( i = 0; i < Gia_ManCiNum(pSpec); i++ )
    {
        pObj = Gia_ManCi(pOut, i);
        pObj -> Value = Gia_ManAppendCi( pNew );
    }

    // add Impl EI to CI
    // printf("adding EI to CI in Impl\n");
    for ( i = 0; i < Vec_IntSize( pBnd -> vEI_spec ); i++ )
    {
        pObj = Gia_ManCo(pOut, i + Gia_ManCoNum(pSpec) );
        Bnd_AddNodeRec( pOut, pNew, pObj, 0 );

        // set Spec EI
        Gia_ManObj( pSpec, Vec_IntEntry(pBnd -> vEI_spec, i) ) -> Value = pObj -> Value;
        // printf(" %d",pObj -> Value);
    }
    // printf("\n");

    // add Spec BI to EI
    // printf("adding BI to EI in Spec\n");
    Vec_IntForEachEntry( pBnd -> vBI, id, i )
    {
        pObj = Gia_ManObj( pSpec, id );
        Bnd_AddNodeRec( pSpec, pNew, pObj, 0 );

        // set patch bi
        Gia_ManObj( pPatch, Vec_IntEntry( vBI_patch, i) ) -> Value = pObj -> Value;
        // printf(" %d",pObj -> Value);
    }
    // printf("\n");

    // add Patch BO to BI
    // printf("adding BO to BI in Patch\n");
    Vec_IntForEachEntry( vBO_patch, id, i )
    {
        pObj = Gia_ManObj( pPatch, id );
        Bnd_AddNodeRec( pPatch, pNew, pObj, 0 );

        // set spec bo
        Gia_ManObj( pSpec, Vec_IntEntry( pBnd -> vBO, i) ) -> Value = pObj -> Value;
        // printf(" %d",pObj -> Value);
    }
    // printf("\n");

    // add Spec EO to BO
    // printf("adding EO to BO in Spec\n");
    Vec_IntForEachEntry( pBnd -> vEO_spec, id, i )
    {
        pObj = Gia_ManObj( pSpec, id );
        Bnd_AddNodeRec( pSpec, pNew, pObj, 0 );

        // set impl EO (PI)
        Gia_ManCi( pOut, i + Gia_ManCiNum(pSpec) ) -> Value = pObj -> Value;
        // printf(" %d",pObj -> Value);
    }
    // printf("\n");

    // add Impl (real) PO to EO
    // printf("adding CO to EO in Impl\n");
    for ( i = 0; i < Gia_ManCoNum(pSpec); i++ )
    {
        pObj = Gia_ManCo( pOut, i );
        Bnd_AddNodeRec( pOut, pNew, pObj, 0 );
        Gia_ManAppendCo( pNew, pObj->Value );
        // printf(" %d",pObj -> Value);
    }
    // printf("\n");


    // clean up
    Vec_IntFree( vBI_patch );
    Vec_IntFree( vBO_patch );
    Gia_ManHashStop( pNew );

    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );

    pBnd -> nNode_patched = Gia_ManAndNum( pNew );

    return pNew;
}

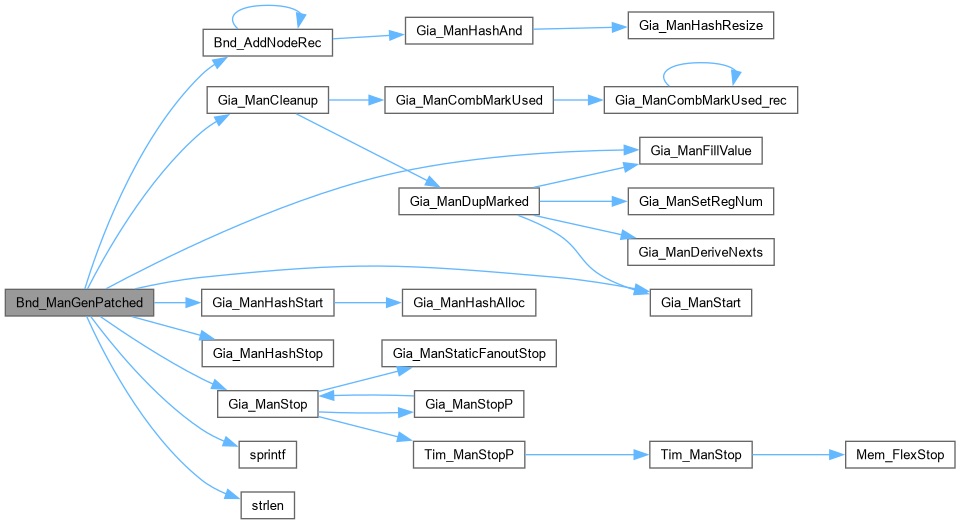

Here is the call graph for this function:

◆ Bnd_ManGenPatched1()

Gia_Man_t * Bnd_ManGenPatched1	(	Gia_Man_t *	pOut,
		Gia_Man_t *	pSpec )

Function*************************************************************

Synopsis []

Description [recover bounadry]

SideEffects []

SeeAlso []

Definition at line 1059 of file giaBound.c.

{

    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    int i, id;

    pNew = Gia_ManStart( Gia_ManObjNum(pOut) + Gia_ManObjNum( pSpec ) );
    pNew -> pName = ABC_ALLOC( char, strlen(pOut->pName)+3);
    sprintf( pNew -> pName, "%s_p", pOut -> pName );

    Gia_ManFillValue(pOut);
    Gia_ManFillValue(pSpec);
    Gia_ManConst0(pOut)->Value = 0;
    Gia_ManConst0(pSpec)->Value = 0;


    // add Impl (real) PI
    for ( i = 0; i < Gia_ManCiNum(pSpec); i++ )
    {
        pObj = Gia_ManCi(pOut, i);
        pObj -> Value = Gia_ManAppendCi( pNew );
    }

    // add Impl EI to CI
    // printf("adding EI to CI in Impl\n");
    for ( i = 0; i < Vec_IntSize( pBnd -> vEI_spec ); i++ )
    {
        pObj = Gia_ManCo(pOut, i + Gia_ManCoNum(pSpec) );
        Bnd_AddNodeRec( pOut, pNew, pObj, 1 );

        // set Spec EI
        Gia_ManObj( pSpec, Vec_IntEntry(pBnd -> vEI_spec, i) ) -> Value = pObj -> Value;
        // printf(" %d",pObj -> Value);
    }
    // printf("\n");

    // add Spec EO to EI
    // add BI -> BO -> EO to maintain the order of bufs
    // Vec_IntForEachEntry( pBnd -> vBI, id, i )
    // {
    //     pObj = Gia_ManObj( pSpec, id );
    //     Bnd_AddNodeRec( pSpec, pNew, pObj, 1 );
    // }
    // Vec_IntForEachEntry( pBnd -> vBO, id, i )
    // {
    //     pObj = Gia_ManObj( pSpec, id );
    //     Bnd_AddNodeRec( pSpec, pNew, pObj, 1 );
    // }
    Gia_ManForEachBuf( pSpec, pObj, i )
    {
        Bnd_AddNodeRec( pSpec, pNew, pObj, 1 );
    }
    Vec_IntForEachEntry( pBnd -> vEO_spec, id, i )
    {
        pObj = Gia_ManObj( pSpec, id );
        Bnd_AddNodeRec( pSpec, pNew, pObj, 1 );

        // set impl EO (PI)
        Gia_ManCi( pOut, i + Gia_ManCiNum(pSpec) ) -> Value = pObj -> Value;
        // printf(" %d",pObj -> Value);
    }
    // printf("\n");

    // add Impl (real) PO to EO
    // printf("adding CO to EO in Impl\n");
    for ( i = 0; i < Gia_ManCoNum(pSpec); i++ )
    {
        pObj = Gia_ManCo( pOut, i );
        Bnd_AddNodeRec( pOut, pNew, pObj, 1 );
        Gia_ManAppendCo( pNew, pObj->Value );
        // printf(" %d",pObj -> Value);
    }
    // printf("\n");


    // clean up
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );

    pBnd -> nNode_patched = Gia_ManAndNum( pNew );

    return pNew;
}

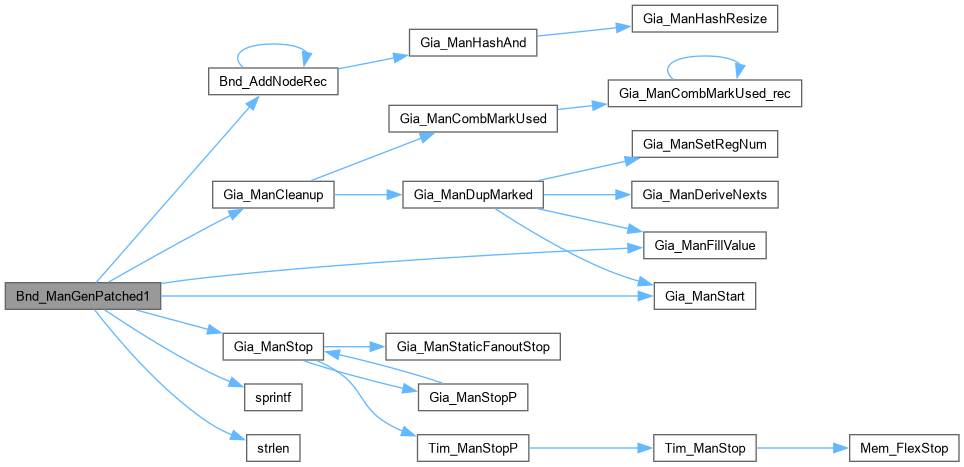

Here is the call graph for this function:

◆ Bnd_ManGenPatched2()

Gia_Man_t * Bnd_ManGenPatched2	(	Gia_Man_t *	pImpl,
		Gia_Man_t *	pPatch,
		int	fSkipStrash,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description [perform eco with recovered boundary. bnd_man is not used]

SideEffects []

SeeAlso []

Definition at line 1156 of file giaBound.c.

{

    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    int i, nBI, nBI_patch, cnt;
    Vec_Int_t* vLit;


    // check boundary first
    nBI = Bnd_ManCheckBound( pImpl, fVerbose );
    nBI_patch = Bnd_ManCheckBound( pPatch, fVerbose );
    if ( 0 == nBI_patch || Gia_ManBufNum(pImpl) != Gia_ManBufNum(pPatch) || nBI != nBI_patch )
    {
        Abc_Print( -1, "Abc_CommandAbc9StrEco(): The given boundary is invalid.\n" );
        return 0;
    }

    // prepare new network
    pNew = Gia_ManStart( Gia_ManObjNum(pImpl) + Gia_ManObjNum( pPatch ) );
    pNew -> pName = ABC_ALLOC( char, strlen(pImpl->pName)+3);
    sprintf( pNew -> pName, "%s_p", pImpl -> pName );
    if ( !fSkipStrash )
    {
        Gia_ManHashAlloc( pNew );
    }
    Gia_ManFillValue(pImpl);
    Gia_ManFillValue(pPatch);
    Gia_ManConst0(pImpl)->Value = 0;
    Gia_ManConst0(pPatch)->Value = 0;

    vLit = Vec_IntAlloc( Gia_ManBufNum(pImpl) );

    // add Impl (real) CI
    Gia_ManForEachCi( pImpl, pObj, i )
    {
        pObj -> Value = Gia_ManAppendCi( pNew );
    }

    // add Impl BI to CI
    cnt = 0;
    Gia_ManForEachBuf( pImpl, pObj, i )
    {
        Bnd_AddNodeRec( pImpl, pNew, pObj, fSkipStrash );
        Vec_IntPush( vLit, pObj -> Value );
        cnt ++;
        if ( cnt >= nBI ) break;
    }

    // set BI in patch
    // add patch BO to BI
    cnt = 0;
    Gia_ManForEachBuf( pPatch, pObj, i )
    {
        if ( cnt < nBI )
        {
            pObj -> Value = Vec_IntEntry( vLit, cnt );
        }
        else
        {
            Bnd_AddNodeRec( pPatch, pNew, pObj, fSkipStrash );
            Vec_IntPush( vLit, pObj -> Value );
        }
        cnt ++;
        if ( cnt == nBI ) Vec_IntClear( vLit );
    }

    // set BO in impl
    cnt = 0;
    Gia_ManForEachBuf( pImpl, pObj, i )
    {
        cnt ++;
        if ( cnt <= nBI) continue;
        pObj -> Value = Vec_IntEntry( vLit, cnt-nBI-1 );
    }

    // add impl CO to BO
    Gia_ManForEachCo( pImpl, pObj, i )
    {
        Bnd_AddNodeRec( pImpl, pNew, pObj, fSkipStrash );
        Gia_ManAppendCo( pNew, pObj -> Value );
    }

    // clean up
    if ( !fSkipStrash )
    {
        Gia_ManHashStop( pNew );
    }
    Vec_IntFree( vLit );
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );

    return pNew;
}

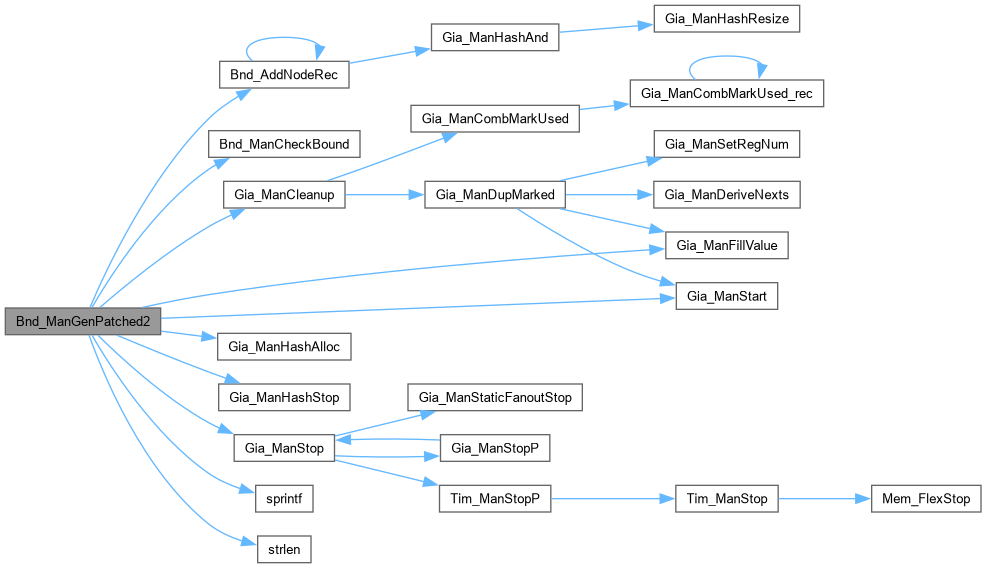

Here is the call graph for this function:

◆ Bnd_ManGenSpecOut()

Gia_Man_t * Bnd_ManGenSpecOut ( Gia_Man_t * p )

Definition at line 867 of file giaBound.c.

{
    if ( pBnd -> fVerbose ) printf("Generating spec_out with given boundary.\n");
    Gia_Man_t *pNew = Bnd_ManCutBoundary( p, pBnd->vEI_spec, pBnd->vEO_spec, 0, 0 );
    return pNew;
}

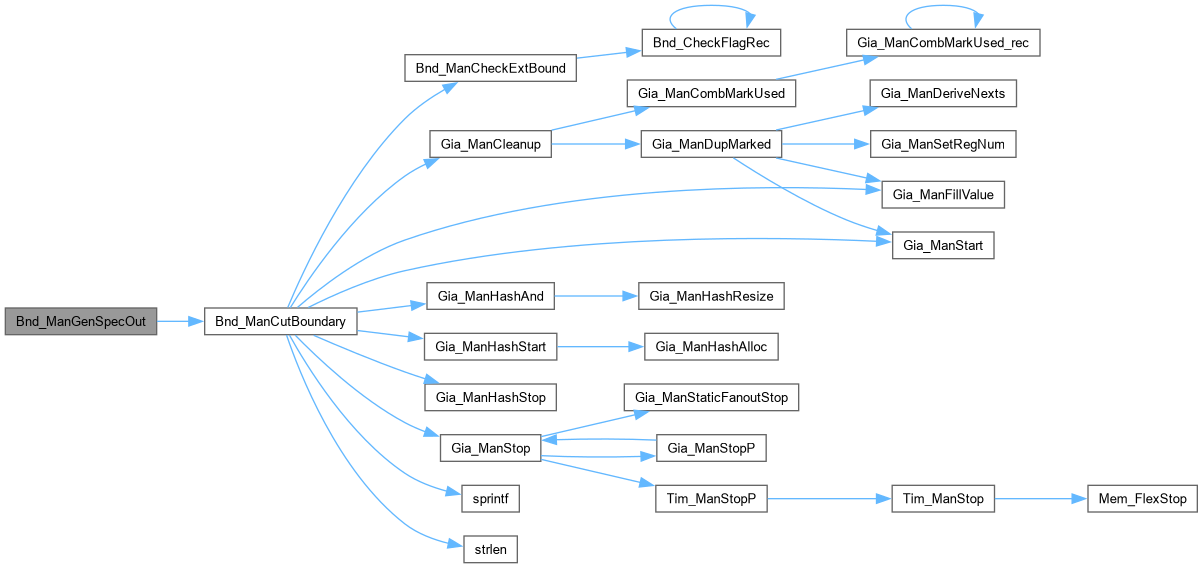

Here is the call graph for this function:

◆ Bnd_ManGetNExtra()

int Bnd_ManGetNExtra ( )

Definition at line 176 of file giaBound.c.

176{ assert(pBnd); return pBnd -> nExtra; }

◆ Bnd_ManGetNInternal()

int Bnd_ManGetNInternal ( )

Definition at line 175 of file giaBound.c.

175{ assert(pBnd); return pBnd -> nInternal; }

◆ Bnd_ManImpl2Spec()

Vec_Int_t * Bnd_ManImpl2Spec ( int id )

Definition at line 73 of file giaBound.c.

73{ return (Vec_Int_t*)Vec_PtrEntry( pBnd -> vBmiter2Spec, Vec_IntEntry( pBnd->vImpl2Bmiter, id ) ); }

◆ Bnd_ManImpl2SpecNum()

int Bnd_ManImpl2SpecNum ( int id )

Definition at line 74 of file giaBound.c.

74{ return Vec_IntSize( (Vec_Int_t*)Vec_PtrEntry( pBnd -> vBmiter2Spec, Vec_IntEntry( pBnd->vImpl2Bmiter, id ) ) ); }

Here is the caller graph for this function:

◆ Bnd_ManMap()

void Bnd_ManMap	(	int	iLit,
		int	id,
		int	spec )

Definition at line 178 of file giaBound.c.

{

    if ( spec )
    {
        Vec_IntPush( (Vec_Int_t *)Vec_PtrEntry( pBnd -> vBmiter2Spec, iLit >> 1), id );
        Vec_BitSetEntry( pBnd -> vSpec2Impl_phase, id, iLit & 1 );
    }
    else
    {
        assert( (iLit & 1) == 0 );
        Vec_IntPush( (Vec_Int_t *)Vec_PtrEntry( pBnd -> vBmiter2Impl, iLit >> 1), id );
    }
}

Here is the caller graph for this function:

◆ Bnd_ManMerge()

void Bnd_ManMerge	(	int	id_repr,
		int	id_obj,
		int	phaseDiff )

Definition at line 193 of file giaBound.c.

{


    Vec_Ptr_t* vBmiter2Spec = pBnd -> vBmiter2Spec;
    Vec_Ptr_t* vBmiter2Impl = pBnd -> vBmiter2Impl;
    Vec_Bit_t* vSpec2Impl_phase = pBnd -> vSpec2Impl_phase;
    int id, i;

    Vec_Int_t *vIds_spec_repr, *vIds_impl_repr, *vIds_spec_obj, *vIds_impl_obj;

    vIds_spec_repr = (Vec_Int_t *)Vec_PtrEntry( vBmiter2Spec, id_repr );
    vIds_impl_repr = (Vec_Int_t *)Vec_PtrEntry( vBmiter2Impl, id_repr );
    vIds_spec_obj = (Vec_Int_t *)Vec_PtrEntry( vBmiter2Spec, id_obj );
    vIds_impl_obj = (Vec_Int_t *)Vec_PtrEntry( vBmiter2Impl, id_obj );

    Vec_IntForEachEntry( vIds_spec_obj, id, i )
    {
        Vec_IntPush(vIds_spec_repr, id);
    }
    Vec_IntForEachEntry( vIds_impl_obj, id, i )
    {
        Vec_IntPush(vIds_impl_repr, id);
    }

    // handle spec2impl phase
    if ( phaseDiff )
    {
        Vec_IntForEachEntry( vIds_spec_obj, id, i )
        {
            Vec_BitSetEntry( vSpec2Impl_phase, id, !Vec_BitEntry(vSpec2Impl_phase, id) );
            // printf( "spec id %d's phase set to %d\n", id, Vec_BitEntry(vSpec2Impl_phase, id) );
        }
    }

    Vec_IntClear(vIds_spec_obj);
    Vec_IntClear(vIds_impl_obj);

}

Here is the caller graph for this function:

◆ Bnd_ManPrintBound()

void Bnd_ManPrintBound ( )

Definition at line 295 of file giaBound.c.

{

    // printf("%d nodes merged in spec\n", pBnd ->nMerged_spec - Vec_IntSize(pBnd->vBI) - Vec_IntSize(pBnd->vBO) );
    // printf("%d nodes merged in impl\n", pBnd ->nMerged_impl );
    printf("BI spec:\t"); Vec_IntPrint(pBnd -> vBI);
    printf("BO spec:\t"); Vec_IntPrint(pBnd -> vBO);
    printf("EI spec:\t"); Vec_IntPrint(pBnd -> vEI_spec);
    printf("EI impl:\t"); Vec_IntPrint(pBnd -> vEI_impl);
    printf("EI phase:\t"); Vec_BitPrint(pBnd -> vEI_phase);
    printf("EO spec:\t"); Vec_IntPrint(pBnd -> vEO_spec);
    printf("EO impl:\t"); Vec_IntPrint(pBnd -> vEO_impl);
    printf("EO phase:\t"); Vec_BitPrint(pBnd -> vEO_phase);
}

Here is the caller graph for this function:

◆ Bnd_ManPrintMappings()

void Bnd_ManPrintMappings ( )

Definition at line 274 of file giaBound.c.

{
    Vec_Ptr_t* vBmiter2Spec = pBnd -> vBmiter2Spec;
    Vec_Ptr_t* vBmiter2Impl = pBnd -> vBmiter2Impl;
    Vec_Int_t* vIds_spec, *vIds_impl;
    int k, id;
    for( int j=0; j < Vec_PtrSize(vBmiter2Spec); j++ )
    {
        printf("node %d: ", j);
        vIds_spec = (Vec_Int_t *)Vec_PtrEntry( vBmiter2Spec, j);
        vIds_impl = (Vec_Int_t *)Vec_PtrEntry( vBmiter2Impl, j);
        Vec_IntForEachEntry(vIds_spec, id, k)
            printf("%d ", id);
        printf("| ");
        Vec_IntForEachEntry(vIds_impl, id, k)
            printf("%d ", id);
        printf("\n");
    }

}

◆ Bnd_ManPrintStats()

void Bnd_ManPrintStats ( )

Definition at line 310 of file giaBound.c.

{
    Bnd_Man_t* p = pBnd;


    printf("\nSTATS\n");

    int warning = 0;
    if ( p->nChoice_spec > 0 )
    {
        warning = 1;
        printf("WARNING: multiple equiv nodes on the boundary of spec\n");
    }
    if ( p->nChoice_impl > 0 )
    {
        warning = 1;
        printf("WARNING: multiple equiv nodes on the boundary of impl\n");
    }

    printf("The outsides of spec and impl are %sEQ.\n", p->eq_out ? "" : "NOT " );
    printf("The patched impl is %sEQ. to spec (and impl)\n", p->eq_res ? "" : "NOT " );

    // #internal
    // nBI, nBO
    // nBI_miss, nBO_miss
    // nEI, nEO, nExtra
    // #spec, #impl, #patched
    // combLoop_spec, combLoop_impl
    // #choice_impl
    // #choice_spec
    // #feedthrough
    // warning (may be neq)
    // eq_out, eq_res

    printf("\nRESULT\n");
    printf("%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d\n",
        p->nInternal,
        p->nBI, p->nBO,
        p->nBI_miss, p->nBO_miss,
        Vec_IntSize(p->vEI_spec), Vec_IntSize(p->vEO_spec), p->nExtra,
        p->nNode_spec, p->nNode_impl, p->nNode_patched,
        p->combLoop_spec, p->combLoop_impl,
        p->nChoice_impl,
        p->nChoice_spec,
        warning,
        p->eq_out, p->eq_res
    );

    printf("#Choice Spec\t%d\n", p->nChoice_spec);
    printf("#Choice Impl\t%d\n", p->nChoice_impl);



}

◆ Bnd_ManSetEqOut()

void Bnd_ManSetEqOut ( int eq )

FUNCTION DEFINITIONS ///.

Definition at line 67 of file giaBound.c.

67{ pBnd -> eq_out = eq;}

◆ Bnd_ManSetEqRes()

void Bnd_ManSetEqRes ( int eq )

Definition at line 68 of file giaBound.c.

68{ pBnd -> eq_res = eq;}

◆ Bnd_ManSpec2Impl()

Vec_Int_t * Bnd_ManSpec2Impl ( int id )

Definition at line 70 of file giaBound.c.

70{ return (Vec_Int_t*)Vec_PtrEntry( pBnd -> vBmiter2Impl, Vec_IntEntry( pBnd->vSpec2Bmiter, id ) ); }

Here is the caller graph for this function:

◆ Bnd_ManSpec2ImplNum()

int Bnd_ManSpec2ImplNum ( int id )

Definition at line 71 of file giaBound.c.

71{ return Vec_IntSize( (Vec_Int_t*)Vec_PtrEntry( pBnd -> vBmiter2Impl, Vec_IntEntry( pBnd->vSpec2Bmiter, id ) ) ); }

Here is the caller graph for this function:

◆ Bnd_ManStackGias()

Gia_Man_t * Bnd_ManStackGias	(	Gia_Man_t *	pSpec,
		Gia_Man_t *	pImpl )

Definition at line 1252 of file giaBound.c.

{
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;

    int i, iLit;
    if ( Gia_ManBufNum(pSpec) == 0 ) {
        printf( "The spec AIG should have a boundary.\n" );
        return NULL;
    }
    if ( Gia_ManBufNum(pImpl) != 0 ) {
        printf( "The impl AIG should have no boundary.\n" );
        return NULL;
    }

    assert( Gia_ManBufNum(pSpec) > 0 );
    assert( Gia_ManBufNum(pImpl) == 0 );
    assert( Gia_ManRegNum(pSpec) == 0 );
    assert( Gia_ManRegNum(pImpl) == 0 );
    assert( Gia_ManCiNum(pSpec) == Gia_ManCiNum(pImpl) );
    assert( Gia_ManCoNum(pSpec) == Gia_ManCoNum(pImpl) );

    pNew = Gia_ManStart( Gia_ManObjNum(pSpec) + Gia_ManObjNum(pImpl) );
    pNew->pName = ABC_ALLOC( char, strlen(pSpec->pName) + 10 );
    sprintf( pNew->pName, "%s_stack", pSpec->pName );

    Gia_ManHashStart( pNew );
    Gia_ManConst0(pSpec)->Value = 0;
    Gia_ManConst0(pImpl)->Value = 0;

    for( int i = 0; i < Gia_ManCiNum(pSpec); i++ )
    {
        int iLit = Gia_ManCi(pSpec, i)->Value = Gia_ManCi(pImpl, i) -> Value = Gia_ManAppendCi(pNew);

        pObj = Gia_ManCi(pSpec, i);
        Bnd_ManMap( iLit, Gia_ObjId( pSpec, pObj ), 1 );

        pObj = Gia_ManCi(pImpl, i);
        Bnd_ManMap( iLit, Gia_ObjId( pImpl, pObj) , 0 );
    }

    // record the corresponding impl node of each lit
    Gia_ManForEachAnd( pImpl, pObj, i )
    {
        pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        if ( pBnd ) Bnd_ManMap( pObj -> Value, Gia_ObjId(pImpl, pObj), 0 );
    }

    Vec_Int_t* vFlag = Vec_IntAlloc( Gia_ManObjNum( pSpec ) );
    Vec_IntFill( vFlag, Gia_ManObjNum(pSpec), 0 );
    int count = 0;
    Gia_ManForEachBuf( pSpec, pObj, i )
    {
        if ( count < pBnd -> nBI )
        {
            // it's BI, don't record buf
            Vec_IntSetEntry( vFlag,  Gia_ObjId( pSpec, pObj ), 1 );
        }
        else
        {
            // it's BO, don't record buf's fanin
            Vec_IntSetEntry( vFlag,  Gia_ObjId( pSpec, Gia_ObjFanin0( pObj ) ), 1 );
        }
        count++;
    }

    // record hashed equivalent nodes
    Gia_ManForEachAnd( pSpec, pObj, i )
    {
        pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        if ( Vec_IntEntry( vFlag, Gia_ObjId( pSpec, pObj ) ) == 0 )
        {
            Bnd_ManMap( pObj -> Value, Gia_ObjId(pSpec, pObj), 1 );
        }
    }
    Vec_IntFree( vFlag );

    Gia_ManForEachCo( pImpl, pObj, i )
    {
        iLit = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    }
    Gia_ManForEachCo( pSpec, pObj, i )
    {
       iLit = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    }

    // miter
    // Gia_ManForEachCo( pImpl, pObj, i )
    // {
    //     iLit = Gia_ManHashXor( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin0Copy(Gia_ManCo(pSpec,i)) );
    //     Gia_ManAppendCo( pNew, iLit );
    // }


    Gia_ManHashStop( pNew );
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    return pNew;
}

Here is the call graph for this function:

◆ Bnd_ManStart()

Bnd_Man_t * Bnd_ManStart	(	Gia_Man_t *	pSpec,
		Gia_Man_t *	pImpl,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 88 of file giaBound.c.

{
    int i;
    Bnd_Man_t* p = ABC_CALLOC( Bnd_Man_t, 1 );

    p -> maxNumClass = Gia_ManCiNum( pSpec ) + Gia_ManAndNotBufNum(pSpec) + Gia_ManAndNum(pImpl) + 2 + Gia_ManCoNum(pSpec) * 2;
    // one for constant node and one for dummy

    p -> vBmiter2Spec = Vec_PtrAlloc( p -> maxNumClass );
    p -> vBmiter2Impl = Vec_PtrAlloc( p -> maxNumClass );
    Vec_PtrFill( p -> vBmiter2Spec, p -> maxNumClass, 0 );
    Vec_PtrFill( p -> vBmiter2Impl, p -> maxNumClass, 0 );
    for( i = 0; i <  Vec_PtrSize( p -> vBmiter2Impl ); i ++ )
    {
        Vec_PtrSetEntry( p -> vBmiter2Spec, i, Vec_IntAlloc(1) );
        Vec_PtrSetEntry( p -> vBmiter2Impl, i, Vec_IntAlloc(1) );
    }

    p -> vSpec2Impl_phase = Vec_BitAlloc( Gia_ManObjNum(pSpec) );
    Vec_BitFill( p -> vSpec2Impl_phase, Gia_ManObjNum(pSpec), 0 );

    p -> vImpl2Bmiter = Vec_IntAlloc( Gia_ManObjNum(pImpl) );
    Vec_IntFill( p -> vImpl2Bmiter, Gia_ManObjNum(pImpl), p -> maxNumClass - 1 );
    p -> vSpec2Bmiter = Vec_IntAlloc( Gia_ManObjNum(pSpec) );
    Vec_IntFill( p -> vSpec2Bmiter, Gia_ManObjNum(pSpec), p -> maxNumClass - 1);

    p -> vBI = Vec_IntAlloc(16);
    p -> vBO = Vec_IntAlloc(16);
    p -> vEI_spec = Vec_IntAlloc(16);
    p -> vEO_spec = Vec_IntAlloc(16);
    p -> vEI_impl = Vec_IntAlloc(16);
    p -> vEO_impl = Vec_IntAlloc(16);
    p -> vEI_phase = Vec_BitAlloc(16);
    p -> vEO_phase = Vec_BitAlloc(16);

    p -> nNode_spec = Gia_ManAndNum(pSpec)  - Gia_ManBufNum(pSpec);
    p -> nNode_impl = Gia_ManAndNum(pImpl);
    p -> nNode_patch = 0;
    p -> nNode_patched = 0;

    p -> fVerbose = fVerbose;

    p -> combLoop_spec = 0;
    p -> combLoop_impl = 0;
    p -> eq_out = 0;
    p -> eq_res = 0;

    p -> nChoice_spec = 0;
    p -> nChoice_impl = 0;
    p -> feedthrough = 0;

    return p;
}

◆ Bnd_ManStop()

void Bnd_ManStop ( )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 153 of file giaBound.c.

{
    assert(pBnd);

    Vec_PtrFree( pBnd-> vBmiter2Spec );
    Vec_PtrFree( pBnd-> vBmiter2Impl );
    Vec_BitFree( pBnd-> vSpec2Impl_phase );
    Vec_IntFree( pBnd-> vImpl2Bmiter );
    Vec_IntFree( pBnd-> vSpec2Bmiter );

    Vec_IntFree( pBnd->vBI );
    Vec_IntFree( pBnd->vBO );
    Vec_IntFree( pBnd->vEI_spec );
    Vec_IntFree( pBnd->vEO_spec );
    Vec_IntFree( pBnd->vEI_impl );
    Vec_IntFree( pBnd->vEO_impl );
    Vec_BitFree( pBnd->vEI_phase );
    Vec_BitFree( pBnd->vEO_phase );

    ABC_FREE( pBnd );
}

Variable Documentation

◆ pBnd

Bnd_Man_t* pBnd = 0

DECLARATIONS ///.

CFile****************************************************************

FileName [giaDup.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Duplication procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: giaDup.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 61 of file giaBound.c.

Classes

Typedefs

Functions

Variables

Typedef Documentation

◆ Bnd_Man_t

Function Documentation

◆ Bnd_AddNodeRec()

◆ Bnd_CheckFlagRec()

◆ Bnd_ManCheckBound()

◆ Bnd_ManCheckCoMerged()

◆ Bnd_ManCheckExtBound()

◆ Bnd_ManCutBoundary()

◆ Bnd_ManFinalizeMappings()

◆ Bnd_ManFindBound()

◆ Bnd_ManGenImplOut()

◆ Bnd_ManGenPatched()

◆ Bnd_ManGenPatched1()

◆ Bnd_ManGenPatched2()

◆ Bnd_ManGenSpecOut()

◆ Bnd_ManGetNExtra()

◆ Bnd_ManGetNInternal()

◆ Bnd_ManImpl2Spec()

◆ Bnd_ManImpl2SpecNum()

◆ Bnd_ManMap()

◆ Bnd_ManMerge()

◆ Bnd_ManPrintBound()

◆ Bnd_ManPrintMappings()

◆ Bnd_ManPrintStats()

◆ Bnd_ManSetEqOut()

◆ Bnd_ManSetEqRes()

◆ Bnd_ManSpec2Impl()

◆ Bnd_ManSpec2ImplNum()

◆ Bnd_ManStackGias()

◆ Bnd_ManStart()

◆ Bnd_ManStop()

Variable Documentation

◆ pBnd
