#include <math.h>
#include "gia.h"

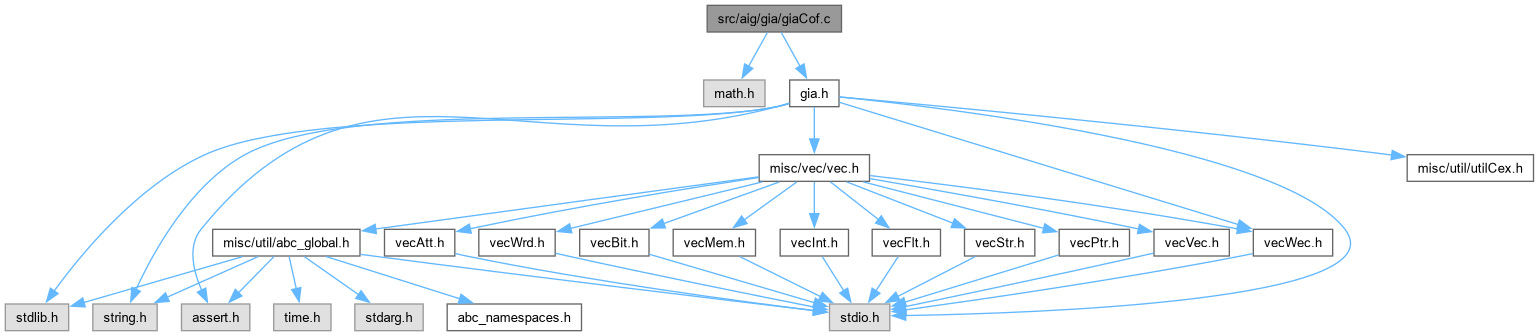

Include dependency graph for giaCof.c:

Classes
struct	Cof_Fan_t_

struct	Cof_Obj_t_

struct	Cof_Man_t_

Macros
#define	Cof_ManForEachObj(p, pObj, i)

#define	Cof_ManForEachNode(p, pObj, i)

#define	Cof_ObjForEachFanin(pObj, pNext, i)

#define	Cof_ObjForEachFanout(pObj, pNext, i)

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Cof_Fan_t_	Cof_Fan_t
	DECLARATIONS ///.

typedef struct Cof_Obj_t_	Cof_Obj_t

typedef struct Cof_Man_t_	Cof_Man_t

Functions
Cof_Man_t *	Cof_ManCreateLogicSimple (Gia_Man_t *pGia)
	FUNCTION DEFINITIONS ///.

void	Cof_ManStop (Cof_Man_t *p)

int	Cof_ManTfoSize_rec (Cof_Man_t p, Cof_Obj_t pObj)

int	Cof_ManTfoSize (Cof_Man_t p, Cof_Obj_t *ppObjs, int nObjs)

int	Cof_ManTfiSize_rec (Cof_Man_t p, Cof_Obj_t pObj)

int	Cof_ManTfiSize (Cof_Man_t p, Cof_Obj_t *ppObjs, int nObjs)

int	Cof_ManSuppSize_rec (Cof_Man_t p, Cof_Obj_t pObj)

int	Cof_ManSuppSize (Cof_Man_t p, Cof_Obj_t *ppObjs, int nObjs)

void	Cof_ManCleanValue (Cof_Man_t *p)

void	Cof_ManInsertEntry_rec (Vec_Ptr_t vNodes, Cof_Obj_t pNode, int nNodeMax)

Vec_Ptr_t *	Cof_ManCollectHighFanout (Cof_Man_t *p, int nNodes)

int	Cof_ManCountRemoved (Cof_Man_t p, Cof_Obj_t pRoot, int fConst1)

void	Cof_ManPrintHighFanoutOne (Cof_Man_t p, Cof_Obj_t pObj)

void	Cof_ManPrintHighFanout (Cof_Man_t *p, int nNodes)

int	Cof_NodeDeref_rec (Cof_Obj_t *pNode)

int	Cof_NodeRef_rec (Cof_Obj_t *pNode)

void	Cof_ManPrintFanio (Cof_Man_t *p)

void	Gia_ManPrintFanio (Gia_Man_t *pGia, int nNodes)

Gia_Man_t *	Gia_ManDupCofInt (Gia_Man_t *p, int iVar)

Gia_Man_t *	Gia_ManDupCof (Gia_Man_t *p, int iVar)

Vec_Int_t *	Gia_ManCofVars (Gia_Man_t *p, int nFanLim)

Vec_Int_t *	Gia_ManTransfer (Gia_Man_t pAig, Gia_Man_t pCof, Gia_Man_t pNew, Vec_Int_t vSigs)

Gia_Man_t *	Gia_ManDupCofAllInt (Gia_Man_t p, Vec_Int_t vSigs, int fVerbose)

Gia_Man_t *	Gia_ManDupCofAll (Gia_Man_t *p, int nFanLim, int fVerbose)

Gia_Man_t *	Gia_ManDsdMatrix (Gia_Man_t *p, int iIn)

void	Gia_ManPrintDsdMatrix (Gia_Man_t *p, int iIn)

Macro Definition Documentation

◆ Cof_ManForEachNode

#define Cof_ManForEachNode	(	p,
		pObj,
		i )

Value:

for ( i = 0; (i < p->nObjData) && (pObj = Cof_ManObj(p,i)); i += Cof_ObjSize(pObj) ) if ( Cof_ObjIsTerm(pObj) ) {} else

p

Cube * p

Definition exorList.c:222

Definition at line 104 of file giaCof.c.

104#define Cof_ManForEachNode( p, pObj, i ) \

105 for ( i = 0; (i < p->nObjData) && (pObj = Cof_ManObj(p,i)); i += Cof_ObjSize(pObj) ) if ( Cof_ObjIsTerm(pObj) ) {} else

◆ Cof_ManForEachObj

#define Cof_ManForEachObj	(	p,
		pObj,
		i )

Value:

for ( i = 0; (i < p->nObjData) && (pObj = Cof_ManObj(p,i)); i += Cof_ObjSize(pObj) )

Definition at line 102 of file giaCof.c.

102#define Cof_ManForEachObj( p, pObj, i ) \

103 for ( i = 0; (i < p->nObjData) && (pObj = Cof_ManObj(p,i)); i += Cof_ObjSize(pObj) )

◆ Cof_ObjForEachFanin

#define Cof_ObjForEachFanin	(	pObj,
		pNext,
		i )

Value:

for ( i = 0; (i < (int)pObj->nFanins) && (pNext = Cof_ObjFanin(pObj,i)); i++ )

Definition at line 106 of file giaCof.c.

106#define Cof_ObjForEachFanin( pObj, pNext, i ) \

107 for ( i = 0; (i < (int)pObj->nFanins) && (pNext = Cof_ObjFanin(pObj,i)); i++ )

◆ Cof_ObjForEachFanout

#define Cof_ObjForEachFanout	(	pObj,
		pNext,
		i )

Value:

for ( i = 0; (i < (int)pObj->nFanouts) && (pNext = Cof_ObjFanout(pObj,i)); i++ )

Definition at line 108 of file giaCof.c.

108#define Cof_ObjForEachFanout( pObj, pNext, i ) \

109 for ( i = 0; (i < (int)pObj->nFanouts) && (pNext = Cof_ObjFanout(pObj,i)); i++ )

Typedef Documentation

◆ Cof_Fan_t

typedef typedefABC_NAMESPACE_IMPL_START struct Cof_Fan_t_ Cof_Fan_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaCof.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Cofactor estimation procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: giaCof.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 31 of file giaCof.c.

◆ Cof_Man_t

typedef struct Cof_Man_t_ Cof_Man_t

Definition at line 55 of file giaCof.c.

◆ Cof_Obj_t

typedef struct Cof_Obj_t_ Cof_Obj_t

Definition at line 38 of file giaCof.c.

Function Documentation

◆ Cof_ManCleanValue()

void Cof_ManCleanValue ( Cof_Man_t * p )

Function*************************************************************

Synopsis [Cleans the value.]

Description []

SideEffects []

SeeAlso []

Definition at line 369 of file giaCof.c.

{
    Cof_Obj_t * pObj;
    int i;
    Cof_ManForEachObj( p, pObj, i )
        pObj->Value = 0;
}

◆ Cof_ManCollectHighFanout()

Vec_Ptr_t * Cof_ManCollectHighFanout	(	Cof_Man_t *	p,
		int	nNodes )

Function*************************************************************

Synopsis [Returns sorted array of node handles with largest fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 422 of file giaCof.c.

{
    Vec_Ptr_t * vNodes;
    Cof_Obj_t * pObj;
    int i;
    vNodes = Vec_PtrAlloc( nNodes );
    Cof_ManForEachObj( p, pObj, i )
        if ( Cof_ObjIsCi(pObj) || Cof_ObjIsNode(pObj) )
            Cof_ManInsertEntry_rec( vNodes, pObj, nNodes );
    return vNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManCountRemoved()

int Cof_ManCountRemoved	(	Cof_Man_t *	p,
		Cof_Obj_t *	pRoot,
		int	fConst1 )

Function*************************************************************

Synopsis [Returns sorted array of node handles with largest fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 445 of file giaCof.c.

{
    Gia_Obj_t * pNextGia;
    Cof_Obj_t * pTemp, * pNext, * pFanin0, * pFanin1;
    int Counter = 0, LevelStart, LevelNext;
    int i, k, iHandle, iLit0, iLit1, iNextNew;
    // restart the trav ids
    Cof_ManIncrementTravId( p );
    Cof_ObjSetTravIdCurrent( p, pRoot );
    // add the node to the queue
    LevelStart = Cof_ObjLevel(p, pRoot);
    assert( p->pLevels[LevelStart] == 0 );
    pRoot->iNext = 0;
    p->pLevels[LevelStart] = Cof_ObjHandle( p, pRoot );
    // set the new literal
    pRoot->iLit = Abc_Var2Lit( 0, fConst1 );
    // process nodes in the levelized order
    for ( i = LevelStart; i < p->nLevels; i++ )
    {
        for ( iHandle = p->pLevels[i];
              iHandle && (pTemp = Cof_ManObj(p, iHandle));
              iHandle = pTemp->iNext )
        {
            assert( pTemp->Id != Abc_Lit2Var(pTemp->iLit) );
            Cof_ObjForEachFanout( pTemp, pNext, k )
            {
                if ( Cof_ObjIsCo(pNext) )
                    continue;
                if ( Cof_ObjIsTravIdCurrent(p, pNext) )
                    continue;
                pFanin0 = Cof_ObjFanin( pNext, 0 );
                pFanin1 = Cof_ObjFanin( pNext, 1 );
                assert( pFanin0 == pTemp || pFanin1 == pTemp );
                pNextGia = Gia_ManObj( p->pGia, pNext->Id );
                if ( Cof_ObjIsTravIdCurrent(p, pFanin0) )
                    iLit0 = Abc_LitNotCond( pFanin0->iLit, Gia_ObjFaninC0(pNextGia) );
                else
                    iLit0 = Gia_ObjFaninLit0( pNextGia, pNext->Id );
                if ( Cof_ObjIsTravIdCurrent(p, pFanin1) )
                    iLit1 = Abc_LitNotCond( pFanin1->iLit, Gia_ObjFaninC1(pNextGia) );
                else
                    iLit1 = Gia_ObjFaninLit1( pNextGia, pNext->Id );
                iNextNew = Gia_ManHashAndTry( p->pGia, iLit0, iLit1 );
                if ( iNextNew == -1 )
                    continue;
                Cof_ObjSetTravIdCurrent(p, pNext);
                // set the new literal
                pNext->iLit = iNextNew;
                // add it to be processed
                LevelNext = Cof_ObjLevel( p, pNext );
                assert( LevelNext > i && LevelNext < p->nLevels );
                pNext->iNext = p->pLevels[LevelNext];
                p->pLevels[LevelNext] = Cof_ObjHandle( p, pNext );
                Counter++;
            }
        }
        p->pLevels[i] = 0;
    }
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManCreateLogicSimple()

Cof_Man_t * Cof_ManCreateLogicSimple ( Gia_Man_t * pGia )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Creates logic network isomorphic to the given AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 126 of file giaCof.c.

{
    Cof_Man_t * p;
    Cof_Obj_t * pObjLog, * pFanLog;
    Gia_Obj_t * pObj;
    int * pMuxRefs;
    int i, iHandle = 0;
    p = ABC_CALLOC( Cof_Man_t, 1 );
    p->pGia = pGia;
    p->vCis = Vec_IntAlloc( Gia_ManCiNum(pGia) );
    p->vCos = Vec_IntAlloc( Gia_ManCoNum(pGia) );
    p->nObjData = (sizeof(Cof_Obj_t) / 4) * Gia_ManObjNum(pGia) + 4 * Gia_ManAndNum(pGia) + 2 * Gia_ManCoNum(pGia);
    p->pObjData = ABC_CALLOC( int, p->nObjData );
    ABC_FREE( pGia->pRefs );
    Gia_ManCreateRefs( pGia );
    Gia_ManForEachObj( pGia, pObj, i )
    {
        pObj->Value = iHandle;
        pObjLog = Cof_ManObj( p, iHandle );
        pObjLog->nFanins  = 0;
        pObjLog->nFanouts = Gia_ObjRefNum( pGia, pObj );
        pObjLog->Id       = i;
        pObjLog->Value    = 0;
        if ( Gia_ObjIsAnd(pObj) )
        {
            pFanLog = Cof_ManObj( p, Gia_ObjHandle(Gia_ObjFanin0(pObj)) );
            pFanLog->Fanios[pFanLog->nFanins + pFanLog->Value++].iFan =
                pObjLog->Fanios[pObjLog->nFanins].iFan = Cof_ObjHandleDiff( pObjLog, pFanLog );
            pObjLog->Fanios[pObjLog->nFanins++].fCompl = Gia_ObjFaninC0(pObj);

            pFanLog = Cof_ManObj( p, Gia_ObjHandle(Gia_ObjFanin1(pObj)) );
            pFanLog->Fanios[pFanLog->nFanins + pFanLog->Value++].iFan =
                pObjLog->Fanios[pObjLog->nFanins].iFan = Cof_ObjHandleDiff( pObjLog, pFanLog );
            pObjLog->Fanios[pObjLog->nFanins++].fCompl = Gia_ObjFaninC1(pObj);
            p->nNodes++;
        }
        else if ( Gia_ObjIsCo(pObj) )
        {
            pFanLog = Cof_ManObj( p, Gia_ObjHandle(Gia_ObjFanin0(pObj)) );
            pFanLog->Fanios[pFanLog->nFanins + pFanLog->Value++].iFan =
                pObjLog->Fanios[pObjLog->nFanins].iFan = Cof_ObjHandleDiff( pObjLog, pFanLog );
            pObjLog->Fanios[pObjLog->nFanins++].fCompl = Gia_ObjFaninC0(pObj);

            pObjLog->fTerm = 1;
            Vec_IntPush( p->vCos, iHandle );
        }
        else if ( Gia_ObjIsCi(pObj) )
        {
            pObjLog->fTerm = 1;
            Vec_IntPush( p->vCis, iHandle );
        }
        iHandle += Cof_ObjSize( pObjLog );
        p->nObjs++;
    }
    assert( iHandle == p->nObjData );
    pMuxRefs = Gia_ManCreateMuxRefs( pGia );
    Gia_ManForEachObj( pGia, pObj, i )
    {
        pObjLog = Cof_ManObj( p, Gia_ObjHandle(pObj) );
        assert( pObjLog->nFanouts == pObjLog->Value );
        pObjLog->nFanoutsM = pMuxRefs[i];
    }
    ABC_FREE( pMuxRefs );
    return p;
}

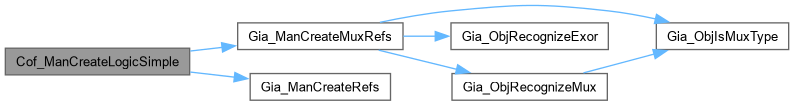

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManInsertEntry_rec()

void Cof_ManInsertEntry_rec	(	Vec_Ptr_t *	vNodes,
		Cof_Obj_t *	pNode,
		int	nNodeMax )

Function*************************************************************

Synopsis [Returns sorted array of node handles with largest fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 388 of file giaCof.c.

{
    Cof_Obj_t * pLast;
    if ( Vec_PtrSize(vNodes) == 0 )
    {
        Vec_PtrPush(vNodes, pNode);
        return;
    }
    pLast = (Cof_Obj_t *)Vec_PtrPop(vNodes);
    if ( Cof_ObjFanoutNum(pLast) < Cof_ObjFanoutNum(pNode) )
    {
        Cof_ManInsertEntry_rec( vNodes, pNode, nNodeMax );
        if ( Vec_PtrSize(vNodes) < nNodeMax )
            Vec_PtrPush( vNodes, pLast );
    }
    else
    {
        Vec_PtrPush( vNodes, pLast );
        if ( Vec_PtrSize(vNodes) < nNodeMax )
            Vec_PtrPush( vNodes, pNode );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManPrintFanio()

void Cof_ManPrintFanio ( Cof_Man_t * p )

Function*************************************************************

Synopsis [Prints the distribution of fanins/fanouts in the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 605 of file giaCof.c.

{
    char Buffer[100];
    Cof_Obj_t * pNode;
    Vec_Int_t * vFanins, * vFanouts, * vMffcs;
    int nFanins, nFanouts, nMffcs, nFaninsMax, nFanoutsMax, nMffcsMax, nFaninsAll, nFanoutsAll, nMffcsAll;
    int i, k, nSizeMax, nMffcNodes = 0;

    // determine the largest fanin and fanout
    nFaninsMax = nFanoutsMax = nMffcsMax = 0;
    nFaninsAll = nFanoutsAll = nMffcsAll = 0;
    Cof_ManForEachNode( p, pNode, i )
    {
        if ( i == 0 ) continue;
        nFanins  = Cof_ObjFaninNum(pNode);
        nFanouts = Cof_ObjFanoutNum(pNode);
        nMffcs   = pNode->nFanouts > 1 ? Cof_ObjMffcSize(pNode) : 0;
        nFaninsAll  += nFanins;
        nFanoutsAll += nFanouts;
        nMffcsAll   += nMffcs;
        nFaninsMax   = Abc_MaxInt( nFaninsMax,  nFanins );
        nFanoutsMax  = Abc_MaxInt( nFanoutsMax, nFanouts );
        nMffcsMax    = Abc_MaxInt( nMffcsMax,   nMffcs );
    }

    // allocate storage for fanin/fanout numbers
    nSizeMax = Abc_MaxInt( 10 * (Abc_Base10Log(nFaninsMax) + 1), 10 * (Abc_Base10Log(nFanoutsMax) + 1) );
    nSizeMax = Abc_MaxInt( 10 * (Abc_Base10Log(nMffcsMax) + 1),  nSizeMax );
    vFanins  = Vec_IntStart( nSizeMax );
    vFanouts = Vec_IntStart( nSizeMax );
    vMffcs   = Vec_IntStart( nSizeMax );

    // count the number of fanins and fanouts
    Cof_ManForEachNode( p, pNode, i )
    {
        if ( i == 0 ) continue;
        nFanins  = Cof_ObjFaninNum(pNode);
        nFanouts = Cof_ObjFanoutNum(pNode);
        nMffcs   = pNode->nFanouts > 1 ? Cof_ObjMffcSize(pNode) : 0;

        if ( nFanins < 10 )
            Vec_IntAddToEntry( vFanins, nFanins, 1 );
        else if ( nFanins < 100 )
            Vec_IntAddToEntry( vFanins, 10 + nFanins/10, 1 );
        else if ( nFanins < 1000 )
            Vec_IntAddToEntry( vFanins, 20 + nFanins/100, 1 );
        else if ( nFanins < 10000 )
            Vec_IntAddToEntry( vFanins, 30 + nFanins/1000, 1 );
        else if ( nFanins < 100000 )
            Vec_IntAddToEntry( vFanins, 40 + nFanins/10000, 1 );
        else if ( nFanins < 1000000 )
            Vec_IntAddToEntry( vFanins, 50 + nFanins/100000, 1 );
        else if ( nFanins < 10000000 )
            Vec_IntAddToEntry( vFanins, 60 + nFanins/1000000, 1 );

        if ( nFanouts < 10 )
            Vec_IntAddToEntry( vFanouts, nFanouts, 1 );
        else if ( nFanouts < 100 )
            Vec_IntAddToEntry( vFanouts, 10 + nFanouts/10, 1 );
        else if ( nFanouts < 1000 )
            Vec_IntAddToEntry( vFanouts, 20 + nFanouts/100, 1 );
        else if ( nFanouts < 10000 )
            Vec_IntAddToEntry( vFanouts, 30 + nFanouts/1000, 1 );
        else if ( nFanouts < 100000 )
            Vec_IntAddToEntry( vFanouts, 40 + nFanouts/10000, 1 );
        else if ( nFanouts < 1000000 )
            Vec_IntAddToEntry( vFanouts, 50 + nFanouts/100000, 1 );
        else if ( nFanouts < 10000000 )
            Vec_IntAddToEntry( vFanouts, 60 + nFanouts/1000000, 1 );

        if ( nMffcs == 0 )
            continue;
        nMffcNodes++;

        if ( nMffcs < 10 )
            Vec_IntAddToEntry( vMffcs, nMffcs, 1 );
        else if ( nMffcs < 100 )
            Vec_IntAddToEntry( vMffcs, 10 + nMffcs/10, 1 );
        else if ( nMffcs < 1000 )
            Vec_IntAddToEntry( vMffcs, 20 + nMffcs/100, 1 );
        else if ( nMffcs < 10000 )
            Vec_IntAddToEntry( vMffcs, 30 + nMffcs/1000, 1 );
        else if ( nMffcs < 100000 )
            Vec_IntAddToEntry( vMffcs, 40 + nMffcs/10000, 1 );
        else if ( nMffcs < 1000000 )
            Vec_IntAddToEntry( vMffcs, 50 + nMffcs/100000, 1 );
        else if ( nMffcs < 10000000 )
            Vec_IntAddToEntry( vMffcs, 60 + nMffcs/1000000, 1 );
    }

    printf( "The distribution of fanins, fanouts. and MFFCs in the network:\n" );
    printf( "         Number    Nodes with fanin   Nodes with fanout   Nodes with MFFC\n" );

    for ( k = 0; k < nSizeMax; k++ )
    {
        if ( vFanins->pArray[k] == 0 && vFanouts->pArray[k] == 0 && vMffcs->pArray[k] == 0 )
            continue;
        if ( k < 10 )
            printf( "%15d : ", k );
        else
        {
            sprintf( Buffer, "%d - %d", (int)pow((double)10, k/10) * (k%10), (int)pow((double)10, k/10) * (k%10+1) - 1 );
            printf( "%15s : ", Buffer );
        }
        if ( vFanins->pArray[k] == 0 )
            printf( "              " );
        else
            printf( "%11d   ", vFanins->pArray[k] );
        printf( "    " );
        if ( vFanouts->pArray[k] == 0 )
            printf( "              " );
        else
            printf( "%12d  ", vFanouts->pArray[k] );
        printf( "    " );
        if ( vMffcs->pArray[k] == 0 )
            printf( "               " );
        else
            printf( "  %12d  ", vMffcs->pArray[k] );
        printf( "\n" );
    }
    Vec_IntFree( vFanins );
    Vec_IntFree( vFanouts );
    Vec_IntFree( vMffcs );

    printf( "Fanins: Max = %d. Ave = %.2f.  Fanouts: Max = %d. Ave =  %.2f.  MFFCs: Max = %d. Ave =  %.2f.\n",
        nFaninsMax,  1.0*nFaninsAll /Cof_ManNodeNum(p),
        nFanoutsMax, 1.0*nFanoutsAll/Cof_ManNodeNum(p),
        nMffcsMax,   1.0*nMffcsAll  /nMffcNodes  );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManPrintHighFanout()

void Cof_ManPrintHighFanout	(	Cof_Man_t *	p,
		int	nNodes )

Function*************************************************************

Synopsis [Returns sorted array of node handles with largest fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 541 of file giaCof.c.

{
    Vec_Ptr_t * vNodes;
    Cof_Obj_t * pObj;
    int i;
    vNodes = Cof_ManCollectHighFanout( p, nNodes );
    Vec_PtrForEachEntry( Cof_Obj_t *, vNodes, pObj, i )
        Cof_ManPrintHighFanoutOne( p, pObj );
    Vec_PtrFree( vNodes );
}

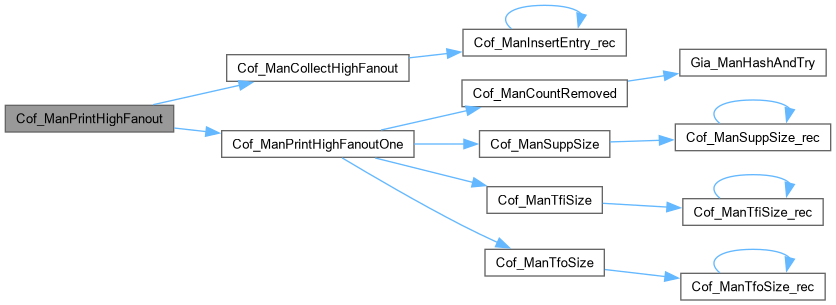

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManPrintHighFanoutOne()

void Cof_ManPrintHighFanoutOne	(	Cof_Man_t *	p,
		Cof_Obj_t *	pObj )

Function*************************************************************

Synopsis [Returns sorted array of node handles with largest fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 517 of file giaCof.c.

{
    printf( "%7d : ",     pObj->Id );
    printf( "i/o/c =%2d %5d %5d  ",  Cof_ObjFaninNum(pObj), Cof_ObjFanoutNum(pObj), 2*pObj->nFanoutsM );
    printf( "l =%4d  ",   Cof_ObjLevel(p, pObj) );
    printf( "s =%5d  ",   Cof_ManSuppSize(p, &pObj, 1) );
    printf( "TFI =%7d  ", Cof_ManTfiSize(p, &pObj, 1) );
    printf( "TFO =%7d  ", Cof_ManTfoSize(p, &pObj, 1) );
    printf( "C0 =%6d  ",  Cof_ManCountRemoved(p, pObj, 0) );
    printf( "C1 =%6d",    Cof_ManCountRemoved(p, pObj, 1) );
    printf( "\n" );
}

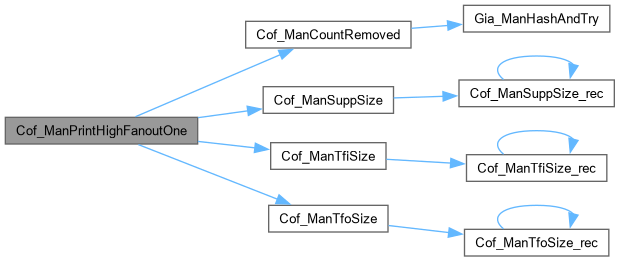

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManStop()

void Cof_ManStop ( Cof_Man_t * p )

Function*************************************************************

Synopsis [Creates logic network isomorphic to the given AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 203 of file giaCof.c.

{
    Vec_IntFree( p->vCis );
    Vec_IntFree( p->vCos );
    ABC_FREE( p->pObjData );
    ABC_FREE( p->pLevels );
    ABC_FREE( p );
}

Here is the caller graph for this function:

◆ Cof_ManSuppSize()

int Cof_ManSuppSize	(	Cof_Man_t *	p,
		Cof_Obj_t **	ppObjs,
		int	nObjs )

Function*************************************************************

Synopsis [Collects support nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 345 of file giaCof.c.

{
    int i, Counter = 0;
    Cof_ManIncrementTravId( p );
    for ( i = 0; i < nObjs; i++ )
        if ( Cof_ObjIsCo(ppObjs[i]) )
            Counter += Cof_ManSuppSize_rec( p, Cof_ObjFanin(ppObjs[i],0) );
        else
            Counter += Cof_ManSuppSize_rec( p, ppObjs[i] );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManSuppSize_rec()

int Cof_ManSuppSize_rec	(	Cof_Man_t *	p,
		Cof_Obj_t *	pObj )

Function*************************************************************

Synopsis [Collects support nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 319 of file giaCof.c.

{
    Cof_Obj_t * pNext;
    unsigned i, Counter = 0;
    if ( Cof_ObjIsTravIdCurrent(p, pObj) )
        return 0;
    Cof_ObjSetTravIdCurrent(p, pObj);
    if ( Cof_ObjIsCi(pObj) )
        return 1;
    assert( Cof_ObjIsNode(pObj) );
    Cof_ObjForEachFanin( pObj, pNext, i )
        Counter += Cof_ManSuppSize_rec( p, pNext );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManTfiSize()

int Cof_ManTfiSize	(	Cof_Man_t *	p,
		Cof_Obj_t **	ppObjs,
		int	nObjs )

Function*************************************************************

Synopsis [Collects support nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 296 of file giaCof.c.

{
    int i, Counter = 0;
    Cof_ManIncrementTravId( p );
    for ( i = 0; i < nObjs; i++ )
        if ( Cof_ObjIsCo(ppObjs[i]) )
            Counter += Cof_ManTfiSize_rec( p, Cof_ObjFanin(ppObjs[i],0) );
        else
            Counter += Cof_ManTfiSize_rec( p, ppObjs[i] );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManTfiSize_rec()

int Cof_ManTfiSize_rec	(	Cof_Man_t *	p,
		Cof_Obj_t *	pObj )

Function*************************************************************

Synopsis [Collects support nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 270 of file giaCof.c.

{
    Cof_Obj_t * pNext;
    unsigned i, Counter = 0;
    if ( Cof_ObjIsTravIdCurrent(p, pObj) )
        return 0;
    Cof_ObjSetTravIdCurrent(p, pObj);
    if ( Cof_ObjIsCi(pObj) )
        return 0;
    assert( Cof_ObjIsNode(pObj) );
    Cof_ObjForEachFanin( pObj, pNext, i )
        Counter += Cof_ManTfiSize_rec( p, pNext );
    return 1 + Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManTfoSize()

int Cof_ManTfoSize	(	Cof_Man_t *	p,
		Cof_Obj_t **	ppObjs,
		int	nObjs )

Function*************************************************************

Synopsis [Collects support nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 250 of file giaCof.c.

{
    int i, Counter = 0;
    Cof_ManIncrementTravId( p );
    for ( i = 0; i < nObjs; i++ )
        Counter += Cof_ManTfoSize_rec( p, ppObjs[i] ) - 1;
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_ManTfoSize_rec()

int Cof_ManTfoSize_rec	(	Cof_Man_t *	p,
		Cof_Obj_t *	pObj )

Function*************************************************************

Synopsis [Collects support nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 224 of file giaCof.c.

{
    Cof_Obj_t * pNext;
    unsigned i, Counter = 0;
    if ( Cof_ObjIsTravIdCurrent(p, pObj) )
        return 0;
    Cof_ObjSetTravIdCurrent(p, pObj);
    if ( Cof_ObjIsCo(pObj) )
        return 0;
    assert( Cof_ObjIsCi(pObj) || Cof_ObjIsNode(pObj) );
    Cof_ObjForEachFanout( pObj, pNext, i )
        Counter += Cof_ManTfoSize_rec( p, pNext );
    return 1 + Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_NodeDeref_rec()

int Cof_NodeDeref_rec ( Cof_Obj_t * pNode )

Function*************************************************************

Synopsis [Compute MFFC size of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 564 of file giaCof.c.

{
    if ( pNode->nFanins == 0 )
        return 0;
    if ( --pNode->nFanouts > 0 )
        return 0;
    return 1 + Cof_NodeDeref_rec( Cof_ObjFanin(pNode, 0) )
             + Cof_NodeDeref_rec( Cof_ObjFanin(pNode, 1) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cof_NodeRef_rec()

int Cof_NodeRef_rec ( Cof_Obj_t * pNode )

Definition at line 573 of file giaCof.c.

{
    if ( pNode->nFanins == 0 )
        return 0;
    if ( pNode->nFanouts++ > 0 )
        return 0;
    return 1 + Cof_NodeRef_rec( Cof_ObjFanin(pNode, 0) )
             + Cof_NodeRef_rec( Cof_ObjFanin(pNode, 1) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManCofVars()

Vec_Int_t * Gia_ManCofVars	(	Gia_Man_t *	p,
		int	nFanLim )

Function*************************************************************

Synopsis [Determines variables whose fanout count is higher than this.]

Description [Variables are returned in a reverse topological order.]

SideEffects []

SeeAlso []

Definition at line 883 of file giaCof.c.

{
    Vec_Int_t * vVars;
    Gia_Obj_t * pObj;
    int i;
    ABC_FREE( p->pRefs );
    Gia_ManCreateRefs( p );
    vVars = Vec_IntAlloc( 100 );
    Gia_ManForEachObj( p, pObj, i )
        if ( Gia_ObjIsCand(pObj) && Gia_ObjRefNum(p, pObj) >= nFanLim )
            Vec_IntPush( vVars, i );
    ABC_FREE( p->pRefs );
    return vVars;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManDsdMatrix()

Gia_Man_t * Gia_ManDsdMatrix	(	Gia_Man_t *	p,
		int	iIn )

Function*************************************************************

Synopsis [Print the matrix.]

Description []

SideEffects []

SeeAlso []

Definition at line 1007 of file giaCof.c.

{
    Gia_Man_t * pNew, * pTemp; Gia_Obj_t * pObj; int i, j;
    Vec_Int_t * vRes = Vec_IntAlloc( 100 );
    assert( Gia_ManPoNum(p) == 1 );
    assert( iIn >= 0 && iIn < Gia_ManPiNum(p) );
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManHashAlloc( pNew );
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachCi( p, pObj, i )
        pObj->Value = Gia_ManAppendCi(pNew);
    for ( i = 0;   i < Gia_ManPiNum(p); i++ ) if ( i != iIn )
    for ( j = i+1; j < Gia_ManPiNum(p); j++ ) if ( j != iIn )
    {
        int pRes[8], k, n;
        int iLit0 = Gia_ManPi(p, iIn)->Value;
        int iLit1 = Gia_ManPi(p, i)->Value;
        int iLit2 = Gia_ManPi(p, j)->Value;
        for ( k = 0; k < 8; k++ )
        {
            Gia_ManPi(p, iIn)->Value = k & 1;
            Gia_ManPi(p, i)->Value   = (k >> 1) & 1;
            Gia_ManPi(p, j)->Value   = (k >> 2) & 1;
            Gia_ManForEachAnd( p, pObj, n )
                pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
            pRes[k] = Gia_ObjFanin0Copy(Gia_ManPo(p, 0));
        }
        Gia_ManPi(p, iIn)->Value = iLit0;
        Gia_ManPi(p, i)->Value = iLit1;
        Gia_ManPi(p, j)->Value = iLit2;
        for ( k = 0; k < 4; k++ )
            pRes[k] = Gia_ManHashXor( pNew, pRes[2*k], pRes[2*k+1] );
        Vec_IntPush( vRes, Gia_ManHashXor(pNew, Gia_ManHashAnd(pNew, pRes[0], pRes[3]), Gia_ManHashAnd(pNew, pRes[1], pRes[2])) );
    }
    Vec_IntForEachEntry( vRes, j, i )
        Gia_ManAppendCo( pNew, j );
    Vec_IntFree( vRes );
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    return pNew;
}

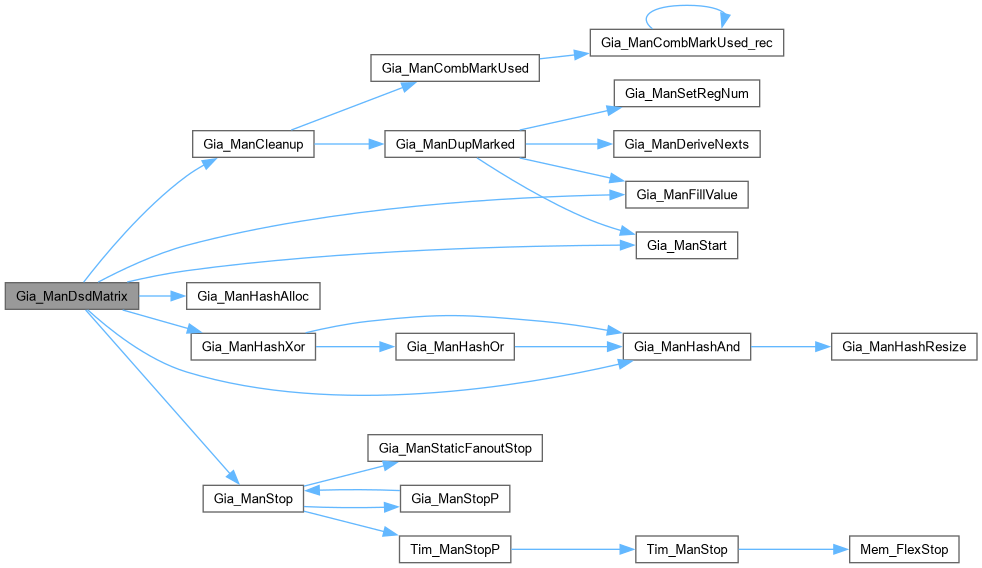

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_ManDupCof()

Gia_Man_t * Gia_ManDupCof	(	Gia_Man_t *	p,
		int	iVar )

Function*************************************************************

Synopsis [Duplicates AIG in the DFS order while putting CIs first.]

Description []

SideEffects []

SeeAlso []

Definition at line 862 of file giaCof.c.

{
    Gia_Man_t * pNew, * pTemp;
    pNew = Gia_ManDupCofInt( p, iVar );
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    return pNew;
}

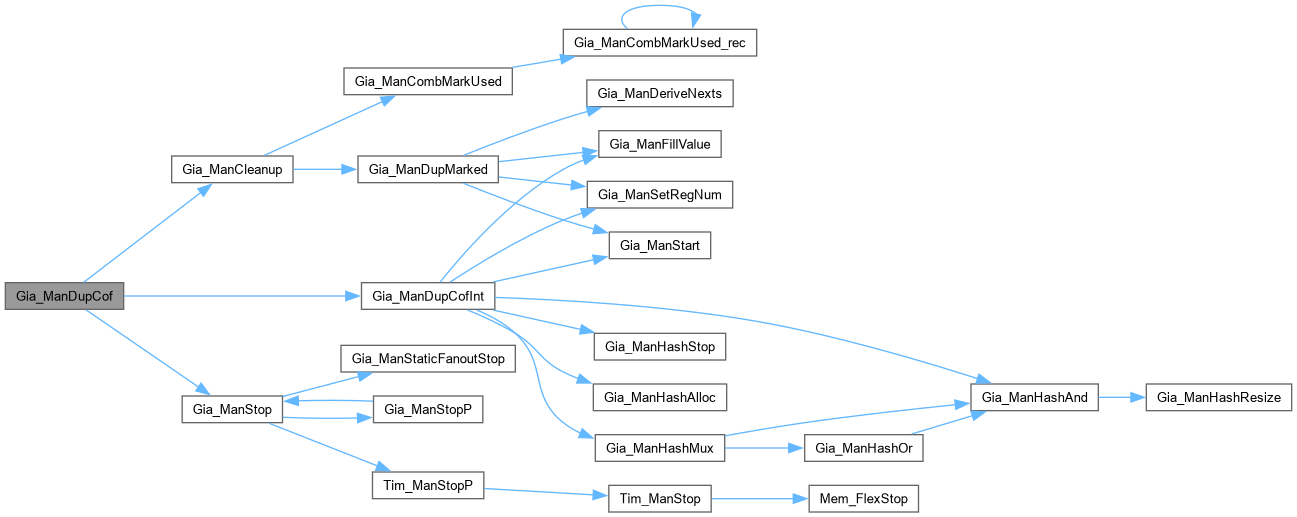

Here is the call graph for this function:

◆ Gia_ManDupCofAll()

Gia_Man_t * Gia_ManDupCofAll	(	Gia_Man_t *	p,
		int	nFanLim,
		int	fVerbose )

Function*************************************************************

Synopsis [Cofactors all variables whose fanout is higher than this.]

Description []

SideEffects []

SeeAlso []

Definition at line 987 of file giaCof.c.

{
    Gia_Man_t * pNew;
    Vec_Int_t * vSigs = Gia_ManCofVars( p, nFanLim );
    pNew = Gia_ManDupCofAllInt( p, vSigs, fVerbose );
    Vec_IntFree( vSigs );
    return pNew;
}

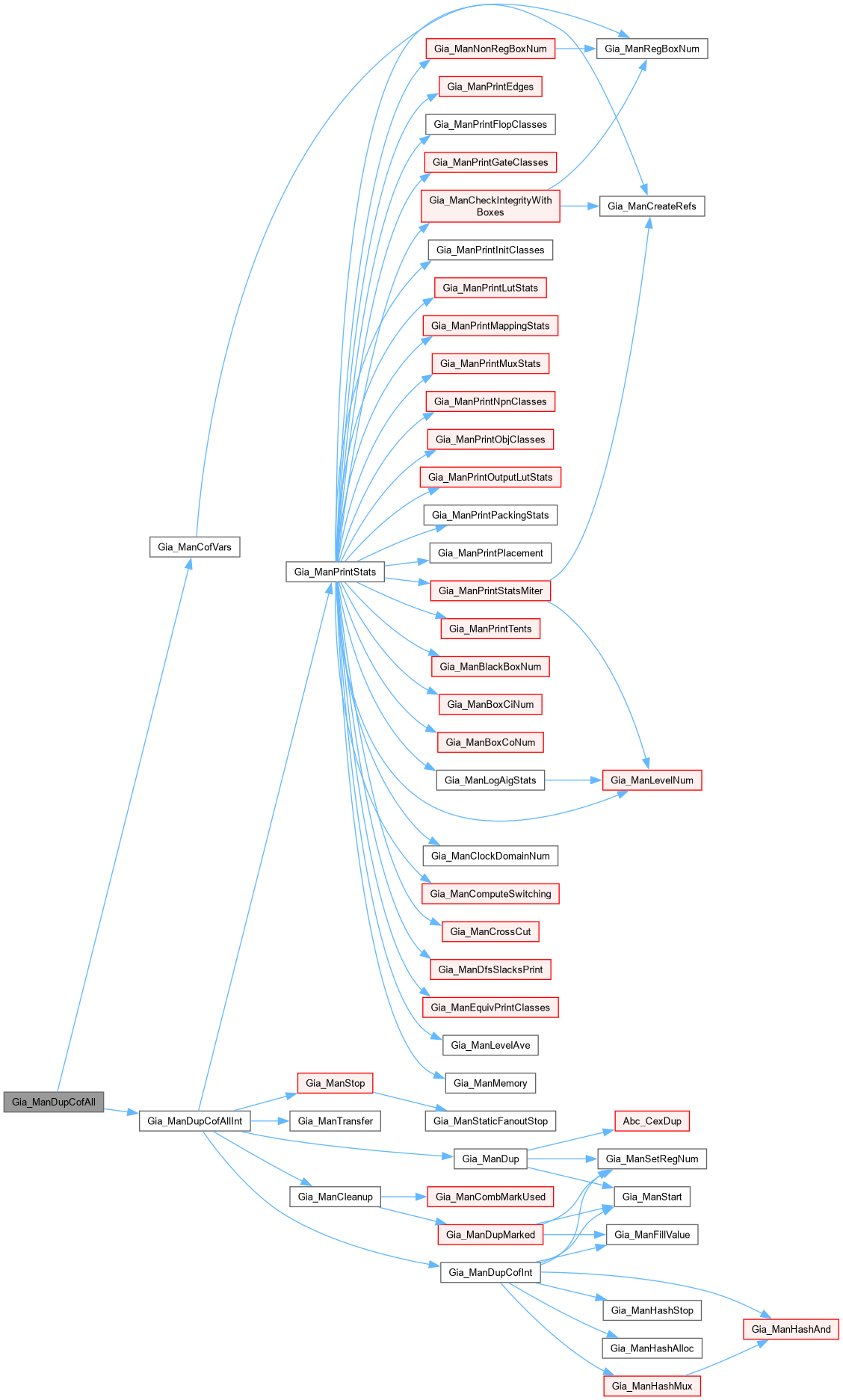

Here is the call graph for this function:

◆ Gia_ManDupCofAllInt()

Gia_Man_t * Gia_ManDupCofAllInt	(	Gia_Man_t *	p,
		Vec_Int_t *	vSigs,
		int	fVerbose )

Function*************************************************************

Synopsis [Cofactors selected variables (should be in reverse topo order).]

Description []

SideEffects []

SeeAlso []

Definition at line 936 of file giaCof.c.

{
    Vec_Int_t * vSigsNew, * vTemp;
    Gia_Man_t * pAig, * pCof, * pNew;
    int iVar;
    if ( fVerbose )
    {
        printf( "Cofactoring %d signals.\n", Vec_IntSize(vSigs) );
        Gia_ManPrintStats( p, NULL );
    }
    if ( Vec_IntSize( vSigs ) > 200 )
    {
        printf( "Too many signals to cofactor.\n" );
        return NULL;
    }
    pAig = Gia_ManDup( p );
    vSigsNew = Vec_IntDup( vSigs );
    while ( Vec_IntSize(vSigsNew) > 0 )
    {
        Vec_IntSort( vSigsNew, 0 );
        iVar = Vec_IntPop( vSigsNew );
//        Gia_ManCreateRefs( pAig );
//        printf( "ref count = %d\n", Gia_ObjRefNum( pAig, Gia_ManObj(pAig, iVar) ) );
//        ABC_FREE( pAig->pRefs );
        pCof = Gia_ManDupCofInt( pAig, iVar );
        pNew = Gia_ManCleanup( pCof );
        vSigsNew = Gia_ManTransfer( pAig, pCof, pNew, vTemp = vSigsNew );
        Vec_IntFree( vTemp );
        Gia_ManStop( pAig );
        Gia_ManStop( pCof );
        pAig = pNew;
        if ( fVerbose )
            printf( "Cofactored variable %d.\n", iVar );
        if ( fVerbose )
            Gia_ManPrintStats( pAig, NULL );
    }
    Vec_IntFree( vSigsNew );
    return pAig;
}

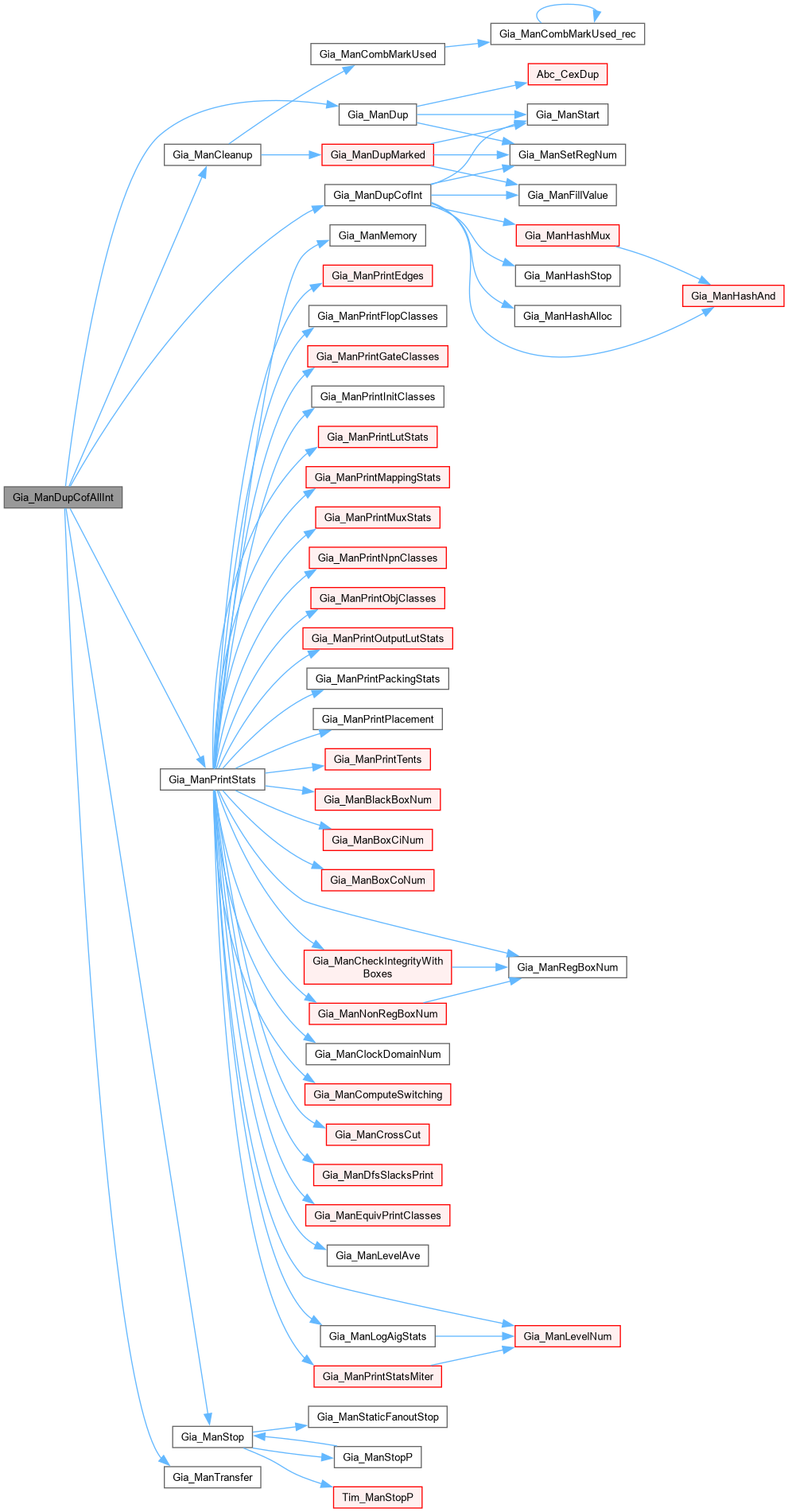

Here is the call graph for this function:

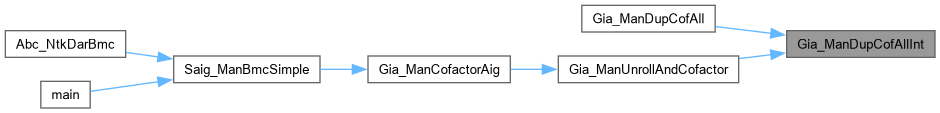

Here is the caller graph for this function:

◆ Gia_ManDupCofInt()

Gia_Man_t * Gia_ManDupCofInt	(	Gia_Man_t *	p,
		int	iVar )

Function*************************************************************

Synopsis [Duplicates AIG in the DFS order while putting CIs first.]

Description []

SideEffects []

SeeAlso []

Definition at line 780 of file giaCof.c.

{
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj, * pPivot;
    int i, iCofVar = -1;
    if ( !(iVar > 0 && iVar < Gia_ManObjNum(p)) )
    {
        printf( "Gia_ManDupCof(): Variable %d is out of range (%d; %d).\n", iVar, 0, Gia_ManObjNum(p) );
        return NULL;
    }
    // find the cofactoring variable
    pPivot = Gia_ManObj( p, iVar );
    if ( !Gia_ObjIsCand(pPivot) )
    {
        printf( "Gia_ManDupCof(): Variable %d should be a CI or an AND node.\n", iVar );
        return NULL;
    }
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManHashAlloc( pNew );
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    // compute negative cofactor
    Gia_ManForEachCi( p, pObj, i )
    {
        pObj->Value = Gia_ManAppendCi(pNew);
        if ( pObj == pPivot )
        {
            iCofVar = pObj->Value;
            pObj->Value = Abc_Var2Lit( 0, 0 );
        }
    }
    Gia_ManForEachAnd( p, pObj, i )
    {
        pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        if ( pObj == pPivot )
        {
            iCofVar = pObj->Value;
            pObj->Value = Abc_Var2Lit( 0, 0 );
        }
    }
    Gia_ManForEachCo( p, pObj, i )
        pObj->Value = Gia_ObjFanin0Copy(pObj);
    // compute the positive cofactor
    Gia_ManForEachCi( p, pObj, i )
    {
        pObj->Value = Abc_Var2Lit( Gia_ObjId(pNew, Gia_ManCi(pNew, i)), 0 );
        if ( pObj == pPivot )
            pObj->Value = Abc_Var2Lit( 0, 1 );
    }
    Gia_ManForEachAnd( p, pObj, i )
    {
        pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        if ( pObj == pPivot )
            pObj->Value = Abc_Var2Lit( 0, 1 );
    }
    // create MUXes
    assert( iCofVar > 0 );
    Gia_ManForEachCo( p, pObj, i )
    {
        if ( pObj->Value == (unsigned)Gia_ObjFanin0Copy(pObj) )
            pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
        else
            pObj->Value = Gia_ManAppendCo( pNew, Gia_ManHashMux(pNew, iCofVar, Gia_ObjFanin0Copy(pObj), pObj->Value) );
    }
    Gia_ManHashStop( pNew );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    return pNew;
}

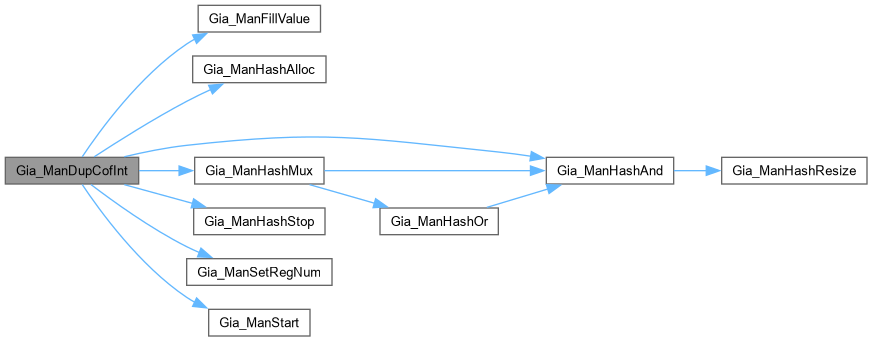

Here is the call graph for this function:

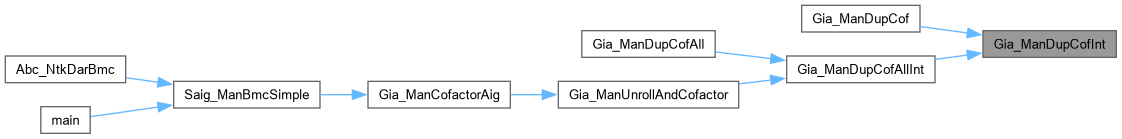

Here is the caller graph for this function:

◆ Gia_ManPrintDsdMatrix()

void Gia_ManPrintDsdMatrix	(	Gia_Man_t *	p,
		int	iIn )

Definition at line 1051 of file giaCof.c.

{
    extern Gia_Man_t * Cec4_ManSimulateTest3( Gia_Man_t * p, int nBTLimit, int fVerbose );
    Gia_Man_t * pNew = Gia_ManDsdMatrix( p, iIn ); int i, j, fFirst = 1, Count = 0;
    Gia_Man_t * pSweep = Cec4_ManSimulateTest3( pNew, 0, 0 );
    Gia_ManStop( pNew );
    printf( "%4c : ", ' ' );
    for ( j = 0; j < Gia_ManPiNum(p); j++ )
        printf( "%4d", j );
    printf( "\n" );
    for ( i = 0; i < Gia_ManPiNum(p); i++, printf("\n"), fFirst = 1 )
    for ( j = 0; j < Gia_ManPiNum(p); j++ )
    {
        if ( fFirst )
            printf( "%4d : ", i ), fFirst = 0;
        if ( i == iIn )
            continue;
        if ( j == iIn )
            printf( "%4c", ' ' );
        else
        {
            if ( j > i ) {
                if ( Gia_ObjFaninLit0p(pSweep, Gia_ManPo(pSweep, Count++)) == 0 )
                    printf( "%4c", '.' );
                else
                    printf( "%4c", '+' );
            }
            else
                printf( "%4c", ' ' );
        }
    }
    assert( Count == Gia_ManPoNum(pSweep) );
    Gia_ManStop( pSweep );
}

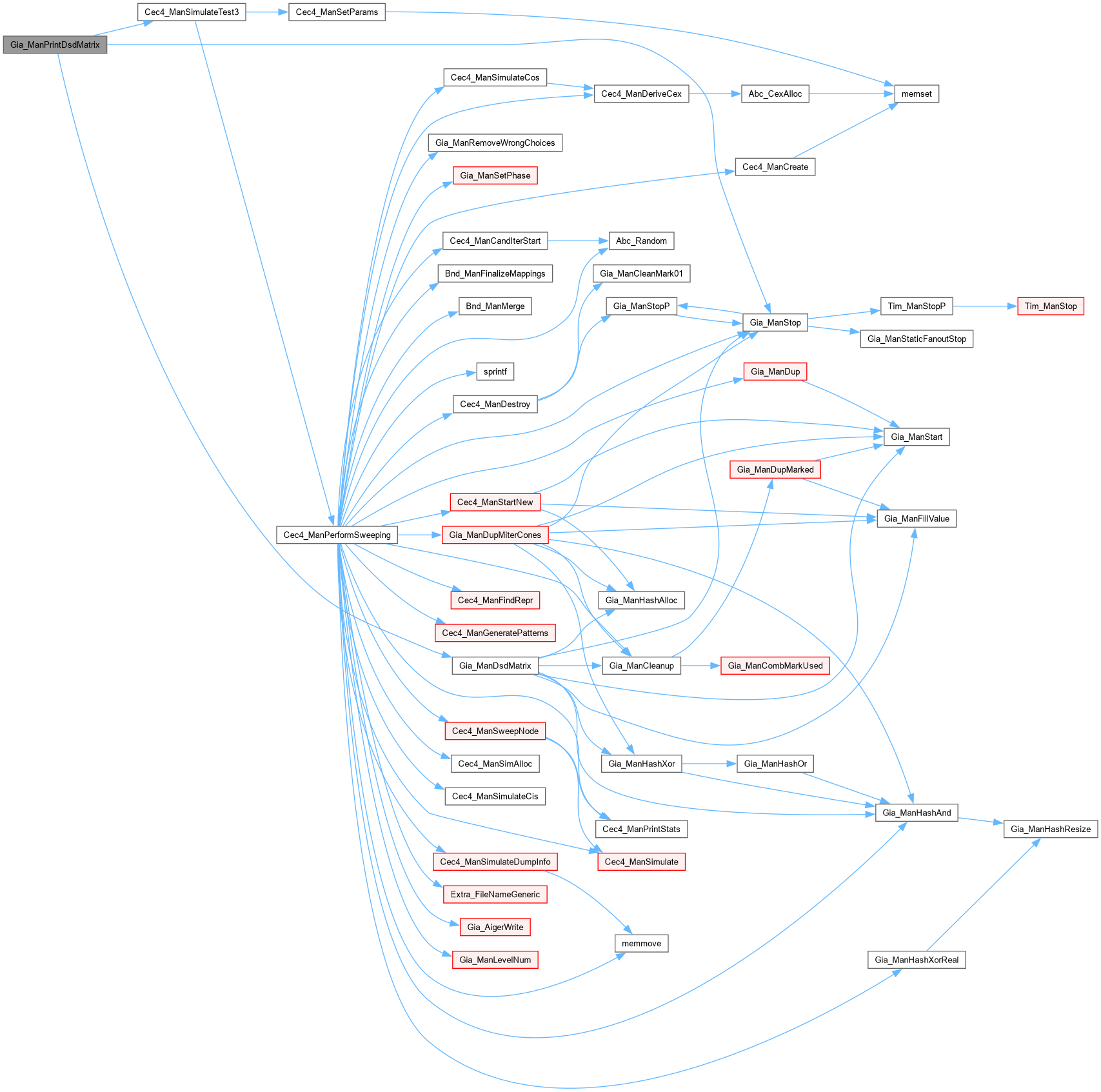

Here is the call graph for this function:

◆ Gia_ManPrintFanio()

void Gia_ManPrintFanio	(	Gia_Man_t *	pGia,
		int	nNodes )

Function*************************************************************

Synopsis [Returns sorted array of node handles with largest fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 746 of file giaCof.c.

{
    Cof_Man_t * p;
    abctime clk = Abc_Clock();
    p = Cof_ManCreateLogicSimple( pGia );
    p->nLevels = 1 + Gia_ManLevelNum( pGia );
    p->pLevels = ABC_CALLOC( int, p->nLevels );
    Cof_ManPrintFanio( p );

    if ( nNodes > 0 )
    {
    Cof_ManResetTravId( p );
    Gia_ManHashStart( pGia );
    Cof_ManPrintHighFanout( p, nNodes );
    Gia_ManHashStop( pGia );
ABC_PRMn( "Memory for logic network", 4*p->nObjData );
ABC_PRT( "Time", Abc_Clock() - clk );
    }

    Cof_ManStop( p );
}

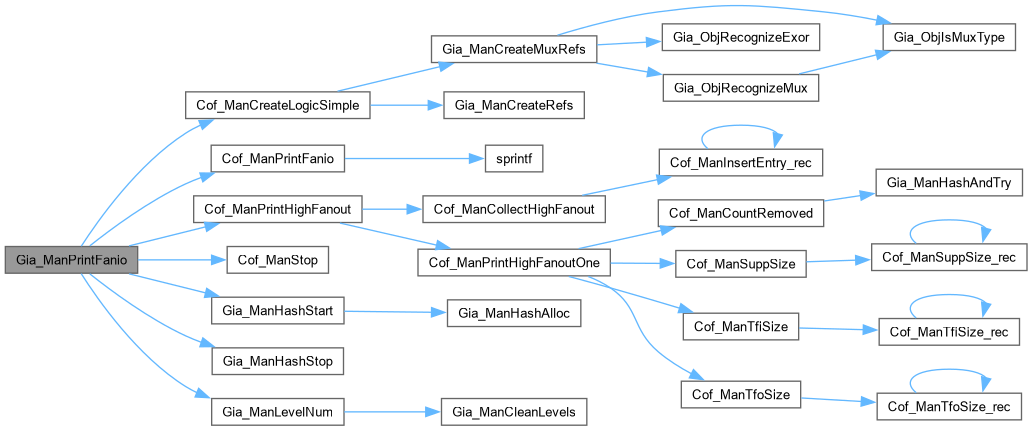

Here is the call graph for this function:

◆ Gia_ManTransfer()

Vec_Int_t * Gia_ManTransfer	(	Gia_Man_t *	pAig,
		Gia_Man_t *	pCof,
		Gia_Man_t *	pNew,
		Vec_Int_t *	vSigs )

Function*************************************************************

Synopsis [Transfers attributes from the original one to the final one.]

Description []

SideEffects []

SeeAlso []

Definition at line 909 of file giaCof.c.

{
    Vec_Int_t * vSigsNew;
    Gia_Obj_t * pObj, * pObjF;
    int i;
    vSigsNew = Vec_IntAlloc( 100 );
    Gia_ManForEachObjVec( vSigs, pAig, pObj, i )
    {
        assert( Gia_ObjIsCand(pObj) );
        pObjF = Gia_ManObj( pCof, Abc_Lit2Var(pObj->Value) );
        if ( pObjF->Value && ~pObjF->Value )
            Vec_IntPushUnique( vSigsNew, Abc_Lit2Var(pObjF->Value) );
    }
    return vSigsNew;
}

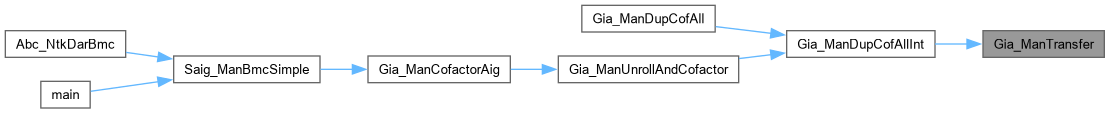

Here is the caller graph for this function:

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ Cof_ManForEachNode

◆ Cof_ManForEachObj

◆ Cof_ObjForEachFanin

◆ Cof_ObjForEachFanout

Typedef Documentation

◆ Cof_Fan_t

◆ Cof_Man_t

◆ Cof_Obj_t

Function Documentation

◆ Cof_ManCleanValue()

◆ Cof_ManCollectHighFanout()

◆ Cof_ManCountRemoved()

◆ Cof_ManCreateLogicSimple()

◆ Cof_ManInsertEntry_rec()

◆ Cof_ManPrintFanio()

◆ Cof_ManPrintHighFanout()

◆ Cof_ManPrintHighFanoutOne()

◆ Cof_ManStop()

◆ Cof_ManSuppSize()

◆ Cof_ManSuppSize_rec()

◆ Cof_ManTfiSize()

◆ Cof_ManTfiSize_rec()

◆ Cof_ManTfoSize()

◆ Cof_ManTfoSize_rec()

◆ Cof_NodeDeref_rec()

◆ Cof_NodeRef_rec()

◆ Gia_ManCofVars()

◆ Gia_ManDsdMatrix()

◆ Gia_ManDupCof()

◆ Gia_ManDupCofAll()

◆ Gia_ManDupCofAllInt()

◆ Gia_ManDupCofInt()

◆ Gia_ManPrintDsdMatrix()

◆ Gia_ManPrintFanio()

◆ Gia_ManTransfer()
