giaIso2.c File Reference
#include "gia.h"
#include "misc/vec/vecHsh.h"
#include "misc/vec/vecWec.h"

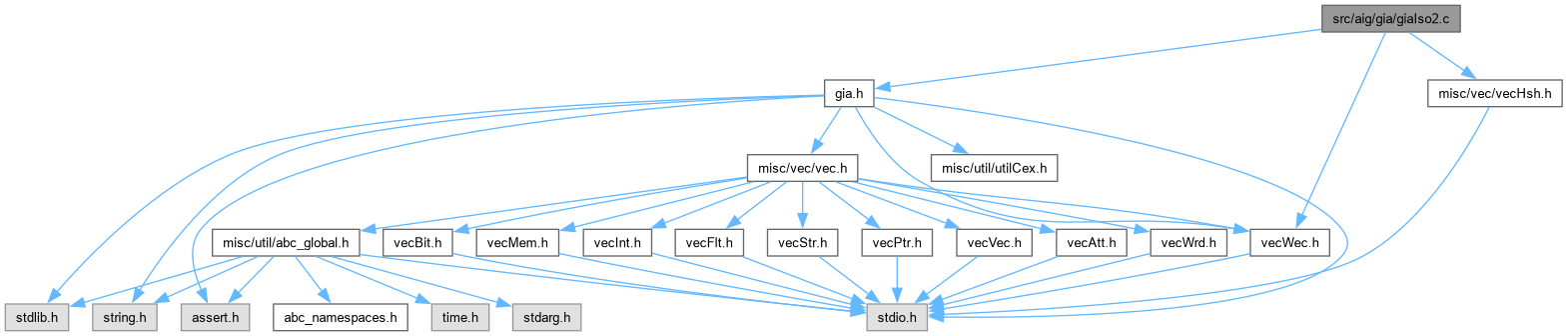

Include dependency graph for giaIso2.c:

Go to the source code of this file.

Classes

struct  Gia_Iso2Man_t_


Macros

#define ISO_MASK   0xFF


Typedefs

typedef struct Gia_Iso2Man_t_ Gia_Iso2Man_t
 DECLARATIONS ///.


Functions

Vec_Int_t * Gia_Iso2ManCollectTies (Gia_Man_t *p)
 FUNCTION DEFINITIONS ///.

void Gia_Iso2ManPrepare (Gia_Man_t *p)

void Gia_Iso2ManPropagate (Gia_Man_t *p)

unsigned Gia_Iso2ManCone_rec (Gia_Man_t *p, int Id, int Level)

unsigned Gia_Iso2ManCone (Gia_Man_t *p, int Id, int Level)

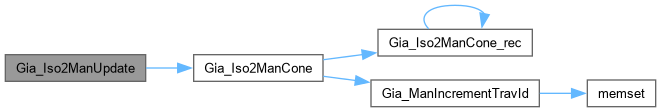

void Gia_Iso2ManUpdate (Gia_Iso2Man_t *p, int Level)

Gia_Iso2Man_t * Gia_Iso2ManStart (Gia_Man_t *pGia)

void Gia_Iso2ManStop (Gia_Iso2Man_t *p)

void Gia_Iso2ManPrint (Gia_Iso2Man_t *p, abctime Time, int fVerbose)

int Gia_ObjCompareByValue2 (Gia_Obj_t **pp1, Gia_Obj_t **pp2)

int Gia_Iso2ManUniqify (Gia_Iso2Man_t *p)

Vec_Wec_t * Gia_Iso2ManDerivePoClasses (Gia_Man_t *pGia)

void Gia_Iso2ManCollectOrder2_rec (Gia_Man_t *p, int Id, Vec_Int_t *vVec)

Vec_Int_t * Gia_Iso2ManCollectOrder2 (Gia_Man_t *pGia, int *pPos, int nPos)

void Gia_Iso2ManCollectOrder_rec (Gia_Man_t *p, int Id, Vec_Int_t *vRoots, Vec_Int_t *vVec, Vec_Int_t *vMap)

void Gia_Iso2ManCollectOrder (Gia_Man_t *pGia, int *pPos, int nPos, Vec_Int_t *vRoots, Vec_Int_t *vVec, Vec_Int_t *vMap)

int Gia_Iso2ManCheckIsoPair (Gia_Man_t *p, Vec_Int_t *vVec0, Vec_Int_t *vVec1, Vec_Int_t *vMap0, Vec_Int_t *vMap1)

int Gia_Iso2ManCheckIsoClassOneSkip (Gia_Man_t *p, Vec_Int_t *vClass, Vec_Int_t *vRoots, Vec_Int_t *vVec0, Vec_Int_t *vVec1, Vec_Int_t *vMap0, Vec_Int_t *vMap1)

Vec_Wec_t * Gia_Iso2ManCheckIsoClassesSkip (Gia_Man_t *p, Vec_Wec_t *vEquivs)

void Gia_Iso2ManCheckIsoClassOne (Gia_Man_t *p, Vec_Int_t *vClass, Vec_Int_t *vRoots, Vec_Int_t *vVec0, Vec_Int_t *vVec1, Vec_Int_t *vMap0, Vec_Int_t *vMap1, Vec_Int_t *vNewClass)

Vec_Wec_t * Gia_Iso2ManCheckIsoClasses (Gia_Man_t *p, Vec_Wec_t *vEquivs)

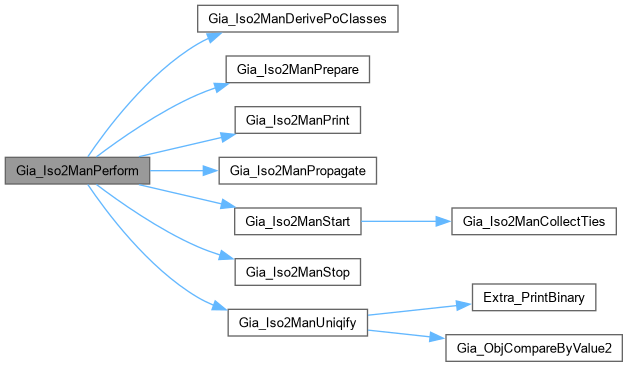

Vec_Wec_t * Gia_Iso2ManPerform (Gia_Man_t *pGia, int fVerbose)

Gia_Man_t * Gia_ManIsoReduce2 (Gia_Man_t *pGia, Vec_Ptr_t **pvPosEquivs, Vec_Ptr_t **pvPiPerms, int fEstimate, int fBetterQual, int fDualOut, int fVerbose, int fVeryVerbose)


Macro Definition Documentation

◆ ISO_MASK

#define ISO_MASK   0xFF

CFile****************************************************************

FileName [gia.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis []

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id
gia.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 29 of file giaIso2.c.

Typedef Documentation

◆ Gia_Iso2Man_t

typedef struct Gia_Iso2Man_t_ Gia_Iso2Man_t

DECLARATIONS ///.

Definition at line 73 of file giaIso2.c.

Function Documentation

◆ Gia_Iso2ManCheckIsoClasses()

Vec_Wec_t * Gia_Iso2ManCheckIsoClasses ( Gia_Man_t * p,
Vec_Wec_t * vEquivs )

Definition at line 628 of file giaIso2.c.

629{
630 Vec_Wec_t * vEquivs2;
631 Vec_Int_t * vRoots = Vec_IntAlloc( 10000 );
632 Vec_Int_t * vVec0 = Vec_IntAlloc( 10000 );
633 Vec_Int_t * vVec1 = Vec_IntAlloc( 10000 );
634 Vec_Int_t * vMap0 = Vec_IntStart( Gia_ManObjNum(p) );
635 Vec_Int_t * vMap1 = Vec_IntStart( Gia_ManObjNum(p) );
636 Vec_Int_t * vClass, * vClass2, * vNewClass;
637 int i, Counter = 0;
638 vNewClass = Vec_IntAlloc( 100 );
639 vEquivs2 = Vec_WecAlloc( 2 * Vec_WecSize(vEquivs) );
640 Vec_WecForEachLevel( vEquivs, vClass, i )
641 {
642 if ( i % 50 == 0 )
643 printf( "Finished %8d outputs (out of %8d)...\r", Counter, Gia_ManPoNum(p) ), fflush(stdout);
644 // split this class
645 Gia_Iso2ManCheckIsoClassOne( p, vClass, vRoots, vVec0, vVec1, vMap0, vMap1, vNewClass );
646 Counter += Vec_IntSize(vClass);
647 // add remaining class
648 vClass2 = Vec_WecPushLevel( vEquivs2 );
649 *vClass2 = *vClass;
650 vClass->pArray = NULL;
651 vClass->nSize = vClass->nCap = 0;
652 // add new class
653 if ( Vec_IntSize(vNewClass) == 0 )
654 continue;
655 vClass = Vec_WecPushLevel( vEquivs );
656 Vec_IntAppend( vClass, vNewClass );
657 }
658 Vec_IntFree( vNewClass );
659 Vec_IntFree( vRoots );
660 Vec_IntFree( vVec0 );
661 Vec_IntFree( vVec1 );
662 Vec_IntFree( vMap0 );
663 Vec_IntFree( vMap1 );
664 return vEquivs2;
665}
Vec_Int_t
typedefABC_NAMESPACE_IMPL_START struct Vec_Int_t_ Vec_Int_t
DECLARATIONS ///.
Definition bblif.c:37
p
Cube * p
Definition exorList.c:222
Gia_Iso2ManCheckIsoClassOne
void Gia_Iso2ManCheckIsoClassOne(Gia_Man_t *p, Vec_Int_t *vClass, Vec_Int_t *vRoots, Vec_Int_t *vVec0, Vec_Int_t *vVec1, Vec_Int_t *vMap0, Vec_Int_t *vMap1, Vec_Int_t *vNewClass)
Definition giaIso2.c:609
Vec_WecForEachLevel
#define Vec_WecForEachLevel(vGlob, vVec, i)
MACRO DEFINITIONS ///.
Definition vecWec.h:55
Vec_Wec_t
typedefABC_NAMESPACE_HEADER_START struct Vec_Wec_t_ Vec_Wec_t
INCLUDES ///.
Definition vecWec.h:42

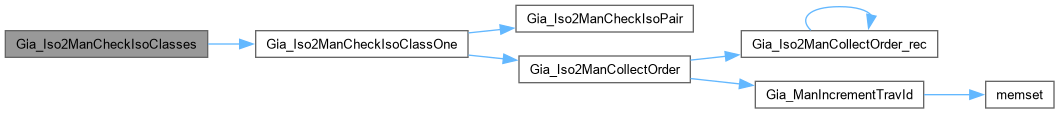

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManCheckIsoClassesSkip()

Vec_Wec_t * Gia_Iso2ManCheckIsoClassesSkip ( Gia_Man_t * p,
Vec_Wec_t * vEquivs )

Definition at line 569 of file giaIso2.c.

570{
571 Vec_Wec_t * vEquivs2;
572 Vec_Int_t * vRoots = Vec_IntAlloc( 10000 );
573 Vec_Int_t * vVec0 = Vec_IntAlloc( 10000 );
574 Vec_Int_t * vVec1 = Vec_IntAlloc( 10000 );
575 Vec_Int_t * vMap0 = Vec_IntStart( Gia_ManObjNum(p) );
576 Vec_Int_t * vMap1 = Vec_IntStart( Gia_ManObjNum(p) );
577 Vec_Int_t * vClass, * vClass2;
578 int i, k, Entry, Counter = 0;
579 vEquivs2 = Vec_WecAlloc( 2 * Vec_WecSize(vEquivs) );
580 Vec_WecForEachLevel( vEquivs, vClass, i )
581 {
582 if ( i % 50 == 0 )
583 printf( "Finished %8d outputs (out of %8d)...\r", Counter, Gia_ManPoNum(p) ), fflush(stdout);
584 Counter += Vec_IntSize(vClass);
585 if ( Vec_IntSize(vClass) < 2 || Gia_Iso2ManCheckIsoClassOneSkip(p, vClass, vRoots, vVec0, vVec1, vMap0, vMap1) )
586 {
587 vClass2 = Vec_WecPushLevel( vEquivs2 );
588 *vClass2 = *vClass;
589 vClass->pArray = NULL;
590 vClass->nSize = vClass->nCap = 0;
591 }
592 else
593 {
594 Vec_IntForEachEntry( vClass, Entry, k )
595 {
596 vClass2 = Vec_WecPushLevel( vEquivs2 );
597 Vec_IntPush( vClass2, Entry );
598 }
599 }
600 }
601 Vec_IntFree( vRoots );
602 Vec_IntFree( vVec0 );
603 Vec_IntFree( vVec1 );
604 Vec_IntFree( vMap0 );
605 Vec_IntFree( vMap1 );
606 return vEquivs2;
607}
Gia_Iso2ManCheckIsoClassOneSkip
int Gia_Iso2ManCheckIsoClassOneSkip(Gia_Man_t *p, Vec_Int_t *vClass, Vec_Int_t *vRoots, Vec_Int_t *vVec0, Vec_Int_t *vVec1, Vec_Int_t *vMap0, Vec_Int_t *vMap1)
Definition giaIso2.c:553
Vec_IntForEachEntry
#define Vec_IntForEachEntry(vVec, Entry, i)
MACRO DEFINITIONS ///.
Definition vecInt.h:54

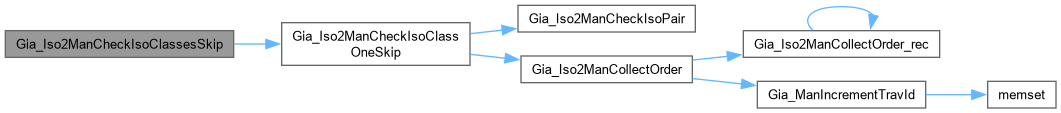

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManCheckIsoClassOne()

void Gia_Iso2ManCheckIsoClassOne ( Gia_Man_t * p,
Vec_Int_t * vClass,
Vec_Int_t * vRoots,
Vec_Int_t * vVec0,
Vec_Int_t * vVec1,
Vec_Int_t * vMap0,
Vec_Int_t * vMap1,
Vec_Int_t * vNewClass )

Definition at line 609 of file giaIso2.c.

610{
611 int i, k = 1, iPo;
612 Vec_IntClear( vNewClass );
613 if ( Vec_IntSize(vClass) <= 1 )
614 return;
615 assert( Vec_IntSize(vClass) > 1 );
616 iPo = Vec_IntEntry( vClass, 0 );
617 Gia_Iso2ManCollectOrder( p, &iPo, 1, vRoots, vVec0, vMap0 );
618 Vec_IntForEachEntryStart( vClass, iPo, i, 1 )
619 {
620 Gia_Iso2ManCollectOrder( p, &iPo, 1, vRoots, vVec1, vMap1 );
621 if ( Vec_IntSize(vVec0) == Vec_IntSize(vVec1) && Gia_Iso2ManCheckIsoPair(p, vVec0, vVec1, vMap0, vMap1) )
622 Vec_IntWriteEntry( vClass, k++, iPo );
623 else
624 Vec_IntPush( vNewClass, iPo );
625 }
626 Vec_IntShrink( vClass, k );
627}
Gia_Iso2ManCheckIsoPair
int Gia_Iso2ManCheckIsoPair(Gia_Man_t *p, Vec_Int_t *vVec0, Vec_Int_t *vVec1, Vec_Int_t *vMap0, Vec_Int_t *vMap1)
Definition giaIso2.c:489
Gia_Iso2ManCollectOrder
void Gia_Iso2ManCollectOrder(Gia_Man_t *pGia, int *pPos, int nPos, Vec_Int_t *vRoots, Vec_Int_t *vVec, Vec_Int_t *vMap)
Definition giaIso2.c:466
assert
#define assert(ex)
Definition util_old.h:213
Vec_IntForEachEntryStart
#define Vec_IntForEachEntryStart(vVec, Entry, i, Start)
Definition vecInt.h:56

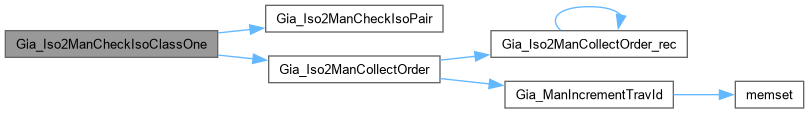

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManCheckIsoClassOneSkip()

int Gia_Iso2ManCheckIsoClassOneSkip ( Gia_Man_t * p,
Vec_Int_t * vClass,
Vec_Int_t * vRoots,
Vec_Int_t * vVec0,
Vec_Int_t * vVec1,
Vec_Int_t * vMap0,
Vec_Int_t * vMap1 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 553 of file giaIso2.c.

554{
555 int i, iPo;
556 assert( Vec_IntSize(vClass) > 1 );
557 iPo = Vec_IntEntry( vClass, 0 );
558 Gia_Iso2ManCollectOrder( p, &iPo, 1, vRoots, vVec0, vMap0 );
559 Vec_IntForEachEntryStart( vClass, iPo, i, 1 )
560 {
561 Gia_Iso2ManCollectOrder( p, &iPo, 1, vRoots, vVec1, vMap1 );
562 if ( Vec_IntSize(vVec0) != Vec_IntSize(vVec1) )
563 return 0;
564 if ( !Gia_Iso2ManCheckIsoPair( p, vVec0, vVec1, vMap0, vMap1 ) )
565 return 0;
566 }
567 return 1;
568}

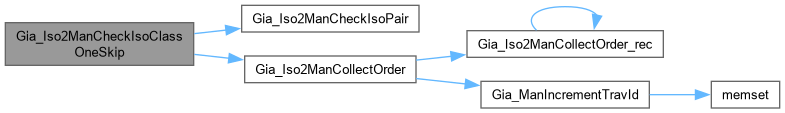

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManCheckIsoPair()

int Gia_Iso2ManCheckIsoPair ( Gia_Man_t * p,
Vec_Int_t * vVec0,
Vec_Int_t * vVec1,
Vec_Int_t * vMap0,
Vec_Int_t * vMap1 )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 489 of file giaIso2.c.

490{
491 Gia_Obj_t * pObj0, * pObj1;
492 int k, iObj0, iObj1;
493 Vec_IntForEachEntryTwo( vVec0, vVec1, iObj0, iObj1, k )
494 {
495 if ( iObj0 == iObj1 )
496 continue;
497 pObj0 = Gia_ManObj(p, iObj0);
498 pObj1 = Gia_ManObj(p, iObj1);
499 if ( pObj0->Value != pObj1->Value )
500 return 0;
501 assert( pObj0->Value == pObj1->Value );
502 if ( !Gia_ObjIsAnd(pObj0) )
503 continue;
504 if ( Gia_ObjFanin0(pObj0)->Value <= Gia_ObjFanin1(pObj0)->Value )
505 {
506 if ( Gia_ObjFanin0(pObj1)->Value <= Gia_ObjFanin1(pObj1)->Value )
507 {
508 if ( Gia_ObjFaninC0(pObj0) != Gia_ObjFaninC0(pObj1) || Gia_ObjFaninC1(pObj0) != Gia_ObjFaninC1(pObj1) ||
509 Vec_IntEntry(vMap0, Gia_ObjFaninId0p(p, pObj0)) != Vec_IntEntry( vMap1, Gia_ObjFaninId0p(p, pObj1)) ||
510 Vec_IntEntry(vMap0, Gia_ObjFaninId1p(p, pObj0)) != Vec_IntEntry( vMap1, Gia_ObjFaninId1p(p, pObj1)) )
511 return 0;
512 }
513 else
514 {
515 if ( Gia_ObjFaninC0(pObj0) != Gia_ObjFaninC1(pObj1) || Gia_ObjFaninC1(pObj0) != Gia_ObjFaninC0(pObj1) ||
516 Vec_IntEntry(vMap0, Gia_ObjFaninId0p(p, pObj0)) != Vec_IntEntry( vMap1, Gia_ObjFaninId1p(p, pObj1)) ||
517 Vec_IntEntry(vMap0, Gia_ObjFaninId1p(p, pObj0)) != Vec_IntEntry( vMap1, Gia_ObjFaninId0p(p, pObj1)) )
518 return 0;
519 }
520 }
521 else
522 {
523 if ( Gia_ObjFanin0(pObj1)->Value <= Gia_ObjFanin1(pObj1)->Value )
524 {
525 if ( Gia_ObjFaninC1(pObj0) != Gia_ObjFaninC0(pObj1) || Gia_ObjFaninC0(pObj0) != Gia_ObjFaninC1(pObj1) ||
526 Vec_IntEntry(vMap0, Gia_ObjFaninId1p(p, pObj0)) != Vec_IntEntry( vMap1, Gia_ObjFaninId0p(p, pObj1)) ||
527 Vec_IntEntry(vMap0, Gia_ObjFaninId0p(p, pObj0)) != Vec_IntEntry( vMap1, Gia_ObjFaninId1p(p, pObj1)) )
528 return 0;
529 }
530 else
531 {
532 if ( Gia_ObjFaninC1(pObj0) != Gia_ObjFaninC1(pObj1) || Gia_ObjFaninC0(pObj0) != Gia_ObjFaninC0(pObj1) ||
533 Vec_IntEntry(vMap0, Gia_ObjFaninId1p(p, pObj0)) != Vec_IntEntry( vMap1, Gia_ObjFaninId1p(p, pObj1)) ||
534 Vec_IntEntry(vMap0, Gia_ObjFaninId0p(p, pObj0)) != Vec_IntEntry( vMap1, Gia_ObjFaninId0p(p, pObj1)) )
535 return 0;
536 }
537 }
538 }
539 return 1;
540}
Gia_Obj_t
struct Gia_Obj_t_ Gia_Obj_t
Definition gia.h:76
Gia_Obj_t_::Value
unsigned Value
Definition gia.h:89
Vec_IntForEachEntryTwo
#define Vec_IntForEachEntryTwo(vVec1, vVec2, Entry1, Entry2, i)
Definition vecInt.h:66

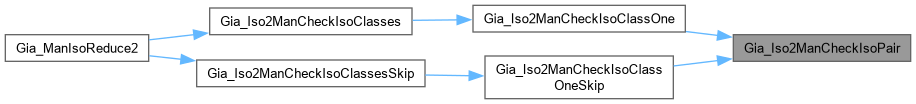

Here is the caller graph for this function:

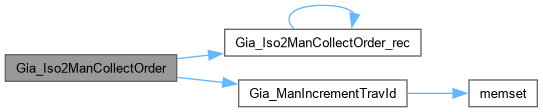

◆ Gia_Iso2ManCollectOrder()

void Gia_Iso2ManCollectOrder ( Gia_Man_t * pGia,
int * pPos,
int nPos,
Vec_Int_t * vRoots,
Vec_Int_t * vVec,
Vec_Int_t * vMap )

Definition at line 466 of file giaIso2.c.

467{
468 int i, iRoot;
469 Vec_IntClear( vRoots );
470 for ( i = 0; i < nPos; i++ )
471 Vec_IntPush( vRoots, Gia_ObjId(pGia, Gia_ManPo(pGia, pPos[i])) );
472 Vec_IntClear( vVec );
473 Gia_ManIncrementTravId( pGia );
474 Vec_IntForEachEntry( vRoots, iRoot, i )
475 Gia_Iso2ManCollectOrder_rec( pGia, iRoot, vRoots, vVec, vMap );
476}
Gia_Iso2ManCollectOrder_rec
void Gia_Iso2ManCollectOrder_rec(Gia_Man_t *p, int Id, Vec_Int_t *vRoots, Vec_Int_t *vVec, Vec_Int_t *vMap)
Definition giaIso2.c:433
Gia_ManIncrementTravId
void Gia_ManIncrementTravId(Gia_Man_t *p)
Definition giaUtil.c:190
Here is the call graph for this function:

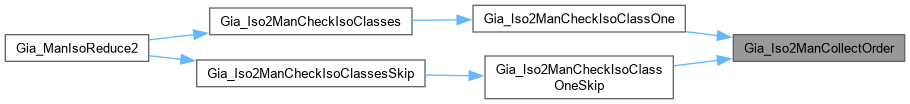

Here is the caller graph for this function:

◆ Gia_Iso2ManCollectOrder2()

Vec_Int_t * Gia_Iso2ManCollectOrder2 ( Gia_Man_t * pGia,
int * pPos,
int nPos )

Definition at line 411 of file giaIso2.c.

412{
413 Vec_Int_t * vVec;
414 int i;
415 vVec = Vec_IntAlloc( 1000 );
416 Gia_ManIncrementTravId( pGia );
417 for ( i = 0; i < nPos; i++ )
418 Gia_Iso2ManCollectOrder2_rec( pGia, Gia_ObjId(pGia, Gia_ManPo(pGia, pPos[i])), vVec );
419 return vVec;
420}
Gia_Iso2ManCollectOrder2_rec
void Gia_Iso2ManCollectOrder2_rec(Gia_Man_t *p, int Id, Vec_Int_t *vVec)
Definition giaIso2.c:381
Here is the call graph for this function:

◆ Gia_Iso2ManCollectOrder2_rec()

void Gia_Iso2ManCollectOrder2_rec ( Gia_Man_t * p,
int Id,
Vec_Int_t * vVec )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 381 of file giaIso2.c.

382{
383 Gia_Obj_t * pObj;
384 if ( Gia_ObjIsTravIdCurrentId(p, Id) )
385 return;
386 Gia_ObjSetTravIdCurrentId(p, Id);
387 pObj = Gia_ManObj( p, Id );
388 if ( Gia_ObjIsAnd(pObj) )
389 {
390 if ( Gia_ObjFanin0(pObj)->Value <= Gia_ObjFanin1(pObj)->Value )
391 {
392 Gia_Iso2ManCollectOrder2_rec( p, Gia_ObjFaninId0(pObj, Id), vVec );
393 Gia_Iso2ManCollectOrder2_rec( p, Gia_ObjFaninId1(pObj, Id), vVec );
394 }
395 else
396 {
397 Gia_Iso2ManCollectOrder2_rec( p, Gia_ObjFaninId1(pObj, Id), vVec );
398 Gia_Iso2ManCollectOrder2_rec( p, Gia_ObjFaninId0(pObj, Id), vVec );
399 }
400 }
401 else if ( Gia_ObjIsCo(pObj) )
402 {
403 Gia_Iso2ManCollectOrder2_rec( p, Gia_ObjFaninId0(pObj, Id), vVec );
404 }
405 else if ( Gia_ObjIsPi(p, pObj) )
406 {
407 }
408 else assert( Gia_ObjIsConst0(pObj) );
409 Vec_IntPush( vVec, Id );
410}
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManCollectOrder_rec()

void Gia_Iso2ManCollectOrder_rec ( Gia_Man_t * p,
int Id,
Vec_Int_t * vRoots,
Vec_Int_t * vVec,
Vec_Int_t * vMap )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 433 of file giaIso2.c.

434{
435 Gia_Obj_t * pObj;
436 if ( Gia_ObjIsTravIdCurrentId(p, Id) )
437 return;
438 Gia_ObjSetTravIdCurrentId(p, Id);
439 pObj = Gia_ManObj( p, Id );
440 if ( Gia_ObjIsAnd(pObj) )
441 {
442 if ( Gia_ObjFanin0(pObj)->Value <= Gia_ObjFanin1(pObj)->Value )
443 {
444 Gia_Iso2ManCollectOrder_rec( p, Gia_ObjFaninId0(pObj, Id), vRoots, vVec, vMap );
445 Gia_Iso2ManCollectOrder_rec( p, Gia_ObjFaninId1(pObj, Id), vRoots, vVec, vMap );
446 }
447 else
448 {
449 Gia_Iso2ManCollectOrder_rec( p, Gia_ObjFaninId1(pObj, Id), vRoots, vVec, vMap );
450 Gia_Iso2ManCollectOrder_rec( p, Gia_ObjFaninId0(pObj, Id), vRoots, vVec, vMap );
451 }
452 }
453 else if ( Gia_ObjIsCo(pObj) )
454 {
455 Gia_Iso2ManCollectOrder_rec( p, Gia_ObjFaninId0(pObj, Id), vRoots, vVec, vMap );
456 }
457 else if ( Gia_ObjIsCi(pObj) )
458 {
459 if ( Gia_ObjIsRo(p, pObj) )
460 Vec_IntPush( vRoots, Gia_ObjId(p, Gia_ObjRoToRi(p, pObj)) );
461 }
462 else assert( Gia_ObjIsConst0(pObj) );
463 Vec_IntWriteEntry( vMap, Id, Vec_IntSize(vVec) );
464 Vec_IntPush( vVec, Id );
465}
Here is the call graph for this function:

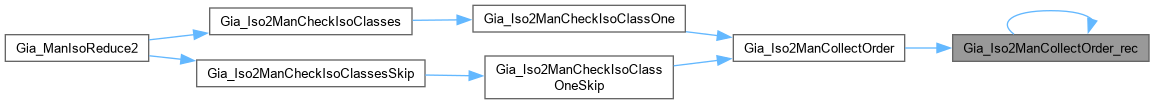

Here is the caller graph for this function:

◆ Gia_Iso2ManCollectTies()

Vec_Int_t * Gia_Iso2ManCollectTies ( Gia_Man_t * p)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 115 of file giaIso2.c.

116{
117 Vec_Int_t * vTies;
118 Gia_Obj_t * pObj;
119 int i;
120 vTies = Vec_IntAlloc( Gia_ManCandNum(p) );
121 Gia_ManForEachCand( p, pObj, i )
122 Vec_IntPush( vTies, i );
123 return vTies;
124}
Gia_ManForEachCand
#define Gia_ManForEachCand(p, pObj, i)
Definition gia.h:1220
Here is the caller graph for this function:

◆ Gia_Iso2ManCone()

unsigned Gia_Iso2ManCone ( Gia_Man_t * p,
int Id,
int Level )

Definition at line 190 of file giaIso2.c.

191{
192 Gia_ManIncrementTravId( p );
193 return Gia_Iso2ManCone_rec( p, Id, Level );
194}
Gia_Iso2ManCone_rec
unsigned Gia_Iso2ManCone_rec(Gia_Man_t *p, int Id, int Level)
Definition giaIso2.c:172

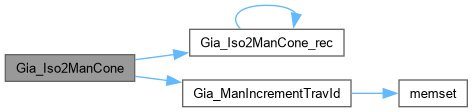

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManCone_rec()

unsigned Gia_Iso2ManCone_rec ( Gia_Man_t * p,
int Id,
int Level )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 172 of file giaIso2.c.

173{
174 Gia_Obj_t * pObj;
175 if ( Level == 0 )
176 return 0;
177 if ( Gia_ObjIsTravIdCurrentId(p, Id) )
178 return 0;
179 Gia_ObjSetTravIdCurrentId(p, Id);
180 pObj = Gia_ManObj( p, Id );
181 if ( Gia_ObjIsAnd(pObj) )
182 return pObj->Value + Gia_Iso2ManCone_rec( p, Gia_ObjFaninId0(pObj, Id), Level-1 ) + Gia_Iso2ManCone_rec( p, Gia_ObjFaninId1(pObj, Id), Level-1 );
183 if ( Gia_ObjIsPi(p, pObj) )
184 return pObj->Value;
185 if ( Gia_ObjIsRo(p, pObj) )
186 return pObj->Value + Gia_Iso2ManCone_rec( p, Gia_ObjId(p, Gia_ObjFanin0(Gia_ObjRoToRi(p, pObj))), Level );
187 assert( Gia_ObjIsConst0(pObj) );
188 return pObj->Value;
189}
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManDerivePoClasses()

Vec_Wec_t * Gia_Iso2ManDerivePoClasses ( Gia_Man_t * pGia)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 353 of file giaIso2.c.

354{
355 Vec_Wec_t * vEquivs;
356 Vec_Int_t * vValues;
357 Vec_Int_t * vMap;
358 Gia_Obj_t * pObj;
359 int i;
360 vValues = Vec_IntAlloc( Gia_ManPoNum(pGia) );
361 Gia_ManForEachPo( pGia, pObj, i )
362 Vec_IntPush( vValues, pObj->Value );
363 vMap = Hsh_IntManHashArray( vValues, 1 );
364 Vec_IntFree( vValues );
365 vEquivs = Vec_WecCreateClasses( vMap );
366 Vec_IntFree( vMap );
367 return vEquivs;
368}
Gia_ManForEachPo
#define Gia_ManForEachPo(p, pObj, i)
Definition gia.h:1250
Here is the caller graph for this function:

◆ Gia_Iso2ManPerform()

Vec_Wec_t * Gia_Iso2ManPerform ( Gia_Man_t * pGia,
int fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 680 of file giaIso2.c.

681{
682 Gia_Iso2Man_t * p;
683 abctime clk = Abc_Clock();
684 p = Gia_Iso2ManStart( pGia );
685 Gia_Iso2ManPrepare( pGia );
686 Gia_Iso2ManPropagate( pGia );
687 Gia_Iso2ManPrint( p, Abc_Clock() - clk, fVerbose );
688 while ( Gia_Iso2ManUniqify( p ) )
689 {
690 Gia_Iso2ManPrint( p, Abc_Clock() - clk, fVerbose );
691 Gia_Iso2ManPropagate( pGia );
692 }
693 Gia_Iso2ManPrint( p, Abc_Clock() - clk, fVerbose );
694/*
695 Gia_Iso2ManUpdate( p, 20 );
696 while ( Gia_Iso2ManUniqify( p ) )
697 {
698 Gia_Iso2ManPrint( p, Abc_Clock() - clk, fVerbose );
699 Gia_Iso2ManPropagate( pGia );
700 }
701 Gia_Iso2ManPrint( p, Abc_Clock() - clk, fVerbose );
702*/
703 Gia_Iso2ManStop( p );
704 return Gia_Iso2ManDerivePoClasses( pGia );
705}
abctime
ABC_INT64_T abctime
Definition abc_global.h:332
Gia_Iso2Man_t
struct Gia_Iso2Man_t_ Gia_Iso2Man_t
DECLARATIONS ///.
Definition giaIso2.c:73
Gia_Iso2ManPrepare
void Gia_Iso2ManPrepare(Gia_Man_t *p)
Definition giaIso2.c:125
Gia_Iso2ManUniqify
int Gia_Iso2ManUniqify(Gia_Iso2Man_t *p)
Definition giaIso2.c:276
Gia_Iso2ManStart
Gia_Iso2Man_t * Gia_Iso2ManStart(Gia_Man_t *pGia)
Definition giaIso2.c:214
Gia_Iso2ManDerivePoClasses
Vec_Wec_t * Gia_Iso2ManDerivePoClasses(Gia_Man_t *pGia)
Definition giaIso2.c:353
Gia_Iso2ManPropagate
void Gia_Iso2ManPropagate(Gia_Man_t *p)
Definition giaIso2.c:140
Gia_Iso2ManPrint
void Gia_Iso2ManPrint(Gia_Iso2Man_t *p, abctime Time, int fVerbose)
Definition giaIso2.c:248
Gia_Iso2ManStop
void Gia_Iso2ManStop(Gia_Iso2Man_t *p)
Definition giaIso2.c:235
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManPrepare()

void Gia_Iso2ManPrepare ( Gia_Man_t * p)

Definition at line 125 of file giaIso2.c.

126{
127 Gia_Obj_t * pObj;
128 int i;
129 Gia_ManForEachObj( p, pObj, i )
130 pObj->Value = Gia_ObjIsAnd(pObj) ? 1 + Abc_MaxInt(Gia_ObjFanin0(pObj)->Value, Gia_ObjFanin1(pObj)->Value) : 0;
131 Gia_ManConst0(p)->Value = s_256Primes[ISO_MASK];
132 Gia_ManForEachObj1( p, pObj, i )
133 if ( Gia_ObjIsAnd(pObj) )
134 pObj->Value = s_256Primes[pObj->Value & ISO_MASK] + s_256Primes[ISO_MASK - 10 + Gia_ObjFaninC0(pObj) + Gia_ObjFaninC1(pObj)];
135 else if ( Gia_ObjIsPi(p, pObj) )
136 pObj->Value = s_256Primes[ISO_MASK-1];
137 else if ( Gia_ObjIsRo(p, pObj) )
138 pObj->Value = s_256Primes[ISO_MASK-2];
139}
ISO_MASK
#define ISO_MASK
Definition giaIso.c:26
Gia_ManForEachObj1
#define Gia_ManForEachObj1(p, pObj, i)
Definition gia.h:1192
Gia_ManForEachObj
#define Gia_ManForEachObj(p, pObj, i)
MACRO DEFINITIONS ///.
Definition gia.h:1190
Here is the caller graph for this function:

◆ Gia_Iso2ManPrint()

void Gia_Iso2ManPrint ( Gia_Iso2Man_t * p,
abctime Time,
int fVerbose )

Definition at line 248 of file giaIso2.c.

249{
250 if ( !fVerbose )
251 return;
252 printf( "Iter %4d : ", p->nIters++ );
253 printf( "Entries =%8d. ", Vec_IntSize(p->vTied) );
254 printf( "Uniques =%8d. ", p->nUniques );
255 printf( "Singles =%8d. ", Vec_PtrSize(p->vSingles) );
256 printf( "%9.2f sec", (float)(Time)/(float)(CLOCKS_PER_SEC) );
257 printf( "\n" );
258 fflush( stdout );
259}
Here is the caller graph for this function:

◆ Gia_Iso2ManPropagate()

void Gia_Iso2ManPropagate ( Gia_Man_t * p)

Definition at line 140 of file giaIso2.c.

141{
142 Gia_Obj_t * pObj, * pObjRo;
143 int i;
144 Gia_ManForEachObj1( p, pObj, i )
145 if ( Gia_ObjIsAnd(pObj) )
146 {
147 pObj->Value += (Gia_ObjFaninC0(pObj) + s_PrimeC) * Gia_ObjFanin0(pObj)->Value + (Gia_ObjFaninC1(pObj) + s_PrimeC) * Gia_ObjFanin1(pObj)->Value;
148 if ( Gia_ObjFaninC0(pObj) == Gia_ObjFaninC1(pObj) && Gia_ObjFanin0(pObj)->Value == Gia_ObjFanin1(pObj)->Value )
149 pObj->Value += s_256Primes[ISO_MASK - 11];
150 }
151 else if ( Gia_ObjIsCo(pObj) )
152 pObj->Value += (Gia_ObjFaninC0(pObj) + s_PrimeC) * Gia_ObjFanin0(pObj)->Value;
153 Gia_ManForEachRiRo( p, pObj, pObjRo, i )
154 {
155 pObjRo->Value += pObj->Value;
156 if ( pObjRo == Gia_ObjFanin0(pObj) )
157 pObjRo->Value += s_256Primes[ISO_MASK - 12];
158 }
159}
Gia_ManForEachRiRo
#define Gia_ManForEachRiRo(p, pObjRi, pObjRo, i)
Definition gia.h:1256
Here is the caller graph for this function:

◆ Gia_Iso2ManStart()

Gia_Iso2Man_t * Gia_Iso2ManStart ( Gia_Man_t * pGia)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 214 of file giaIso2.c.

215{
216 Gia_Iso2Man_t * p;
217 p = ABC_CALLOC( Gia_Iso2Man_t, 1 );
218 p->pGia = pGia;
219 p->nObjs = Gia_ManObjNum( pGia );
220 p->nUniques = 0;
221 // internal data
222 p->vUniques = Vec_IntStartFull( p->nObjs );
223 p->vTied = Gia_Iso2ManCollectTies( pGia );
224 p->vTable = Vec_IntStart( Abc_PrimeCudd(1*p->nObjs) );
225 p->vPlaces = Vec_IntAlloc( 1000 );
226 p->vSingles = Vec_PtrAlloc( 1000 );
227 p->vVec0 = Vec_IntAlloc( 10000 );
228 p->vVec1 = Vec_IntAlloc( 10000 );
229 p->vMap0 = Vec_IntStart( p->nObjs );
230 p->vMap1 = Vec_IntStart( p->nObjs );
231 // add constant 0 object
232 Vec_IntWriteEntry( p->vUniques, 0, p->nUniques++ );
233 return p;
234}
ABC_CALLOC
#define ABC_CALLOC(type, num)
Definition abc_global.h:265
Gia_Iso2ManCollectTies
Vec_Int_t * Gia_Iso2ManCollectTies(Gia_Man_t *p)
FUNCTION DEFINITIONS ///.
Definition giaIso2.c:115
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManStop()

void Gia_Iso2ManStop ( Gia_Iso2Man_t * p)

Definition at line 235 of file giaIso2.c.

236{
237 Vec_IntFree( p->vUniques );
238 Vec_IntFree( p->vTied );
239 Vec_IntFree( p->vTable );
240 Vec_IntFree( p->vPlaces );
241 Vec_PtrFree( p->vSingles );
242 Vec_IntFree( p->vMap0 );
243 Vec_IntFree( p->vMap1 );
244 Vec_IntFree( p->vVec0 );
245 Vec_IntFree( p->vVec1 );
246 ABC_FREE( p );
247}
ABC_FREE
#define ABC_FREE(obj)
Definition abc_global.h:267
Here is the caller graph for this function:

◆ Gia_Iso2ManUniqify()

int Gia_Iso2ManUniqify ( Gia_Iso2Man_t * p)

Definition at line 276 of file giaIso2.c.

277{
278 int fVerify = 0;
279 Gia_Obj_t * pObj, * pTemp;
280 int * pTable = Vec_IntArray(p->vTable);
281 int i, k, nSize = Vec_IntSize(p->vTable);
282
283 if ( fVerify )
284 for ( k = 0; k < nSize; k++ )
285 assert( pTable[k] == 0 );
286 if ( fVerify )
287 Gia_ManForEachObjVec( p->vTied, p->pGia, pObj, i )
288 assert( pObj->fMark0 == 0 );
289
290#if 0
291 Gia_ManForEachObjVec( p->vTied, p->pGia, pObj, i )
292 {
293 printf( "%3d : ", Gia_ObjId(p->pGia, pObj) );
294 Extra_PrintBinary( stdout, &pObj->Value, 32 );
295 printf( "\n" );
296 }
297#endif
298
299 // add objects to the table
300 Vec_IntClear( p->vPlaces );
301 Gia_ManForEachObjVec( p->vTied, p->pGia, pObj, i )
302 {
303 for ( k = pObj->Value % nSize; (pTemp = pTable[k] ? Gia_ManObj(p->pGia, pTable[k]) : NULL); k = (k + 1) % nSize )
304 if ( pTemp->Value == pObj->Value )
305 {
306 pTemp->fMark0 = 1;
307 pObj->fMark0 = 1;
308 break;
309 }
310 if ( pTemp != NULL )
311 continue;
312 pTable[k] = Gia_ObjId(p->pGia, pObj);
313 Vec_IntPush( p->vPlaces, k );
314 }
315 // clean the table
316 Vec_IntForEachEntry( p->vPlaces, k, i )
317 pTable[k] = 0;
318 // collect singleton objects and compact tied objects
319 k = 0;
320 Vec_PtrClear( p->vSingles );
321 Gia_ManForEachObjVec( p->vTied, p->pGia, pObj, i )
322 if ( pObj->fMark0 == 0 )
323 Vec_PtrPush( p->vSingles, pObj );
324 else
325 {
326 pObj->fMark0 = 0;
327 Vec_IntWriteEntry( p->vTied, k++, Gia_ObjId(p->pGia, pObj) );
328 }
329 Vec_IntShrink( p->vTied, k );
330 // sort singletons
331 Vec_PtrSort( p->vSingles, (int (*)(const void *, const void *))Gia_ObjCompareByValue2 );
332 // add them to unique and increment signature
333 Vec_PtrForEachEntry( Gia_Obj_t *, p->vSingles, pObj, i )
334 {
335 pObj->Value += s_256Primes[p->nUniques & ISO_MASK];
336 assert( Vec_IntEntry(p->vUniques, Gia_ObjId(p->pGia, pObj)) == -1 );
337 Vec_IntWriteEntry( p->vUniques, Gia_ObjId(p->pGia, pObj), p->nUniques++ );
338 }
339 return Vec_PtrSize( p->vSingles );
340}
Gia_ObjCompareByValue2
int Gia_ObjCompareByValue2(Gia_Obj_t **pp1, Gia_Obj_t **pp2)
Definition giaIso2.c:275
Gia_ManForEachObjVec
#define Gia_ManForEachObjVec(vVec, p, pObj, i)
Definition gia.h:1194
Extra_PrintBinary
void Extra_PrintBinary(FILE *pFile, unsigned Sign[], int nBits)
Definition extraUtilFile.c:516
Gia_Obj_t_::fMark0
unsigned fMark0
Definition gia.h:81
Vec_PtrForEachEntry
#define Vec_PtrForEachEntry(Type, vVec, pEntry, i)
MACRO DEFINITIONS ///.
Definition vecPtr.h:55
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_Iso2ManUpdate()

void Gia_Iso2ManUpdate ( Gia_Iso2Man_t * p,
int Level )

Definition at line 195 of file giaIso2.c.

196{
197 Gia_Obj_t * pObj;
198 int i;
199 Gia_ManForEachObjVec( p->vTied, p->pGia, pObj, i )
200 pObj->Value += Gia_Iso2ManCone( p->pGia, Gia_ObjId(p->pGia, pObj), Level );
201}
Gia_Iso2ManCone
unsigned Gia_Iso2ManCone(Gia_Man_t *p, int Id, int Level)
Definition giaIso2.c:190
Here is the call graph for this function:

◆ Gia_ManIsoReduce2()

Gia_Man_t * Gia_ManIsoReduce2 ( Gia_Man_t * pGia,
Vec_Ptr_t ** pvPosEquivs,
Vec_Ptr_t ** pvPiPerms,
int fEstimate,
int fBetterQual,
int fDualOut,
int fVerbose,
int fVeryVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 718 of file giaIso2.c.

719{
720 Gia_Man_t * pPart;
721 Vec_Wec_t * vEquivs, * vEquivs2;
722 Vec_Int_t * vRemains;
723 int nClasses, nUsedPos;
724 abctime clk = Abc_Clock();
725 vEquivs = Gia_Iso2ManPerform( pGia, fVeryVerbose );
726 // report class stats
727 nClasses = Vec_WecCountNonTrivial( vEquivs, &nUsedPos );
728 printf( "Reduced %d outputs to %d candidate classes (%d outputs are in %d non-trivial classes). ",
729 Gia_ManPoNum(pGia), Vec_WecSize(vEquivs), nUsedPos, nClasses );
730 Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
731 if ( fEstimate )
732 {
733 Vec_WecFree( vEquivs );
734 return Gia_ManDup(pGia);
735 }
736 // verify classes
737 if ( fBetterQual )
738 vEquivs2 = Gia_Iso2ManCheckIsoClasses( pGia, vEquivs );
739 else
740 vEquivs2 = Gia_Iso2ManCheckIsoClassesSkip( pGia, vEquivs );
741 Vec_WecFree( vEquivs );
742 vEquivs = vEquivs2;
743 // sort equiv classes by the first integer
744 Vec_WecSortByFirstInt( vEquivs, 0 );
745 // find the first outputs
746 vRemains = Vec_WecCollectFirsts( vEquivs );
747 // derive the final GIA
748 pPart = Gia_ManDupCones( pGia, Vec_IntArray(vRemains), Vec_IntSize(vRemains), 0 );
749 Vec_IntFree( vRemains );
750 // report class stats
751 nClasses = Vec_WecCountNonTrivial( vEquivs, &nUsedPos );
752 printf( "Reduced %d outputs to %d equivalence classes (%d outputs are in %d non-trivial classes). ",
753 Gia_ManPoNum(pGia), Vec_WecSize(vEquivs), nUsedPos, nClasses );
754 Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
755 if ( fVerbose )
756 {
757 printf( "Nontrivial classes:\n" );
758 Vec_WecPrint( vEquivs, 1 );
759 }
760 if ( pvPiPerms )
761 *pvPiPerms = NULL;
762 if ( pvPosEquivs )
763 *pvPosEquivs = Vec_WecConvertToVecPtr( vEquivs );
764 Vec_WecFree( vEquivs );
765// Gia_ManStopP( &pPart );
766 return pPart;
767}
Gia_Iso2ManPerform
Vec_Wec_t * Gia_Iso2ManPerform(Gia_Man_t *pGia, int fVerbose)
Definition giaIso2.c:680
Gia_Iso2ManCheckIsoClassesSkip
Vec_Wec_t * Gia_Iso2ManCheckIsoClassesSkip(Gia_Man_t *p, Vec_Wec_t *vEquivs)
Definition giaIso2.c:569
Gia_Iso2ManCheckIsoClasses
Vec_Wec_t * Gia_Iso2ManCheckIsoClasses(Gia_Man_t *p, Vec_Wec_t *vEquivs)
Definition giaIso2.c:628
Gia_ManDup
Gia_Man_t * Gia_ManDup(Gia_Man_t *p)
Definition giaDup.c:720
Gia_Man_t
struct Gia_Man_t_ Gia_Man_t
Definition gia.h:96
Gia_ManDupCones
Gia_Man_t * Gia_ManDupCones(Gia_Man_t *p, int *pPos, int nPos, int fTrimPis)
Definition giaDup.c:3880
Here is the call graph for this function:

◆ Gia_ObjCompareByValue2()

int Gia_ObjCompareByValue2 ( Gia_Obj_t ** pp1,
Gia_Obj_t ** pp2 )

Function*************************************************************

Synopsis [Uniqifies objects using their signature.]

Description [Assumes the tied objects are in p->vTied. Assumes that updated signature (pObj->Value) is assigned to these objects. Returns the array of unique objects p->vSingles sorted by signature. Compacts the array of tied objects p->vTied.]

SideEffects []

SeeAlso []

Definition at line 275 of file giaIso2.c.

275{ return (int)(*pp1)->Value - (int)(*pp2)->Value; }
Here is the caller graph for this function:
