giaShrink6.c File Reference

#include "gia.h"
#include "bool/bdc/bdc.h"
#include "bool/rsb/rsb.h"

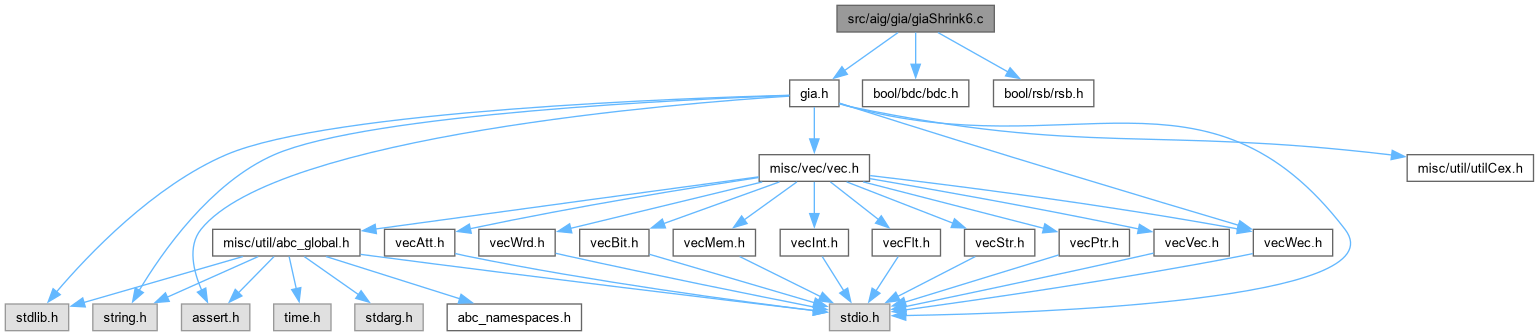

Include dependency graph for giaShrink6.c:

Go to the source code of this file.

Classes
struct	Shr_Fan_t_
struct	Shr_Man_t_

Macros
#define	Shr_ObjForEachFanout(p, iNode, iFan)

Typedefs
typedef struct Shr_Fan_t_	Shr_Fan_t
typedef struct Shr_Man_t_	Shr_Man_t

Functions
Shr_Man_t *	Shr_ManAlloc (Gia_Man_t *pGia)
	FUNCTION DEFINITIONS ///.
Gia_Man_t *	Shr_ManFree (Shr_Man_t *p)
int	Shr_ObjPerformBidec (Shr_Man_t *p, Bdc_Man_t *pManDec, Gia_Man_t *pNew, Vec_Int_t *vLeafLits, word uTruth1, word uTruthC)
word	Shr_ManComputeTruth6_rec (Gia_Man_t *p, int iNode, Vec_Wrd_t *vTruths)
word	Shr_ManComputeTruth6 (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Int_t *vLeaves, Vec_Wrd_t *vTruths)
void	Shr_ManComputeTruths (Gia_Man_t *p, int nVars, Vec_Int_t *vDivs, Vec_Wrd_t *vDivTruths, Vec_Wrd_t *vTruths)
Gia_Man_t *	Gia_ManMapShrink6 (Gia_Man_t *p, int nFanoutMax, int fKeepLevel, int fVerbose)

Macro Definition Documentation

Shr_ObjForEachFanout

#define Shr_ObjForEachFanout	(		p,
			iNode,
			iFan )

Value:

    for ( iFan = Shr_ManFanIterStart(p, iNode); iFan; iFan = Shr_ManFanIterNext(p) )

Definition at line 78 of file giaShrink6.c.

#define Shr_ObjForEachFanout( p, iNode, iFan )                      \
    for ( iFan = Shr_ManFanIterStart(p, iNode); iFan; iFan = Shr_ManFanIterNext(p) )

Typedef Documentation

Shr_Fan_t

typedef struct Shr_Fan_t_ Shr_Fan_t

Definition at line 44 of file giaShrink6.c.

Shr_Man_t

typedef struct Shr_Man_t_ Shr_Man_t

Definition at line 52 of file giaShrink6.c.

Function Documentation

Gia_ManMapShrink6()

Gia_Man_t * Gia_ManMapShrink6	(	Gia_Man_t *	p,
		int	nFanoutMax,
		int	fKeepLevel,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 401 of file giaShrink6.c.

{
    Shr_Man_t * pMan;
    Gia_Obj_t * pObj, * pFanin;
    word uTruth, uTruth0, uTruth1;
    int i, k, nDivs, iNode;
    int RetValue, Counter1 = 0, Counter2 = 0;
    abctime clk2, clk = Abc_Clock();
    abctime timeFanout = 0;
    assert( Gia_ManHasMapping(p) );
    pMan = Shr_ManAlloc( p );
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachObj1( p, pObj, i )
    {
        if ( Gia_ObjIsCi(pObj) )
        {
            pObj->Value = Gia_ManAppendCi( pMan->pNew );
            if ( p->vLevels )
                Gia_ObjSetLevel( pMan->pNew, Gia_ObjFromLit(pMan->pNew, Gia_ObjValue(pObj)), Gia_ObjLevel(p, pObj) );
        }
        else if ( Gia_ObjIsCo(pObj) )
        {
            pObj->Value = Gia_ManAppendCo( pMan->pNew, Gia_ObjFanin0Copy(pObj) );
        }
        else if ( Gia_ObjIsLut(p, i) )
        {
            // collect leaves of this gate
            Vec_IntClear( pMan->vLeaves );
            Gia_LutForEachFanin( p, i, iNode, k )
                Vec_IntPush( pMan->vLeaves, iNode );
            assert( Vec_IntSize(pMan->vLeaves) <= 6 );
            // compute truth table
            uTruth = Shr_ManComputeTruth6( pMan->pGia, pObj, pMan->vLeaves, pMan->vTruths );
            assert( pObj->Value == ~0 );
            if ( uTruth == 0 || ~uTruth == 0 )
                pObj->Value = Abc_LitNotCond( 0, ~uTruth == 0 );
            else
                Gia_ManForEachObjVec( pMan->vLeaves, p, pFanin, k )
                    if ( uTruth == Truth[k] || ~uTruth == Truth[k] )
                        pObj->Value = Abc_LitNotCond( pFanin->Value, ~uTruth == Truth[k] );
            if ( pObj->Value != ~0 )
                continue;
            // translate into new nodes
            Gia_ManForEachObjVec( pMan->vLeaves, p, pFanin, k )
            {
                if ( Abc_LitIsCompl(pFanin->Value) )
                    uTruth = ((uTruth & Truth[k]) >> (1 << k)) | ((uTruth & ~Truth[k]) << (1 << k));
                Vec_IntWriteEntry( pMan->vLeaves, k, Abc_Lit2Var(pFanin->Value) );
            }
            // compute divisors
            clk2 = Abc_Clock();
            nDivs = Shr_ManCollectDivisors( pMan, pMan->vLeaves, pMan->nDivMax, nFanoutMax );
            assert( nDivs <= pMan->nDivMax );
            timeFanout += Abc_Clock() - clk2;
            // compute truth tables
            Shr_ManComputeTruths( pMan->pNew, Vec_IntSize(pMan->vLeaves), pMan->vDivs, pMan->vDivTruths, pMan->vTruths );
            // perform resubstitution
            RetValue = Rsb_ManPerformResub6( pMan->pManRsb, Vec_IntSize(pMan->vLeaves), uTruth, pMan->vDivTruths, &uTruth0, &uTruth1, 0 );
            if ( RetValue ) // resub exists
            {
                Vec_Int_t * vResult = Rsb_ManGetFanins(pMan->pManRsb);
                Vec_IntClear( pMan->vDivResub );
                Vec_IntForEachEntry( vResult, iNode, k )
                    Vec_IntPush( pMan->vDivResub, Vec_IntEntry(pMan->vDivs, iNode) );
                pObj->Value = Shr_ObjPerformBidec( pMan, pMan->pManDec, pMan->pNew, pMan->vDivResub, uTruth1, uTruth0 | uTruth1 );
                Counter1++;
            }
            else
            {
                pObj->Value = Shr_ObjPerformBidec( pMan, pMan->pManDec, pMan->pNew, pMan->vLeaves, uTruth, ~(word)0 );
                Counter2++;
            }
        }
    }
    if ( fVerbose )
    {
        printf( "Performed %d resubs and %d decomps.  ", Counter1, Counter2 );
        printf( "Gain in AIG nodes = %d.  ", Gia_ManObjNum(p)-Gia_ManObjNum(pMan->pNew) );
        ABC_PRT( "Runtime", Abc_Clock() - clk );
//        ABC_PRT( "Divisors", timeFanout );
    }
    return Shr_ManFree( pMan );
}

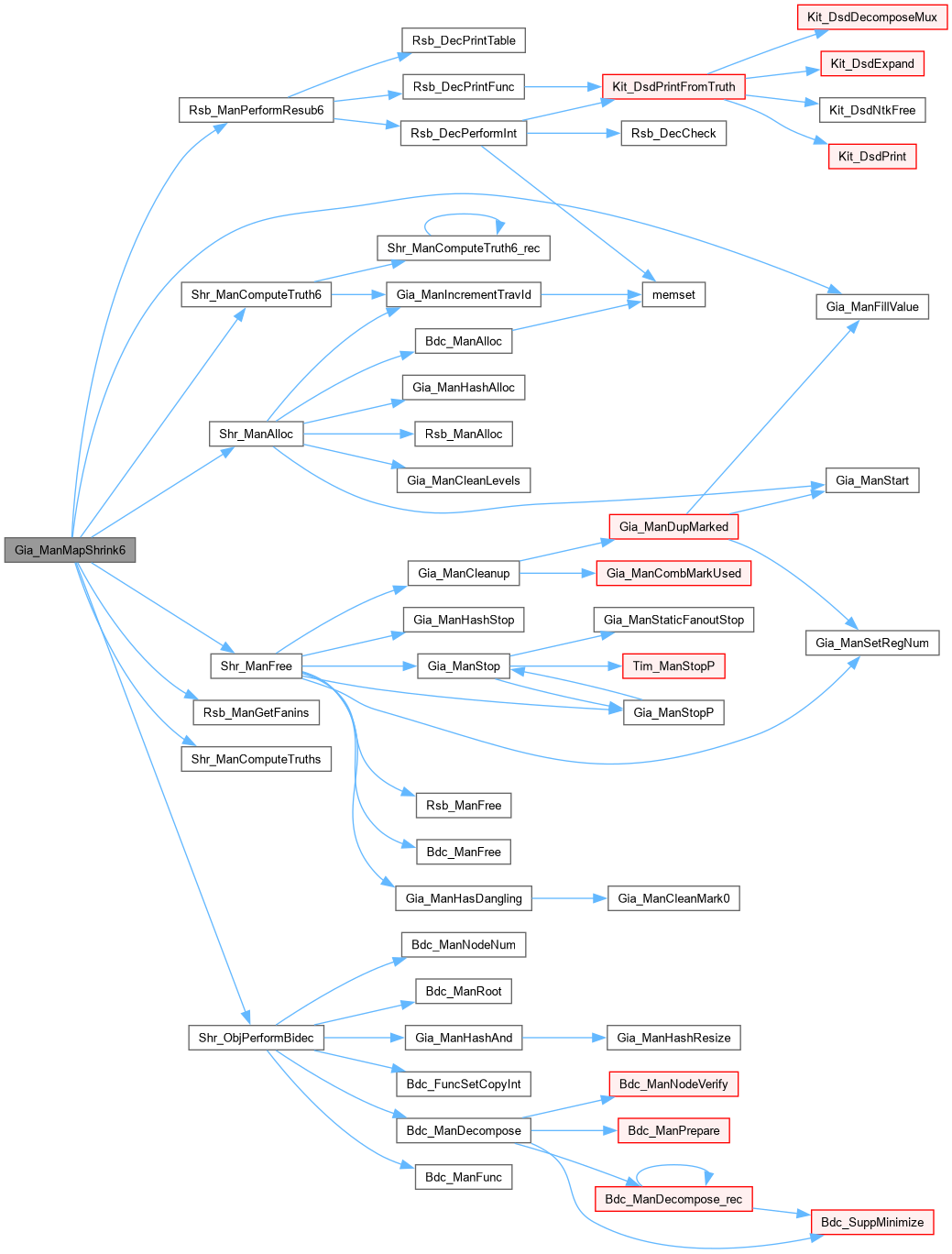

Here is the call graph for this function:

Shr_ManAlloc()

Shr_Man_t * Shr_ManAlloc

(

Gia_Man_t *

pGia

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 96 of file giaShrink6.c.

{
    Shr_Man_t * p;
    p = ABC_CALLOC( Shr_Man_t, 1 );
    p->nDivMax     = 64;
    p->nNewSize    = 2 * Gia_ManObjNum(pGia);
    p->pGia        = pGia;
    p->vFanMem     = Vec_WrdAlloc( 1000 );   Vec_WrdPush(p->vFanMem, -1);
    p->vObj2Fan    = Vec_IntStart( p->nNewSize );
    p->vDivs       = Vec_IntAlloc( 1000 );
    p->vPrio       = Vec_IntAlloc( 1000 );
    p->vTruths     = Vec_WrdStart( p->nNewSize );
    p->vDivTruths  = Vec_WrdAlloc( 100 );
    p->vDivResub   = Vec_IntAlloc( 6 );
    p->vLeaves     = Vec_IntAlloc( 6 );
    // start new manager
    p->pNew        = Gia_ManStart( p->nNewSize );
    p->pNew->pName = Abc_UtilStrsav( pGia->pName );
    p->pNew->pSpec = Abc_UtilStrsav( pGia->pSpec );
    Gia_ManHashAlloc( p->pNew );
    Gia_ManCleanLevels( p->pNew, p->nNewSize );
    // allocate traversal IDs
    p->pNew->nObjs = p->nNewSize;
    Gia_ManIncrementTravId( p->pNew );
    p->pNew->nObjs = 1;
    // start decompostion
    p->Pars.nVarsMax = 6;
    p->Pars.fVerbose = 0;
    p->pManDec = Bdc_ManAlloc( &p->Pars );
    p->pManRsb = Rsb_ManAlloc( 6, p->nDivMax, 4, 1 );
    return p;
}

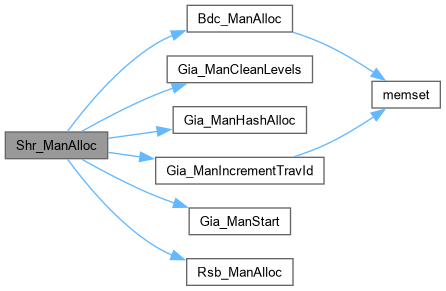

Here is the call graph for this function:

Here is the caller graph for this function:

Shr_ManComputeTruth6()

word Shr_ManComputeTruth6	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vLeaves,
		Vec_Wrd_t *	vTruths )

Definition at line 335 of file giaShrink6.c.

{
    int i, iLeaf;
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ManIncrementTravId( p );
    Vec_IntForEachEntry( vLeaves, iLeaf, i )
    {
        Gia_ObjSetTravIdCurrentId( p, iLeaf );
        Vec_WrdWriteEntry( vTruths, iLeaf, Truth[i] );
    }
    return Shr_ManComputeTruth6_rec( p, Gia_ObjId(p, pObj), vTruths );
}

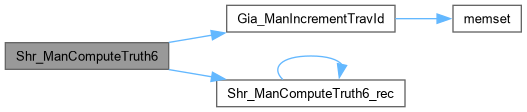

Here is the call graph for this function:

Here is the caller graph for this function:

Shr_ManComputeTruth6_rec()

word Shr_ManComputeTruth6_rec	(	Gia_Man_t *	p,
		int	iNode,
		Vec_Wrd_t *	vTruths )

Function*************************************************************

Synopsis [Compute truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 317 of file giaShrink6.c.

{
    Gia_Obj_t * pObj;
    word Truth0, Truth1;
    if ( Gia_ObjIsTravIdCurrentId(p, iNode) )
        return Vec_WrdEntry(vTruths, iNode);
    Gia_ObjSetTravIdCurrentId(p, iNode);
    pObj = Gia_ManObj( p, iNode );
    assert( Gia_ObjIsAnd(pObj) );
    Truth0 = Shr_ManComputeTruth6_rec( p, Gia_ObjFaninId0p(p, pObj), vTruths );
    Truth1 = Shr_ManComputeTruth6_rec( p, Gia_ObjFaninId1p(p, pObj), vTruths );
    if ( Gia_ObjFaninC0(pObj) )
        Truth0 = ~Truth0;
    if ( Gia_ObjFaninC1(pObj) )
        Truth1 = ~Truth1;
    Vec_WrdWriteEntry( vTruths, iNode, Truth0 & Truth1 );
    return Truth0 & Truth1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Shr_ManComputeTruths()

void Shr_ManComputeTruths	(	Gia_Man_t *	p,
		int	nVars,
		Vec_Int_t *	vDivs,
		Vec_Wrd_t *	vDivTruths,
		Vec_Wrd_t *	vTruths )

Function*************************************************************

Synopsis [Compute truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 359 of file giaShrink6.c.

{
    Gia_Obj_t * pObj;
    word Truth0, Truth1;//, Truthh;
    int i, iDiv;
    Vec_WrdClear( vDivTruths );
    Vec_IntForEachEntryStop( vDivs, iDiv, i, nVars )
    {
        Vec_WrdWriteEntry( vTruths, iDiv, Truth[i] );
        Vec_WrdPush( vDivTruths, Truth[i] );
    }
    Vec_IntForEachEntryStart( vDivs, iDiv, i, nVars )
    {
        pObj = Gia_ManObj( p, iDiv );
        Truth0 = Vec_WrdEntry( vTruths, Gia_ObjFaninId0(pObj, iDiv) );
        Truth1 = Vec_WrdEntry( vTruths, Gia_ObjFaninId1(pObj, iDiv) );
        if ( Gia_ObjFaninC0(pObj) )
            Truth0 = ~Truth0;
        if ( Gia_ObjFaninC1(pObj) )
            Truth1 = ~Truth1;
        Vec_WrdWriteEntry( vTruths, iDiv, Truth0 & Truth1 );
        Vec_WrdPush( vDivTruths, Truth0 & Truth1 );

//        Truthh = Truth0 & Truth1;
//        Abc_TtPrintBinary( &Truthh, nVars );   //printf( "\n" );
//        Kit_DsdPrintFromTruth( &Truthh, nVars );    printf( "\n" );
    }
//    printf( "\n" );
}

Here is the caller graph for this function:

Shr_ManFree()

Gia_Man_t * Shr_ManFree

(

Shr_Man_t *

p

)

Definition at line 128 of file giaShrink6.c.

{
    // prepare the manager
    Gia_Man_t * pTemp;
    Gia_ManHashStop( p->pNew );
    Vec_IntFreeP( &p->pNew->vLevels );
    if ( Gia_ManHasDangling(p->pNew) )
    {
        p->pNew = Gia_ManCleanup( pTemp = p->pNew );
        if ( Gia_ManAndNum(p->pNew) != Gia_ManAndNum(pTemp) )
            printf( "Node reduction after sweep %6d -> %6d.\n", Gia_ManAndNum(pTemp), Gia_ManAndNum(p->pNew) );
        Gia_ManStop( pTemp );
    }
    Gia_ManSetRegNum( p->pNew, Gia_ManRegNum(p->pGia) );
    pTemp = p->pNew; p->pNew = NULL;
    // free data structures
    Rsb_ManFree( p->pManRsb );
    Bdc_ManFree( p->pManDec );
    Gia_ManStopP( &p->pNew );
    Vec_WrdFree( p->vFanMem );
    Vec_IntFree( p->vObj2Fan );
    Vec_IntFree( p->vDivs );
    Vec_IntFree( p->vPrio );
    Vec_WrdFree( p->vTruths );
    Vec_WrdFree( p->vDivTruths );
    Vec_IntFree( p->vDivResub );
    Vec_IntFree( p->vLeaves );
    ABC_FREE( p );
    return pTemp;
}

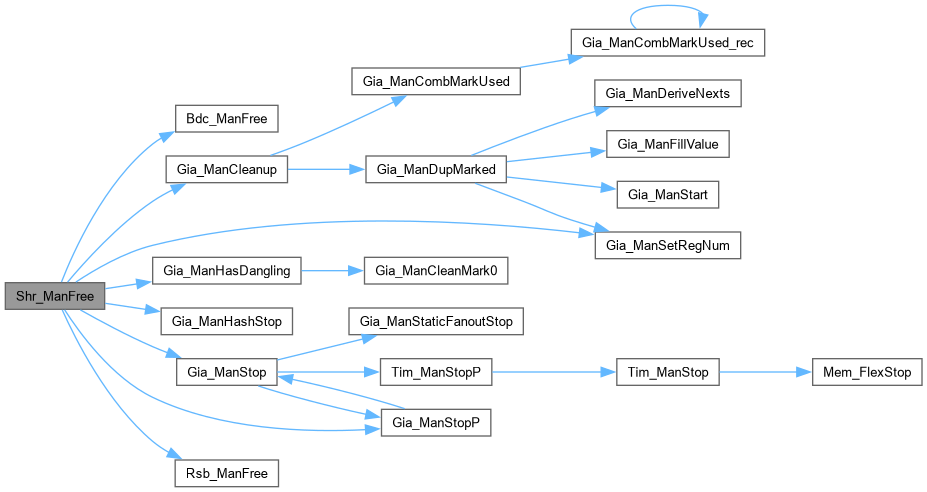

Here is the call graph for this function:

Here is the caller graph for this function:

Shr_ObjPerformBidec()

int Shr_ObjPerformBidec	(	Shr_Man_t *	p,
		Bdc_Man_t *	pManDec,
		Gia_Man_t *	pNew,
		Vec_Int_t *	vLeafLits,
		word	uTruth1,
		word	uTruthC )

Function*************************************************************

Synopsis [Resynthesizes nodes using bi-decomposition.]

Description []

SideEffects []

SeeAlso []

Definition at line 275 of file giaShrink6.c.

{
    Bdc_Fun_t * pFunc;
    Gia_Obj_t * pObj;
    int i, iVar, iLit, nNodes, iLast;
    int nVars = Vec_IntSize(vLeafLits);
    assert( uTruth1 != 0 && uTruthC != 0 );
    Bdc_ManDecompose( pManDec, (unsigned *)&uTruth1, (unsigned *)&uTruthC, nVars, NULL, 1000 );
    Bdc_FuncSetCopyInt( Bdc_ManFunc(pManDec, 0), 1 );
    Vec_IntForEachEntry( vLeafLits, iVar, i )
        Bdc_FuncSetCopyInt( Bdc_ManFunc(pManDec, i+1), Abc_Var2Lit(iVar, 0) );
    nNodes = Bdc_ManNodeNum( pManDec );
    for ( i = nVars + 1; i < nNodes; i++ )
    {
        pFunc = Bdc_ManFunc( pManDec, i );
        iLast = Gia_ManObjNum(pNew);
        iLit  = Gia_ManHashAnd( pNew, Bdc_FunFanin0Copy(pFunc), Bdc_FunFanin1Copy(pFunc) );
        Bdc_FuncSetCopyInt( pFunc, iLit );
        if ( iLast == Gia_ManObjNum(pNew) )
            continue;
        assert( iLast + 1 == Gia_ManObjNum(pNew) );
        pObj = Gia_ManObj(pNew, Abc_Lit2Var(iLit));
        Gia_ObjSetAndLevel( pNew, pObj );
        Shr_ManAddFanout( p, Gia_ObjFaninId0p(pNew, pObj), Gia_ObjId(pNew, pObj) );
        Shr_ManAddFanout( p, Gia_ObjFaninId1p(pNew, pObj), Gia_ObjId(pNew, pObj) );
        assert( Gia_ManObjNum(pNew) < p->nNewSize );
    }
    return Bdc_FunObjCopy( Bdc_ManRoot(pManDec) );
}

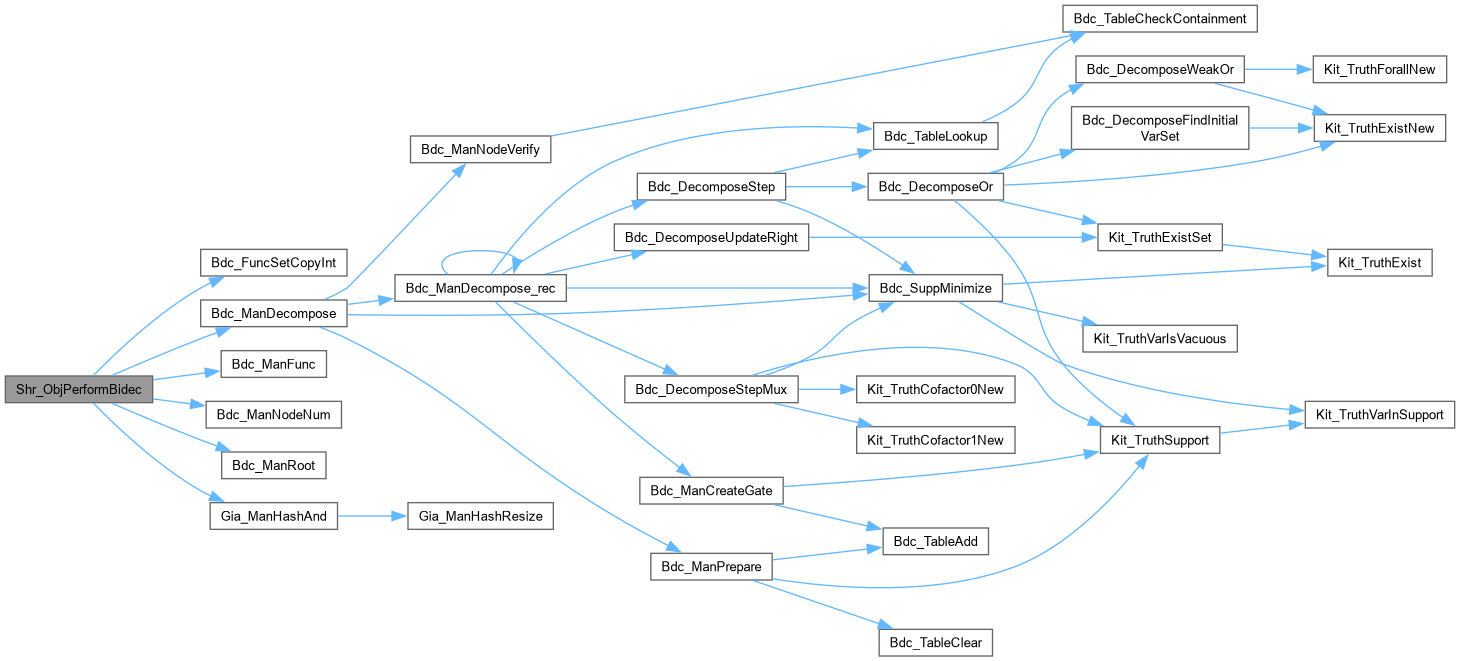

Here is the call graph for this function:

Here is the caller graph for this function:
