giaTruth.c File Reference

#include "gia.h"
#include "misc/vec/vecMem.h"
#include "misc/vec/vecWec.h"
#include "misc/util/utilTruth.h"
#include "opt/dau/dau.h"

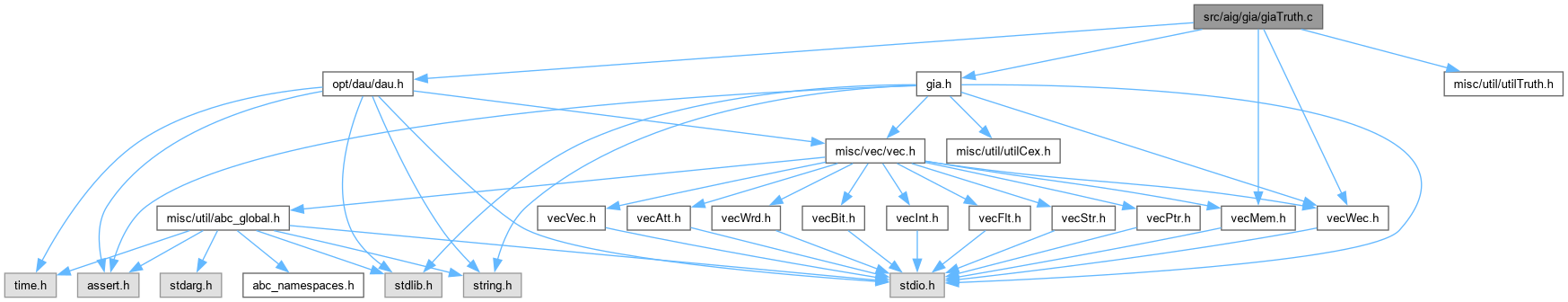

Include dependency graph for giaTruth.c:

Go to the source code of this file.

Functions
word	Gia_LutComputeTruth6Simple_rec (Gia_Man_t *p, int iObj)
	FUNCTION DEFINITIONS ///.
word	Gia_LutComputeTruth6Simple (Gia_Man_t *p, int iPo)
word	Gia_LutComputeTruth6Map_rec (Gia_Man_t *p, int iObj, Vec_Int_t *vMap)
word	Gia_LutComputeTruth6Map (Gia_Man_t *p, int iPo, Vec_Int_t *vMap)
int	Gia_Truth5ToGia (Gia_Man_t *p, int *pVarLits, int nVars, unsigned Truth, int fHash)
int	Gia_Truth6ToGia (Gia_Man_t *p, int *pVarLits, int nVars, word Truth, int fHash)
void	Gia_Truth6ToGiaTest (Gia_Man_t *p)
word	Gia_LutComputeTruth6_rec (Gia_Man_t *p, int iNode, Vec_Wrd_t *vTruths)
word	Gia_LutComputeTruth6 (Gia_Man_t *p, int iObj, Vec_Wrd_t *vTruths)
void	Gia_ObjComputeTruthTable6Lut_rec (Gia_Man_t *p, int iObj, Vec_Wrd_t *vTemp)
word	Gia_ObjComputeTruthTable6Lut (Gia_Man_t *p, int iObj, Vec_Wrd_t *vTemp)
word	Gia_ObjComputeTruth6 (Gia_Man_t *p, int iObj, Vec_Int_t *vSupp, Vec_Wrd_t *vTemp)
void	Gia_ObjComputeTruth6CisSupport_rec (Gia_Man_t *p, int iObj, Vec_Int_t *vSupp)
word	Gia_ObjComputeTruth6Cis (Gia_Man_t *p, int iLit, Vec_Int_t *vSupp, Vec_Wrd_t *vTemp)
void	Gia_ObjComputeTruthTable6_rec (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Wrd_t *vTruths)
word	Gia_ObjComputeTruthTable6 (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Int_t *vSupp, Vec_Wrd_t *vTruths)
void	Gia_ObjCollectInternal_rec (Gia_Man_t *p, Gia_Obj_t *pObj)
void	Gia_ObjCollectInternal (Gia_Man_t *p, Gia_Obj_t *pObj)
word *	Gia_ObjComputeTruthTable (Gia_Man_t *p, Gia_Obj_t *pObj)
void	Gia_ObjComputeTruthTableTest (Gia_Man_t *p)
void	Gia_ObjComputeTruthTableStart (Gia_Man_t *p, int nVarsMax)
void	Gia_ObjComputeTruthTableStop (Gia_Man_t *p)
void	Gia_ObjCollectInternalCut_rec (Gia_Man_t *p, int iObj)
void	Gia_ObjCollectInternalCut (Gia_Man_t *p, int iRoot, Vec_Int_t *vLeaves)
word *	Gia_ObjComputeTruthTableCut (Gia_Man_t *p, Gia_Obj_t *pRoot, Vec_Int_t *vLeaves)
Gia_Man_t *	Gia_ManIsoNpnReduce (Gia_Man_t *p, Vec_Ptr_t **pvPosEquivs, int fVerbose)

Function Documentation

Gia_LutComputeTruth6()

word Gia_LutComputeTruth6	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Wrd_t *	vTruths )

Definition at line 249 of file giaTruth.c.

{
    int k, iFan;
    assert( Gia_ObjIsLut(p, iObj) );
    Gia_ManIncrementTravId( p );
    Gia_LutForEachFanin( p, iObj, iFan, k )
    {
        Vec_WrdWriteEntry( vTruths, iFan, s_Truths6[k] );
        Gia_ObjSetTravIdCurrentId( p, iFan );
    }
    return Gia_LutComputeTruth6_rec( p, iObj, vTruths );
}

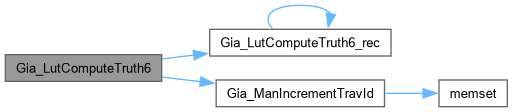

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_LutComputeTruth6_rec()

word Gia_LutComputeTruth6_rec	(	Gia_Man_t *	p,
		int	iNode,
		Vec_Wrd_t *	vTruths )

Function*************************************************************

Synopsis [Compute truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 231 of file giaTruth.c.

{
    Gia_Obj_t * pObj;
    word Truth0, Truth1;
    if ( Gia_ObjIsTravIdCurrentId(p, iNode) )
        return Vec_WrdEntry(vTruths, iNode);
    Gia_ObjSetTravIdCurrentId(p, iNode);
    pObj = Gia_ManObj( p, iNode );
    assert( Gia_ObjIsAnd(pObj) );
    Truth0 = Gia_LutComputeTruth6_rec( p, Gia_ObjFaninId0p(p, pObj), vTruths );
    Truth1 = Gia_LutComputeTruth6_rec( p, Gia_ObjFaninId1p(p, pObj), vTruths );
    if ( Gia_ObjFaninC0(pObj) )
        Truth0 = ~Truth0;
    if ( Gia_ObjFaninC1(pObj) )
        Truth1 = ~Truth1;
    Vec_WrdWriteEntry( vTruths, iNode, Truth0 & Truth1 );
    return Truth0 & Truth1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_LutComputeTruth6Map()

word Gia_LutComputeTruth6Map	(	Gia_Man_t *	p,
		int	iPo,
		Vec_Int_t *	vMap )

Definition at line 103 of file giaTruth.c.

{
    Gia_Obj_t * pObj = Gia_ManPo( p, iPo );
    word Truth = Gia_LutComputeTruth6Map_rec( p, Gia_ObjFaninId0p(p, pObj), vMap );
    return Gia_ObjFaninC0(pObj) ? ~Truth : Truth;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_LutComputeTruth6Map_rec()

word Gia_LutComputeTruth6Map_rec	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Int_t *	vMap )

Definition at line 88 of file giaTruth.c.

{
    word Truth0, Truth1, Truth;
    Gia_Obj_t * pObj = Gia_ManObj(p, iObj);
    if ( Gia_ObjIsConst0(pObj) )
        return 0;
    if ( Gia_ObjIsCi(pObj) )
        return s_Truths6[Vec_IntEntry(vMap, Gia_ObjCioId(pObj))];
    Truth0 = Gia_LutComputeTruth6Map_rec( p, Gia_ObjFaninId0(pObj, iObj), vMap );
    Truth1 = Gia_LutComputeTruth6Map_rec( p, Gia_ObjFaninId1(pObj, iObj), vMap );
    Truth0 = Gia_ObjFaninC0(pObj) ? ~Truth0 : Truth0;
    Truth1 = Gia_ObjFaninC1(pObj) ? ~Truth1 : Truth1;
    Truth  = Gia_ObjIsXor(pObj) ? Truth0 ^ Truth1 : Truth0 & Truth1;
    return Truth;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_LutComputeTruth6Simple()

word Gia_LutComputeTruth6Simple	(	Gia_Man_t *	p,
		int	iPo )

Definition at line 81 of file giaTruth.c.

{
    Gia_Obj_t * pObj = Gia_ManPo( p, iPo );
    word Truth = Gia_LutComputeTruth6Simple_rec( p, Gia_ObjFaninId0p(p, pObj) );
    return Gia_ObjFaninC0(pObj) ? ~Truth : Truth;
}

Here is the call graph for this function:

Gia_LutComputeTruth6Simple_rec()

word Gia_LutComputeTruth6Simple_rec	(	Gia_Man_t *	p,
		int	iObj )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Compute truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 66 of file giaTruth.c.

{
    word Truth0, Truth1, Truth;
    Gia_Obj_t * pObj = Gia_ManObj(p, iObj);
    if ( Gia_ObjIsConst0(pObj) )
        return 0;
    if ( Gia_ObjIsCi(pObj) )
        return s_Truths6[Gia_ObjCioId(pObj)];
    Truth0 = Gia_LutComputeTruth6Simple_rec( p, Gia_ObjFaninId0(pObj, iObj) );
    Truth1 = Gia_LutComputeTruth6Simple_rec( p, Gia_ObjFaninId1(pObj, iObj) );
    Truth0 = Gia_ObjFaninC0(pObj) ? ~Truth0 : Truth0;
    Truth1 = Gia_ObjFaninC1(pObj) ? ~Truth1 : Truth1;
    Truth  = Gia_ObjIsXor(pObj) ? Truth0 ^ Truth1 : Truth0 & Truth1;
    return Truth;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManIsoNpnReduce()

Gia_Man_t * Gia_ManIsoNpnReduce	(	Gia_Man_t *	p,
		Vec_Ptr_t **	pvPosEquivs,
		int	fVerbose )

Function*************************************************************

Synopsis [Reduces GIA to contain isomorphic POs.]

Description [The root cannot be one of the leaves.]

SideEffects []

SeeAlso []

Definition at line 702 of file giaTruth.c.

{
    char pCanonPerm[16];
    int i, iObj, uCanonPhase, nVars, lastId, truthId;
    int IndexCon = -1, IndexVar = -1;
    Vec_Wec_t * vPosEquivs = Vec_WecAlloc( 100 );
    word * pTruth;
    Gia_Obj_t * pObj;
    Vec_Mem_t * vTtMem[17];   // truth table memory and hash table
    Gia_Man_t * pNew = NULL;
    Vec_Int_t * vLeaves = Vec_IntAlloc( 16 );
    Vec_Int_t * vFirsts;
    Vec_Int_t * vTt2Class[17];
    for ( i = 0; i < 17; i++ )
    {
        vTtMem[i] = Vec_MemAlloc( Abc_TtWordNum(i), 10 );
        Vec_MemHashAlloc( vTtMem[i], 1000 );
        vTt2Class[i] = Vec_IntStartFull( Gia_ManCoNum(p)+1 );
    }
    Gia_ObjComputeTruthTableStart( p, 16 );
    Gia_ManForEachPo( p, pObj, i )
    {
        iObj = Gia_ObjId(p, pObj);
        Gia_ManCollectCis( p, &iObj, 1, vLeaves );
        if ( Vec_IntSize(vLeaves) > 16 )
        {
            Vec_IntPush( Vec_WecPushLevel(vPosEquivs), i );
            continue;
        }
        pObj = Gia_ObjFanin0(pObj);
        if ( Gia_ObjIsConst0(pObj) )
        {
            if ( IndexCon == -1 )
            {
                IndexCon = Vec_WecSize(vPosEquivs);
                Vec_WecPushLevel(vPosEquivs);
            }
            Vec_WecPush( vPosEquivs, IndexCon, i );
            continue;
        }
        if ( Gia_ObjIsCi(pObj) )
        {
            if ( IndexVar == -1 )
            {
                IndexVar = Vec_WecSize(vPosEquivs);
                Vec_WecPushLevel(vPosEquivs);
            }
            Vec_WecPush( vPosEquivs, IndexVar, i );
            continue;
        }
        assert( Gia_ObjIsAnd(pObj) );
        pTruth = Gia_ObjComputeTruthTableCut( p, pObj, vLeaves );
        Abc_TtMinimumBase( pTruth, NULL, Vec_IntSize(vLeaves), &nVars );
        if ( nVars == 0 )
        {
            if ( IndexCon == -1 )
            {
                IndexCon = Vec_WecSize(vPosEquivs);
                Vec_WecPushLevel(vPosEquivs);
            }
            Vec_WecPush( vPosEquivs, IndexCon, i );
            continue;
        }
        if ( nVars == 1 )
        {
            if ( IndexVar == -1 )
            {
                IndexVar = Vec_WecSize(vPosEquivs);
                Vec_WecPushLevel(vPosEquivs);
            }
            Vec_WecPush( vPosEquivs, IndexVar, i );
            continue;
        }
        uCanonPhase = Abc_TtCanonicize( pTruth, nVars, pCanonPerm );
        lastId = Vec_MemEntryNum( vTtMem[nVars] );
        truthId = Vec_MemHashInsert( vTtMem[nVars], pTruth );
        if ( lastId != Vec_MemEntryNum( vTtMem[nVars] ) ) // new one
        {
            assert( Vec_IntEntry(vTt2Class[nVars], truthId) == -1 );
            Vec_IntWriteEntry( vTt2Class[nVars], truthId, Vec_WecSize(vPosEquivs) );
            Vec_WecPushLevel(vPosEquivs);
        }
        assert( Vec_IntEntry(vTt2Class[nVars], truthId) >= 0 );
        Vec_WecPush( vPosEquivs, Vec_IntEntry(vTt2Class[nVars], truthId), i );
    }
    Gia_ObjComputeTruthTableStop( p );
    Vec_IntFree( vLeaves );
    for ( i = 0; i < 17; i++ )
    {
        Vec_MemHashFree( vTtMem[i] );
        Vec_MemFree( vTtMem[i] );
        Vec_IntFree( vTt2Class[i] );
    }

    // find the first outputs and derive GIA
    vFirsts = Vec_WecCollectFirsts( vPosEquivs );
    pNew = Gia_ManDupCones( p, Vec_IntArray(vFirsts), Vec_IntSize(vFirsts), 0 );
    Vec_IntFree( vFirsts );
    // report and return
    if ( fVerbose )
    {
        printf( "Nontrivial classes:\n" );
        Vec_WecPrint( vPosEquivs, 1 );
    }
    if ( pvPosEquivs )
        *pvPosEquivs = Vec_WecConvertToVecPtr( vPosEquivs );
    Vec_WecFree( vPosEquivs );
    return pNew;
}

Here is the call graph for this function:

Gia_ObjCollectInternal()

void Gia_ObjCollectInternal	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Definition at line 429 of file giaTruth.c.

{
    Vec_IntClear( p->vTtNodes );
    Gia_ObjCollectInternal_rec( p, pObj );
}

Here is the call graph for this function:

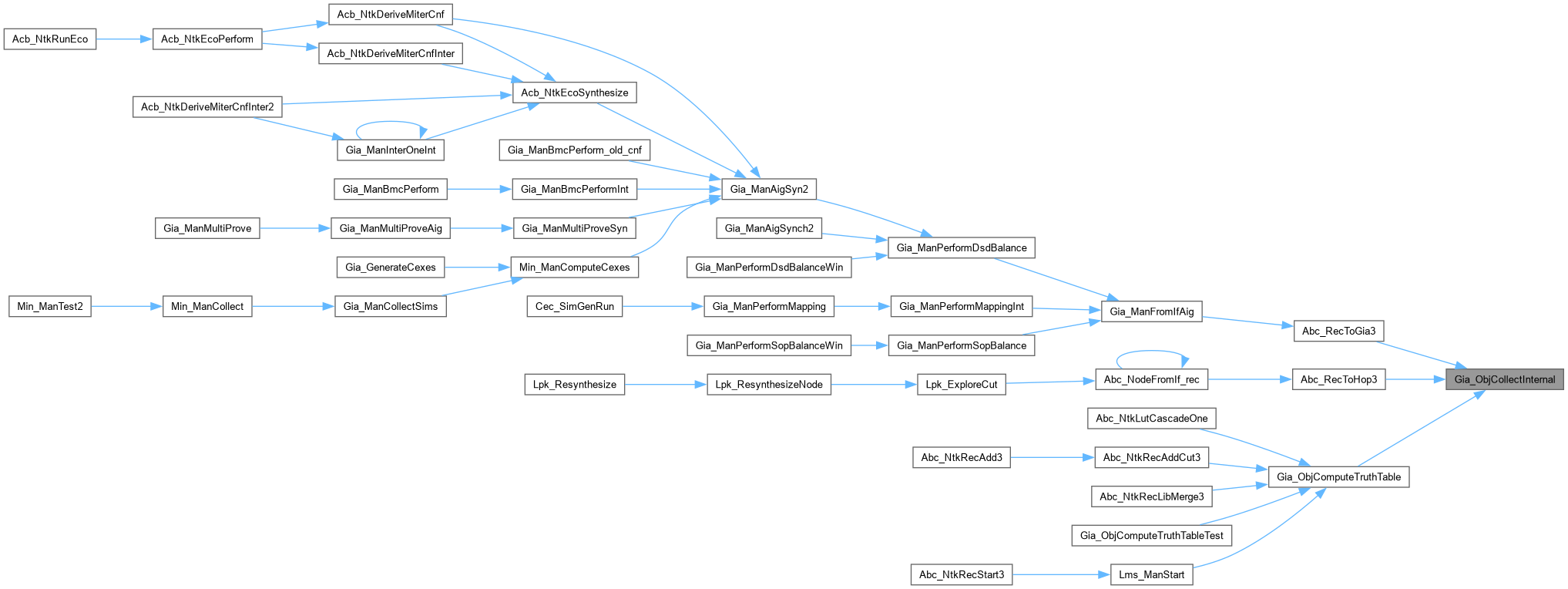

Here is the caller graph for this function:

Gia_ObjCollectInternal_rec()

void Gia_ObjCollectInternal_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Collects internal nodes reachable from the given node.]

Description []

SideEffects []

SeeAlso []

Definition at line 417 of file giaTruth.c.

{
    if ( !Gia_ObjIsAnd(pObj) )
        return;
    if ( pObj->fMark0 )
        return;
    pObj->fMark0 = 1;
    Gia_ObjCollectInternal_rec( p, Gia_ObjFanin0(pObj) );
    Gia_ObjCollectInternal_rec( p, Gia_ObjFanin1(pObj) );
    Gia_ObjSetNum( p, pObj, Vec_IntSize(p->vTtNodes) );
    Vec_IntPush( p->vTtNodes, Gia_ObjId(p, pObj) );
}

Here is the call graph for this function:

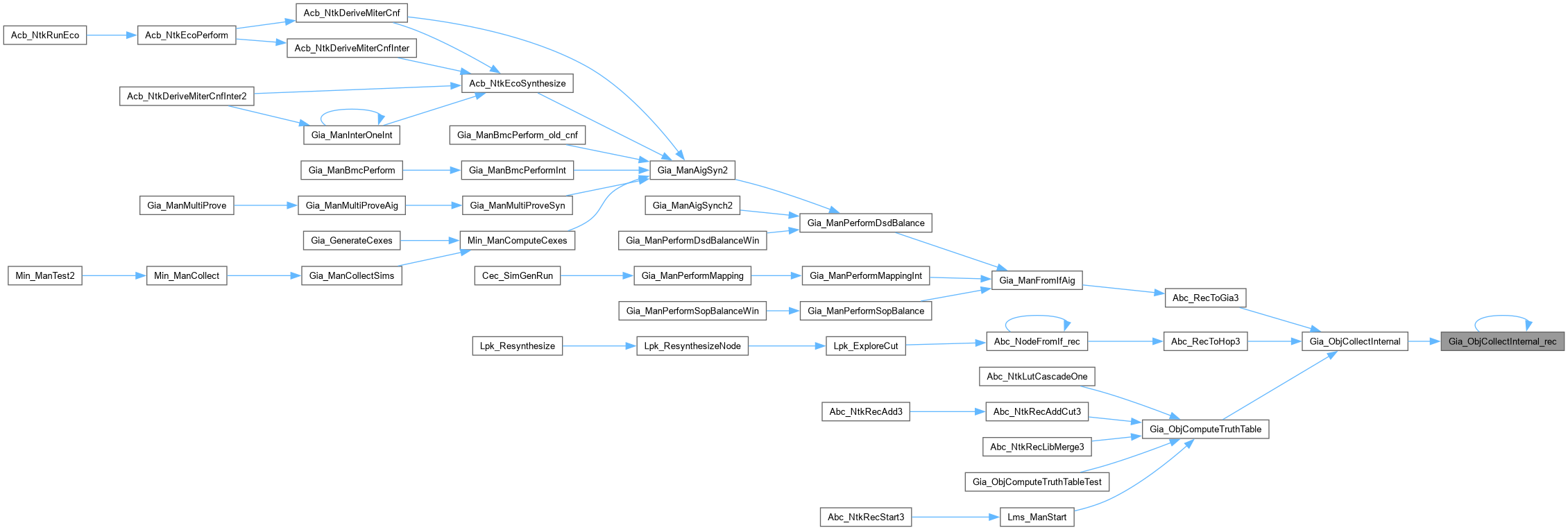

Here is the caller graph for this function:

Gia_ObjCollectInternalCut()

void Gia_ObjCollectInternalCut	(	Gia_Man_t *	p,
		int	iRoot,
		Vec_Int_t *	vLeaves )

Definition at line 599 of file giaTruth.c.

{
    int i, iObj;
    assert( !Gia_ObjHasNumId(p, iRoot) );
    assert( Gia_ObjIsAnd(Gia_ManObj(p, iRoot)) );
    Vec_IntForEachEntry( vLeaves, iObj, i )
    {
        if ( Gia_ObjHasNumId(p, iObj) ) // if cuts have repeated variables, skip
            continue;
        assert( !Gia_ObjHasNumId(p, iObj) );
        Gia_ObjSetNumId( p, iObj, -i );
    }
    assert( !Gia_ObjHasNumId(p, iRoot) ); // the root cannot be one of the leaves
    Vec_IntClear( p->vTtNodes );
    Vec_IntPush( p->vTtNodes, -1 );
    Gia_ObjCollectInternalCut_rec( p, iRoot );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ObjCollectInternalCut_rec()

void Gia_ObjCollectInternalCut_rec	(	Gia_Man_t *	p,
		int	iObj )

Function*************************************************************

Synopsis [Collects internal nodes reachable from the given node.]

Description []

SideEffects []

SeeAlso []

Definition at line 589 of file giaTruth.c.

{
    if ( Gia_ObjHasNumId(p, iObj) )
        return;
    assert( Gia_ObjIsAnd(Gia_ManObj(p, iObj)) );
    Gia_ObjCollectInternalCut_rec( p, Gia_ObjFaninId0(Gia_ManObj(p, iObj), iObj) );
    Gia_ObjCollectInternalCut_rec( p, Gia_ObjFaninId1(Gia_ManObj(p, iObj), iObj) );
    Gia_ObjSetNumId( p, iObj, Vec_IntSize(p->vTtNodes) );
    Vec_IntPush( p->vTtNodes, iObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ObjComputeTruth6()

word Gia_ObjComputeTruth6	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Int_t *	vSupp,
		Vec_Wrd_t *	vTemp )

Function*************************************************************

Synopsis [Computes truth table up to 6 inputs in terms of CIs.]

Description []

SideEffects []

SeeAlso []

Definition at line 316 of file giaTruth.c.

{
    int i, Fanin;
    assert( Vec_WrdSize(vTemp) == Gia_ManObjNum(p) );
    assert( Vec_IntSize(vSupp) <= 6 );
    Gia_ManIncrementTravId( p );
    Vec_IntForEachEntry( vSupp, Fanin, i )
    {
        Gia_ObjSetTravIdCurrentId( p, Fanin );
        Vec_WrdWriteEntry( vTemp, Fanin, s_Truth6[i] );
    }
    Gia_ObjComputeTruthTable6Lut_rec( p, iObj, vTemp );
    return Vec_WrdEntry( vTemp, iObj );
}

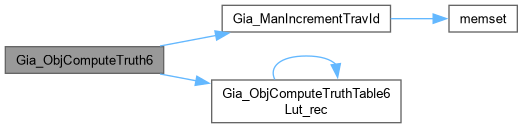

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ObjComputeTruth6Cis()

word Gia_ObjComputeTruth6Cis	(	Gia_Man_t *	p,
		int	iLit,
		Vec_Int_t *	vSupp,
		Vec_Wrd_t *	vTemp )

Definition at line 345 of file giaTruth.c.

{
    int iObj = Abc_Lit2Var(iLit);
    Vec_IntClear( vSupp );
    if ( !iObj ) return Abc_LitIsCompl(iLit) ? ~(word)0 : (word)0;
    Gia_ManIncrementTravId( p );
    Gia_ObjComputeTruth6CisSupport_rec( p, iObj, vSupp );
    if ( Vec_IntSize(vSupp) > 6 )
        return 0;
    Gia_ObjComputeTruth6( p, iObj, vSupp, vTemp );
    return Abc_LitIsCompl(iLit) ? ~Vec_WrdEntry(vTemp, iObj) : Vec_WrdEntry(vTemp, iObj);
}

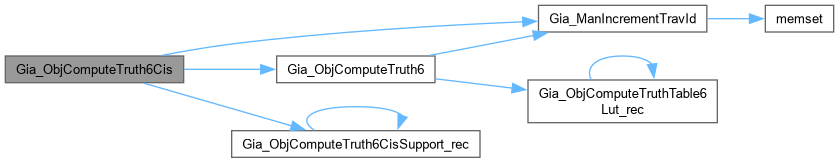

Here is the call graph for this function:

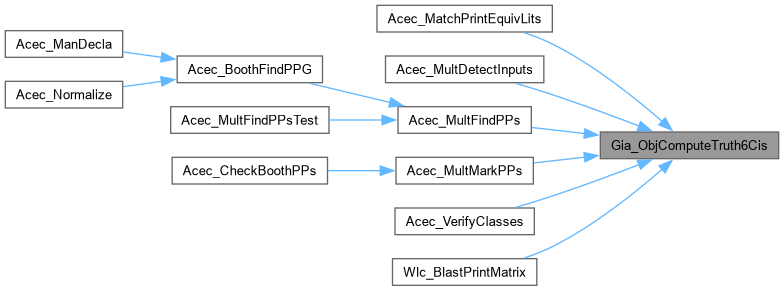

Here is the caller graph for this function:

Gia_ObjComputeTruth6CisSupport_rec()

void Gia_ObjComputeTruth6CisSupport_rec	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Int_t *	vSupp )

Definition at line 330 of file giaTruth.c.

{
    Gia_Obj_t * pObj = Gia_ManObj( p, iObj );
    if ( Gia_ObjIsTravIdCurrentId(p, iObj) )
        return;
    Gia_ObjSetTravIdCurrentId(p, iObj);
    if ( Gia_ObjIsCi(pObj) )
    {
        Vec_IntPushOrder( vSupp, iObj );
        return;
    }
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ObjComputeTruth6CisSupport_rec( p, Gia_ObjFaninId0p(p, pObj), vSupp );
    Gia_ObjComputeTruth6CisSupport_rec( p, Gia_ObjFaninId1p(p, pObj), vSupp );
}

Here is the call graph for this function:

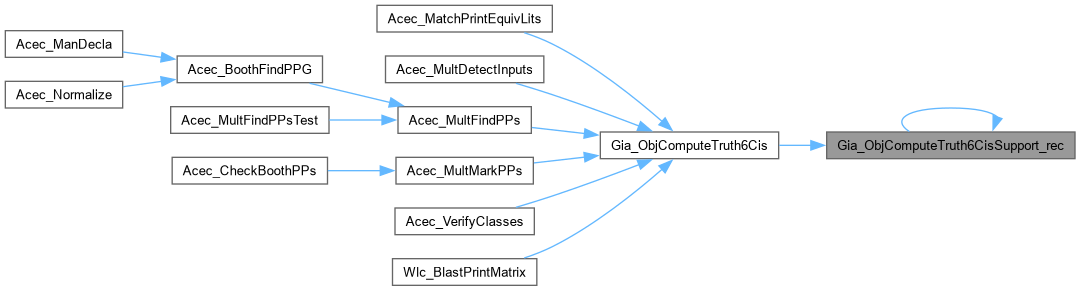

Here is the caller graph for this function:

Gia_ObjComputeTruthTable()

word * Gia_ObjComputeTruthTable	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Computing the truth table for GIA object.]

Description [The truth table should be used by the calling application (or saved into the user's storage) before this procedure is called again.]

SideEffects []

SeeAlso []

Definition at line 447 of file giaTruth.c.

{
    Gia_Obj_t * pTemp, * pRoot;
    word * pTruth, * pTruthL, * pTruth0, * pTruth1;
    int i;
    if ( p->vTtMemory == NULL )
    {
        p->nTtVars   = Gia_ManPiNum( p );
        p->nTtWords  = Abc_Truth6WordNum( p->nTtVars );
        p->vTtNums   = Vec_IntStart( Gia_ManObjNum(p) + 1000 );
        p->vTtNodes  = Vec_IntAlloc( 256 );
        p->vTtInputs = Vec_PtrAllocTruthTables( Abc_MaxInt(6, p->nTtVars) );
        p->vTtMemory = Vec_WrdStart( p->nTtWords * 256 );
    }
    else
    {
        // make sure the number of primary inputs did not change
        // since the truth table computation storage was prepared
        assert( p->nTtVars == Gia_ManPiNum(p) );
    }
    // extend ID numbers
    if ( Vec_IntSize(p->vTtNums) < Gia_ManObjNum(p) )
        Vec_IntFillExtra( p->vTtNums, Gia_ManObjNum(p), 0 );
    // collect internal nodes
    pRoot = Gia_ObjIsCo(pObj) ? Gia_ObjFanin0(pObj) : pObj;
    Gia_ObjCollectInternal( p, pRoot );
    // extend TT storage
    if ( Vec_WrdSize(p->vTtMemory) < p->nTtWords * (Vec_IntSize(p->vTtNodes) + 2) )
        Vec_WrdFillExtra( p->vTtMemory, p->nTtWords * (Vec_IntSize(p->vTtNodes) + 2), 0 );
    // compute the truth table for internal nodes
    Gia_ManForEachObjVec( p->vTtNodes, p, pTemp, i )
    {
        pTemp->fMark0 = 0; // unmark nodes marked by Gia_ObjCollectInternal()
        pTruth  = Gla_ObjTruthNode(p, pTemp);
        pTruthL = pTruth + p->nTtWords;
        pTruth0 = Gia_ObjIsAnd(Gia_ObjFanin0(pTemp)) ? Gla_ObjTruthNode(p, Gia_ObjFanin0(pTemp)) : Gla_ObjTruthElem(p, Gia_ObjCioId(Gia_ObjFanin0(pTemp)) );
        pTruth1 = Gia_ObjIsAnd(Gia_ObjFanin1(pTemp)) ? Gla_ObjTruthNode(p, Gia_ObjFanin1(pTemp)) : Gla_ObjTruthElem(p, Gia_ObjCioId(Gia_ObjFanin1(pTemp)) );
        if ( Gia_ObjFaninC0(pTemp) )
        {
            if ( Gia_ObjFaninC1(pTemp) )
                while ( pTruth < pTruthL )
                    *pTruth++ = ~*pTruth0++ & ~*pTruth1++;
            else
                while ( pTruth < pTruthL )
                    *pTruth++ = ~*pTruth0++ &  *pTruth1++;
        }
        else
        {
            if ( Gia_ObjFaninC1(pTemp) )
                while ( pTruth < pTruthL )
                    *pTruth++ =  *pTruth0++ & ~*pTruth1++;
            else
                while ( pTruth < pTruthL )
                    *pTruth++ =  *pTruth0++ &  *pTruth1++;
        }
    }
    // compute the final table
    if ( Gia_ObjIsConst0(pRoot) )
        pTruth = Gla_ObjTruthConst0( p, Gla_ObjTruthFree1(p) );
    else if ( Gia_ObjIsPi(p, pRoot) )
        pTruth = Gla_ObjTruthElem( p, Gia_ObjCioId(pRoot) );
    else if ( Gia_ObjIsAnd(pRoot) )
        pTruth = Gla_ObjTruthNode( p, pRoot );
    else
        pTruth = NULL;
    return Gla_ObjTruthDup( p, Gla_ObjTruthFree2(p), pTruth, Gia_ObjIsCo(pObj) && Gia_ObjFaninC0(pObj) );
}

Here is the call graph for this function:

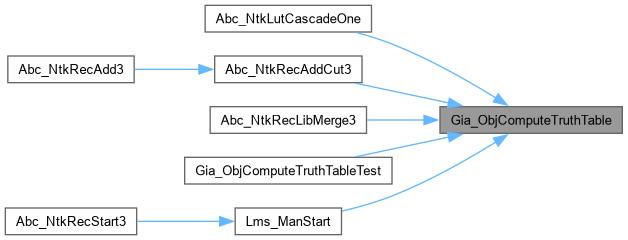

Here is the caller graph for this function:

Gia_ObjComputeTruthTable6()

word Gia_ObjComputeTruthTable6	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Int_t *	vSupp,
		Vec_Wrd_t *	vTruths )

Definition at line 386 of file giaTruth.c.

{
    Gia_Obj_t * pLeaf;
    int i;
    assert( Vec_IntSize(vSupp) <= 6 );
    assert( Gia_ObjIsAnd(pObj) );
    assert( !pObj->fMark0 );
    Vec_WrdClear( vTruths );
    Gia_ManIncrementTravId( p );
    Gia_ManForEachObjVec( vSupp, p, pLeaf, i )
    {
        assert( pLeaf->fMark0 || Gia_ObjIsRo(p, pLeaf) );
        pLeaf->Value = Vec_WrdSize(vTruths);
        Vec_WrdPush( vTruths, s_Truth6[i] );
        Gia_ObjSetTravIdCurrent(p, pLeaf);
    }
    Gia_ObjComputeTruthTable6_rec( p, pObj, vTruths );
    return Vec_WrdEntryLast( vTruths );
}

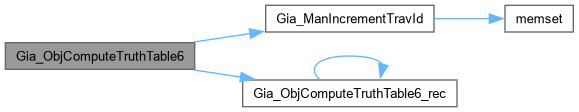

Here is the call graph for this function:

Gia_ObjComputeTruthTable6_rec()

void Gia_ObjComputeTruthTable6_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Wrd_t *	vTruths )

Function*************************************************************

Synopsis [Computes truth table up to 6 inputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 369 of file giaTruth.c.

{
    word uTruth0, uTruth1;
    if ( Gia_ObjIsTravIdCurrent(p, pObj) )
        return;
    Gia_ObjSetTravIdCurrent(p, pObj);
    assert( !pObj->fMark0 );
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ObjComputeTruthTable6_rec( p, Gia_ObjFanin0(pObj), vTruths );
    Gia_ObjComputeTruthTable6_rec( p, Gia_ObjFanin1(pObj), vTruths );
    uTruth0 = Vec_WrdEntry( vTruths, Gia_ObjFanin0(pObj)->Value );
    uTruth0 = Gia_ObjFaninC0(pObj) ? ~uTruth0 : uTruth0;
    uTruth1 = Vec_WrdEntry( vTruths, Gia_ObjFanin1(pObj)->Value );
    uTruth1 = Gia_ObjFaninC1(pObj) ? ~uTruth1 : uTruth1;
    pObj->Value = Vec_WrdSize(vTruths);
    Vec_WrdPush( vTruths, uTruth0 & uTruth1 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ObjComputeTruthTable6Lut()

word Gia_ObjComputeTruthTable6Lut	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Wrd_t *	vTemp )

Definition at line 289 of file giaTruth.c.

{
    int i, Fanin;
    assert( Vec_WrdSize(vTemp) == Gia_ManObjNum(p) );
    assert( Gia_ObjIsLut(p, iObj) );
    Gia_ManIncrementTravId( p );
    Gia_LutForEachFanin( p, iObj, Fanin, i )
    {
        Gia_ObjSetTravIdCurrentId( p, Fanin );
        Vec_WrdWriteEntry( vTemp, Fanin, s_Truth6[i] );
    }
    assert( i <= 6 );
    Gia_ObjComputeTruthTable6Lut_rec( p, iObj, vTemp );
    return Vec_WrdEntry( vTemp, iObj );
}

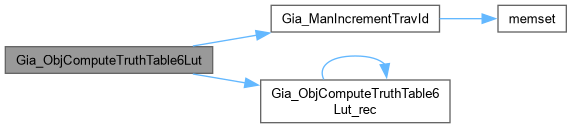

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ObjComputeTruthTable6Lut_rec()

void Gia_ObjComputeTruthTable6Lut_rec	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Wrd_t *	vTemp )

Function*************************************************************

Synopsis [Computes truth table of a 6-LUT.]

Description []

SideEffects []

SeeAlso []

Definition at line 273 of file giaTruth.c.

{
    word uTruth0, uTruth1;
    Gia_Obj_t * pObj = Gia_ManObj( p, iObj );
    if ( Gia_ObjIsTravIdCurrentId(p, iObj) )
        return;
    Gia_ObjSetTravIdCurrentId(p, iObj);
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ObjComputeTruthTable6Lut_rec( p, Gia_ObjFaninId0p(p, pObj), vTemp );
    Gia_ObjComputeTruthTable6Lut_rec( p, Gia_ObjFaninId1p(p, pObj), vTemp );
    uTruth0 = Vec_WrdEntry( vTemp, Gia_ObjFaninId0p(p, pObj) );
    uTruth0 = Gia_ObjFaninC0(pObj) ? ~uTruth0 : uTruth0;
    uTruth1 = Vec_WrdEntry( vTemp, Gia_ObjFaninId1p(p, pObj) );
    uTruth1 = Gia_ObjFaninC1(pObj) ? ~uTruth1 : uTruth1;
    Vec_WrdWriteEntry( vTemp, iObj, uTruth0 & uTruth1 );
}

Here is the call graph for this function:

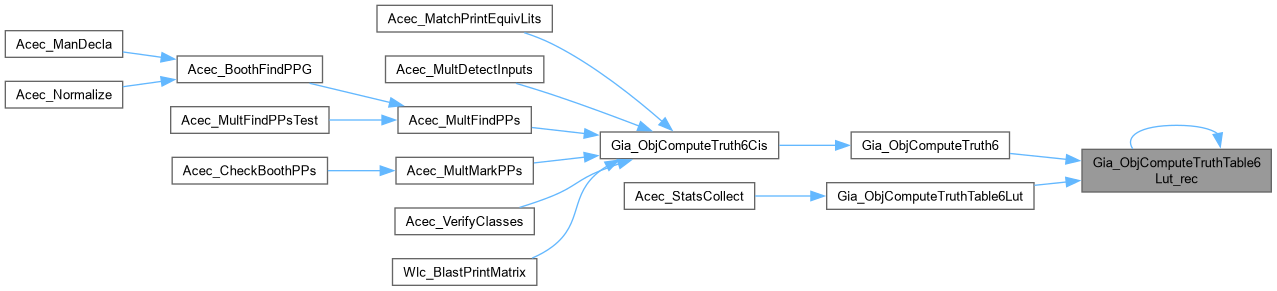

Here is the caller graph for this function:

Gia_ObjComputeTruthTableCut()

word * Gia_ObjComputeTruthTableCut	(	Gia_Man_t *	p,
		Gia_Obj_t *	pRoot,
		Vec_Int_t *	vLeaves )

Function*************************************************************

Synopsis [Computes the truth table of pRoot in terms of leaves.]

Description [The root cannot be one of the leaves.]

SideEffects []

SeeAlso []

Definition at line 628 of file giaTruth.c.

{
    Gia_Obj_t * pTemp;
    word * pTruth, * pTruthL, * pTruth0, * pTruth1;
    int i, iObj, Id0, Id1, Index = Vec_IntFind(vLeaves, Gia_ObjId(p, pRoot));
    assert( p->vTtMemory != NULL );
    assert( Vec_IntSize(vLeaves) <= p->nTtVars );
    if ( Index >= 0 )
        return Gla_ObjTruthElem( p, Index );
    if ( Gia_ObjIsConst0(pRoot) )
    {
        if ( Vec_WrdSize(p->vTtMemory) < p->nTtWords )
            Vec_WrdFillExtra( p->vTtMemory, p->nTtWords, 0 );
        return Gla_ObjTruthConst0( p, Gla_ObjTruthFree1(p) );
    }
    assert( Gia_ObjIsAnd(pRoot) );
    // extend ID numbers
    if ( Vec_IntSize(p->vTtNums) < Gia_ManObjNum(p) )
        Vec_IntFillExtra( p->vTtNums, Gia_ManObjNum(p), -ABC_INFINITY );
    // collect internal nodes
    Gia_ObjCollectInternalCut( p, Gia_ObjId(p, pRoot), vLeaves );
    // extend TT storage
    if ( Vec_WrdSize(p->vTtMemory) < p->nTtWords * (Vec_IntSize(p->vTtNodes) + 2) )
        Vec_WrdFillExtra( p->vTtMemory, p->nTtWords * (Vec_IntSize(p->vTtNodes) + 2), 0 );
    // compute the truth table for internal nodes
    Vec_IntForEachEntryStart( p->vTtNodes, iObj, i, 1 )
    {
        assert( i == Gia_ObjNumId(p, iObj) );
        pTemp   = Gia_ManObj( p, iObj );
        pTruth  = Gla_ObjTruthNodeId( p, i );
        pTruthL = pTruth + p->nTtWords;
        Id0 = Gia_ObjNumId( p, Gia_ObjFaninId0(pTemp, iObj) );
        Id1 = Gia_ObjNumId( p, Gia_ObjFaninId1(pTemp, iObj) );
        pTruth0 = (Id0 > 0) ? Gla_ObjTruthNodeId(p, Id0) : Gla_ObjTruthElem(p, -Id0);
        pTruth1 = (Id1 > 0) ? Gla_ObjTruthNodeId(p, Id1) : Gla_ObjTruthElem(p, -Id1);
        if ( Gia_ObjFaninC0(pTemp) )
        {
            if ( Gia_ObjFaninC1(pTemp) )
                while ( pTruth < pTruthL )
                    *pTruth++ = ~*pTruth0++ & ~*pTruth1++;
            else
                while ( pTruth < pTruthL )
                    *pTruth++ = ~*pTruth0++ &  *pTruth1++;
        }
        else
        {
            if ( Gia_ObjFaninC1(pTemp) )
                while ( pTruth < pTruthL )
                    *pTruth++ =  *pTruth0++ & ~*pTruth1++;
            else
                while ( pTruth < pTruthL )
                    *pTruth++ =  *pTruth0++ &  *pTruth1++;
        }
    }
    pTruth = Gla_ObjTruthNode( p, pRoot );
    // unmark leaves marked by Gia_ObjCollectInternal()
    Vec_IntForEachEntry( vLeaves, iObj, i )
        Gia_ObjResetNumId( p, iObj );
    Vec_IntForEachEntryStart( p->vTtNodes, iObj, i, 1 )
        Gia_ObjResetNumId( p, iObj );
    return pTruth;
}

Here is the call graph for this function:

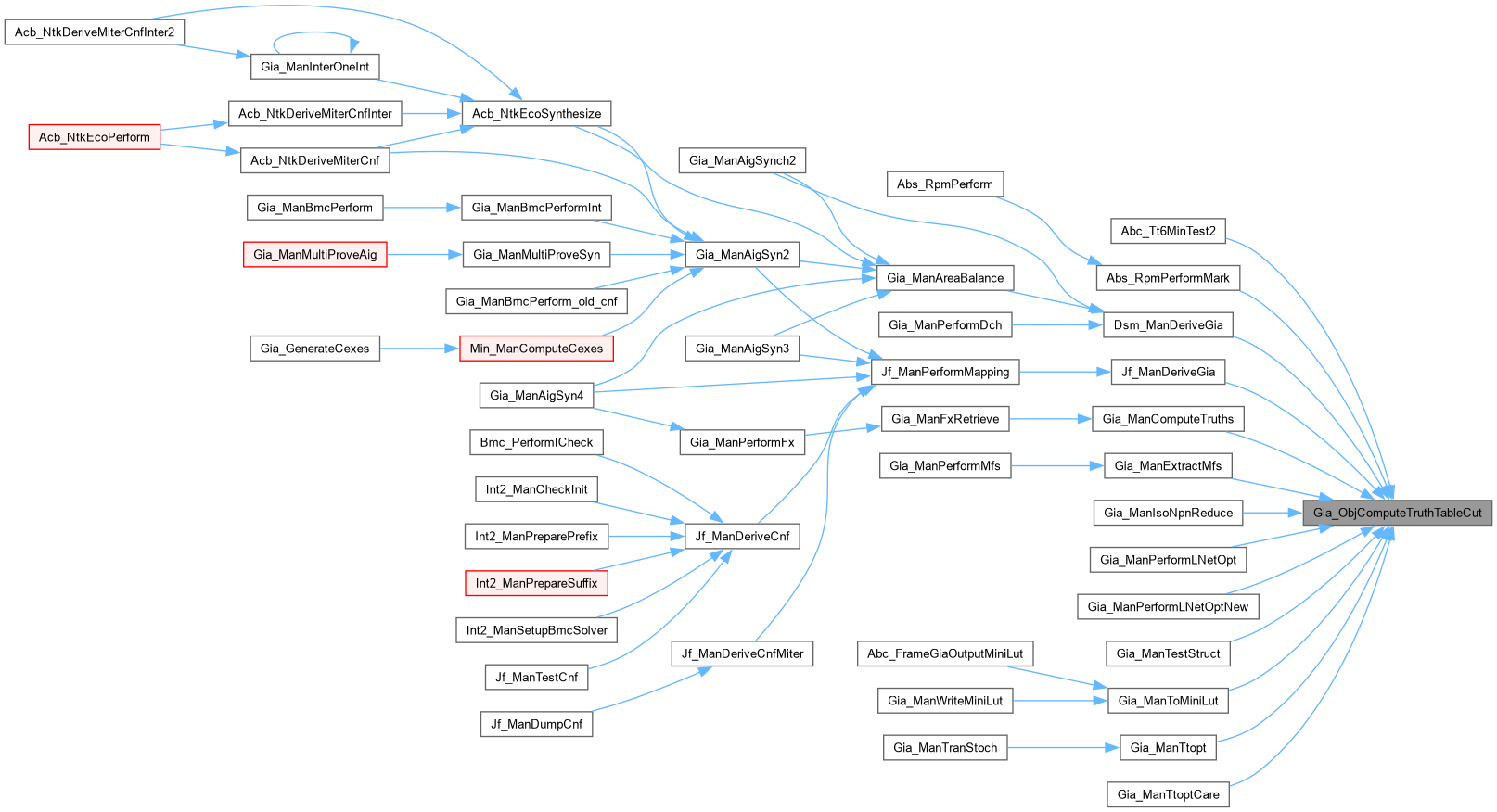

Here is the caller graph for this function:

Gia_ObjComputeTruthTableStart()

void Gia_ObjComputeTruthTableStart	(	Gia_Man_t *	p,
		int	nVarsMax )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 552 of file giaTruth.c.

{
    assert( p->vTtMemory == NULL );
    p->nTtVars   = nVarsMax;
    p->nTtWords  = Abc_Truth6WordNum( p->nTtVars );
    p->vTtNodes  = Vec_IntAlloc( 256 );
    p->vTtInputs = Vec_PtrAllocTruthTables( Abc_MaxInt(6, p->nTtVars) );
    p->vTtMemory = Vec_WrdStart( p->nTtWords * 64 );
    p->vTtNums   = Vec_IntAlloc( Gia_ManObjNum(p) + 1000 );
    Vec_IntFill( p->vTtNums, Vec_IntCap(p->vTtNums), -ABC_INFINITY );
    if ( nVarsMax >= 6 ) {
        word * pTruth; int i;
        Vec_PtrForEachEntry( word *, p->vTtInputs, pTruth, i )
            Abc_TtFlipVar5( pTruth, nVarsMax );
    }
}

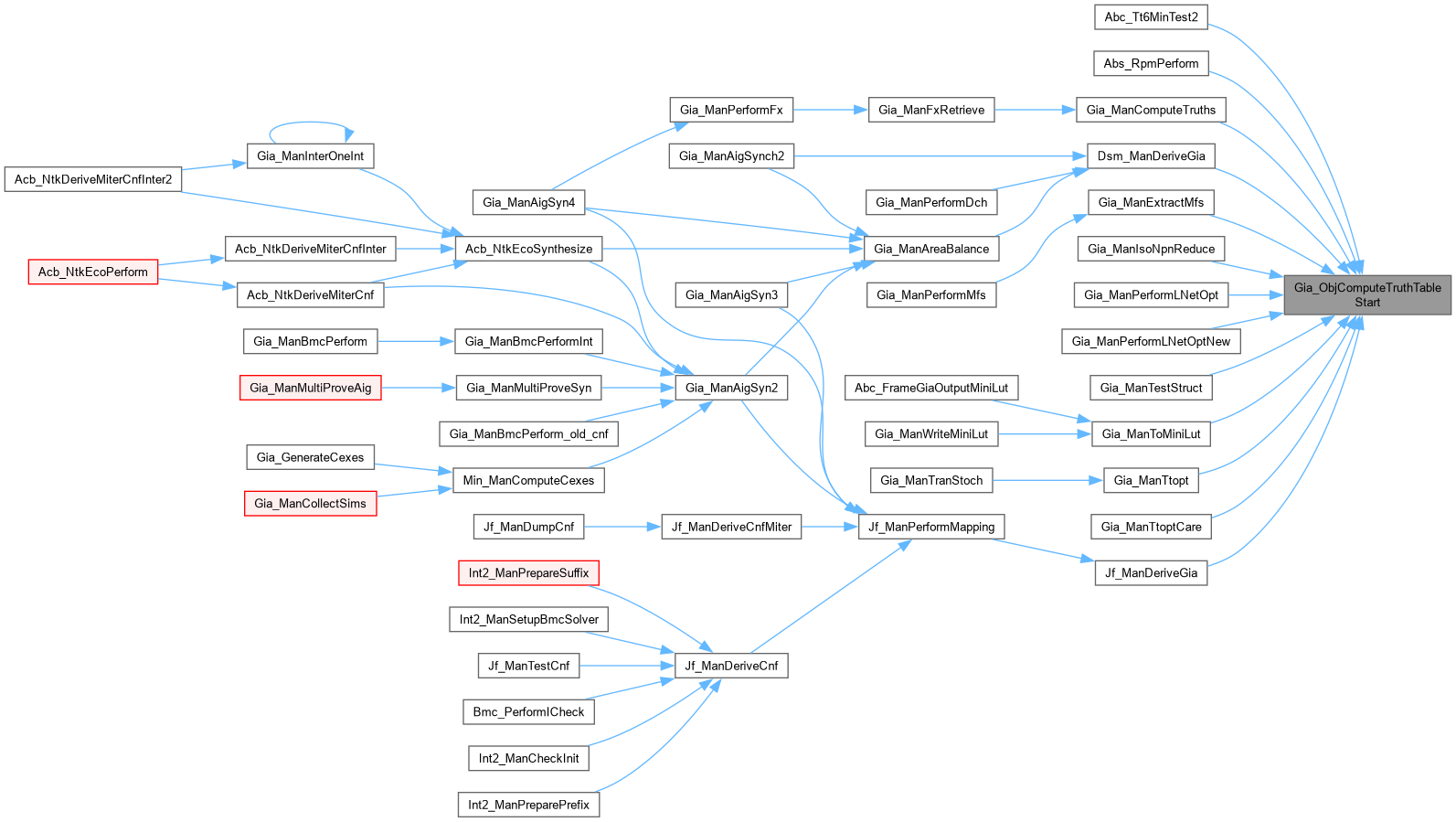

Here is the caller graph for this function:

Gia_ObjComputeTruthTableStop()

void Gia_ObjComputeTruthTableStop

(

Gia_Man_t *

p

)

Definition at line 568 of file giaTruth.c.

{
    p->nTtVars   = 0;
    p->nTtWords  = 0;
    Vec_IntFreeP( &p->vTtNums );
    Vec_IntFreeP( &p->vTtNodes );
    Vec_PtrFreeP( &p->vTtInputs );
    Vec_WrdFreeP( &p->vTtMemory );
}

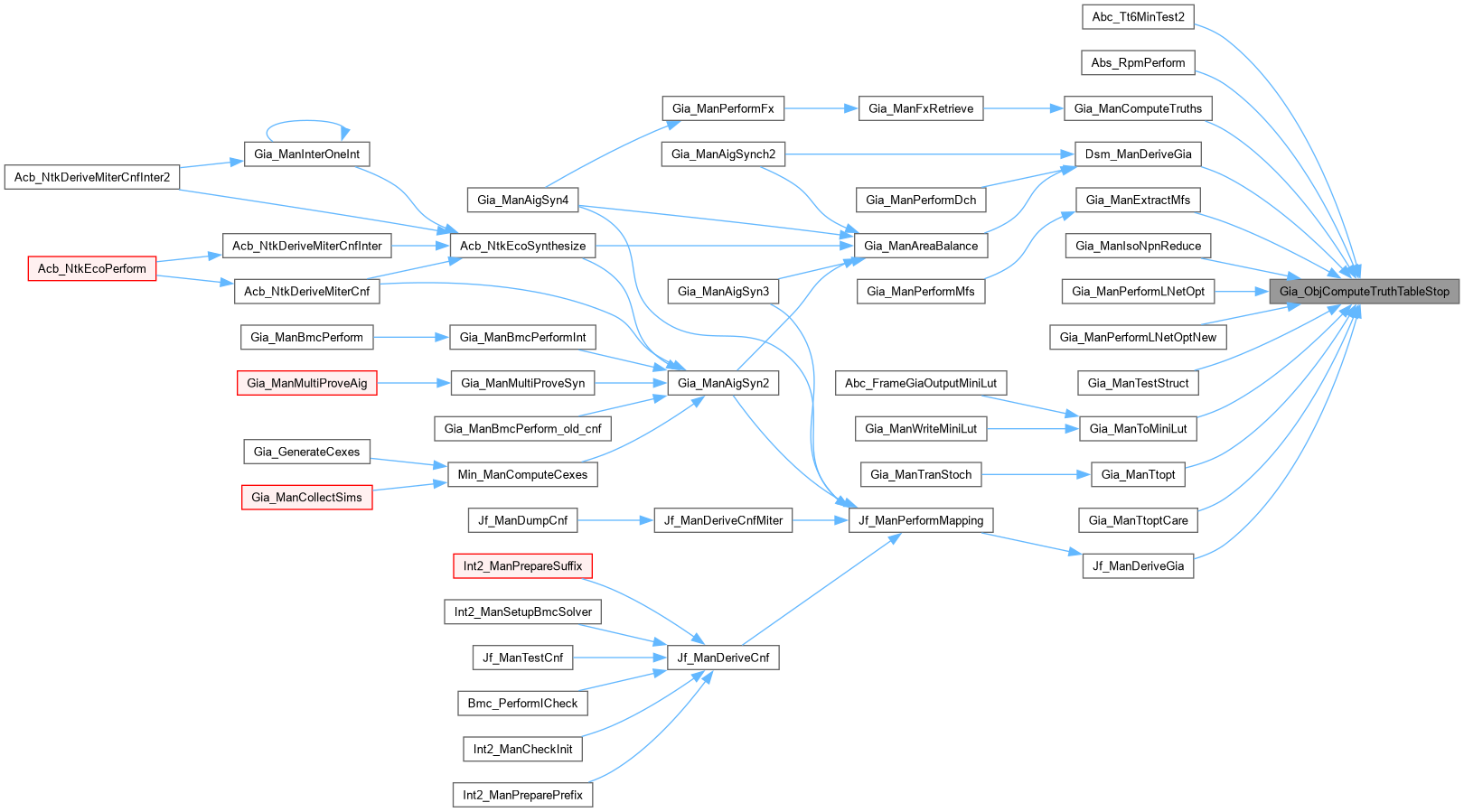

Here is the caller graph for this function:

Gia_ObjComputeTruthTableTest()

void Gia_ObjComputeTruthTableTest

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Testing truth table computation.]

Description []

SideEffects []

SeeAlso []

Definition at line 526 of file giaTruth.c.

{
    Gia_Obj_t * pObj;
    unsigned * pTruth;
    abctime clk = Abc_Clock();
    int i;
    Gia_ManForEachPo( p, pObj, i )
    {
        pTruth = (unsigned *)Gia_ObjComputeTruthTable( p, pObj );
//        Extra_PrintHex( stdout, pTruth, Gia_ManPiNum(p) ); printf( "\n" );
    }
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
}

Here is the call graph for this function:

Gia_Truth5ToGia()

int Gia_Truth5ToGia	(	Gia_Man_t *	p,
		int *	pVarLits,
		int	nVars,
		unsigned	Truth,
		int	fHash )

Function*************************************************************

Synopsis [Generate MUX tree of the truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 121 of file giaTruth.c.

{
    int Var, Lit0, Lit1;
    if ( Truth == 0 )
        return 0;
    if ( ~Truth == 0 )
        return 1;
    assert( nVars > 0 );
    // find the topmost var
    for ( Var = nVars-1; Var >= 0; Var-- )
        if ( Abc_Tt5HasVar( Truth, Var ) )
             break;
    assert( Var >= 0 );
    // cofactor
    Lit0 = Gia_Truth5ToGia( p, pVarLits, Var, Abc_Tt5Cofactor0(Truth, Var), fHash );
    Lit1 = Gia_Truth5ToGia( p, pVarLits, Var, Abc_Tt5Cofactor1(Truth, Var), fHash );
    if ( fHash )
        return Gia_ManHashMux( p, pVarLits[Var], Lit1, Lit0 );
    else
        return Gia_ManAppendMux( p, pVarLits[Var], Lit1, Lit0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_Truth6ToGia()

int Gia_Truth6ToGia	(	Gia_Man_t *	p,
		int *	pVarLits,
		int	nVars,
		word	Truth,
		int	fHash )

Function*************************************************************

Synopsis [Generate MUX tree of the truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 154 of file giaTruth.c.

{
    int Var, Lit0, Lit1;
    if ( Truth == 0 )
        return 0;
    if ( ~Truth == 0 )
        return 1;
    assert( nVars > 0 );
    // find the topmost var
    for ( Var = nVars-1; Var >= 0; Var-- )
        if ( Abc_Tt6HasVar( Truth, Var ) )
             break;
    assert( Var >= 0 );
    // cofactor
    Lit0 = Gia_Truth6ToGia( p, pVarLits, Var, Abc_Tt6Cofactor0(Truth, Var), fHash );
    Lit1 = Gia_Truth6ToGia( p, pVarLits, Var, Abc_Tt6Cofactor1(Truth, Var), fHash );
    if ( fHash )
        return Gia_ManHashMux( p, pVarLits[Var], Lit1, Lit0 );
    else
        return Gia_ManAppendMux( p, pVarLits[Var], Lit1, Lit0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_Truth6ToGiaTest()

void Gia_Truth6ToGiaTest

(

Gia_Man_t *

p

)

Definition at line 175 of file giaTruth.c.

{
    int Size = 5;
    word Truth, TruthNew;
    Vec_Int_t * vMap = Vec_IntStartFull( Gia_ManCiNum(p) );
    Vec_Int_t * vSupp = Vec_IntStart( 100 );
    int nCos = Gia_ManCoNum(p), Count = 0;
    int i, k, Id, ObjId, iLitNew;
    Gia_ManHashAlloc( p );
    Gia_ManForEachCoId( p, Id, i )
    {
        Gia_ManCollectCis( p, &Id, 1, vSupp ); // ObjIds
        if ( Vec_IntSize(vSupp) <= Size && i < nCos )
        {
            int pVarLits[6];
            Vec_IntForEachEntry( vSupp, ObjId, k )
            {
                int CioId = Gia_ObjCioId(Gia_ManObj(p, ObjId));
                Vec_IntWriteEntry( vMap, CioId, k );
                pVarLits[k] = Abc_Var2Lit( ObjId, 0 );
            }
            Truth = Gia_LutComputeTruth6Map( p, i, vMap );
            if ( Size == 5 )
                iLitNew = Gia_Truth5ToGia( p, pVarLits, Vec_IntSize(vSupp), (unsigned)Truth, 1 );
            else
                iLitNew = Gia_Truth6ToGia( p, pVarLits, Vec_IntSize(vSupp), Truth, 1 );
            Gia_ManAppendCo( p, iLitNew );
            TruthNew = Gia_LutComputeTruth6Map( p, Gia_ManCoNum(p)-1, vMap );
            Vec_IntForEachEntry( vSupp, ObjId, k )
            {
                int CioId = Gia_ObjCioId(Gia_ManObj(p, ObjId));
                Vec_IntWriteEntry( vMap, CioId, -1 );
            }
            if ( Truth != TruthNew )
                printf( "Error for output %d.\n", i );
            Count++;
            //Dau_DsdPrintFromTruth( &Truth, Vec_IntSize(vSupp) );
        }
    }
    Gia_ManHashStop( p );
    printf( "Finished processing %d outputs.\n", Count );
    Vec_IntFree( vSupp );
    Vec_IntFree( vMap );
}

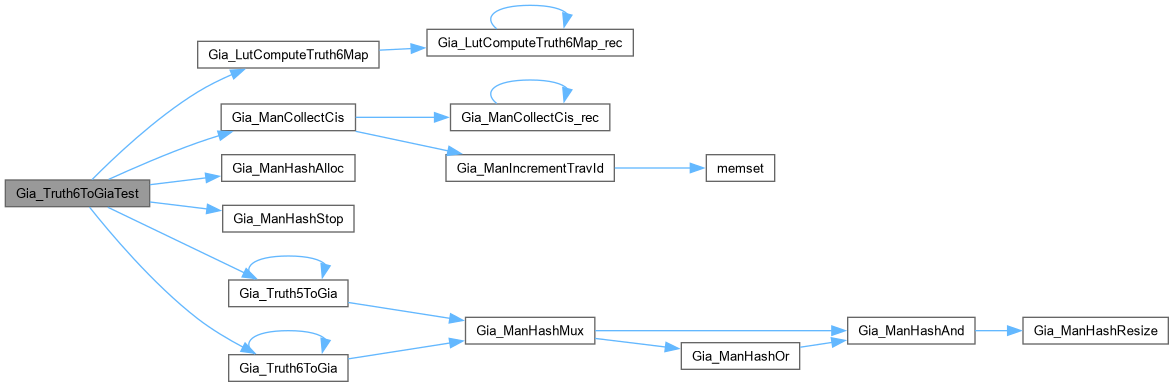

Here is the call graph for this function:
