giaTsim.c File Reference

#include "gia.h"

Include dependency graph for giaTsim.c:

Go to the source code of this file.

Classes
struct	Gia_ManTer_t_

Typedefs
typedef struct Gia_ManTer_t_	Gia_ManTer_t

Functions
Gia_ManTer_t *	Gia_ManTerCreate (Gia_Man_t *pAig)
	FUNCTION DEFINITIONS ///.
void	Gia_ManTerStatesFree (Vec_Ptr_t *vStates)
void	Gia_ManTerDelete (Gia_ManTer_t *p)
int	Gia_ManTerStateHash (unsigned *pState, int nWords, int nTableSize)
unsigned *	Gia_ManTerStateLookup (unsigned *pState, int nWords, unsigned **pBins, int nBins)
void	Gia_ManTerStateInsert (unsigned *pState, int nWords, unsigned **pBins, int nBins)
unsigned *	Gia_ManTerStateAlloc (int nWords)
unsigned *	Gia_ManTerStateCreate (Gia_ManTer_t *p)
int	Gia_ManTerRetire2 (Gia_ManTer_t *p, unsigned *pState)
int	Gia_ManTerRetire (Gia_ManTer_t *p, unsigned *pThis, unsigned *pPrev)
void	Gia_ManTerStatePrint (unsigned *pState, int nRegs, int iNum)
void	Gia_ManTerAnalyze2 (Vec_Ptr_t *vStates, int nRegs)
void	Gia_ManTerAnalyze (Gia_ManTer_t *p)
Vec_Ptr_t *	Gia_ManTerTranspose (Gia_ManTer_t *p)
int	Gia_ManFindEqualFlop (Vec_Ptr_t *vFlops, int iFlop, int nFlopWords)
int *	Gia_ManTerCreateMap (Gia_ManTer_t *p, int fVerbose)
Gia_ManTer_t *	Gia_ManTerSimulate (Gia_Man_t *pAig, int fVerbose)
Gia_Man_t *	Gia_ManReduceConst (Gia_Man_t *pAig, int fVerbose)

Typedef Documentation

Gia_ManTer_t

typedef struct Gia_ManTer_t_ Gia_ManTer_t

Definition at line 45 of file giaTsim.c.

Function Documentation

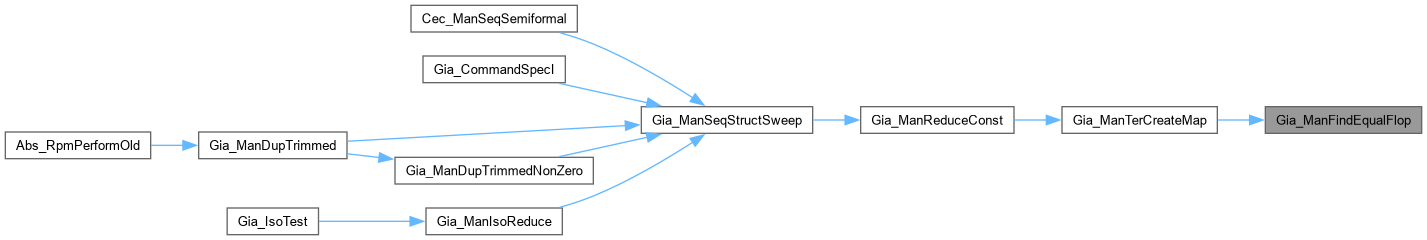

Gia_ManFindEqualFlop()

int Gia_ManFindEqualFlop	(	Vec_Ptr_t *	vFlops,
		int	iFlop,
		int	nFlopWords )

Function*************************************************************

Synopsis [Transposes state vector for non-ternary registers.]

Description []

SideEffects []

SeeAlso []

Definition at line 605 of file giaTsim.c.

{
    unsigned * pFlop, * pTemp;
    int i;
    pFlop = (unsigned *)Vec_PtrEntry( vFlops, iFlop );
    Vec_PtrForEachEntryStop( unsigned *, vFlops, pTemp, i, iFlop )
        if ( !memcmp( pTemp, pFlop, sizeof(unsigned) * nFlopWords ) )
            return i;
    return -1;
}

Here is the call graph for this function:

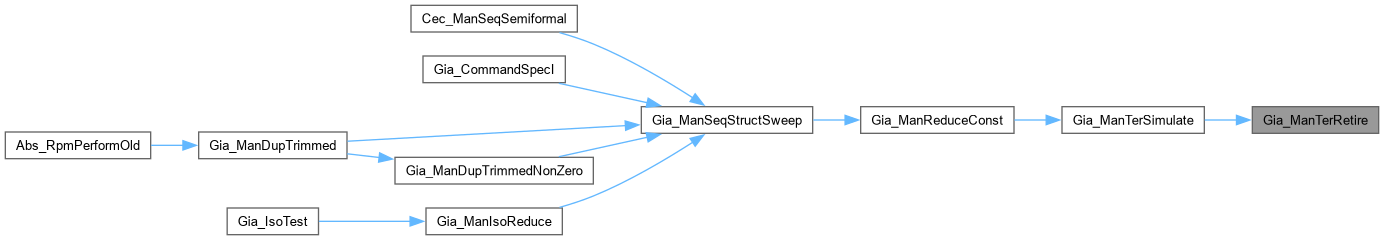

Here is the caller graph for this function:

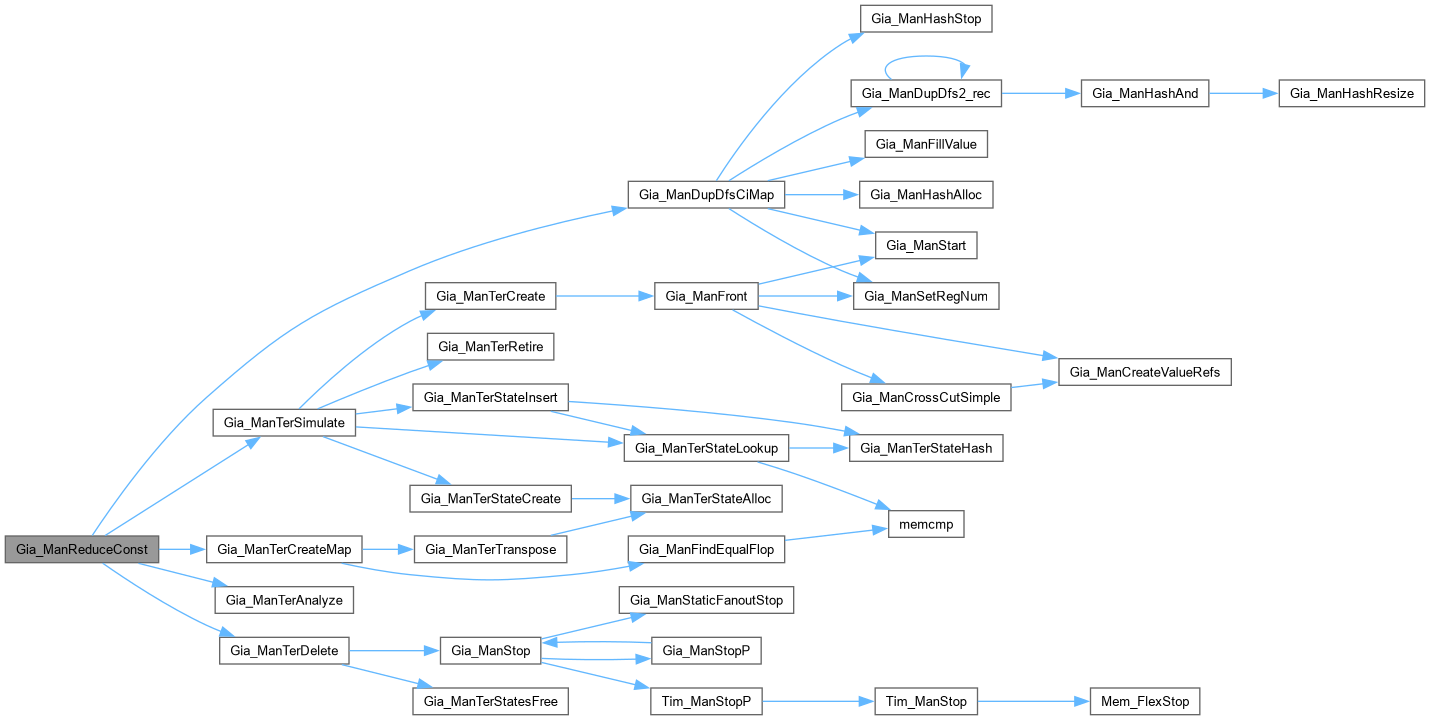

Gia_ManReduceConst()

Gia_Man_t * Gia_ManReduceConst	(	Gia_Man_t *	pAig,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 737 of file giaTsim.c.

{
    Gia_ManTer_t * p;
    Gia_Man_t * pNew = NULL;
    int * pCi2Lit;
    p = Gia_ManTerSimulate( pAig, fVerbose );
    Gia_ManTerAnalyze( p );
    pCi2Lit = Gia_ManTerCreateMap( p, fVerbose );
    Gia_ManTerDelete( p );
    pNew = Gia_ManDupDfsCiMap( pAig, pCi2Lit, NULL );
    ABC_FREE( pCi2Lit );
    return pNew;
}

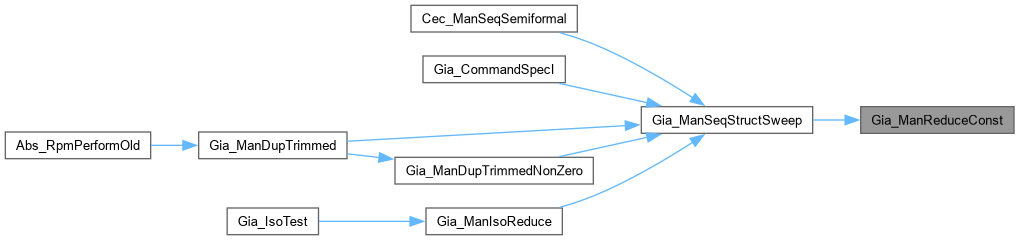

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTerAnalyze()

void Gia_ManTerAnalyze

(

Gia_ManTer_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 547 of file giaTsim.c.

{
    int i, nZeros = 0, nConsts = 0;
    for ( i = 0; i < Gia_ManRegNum(p->pAig); i++ )
        if ( p->pCount0[i] == Vec_PtrSize(p->vStates) )
            nZeros++;
        else if ( p->pCountX[i] == 0 )
            nConsts++;
//    printf( "Found %d constant registers.\n", nZeros );
//    printf( "Found %d non-ternary registers.\n", nConsts );
}

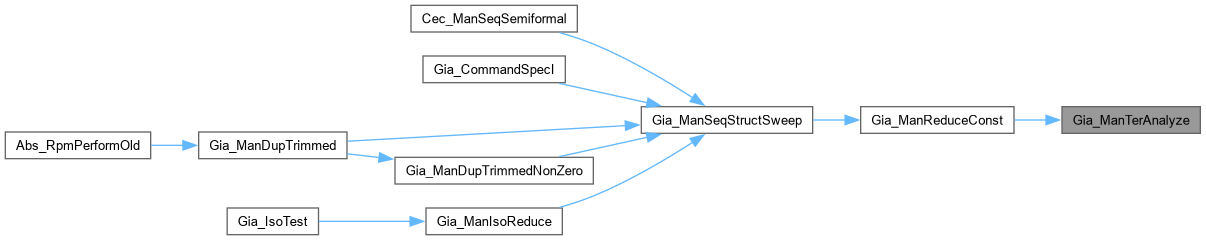

Here is the caller graph for this function:

Gia_ManTerAnalyze2()

void Gia_ManTerAnalyze2	(	Vec_Ptr_t *	vStates,
		int	nRegs )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 505 of file giaTsim.c.

{
    unsigned * pTemp, * pStates = (unsigned *)Vec_PtrPop( vStates );
    int i, w, nZeros, nConsts, nStateWords;
    // detect constant zero registers
    nStateWords = Abc_BitWordNum( 2*nRegs );
    memset( pStates, 0, sizeof(int) * nStateWords );
    Vec_PtrForEachEntry( unsigned *, vStates, pTemp, i )
        for ( w = 0; w < nStateWords; w++ )
            pStates[w] |= pTemp[w];
    // count the number of zeros
    nZeros = 0;
    for ( i = 0; i < nRegs; i++ )
        if ( Gia_ManTerSimInfoGet(pStates, i) == GIA_ZER )
            nZeros++;
    printf( "Found %d constant registers.\n", nZeros );
    // detect non-ternary registers
    memset( pStates, 0, sizeof(int) * nStateWords );
    Vec_PtrForEachEntry( unsigned *, vStates, pTemp, i )
        for ( w = 0; w < nStateWords; w++ )
            pStates[w] |= (~(pTemp[w] ^ (pTemp[w] >> 1)) & 0x55555555);
    // count the nonternary registers
    nConsts = 0;
    for ( i = 0; i < nRegs; i++ )
        if ( Gia_ManTerSimInfoGet(pStates, i) == 0 )
            nConsts++;
    printf( "Found %d non-ternary registers.\n", nConsts );
    // return the state back
    Vec_PtrPush( vStates, pStates );
}

Here is the call graph for this function:

Gia_ManTerCreate()

Gia_ManTer_t * Gia_ManTerCreate

(

Gia_Man_t *

pAig

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Creates fast simulation manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 81 of file giaTsim.c.

{
    Gia_ManTer_t * p;
    p = ABC_CALLOC( Gia_ManTer_t, 1 );
    p->pAig   = Gia_ManFront( pAig );
    p->nIters = 300;
    p->pDataSim    = ABC_ALLOC( unsigned, Abc_BitWordNum(2*p->pAig->nFront) );
    p->pDataSimCis = ABC_ALLOC( unsigned, Abc_BitWordNum(2*Gia_ManCiNum(p->pAig)) );
    p->pDataSimCos = ABC_ALLOC( unsigned, Abc_BitWordNum(2*Gia_ManCoNum(p->pAig)) );
    // allocate storage for terminary states
    p->nStateWords = Abc_BitWordNum( 2*Gia_ManRegNum(pAig) );
    p->vStates  = Vec_PtrAlloc( 1000 );
    p->pCount0  = ABC_CALLOC( int, Gia_ManRegNum(pAig) );
    p->pCountX  = ABC_CALLOC( int, Gia_ManRegNum(pAig) );
    p->nBins    = Abc_PrimeCudd( 500 );
    p->pBins    = ABC_CALLOC( unsigned *, p->nBins );
    p->vRetired = Vec_IntAlloc( 100 );
    p->pRetired = ABC_CALLOC( char, Gia_ManRegNum(pAig) );
    return p;
}

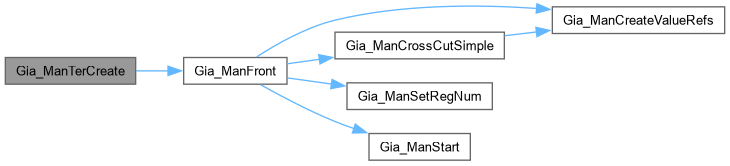

Here is the call graph for this function:

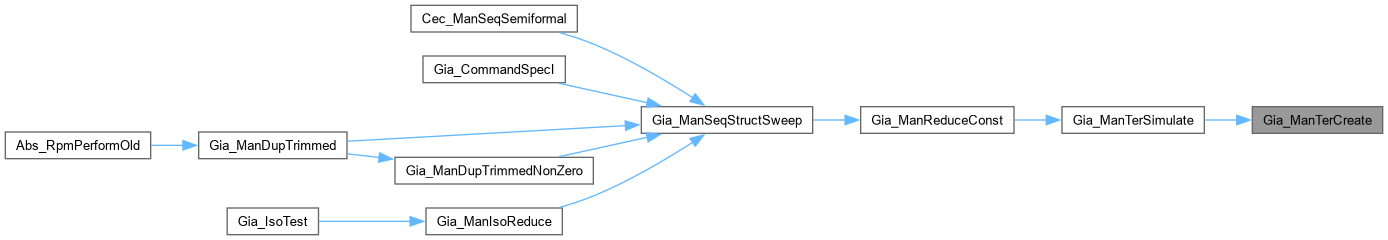

Here is the caller graph for this function:

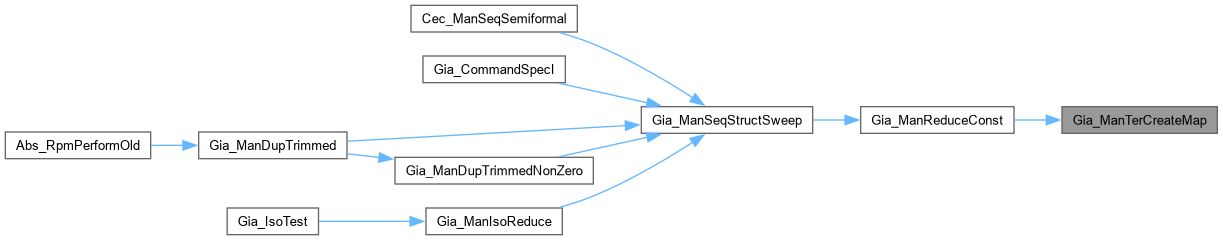

Gia_ManTerCreateMap()

int * Gia_ManTerCreateMap	(	Gia_ManTer_t *	p,
		int	fVerbose )

Function*************************************************************

Synopsis [Creates map of registers to replace.]

Description []

SideEffects []

SeeAlso []

Definition at line 627 of file giaTsim.c.

{
    int * pCi2Lit;
    Gia_Obj_t * pObj;
    Vec_Int_t * vMapKtoI;
    int i, iRepr, nFlopWords, Counter0 = 0, CounterE = 0;
    nFlopWords = Abc_BitWordNum( 2*Vec_PtrSize(p->vStates) );
    p->vFlops = Gia_ManTerTranspose( p );
    pCi2Lit = ABC_FALLOC( int, Gia_ManCiNum(p->pAig) );
    vMapKtoI = Vec_IntAlloc( 100 );
    for ( i = 0; i < Gia_ManRegNum(p->pAig); i++ )
        if ( p->pCount0[i] == Vec_PtrSize(p->vStates) )
            pCi2Lit[Gia_ManPiNum(p->pAig)+i] = 0, Counter0++;
        else if ( p->pCountX[i] == 0 )
        {
            iRepr = Gia_ManFindEqualFlop( p->vFlops, Vec_IntSize(vMapKtoI), nFlopWords );
            Vec_IntPush( vMapKtoI, i );
            if ( iRepr < 0 )
                continue;
            pObj = Gia_ManCi( p->pAig, Gia_ManPiNum(p->pAig)+Vec_IntEntry(vMapKtoI, iRepr) );
            pCi2Lit[Gia_ManPiNum(p->pAig)+i] = Abc_Var2Lit( Gia_ObjId( p->pAig, pObj ), 0 );
            CounterE++;
        }
    Vec_IntFree( vMapKtoI );
    if ( fVerbose )
        printf( "Transforming %d const and %d equiv registers.\n", Counter0, CounterE );
    return pCi2Lit;
}

Here is the call graph for this function:

Here is the caller graph for this function:

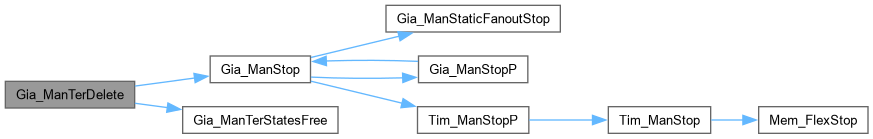

Gia_ManTerDelete()

void Gia_ManTerDelete

(

Gia_ManTer_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 133 of file giaTsim.c.

{
    if ( p->vStates )
        Gia_ManTerStatesFree( p->vStates );
    if ( p->vFlops )
        Gia_ManTerStatesFree( p->vFlops );
    Gia_ManStop( p->pAig );
    Vec_IntFree( p->vRetired );
    ABC_FREE( p->pRetired );
    ABC_FREE( p->pCount0 );
    ABC_FREE( p->pCountX );
    ABC_FREE( p->pBins );
    ABC_FREE( p->pDataSim );
    ABC_FREE( p->pDataSimCis );
    ABC_FREE( p->pDataSimCos );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTerRetire()

int Gia_ManTerRetire	(	Gia_ManTer_t *	p,
		unsigned *	pThis,
		unsigned *	pPrev )

Function*************************************************************

Synopsis [Retires a set of registers to speed up convergence.]

Description [Retire all non-ternary registers which has max number of ternary values so far.]

SideEffects []

SeeAlso []

Definition at line 451 of file giaTsim.c.

{
    int i, Entry;
    // find registers whose value has changed
    Vec_IntClear( p->vRetired );
    for ( i = 0; i < Gia_ManRegNum(p->pAig); i++ )
        if ( Gia_ManTerSimInfoGet( pThis, i ) != Gia_ManTerSimInfoGet( pPrev, i ) )
            Vec_IntPush( p->vRetired, i );
    // set all of them to zero
    Vec_IntForEachEntry( p->vRetired, Entry, i )
        Gia_ManTerSimInfoSet( p->pDataSimCis, Gia_ManPiNum(p->pAig)+Entry, GIA_UND );
    return Vec_IntSize(p->vRetired);
}

Here is the caller graph for this function:

Gia_ManTerRetire2()

int Gia_ManTerRetire2	(	Gia_ManTer_t *	p,
		unsigned *	pState )

Function*************************************************************

Synopsis [Retires a set of registers to speed up convergence.]

Description [Retire all non-ternary registers which has max number of ternary values so far.]

SideEffects []

SeeAlso []

Definition at line 415 of file giaTsim.c.

{
    int i, Entry, iMaxTerValue = -1;
    // find non-retired register with this value
    for ( i = 0; i < Gia_ManRegNum(p->pAig); i++ )
        if ( Gia_ManTerSimInfoGet( pState, i ) != GIA_UND && !p->pRetired[i] && iMaxTerValue < p->pCountX[i] )
            iMaxTerValue = p->pCountX[i];
    assert( iMaxTerValue >= 0 );
    // retire the first registers with this value
    for ( i = 0; i < Gia_ManRegNum(p->pAig); i++ )
        if ( Gia_ManTerSimInfoGet( pState, i ) != GIA_UND && !p->pRetired[i] && iMaxTerValue == p->pCountX[i] )
        {
            assert( p->pRetired[i] == 0 );
            p->pRetired[i] = 1;
            Vec_IntPush( p->vRetired, i );
            if ( iMaxTerValue == 0 )
                break;
        }
    // update all the retired registers
    Vec_IntForEachEntry( p->vRetired, Entry, i )
        Gia_ManTerSimInfoSet( p->pDataSimCis, Gia_ManPiNum(p->pAig)+Entry, GIA_UND );
    return Vec_IntSize(p->vRetired);
}

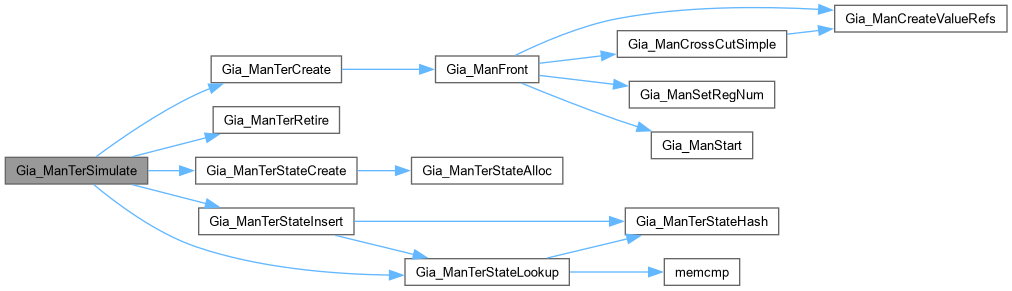

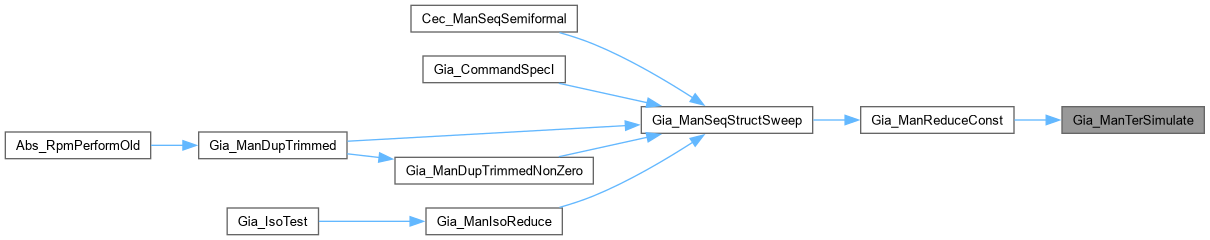

Gia_ManTerSimulate()

Gia_ManTer_t * Gia_ManTerSimulate	(	Gia_Man_t *	pAig,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 668 of file giaTsim.c.

{
    Gia_ManTer_t * p;
    unsigned * pState, * pPrev, * pLoop;
    int i, Counter;
    abctime clk, clkTotal = Abc_Clock();
    assert( Gia_ManRegNum(pAig) > 0 );
    // create manager
    clk = Abc_Clock();
    p = Gia_ManTerCreate( pAig );
    if ( 0 )
    {
        printf( "Obj = %8d (%8d). F = %6d. ",
            pAig->nObjs, Gia_ManCiNum(pAig) + Gia_ManAndNum(pAig), p->pAig->nFront );
        printf( "AIG = %7.2f MB. F-mem = %7.2f MB. Other = %7.2f MB.  ",
            12.0*Gia_ManObjNum(p->pAig)/(1<<20),
            4.0*Abc_BitWordNum(2 * p->pAig->nFront)/(1<<20),
            4.0*Abc_BitWordNum(2 * (Gia_ManCiNum(pAig) + Gia_ManCoNum(pAig)))/(1<<20) );
        ABC_PRT( "Time", Abc_Clock() - clk );
    }
    // perform simulation
    Gia_ManTerSimInfoInit( p );
    // hash the first state
    pState = Gia_ManTerStateCreate( p );
    Gia_ManTerStateInsert( pState, p->nStateWords, p->pBins, p->nBins );
//Gia_ManTerStatePrint( pState, Gia_ManRegNum(pAig), 0 );
    // perform simuluation till convergence
    pPrev = NULL;
    for ( i = 0; ; i++ )
    {
        Gia_ManTerSimulateRound( p );
        Gia_ManTerSimInfoTransfer( p );
        pState = Gia_ManTerStateCreate( p );
//Gia_ManTerStatePrint( pState, Gia_ManRegNum(pAig), i+1 );
        if ( (pLoop = Gia_ManTerStateLookup(pState, p->nStateWords, p->pBins, p->nBins)) )
        {
            pAig->nTerStates = Vec_PtrSize( p->vStates );
            pAig->nTerLoop = Vec_PtrFind( p->vStates, pLoop );
            break;
        }
        Gia_ManTerStateInsert( pState, p->nStateWords, p->pBins, p->nBins );
        if ( i >= p->nIters && i % 10 == 0 )
        {
            Counter = Gia_ManTerRetire( p, pState, pPrev );
//            Counter = Gia_ManTerRetire2( p, pState );
//            if ( fVerbose )
//                printf( "Retired %d registers.\n", Counter );
        }
        pPrev = pState;
    }
    if ( fVerbose )
    {
        printf( "Ternary simulation saturated after %d iterations. ", i+1 );
        ABC_PRT( "Time", Abc_Clock() - clkTotal );
    }
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

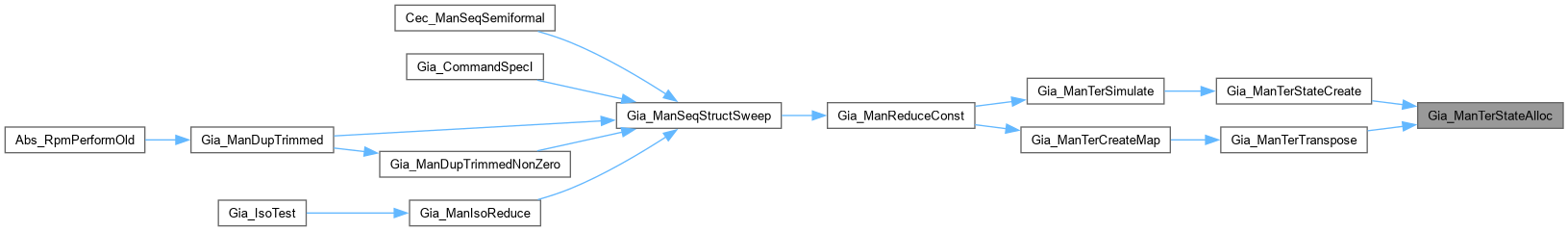

Gia_ManTerStateAlloc()

unsigned * Gia_ManTerStateAlloc

(

int

nWords

)

Function*************************************************************

Synopsis [Allocs new ternary state.]

Description []

SideEffects []

SeeAlso []

Definition at line 330 of file giaTsim.c.

{
    return (unsigned *)ABC_CALLOC( char, sizeof(unsigned) * nWords + sizeof(unsigned *) );
}

Here is the caller graph for this function:

Gia_ManTerStateCreate()

unsigned * Gia_ManTerStateCreate

(

Gia_ManTer_t *

p

)

Function*************************************************************

Synopsis [Creates new ternary state.]

Description []

SideEffects []

SeeAlso []

Definition at line 346 of file giaTsim.c.

{
    int i, Value, nPis = Gia_ManPiNum(p->pAig);
    unsigned * pRes = Gia_ManTerStateAlloc( p->nStateWords );
    for ( i = nPis; i < Gia_ManCiNum(p->pAig); i++ )
    {
        Value = Gia_ManTerSimInfoGet( p->pDataSimCis, i );
        Gia_ManTerSimInfoSet( pRes, i-nPis, Value );
        if ( Value == GIA_ZER )
            p->pCount0[i-nPis]++;
        if ( Value == GIA_UND )
            p->pCountX[i-nPis]++;
    }
    Vec_PtrPush( p->vStates, pRes );
    return pRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

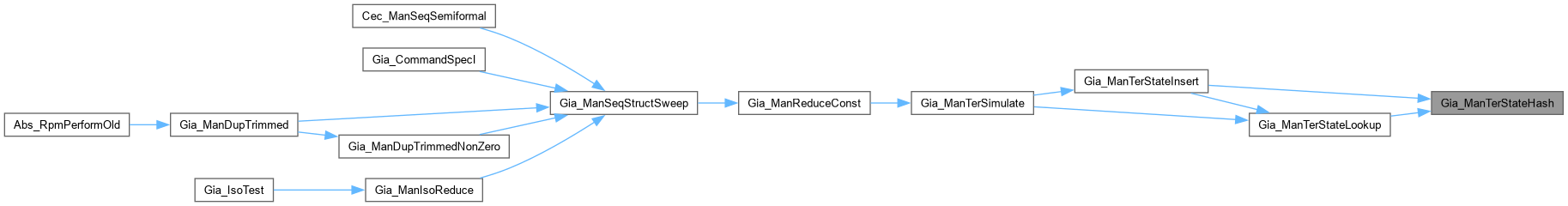

Gia_ManTerStateHash()

int Gia_ManTerStateHash	(	unsigned *	pState,
		int	nWords,
		int	nTableSize )

Function*************************************************************

Synopsis [Computes hash value of the node using its simulation info.]

Description []

SideEffects []

SeeAlso []

Definition at line 254 of file giaTsim.c.

{
    static int s_FPrimes[128] = {
        1009, 1049, 1093, 1151, 1201, 1249, 1297, 1361, 1427, 1459,
        1499, 1559, 1607, 1657, 1709, 1759, 1823, 1877, 1933, 1997,
        2039, 2089, 2141, 2213, 2269, 2311, 2371, 2411, 2467, 2543,
        2609, 2663, 2699, 2741, 2797, 2851, 2909, 2969, 3037, 3089,
        3169, 3221, 3299, 3331, 3389, 3461, 3517, 3557, 3613, 3671,
        3719, 3779, 3847, 3907, 3943, 4013, 4073, 4129, 4201, 4243,
        4289, 4363, 4441, 4493, 4549, 4621, 4663, 4729, 4793, 4871,
        4933, 4973, 5021, 5087, 5153, 5227, 5281, 5351, 5417, 5471,
        5519, 5573, 5651, 5693, 5749, 5821, 5861, 5923, 6011, 6073,
        6131, 6199, 6257, 6301, 6353, 6397, 6481, 6563, 6619, 6689,
        6737, 6803, 6863, 6917, 6977, 7027, 7109, 7187, 7237, 7309,
        7393, 7477, 7523, 7561, 7607, 7681, 7727, 7817, 7877, 7933,
        8011, 8039, 8059, 8081, 8093, 8111, 8123, 8147
    };
    unsigned uHash;
    int i;
    uHash = 0;
    for ( i = 0; i < nWords; i++ )
        uHash ^= pState[i] * s_FPrimes[i & 0x7F];
    return uHash % nTableSize;
}

Here is the caller graph for this function:

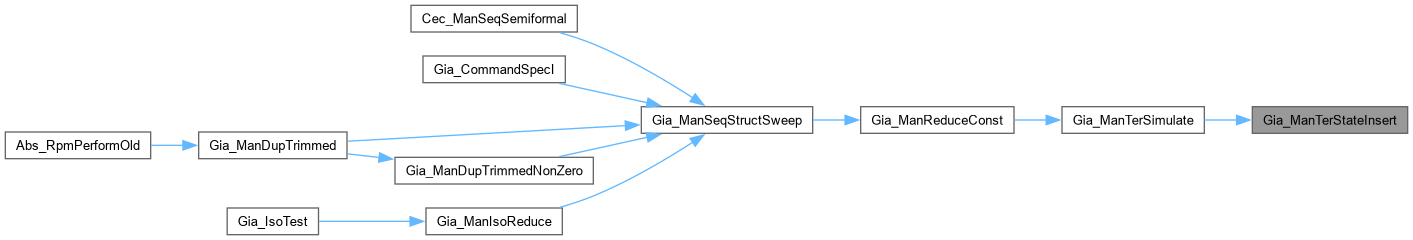

Gia_ManTerStateInsert()

void Gia_ManTerStateInsert	(	unsigned *	pState,
		int	nWords,
		unsigned **	pBins,
		int	nBins )

Function*************************************************************

Synopsis [Inserts value into the table.]

Description []

SideEffects []

SeeAlso []

Definition at line 311 of file giaTsim.c.

{
    int Hash = Gia_ManTerStateHash( pState, nWords, nBins );
    assert( !Gia_ManTerStateLookup( pState, nWords, pBins, nBins ) );
    Gia_ManTerStateSetNext( pState, nWords, pBins[Hash] );
    pBins[Hash] = pState;
}

Here is the call graph for this function:

Here is the caller graph for this function:

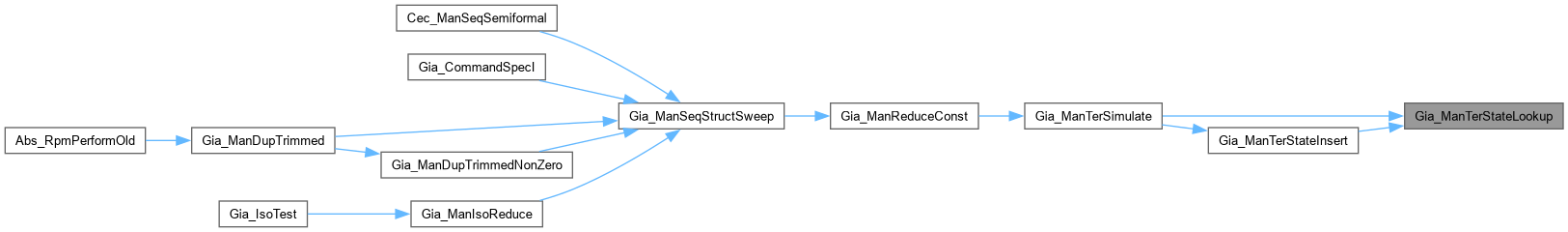

Gia_ManTerStateLookup()

unsigned * Gia_ManTerStateLookup	(	unsigned *	pState,
		int	nWords,
		unsigned **	pBins,
		int	nBins )

Function*************************************************************

Synopsis [Inserts value into the table.]

Description []

SideEffects []

SeeAlso []

Definition at line 290 of file giaTsim.c.

{
    unsigned * pEntry;
    int Hash = Gia_ManTerStateHash( pState, nWords, nBins );
    for ( pEntry = pBins[Hash]; pEntry; pEntry = Gia_ManTerStateNext(pEntry, nWords) )
        if ( !memcmp( pEntry, pState, sizeof(unsigned) * nWords ) )
            return pEntry;
    return NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTerStatePrint()

void Gia_ManTerStatePrint	(	unsigned *	pState,
		int	nRegs,
		int	iNum )

Function*************************************************************

Synopsis [Inserts value into the table.]

Description []

SideEffects []

SeeAlso []

Definition at line 476 of file giaTsim.c.

{
    int i, nZeros = 0, nOnes = 0, nDcs = 0;
    printf( " %4d : ", iNum );
    for ( i = 0; i < nRegs; i++ )
    {
        if ( Gia_ManTerSimInfoGet(pState, i) == GIA_ZER )
            printf( "0" ), nZeros++;
        else if ( Gia_ManTerSimInfoGet(pState, i) == GIA_ONE )
            printf( "1" ), nOnes++;
        else if ( Gia_ManTerSimInfoGet(pState, i) == GIA_UND )
            printf( "x" ), nDcs++;
        else
            assert( 0 );
    }
    printf( " (0=%4d, 1=%4d, x=%4d)\n", nZeros, nOnes, nDcs );
}

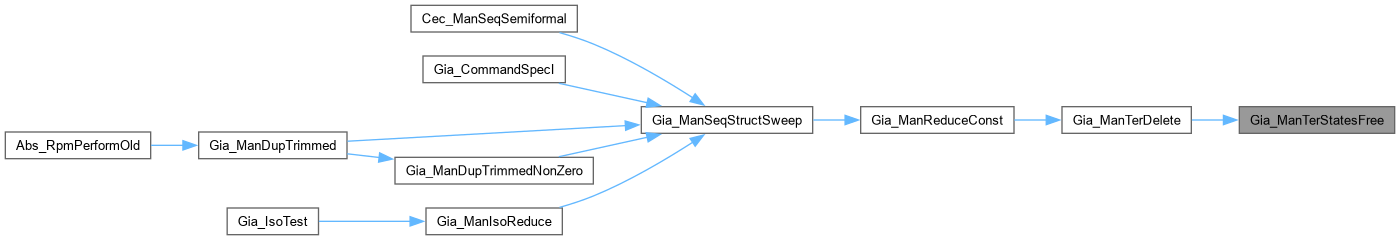

Gia_ManTerStatesFree()

void Gia_ManTerStatesFree

(

Vec_Ptr_t *

vStates

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 113 of file giaTsim.c.

{
    unsigned * pTemp;
    int i;
    Vec_PtrForEachEntry( unsigned *, vStates, pTemp, i )
        ABC_FREE( pTemp );
    Vec_PtrFree( vStates );
}

Here is the caller graph for this function:

Gia_ManTerTranspose()

Vec_Ptr_t * Gia_ManTerTranspose

(

Gia_ManTer_t *

p

)

Function*************************************************************

Synopsis [Transposes state vector for non-ternary registers.]

Description []

SideEffects []

SeeAlso []

Definition at line 572 of file giaTsim.c.

{
    Vec_Ptr_t * vFlops;
    unsigned * pState, * pFlop;
    int i, k, nFlopWords;
    vFlops = Vec_PtrAlloc( 100 );
    nFlopWords = Abc_BitWordNum( 2*Vec_PtrSize(p->vStates) );
    for ( i = 0; i < Gia_ManRegNum(p->pAig); i++ )
    {
        if ( p->pCount0[i] == Vec_PtrSize(p->vStates) )
            continue;
        if ( p->pCountX[i] > 0 )
            continue;
        pFlop = Gia_ManTerStateAlloc( nFlopWords );
        Vec_PtrPush( vFlops, pFlop );
        Vec_PtrForEachEntry( unsigned *, p->vStates, pState, k )
            Gia_ManTerSimInfoSet( pFlop, k, Gia_ManTerSimInfoGet(pState, i) );
//Gia_ManTerStatePrint( pFlop, Vec_PtrSize(p->vStates), i );
    }
    return vFlops;
}

Here is the call graph for this function:

Here is the caller graph for this function:
