ifLibBox.c File Reference

#include "if.h"
#include "misc/extra/extra.h"
#include "base/main/main.h"

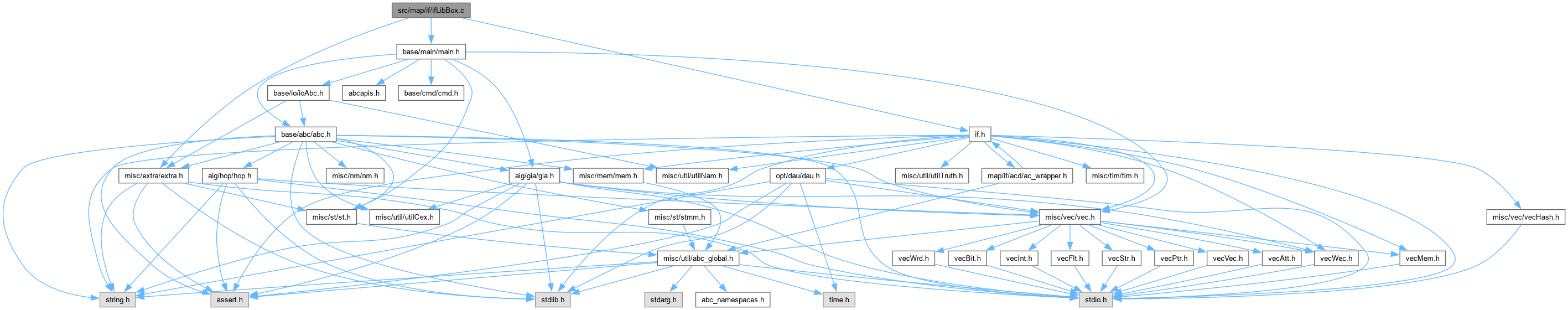

Include dependency graph for ifLibBox.c:

Go to the source code of this file.

Macros
#define	If_LibBoxForEachBox(p, pBox, i)
	DECLARATIONS ///.

Functions
If_Box_t *	If_BoxStart (char *pName, int Id, int nPis, int nPos, int fSeq, int fBlack, int fOuter)
	FUNCTION DEFINITIONS ///.
If_Box_t *	If_BoxDup (If_Box_t *p)
void	If_BoxFree (If_Box_t *p)
If_LibBox_t *	If_LibBoxStart ()
If_LibBox_t *	If_LibBoxDup (If_Box_t *p)
void	If_LibBoxFree (If_LibBox_t *p)
If_Box_t *	If_LibBoxReadBox (If_LibBox_t *p, int Id)
If_Box_t *	If_LibBoxFindBox (If_LibBox_t *p, char *pName)
void	If_LibBoxAdd (If_LibBox_t *p, If_Box_t *pBox)
int	If_LibBoxNum (If_LibBox_t *p)
If_LibBox_t *	If_LibBoxRead2 (char *pFileName)
char *	If_LibBoxGetToken (FILE *pFile)
If_LibBox_t *	If_LibBoxRead (char *pFileName)
void	If_LibBoxPrint (FILE *pFile, If_LibBox_t *p)
void	If_LibBoxWrite (char *pFileName, If_LibBox_t *p)
int	If_LibBoxLoad (char *pFileName)

Macro Definition Documentation

If_LibBoxForEachBox

#define If_LibBoxForEachBox	(		p,
			pBox,
			i )

Value:

    Vec_PtrForEachEntry( If_Box_t *, p->vBoxes, pBox, i ) if ( pBox == NULL ) {} else

DECLARATIONS ///.

CFile****************************************************************

FileName [ifLibBox.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [FPGA mapping based on priority cuts.]

Synopsis [Box library.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 21, 2006.]

Revision [

Id

ifLibBox.c,v 1.00 2006/11/21 00:00:00 alanmi Exp

]

Definition at line 31 of file ifLibBox.c.

#define If_LibBoxForEachBox( p, pBox, i )     \
    Vec_PtrForEachEntry( If_Box_t *, p->vBoxes, pBox, i ) if ( pBox == NULL ) {} else

Function Documentation

If_BoxDup()

If_Box_t * If_BoxDup

(

If_Box_t *

p

)

Definition at line 63 of file ifLibBox.c.

{
    If_Box_t * pNew = NULL;
    return pNew;
}

If_BoxFree()

void If_BoxFree

(

If_Box_t *

p

)

Definition at line 68 of file ifLibBox.c.

{
    ABC_FREE( p->pDelays );
    ABC_FREE( p->pName );
    ABC_FREE( p );
}

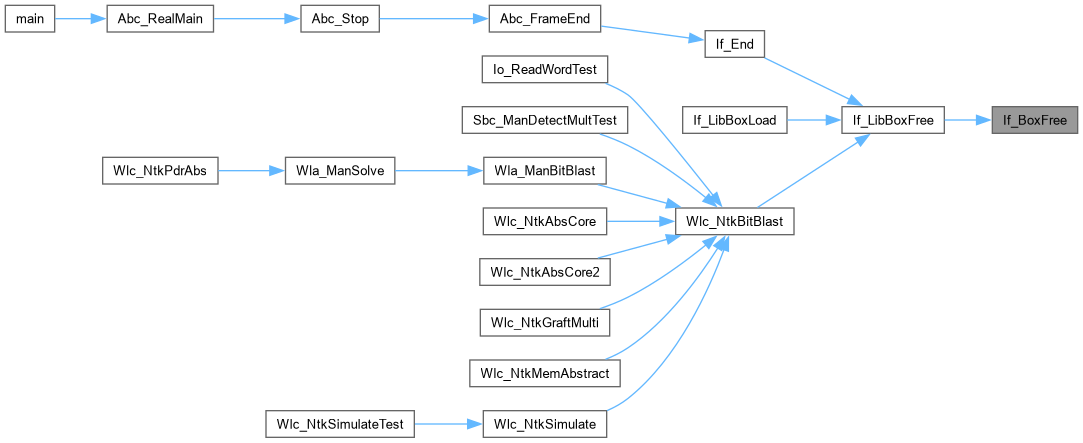

Here is the caller graph for this function:

If_BoxStart()

If_Box_t * If_BoxStart	(	char *	pName,
		int	Id,
		int	nPis,
		int	nPos,
		int	fSeq,
		int	fBlack,
		int	fOuter )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 49 of file ifLibBox.c.

{
    If_Box_t * p;
    p = ABC_CALLOC( If_Box_t, 1 );
    p->pName   = pName; // consumes memory
    p->Id      = Id;
    p->fSeq    = (char)fSeq;
    p->fBlack  = (char)fBlack;
    p->fOuter  = (char)fOuter;
    p->nPis    = nPis;
    p->nPos    = nPos;
    p->pDelays = ABC_CALLOC( int, nPis * nPos );
    return p;
}

Here is the caller graph for this function:

If_LibBoxAdd()

void If_LibBoxAdd	(	If_LibBox_t *	p,
		If_Box_t *	pBox )

Definition at line 136 of file ifLibBox.c.

{
    if ( pBox->Id >= Vec_PtrSize(p->vBoxes) )
        Vec_PtrFillExtra( p->vBoxes, 2 * pBox->Id + 10, NULL );
    assert( Vec_PtrEntry( p->vBoxes, pBox->Id ) == NULL );
    Vec_PtrWriteEntry( p->vBoxes, pBox->Id, pBox );
    p->nBoxes++;
}

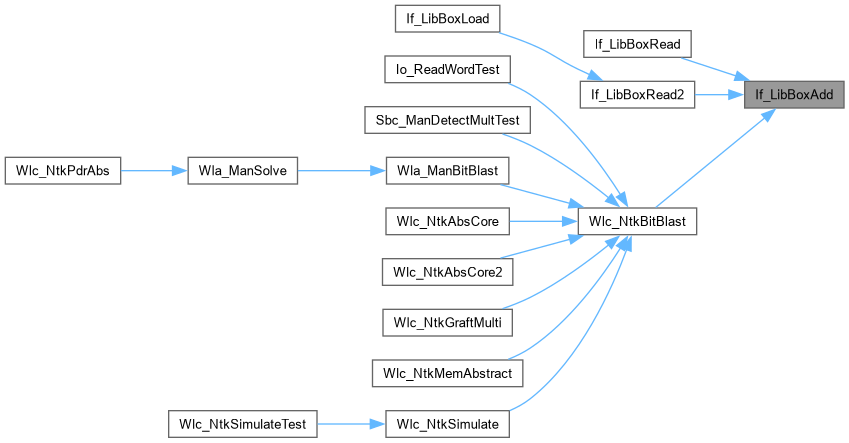

Here is the caller graph for this function:

If_LibBoxDup()

If_LibBox_t * If_LibBoxDup

(

If_Box_t *

p

)

Definition at line 93 of file ifLibBox.c.

{
    If_LibBox_t * pNew = NULL;
    return pNew;
}

If_LibBoxFindBox()

If_Box_t * If_LibBoxFindBox	(	If_LibBox_t *	p,
		char *	pName )

Definition at line 125 of file ifLibBox.c.

{
    If_Box_t * pBox;
    int i;
    if ( p == NULL )
        return NULL;
    If_LibBoxForEachBox( p, pBox, i )
        if ( !strcmp(pBox->pName, pName) )
            return pBox;
    return NULL;
}

Here is the call graph for this function:

If_LibBoxFree()

void If_LibBoxFree

(

If_LibBox_t *

p

)

Definition at line 98 of file ifLibBox.c.

{
    If_Box_t * pBox;
    int i;
    if ( p == NULL )
        return;
    If_LibBoxForEachBox( p, pBox, i )
        If_BoxFree( pBox );
    Vec_PtrFree( p->vBoxes );
    ABC_FREE( p );
}

Here is the call graph for this function:

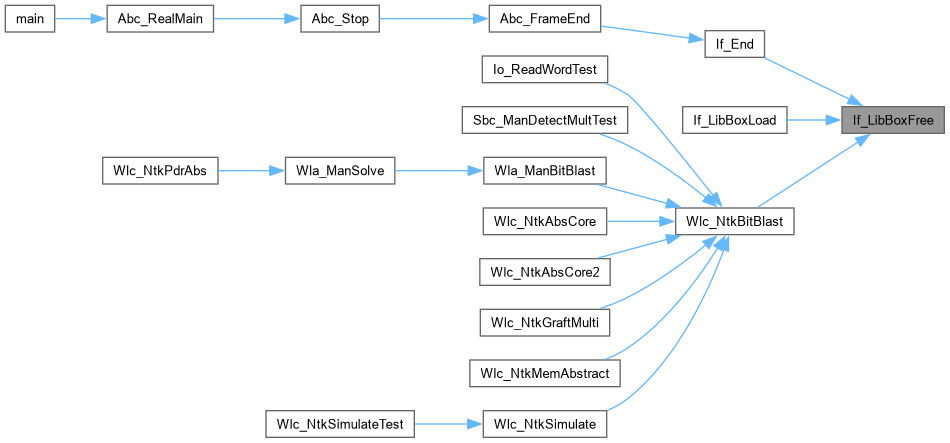

Here is the caller graph for this function:

If_LibBoxGetToken()

char * If_LibBoxGetToken

(

FILE *

pFile

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 255 of file ifLibBox.c.

{
    static char pBuffer[1000];
    int c; char * pTemp = pBuffer;
    while ( (c = fgetc(pFile)) != EOF )
    {
        if ( c == '#' )
        {
            while ( (c = fgetc(pFile)) != EOF )
                if ( c == '\n' )
                    break;
        }
        if ( c == ' ' || c == '\t' || c == '\n' || c == '\r' )
        {
            if ( pTemp > pBuffer )
                break;
            continue;
        }
        *pTemp++ = c;
    }
    *pTemp = 0;
    return pTemp > pBuffer ? pBuffer : NULL;
}

Here is the caller graph for this function:

If_LibBoxLoad()

int If_LibBoxLoad

(

char *

pFileName

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 381 of file ifLibBox.c.

{
    FILE * pFile;
    If_LibBox_t * pLib;
    char * pFileNameOther;
    // check if library can be read
    pFileNameOther = Extra_FileNameGenericAppend( pFileName, ".cdl" );
    pFile = fopen( pFileNameOther, "r" );
    if ( pFile == NULL )
        return 0;
    fclose( pFile );
    // read library
    pLib = If_LibBoxRead2( pFileNameOther );
    // replace the current library
    If_LibBoxFree( (If_LibBox_t *)Abc_FrameReadLibBox() );
    Abc_FrameSetLibBox( pLib );
    return 1;
}

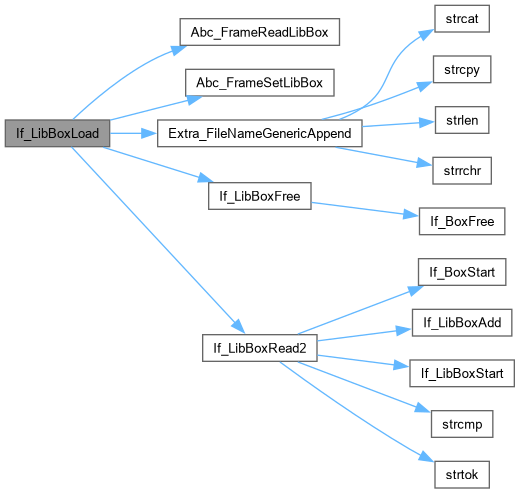

Here is the call graph for this function:

If_LibBoxNum()

int If_LibBoxNum

(

If_LibBox_t *

p

)

Definition at line 144 of file ifLibBox.c.

{
    return p->nBoxes;
}

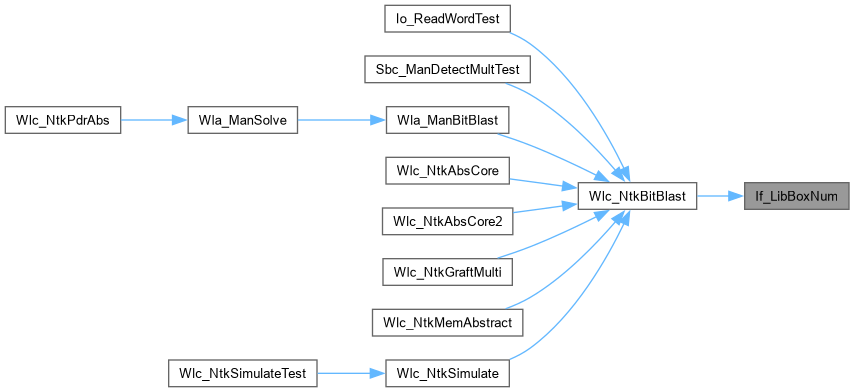

Here is the caller graph for this function:

If_LibBoxPrint()

void If_LibBoxPrint	(	FILE *	pFile,
		If_LibBox_t *	p )

Definition at line 339 of file ifLibBox.c.

{
    If_Box_t * pBox;
    int i, j, k;
    fprintf( pFile, "# Box library written by ABC on %s.\n", Extra_TimeStamp() );
    fprintf( pFile, "# <Name> <ID> <Type> <I> <O>\n" );
    If_LibBoxForEachBox( p, pBox, i )
    {
        fprintf( pFile, "%s %d %d %d %d\n", pBox->pName, pBox->Id, !pBox->fBlack, pBox->nPis, pBox->nPos );
        for ( j = 0; j < pBox->nPos; j++, fprintf(pFile, "\n") )
            for ( k = 0; k < pBox->nPis; k++ )
                if ( pBox->pDelays[j * pBox->nPis + k] == -ABC_INFINITY )
                    fprintf( pFile, "    - " );
                else
                    fprintf( pFile, "%5d ", pBox->pDelays[j * pBox->nPis + k] );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_LibBoxRead()

If_LibBox_t * If_LibBoxRead

(

char *

pFileName

)

Definition at line 278 of file ifLibBox.c.

{
    FILE * pFile;
    If_LibBox_t * p;
    If_Box_t * pBox;
    char * pToken, * pName;
    int i, Id, fBlack, nPis, nPos;
    pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\".\n", pFileName );
        return NULL;
    }
    // get the library name
    pToken = If_LibBoxGetToken( pFile );
    if ( pToken == NULL )
    {
        fclose( pFile );
        printf( "Cannot read library name from file \"%s\".\n", pFileName );
        return NULL;
    }
    if ( pToken[0] == '.' )
    {
        fclose( pFile );
        printf( "Wrong box format. Please try \"read_box -e\".\n" );
        return NULL;
    }

    // create library
    p = If_LibBoxStart();
    while ( pToken )
    {
        // save name
        pName  = Abc_UtilStrsav(pToken);
        // save ID
        pToken = If_LibBoxGetToken( pFile );
        Id     = atoi( pToken );
        // save white/black
        pToken = If_LibBoxGetToken( pFile );
        fBlack = !atoi( pToken );
        // save PIs
        pToken = If_LibBoxGetToken( pFile );
        nPis   = atoi( pToken );
        // save POs
        pToken = If_LibBoxGetToken( pFile );
        nPos   = atoi( pToken );
        // create box
        pBox   = If_BoxStart( pName, Id, nPis, nPos, 0, fBlack, 0 );
        If_LibBoxAdd( p, pBox );
        // read the table
        for ( i = 0; i < nPis * nPos; i++ )
        {
            pToken = If_LibBoxGetToken( pFile );
            pBox->pDelays[i] = (pToken[0] == '-') ? -ABC_INFINITY : atoi(pToken);
        }
        // extract next name
        pToken = If_LibBoxGetToken( pFile );
    }
    fclose( pFile );
    return p;
}

Here is the call graph for this function:

If_LibBoxRead2()

If_LibBox_t * If_LibBoxRead2

(

char *

pFileName

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 160 of file ifLibBox.c.

{
    int nSize = 100000;
    char * pBuffer;
    FILE * pFile;
    If_LibBox_t * p = NULL;
    If_Box_t * pBox = NULL;
    char * pToken, * pName;
    int fSeq, fBlack, fOuter;
    int i, Id, nPis, nPos;
    pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\".\n", pFileName );
        return NULL;
    }
    // read lines
    nPis = nPos = 0;
    pBuffer = ABC_ALLOC( char, nSize );
    while ( fgets( pBuffer, nSize, pFile ) )
    {
        pToken = strtok( pBuffer, " \n\r\t" );
        if ( pToken == NULL )
            continue;
        if ( pToken[0] == '.' )
        {
            if ( !strcmp(pToken, ".box") )
            {
                // save ID
                pToken = strtok( NULL, " \n\r\t" );
                Id     = atoi( pToken );
                // save name
                pToken = strtok( NULL, " \n\r\t" );
                pName  = Abc_UtilStrsav(pToken);
                // save PIs
                pToken = strtok( NULL, " \n\r\t" );
                nPis   = atoi( pToken );
                // save POs
                pToken = strtok( NULL, " \n\r\t" );
                nPos   = atoi( pToken );
                // save attributes
                fSeq = fBlack = fOuter = 0;
                pToken = strtok( NULL, " \n\r\t" );
                while ( pToken )
                {
                    if ( !strcmp(pToken, "seq") )
                        fSeq = 1;
                    else if ( !strcmp(pToken, "black") )
                        fBlack = 1;
                    else if ( !strcmp(pToken, "outer") )
                        fOuter = 1;
                    else assert( !strcmp(pToken, "comb") || !strcmp(pToken, "white") || !strcmp(pToken, "inner") );
                    pToken = strtok( NULL, " \n\r\t" );
                }
                // create library
                if ( p == NULL )
                    p = If_LibBoxStart();
                // create box
                pBox = If_BoxStart( pName, Id, nPis, nPos, fSeq, fBlack, fOuter );
                If_LibBoxAdd( p, pBox );
            }
            continue;
        }
        // read the table
        assert( nPis > 0 && nPos > 0 );
        for ( i = 0; i < nPis * nPos; i++ )
        {
            while ( pToken == NULL )
            {
                if ( fgets( pBuffer, nSize, pFile ) == NULL )
                { printf( "The table does not have enough entries.\n" ); fflush(stdout); assert( 0 ); }
                pToken = strtok( pBuffer, " \n\r\t" );
            }
            pBox->pDelays[i] = (pToken[0] == '-') ? -1 : atoi(pToken);
            pToken = strtok( NULL, " \n\r\t" );
        }
        pBox = NULL;
    }
    ABC_FREE( pBuffer );
    fclose( pFile );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

If_LibBoxReadBox()

If_Box_t * If_LibBoxReadBox	(	If_LibBox_t *	p,
		int	Id )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 121 of file ifLibBox.c.

{
    return (If_Box_t *)Vec_PtrEntry( p->vBoxes, Id );
}

If_LibBoxStart()

If_LibBox_t * If_LibBoxStart

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 86 of file ifLibBox.c.

{
    If_LibBox_t * p;
    p = ABC_CALLOC( If_LibBox_t, 1 );
    p->vBoxes = Vec_PtrAlloc( 100 );
    return p;
}

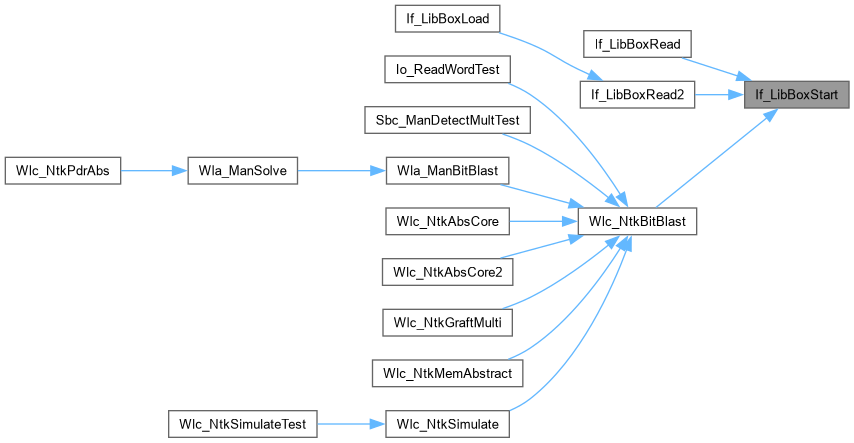

Here is the caller graph for this function:

If_LibBoxWrite()

void If_LibBoxWrite	(	char *	pFileName,
		If_LibBox_t *	p )

Definition at line 356 of file ifLibBox.c.

{
    FILE * pFile;
    pFile = fopen( pFileName, "wb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\".\n", pFileName );
        return;
    }
    If_LibBoxPrint( pFile, p );
    fclose( pFile );
    printf( "Finished writing box library into file \"%s\".\n", pFileName );
}

Here is the call graph for this function:
