ifTruth.c File Reference

#include "if.h"
#include "bool/kit/kit.h"
#include "misc/extra/extra.h"

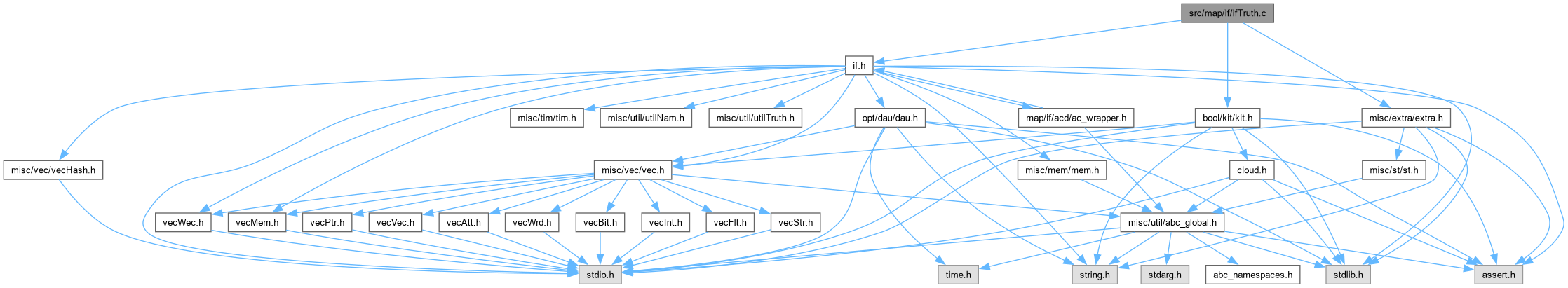

Include dependency graph for ifTruth.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	If_CutTruthPermute (word *pTruth, int nLeaves, int nVars, int nWords, float *pDelays, int *pVars)
	DECLARATIONS ///.
void	If_CutRotatePins (If_Man_t *p, If_Cut_t *pCut)
int	If_CutComputeTruth (If_Man_t *p, If_Cut_t *pCut, If_Cut_t *pCut0, If_Cut_t *pCut1, int fCompl0, int fCompl1)
int	If_CutComputeTruthPerm_int (If_Man_t *p, If_Cut_t *pCut, If_Cut_t *pCut0, If_Cut_t *pCut1, int iCutFunc0, int iCutFunc1)
int	If_CutComputeTruthPerm (If_Man_t *p, If_Cut_t *pCut, If_Cut_t *pCut0, If_Cut_t *pCut1, int iCutFunc0, int iCutFunc1)
Vec_Mem_t *	If_DeriveHashTable6 (int nVars, word uTruth)
int	If_CutCheckTruth6 (If_Man_t *p, If_Cut_t *pCut)

Function Documentation

If_CutCheckTruth6()

int If_CutCheckTruth6	(	If_Man_t *	p,
		If_Cut_t *	pCut )

Definition at line 396 of file ifTruth.c.

{
    if ( pCut->nLeaves != 6 )
        return 0;
    if ( p->vTtMem6 == NULL )
        p->vTtMem6 = If_DeriveHashTable6( 6, ABC_CONST(0xfedcba9876543210) );
    if ( *Vec_MemHashLookup( p->vTtMem6, If_CutTruthWR(p, pCut) ) == -1 )
        return 0;
    return 1;
}

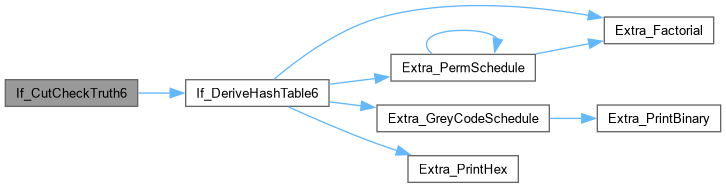

Here is the call graph for this function:

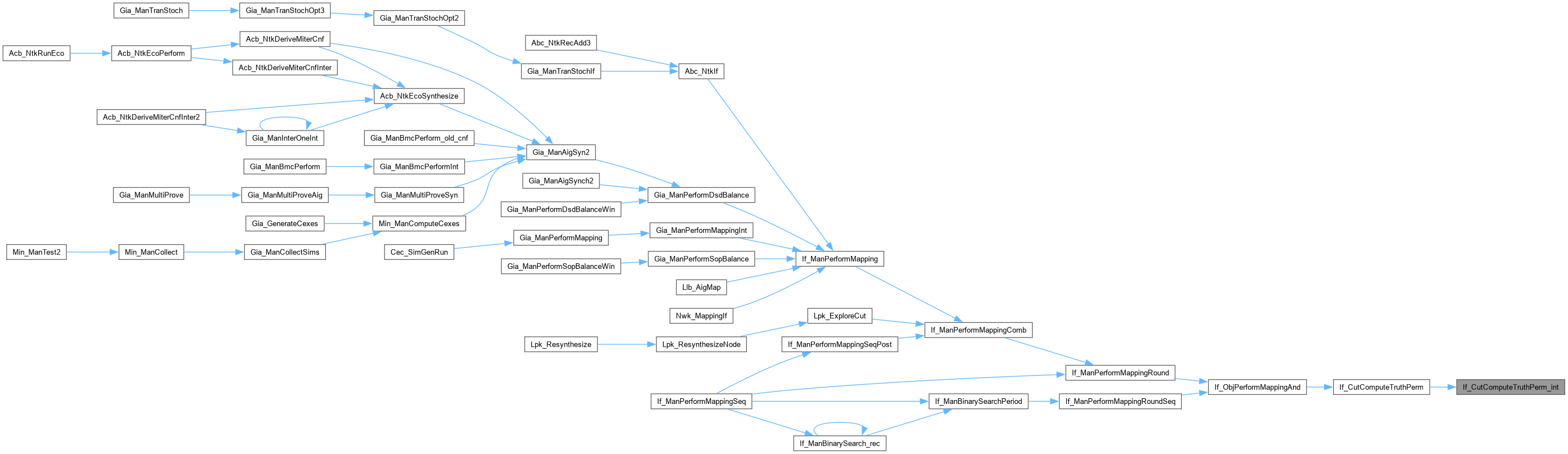

Here is the caller graph for this function:

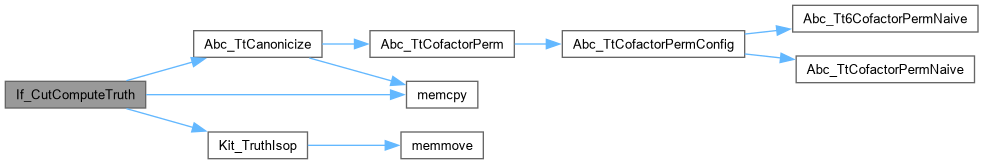

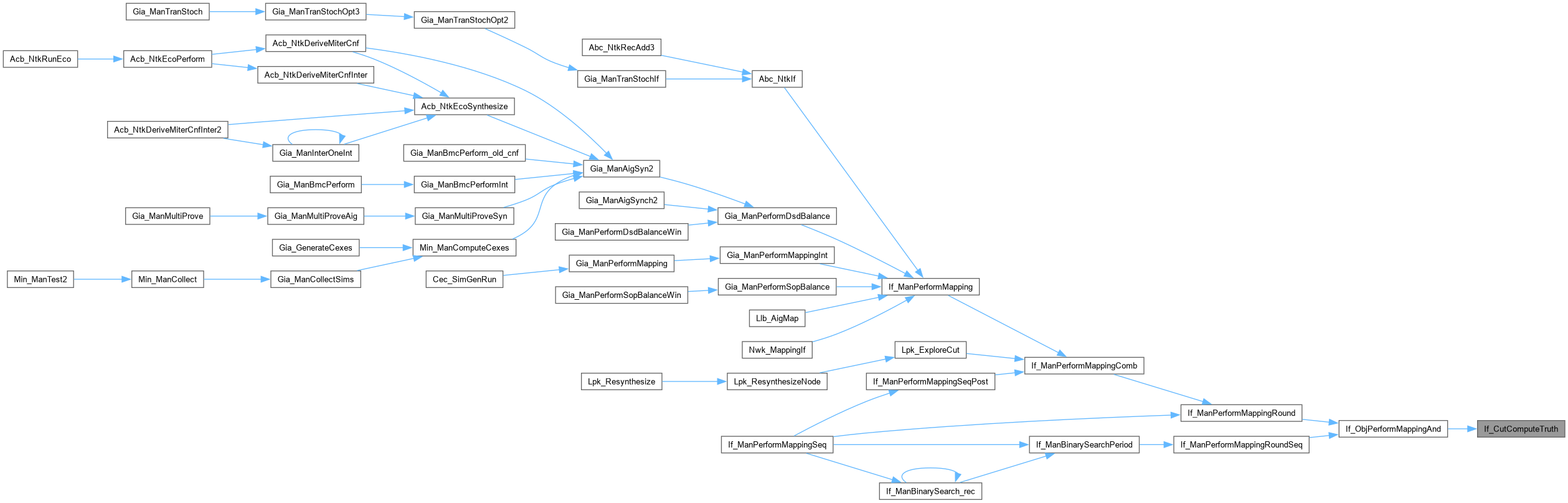

If_CutComputeTruth()

int If_CutComputeTruth	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		If_Cut_t *	pCut0,
		If_Cut_t *	pCut1,
		int	fCompl0,
		int	fCompl1 )

Function*************************************************************

Synopsis [Truth table computation.]

Description []

SideEffects []

SeeAlso []

Definition at line 99 of file ifTruth.c.

{
    int fCompl, truthId, nLeavesNew, PrevSize, RetValue = 0;
    word * pTruth0s = Vec_MemReadEntry( p->vTtMem[pCut0->nLeaves], Abc_Lit2Var(pCut0->iCutFunc) );
    word * pTruth1s = Vec_MemReadEntry( p->vTtMem[pCut1->nLeaves], Abc_Lit2Var(pCut1->iCutFunc) );
    word * pTruth0  = (word *)p->puTemp[0];
    word * pTruth1  = (word *)p->puTemp[1];
    word * pTruth   = (word *)p->puTemp[2];
    Abc_TtCopy( pTruth0, pTruth0s, p->nTruth6Words[pCut0->nLeaves], fCompl0 ^ pCut0->fCompl ^ Abc_LitIsCompl(pCut0->iCutFunc) );
    Abc_TtCopy( pTruth1, pTruth1s, p->nTruth6Words[pCut1->nLeaves], fCompl1 ^ pCut1->fCompl ^ Abc_LitIsCompl(pCut1->iCutFunc) );
    Abc_TtStretch6( pTruth0, pCut0->nLeaves, pCut->nLeaves );
    Abc_TtStretch6( pTruth1, pCut1->nLeaves, pCut->nLeaves );
    Abc_TtExpand( pTruth0, pCut->nLeaves, pCut0->pLeaves, pCut0->nLeaves, pCut->pLeaves, pCut->nLeaves );
    Abc_TtExpand( pTruth1, pCut->nLeaves, pCut1->pLeaves, pCut1->nLeaves, pCut->pLeaves, pCut->nLeaves );
    fCompl         = (pTruth0[0] & pTruth1[0] & 1);
    Abc_TtAnd( pTruth, pTruth0, pTruth1, p->nTruth6Words[pCut->nLeaves], fCompl );
    if ( p->pPars->fCutMin && (pCut0->nLeaves + pCut1->nLeaves > pCut->nLeaves || pCut0->nLeaves == 0 || pCut1->nLeaves == 0) )
    {
        nLeavesNew = Abc_TtMinBase( pTruth, pCut->pLeaves, pCut->nLeaves, pCut->nLeaves );
        if ( nLeavesNew < If_CutLeaveNum(pCut) )
        {
            pCut->nLeaves = nLeavesNew;
            pCut->uSign   = If_ObjCutSignCompute( pCut );
            RetValue      = 1;
        }
    }
    PrevSize       = Vec_MemEntryNum( p->vTtMem[pCut->nLeaves] );
    truthId        = Vec_MemHashInsert( p->vTtMem[pCut->nLeaves], pTruth );
    pCut->iCutFunc = Abc_Var2Lit( truthId, fCompl );
    assert( (pTruth[0] & 1) == 0 );
#ifdef IF_TRY_NEW
    {
        word pCopy[1024];
        char pCanonPerm[16];
        memcpy( pCopy, If_CutTruthW(pCut), sizeof(word) * p->nTruth6Words[pCut->nLeaves] );
        Abc_TtCanonicize( pCopy, pCut->nLeaves, pCanonPerm );
    }
#endif
    if ( p->vTtIsops[pCut->nLeaves] && PrevSize != Vec_MemEntryNum(p->vTtMem[pCut->nLeaves]) )
    {
        Vec_Int_t * vLevel = Vec_WecPushLevel( p->vTtIsops[pCut->nLeaves] );
        fCompl = Kit_TruthIsop( (unsigned *)pTruth, pCut->nLeaves, p->vCover, 1 );
        if ( fCompl >= 0 )
        {
            Vec_IntGrow( vLevel, Vec_IntSize(p->vCover) );
            Vec_IntAppend( vLevel, p->vCover );
            if ( fCompl )
                vLevel->nCap ^= (1<<16); // hack to remember complemented attribute
        }
        assert( Vec_WecSize(p->vTtIsops[pCut->nLeaves]) == Vec_MemEntryNum(p->vTtMem[pCut->nLeaves]) );
    }
    return RetValue;
}

Here is the call graph for this function:

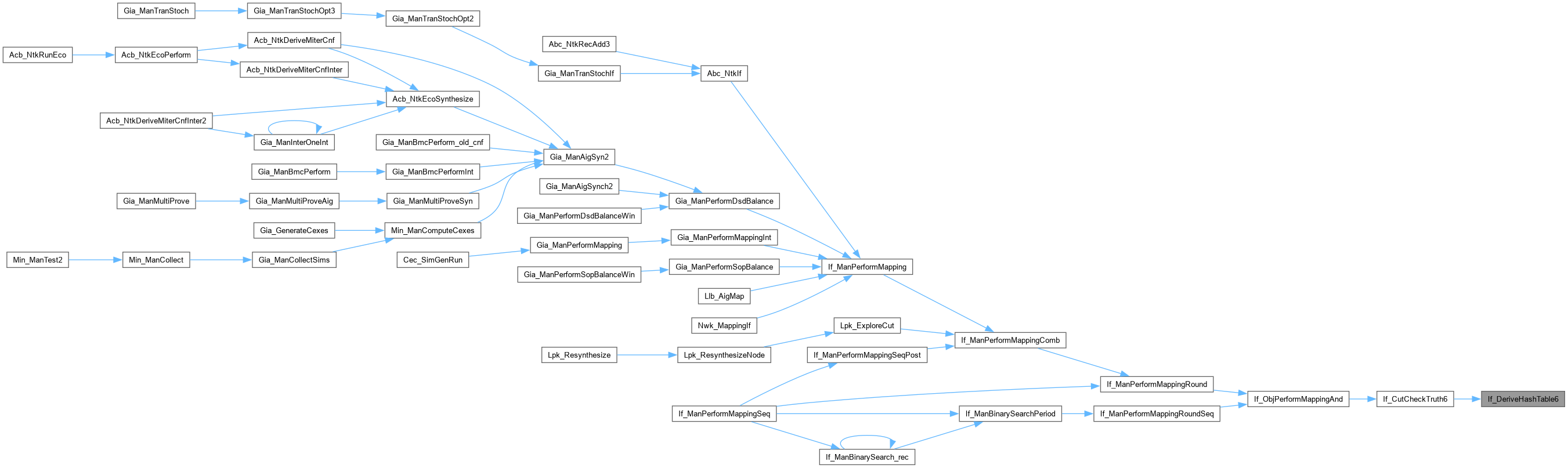

Here is the caller graph for this function:

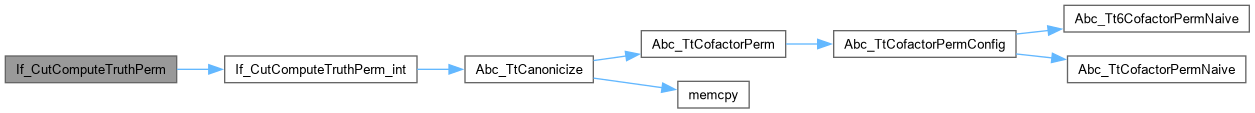

If_CutComputeTruthPerm()

int If_CutComputeTruthPerm	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		If_Cut_t *	pCut0,
		If_Cut_t *	pCut1,
		int	iCutFunc0,
		int	iCutFunc1 )

Definition at line 269 of file ifTruth.c.

{
    abctime clk = 0;
    int i, Num, nEntriesOld, RetValue;
    if ( pCut0->nLeaves + pCut1->nLeaves > pCut->nLeaves || iCutFunc0 < 2 || iCutFunc1 < 2 )
    {
if ( p->pPars->fVerbose )
clk = Abc_Clock();
        RetValue = If_CutComputeTruthPerm_int( p, pCut, pCut0, pCut1, iCutFunc0, iCutFunc1 );
if ( p->pPars->fVerbose )
p->timeCache[0] += Abc_Clock() - clk;
        return RetValue;
    }
    assert( pCut0->nLeaves + pCut1->nLeaves == pCut->nLeaves );
    nEntriesOld = Hash_IntManEntryNum(p->vPairHash);
    Num = Hash_Int2ManInsert( p->vPairHash, (iCutFunc0 << 5)|pCut0->nLeaves, (iCutFunc1 << 5)|pCut1->nLeaves, -1 );
    assert( Num > 0 );
    if ( nEntriesOld == Hash_IntManEntryNum(p->vPairHash) )
    {
        char * pCanonPerm;
        int v, pPerm[IF_MAX_LUTSIZE];
        pCut->iCutFunc = Vec_IntEntry( p->vPairRes, Num );
        // move complements from the fanin cuts
        for ( v = 0; v < (int)pCut->nLeaves; v++ )
            if ( v < (int)pCut0->nLeaves )
                pCut->pLeaves[v] = Abc_Var2Lit( pCut->pLeaves[v], If_CutLeafBit(pCut0, v) );
            else
                pCut->pLeaves[v] = Abc_Var2Lit( pCut->pLeaves[v], If_CutLeafBit(pCut1, v-(int)pCut0->nLeaves) );
        // reorder the cut
        pCanonPerm = Vec_StrEntryP( p->vPairPerms, Num * pCut->nLimit );
        for ( v = 0; v < (int)pCut->nLeaves; v++ )
            pPerm[v] = Abc_LitNotCond( pCut->pLeaves[Abc_Lit2Var((int)pCanonPerm[v])], Abc_LitIsCompl((int)pCanonPerm[v]) );
        // generate the result
        pCut->uMaskFunc = 0;
        for ( v = 0; v < (int)pCut->nLeaves; v++ )
        {
            pCut->pLeaves[v] = Abc_Lit2Var(pPerm[v]);
            if ( Abc_LitIsCompl(pPerm[v]) )
                pCut->uMaskFunc |= (1 << v);
        }
//        printf( "Found: %d(%d) %d(%d) -> %d(%d)\n", iCutFunc0, pCut0->nLeaves, iCutFunc1, pCut0->nLeaves, pCut->iCutFunc, pCut->nLeaves );
        p->nCacheHits++;
//p->timeCache[1] += Abc_Clock() - clk;
        return 0;
    }
if ( p->pPars->fVerbose )
clk = Abc_Clock();
    p->nCacheMisses++;
    RetValue = If_CutComputeTruthPerm_int( p, pCut, pCut0, pCut1, iCutFunc0, iCutFunc1 );
    assert( RetValue == 0 );
//    printf( "Added: %d(%d) %d(%d) -> %d(%d)\n", iCutFunc0, pCut0->nLeaves, iCutFunc1, pCut0->nLeaves, pCut->iCutFunc, pCut->nLeaves );
    // save the result
    assert( Num == Vec_IntSize(p->vPairRes) );
    Vec_IntPush( p->vPairRes, pCut->iCutFunc );
    // save the permutation
    assert( Num * (int)pCut->nLimit == Vec_StrSize(p->vPairPerms) );
    for ( i = 0; i < (int)pCut->nLeaves; i++ )
        Vec_StrPush( p->vPairPerms, (char)Abc_Var2Lit((int)p->pCanonPerm[i], ((p->uCanonPhase>>i)&1)) );
    for ( i = (int)pCut0->nLeaves + (int)pCut1->nLeaves; i < (int)pCut->nLimit; i++ )
        Vec_StrPush( p->vPairPerms, (char)-1 );
if ( p->pPars->fVerbose )
p->timeCache[2] += Abc_Clock() - clk;
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

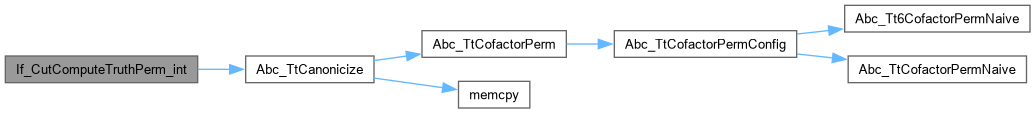

If_CutComputeTruthPerm_int()

int If_CutComputeTruthPerm_int	(	If_Man_t *	p,
		If_Cut_t *	pCut,
		If_Cut_t *	pCut0,
		If_Cut_t *	pCut1,
		int	iCutFunc0,
		int	iCutFunc1 )

Function*************************************************************

Synopsis [Truth table computation.]

Description []

SideEffects []

SeeAlso []

Definition at line 164 of file ifTruth.c.

{
    int fVerbose = 0;
    abctime clk = 0;
    int pPerm[IF_MAX_LUTSIZE];
    int v, Place, fCompl, truthId, nLeavesNew, RetValue = 0;
    word * pTruth0s = Vec_MemReadEntry( p->vTtMem[pCut0->nLeaves], Abc_Lit2Var(iCutFunc0) );
    word * pTruth1s = Vec_MemReadEntry( p->vTtMem[pCut1->nLeaves], Abc_Lit2Var(iCutFunc1) );
    word * pTruth0  = (word *)p->puTemp[0];
    word * pTruth1  = (word *)p->puTemp[1];
    word * pTruth   = (word *)p->puTemp[2];
    assert( pCut0->uMaskFunc >= 0 );
    assert( pCut1->uMaskFunc >= 0 );
    Abc_TtCopy( pTruth0, pTruth0s, p->nTruth6Words[pCut0->nLeaves], Abc_LitIsCompl(iCutFunc0) );
    Abc_TtCopy( pTruth1, pTruth1s, p->nTruth6Words[pCut1->nLeaves], Abc_LitIsCompl(iCutFunc1) );
    Abc_TtStretch6( pTruth0, pCut0->nLeaves, pCut->nLeaves );
    Abc_TtStretch6( pTruth1, pCut1->nLeaves, pCut->nLeaves );

if ( fVerbose )
{
//Kit_DsdPrintFromTruth( pTruth0, pCut0->nLeaves ); printf( "\n" );
//Kit_DsdPrintFromTruth( pTruth1, pCut1->nLeaves ); printf( "\n" );
}
    // create literals
    for ( v = 0; v < (int)pCut0->nLeaves; v++ )
        pCut->pLeaves[v] = Abc_Var2Lit( pCut0->pLeaves[v], If_CutLeafBit(pCut0, v) );
    for ( v = 0; v < (int)pCut1->nLeaves; v++ )
        if ( p->pPerm[1][v] >= (int)pCut0->nLeaves )
            pCut->pLeaves[p->pPerm[1][v]] = Abc_Var2Lit( pCut1->pLeaves[v], If_CutLeafBit(pCut1, v) );
        else if ( If_CutLeafBit(pCut0, p->pPerm[1][v]) != If_CutLeafBit(pCut1, v) )
            Abc_TtFlip( pTruth1, p->nTruth6Words[pCut1->nLeaves], v );
    // permute variables
    for ( v = (int)pCut1->nLeaves; v < (int)pCut->nLeaves; v++ )
        p->pPerm[1][v] = -1;
    for ( v = 0; v < (int)pCut1->nLeaves; v++ )
    {
        Place = p->pPerm[1][v];
        if ( Place == v || Place == -1 )
            continue;
        Abc_TtSwapVars( pTruth1, pCut->nLeaves, v, Place );
        p->pPerm[1][v] = p->pPerm[1][Place];
        p->pPerm[1][Place] = Place;
        v--;
    }

if ( fVerbose )
{
//Kit_DsdPrintFromTruth( pTruth0, pCut0->nLeaves ); printf( "\n" );
//Kit_DsdPrintFromTruth( pTruth1, pCut->nLeaves ); printf( "\n" );
}

    // perform operation
    Abc_TtAnd( pTruth, pTruth0, pTruth1, p->nTruth6Words[pCut->nLeaves], 0 );
    // minimize support
    if ( p->pPars->fCutMin && (pCut0->nLeaves + pCut1->nLeaves > pCut->nLeaves || pCut0->nLeaves == 0 || pCut1->nLeaves == 0) )
    {
        nLeavesNew = Abc_TtMinBase( pTruth, pCut->pLeaves, pCut->nLeaves, pCut->nLeaves );
        if ( nLeavesNew < If_CutLeaveNum(pCut) )
        {
            pCut->nLeaves = nLeavesNew;
            RetValue      = 1;
        }
    }
    // compute canonical form
if ( p->pPars->fVerbose )
clk = Abc_Clock();
    p->uCanonPhase = Abc_TtCanonicize( pTruth, pCut->nLeaves, p->pCanonPerm );
if ( p->pPars->fVerbose )
p->timeCache[3] += Abc_Clock() - clk;
    for ( v = 0; v < (int)pCut->nLeaves; v++ )
        pPerm[v] = Abc_LitNotCond( pCut->pLeaves[(int)p->pCanonPerm[v]], ((p->uCanonPhase>>v)&1) );
    pCut->uMaskFunc = 0;
    for ( v = 0; v < (int)pCut->nLeaves; v++ )
    {
        pCut->pLeaves[v] = Abc_Lit2Var(pPerm[v]);
        if ( Abc_LitIsCompl(pPerm[v]) )
            pCut->uMaskFunc |= (1 << v);
    }
    // create signature after lowering literals
    if ( RetValue )
        pCut->uSign = If_ObjCutSignCompute( pCut );
    else
        assert( pCut->uSign == If_ObjCutSignCompute( pCut ) );

    assert( Vec_IntSize(p->vTtOccurs[pCut->nLeaves]) == Vec_MemEntryNum(p->vTtMem[pCut->nLeaves]) );
    // hash function
    fCompl         = ((p->uCanonPhase >> pCut->nLeaves) & 1);
    truthId        = Vec_MemHashInsert( p->vTtMem[pCut->nLeaves], pTruth );
    pCut->iCutFunc = Abc_Var2Lit( truthId, fCompl );
    // count how many time this truth table is used
    if ( Vec_IntSize(p->vTtOccurs[pCut->nLeaves]) < Vec_MemEntryNum(p->vTtMem[pCut->nLeaves]) )
        Vec_IntPush( p->vTtOccurs[pCut->nLeaves], 0 );
    Vec_IntAddToEntry( p->vTtOccurs[pCut->nLeaves], truthId, 1 );

if ( fVerbose )
{
//Kit_DsdPrintFromTruth( pTruth, pCut->nLeaves ); printf( "\n" );
//If_CutPrint( pCut0 );
//If_CutPrint( pCut1 );
//If_CutPrint( pCut );
//printf( "%d\n\n", pCut->iCutFunc );
}

    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

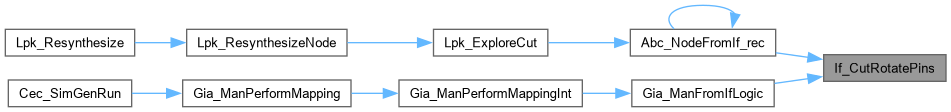

If_CutRotatePins()

void If_CutRotatePins	(	If_Man_t *	p,
		If_Cut_t *	pCut )

Definition at line 68 of file ifTruth.c.

{
    If_Obj_t * pLeaf;
    float PinDelays[IF_MAX_LUTSIZE];
    int i, truthId;
    assert( !p->pPars->fUseTtPerm );
    If_CutForEachLeaf( p, pCut, pLeaf, i )
        PinDelays[i] = If_ObjCutBest(pLeaf)->Delay;
    if ( p->vTtMem[pCut->nLeaves] == NULL )
    {
        If_CutTruthPermute( NULL, If_CutLeaveNum(pCut), pCut->nLeaves, p->nTruth6Words[pCut->nLeaves], PinDelays, If_CutLeaves(pCut) );
        return;
    }
    Abc_TtCopy( p->puTempW, If_CutTruthWR(p, pCut), p->nTruth6Words[pCut->nLeaves], 0 );
    If_CutTruthPermute( p->puTempW, If_CutLeaveNum(pCut), pCut->nLeaves, p->nTruth6Words[pCut->nLeaves], PinDelays, If_CutLeaves(pCut) );
    truthId        = Vec_MemHashInsert( p->vTtMem[pCut->nLeaves], p->puTempW );
    pCut->iCutFunc = Abc_Var2Lit( truthId, If_CutTruthIsCompl(pCut) );
    assert( (p->puTempW[0] & 1) == 0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

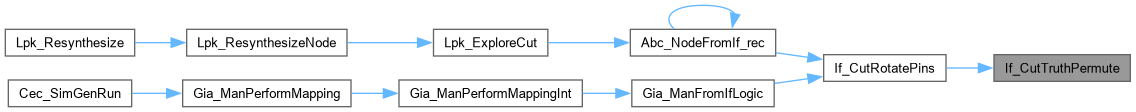

If_CutTruthPermute()

ABC_NAMESPACE_IMPL_START void If_CutTruthPermute	(	word *	pTruth,
		int	nLeaves,
		int	nVars,
		int	nWords,
		float *	pDelays,
		int *	pVars )

DECLARATIONS ///.

CFile****************************************************************

FileName [ifTruth.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [FPGA mapping based on priority cuts.]

Synopsis [Computation of truth tables of the cuts.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 21, 2006.]

Revision [

Id

ifTruth.c,v 1.00 2006/11/21 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Sorts the pins in the decreasing order of delays.]

Description []

SideEffects []

SeeAlso []

Definition at line 49 of file ifTruth.c.

{
    while ( 1 )
    {
        int i, fChange = 0;
        for ( i = 0; i < nLeaves - 1; i++ )
        {
            if ( pDelays[i] >= pDelays[i+1] )
                continue;
            ABC_SWAP( float, pDelays[i], pDelays[i+1] );
            ABC_SWAP( int, pVars[i], pVars[i+1] );
            if ( pTruth )
                Abc_TtSwapAdjacent( pTruth, nWords, i );
            fChange = 1;
        }
        if ( !fChange )
            return;
    }
}

Here is the caller graph for this function:

If_DeriveHashTable6()

Vec_Mem_t * If_DeriveHashTable6	(	int	nVars,
		word	uTruth )

Function*************************************************************

Synopsis [Check the function of 6-input LUT.]

Description []

SideEffects []

SeeAlso []

Definition at line 345 of file ifTruth.c.

{
    int fVerbose = 0;
    int nMints   = (1 << nVars);
    int nPerms   = Extra_Factorial( nVars );
    int * pComp  = Extra_GreyCodeSchedule( nVars );
    int * pPerm  = Extra_PermSchedule( nVars );
    word Canon   = ABC_CONST(0xFFFFFFFFFFFFFFFF);
    word tCur, tTemp1, tTemp2;
    Vec_Mem_t * vTtMem6 = Vec_MemAllocForTTSimple( nVars );
    int i, p, c;
    for ( i = 0; i < 2; i++ )
    {
        tCur = i ? ~uTruth : uTruth;
        tTemp1 = tCur;
        for ( p = 0; p < nPerms; p++ )
        {
            tTemp2 = tCur;
            for ( c = 0; c < nMints; c++ )
            {
                if ( Canon > tCur )
                    Canon = tCur;
                Vec_MemHashInsert( vTtMem6, &tCur );
                tCur = Abc_Tt6Flip( tCur, pComp[c] );
            }
            assert( tTemp2 == tCur );
            tCur = Abc_Tt6SwapAdjacent( tCur, pPerm[p] );
        }
        assert( tTemp1 == tCur );
    }
    ABC_FREE( pComp );
    ABC_FREE( pPerm );
    if ( fVerbose )
    {
/*
        word * pEntry;
        Vec_MemForEachEntry( vTtMem6, pEntry, i )
        {
            Extra_PrintHex( stdout, (unsigned*)pEntry, nVars );
            printf( ", " );
            if ( i % 4 == 3 )
                printf( "\n" );
        }
*/
        Extra_PrintHex( stdout, (unsigned*)&uTruth, nVars );  printf( "\n" );
        Extra_PrintHex( stdout, (unsigned*)&Canon,  nVars );  printf( "\n" );
        printf( "Members = %d.\n", Vec_MemEntryNum(vTtMem6) );
    }
    return vTtMem6;
}

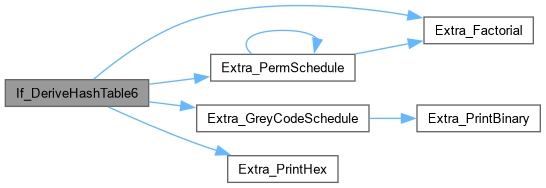

Here is the call graph for this function:

Here is the caller graph for this function:
