infback.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "misc/util/abc_global.h"
#include "zutil.h"
#include "inftrees.h"
#include "inflate.h"
#include "inffast.h"
#include "inffixed.h"

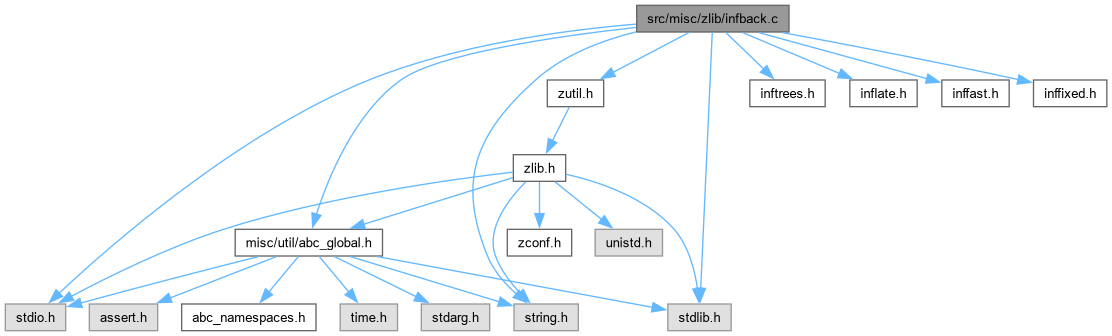

Include dependency graph for infback.c:

Go to the source code of this file.

Macros
#define	LOAD()
#define	RESTORE()
#define	INITBITS()
#define	PULL()
#define	PULLBYTE()
#define	NEEDBITS(n)
#define	BITS(n)
#define	DROPBITS(n)
#define	BYTEBITS()
#define	ROOM()

Functions
ABC_NAMESPACE_IMPL_START local void fixedtables	OF ((struct inflate_state FAR *state))
int ZEXPORT	inflateBackInit_ (z_streamp strm, int windowBits, unsigned char FAR *window, const char *version, int stream_size)
local void	fixedtables (struct inflate_state FAR *state)
int ZEXPORT	inflateBack (z_streamp strm, in_func in, void FAR *in_desc, out_func out, void FAR *out_desc)
int ZEXPORT	inflateBackEnd (z_streamp strm)

Macro Definition Documentation

BITS

#define BITS

(

n

)

Value:

    ((unsigned)hold & ((1U << (n)) - 1))

Definition at line 182 of file infback.c.

#define BITS(n) \
    ((unsigned)hold & ((1U << (n)) - 1))

BYTEBITS

#define BYTEBITS

(

)

Value:

    do { \
        hold >>= bits & 7; \
        bits -= bits & 7; \
    } while (0)

Definition at line 193 of file infback.c.

#define BYTEBITS() \
    do { \
        hold >>= bits & 7; \
        bits -= bits & 7; \
    } while (0)

DROPBITS

#define DROPBITS

(

n

)

Value:

    do { \
        hold >>= (n); \
        bits -= (unsigned)(n); \
    } while (0)

Definition at line 186 of file infback.c.

#define DROPBITS(n) \
    do { \
        hold >>= (n); \
        bits -= (unsigned)(n); \
    } while (0)

INITBITS

#define INITBITS

(

)

Value:

    do { \
        hold = 0; \
        bits = 0; \
    } while (0)

Definition at line 142 of file infback.c.

#define INITBITS() \
    do { \
        hold = 0; \
        bits = 0; \
    } while (0)

LOAD

#define LOAD

(

)

Value:

    do { \
        put = strm->next_out; \
        left = strm->avail_out; \
        next = strm->next_in; \
        have = strm->avail_in; \
        hold = state->hold; \
        bits = state->bits; \
    } while (0)

Definition at line 120 of file infback.c.

#define LOAD() \
    do { \
        put = strm->next_out; \
        left = strm->avail_out; \
        next = strm->next_in; \
        have = strm->avail_in; \
        hold = state->hold; \
        bits = state->bits; \
    } while (0)

NEEDBITS

#define NEEDBITS

(

n

)

Value:

    do { \
        while (bits < (unsigned)(n)) \
            PULLBYTE(); \
    } while (0)

Definition at line 175 of file infback.c.

#define NEEDBITS(n) \
    do { \
        while (bits < (unsigned)(n)) \
            PULLBYTE(); \
    } while (0)

PULL

#define PULL

(

)

Value:

    do { \
        if (have == 0) { \
            have = in(in_desc, &next); \
            if (have == 0) { \
                next = Z_NULL; \
                ret = Z_BUF_ERROR; \
                goto inf_leave; \
            } \
        } \
    } while (0)

Definition at line 150 of file infback.c.

#define PULL() \
    do { \
        if (have == 0) { \
            have = in(in_desc, &next); \
            if (have == 0) { \
                next = Z_NULL; \
                ret = Z_BUF_ERROR; \
                goto inf_leave; \
            } \
        } \
    } while (0)

PULLBYTE

#define PULLBYTE

(

)

Value:

    do { \
        PULL(); \
        have--; \
        hold += (unsigned long)(*next++) << bits; \
        bits += 8; \
    } while (0)

Definition at line 164 of file infback.c.

#define PULLBYTE() \
    do { \
        PULL(); \
        have--; \
        hold += (unsigned long)(*next++) << bits; \
        bits += 8; \
    } while (0)

RESTORE

#define RESTORE

(

)

Value:

    do { \
        strm->next_out = put; \
        strm->avail_out = left; \
        strm->next_in = next; \
        strm->avail_in = have; \
        state->hold = hold; \
        state->bits = bits; \
    } while (0)

Definition at line 131 of file infback.c.

#define RESTORE() \
    do { \
        strm->next_out = put; \
        strm->avail_out = left; \
        strm->next_in = next; \
        strm->avail_in = have; \
        state->hold = hold; \
        state->bits = bits; \
    } while (0)

ROOM

#define ROOM

(

)

Value:

    do { \
        if (left == 0) { \
            put = state->window; \
            left = state->wsize; \
            state->whave = left; \
            if (out(out_desc, put, left)) { \
                ret = Z_BUF_ERROR; \
                goto inf_leave; \
            } \
        } \
    } while (0)

Definition at line 202 of file infback.c.

#define ROOM() \
    do { \
        if (left == 0) { \
            put = state->window; \
            left = state->wsize; \
            state->whave = left; \
            if (out(out_desc, put, left)) { \
                ret = Z_BUF_ERROR; \
                goto inf_leave; \
            } \
        } \
    } while (0)

Function Documentation

fixedtables()

local void fixedtables

(

struct inflate_state FAR *

state

)

Definition at line 75 of file infback.c.

{
#ifdef BUILDFIXED
    static int virgin = 1;
    static code *lenfix, *distfix;
    static code fixed[544];

    /* build fixed huffman tables if first call (may not be thread safe) */
    if (virgin) {
        unsigned sym, bits;
        static code *next;

        /* literal/length table */
        sym = 0;
        while (sym < 144) state->lens[sym++] = 8;
        while (sym < 256) state->lens[sym++] = 9;
        while (sym < 280) state->lens[sym++] = 7;
        while (sym < 288) state->lens[sym++] = 8;
        next = fixed;
        lenfix = next;
        bits = 9;
        inflate_table(LENS, state->lens, 288, &(next), &(bits), state->work);

        /* distance table */
        sym = 0;
        while (sym < 32) state->lens[sym++] = 5;
        distfix = next;
        bits = 5;
        inflate_table(DISTS, state->lens, 32, &(next), &(bits), state->work);

        /* do this just once */
        virgin = 0;
    }
#else /* !BUILDFIXED */
#   include "inffixed.h"
#endif /* BUILDFIXED */
    state->lencode = lenfix;
    state->lenbits = 9;
    state->distcode = distfix;
    state->distbits = 5;
}

Here is the call graph for this function:

Here is the caller graph for this function:

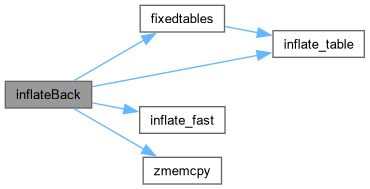

inflateBack()

int ZEXPORT inflateBack	(	z_streamp	strm,
		in_func	in,
		void FAR *	in_desc,
		out_func	out,
		void FAR *	out_desc )

Definition at line 242 of file infback.c.

{
    struct inflate_state FAR *state;
    unsigned char FAR *next;    /* next input */
    unsigned char FAR *put;     /* next output */
    unsigned have, left;        /* available input and output */
    unsigned long hold;         /* bit buffer */
    unsigned bits;              /* bits in bit buffer */
    unsigned copy;              /* number of stored or match bytes to copy */
    unsigned char FAR *from;    /* where to copy match bytes from */
    code here;                  /* current decoding table entry */
    code last;                  /* parent table entry */
    unsigned len;               /* length to copy for repeats, bits to drop */
    int ret;                    /* return code */
    static const unsigned short order[19] = /* permutation of code lengths */
        {16, 17, 18, 0, 8, 7, 9, 6, 10, 5, 11, 4, 12, 3, 13, 2, 14, 1, 15};

    /* Check that the strm exists and that the state was initialized */
    if (strm == Z_NULL || strm->state == Z_NULL)
        return Z_STREAM_ERROR;
    state = (struct inflate_state FAR *)strm->state;

    /* Reset the state */
    strm->msg = Z_NULL;
    state->mode = TYPE;
    state->last = 0;
    state->whave = 0;
    next = strm->next_in;
    have = next != Z_NULL ? strm->avail_in : 0;
    hold = 0;
    bits = 0;
    put = state->window;
    left = state->wsize;

    /* Inflate until end of block marked as last */
    for (;;)
        switch (state->mode) {
        case TYPE:
            /* determine and dispatch block type */
            if (state->last) {
                BYTEBITS();
                state->mode = DONE;
                break;
            }
            NEEDBITS(3);
            state->last = BITS(1);
            DROPBITS(1);
            switch (BITS(2)) {
            case 0:                             /* stored block */
                Tracev((stderr, "inflate:     stored block%s\n",
                        state->last ? " (last)" : ""));
                state->mode = STORED;
                break;
            case 1:                             /* fixed block */
                fixedtables(state);
                Tracev((stderr, "inflate:     fixed codes block%s\n",
                        state->last ? " (last)" : ""));
                state->mode = LEN;              /* decode codes */
                break;
            case 2:                             /* dynamic block */
                Tracev((stderr, "inflate:     dynamic codes block%s\n",
                        state->last ? " (last)" : ""));
                state->mode = TABLE;
                break;
            case 3:
                strm->msg = (char *)"invalid block type";
                state->mode = BAD;
            }
            DROPBITS(2);
            break;

        case STORED:
            /* get and verify stored block length */
            BYTEBITS();                         /* go to byte boundary */
            NEEDBITS(32);
            if ((hold & 0xffff) != ((hold >> 16) ^ 0xffff)) {
                strm->msg = (char *)"invalid stored block lengths";
                state->mode = BAD;
                break;
            }
            state->length = (unsigned)hold & 0xffff;
            Tracev((stderr, "inflate:       stored length %u\n",
                    state->length));
            INITBITS();

            /* copy stored block from input to output */
            while (state->length != 0) {
                copy = state->length;
                PULL();
                ROOM();
                if (copy > have) copy = have;
                if (copy > left) copy = left;
                zmemcpy(put, next, copy);
                have -= copy;
                next += copy;
                left -= copy;
                put += copy;
                state->length -= copy;
            }
            Tracev((stderr, "inflate:       stored end\n"));
            state->mode = TYPE;
            break;

        case TABLE:
            /* get dynamic table entries descriptor */
            NEEDBITS(14);
            state->nlen = BITS(5) + 257;
            DROPBITS(5);
            state->ndist = BITS(5) + 1;
            DROPBITS(5);
            state->ncode = BITS(4) + 4;
            DROPBITS(4);
#ifndef PKZIP_BUG_WORKAROUND
            if (state->nlen > 286 || state->ndist > 30) {
                strm->msg = (char *)"too many length or distance symbols";
                state->mode = BAD;
                break;
            }
#endif
            Tracev((stderr, "inflate:       table sizes ok\n"));

            /* get code length code lengths (not a typo) */
            state->have = 0;
            while (state->have < state->ncode) {
                NEEDBITS(3);
                state->lens[order[state->have++]] = (unsigned short)BITS(3);
                DROPBITS(3);
            }
            while (state->have < 19)
                state->lens[order[state->have++]] = 0;
            state->next = state->codes;
            state->lencode = (code const FAR *)(state->next);
            state->lenbits = 7;
            ret = inflate_table(CODES, state->lens, 19, &(state->next),
                                &(state->lenbits), state->work);
            if (ret) {
                strm->msg = (char *)"invalid code lengths set";
                state->mode = BAD;
                break;
            }
            Tracev((stderr, "inflate:       code lengths ok\n"));

            /* get length and distance code code lengths */
            state->have = 0;
            while (state->have < state->nlen + state->ndist) {
                for (;;) {
                    here = state->lencode[BITS(state->lenbits)];
                    if ((unsigned)(here.bits) <= bits) break;
                    PULLBYTE();
                }
                if (here.val < 16) {
                    NEEDBITS(here.bits);
                    DROPBITS(here.bits);
                    state->lens[state->have++] = here.val;
                }
                else {
                    if (here.val == 16) {
                        NEEDBITS(here.bits + 2);
                        DROPBITS(here.bits);
                        if (state->have == 0) {
                            strm->msg = (char *)"invalid bit length repeat";
                            state->mode = BAD;
                            break;
                        }
                        len = (unsigned)(state->lens[state->have - 1]);
                        copy = 3 + BITS(2);
                        DROPBITS(2);
                    }
                    else if (here.val == 17) {
                        NEEDBITS(here.bits + 3);
                        DROPBITS(here.bits);
                        len = 0;
                        copy = 3 + BITS(3);
                        DROPBITS(3);
                    }
                    else {
                        NEEDBITS(here.bits + 7);
                        DROPBITS(here.bits);
                        len = 0;
                        copy = 11 + BITS(7);
                        DROPBITS(7);
                    }
                    if (state->have + copy > state->nlen + state->ndist) {
                        strm->msg = (char *)"invalid bit length repeat";
                        state->mode = BAD;
                        break;
                    }
                    while (copy--)
                        state->lens[state->have++] = (unsigned short)len;
                }
            }

            /* handle error breaks in while */
            if (state->mode == BAD) break;

            /* check for end-of-block code (better have one) */
            if (state->lens[256] == 0) {
                strm->msg = (char *)"invalid code -- missing end-of-block";
                state->mode = BAD;
                break;
            }

            /* build code tables -- note: do not change the lenbits or distbits
               values here (9 and 6) without reading the comments in inftrees.h
               concerning the ENOUGH constants, which depend on those values */
            state->next = state->codes;
            state->lencode = (code const FAR *)(state->next);
            state->lenbits = 9;
            ret = inflate_table(LENS, state->lens, state->nlen, &(state->next),
                                &(state->lenbits), state->work);
            if (ret) {
                strm->msg = (char *)"invalid literal/lengths set";
                state->mode = BAD;
                break;
            }
            state->distcode = (code const FAR *)(state->next);
            state->distbits = 6;
            ret = inflate_table(DISTS, state->lens + state->nlen, state->ndist,
                            &(state->next), &(state->distbits), state->work);
            if (ret) {
                strm->msg = (char *)"invalid distances set";
                state->mode = BAD;
                break;
            }
            Tracev((stderr, "inflate:       codes ok\n"));
            state->mode = LEN;

        case LEN:
            /* use inflate_fast() if we have enough input and output */
            if (have >= 6 && left >= 258) {
                RESTORE();
                if (state->whave < state->wsize)
                    state->whave = state->wsize - left;
                inflate_fast(strm, state->wsize);
                LOAD();
                break;
            }

            /* get a literal, length, or end-of-block code */
            for (;;) {
                here = state->lencode[BITS(state->lenbits)];
                if ((unsigned)(here.bits) <= bits) break;
                PULLBYTE();
            }
            if (here.op && (here.op & 0xf0) == 0) {
                last = here;
                for (;;) {
                    here = state->lencode[last.val +
                            (BITS(last.bits + last.op) >> last.bits)];
                    if ((unsigned)(last.bits + here.bits) <= bits) break;
                    PULLBYTE();
                }
                DROPBITS(last.bits);
            }
            DROPBITS(here.bits);
            state->length = (unsigned)here.val;

            /* process literal */
            if (here.op == 0) {
                Tracevv((stderr, here.val >= 0x20 && here.val < 0x7f ?
                        "inflate:         literal '%c'\n" :
                        "inflate:         literal 0x%02x\n", here.val));
                ROOM();
                *put++ = (unsigned char)(state->length);
                left--;
                state->mode = LEN;
                break;
            }

            /* process end of block */
            if (here.op & 32) {
                Tracevv((stderr, "inflate:         end of block\n"));
                state->mode = TYPE;
                break;
            }

            /* invalid code */
            if (here.op & 64) {
                strm->msg = (char *)"invalid literal/length code";
                state->mode = BAD;
                break;
            }

            /* length code -- get extra bits, if any */
            state->extra = (unsigned)(here.op) & 15;
            if (state->extra != 0) {
                NEEDBITS(state->extra);
                state->length += BITS(state->extra);
                DROPBITS(state->extra);
            }
            Tracevv((stderr, "inflate:         length %u\n", state->length));

            /* get distance code */
            for (;;) {
                here = state->distcode[BITS(state->distbits)];
                if ((unsigned)(here.bits) <= bits) break;
                PULLBYTE();
            }
            if ((here.op & 0xf0) == 0) {
                last = here;
                for (;;) {
                    here = state->distcode[last.val +
                            (BITS(last.bits + last.op) >> last.bits)];
                    if ((unsigned)(last.bits + here.bits) <= bits) break;
                    PULLBYTE();
                }
                DROPBITS(last.bits);
            }
            DROPBITS(here.bits);
            if (here.op & 64) {
                strm->msg = (char *)"invalid distance code";
                state->mode = BAD;
                break;
            }
            state->offset = (unsigned)here.val;

            /* get distance extra bits, if any */
            state->extra = (unsigned)(here.op) & 15;
            if (state->extra != 0) {
                NEEDBITS(state->extra);
                state->offset += BITS(state->extra);
                DROPBITS(state->extra);
            }
            if (state->offset > state->wsize - (state->whave < state->wsize ?
                                                left : 0)) {
                strm->msg = (char *)"invalid distance too far back";
                state->mode = BAD;
                break;
            }
            Tracevv((stderr, "inflate:         distance %u\n", state->offset));

            /* copy match from window to output */
            do {
                ROOM();
                copy = state->wsize - state->offset;
                if (copy < left) {
                    from = put + copy;
                    copy = left - copy;
                }
                else {
                    from = put - state->offset;
                    copy = left;
                }
                if (copy > state->length) copy = state->length;
                state->length -= copy;
                left -= copy;
                do {
                    *put++ = *from++;
                } while (--copy);
            } while (state->length != 0);
            break;

        case DONE:
            /* inflate stream terminated properly -- write leftover output */
            ret = Z_STREAM_END;
            if (left < state->wsize) {
                if (out(out_desc, state->window, state->wsize - left))
                    ret = Z_BUF_ERROR;
            }
            goto inf_leave;

        case BAD:
            ret = Z_DATA_ERROR;
            goto inf_leave;

        default:                /* can't happen, but makes compilers happy */
            ret = Z_STREAM_ERROR;
            goto inf_leave;
        }

    /* Return unused input */
  inf_leave:
    strm->next_in = next;
    strm->avail_in = have;
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

inflateBackEnd()

int ZEXPORT inflateBackEnd

(

z_streamp

strm

)

Definition at line 619 of file infback.c.

{
    if (strm == Z_NULL || strm->state == Z_NULL || strm->zfree == (free_func)0)
        return Z_STREAM_ERROR;
    ZFREE(strm, strm->state);
    strm->state = Z_NULL;
    Tracev((stderr, "inflate: end\n"));
    return Z_OK;
}

Here is the caller graph for this function:

inflateBackInit_()

int ZEXPORT inflateBackInit_	(	z_streamp	strm,
		int	windowBits,
		unsigned char FAR *	window,
		const char *	version,
		int	stream_size )

Definition at line 35 of file infback.c.

{
    struct inflate_state FAR *state;

    if (version == Z_NULL || version[0] != ZLIB_VERSION[0] ||
        stream_size != (int)(sizeof(z_stream)))
        return Z_VERSION_ERROR;
    if (strm == Z_NULL || window == Z_NULL ||
        windowBits < 8 || windowBits > 15)
        return Z_STREAM_ERROR;
    strm->msg = Z_NULL;                 /* in case we return an error */
    if (strm->zalloc == (alloc_func)0) {
        strm->zalloc = zcalloc;
        strm->opaque = (voidpf)0;
    }
    if (strm->zfree == (free_func)0) strm->zfree = zcfree;
    state = (struct inflate_state FAR *)ZALLOC(strm, 1,
                                               sizeof(struct inflate_state));
    if (state == Z_NULL) return Z_MEM_ERROR;
    Tracev((stderr, "inflate: allocated\n"));
    strm->state = (struct internal_state FAR *)state;
    state->dmax = 32768U;
    state->wbits = windowBits;
    state->wsize = 1U << windowBits;
    state->window = window;
    state->wnext = 0;
    state->whave = 0;
    return Z_OK;
}

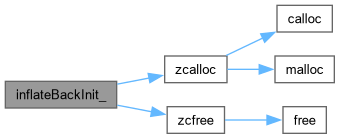

Here is the call graph for this function:

Here is the caller graph for this function:

OF()

ABC_NAMESPACE_IMPL_START local void fixedtables OF

(

(struct inflate_state FAR *state)

)

Here is the call graph for this function:
