ioWriteBblif.c File Reference

#include "ioAbc.h"
#include "misc/bbl/bblif.h"

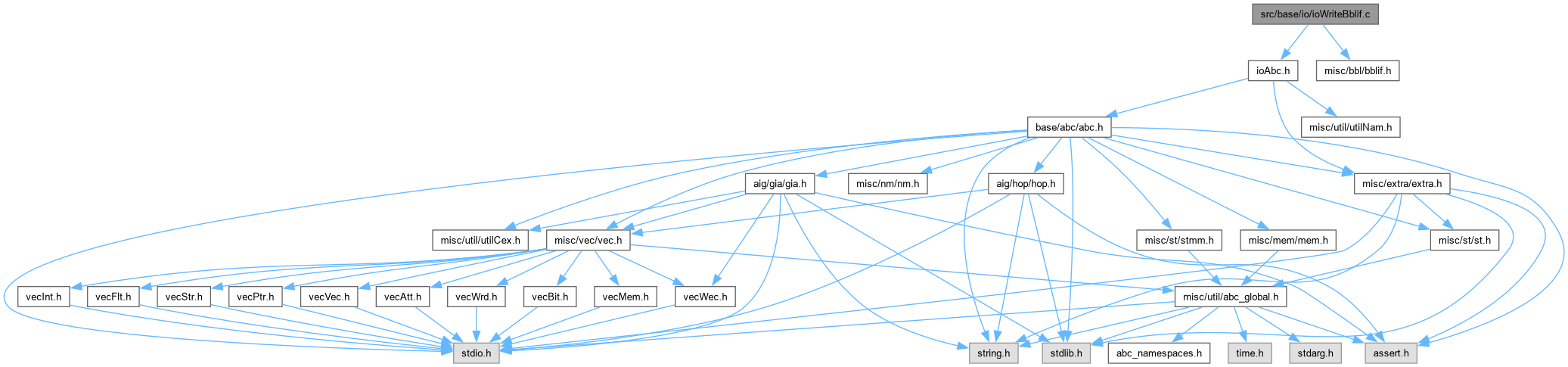

Include dependency graph for ioWriteBblif.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Bbl_Man_t *	Bbl_ManFromAbc (Abc_Ntk_t *pNtk)
	DECLARATIONS ///.
void	Io_WriteBblif (Abc_Ntk_t *pNtk, char *pFileName)

Function Documentation

Bbl_ManFromAbc()

ABC_NAMESPACE_IMPL_START Bbl_Man_t * Bbl_ManFromAbc

(

Abc_Ntk_t *

pNtk

)

DECLARATIONS ///.

CFile****************************************************************

FileName [ioWriteBblif.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedures to write AIG in the binary format.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

ioWriteBblif.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Fnction*************************************************************

Synopsis [Construct manager from the ABC network.]

Description [In the ABC network each object has a unique integer ID. This ID is used when we construct objects of the BBLIF manager corresponding to each object of the ABC network. The objects can be added to the manager in any order (although below they are added in the topological order), but by the time fanin/fanout connections are created, corresponding objects are already constructed. In the end the checking procedure is called.]

SideEffects []

SeeAlso []

Definition at line 54 of file ioWriteBblif.c.

{
    Bbl_Man_t * p;
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj, * pFanin;
    int i, k;
    assert( Abc_NtkIsSopLogic(pNtk) );
    // start the data manager
    p = Bbl_ManStart( Abc_NtkName(pNtk) );
    // collect internal nodes to be added
    vNodes = Abc_NtkDfs( pNtk, 0 );
    // create combinational inputs
    Abc_NtkForEachCi( pNtk, pObj, i )
        Bbl_ManCreateObject( p, BBL_OBJ_CI, Abc_ObjId(pObj), 0, NULL );
    // create internal nodes
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
        Bbl_ManCreateObject( p, BBL_OBJ_NODE, Abc_ObjId(pObj), Abc_ObjFaninNum(pObj), (char *)pObj->pData );
    // create combinational outputs
    Abc_NtkForEachCo( pNtk, pObj, i )
        Bbl_ManCreateObject( p, BBL_OBJ_CO, Abc_ObjId(pObj), 1, NULL );
    // create fanin/fanout connections for internal nodes
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Bbl_ManAddFanin( p, Abc_ObjId(pObj), Abc_ObjId(pFanin) );
    // create fanin/fanout connections for combinational outputs
    Abc_NtkForEachCo( pNtk, pObj, i )
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Bbl_ManAddFanin( p, Abc_ObjId(pObj), Abc_ObjId(pFanin) );
    Vec_PtrFree( vNodes );
    // sanity check
    Bbl_ManCheck( p );
    return p;
}

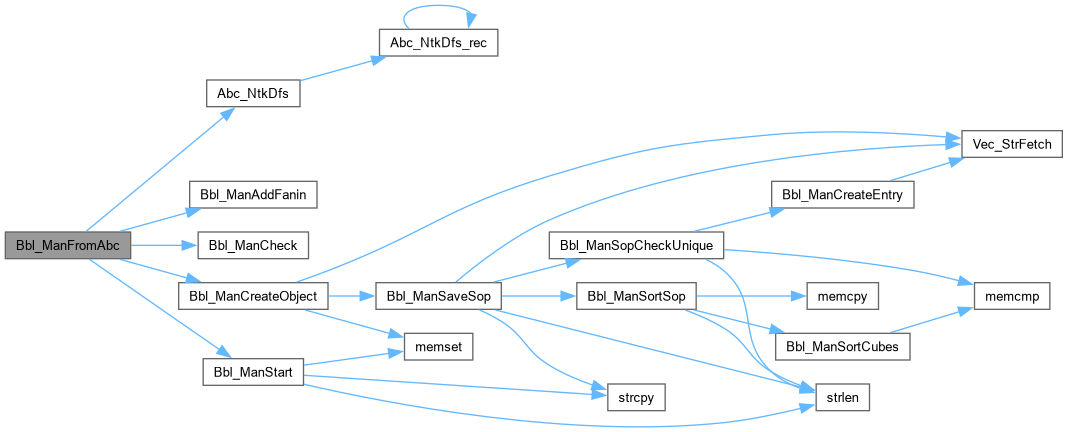

Here is the call graph for this function:

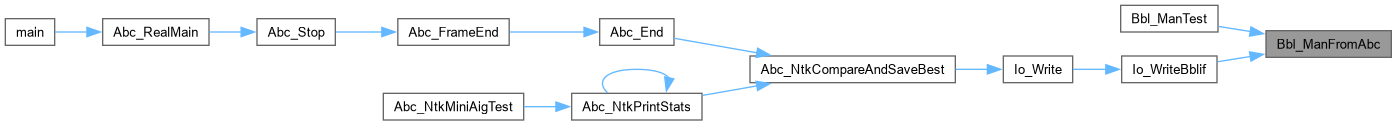

Here is the caller graph for this function:

Io_WriteBblif()

void Io_WriteBblif	(	Abc_Ntk_t *	pNtk,
		char *	pFileName )

Function*************************************************************

Synopsis [Writes the AIG in the binary format.]

Description []

SideEffects []

SeeAlso []

Definition at line 99 of file ioWriteBblif.c.

{
    Bbl_Man_t * p;
    p = Bbl_ManFromAbc( pNtk );
//Bbl_ManPrintStats( p );
//Bbl_ManDumpBlif( p, "test_bbl.blif" );
    Bbl_ManDumpBinaryBlif( p, pFileName );
    Bbl_ManStop( p );
}

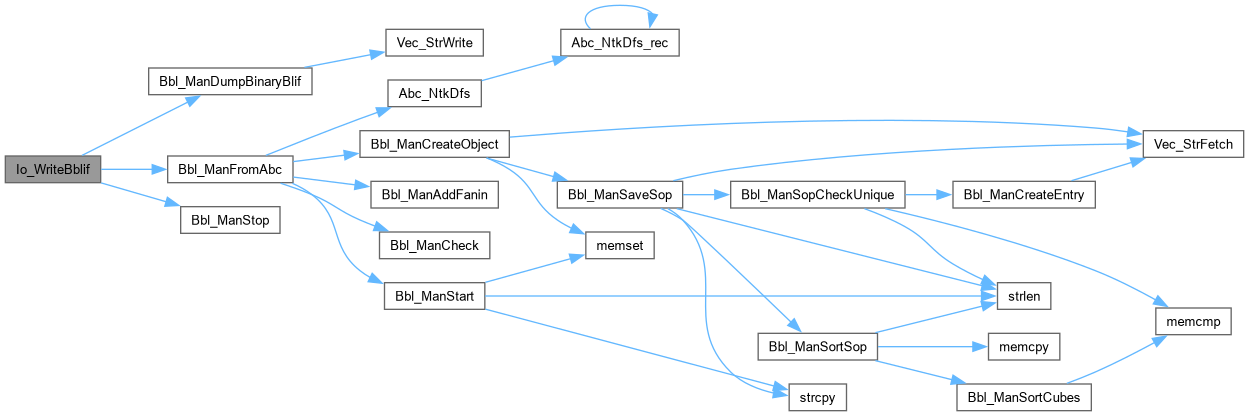

Here is the call graph for this function:

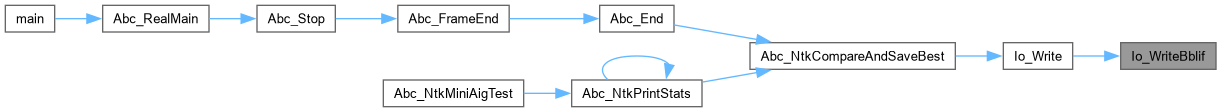

Here is the caller graph for this function:
