ioaReadAig.c File Reference

#include "ioa.h"

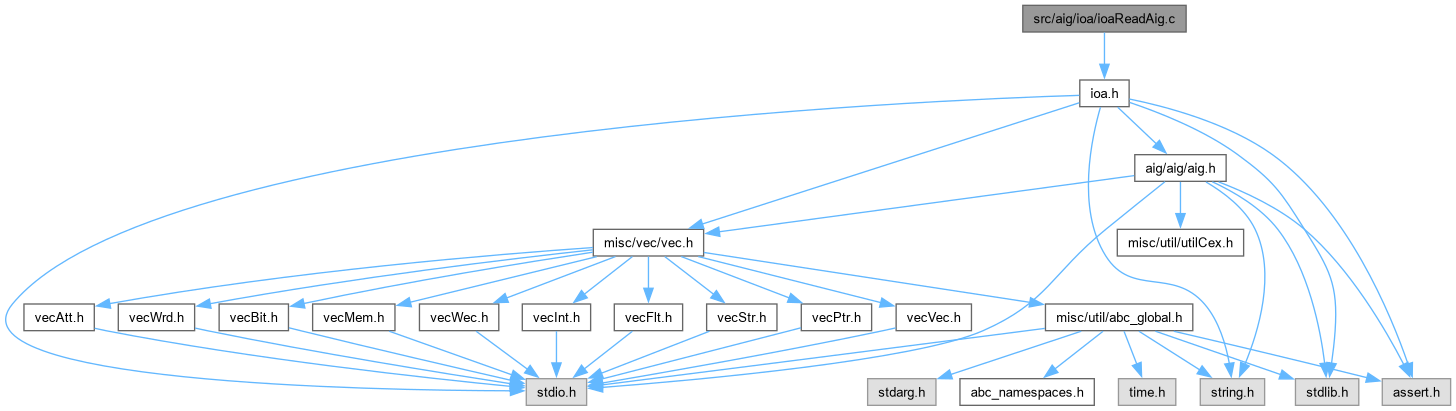

Include dependency graph for ioaReadAig.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START unsigned	Ioa_ReadAigerDecode (char **ppPos)
	DECLARATIONS ///.
Vec_Int_t *	Ioa_WriteDecodeLiterals (char **ppPos, int nEntries)
Aig_Man_t *	Ioa_ReadAigerFromMemory (char *pContents, int nFileSize, int fCheck)
	INCLUDES ///.
Aig_Man_t *	Ioa_ReadAiger (char *pFileName, int fCheck)

Function Documentation

Ioa_ReadAiger()

Aig_Man_t * Ioa_ReadAiger	(	char *	pFileName,
		int	fCheck )

Function*************************************************************

Synopsis [Reads the AIG in the binary AIGER format.]

Description []

SideEffects []

SeeAlso []

Definition at line 431 of file ioaReadAig.c.

{
    FILE * pFile;
    Aig_Man_t * pNew;
    char * pName, * pContents;
    int nFileSize, RetValue;

    // read the file into the buffer
    nFileSize = Ioa_FileSize( pFileName );
    pFile = fopen( pFileName, "rb" );
    pContents = ABC_CALLOC( char, nFileSize+1 );
    RetValue = fread( pContents, nFileSize, 1, pFile );
    fclose( pFile );

    pNew = Ioa_ReadAigerFromMemory( pContents, nFileSize, fCheck );
    ABC_FREE( pContents );
    if ( pNew )
    {
        pName = Ioa_FileNameGeneric( pFileName );
        ABC_FREE( pNew->pName );
        pNew->pName = Abc_UtilStrsav( pName );
        pNew->pSpec = Abc_UtilStrsav( pFileName );
        ABC_FREE( pName );
    }
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ioa_ReadAigerDecode()

ABC_NAMESPACE_IMPL_START unsigned Ioa_ReadAigerDecode

(

char **

ppPos

)

DECLARATIONS ///.

CFile****************************************************************

FileName [ioaReadAiger.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedures to read binary AIGER format developed by Armin Biere, Johannes Kepler University (http://fmv.jku.at/)]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - December 16, 2006.]

Revision [

Id

ioaReadAiger.c,v 1.00 2006/12/16 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Extracts one unsigned AIG edge from the input buffer.]

Description [This procedure is a slightly modified version of Armin Biere's procedure "unsigned decode (FILE * file)". ]

SideEffects [Updates the current reading position.]

SeeAlso []

Definition at line 47 of file ioaReadAig.c.

{
    unsigned x = 0, i = 0;
    unsigned char ch;

//    while ((ch = getnoneofch (file)) & 0x80)
    while ((ch = *(*ppPos)++) & 0x80)
        x |= (ch & 0x7f) << (7 * i++);

    return x | (ch << (7 * i));
}

Here is the caller graph for this function:

Ioa_ReadAigerFromMemory()

Aig_Man_t * Ioa_ReadAigerFromMemory	(	char *	pContents,
		int	nFileSize,
		int	fCheck )

INCLUDES ///.

Function*************************************************************

Synopsis [Reads the AIG in from the memory buffer.]

Description [The buffer constains the AIG in AIGER format. The size gives the number of bytes in the buffer. The buffer is allocated by the user and not deallocated by this procedure.]

SideEffects []

SeeAlso []

Definition at line 105 of file ioaReadAig.c.

{
    Vec_Int_t * vLits = NULL;
    Vec_Ptr_t * vNodes, * vDrivers;//, * vTerms;
    Aig_Obj_t * pObj, * pNode0, * pNode1;
    Aig_Man_t * pNew;
    int nTotal, nInputs, nOutputs, nLatches, nAnds, i;//, iTerm, nDigits;
    int nBad = 0, nConstr = 0, nJust = 0, nFair = 0;
    char * pDrivers, * pSymbols, * pCur;//, * pType;
    unsigned uLit0, uLit1, uLit;

    // check if the input file format is correct
    if ( strncmp(pContents, "aig", 3) != 0 || (pContents[3] != ' ' && pContents[3] != '2') )
    {
        fprintf( stdout, "Wrong input file format.\n" );
        return NULL;
    }

    // read the parameters (M I L O A + B C J F)
    pCur = pContents;         while ( *pCur != ' ' ) pCur++; pCur++;
    // read the number of objects
    nTotal = atoi( pCur );    while ( *pCur != ' ' ) pCur++; pCur++;
    // read the number of inputs
    nInputs = atoi( pCur );   while ( *pCur != ' ' ) pCur++; pCur++;
    // read the number of latches
    nLatches = atoi( pCur );  while ( *pCur != ' ' ) pCur++; pCur++;
    // read the number of outputs
    nOutputs = atoi( pCur );  while ( *pCur != ' ' ) pCur++; pCur++;
    // read the number of nodes
    nAnds = atoi( pCur );     while ( *pCur != ' ' && *pCur != '\n' ) pCur++;
    if ( *pCur == ' ' )
    {
        assert( nOutputs == 0 );
        // read the number of properties
        pCur++;
        nBad = atoi( pCur );     while ( *pCur != ' ' && *pCur != '\n' ) pCur++;
        nOutputs += nBad;
    }
    if ( *pCur == ' ' )
    {
        // read the number of properties
        pCur++;
        nConstr = atoi( pCur );     while ( *pCur != ' ' && *pCur != '\n' ) pCur++;
        nOutputs += nConstr;
    }
    if ( *pCur == ' ' )
    {
        // read the number of properties
        pCur++;
        nJust = atoi( pCur );     while ( *pCur != ' ' && *pCur != '\n' ) pCur++;
        nOutputs += nJust;
    }
    if ( *pCur == ' ' )
    {
        // read the number of properties
        pCur++;
        nFair = atoi( pCur );     while ( *pCur != ' ' && *pCur != '\n' ) pCur++;
        nOutputs += nFair;
    }
    if ( *pCur != '\n' )
    {
        fprintf( stdout, "The parameter line is in a wrong format.\n" );
        return NULL;
    }
    pCur++;

    // check the parameters
    if ( nTotal != nInputs + nLatches + nAnds )
    {
        fprintf( stdout, "The number of objects does not match.\n" );
        return NULL;
    }
    if ( nJust || nFair )
    {
        fprintf( stdout, "Reading AIGER files with liveness properties are currently not supported.\n" );
        return NULL;
    }

    if ( nConstr )
    {
        if ( nConstr == 1 )
            fprintf( stdout, "Warning: The last output is interpreted as a constraint.\n" );
        else
            fprintf( stdout, "Warning: The last %d outputs are interpreted as constraints.\n", nConstr );
    }

    // allocate the empty AIG
    pNew = Aig_ManStart( nAnds );
    pNew->nConstrs = nConstr;

    // prepare the array of nodes
    vNodes = Vec_PtrAlloc( 1 + nInputs + nLatches + nAnds );
    Vec_PtrPush( vNodes, Aig_ManConst0(pNew) );

    // create the PIs
    for ( i = 0; i < nInputs + nLatches; i++ )
    {
        pObj = Aig_ObjCreateCi(pNew);
        Vec_PtrPush( vNodes, pObj );
    }
/*
    // create the POs
    for ( i = 0; i < nOutputs + nLatches; i++ )
    {
        pObj = Aig_ObjCreateCo(pNew);
    }
*/
    // create the latches
    pNew->nRegs = nLatches;
/*
    nDigits = Ioa_Base10Log( nLatches );
    for ( i = 0; i < nLatches; i++ )
    {
        pObj = Aig_ObjCreateLatch(pNew);
        Aig_LatchSetInit0( pObj );
        pNode0 = Aig_ObjCreateBi(pNew);
        pNode1 = Aig_ObjCreateBo(pNew);
        Aig_ObjAddFanin( pObj, pNode0 );
        Aig_ObjAddFanin( pNode1, pObj );
        Vec_PtrPush( vNodes, pNode1 );
        // assign names to latch and its input
//        Aig_ObjAssignName( pObj, Aig_ObjNameDummy("_L", i, nDigits), NULL );
//        printf( "Creating latch %s with input %d and output %d.\n", Aig_ObjName(pObj), pNode0->Id, pNode1->Id );
    }
*/

    // remember the beginning of latch/PO literals
    pDrivers = pCur;
    if ( pContents[3] == ' ' ) // standard AIGER
    {
        // scroll to the beginning of the binary data
        for ( i = 0; i < nLatches + nOutputs; )
            if ( *pCur++ == '\n' )
                i++;
    }
    else // modified AIGER
    {
        vLits = Ioa_WriteDecodeLiterals( &pCur, nLatches + nOutputs );
    }

    // create the AND gates
//    pProgress = Bar_ProgressStart( stdout, nAnds );
    for ( i = 0; i < nAnds; i++ )
    {
//        Bar_ProgressUpdate( pProgress, i, NULL );
        uLit = ((i + 1 + nInputs + nLatches) << 1);
        uLit1 = uLit  - Ioa_ReadAigerDecode( &pCur );
        uLit0 = uLit1 - Ioa_ReadAigerDecode( &pCur );
//        assert( uLit1 > uLit0 );
        pNode0 = Aig_NotCond( (Aig_Obj_t *)Vec_PtrEntry(vNodes, uLit0 >> 1), uLit0 & 1 );
        pNode1 = Aig_NotCond( (Aig_Obj_t *)Vec_PtrEntry(vNodes, uLit1 >> 1), uLit1 & 1 );
        assert( Vec_PtrSize(vNodes) == i + 1 + nInputs + nLatches );
        Vec_PtrPush( vNodes, Aig_And(pNew, pNode0, pNode1) );
    }
//    Bar_ProgressStop( pProgress );

    // remember the place where symbols begin
    pSymbols = pCur;

    // read the latch driver literals
    vDrivers = Vec_PtrAlloc( nLatches + nOutputs );
    if ( pContents[3] == ' ' ) // standard AIGER
    {
        pCur = pDrivers;
        for ( i = 0; i < nLatches; i++ )
        {
            uLit0 = atoi( pCur );  while ( *pCur++ != '\n' );
            pNode0 = Aig_NotCond( (Aig_Obj_t *)Vec_PtrEntry(vNodes, uLit0 >> 1), (uLit0 & 1) );//^ (uLit0 < 2) );
            Vec_PtrPush( vDrivers, pNode0 );
        }
        // read the PO driver literals
        for ( i = 0; i < nOutputs; i++ )
        {
            uLit0 = atoi( pCur );  while ( *pCur++ != '\n' );
            pNode0 = Aig_NotCond( (Aig_Obj_t *)Vec_PtrEntry(vNodes, uLit0 >> 1), (uLit0 & 1) );//^ (uLit0 < 2) );
            Vec_PtrPush( vDrivers, pNode0 );
        }

    }
    else
    {
        // read the latch driver literals
        for ( i = 0; i < nLatches; i++ )
        {
            uLit0 = Vec_IntEntry( vLits, i );
            pNode0 = Aig_NotCond( (Aig_Obj_t *)Vec_PtrEntry(vNodes, uLit0 >> 1), (uLit0 & 1) );//^ (uLit0 < 2) );
            Vec_PtrPush( vDrivers, pNode0 );
        }
        // read the PO driver literals
        for ( i = 0; i < nOutputs; i++ )
        {
            uLit0 = Vec_IntEntry( vLits, i+nLatches );
            pNode0 = Aig_NotCond( (Aig_Obj_t *)Vec_PtrEntry(vNodes, uLit0 >> 1), (uLit0 & 1) );//^ (uLit0 < 2) );
            Vec_PtrPush( vDrivers, pNode0 );
        }
        Vec_IntFree( vLits );
    }

    // create the POs
    for ( i = 0; i < nOutputs; i++ )
        Aig_ObjCreateCo( pNew, (Aig_Obj_t *)Vec_PtrEntry(vDrivers, nLatches + i) );
    for ( i = 0; i < nLatches; i++ )
        Aig_ObjCreateCo( pNew, (Aig_Obj_t *)Vec_PtrEntry(vDrivers, i) );
    Vec_PtrFree( vDrivers );

/*
    // read the names if present
    pCur = pSymbols;
    if ( *pCur != 'c' )
    {
        int Counter = 0;
        while ( pCur < pContents + nFileSize && *pCur != 'c' )
        {
            // get the terminal type
            pType = pCur;
            if ( *pCur == 'i' )
                vTerms = pNew->vPis;
            else if ( *pCur == 'l' )
                vTerms = pNew->vBoxes;
            else if ( *pCur == 'o' )
                vTerms = pNew->vPos;
            else
            {
                fprintf( stdout, "Wrong terminal type.\n" );
                return NULL;
            }
            // get the terminal number
            iTerm = atoi( ++pCur );  while ( *pCur++ != ' ' );
            // get the node
            if ( iTerm >= Vec_PtrSize(vTerms) )
            {
                fprintf( stdout, "The number of terminal is out of bound.\n" );
                return NULL;
            }
            pObj = Vec_PtrEntry( vTerms, iTerm );
            if ( *pType == 'l' )
                pObj = Aig_ObjFanout0(pObj);
            // assign the name
            pName = pCur;          while ( *pCur++ != '\n' );
            // assign this name
            *(pCur-1) = 0;
            Aig_ObjAssignName( pObj, pName, NULL );
            if ( *pType == 'l' )
            {
                Aig_ObjAssignName( Aig_ObjFanin0(pObj), Aig_ObjName(pObj), "L" );
                Aig_ObjAssignName( Aig_ObjFanin0(Aig_ObjFanin0(pObj)), Aig_ObjName(pObj), "_in" );
            }
            // mark the node as named
            pObj->pCopy = (Aig_Obj_t *)Aig_ObjName(pObj);
        }

        // assign the remaining names
        Aig_ManForEachCi( pNew, pObj, i )
        {
            if ( pObj->pCopy ) continue;
            Aig_ObjAssignName( pObj, Aig_ObjName(pObj), NULL );
            Counter++;
        }
        Aig_ManForEachLatchOutput( pNew, pObj, i )
        {
            if ( pObj->pCopy ) continue;
            Aig_ObjAssignName( pObj, Aig_ObjName(pObj), NULL );
            Aig_ObjAssignName( Aig_ObjFanin0(pObj), Aig_ObjName(pObj), "L" );
            Aig_ObjAssignName( Aig_ObjFanin0(Aig_ObjFanin0(pObj)), Aig_ObjName(pObj), "_in" );
            Counter++;
        }
        Aig_ManForEachCo( pNew, pObj, i )
        {
            if ( pObj->pCopy ) continue;
            Aig_ObjAssignName( pObj, Aig_ObjName(pObj), NULL );
            Counter++;
        }
        if ( Counter )
            printf( "Ioa_ReadAiger(): Added %d default names for nameless I/O/register objects.\n", Counter );
    }
    else
    {
//        printf( "Ioa_ReadAiger(): I/O/register names are not given. Generating short names.\n" );
        Aig_ManShortNames( pNew );
    }
*/
    pCur = pSymbols;
    if ( pCur + 1 < pContents + nFileSize && *pCur == 'c' )
    {
        pCur++;
        if ( *pCur == 'n' )
        {
            pCur++;
            // read model name
            ABC_FREE( pNew->pName );
            pNew->pName = Abc_UtilStrsav( pCur );
        }
    }

    // skipping the comments
    Vec_PtrFree( vNodes );

    // remove the extra nodes
    Aig_ManCleanup( pNew );
    Aig_ManSetRegNum( pNew, Aig_ManRegNum(pNew) );

    // update polarity of the additional outputs
    if ( nBad || nConstr || nJust || nFair )
        Aig_ManInvertConstraints( pNew );

    // check the result
    if ( fCheck && !Aig_ManCheck( pNew ) )
    {
        printf( "Ioa_ReadAiger: The network check has failed.\n" );
        Aig_ManStop( pNew );
        return NULL;
    }
    return pNew;
}

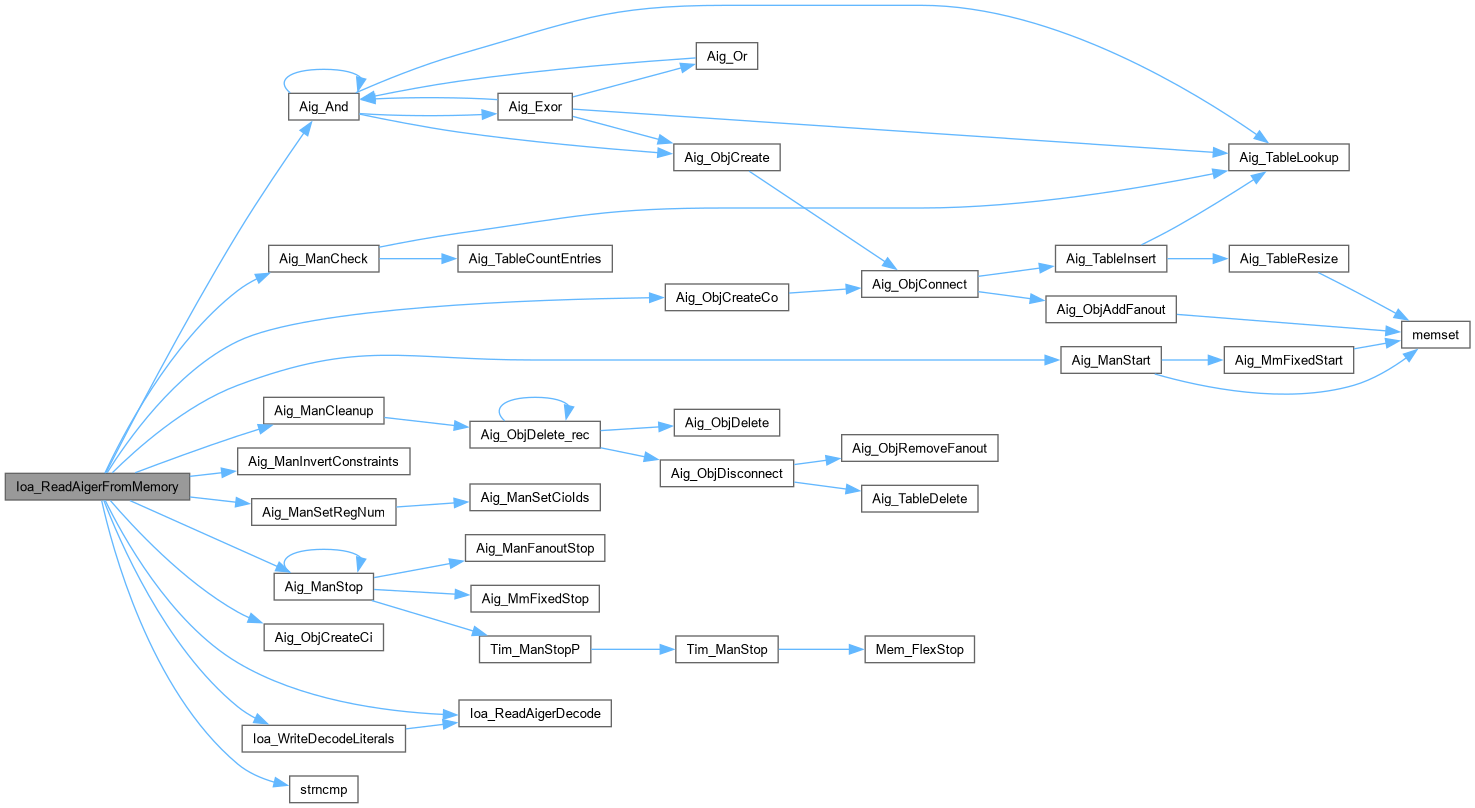

Here is the call graph for this function:

Here is the caller graph for this function:

Ioa_WriteDecodeLiterals()

Vec_Int_t * Ioa_WriteDecodeLiterals	(	char **	ppPos,
		int	nEntries )

Function*************************************************************

Synopsis [Decodes the encoded array of literals.]

Description []

SideEffects []

SeeAlso []

Definition at line 70 of file ioaReadAig.c.

{
    Vec_Int_t * vLits;
    int Lit, LitPrev, Diff, i;
    vLits = Vec_IntAlloc( nEntries );
    LitPrev = Ioa_ReadAigerDecode( ppPos );
    Vec_IntPush( vLits, LitPrev );
    for ( i = 1; i < nEntries; i++ )
    {
//        Diff = Lit - LitPrev;
//        Diff = (Lit < LitPrev)? -Diff : Diff;
//        Diff = ((2 * Diff) << 1) | (int)(Lit < LitPrev);
        Diff = Ioa_ReadAigerDecode( ppPos );
        Diff = (Diff & 1)? -(Diff >> 1) : Diff >> 1;
        Lit  = Diff + LitPrev;
        Vec_IntPush( vLits, Lit );
        LitPrev = Lit;
    }
    return vLits;
}

Here is the call graph for this function:

Here is the caller graph for this function:
