kitAig.c File Reference

#include "kit.h"
#include "aig/aig/aig.h"

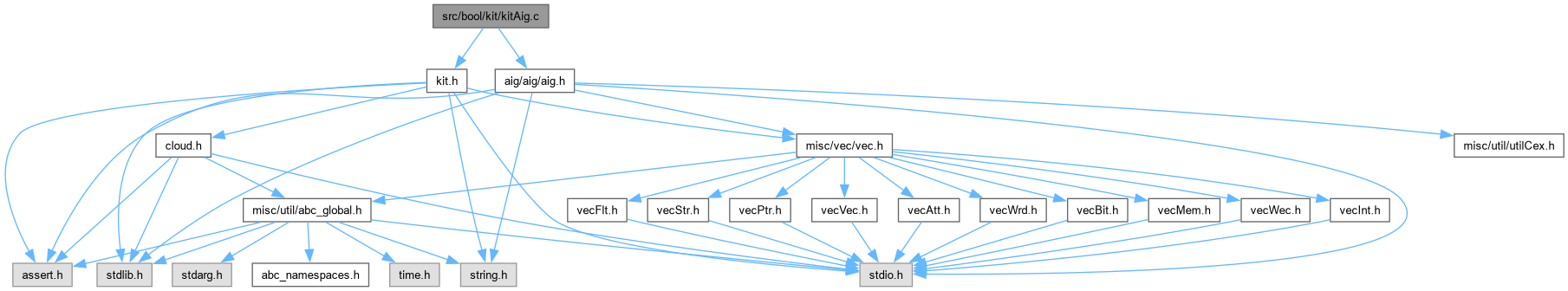

Include dependency graph for kitAig.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Aig_Obj_t *	Kit_GraphToAigInternal (Aig_Man_t *pMan, Kit_Graph_t *pGraph)
	DECLARATIONS ///.
Aig_Obj_t *	Kit_GraphToAig (Aig_Man_t *pMan, Aig_Obj_t **pFanins, Kit_Graph_t *pGraph)
Aig_Obj_t *	Kit_TruthToAig (Aig_Man_t *pMan, Aig_Obj_t **pFanins, unsigned *pTruth, int nVars, Vec_Int_t *vMemory)

Function Documentation

Kit_GraphToAig()

Aig_Obj_t * Kit_GraphToAig	(	Aig_Man_t *	pMan,
		Aig_Obj_t **	pFanins,
		Kit_Graph_t *	pGraph )

Function*************************************************************

Synopsis [Strashes one logic node using its SOP.]

Description []

SideEffects []

SeeAlso []

Definition at line 79 of file kitAig.c.

{
    Kit_Node_t * pNode = NULL;
    int i;
    // collect the fanins
    Kit_GraphForEachLeaf( pGraph, pNode, i )
        pNode->pFunc = pFanins[i];
    // perform strashing
    return Kit_GraphToAigInternal( pMan, pGraph );
}

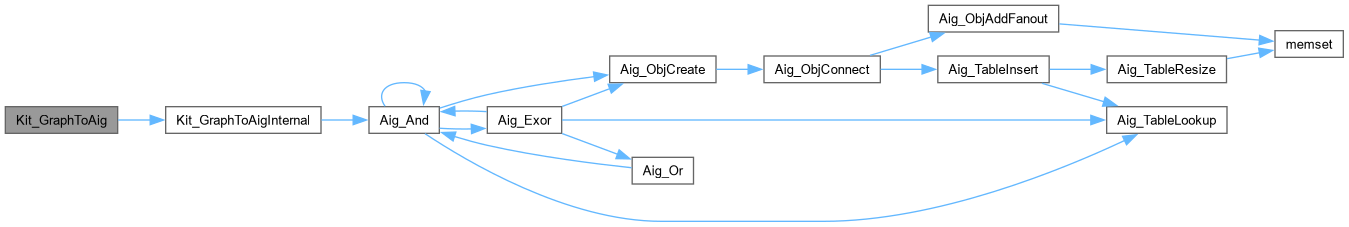

Here is the call graph for this function:

Here is the caller graph for this function:

Kit_GraphToAigInternal()

ABC_NAMESPACE_IMPL_START Aig_Obj_t * Kit_GraphToAigInternal	(	Aig_Man_t *	pMan,
		Kit_Graph_t *	pGraph )

DECLARATIONS ///.

CFile****************************************************************

FileName [kitAig.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Computation kit.]

Synopsis [Procedures involving AIGs.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - Dec 6, 2006.]

Revision [

Id

kitAig.c,v 1.00 2006/12/06 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Transforms the decomposition graph into the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file kitAig.c.

{
    Kit_Node_t * pNode = NULL;
    Aig_Obj_t * pAnd0, * pAnd1;
    int i;
    // check for constant function
    if ( Kit_GraphIsConst(pGraph) )
        return Aig_NotCond( Aig_ManConst1(pMan), Kit_GraphIsComplement(pGraph) );
    // check for a literal
    if ( Kit_GraphIsVar(pGraph) )
        return Aig_NotCond( (Aig_Obj_t *)Kit_GraphVar(pGraph)->pFunc, Kit_GraphIsComplement(pGraph) );
    // build the AIG nodes corresponding to the AND gates of the graph
    Kit_GraphForEachNode( pGraph, pNode, i )
    {
        pAnd0 = Aig_NotCond( (Aig_Obj_t *)Kit_GraphNode(pGraph, pNode->eEdge0.Node)->pFunc, pNode->eEdge0.fCompl );
        pAnd1 = Aig_NotCond( (Aig_Obj_t *)Kit_GraphNode(pGraph, pNode->eEdge1.Node)->pFunc, pNode->eEdge1.fCompl );
        pNode->pFunc = Aig_And( pMan, pAnd0, pAnd1 );
    }
    // complement the result if necessary
    return Aig_NotCond( (Aig_Obj_t *)pNode->pFunc, Kit_GraphIsComplement(pGraph) );
}

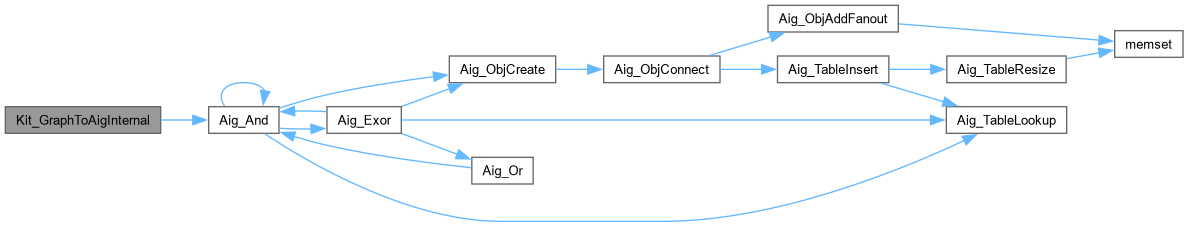

Here is the call graph for this function:

Here is the caller graph for this function:

Kit_TruthToAig()

Aig_Obj_t * Kit_TruthToAig	(	Aig_Man_t *	pMan,
		Aig_Obj_t **	pFanins,
		unsigned *	pTruth,
		int	nVars,
		Vec_Int_t *	vMemory )

Function*************************************************************

Synopsis [Strashed onen logic nodes using its truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 101 of file kitAig.c.

{
    Aig_Obj_t * pObj;
    Kit_Graph_t * pGraph;
    // transform truth table into the decomposition tree
    if ( vMemory == NULL )
    {
        vMemory = Vec_IntAlloc( 0 );
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
        Vec_IntFree( vMemory );
    }
    else
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
    // derive the AIG for the decomposition tree
    pObj = Kit_GraphToAig( pMan, pFanins, pGraph );
    Kit_GraphFree( pGraph );
    return pObj;
}

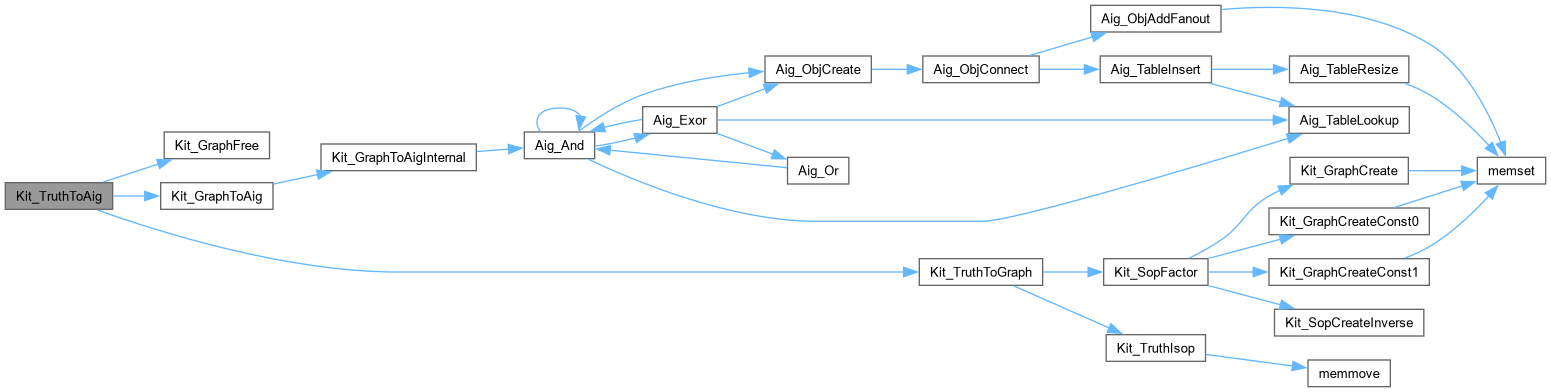

Here is the call graph for this function:
