kitHop.c File Reference

#include "kit.h"
#include "aig/hop/hop.h"
#include "aig/gia/gia.h"

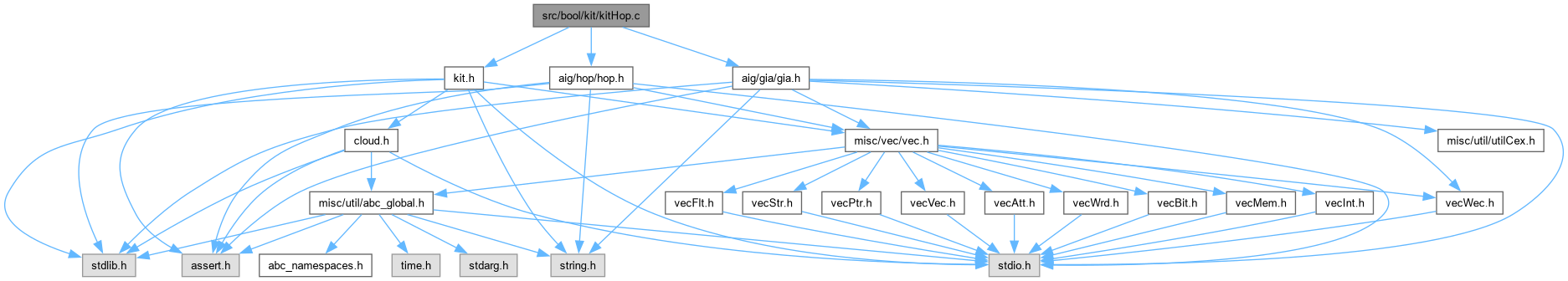

Include dependency graph for kitHop.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Kit_GraphToGiaInternal (Gia_Man_t *pMan, Kit_Graph_t *pGraph, int fHash)
	DECLARATIONS ///.
int	Kit_GraphToGia (Gia_Man_t *pMan, Kit_Graph_t *pGraph, Vec_Int_t *vLeaves, int fHash)
int	Kit_TruthToGia (Gia_Man_t *pMan, unsigned *pTruth, int nVars, Vec_Int_t *vMemory, Vec_Int_t *vLeaves, int fHash)
	DECLARATIONS ///.
int	Kit_TruthToGia2 (Gia_Man_t *pMan, unsigned *pTruth0, unsigned *pTruth1, int nVars, Vec_Int_t *vMemory, Vec_Int_t *vLeaves, int fHash)
int	Kit_IsopNodeNum (unsigned *pTruth0, unsigned *pTruth1, int nVars, Vec_Int_t *vMemory)
void	Kit_IsopResubInt (Kit_Graph_t *pGraph, Vec_Int_t *vRes)
Vec_Int_t *	Kit_IsopResub (unsigned *pTruth0, unsigned *pTruth1, int nVars, Vec_Int_t *vMemory)
Hop_Obj_t *	Kit_GraphToHopInternal (Hop_Man_t *pMan, Kit_Graph_t *pGraph)
Hop_Obj_t *	Kit_GraphToHop (Hop_Man_t *pMan, Kit_Graph_t *pGraph)
Hop_Obj_t *	Kit_TruthToHop (Hop_Man_t *pMan, unsigned *pTruth, int nVars, Vec_Int_t *vMemory)
Hop_Obj_t *	Kit_CoverToHop (Hop_Man_t *pMan, Vec_Int_t *vCover, int nVars, Vec_Int_t *vMemory)

Function Documentation

Kit_CoverToHop()

Hop_Obj_t * Kit_CoverToHop	(	Hop_Man_t *	pMan,
		Vec_Int_t *	vCover,
		int	nVars,
		Vec_Int_t *	vMemory )

Function*************************************************************

Synopsis [Strashes one logic node using its SOP.]

Description []

SideEffects []

SeeAlso []

Definition at line 306 of file kitHop.c.

{
    Kit_Graph_t * pGraph;
    Hop_Obj_t * pFunc;
    // perform factoring
    Vec_IntClear( vMemory );
    pGraph = Kit_SopFactor( vCover, 0, nVars, vMemory );
    // convert graph to the AIG
    pFunc = Kit_GraphToHop( pMan, pGraph );
    Kit_GraphFree( pGraph );
    return pFunc;
}

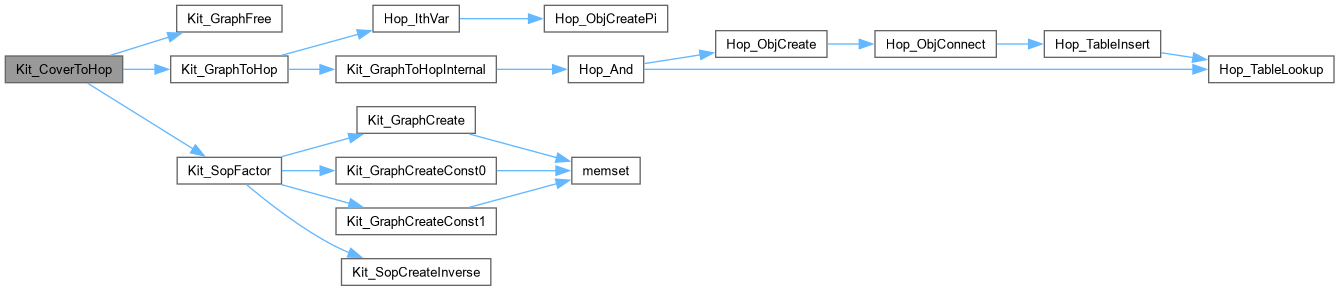

Here is the call graph for this function:

Kit_GraphToGia()

int Kit_GraphToGia	(	Gia_Man_t *	pMan,
		Kit_Graph_t *	pGraph,
		Vec_Int_t *	vLeaves,
		int	fHash )

Definition at line 70 of file kitHop.c.

{
    Kit_Node_t * pNode = NULL;
    int i;
    // collect the fanins
    Kit_GraphForEachLeaf( pGraph, pNode, i )
        pNode->iFunc = vLeaves ? Vec_IntEntry(vLeaves, i) : Gia_Obj2Lit(pMan, Gia_ManPi(pMan, i));
    // perform strashing
    return Kit_GraphToGiaInternal( pMan, pGraph, fHash );
}

Here is the call graph for this function:

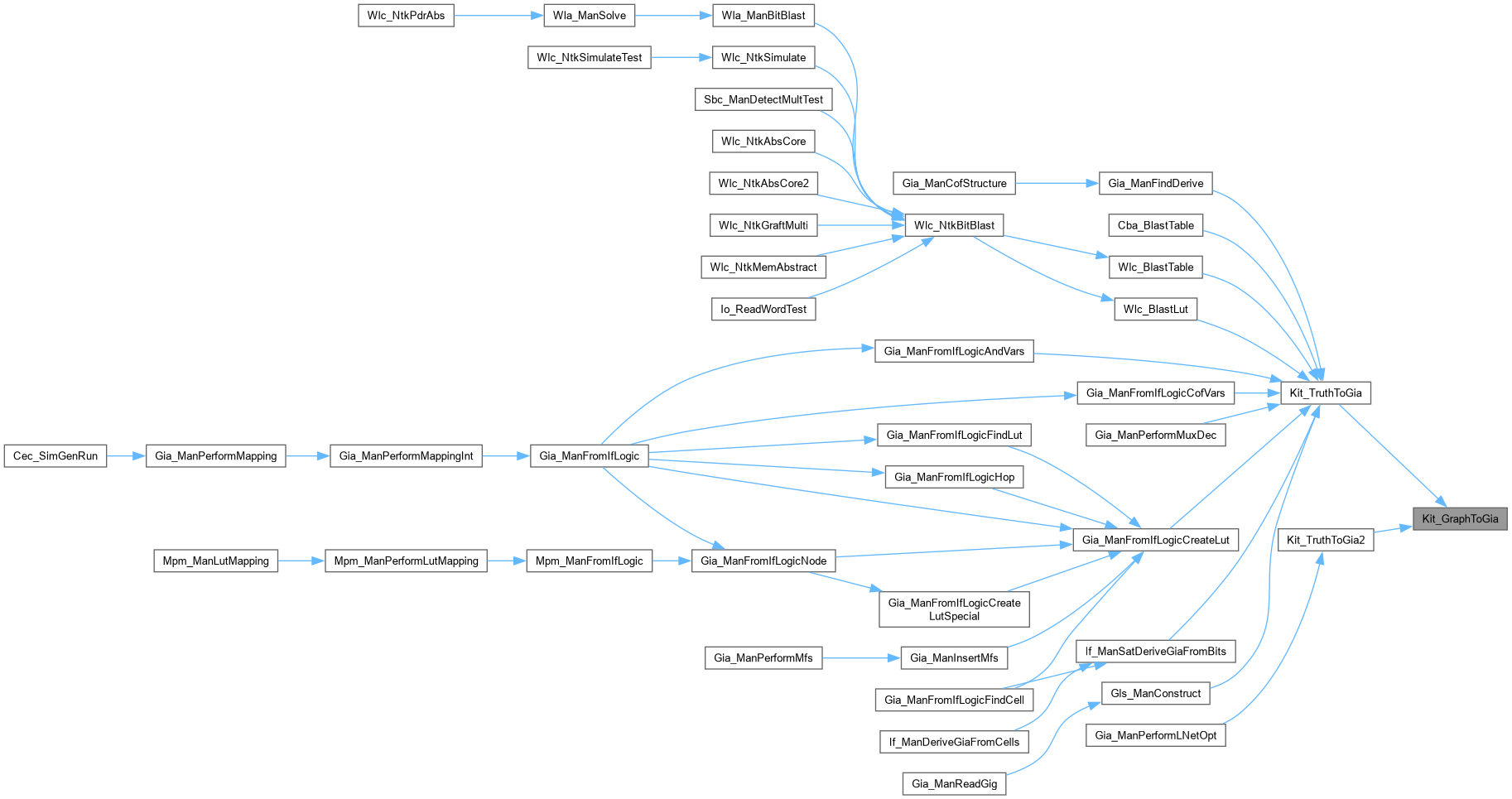

Here is the caller graph for this function:

Kit_GraphToGiaInternal()

ABC_NAMESPACE_IMPL_START int Kit_GraphToGiaInternal	(	Gia_Man_t *	pMan,
		Kit_Graph_t *	pGraph,
		int	fHash )

DECLARATIONS ///.

CFile****************************************************************

FileName [kitHop.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Computation kit.]

Synopsis [Procedures involving AIGs.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - Dec 6, 2006.]

Revision [

Id

kitHop.c,v 1.00 2006/12/06 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Transforms the decomposition graph into the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file kitHop.c.

{
    Kit_Node_t * pNode = NULL;
    int i, pAnd0, pAnd1;
    // check for constant function
    if ( Kit_GraphIsConst(pGraph) )
        return Abc_LitNotCond( 1, Kit_GraphIsComplement(pGraph) );
    // check for a literal
    if ( Kit_GraphIsVar(pGraph) )
        return Abc_LitNotCond( Kit_GraphVar(pGraph)->iFunc, Kit_GraphIsComplement(pGraph) );
    // build the AIG nodes corresponding to the AND gates of the graph
    Kit_GraphForEachNode( pGraph, pNode, i )
    {
        pAnd0 = Abc_LitNotCond( Kit_GraphNode(pGraph, pNode->eEdge0.Node)->iFunc, pNode->eEdge0.fCompl );
        pAnd1 = Abc_LitNotCond( Kit_GraphNode(pGraph, pNode->eEdge1.Node)->iFunc, pNode->eEdge1.fCompl );
        if ( fHash )
            pNode->iFunc = Gia_ManHashAnd( pMan, pAnd0, pAnd1 );
        else
            pNode->iFunc = Gia_ManAppendAnd2( pMan, pAnd0, pAnd1 );
    }
    // complement the result if necessary
    return Abc_LitNotCond( pNode->iFunc, Kit_GraphIsComplement(pGraph) );
}

Here is the call graph for this function:

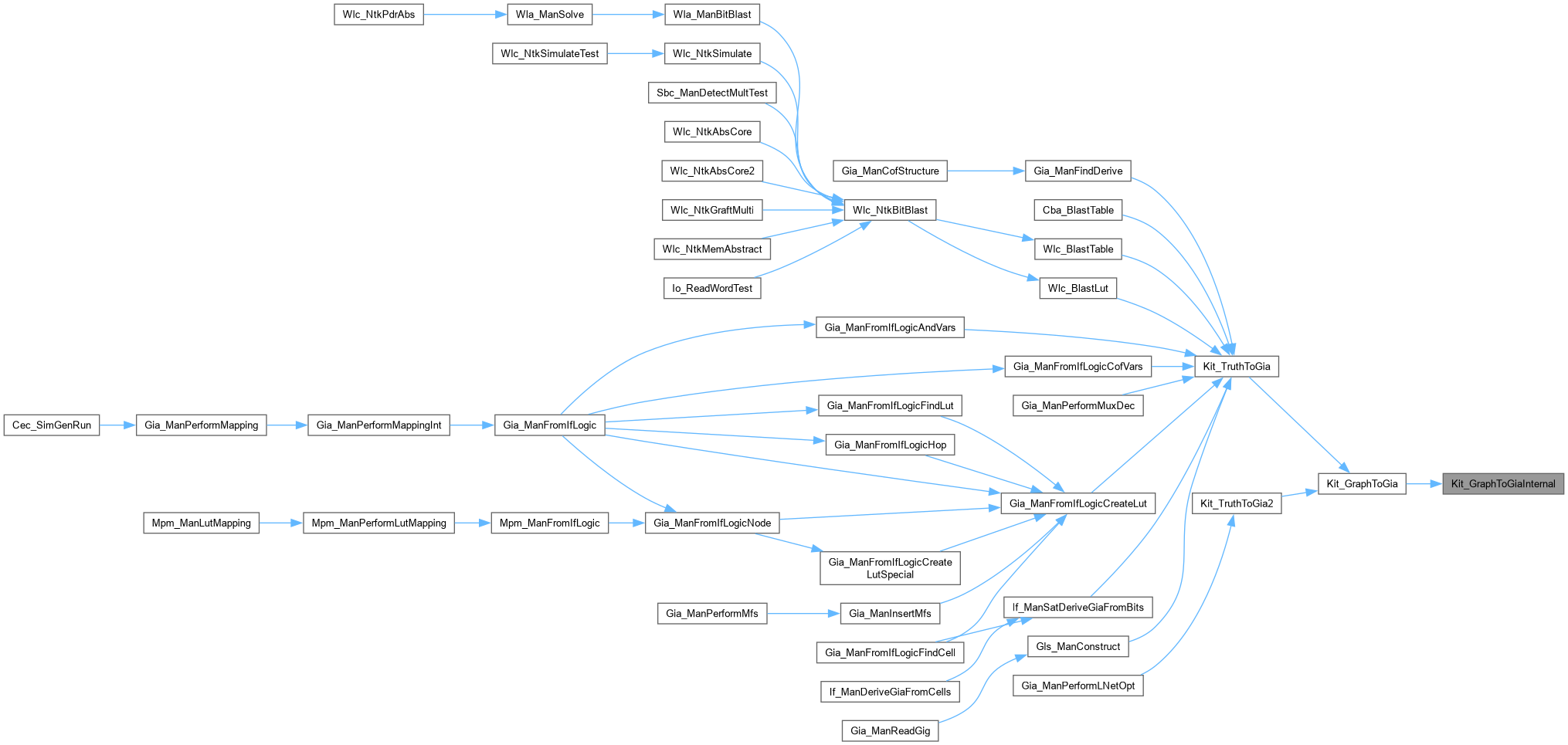

Here is the caller graph for this function:

Kit_GraphToHop()

Hop_Obj_t * Kit_GraphToHop	(	Hop_Man_t *	pMan,
		Kit_Graph_t *	pGraph )

Definition at line 261 of file kitHop.c.

{
    Kit_Node_t * pNode = NULL;
    int i;
    // collect the fanins
    Kit_GraphForEachLeaf( pGraph, pNode, i )
        pNode->pFunc = Hop_IthVar( pMan, i );
    // perform strashing
    return Kit_GraphToHopInternal( pMan, pGraph );
}

Here is the call graph for this function:

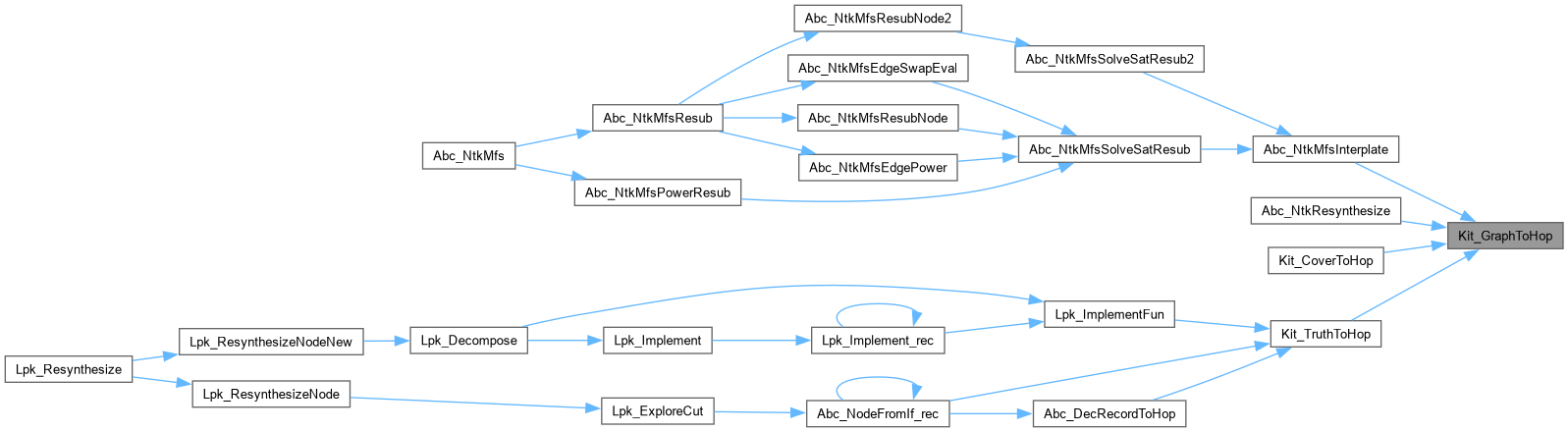

Here is the caller graph for this function:

Kit_GraphToHopInternal()

Hop_Obj_t * Kit_GraphToHopInternal	(	Hop_Man_t *	pMan,
		Kit_Graph_t *	pGraph )

Function*************************************************************

Synopsis [Transforms the decomposition graph into the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 240 of file kitHop.c.

{
    Kit_Node_t * pNode = NULL;
    Hop_Obj_t * pAnd0, * pAnd1;
    int i;
    // check for constant function
    if ( Kit_GraphIsConst(pGraph) )
        return Hop_NotCond( Hop_ManConst1(pMan), Kit_GraphIsComplement(pGraph) );
    // check for a literal
    if ( Kit_GraphIsVar(pGraph) )
        return Hop_NotCond( (Hop_Obj_t *)Kit_GraphVar(pGraph)->pFunc, Kit_GraphIsComplement(pGraph) );
    // build the AIG nodes corresponding to the AND gates of the graph
    Kit_GraphForEachNode( pGraph, pNode, i )
    {
        pAnd0 = Hop_NotCond( (Hop_Obj_t *)Kit_GraphNode(pGraph, pNode->eEdge0.Node)->pFunc, pNode->eEdge0.fCompl );
        pAnd1 = Hop_NotCond( (Hop_Obj_t *)Kit_GraphNode(pGraph, pNode->eEdge1.Node)->pFunc, pNode->eEdge1.fCompl );
        pNode->pFunc = Hop_And( pMan, pAnd0, pAnd1 );
    }
    // complement the result if necessary
    return Hop_NotCond( (Hop_Obj_t *)pNode->pFunc, Kit_GraphIsComplement(pGraph) );
}

Here is the call graph for this function:

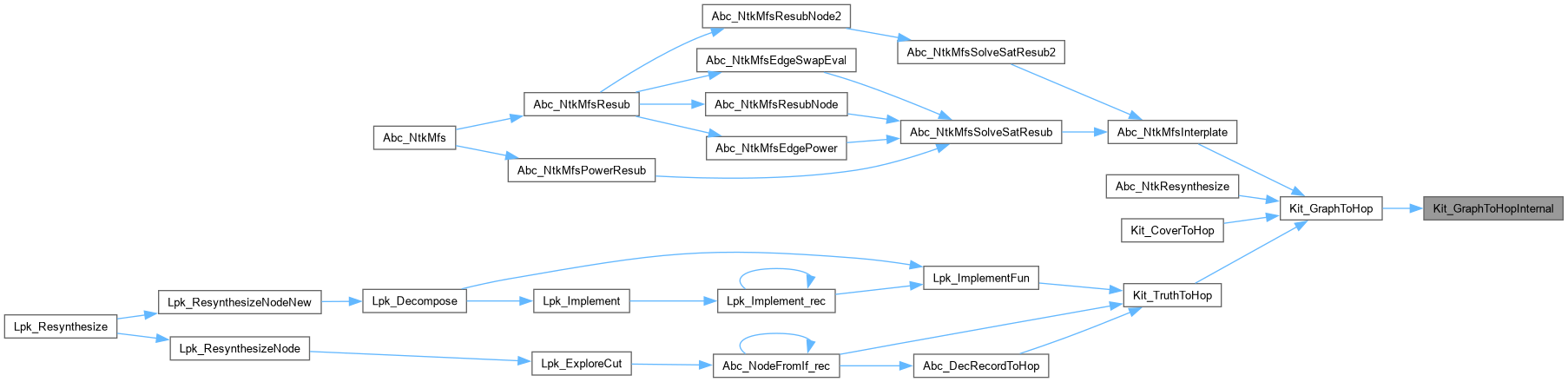

Here is the caller graph for this function:

Kit_IsopNodeNum()

int Kit_IsopNodeNum	(	unsigned *	pTruth0,
		unsigned *	pTruth1,
		int	nVars,
		Vec_Int_t *	vMemory )

Function*************************************************************

Synopsis [Transforms the decomposition graph into the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 139 of file kitHop.c.

{
    Kit_Graph_t * pGraph;
    int nNodes;
    // transform truth table into the decomposition tree
    if ( vMemory == NULL )
    {
        vMemory = Vec_IntAlloc( 0 );
        pGraph = Kit_TruthToGraph2( pTruth0, pTruth1, nVars, vMemory );
        Vec_IntFree( vMemory );
    }
    else
        pGraph = Kit_TruthToGraph2( pTruth0, pTruth1, nVars, vMemory );
    if ( pGraph == NULL )
    {
        printf( "Kit_TruthToGia2(): Converting truth table to AIG has failed for function:\n" );
        Kit_DsdPrintFromTruth( pTruth0, nVars ); printf( "\n" );
        Kit_DsdPrintFromTruth( pTruth1, nVars ); printf( "\n" );
    }
    // derive the AIG for the decomposition tree
    nNodes = Kit_GraphNodeNum( pGraph );
    Kit_GraphFree( pGraph );
    return nNodes;
}

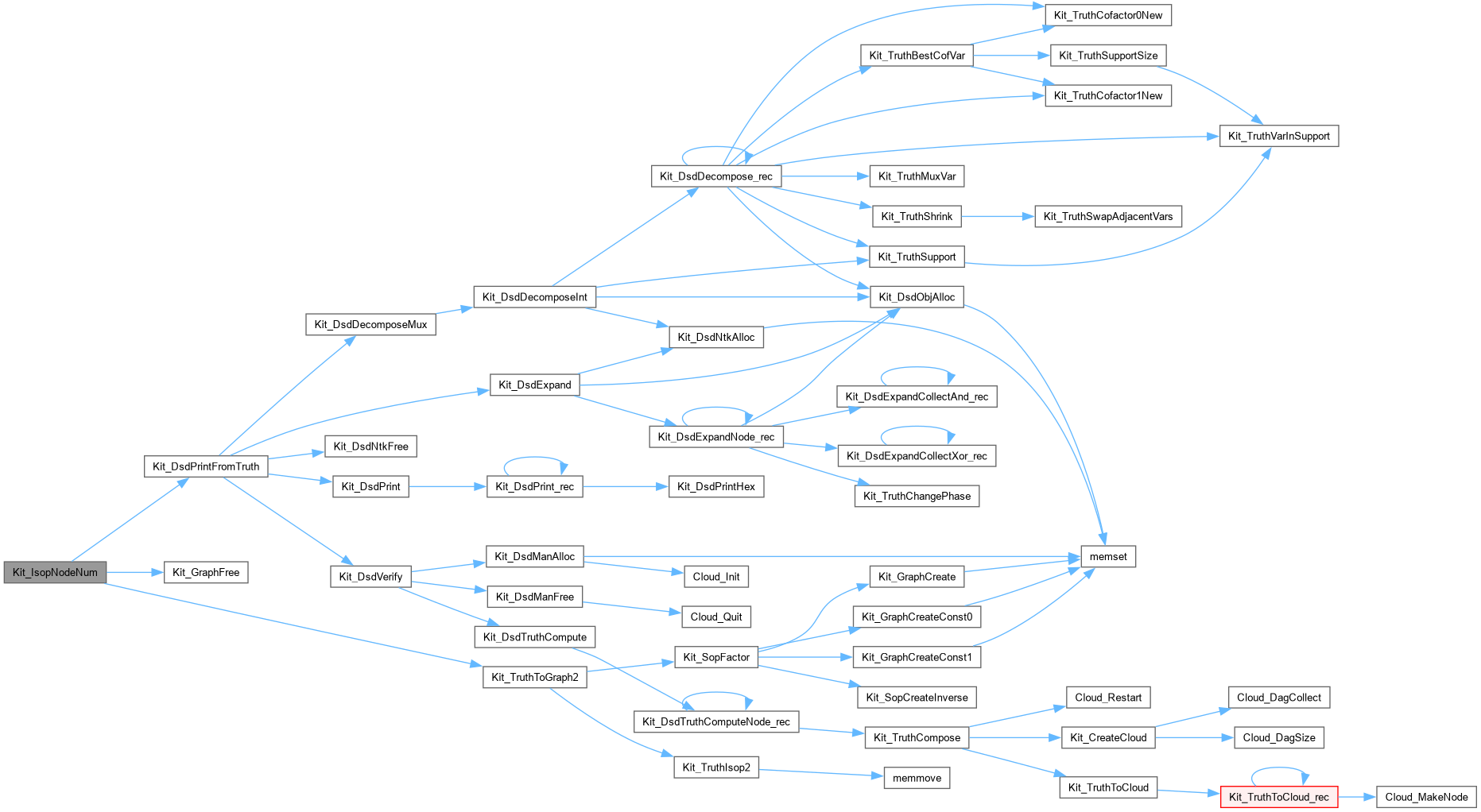

Here is the call graph for this function:

Here is the caller graph for this function:

Kit_IsopResub()

Vec_Int_t * Kit_IsopResub	(	unsigned *	pTruth0,
		unsigned *	pTruth1,
		int	nVars,
		Vec_Int_t *	vMemory )

Definition at line 200 of file kitHop.c.

{
    Vec_Int_t * vRes = NULL;
    Kit_Graph_t * pGraph;
    int nNodes;
    // transform truth table into the decomposition tree
    if ( vMemory == NULL )
    {
        vMemory = Vec_IntAlloc( 0 );
        pGraph = Kit_TruthToGraph2( pTruth0, pTruth1, nVars, vMemory );
        Vec_IntFree( vMemory );
    }
    else
        pGraph = Kit_TruthToGraph2( pTruth0, pTruth1, nVars, vMemory );
    if ( pGraph == NULL )
    {
        printf( "Kit_TruthToGia2(): Converting truth table to AIG has failed for function:\n" );
        Kit_DsdPrintFromTruth( pTruth0, nVars ); printf( "\n" );
        Kit_DsdPrintFromTruth( pTruth1, nVars ); printf( "\n" );
    }
    // derive the AIG for the decomposition tree
    nNodes = Kit_GraphNodeNum( pGraph );
    vRes = Vec_IntAlloc( 2*nNodes + 1 );
    Kit_IsopResubInt( pGraph, vRes );
    assert( Vec_IntSize(vRes) == 2*nNodes + 1 );
    Kit_GraphFree( pGraph );
    return vRes;
}

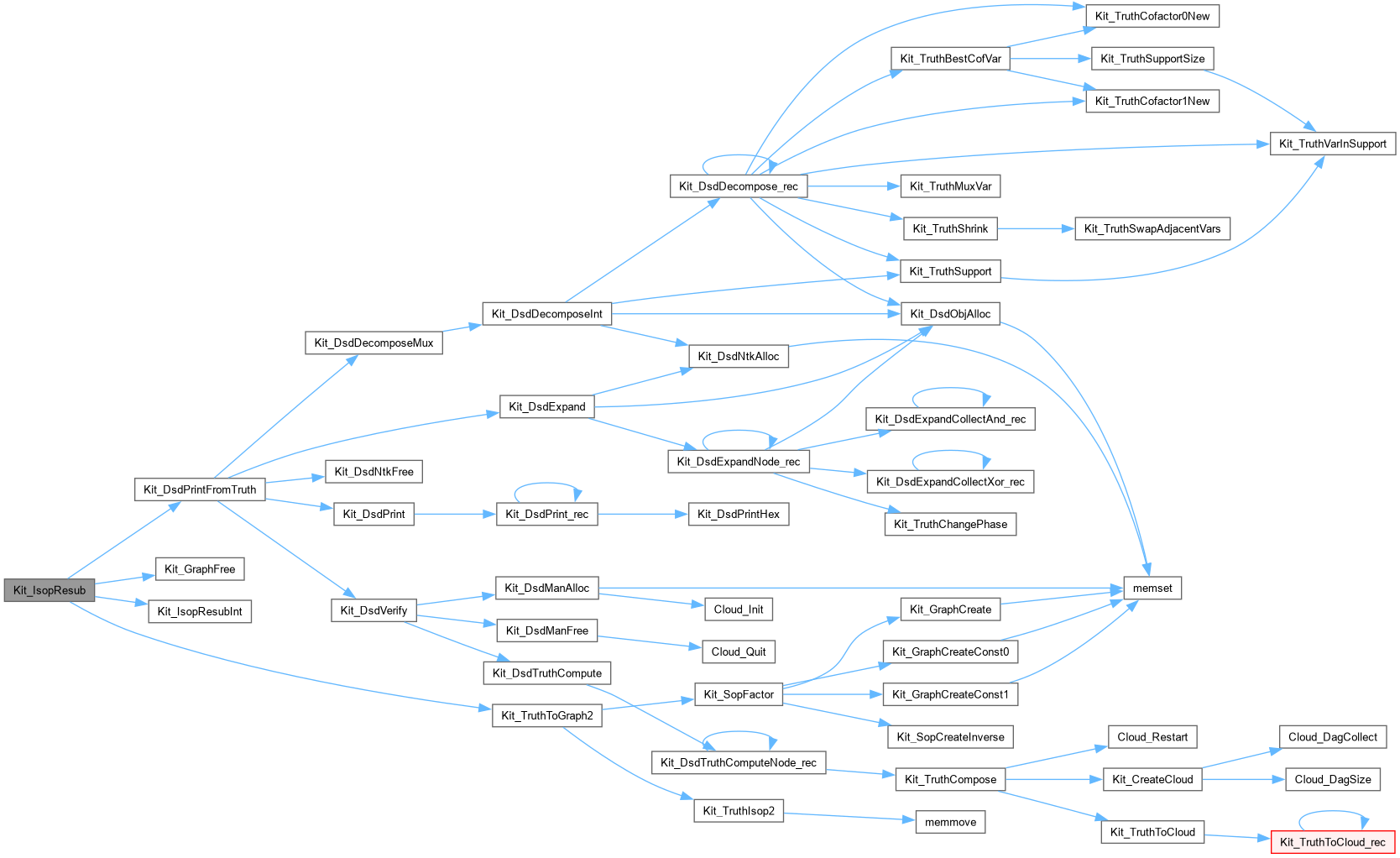

Here is the call graph for this function:

Here is the caller graph for this function:

Kit_IsopResubInt()

void Kit_IsopResubInt	(	Kit_Graph_t *	pGraph,
		Vec_Int_t *	vRes )

Function*************************************************************

Synopsis [Transforms the decomposition graph into the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 175 of file kitHop.c.

{
    int nVars = Kit_GraphLeaveNum(pGraph);
    assert( nVars >= 0 && nVars <= pGraph->nSize );
    if ( Kit_GraphIsConst(pGraph) )
        Vec_IntPush( vRes, Kit_GraphIsConst1(pGraph) );
    else if ( Kit_GraphIsVar(pGraph) )
        Vec_IntPush( vRes, 4 + Abc_Var2Lit(Kit_GraphVarInt(pGraph), Kit_GraphIsComplement(pGraph)) );
    else
    {
        Kit_Node_t * pNode = NULL; int i;
        Kit_GraphForEachNode( pGraph, pNode, i )
        {
            Kit_Node_t * pFan0 = Kit_GraphNodeFanin0( pGraph, pNode );
            Kit_Node_t * pFan1 = Kit_GraphNodeFanin1( pGraph, pNode );
            int iLit0 = Abc_Var2Lit( Kit_GraphNodeInt(pGraph, pFan0), pNode->eEdge0.fCompl );
            int iLit1 = Abc_Var2Lit( Kit_GraphNodeInt(pGraph, pFan1), pNode->eEdge1.fCompl );
            if ( iLit0 > iLit1 )
                iLit0 ^= iLit1, iLit1 ^= iLit0, iLit0 ^= iLit1;
            Vec_IntPushTwo( vRes, 4 + iLit0, 4 + iLit1 );
        }
        assert( pNode == Kit_GraphNode(pGraph, pGraph->eRoot.Node) );
        Vec_IntPush( vRes, 4 + Abc_Var2Lit(Kit_GraphNodeInt(pGraph, pNode), Kit_GraphIsComplement(pGraph)) );
    }
}

Here is the caller graph for this function:

Kit_TruthToGia()

int Kit_TruthToGia	(	Gia_Man_t *	pMan,
		unsigned *	pTruth,
		int	nVars,
		Vec_Int_t *	vMemory,
		Vec_Int_t *	vLeaves,
		int	fHash )

DECLARATIONS ///.

CFile****************************************************************

FileName [giaMap.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Manipulation of mapping associated with the AIG.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaMap.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 80 of file kitHop.c.

{
    int iLit;
    Kit_Graph_t * pGraph;
    // transform truth table into the decomposition tree
    if ( vMemory == NULL )
    {
        vMemory = Vec_IntAlloc( 0 );
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
        Vec_IntFree( vMemory );
    }
    else
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
    if ( pGraph == NULL )
    {
        printf( "Kit_TruthToGia(): Converting truth table to AIG has failed for function:\n" );
        Kit_DsdPrintFromTruth( pTruth, nVars ); printf( "\n" );
    }
    // derive the AIG for the decomposition tree
    iLit = Kit_GraphToGia( pMan, pGraph, vLeaves, fHash );
    Kit_GraphFree( pGraph );
    return iLit;
}

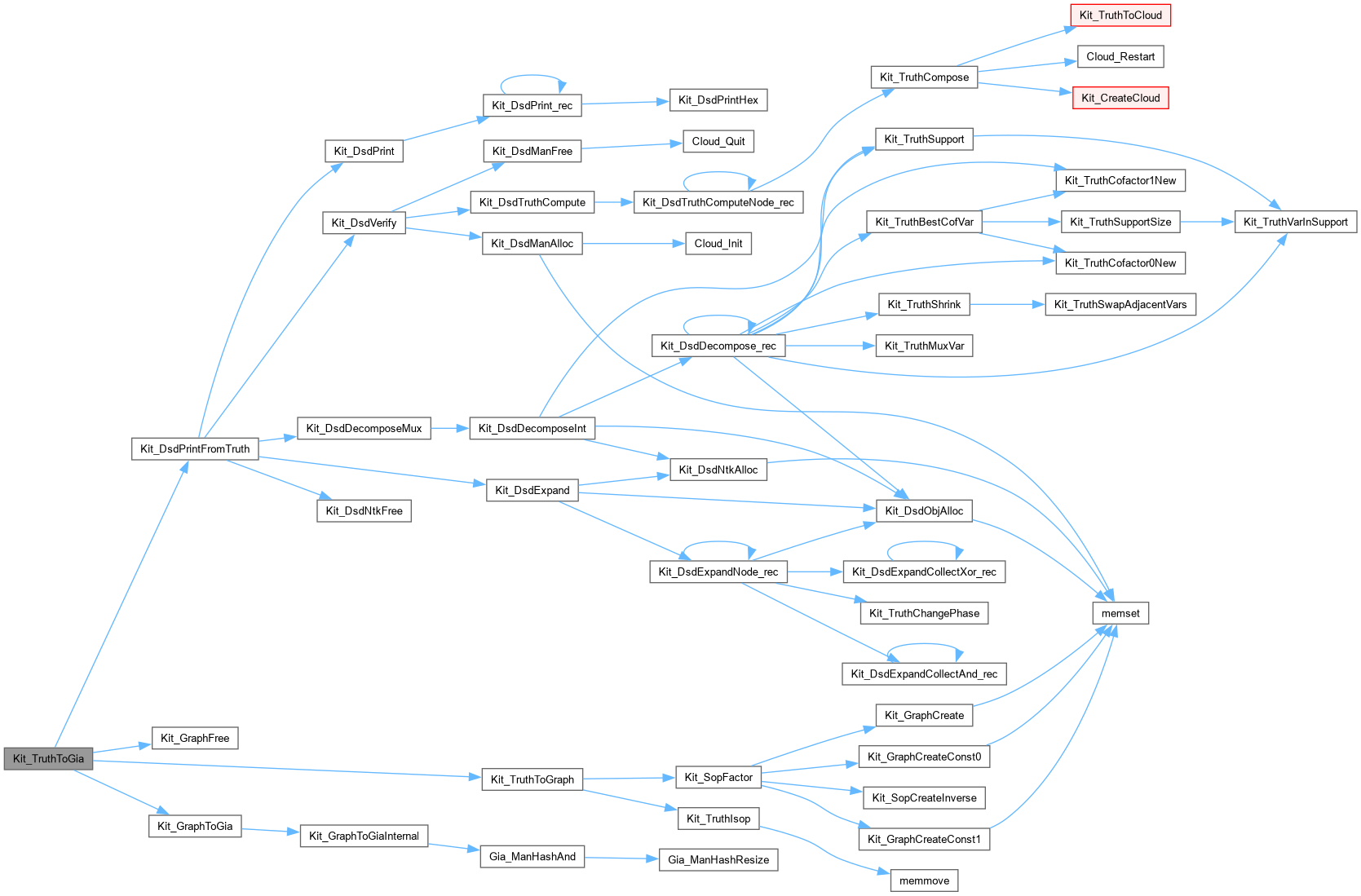

Here is the call graph for this function:

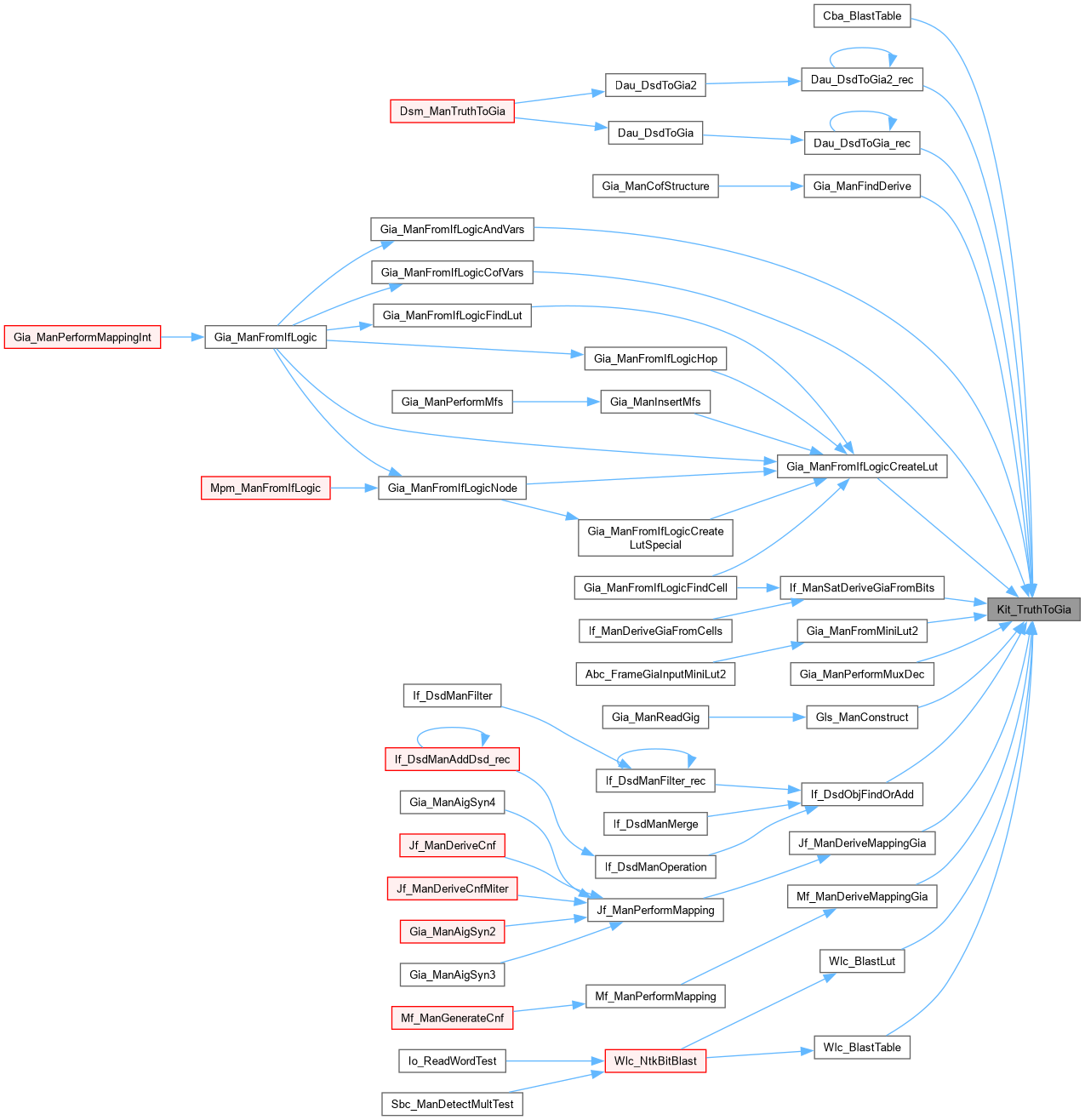

Here is the caller graph for this function:

Kit_TruthToGia2()

int Kit_TruthToGia2	(	Gia_Man_t *	pMan,
		unsigned *	pTruth0,
		unsigned *	pTruth1,
		int	nVars,
		Vec_Int_t *	vMemory,
		Vec_Int_t *	vLeaves,
		int	fHash )

Definition at line 103 of file kitHop.c.

{
    int iLit;
    Kit_Graph_t * pGraph;
    // transform truth table into the decomposition tree
    if ( vMemory == NULL )
    {
        vMemory = Vec_IntAlloc( 0 );
        pGraph = Kit_TruthToGraph2( pTruth0, pTruth1, nVars, vMemory );
        Vec_IntFree( vMemory );
    }
    else
        pGraph = Kit_TruthToGraph2( pTruth0, pTruth1, nVars, vMemory );
    if ( pGraph == NULL )
    {
        printf( "Kit_TruthToGia2(): Converting truth table to AIG has failed for function:\n" );
        Kit_DsdPrintFromTruth( pTruth0, nVars ); printf( "\n" );
        Kit_DsdPrintFromTruth( pTruth1, nVars ); printf( "\n" );
    }
    // derive the AIG for the decomposition tree
    iLit = Kit_GraphToGia( pMan, pGraph, vLeaves, fHash );
    Kit_GraphFree( pGraph );
    return iLit;
}

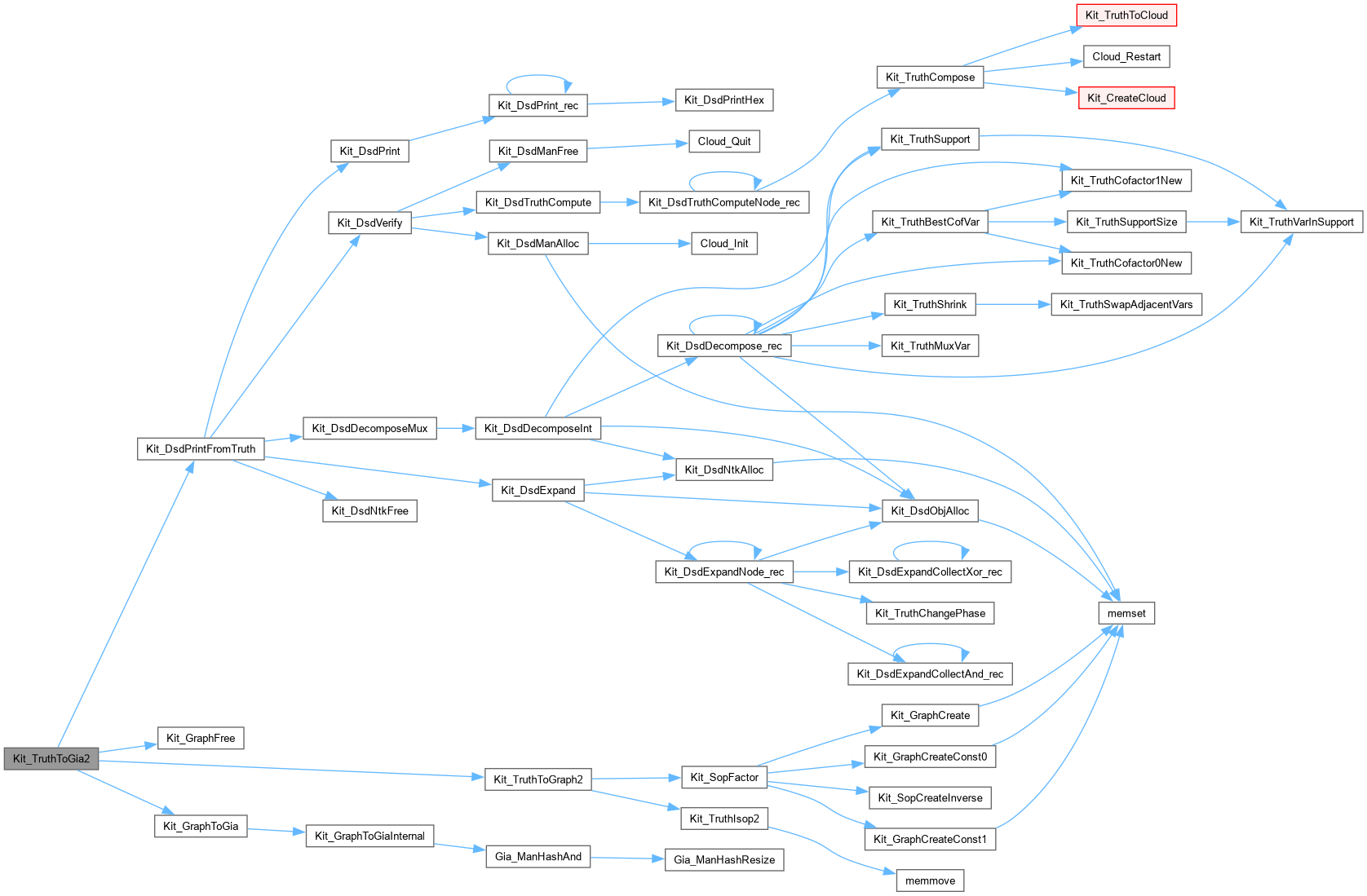

Here is the call graph for this function:

Here is the caller graph for this function:

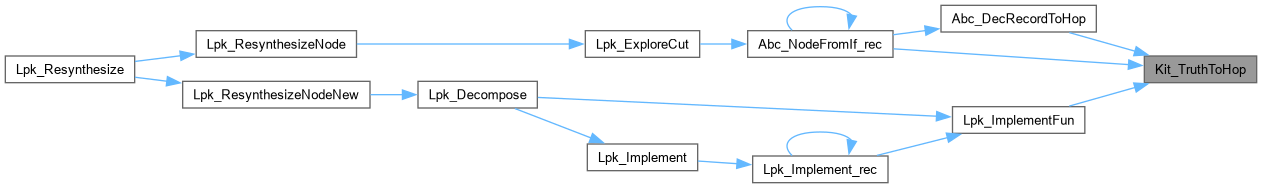

Kit_TruthToHop()

Hop_Obj_t * Kit_TruthToHop	(	Hop_Man_t *	pMan,
		unsigned *	pTruth,
		int	nVars,
		Vec_Int_t *	vMemory )

Definition at line 271 of file kitHop.c.

{
    Hop_Obj_t * pObj;
    Kit_Graph_t * pGraph;
    // transform truth table into the decomposition tree
    if ( vMemory == NULL )
    {
        vMemory = Vec_IntAlloc( 0 );
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
        Vec_IntFree( vMemory );
    }
    else
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
    if ( pGraph == NULL )
    {
        printf( "Kit_TruthToHop(): Converting truth table to AIG has failed for function:\n" );
        Kit_DsdPrintFromTruth( pTruth, nVars ); printf( "\n" );
    }
    // derive the AIG for the decomposition tree
    pObj = Kit_GraphToHop( pMan, pGraph );
    Kit_GraphFree( pGraph );
    return pObj;
}

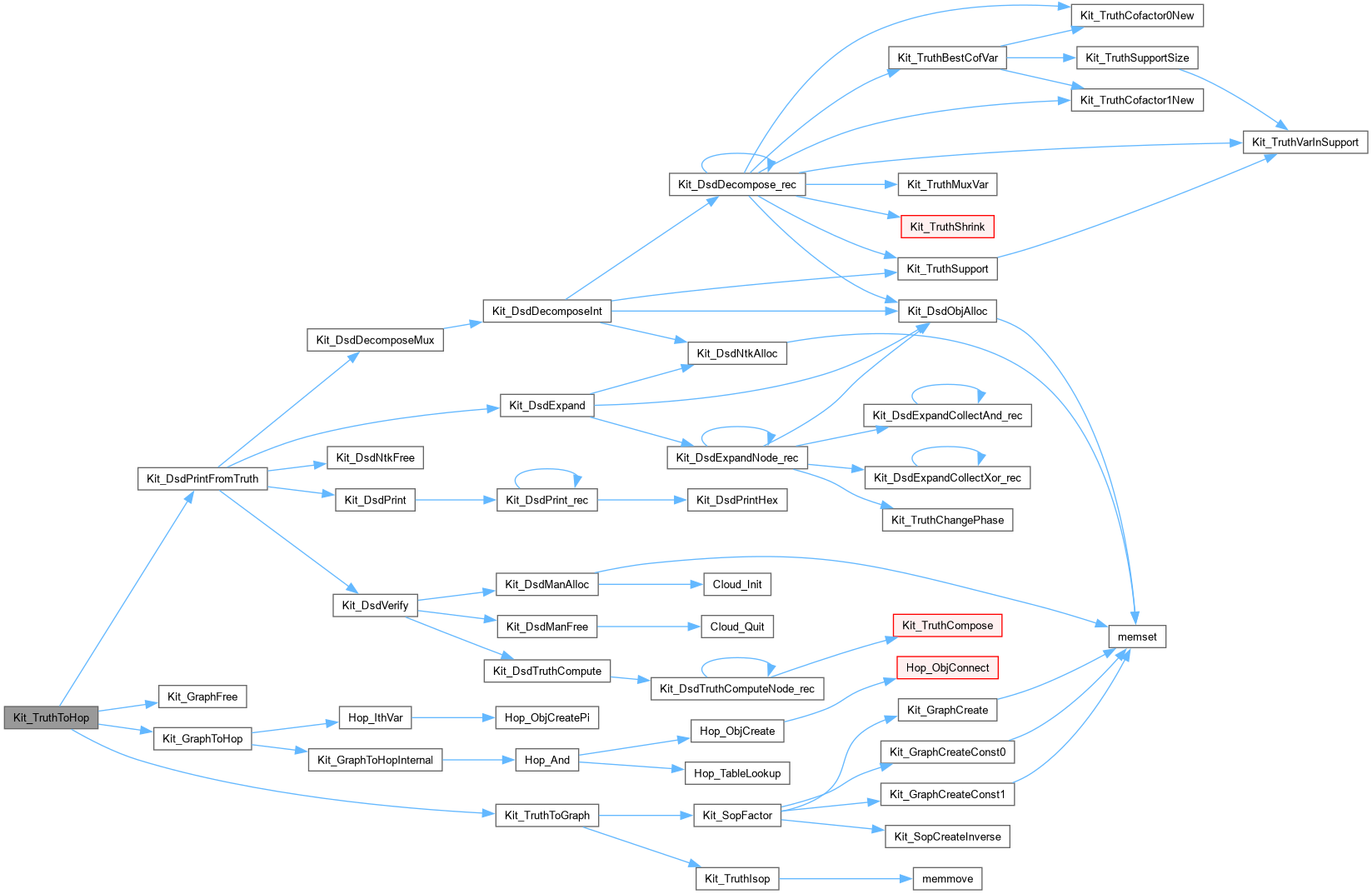

Here is the call graph for this function:

Here is the caller graph for this function:
