lpkAbcUtil.c File Reference

#include "lpkInt.h"

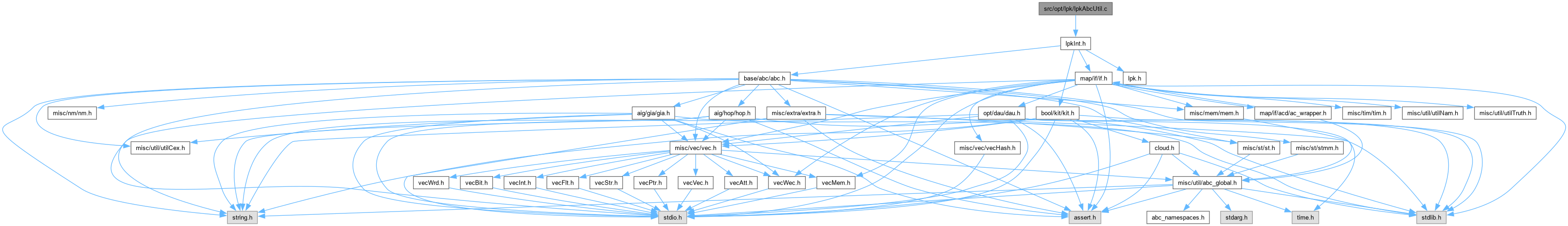

Include dependency graph for lpkAbcUtil.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Lpk_Fun_t *	Lpk_FunAlloc (int nVars)
	DECLARATIONS ///.
void	Lpk_FunFree (Lpk_Fun_t *p)
Lpk_Fun_t *	Lpk_FunCreate (Abc_Ntk_t *pNtk, Vec_Ptr_t *vLeaves, unsigned *pTruth, int nLutK, int AreaLim, int DelayLim)
Lpk_Fun_t *	Lpk_FunDup (Lpk_Fun_t *p, unsigned *pTruth)
int	Lpk_FunSuppMinimize (Lpk_Fun_t *p)
void	Lpk_FunComputeCofSupps (Lpk_Fun_t *p)
int	Lpk_SuppDelay (unsigned uSupp, int *pDelays)
int	Lpk_SuppToVars (unsigned uBoundSet, char *pVars)

Function Documentation

Lpk_FunAlloc()

ABC_NAMESPACE_IMPL_START Lpk_Fun_t * Lpk_FunAlloc

(

int

nVars

)

DECLARATIONS ///.

CFile****************************************************************

FileName [lpkAbcUtil.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Fast Boolean matching for LUT structures.]

Synopsis [Procedures working on decomposed functions.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

lpkAbcUtil.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Allocates the function.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file lpkAbcUtil.c.

{
    Lpk_Fun_t * p;
    p = (Lpk_Fun_t *)ABC_ALLOC( char, sizeof(Lpk_Fun_t) + sizeof(unsigned) * Kit_TruthWordNum(nVars) * 3 );
    memset( p, 0, sizeof(Lpk_Fun_t) );
    return p;
}

Here is the call graph for this function:

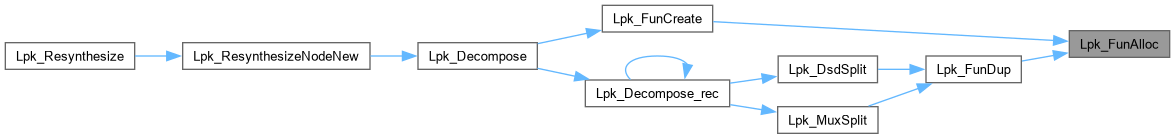

Here is the caller graph for this function:

Lpk_FunComputeCofSupps()

void Lpk_FunComputeCofSupps

(

Lpk_Fun_t *

p

)

Function*************************************************************

Synopsis [Computes cofactors w.r.t. each variable.]

Description []

SideEffects []

SeeAlso []

Definition at line 186 of file lpkAbcUtil.c.

{
    unsigned * pTruth  = Lpk_FunTruth( p, 0 );
    unsigned * pTruth0 = Lpk_FunTruth( p, 1 );
    unsigned * pTruth1 = Lpk_FunTruth( p, 2 );
    int Var;
    assert( p->fSupports == 0 );
//    Lpk_SuppForEachVar( p->uSupp, Var )
    for ( Var = 0; Var < (int)p->nVars; Var++ )
    {
        Kit_TruthCofactor0New( pTruth0, pTruth, p->nVars, Var );
        Kit_TruthCofactor1New( pTruth1, pTruth, p->nVars, Var );
        p->puSupps[2*Var+0] = Kit_TruthSupport( pTruth0, p->nVars );
        p->puSupps[2*Var+1] = Kit_TruthSupport( pTruth1, p->nVars );
    }
    p->fSupports = 1;
}

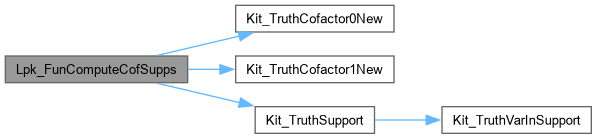

Here is the call graph for this function:

Here is the caller graph for this function:

Lpk_FunCreate()

Lpk_Fun_t * Lpk_FunCreate	(	Abc_Ntk_t *	pNtk,
		Vec_Ptr_t *	vLeaves,
		unsigned *	pTruth,
		int	nLutK,
		int	AreaLim,
		int	DelayLim )

Function*************************************************************

Synopsis [Creates the starting function.]

Description []

SideEffects []

SeeAlso []

Definition at line 80 of file lpkAbcUtil.c.

{
    Lpk_Fun_t * p;
    Abc_Obj_t * pNode;
    int i;
    p = Lpk_FunAlloc( Vec_PtrSize(vLeaves) );
    p->Id = Vec_PtrSize(vLeaves);
    p->vNodes = vLeaves;
    p->nVars = Vec_PtrSize(vLeaves);
    p->nLutK = nLutK;
    p->nAreaLim = AreaLim;
    p->nDelayLim = DelayLim;
    p->uSupp = Kit_TruthSupport( pTruth, p->nVars );
    Kit_TruthCopy( Lpk_FunTruth(p,0), pTruth, p->nVars );
    Vec_PtrForEachEntry( Abc_Obj_t *, vLeaves, pNode, i )
    {
        p->pFanins[i] = i;
        p->pDelays[i] = pNode->Level;
    }
    Vec_PtrPush( p->vNodes, p );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Lpk_FunDup()

Lpk_Fun_t * Lpk_FunDup	(	Lpk_Fun_t *	p,
		unsigned *	pTruth )

Function*************************************************************

Synopsis [Creates the new function with the given truth table.]

Description []

SideEffects []

SeeAlso []

Definition at line 114 of file lpkAbcUtil.c.

{
    Lpk_Fun_t * pNew;
    pNew = Lpk_FunAlloc( p->nVars );
    pNew->Id = Vec_PtrSize(p->vNodes);
    pNew->vNodes = p->vNodes;
    pNew->nVars = p->nVars;
    pNew->nLutK = p->nLutK;
    pNew->nAreaLim = p->nAreaLim;
    pNew->nDelayLim = p->nDelayLim;
    pNew->uSupp = Kit_TruthSupport( pTruth, p->nVars );
    Kit_TruthCopy( Lpk_FunTruth(pNew,0), pTruth, p->nVars );
    memcpy( pNew->pFanins, p->pFanins, 16 );
    memcpy( pNew->pDelays, p->pDelays, sizeof(int)*16 );
    Vec_PtrPush( p->vNodes, pNew );
    return pNew;
}

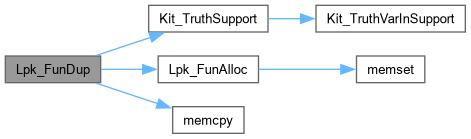

Here is the call graph for this function:

Here is the caller graph for this function:

Lpk_FunFree()

void Lpk_FunFree

(

Lpk_Fun_t *

p

)

Function*************************************************************

Synopsis [Deletes the function]

Description []

SideEffects []

SeeAlso []

Definition at line 64 of file lpkAbcUtil.c.

{
    ABC_FREE( p );
}

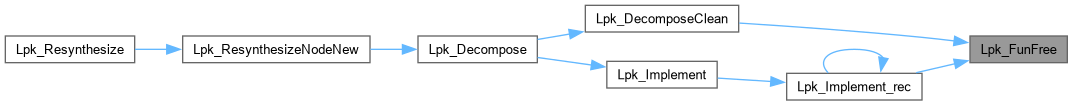

Here is the caller graph for this function:

Lpk_FunSuppMinimize()

int Lpk_FunSuppMinimize

(

Lpk_Fun_t *

p

)

Function*************************************************************

Synopsis [Minimizes support of the function.]

Description []

SideEffects []

SeeAlso []

Definition at line 143 of file lpkAbcUtil.c.

{
    int i, k, nVarsNew;
    // compress the truth table
    if ( p->uSupp == Kit_BitMask(p->nVars) )
        return 0;
    // invalidate support info
    p->fSupports = 0;
//Extra_PrintBinary( stdout, &p->uSupp, p->nVars ); printf( "\n" );
    // minimize support
    nVarsNew = Kit_WordCountOnes(p->uSupp);
    Kit_TruthShrink( Lpk_FunTruth(p, 1), Lpk_FunTruth(p, 0), nVarsNew, p->nVars, p->uSupp, 1 );
    k = 0;
    Lpk_SuppForEachVar( p->uSupp, i )
    {
        p->pFanins[k] = p->pFanins[i];
        p->pDelays[k] = p->pDelays[i];
/*
        if ( p->fSupports )
        {
            p->puSupps[2*k+0] = p->puSupps[2*i+0];
            p->puSupps[2*k+1] = p->puSupps[2*i+1];
        }
*/
        k++;
    }
    assert( k == nVarsNew );
    p->nVars = k;
    p->uSupp = Kit_BitMask(p->nVars);
    return 1;
}

Here is the call graph for this function:

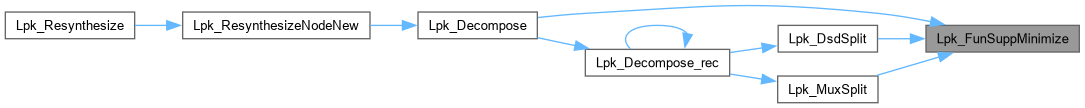

Here is the caller graph for this function:

Lpk_SuppDelay()

int Lpk_SuppDelay	(	unsigned	uSupp,
		int *	pDelays )

Function*************************************************************

Synopsis [Get the delay of the bound set.]

Description []

SideEffects []

SeeAlso []

Definition at line 215 of file lpkAbcUtil.c.

{
    int Delay, Var;
    Delay = 0;
    Lpk_SuppForEachVar( uSupp, Var )
        Delay = Abc_MaxInt( Delay, pDelays[Var] );
    return Delay + 1;
}

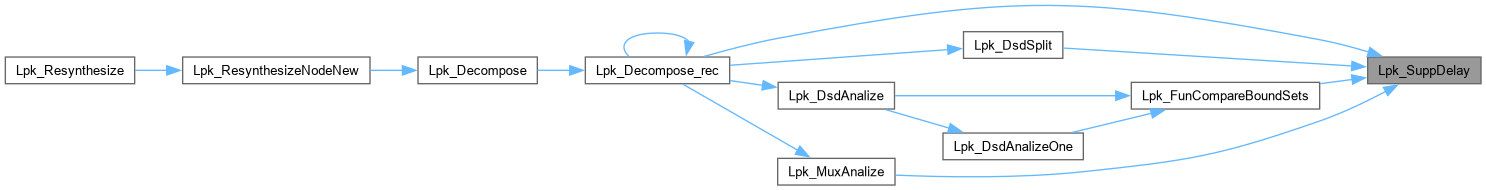

Here is the caller graph for this function:

Lpk_SuppToVars()

int Lpk_SuppToVars	(	unsigned	uBoundSet,
		char *	pVars )

Function*************************************************************

Synopsis [Converts support into variables.]

Description []

SideEffects []

SeeAlso []

Definition at line 235 of file lpkAbcUtil.c.

{
    int i, nVars = 0;
    Lpk_SuppForEachVar( uBoundSet, i )
        pVars[nVars++] = i;
    return nVars;
}
