luckySimple.c File Reference

#include "luckyInt.h"

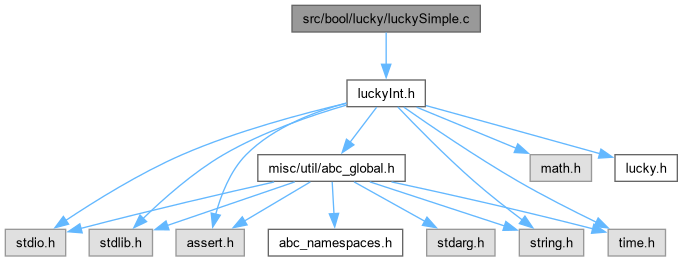

Include dependency graph for luckySimple.c:

Go to the source code of this file.

Functions
int	nextSwap (swapInfo *x)
void	fillInSwapArray (permInfo *pi)
int	oneBitPosition (int x, int size)
void	fillInFlipArray (permInfo *pi)
permInfo *	setPermInfoPtr (int var)
void	freePermInfoPtr (permInfo *x)
void	simpleMinimal (word *x, word *pAux, word *minimal, permInfo *pi, int nVars)
void	simpleMinimalGroups (word *x, word *pAux, word *minimal, int *pGroups, int nGroups, permInfo **pis, int nVars, int fFlipOutput, int fFlipInput)

Function Documentation

fillInFlipArray()

void fillInFlipArray

(

permInfo *

pi

)

Definition at line 94 of file luckySimple.c.

{
    int i, temp=0, grayNumber;
    for(i=1;i<=pi->totalFlips;i++)
    {
        grayNumber = i^(i>>1);
        pi->flipArray[pi->totalFlips-i]=oneBitPosition(temp^grayNumber, pi->varN);
        temp = grayNumber;
    }


}

Here is the call graph for this function:

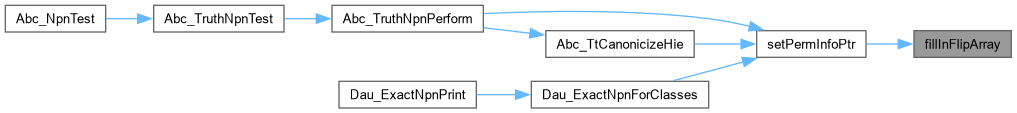

Here is the caller graph for this function:

fillInSwapArray()

void fillInSwapArray

(

permInfo *

pi

)

Definition at line 72 of file luckySimple.c.

{
    int counter=pi->totalSwaps-1;
    swapInfo* x= setSwapInfoPtr(pi->varN);
    while(nextSwap(x)==1)
    {
        if(x->positionToSwap1<x->positionToSwap2)
            pi->swapArray[counter--]=x->positionToSwap1;
        else
            pi->swapArray[counter--]=x->positionToSwap2;
    }

    freeSwapInfoPtr(x);
}

Here is the call graph for this function:

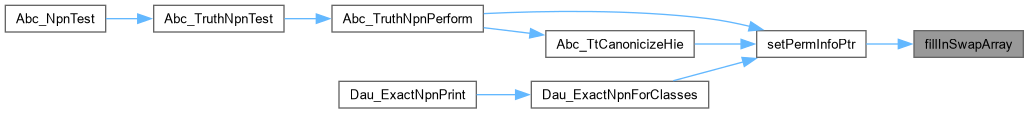

Here is the caller graph for this function:

freePermInfoPtr()

void freePermInfoPtr

(

permInfo *

x

)

Definition at line 126 of file luckySimple.c.

{
    free(x->flipArray);
    free(x->swapArray);
    free(x);
}

Here is the call graph for this function:

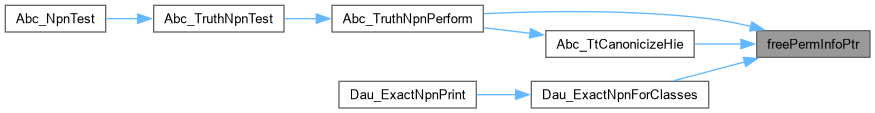

Here is the caller graph for this function:

nextSwap()

int nextSwap

(

swapInfo *

x

)

Definition at line 47 of file luckySimple.c.

{
    int i,j,temp;
    for(i=x->varN;i>1;i--)
    {
        if( i > x->realArray[x->posArray[i].position + x->posArray[i].direction] )
        {
            x->posArray[i].position = x->posArray[i].position + x->posArray[i].direction;
            temp = x->realArray[x->posArray[i].position];
            x->realArray[x->posArray[i].position] = i;
            x->realArray[x->posArray[i].position - x->posArray[i].direction] = temp;
            x->posArray[temp].position = x->posArray[i].position - x->posArray[i].direction;
            for(j=x->varN;j>i;j--)
            {
                x->posArray[j].direction =     x->posArray[j].direction * -1;
            }
            x->positionToSwap1 = x->posArray[temp].position - 1;
            x->positionToSwap2 = x->posArray[i].position - 1;
            return 1;
        }

    }
    return 0;
}

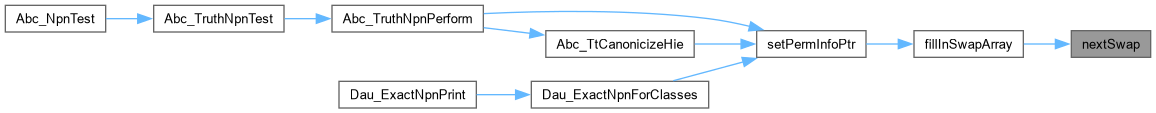

Here is the caller graph for this function:

oneBitPosition()

int oneBitPosition	(	int	x,
		int	size )

Definition at line 86 of file luckySimple.c.

{
    int i;
    for(i=0;i<size;i++)
        if((x>>i)&1)
            return i;
    return -1;
}

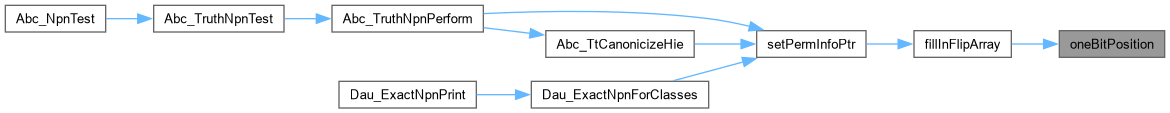

Here is the caller graph for this function:

setPermInfoPtr()

permInfo * setPermInfoPtr

(

int

var

)

Definition at line 110 of file luckySimple.c.

{
    permInfo* x;
    x = (permInfo*) malloc(sizeof(permInfo));
    x->flipCtr=0;
    x->varN = var;
    x->totalFlips=(1<<var)-1;
    x->swapCtr=0;
    x->totalSwaps=factorial(var)-1;
    x->flipArray = (int*) malloc(sizeof(int)*x->totalFlips);
    x->swapArray = (int*) malloc(sizeof(int)*x->totalSwaps);
    fillInSwapArray(x);
    fillInFlipArray(x);
    return x;
}

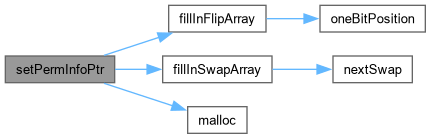

Here is the call graph for this function:

Here is the caller graph for this function:

simpleMinimal()

void simpleMinimal	(	word *	x,
		word *	pAux,
		word *	minimal,
		permInfo *	pi,
		int	nVars )

Definition at line 156 of file luckySimple.c.

{
    int i,j=0;
    Kit_TruthCopy_64bit( pAux, x, nVars );
    Kit_TruthNot_64bit( x, nVars );

    minWord(x, pAux, minimal, nVars);

    for(i=pi->totalSwaps-1;i>=0;i--)
    {
        Kit_TruthSwapAdjacentVars_64bit(x, nVars, pi->swapArray[i]);
        Kit_TruthSwapAdjacentVars_64bit(pAux, nVars, pi->swapArray[i]);
        minWord3(x, pAux, minimal, nVars);
    }
    for(j=pi->totalFlips-1;j>=0;j--)
    {
        Kit_TruthSwapAdjacentVars_64bit(x, nVars, 0);
        Kit_TruthSwapAdjacentVars_64bit(pAux, nVars, 0);
        Kit_TruthChangePhase_64bit(x, nVars, pi->flipArray[j]);
        Kit_TruthChangePhase_64bit(pAux, nVars, pi->flipArray[j]);
        minWord3(x, pAux, minimal, nVars);
        for(i=pi->totalSwaps-1;i>=0;i--)
        {
            Kit_TruthSwapAdjacentVars_64bit(x, nVars, pi->swapArray[i]);
            Kit_TruthSwapAdjacentVars_64bit(pAux, nVars, pi->swapArray[i]);
            minWord3(x, pAux, minimal, nVars);
        }
    }
    Kit_TruthCopy_64bit( x, minimal, nVars );
}

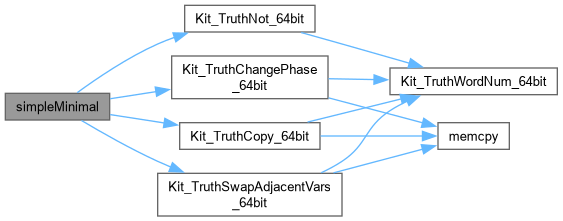

Here is the call graph for this function:

Here is the caller graph for this function:

simpleMinimalGroups()

void simpleMinimalGroups	(	word *	x,
		word *	pAux,
		word *	minimal,
		int *	pGroups,
		int	nGroups,
		permInfo **	pis,
		int	nVars,
		int	fFlipOutput,
		int	fFlipInput )

pGroups: we assume that the variables are merged into adjacent groups, the size of each group is stored in pGroups nGroups: the number of groups

pis: we compute all permInfos from 0 to nVars (incl.)

Definition at line 194 of file luckySimple.c.

{
    /* variables */
    int i, j, o, nn;
    permInfo* pi;
    int * a, * c, * m;

    /* reorder groups and calculate group offsets */
    int * offset = ABC_ALLOC( int, nGroups );
    o = 0;
    j = 0;

    for ( i = 0; i < nGroups; ++i )
    {
        offset[j] = o;
        o += pGroups[j];
        ++j;
    }

    if ( fFlipOutput )
    {
        /* keep regular and inverted version of x */
        Kit_TruthCopy_64bit( pAux, x, nVars );
        Kit_TruthNot_64bit( x, nVars );

        minWord(x, pAux, minimal, nVars);
    }
    else
    {
        Kit_TruthCopy_64bit( minimal, x, nVars );
    }

    /* iterate through all combinations of pGroups using mixed radix enumeration */
    nn = ( nGroups << 1 ) + 1;
    a = ABC_ALLOC( int, nn );
    c = ABC_ALLOC( int, nn );
    m = ABC_ALLOC( int, nn );

    /* fill a and m arrays */
    m[0] = 2;
    for ( i = 1; i <= nGroups; ++i ) { m[i]           = pis[pGroups[i - 1]]->totalFlips + 1; }
    for ( i = 1; i <= nGroups; ++i ) { m[nGroups + i] = pis[pGroups[i - 1]]->totalSwaps + 1; }
    for ( i = 0; i < nn; ++i )       { a[i] = c[i] = 0; }

    while ( 1 )
    {
        /* consider all flips */
        for ( i = 1; i <= nGroups; ++i )
        {
            if ( !c[i] ) { continue; }
            if ( !fFlipInput && pGroups[i - 1] == 1 ) { continue; }

            pi = pis[pGroups[i - 1]];
            j = a[i] == 0 ? 0 : pi->totalFlips - a[i];

            Kit_TruthChangePhase_64bit(x, nVars, offset[i - 1] + pi->flipArray[j]);
            if ( fFlipOutput )
            {
                Kit_TruthChangePhase_64bit(pAux, nVars, offset[i - 1] + pi->flipArray[j]);
                minWord3(x, pAux, minimal, nVars);
            }
            else
            {
                minWord1(x, minimal, nVars);
            }
        }

        /* consider all swaps */
        for ( i = 1; i <= nGroups; ++i )
        {
            if ( !c[nGroups + i] ) { continue; }
            if ( pGroups[i - 1] == 1 ) { continue; }

            pi = pis[pGroups[i - 1]];
            if ( a[nGroups + i] == pi->totalSwaps )
            {
                j = 0;
            }
            else
            {
                j = pi->swapArray[pi->totalSwaps - a[nGroups + i] - 1];
            }
            Kit_TruthSwapAdjacentVars_64bit(x, nVars, offset[i - 1] + j);
            if ( fFlipOutput )
            {
                Kit_TruthSwapAdjacentVars_64bit(pAux, nVars, offset[i - 1] + j);
                minWord3(x, pAux, minimal, nVars);
            }
            else
            {
                minWord1(x, minimal, nVars);
            }
        }

        /* update a's */
        memset(c, 0, sizeof(int) * nn);
        j = nn - 1;
        while ( a[j] == m[j] - 1 ) { c[j] = 1; a[j--] = 0; }

        /* done? */
        if ( j == 0 ) { break; }

        c[j] = 1;
        a[j]++;
    }
    ABC_FREE( offset );
    ABC_FREE( a );
    ABC_FREE( c );
    ABC_FREE( m );

    Kit_TruthCopy_64bit( x, minimal, nVars );
}

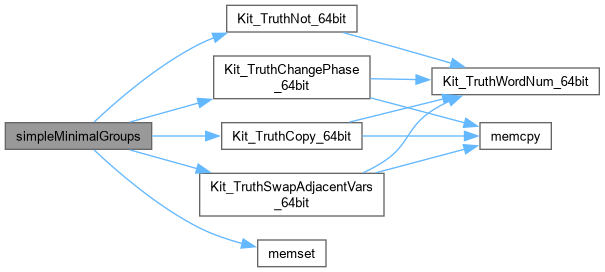

Here is the call graph for this function:

Here is the caller graph for this function:
