mapperRefs.c File Reference

#include "mapperInt.h"

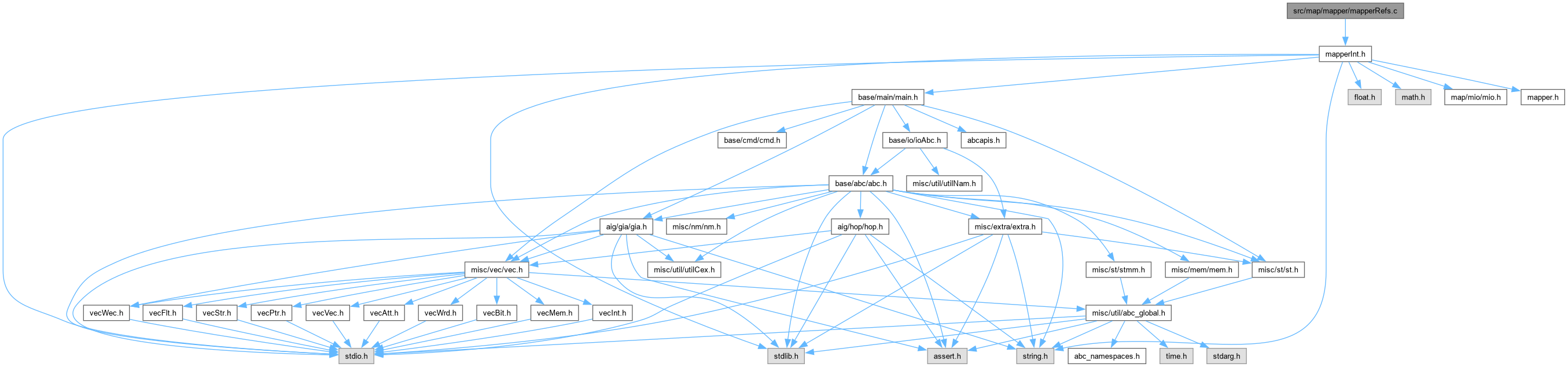

Include dependency graph for mapperRefs.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Map_NodeReadRefPhaseAct (Map_Node_t *pNode, int fPhase)
	DECLARATIONS ///.
float	Map_NodeReadRefPhaseEst (Map_Node_t *pNode, int fPhase)
int	Map_NodeIncRefPhaseAct (Map_Node_t *pNode, int fPhase)
int	Map_NodeDecRefPhaseAct (Map_Node_t *pNode, int fPhase)
void	Map_MappingEstimateRefsInit (Map_Man_t *p)
void	Map_MappingEstimateRefs (Map_Man_t *p)
float	Map_CutGetAreaFlow (Map_Cut_t *pCut, int fPhase)
float	Map_CutRefDeref (Map_Cut_t *pCut, int fPhase, int fReference, int fUpdateProf)
float	Map_CutGetAreaRefed (Map_Cut_t *pCut, int fPhase)
float	Map_CutGetAreaDerefed (Map_Cut_t *pCut, int fPhase)
float	Map_CutRef (Map_Cut_t *pCut, int fPhase, int fProfile)
float	Map_CutDeref (Map_Cut_t *pCut, int fPhase, int fProfile)
void	Map_MappingSetRefs_rec (Map_Man_t *pMan, Map_Node_t *pNode)
void	Map_MappingSetRefs (Map_Man_t *pMan)
float	Map_MappingGetArea (Map_Man_t *pMan)

Function Documentation

Map_CutDeref()

float Map_CutDeref	(	Map_Cut_t *	pCut,
		int	fPhase,
		int	fProfile )

function*************************************************************

synopsis [Dereferences the cut.]

description []

sideeffects []

seealso []

Definition at line 391 of file mapperRefs.c.

{
    return Map_CutRefDeref( pCut, fPhase, 0, fProfile ); // dereference
}

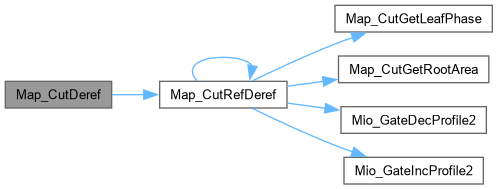

Here is the call graph for this function:

Here is the caller graph for this function:

Map_CutGetAreaDerefed()

float Map_CutGetAreaDerefed	(	Map_Cut_t *	pCut,
		int	fPhase )

function*************************************************************

synopsis [Computes the exact area associated with the cut.]

description []

sideeffects []

seealso []

Definition at line 355 of file mapperRefs.c.

{
    float aResult, aResult2;
    aResult2 = Map_CutRefDeref( pCut, fPhase, 1, 0 ); // reference
    aResult  = Map_CutRefDeref( pCut, fPhase, 0, 0 ); // dereference
//    assert( aResult == aResult2 );
    return aResult;
}

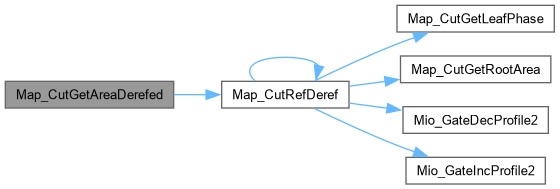

Here is the call graph for this function:

Here is the caller graph for this function:

Map_CutGetAreaFlow()

float Map_CutGetAreaFlow	(	Map_Cut_t *	pCut,
		int	fPhase )

function*************************************************************

synopsis [Computes the area flow of the cut.]

description [Computes the area flow of the cut if it is implemented using the best supergate with the best phase.]

sideeffects []

seealso []

Definition at line 179 of file mapperRefs.c.

{
    Map_Match_t * pM = pCut->M + fPhase;
    Map_Super_t * pSuper = pM->pSuperBest;
    unsigned uPhaseTot = pM->uPhaseBest;
    Map_Cut_t * pCutFanin;
    float aFlowRes, aFlowFanin, nRefs;
    int i, fPinPhasePos;

    // start the resulting area flow
    aFlowRes = pSuper->Area;
    // iterate through the leaves
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        // get the phase of this fanin
        fPinPhasePos = ((uPhaseTot & (1 << i)) == 0);
        // get the cut implementing this phase of the fanin
        pCutFanin = pCut->ppLeaves[i]->pCutBest[fPinPhasePos];
        // if the cut is not available, we have to use the opposite phase
        if ( pCutFanin == NULL )
        {
            fPinPhasePos = !fPinPhasePos;
            pCutFanin = pCut->ppLeaves[i]->pCutBest[fPinPhasePos];
        }
        aFlowFanin = pCutFanin->M[fPinPhasePos].AreaFlow; // ignores the area of the interter
        // get the fanout count of the cut in the given phase
        nRefs = Map_NodeReadRefPhaseEst( pCut->ppLeaves[i], fPinPhasePos );
        // if the node does no fanout, assume fanout count equal to 1
        if ( nRefs == (float)0.0 )
            nRefs = (float)1.0;
        // add the area flow due to the fanin
        aFlowRes += aFlowFanin / nRefs;
    }
    pM->AreaFlow = aFlowRes;
    return aFlowRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Map_CutGetAreaRefed()

float Map_CutGetAreaRefed	(	Map_Cut_t *	pCut,
		int	fPhase )

function*************************************************************

synopsis [Computes the exact area associated with the cut.]

description [Assumes that the cut is referenced.]

sideeffects []

seealso []

Definition at line 335 of file mapperRefs.c.

{
    float aResult, aResult2;
    aResult2 = Map_CutRefDeref( pCut, fPhase, 0, 0 ); // dereference
    aResult  = Map_CutRefDeref( pCut, fPhase, 1, 0 ); // reference
//    assert( aResult == aResult2 );
    return aResult;
}

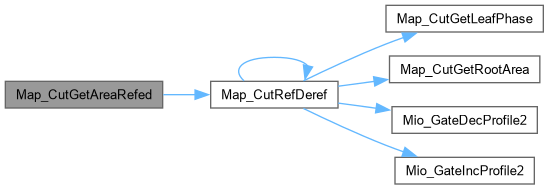

Here is the call graph for this function:

Map_CutRef()

float Map_CutRef	(	Map_Cut_t *	pCut,
		int	fPhase,
		int	fProfile )

function*************************************************************

synopsis [References the cut.]

description []

sideeffects []

seealso []

Definition at line 375 of file mapperRefs.c.

{
    return Map_CutRefDeref( pCut, fPhase, 1, fProfile ); // reference
}

Here is the call graph for this function:

Here is the caller graph for this function:

Map_CutRefDeref()

float Map_CutRefDeref	(	Map_Cut_t *	pCut,
		int	fPhase,
		int	fReference,
		int	fUpdateProf )

function*************************************************************

synopsis [References or dereferences the cut.]

description [This reference part is similar to Cudd_NodeReclaim(). The dereference part is similar to Cudd_RecursiveDeref().]

sideeffects []

seealso []

Definition at line 229 of file mapperRefs.c.

{
    Map_Node_t * pNodeChild;
    Map_Cut_t * pCutChild;
    float aArea;
    int i, fPhaseChild;
//    int nRefs;

    // consider the elementary variable
    if ( pCut->nLeaves == 1 )
        return 0;
    // start the area of this cut
    aArea = Map_CutGetRootArea( pCut, fPhase );
    if ( fUpdateProf )
    {
        if ( fReference )
            Mio_GateIncProfile2( pCut->M[fPhase].pSuperBest->pRoot );
        else
            Mio_GateDecProfile2( pCut->M[fPhase].pSuperBest->pRoot );
    }
    // go through the children
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        pNodeChild  = pCut->ppLeaves[i];
        fPhaseChild = Map_CutGetLeafPhase( pCut, fPhase, i );
        // get the reference counter of the child
/*
        // this code does not take inverters into account
        // the quality of area recovery seems to always be a little worse
        if ( fReference )
            nRefs = Map_NodeIncRefPhaseAct( pNodeChild, fPhaseChild );
        else
            nRefs = Map_NodeDecRefPhaseAct( pNodeChild, fPhaseChild );
        assert( nRefs >= 0 );
        // skip if the child was already reference before
        if ( nRefs > 0 )
            continue;
*/

        if ( fReference )
        {
            if ( pNodeChild->pCutBest[0] && pNodeChild->pCutBest[1] ) // both phases are present
            {
                // if this phase of the node is referenced, there is no recursive call
                pNodeChild->nRefAct[2]++;
                if ( pNodeChild->nRefAct[fPhaseChild]++ > 0 )
                    continue;
            }
            else // only one phase is present
            {
                // inverter should be added if the phase
                // (a) has no reference and (b) is implemented using other phase
                if ( pNodeChild->nRefAct[fPhaseChild]++ == 0 && pNodeChild->pCutBest[fPhaseChild] == NULL )
                    aArea += pNodeChild->p->pSuperLib->AreaInv;
                // if the node is referenced, there is no recursive call
                if ( pNodeChild->nRefAct[2]++ > 0 )
                    continue;
            }
        }
        else
        {
            if ( pNodeChild->pCutBest[0] && pNodeChild->pCutBest[1] ) // both phases are present
            {
                // if this phase of the node is referenced, there is no recursive call
                --pNodeChild->nRefAct[2];
                if ( --pNodeChild->nRefAct[fPhaseChild] > 0 )
                    continue;
            }
            else // only one phase is present
            {
                // inverter should be added if the phase
                // (a) has no reference and (b) is implemented using other phase
                if ( --pNodeChild->nRefAct[fPhaseChild] == 0 && pNodeChild->pCutBest[fPhaseChild] == NULL )
                    aArea += pNodeChild->p->pSuperLib->AreaInv;
                // if the node is referenced, there is no recursive call
                if ( --pNodeChild->nRefAct[2] > 0 )
                    continue;
            }
            assert( pNodeChild->nRefAct[fPhaseChild] >= 0 );
        }

        // get the child cut
        pCutChild = pNodeChild->pCutBest[fPhaseChild];
        // if the child does not have this phase mapped, take the opposite phase
        if ( pCutChild == NULL )
        {
            fPhaseChild = !fPhaseChild;
            pCutChild   = pNodeChild->pCutBest[fPhaseChild];
        }
        // reference and compute area recursively
        aArea += Map_CutRefDeref( pCutChild, fPhaseChild, fReference, fUpdateProf );
    }
    return aArea;
}

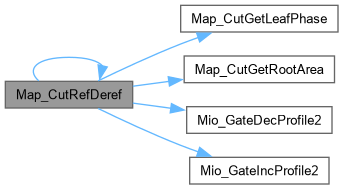

Here is the call graph for this function:

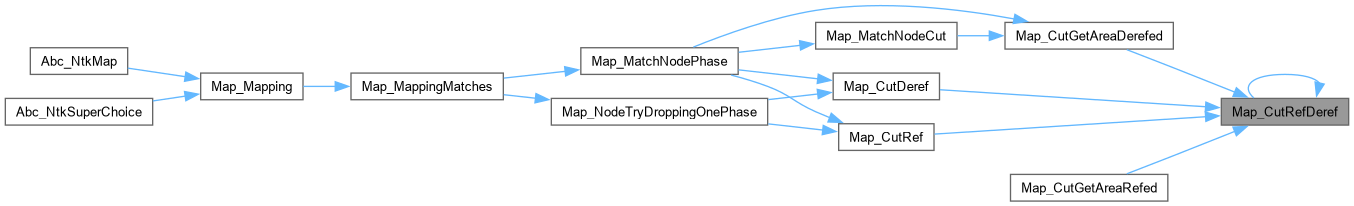

Here is the caller graph for this function:

Map_MappingEstimateRefs()

void Map_MappingEstimateRefs

(

Map_Man_t *

p

)

Function*************************************************************

Synopsis [Sets the estimated reference counter.]

Description [When this procedure is called for the first time, the reference counter is estimated from the AIG. Otherwise, it is a linear combination of reference counters in the last two iterations.]

SideEffects []

SeeAlso []

Definition at line 151 of file mapperRefs.c.

{
    Map_Node_t * pNode;
    int i;
    for ( i = 0; i < p->vMapObjs->nSize; i++ )
    {
        pNode = p->vMapObjs->pArray[i];
//        pNode->nRefEst[0] = (float)((2.0 * pNode->nRefEst[0] + 1.0 * pNode->nRefAct[0]) / 3.0);
//        pNode->nRefEst[1] = (float)((2.0 * pNode->nRefEst[1] + 1.0 * pNode->nRefAct[1]) / 3.0);
//        pNode->nRefEst[2] = (float)((2.0 * pNode->nRefEst[2] + 1.0 * pNode->nRefAct[2]) / 3.0);
        pNode->nRefEst[0] = (float)((3.0 * pNode->nRefEst[0] + 1.0 * pNode->nRefAct[0]) / 4.0);
        pNode->nRefEst[1] = (float)((3.0 * pNode->nRefEst[1] + 1.0 * pNode->nRefAct[1]) / 4.0);
        pNode->nRefEst[2] = (float)((3.0 * pNode->nRefEst[2] + 1.0 * pNode->nRefAct[2]) / 4.0);
    }
}

Here is the caller graph for this function:

Map_MappingEstimateRefsInit()

void Map_MappingEstimateRefsInit

(

Map_Man_t *

p

)

Function*************************************************************

Synopsis [Sets the estimated reference counter for the PIs.]

Description []

SideEffects []

SeeAlso []

Definition at line 126 of file mapperRefs.c.

{
    Map_Node_t * pNode;
    int i;
    for ( i = 0; i < p->vMapObjs->nSize; i++ )
    {
        pNode = p->vMapObjs->pArray[i];
//        pNode->nRefEst[0] = pNode->nRefEst[1] = ((float)pNode->nRefs)*(float)2.0;
        pNode->nRefEst[0] = pNode->nRefEst[1] = pNode->nRefEst[2] = ((float)pNode->nRefs);
    }
}

Here is the caller graph for this function:

Map_MappingGetArea()

float Map_MappingGetArea

(

Map_Man_t *

pMan

)

Function*************************************************************

Synopsis [Computes the array of mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 485 of file mapperRefs.c.

{
    Map_Node_t * pNode;
    float Area = 0.0;
    int i;
    if ( pMan->fUseProfile )
        Mio_LibraryCleanProfile2( pMan->pSuperLib->pGenlib );
    for ( i = 0; i < pMan->vMapObjs->nSize; i++ )
    {
        pNode = pMan->vMapObjs->pArray[i];
        if ( pNode->nRefAct[2] == 0 )
            continue;
        if ( Map_NodeIsBuf(pNode) )
            continue;
        // at least one phase has the best cut assigned
        assert( pNode->pCutBest[0] != NULL || pNode->pCutBest[1] != NULL );
        // at least one phase is used in the mapping
        assert( pNode->nRefAct[0] > 0 || pNode->nRefAct[1] > 0 );
        // compute the array due to the supergate
        if ( Map_NodeIsAnd(pNode) )
        {
            // count area of the negative phase
            if ( pNode->pCutBest[0] && (pNode->nRefAct[0] > 0 || pNode->pCutBest[1] == NULL) )
            {
                Area += pNode->pCutBest[0]->M[0].pSuperBest->Area;
                if ( pMan->fUseProfile )
                    Mio_GateIncProfile2( pNode->pCutBest[0]->M[0].pSuperBest->pRoot );
            }
            // count area of the positive phase
            if ( pNode->pCutBest[1] && (pNode->nRefAct[1] > 0 || pNode->pCutBest[0] == NULL) )
            {
                Area += pNode->pCutBest[1]->M[1].pSuperBest->Area;
                if ( pMan->fUseProfile )
                    Mio_GateIncProfile2( pNode->pCutBest[1]->M[1].pSuperBest->pRoot );
            }
        }
        // count area of the interver if we need to implement one phase with another phase
        if ( (pNode->pCutBest[0] == NULL && pNode->nRefAct[0] > 0) ||
             (pNode->pCutBest[1] == NULL && pNode->nRefAct[1] > 0) )
            Area += pMan->pSuperLib->AreaInv;
    }
    // add buffers for each CO driven by a CI
    for ( i = 0; i < pMan->nOutputs; i++ )
        if ( Map_NodeIsVar(pMan->pOutputs[i]) && !Map_IsComplement(pMan->pOutputs[i]) )
            Area += pMan->pSuperLib->AreaBuf;
    return Area;
}

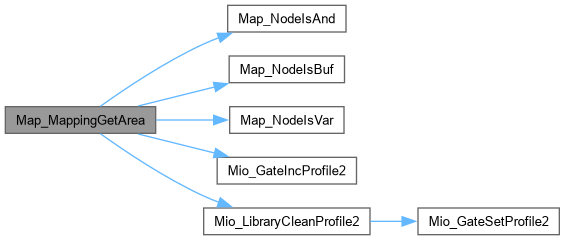

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingSetRefs()

void Map_MappingSetRefs

(

Map_Man_t *

pMan

)

Definition at line 450 of file mapperRefs.c.

{
    Map_Node_t * pNode;
    int i;
    if ( pMan->fUseProfile )
        Mio_LibraryCleanProfile2( pMan->pSuperLib->pGenlib );
    // clean all references
    for ( i = 0; i < pMan->vMapObjs->nSize; i++ )
    {
        pNode = pMan->vMapObjs->pArray[i];
        pNode->nRefAct[0] = 0;
        pNode->nRefAct[1] = 0;
        pNode->nRefAct[2] = 0;
    }
    // visit nodes reachable from POs in the DFS order through the best cuts
    for ( i = 0; i < pMan->nOutputs; i++ )
    {
        pNode = pMan->pOutputs[i];
        if ( !Map_NodeIsConst(pNode) )
            Map_MappingSetRefs_rec( pMan, pNode );
    }
}

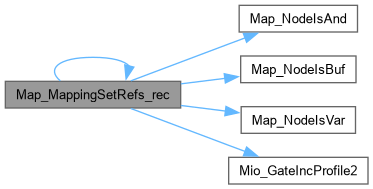

Here is the call graph for this function:

Here is the caller graph for this function:

Map_MappingSetRefs_rec()

void Map_MappingSetRefs_rec	(	Map_Man_t *	pMan,
		Map_Node_t *	pNode )

Function*************************************************************

Synopsis [Computes actual reference counters.]

Description [Collects the nodes used in the mapping in array pMan->vMapping. Nodes are collected in reverse topological order to facilitate the computation of required times.]

SideEffects []

SeeAlso []

Definition at line 410 of file mapperRefs.c.

{
    Map_Cut_t * pCut;
    Map_Node_t * pNodeR;
    unsigned uPhase;
    int i, fPhase, fInvPin;
    // get the regular node and its phase
    pNodeR = Map_Regular(pNode);
    fPhase = !Map_IsComplement(pNode);
    pNodeR->nRefAct[2]++;
    // quit if the node was already visited in this phase
    if ( pNodeR->nRefAct[fPhase]++ )
        return;
    // quit if this is a PI node
    if ( Map_NodeIsVar(pNodeR) )
        return;
    // propagate through buffer
    if ( Map_NodeIsBuf(pNodeR) )
    {
        Map_MappingSetRefs_rec( pMan, Map_NotCond(pNodeR->p1, Map_IsComplement(pNode)) );
        return;
    }
    assert( Map_NodeIsAnd(pNode) );
    // get the cut implementing this or opposite polarity
    pCut = pNodeR->pCutBest[fPhase];
    if ( pCut == NULL )
    {
        fPhase = !fPhase;
        pCut   = pNodeR->pCutBest[fPhase];
    }
    if ( pMan->fUseProfile )
        Mio_GateIncProfile2( pCut->M[fPhase].pSuperBest->pRoot );
    // visit the transitive fanin
    uPhase = pCut->M[fPhase].uPhaseBest;
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        fInvPin = ((uPhase & (1 << i)) > 0);
        Map_MappingSetRefs_rec( pMan, Map_NotCond(pCut->ppLeaves[i], fInvPin) );
    }
}

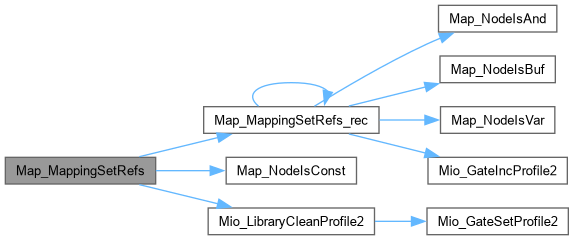

Here is the call graph for this function:

Here is the caller graph for this function:

Map_NodeDecRefPhaseAct()

int Map_NodeDecRefPhaseAct	(	Map_Node_t *	pNode,
		int	fPhase )

Function*************************************************************

Synopsis [Decrements the actual reference counter of a phase.]

Description [Returns the new reference counter.]

SideEffects []

SeeAlso []

Definition at line 105 of file mapperRefs.c.

{
    assert( !Map_IsComplement(pNode) );
    if ( pNode->pCutBest[0] && pNode->pCutBest[1] ) // both assigned
        return --pNode->nRefAct[fPhase];
    assert( pNode->pCutBest[0] || pNode->pCutBest[1] ); // at least one assigned
    return --pNode->nRefAct[2];
}

Map_NodeIncRefPhaseAct()

int Map_NodeIncRefPhaseAct	(	Map_Node_t *	pNode,
		int	fPhase )

Function*************************************************************

Synopsis [Increments the actual reference counter of a phase.]

Description [Returns the old reference counter.]

SideEffects []

SeeAlso []

Definition at line 85 of file mapperRefs.c.

{
    assert( !Map_IsComplement(pNode) );
    if ( pNode->pCutBest[0] && pNode->pCutBest[1] ) // both assigned
        return pNode->nRefAct[fPhase]++;
    assert( pNode->pCutBest[0] || pNode->pCutBest[1] ); // at least one assigned
    return pNode->nRefAct[2]++;
}

Map_NodeReadRefPhaseAct()

ABC_NAMESPACE_IMPL_START int Map_NodeReadRefPhaseAct	(	Map_Node_t *	pNode,
		int	fPhase )

DECLARATIONS ///.

CFile****************************************************************

FileName [mapperRefs.c]

PackageName [MVSIS 1.3: Multi-valued logic synthesis system.]

Synopsis [Generic technology mapping engine.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 2.0. Started - June 1, 2004.]

Revision [

Id

mapperRefs.h,v 1.0 2003/09/08 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Reads the actual reference counter of a phase.]

Description []

SideEffects []

SeeAlso []

Definition at line 43 of file mapperRefs.c.

{
    assert( !Map_IsComplement(pNode) );
    if ( pNode->pCutBest[0] && pNode->pCutBest[1] ) // both assigned
        return pNode->nRefAct[fPhase];
    assert( pNode->pCutBest[0] || pNode->pCutBest[1] ); // at least one assigned
    return pNode->nRefAct[2];
}

Map_NodeReadRefPhaseEst()

float Map_NodeReadRefPhaseEst	(	Map_Node_t *	pNode,
		int	fPhase )

Function*************************************************************

Synopsis [Reads the estimated reference counter of a phase.]

Description []

SideEffects []

SeeAlso []

Definition at line 63 of file mapperRefs.c.

{
    assert( !Map_IsComplement(pNode) );
    if ( pNode->pCutBest[0] && pNode->pCutBest[1] ) // both assigned
        return pNode->nRefEst[fPhase];
    assert( pNode->pCutBest[0] || pNode->pCutBest[1] ); // at least one assigned
//    return pNode->nRefEst[0] + pNode->nRefEst[1];
    return pNode->nRefEst[2];
}

Here is the caller graph for this function:
