mapperTruth.c File Reference

#include "mapperInt.h"

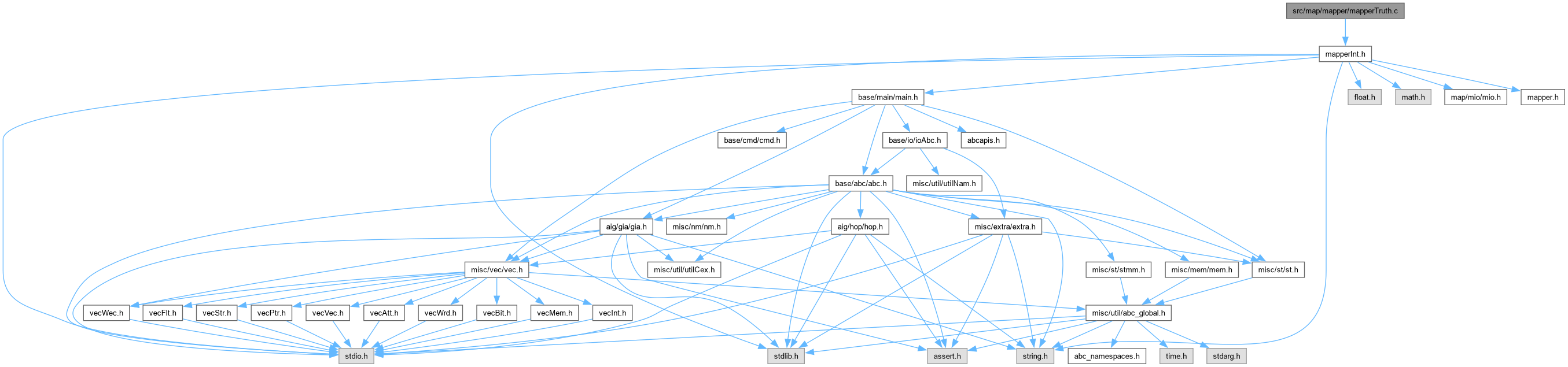

Include dependency graph for mapperTruth.c:

Go to the source code of this file.

Functions
void	Map_TruthsCutOne (Map_Man_t *p, Map_Cut_t *pCut, unsigned uTruth[])
void	Map_MappingTruths (Map_Man_t *pMan)
	FUNCTION DEFINITIONS ///.

Function Documentation

Map_MappingTruths()

void Map_MappingTruths

(

Map_Man_t *

pMan

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Derives truth tables for each cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file mapperTruth.c.

{
    ProgressBar * pProgress;
    Map_Node_t * pNode;
    Map_Cut_t * pCut;
    int nNodes, i;
    // compute the cuts for the POs
    nNodes = pMan->vMapObjs->nSize;
    pProgress = Extra_ProgressBarStart( stdout, nNodes );
    for ( i = 0; i < nNodes; i++ )
    {
        pNode = pMan->vMapObjs->pArray[i];
        if ( !Map_NodeIsAnd( pNode ) )
            continue;
        assert( pNode->pCuts );
        assert( pNode->pCuts->nLeaves == 1 );

        // match the simple cut
        pNode->pCuts->M[0].uPhase     = 0;
        pNode->pCuts->M[0].pSupers    = pMan->pSuperLib->pSuperInv;
        pNode->pCuts->M[0].uPhaseBest = 0;
        pNode->pCuts->M[0].pSuperBest = pMan->pSuperLib->pSuperInv;

        pNode->pCuts->M[1].uPhase     = 0;
        pNode->pCuts->M[1].pSupers    = pMan->pSuperLib->pSuperInv;
        pNode->pCuts->M[1].uPhaseBest = 1;
        pNode->pCuts->M[1].pSuperBest = pMan->pSuperLib->pSuperInv;

        // match the rest of the cuts
        for ( pCut = pNode->pCuts->pNext; pCut; pCut = pCut->pNext )
             Map_TruthsCut( pMan, pCut );
        Extra_ProgressBarUpdate( pProgress, i, "Tables ..." );
    }
    Extra_ProgressBarStop( pProgress );
}

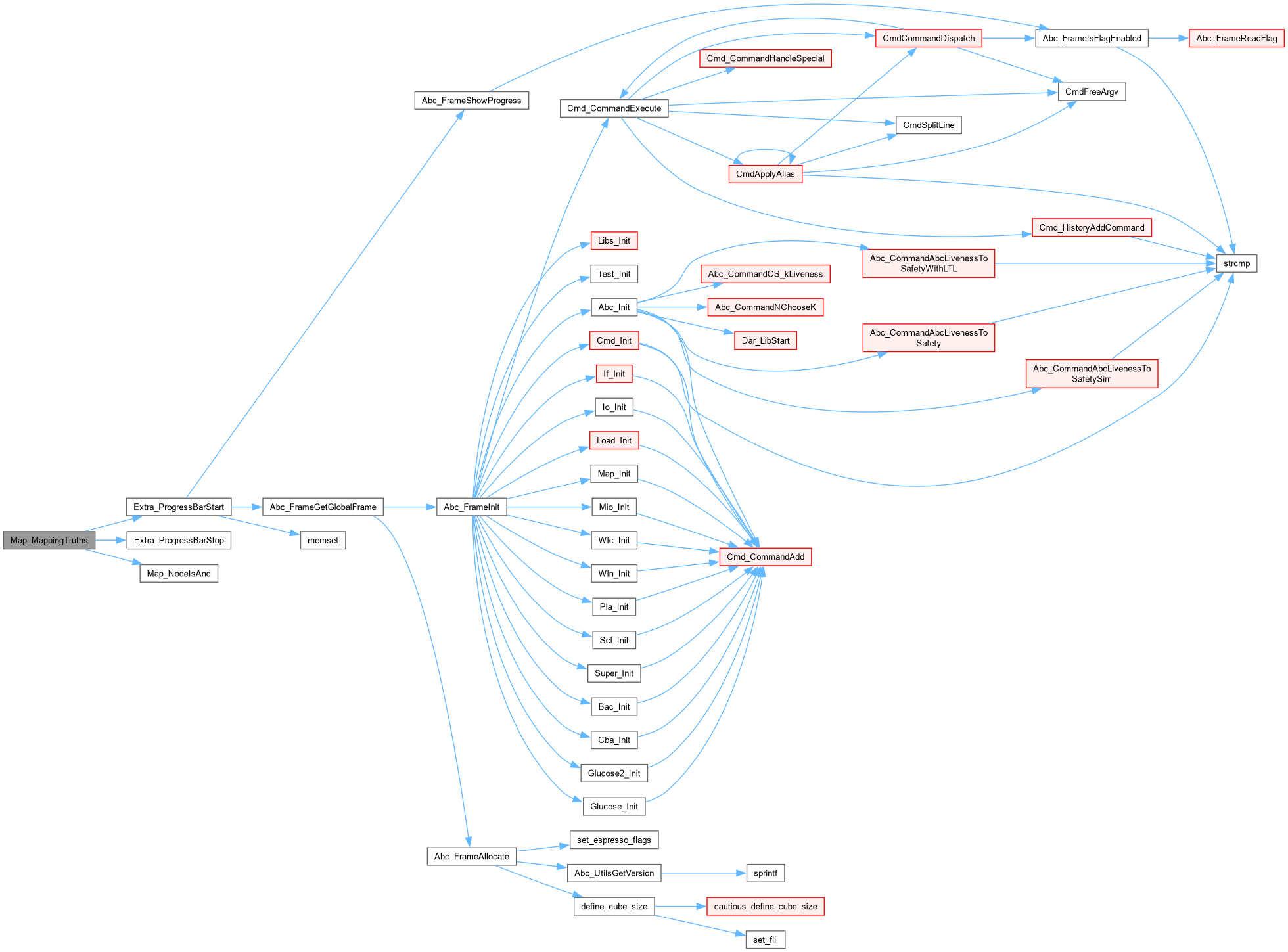

Here is the call graph for this function:

Here is the caller graph for this function:

Map_TruthsCutOne()

void Map_TruthsCutOne ( Map_Man_t * p, Map_Cut_t * pCut, unsigned uTruth[] )

extern

Function*************************************************************

Synopsis [Computes the truth table of one cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 197 of file mapperTruth.c.

{
    unsigned uTruth1[2], uTruth2[2];
    Map_Cut_t * pTemp = NULL; // Suppress "might be used uninitialized"
    int i;
    // mark the cut leaves
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        pTemp = pCut->ppLeaves[i]->pCuts;
        pTemp->fMark = 1;
        pTemp->M[0].uPhaseBest = p->uTruths[i][0];
        pTemp->M[1].uPhaseBest = p->uTruths[i][1];
    }
    assert( pCut->fMark == 0 );

    // collect the cuts in the cut cone
    p->vVisited->nSize = 0;
    Map_CutsCollect_rec( pCut, p->vVisited );
    assert( p->vVisited->nSize > 0 );
    pCut->nVolume = p->vVisited->nSize;

    // compute the tables and unmark
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        pTemp = pCut->ppLeaves[i]->pCuts;
        pTemp->fMark = 0;
    }
    for ( i = 0; i < p->vVisited->nSize; i++ )
    {
        // get the cut
        pTemp = (Map_Cut_t *)p->vVisited->pArray[i];
        pTemp->fMark = 0;
        // get truth table of the first branch
        if ( Map_CutIsComplement(pTemp->pOne) )
        {
            uTruth1[0] = ~Map_CutRegular(pTemp->pOne)->M[0].uPhaseBest;
            uTruth1[1] = ~Map_CutRegular(pTemp->pOne)->M[1].uPhaseBest;
        }
        else
        {
            uTruth1[0] = Map_CutRegular(pTemp->pOne)->M[0].uPhaseBest;
            uTruth1[1] = Map_CutRegular(pTemp->pOne)->M[1].uPhaseBest;
        }
        // get truth table of the second branch
        if ( Map_CutIsComplement(pTemp->pTwo) )
        {
            uTruth2[0] = ~Map_CutRegular(pTemp->pTwo)->M[0].uPhaseBest;
            uTruth2[1] = ~Map_CutRegular(pTemp->pTwo)->M[1].uPhaseBest;
        }
        else
        {
            uTruth2[0] = Map_CutRegular(pTemp->pTwo)->M[0].uPhaseBest;
            uTruth2[1] = Map_CutRegular(pTemp->pTwo)->M[1].uPhaseBest;
        }
        // get the truth table of the output
        if ( !pTemp->Phase )
        {
            pTemp->M[0].uPhaseBest = uTruth1[0] & uTruth2[0];
            pTemp->M[1].uPhaseBest = uTruth1[1] & uTruth2[1];
        }
        else
        {
            pTemp->M[0].uPhaseBest = ~(uTruth1[0] & uTruth2[0]);
            pTemp->M[1].uPhaseBest = ~(uTruth1[1] & uTruth2[1]);
        }
    }
    uTruth[0] = pTemp->M[0].uPhaseBest;
    uTruth[1] = pTemp->M[1].uPhaseBest;
}
