mfsDiv.c File Reference

#include "mfsInt.h"

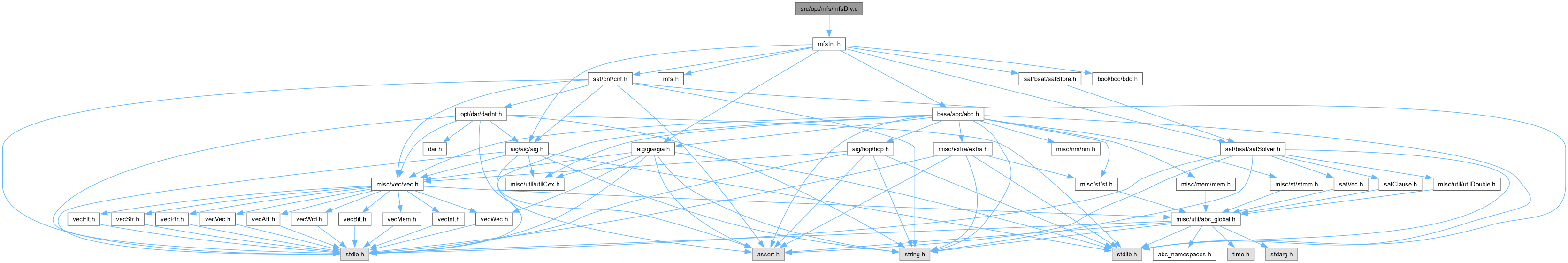

Include dependency graph for mfsDiv.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Abc_MfsWinMarkTfi_rec (Abc_Obj_t *pObj, Vec_Ptr_t *vCone)
	DECLARATIONS ///.
Vec_Ptr_t *	Abc_MfsWinMarkTfi (Abc_Obj_t *pNode)
void	Abc_MfsWinSweepLeafTfo_rec (Abc_Obj_t *pObj, int nLevelLimit)
int	Abc_MfsNodeDeref_rec (Abc_Obj_t *pNode)
int	Abc_MfsNodeRef_rec (Abc_Obj_t *pNode)
int	Abc_MfsWinVisitMffc (Abc_Obj_t *pNode)
Vec_Ptr_t *	Abc_MfsComputeDivisors (Mfs_Man_t *p, Abc_Obj_t *pNode, int nLevDivMax)
	BASIC TYPES ///.

Function Documentation

Abc_MfsComputeDivisors()

Vec_Ptr_t * Abc_MfsComputeDivisors	(	Mfs_Man_t *	p,
		Abc_Obj_t *	pNode,
		int	nLevDivMax )

BASIC TYPES ///.

Function*************************************************************

Synopsis [Computes divisors and add them to nodes in the window.]

Description []

SideEffects []

SeeAlso []

Definition at line 193 of file mfsDiv.c.

{
    Vec_Ptr_t * vCone, * vDivs;
    Abc_Obj_t * pObj, * pFanout, * pFanin;
    int k, f, m;
    int nDivsPlus = 0, nTrueSupp;
    assert( p->vDivs == NULL );

    // mark the TFI with the current trav ID
    Abc_NtkIncrementTravId( pNode->pNtk );
    vCone = Abc_MfsWinMarkTfi( pNode );

    // count the number of PIs
    nTrueSupp = 0;
    Vec_PtrForEachEntry( Abc_Obj_t *, vCone, pObj, k )
        nTrueSupp += Abc_ObjIsCi(pObj);
//    printf( "%d(%d) ", Vec_PtrSize(p->vSupp), m );

    // mark with the current trav ID those nodes that should not be divisors:
    // (1) the node and its TFO
    // (2) the MFFC of the node
    // (3) the node's fanins (these are treated as a special case)
    Abc_NtkIncrementTravId( pNode->pNtk );
    Abc_MfsWinSweepLeafTfo_rec( pNode, nLevDivMax );
//    Abc_MfsWinVisitMffc( pNode );
    Abc_ObjForEachFanin( pNode, pObj, k )
        Abc_NodeSetTravIdCurrent( pObj );

    // at this point the nodes are marked with two trav IDs:
    // nodes to be collected as divisors are marked with previous trav ID
    // nodes to be avoided as divisors are marked with current trav ID

    // start collecting the divisors
    vDivs = Vec_PtrAlloc( p->pPars->nWinMax );
    Vec_PtrForEachEntry( Abc_Obj_t *, vCone, pObj, k )
    {
        if ( !Abc_NodeIsTravIdPrevious(pObj) )
            continue;
        if ( (int)pObj->Level > nLevDivMax )
            continue;
        Vec_PtrPush( vDivs, pObj );
        if ( Vec_PtrSize(vDivs) >= p->pPars->nWinMax )
            break;
    }
    Vec_PtrFree( vCone );

    // explore the fanouts of already collected divisors
    if ( Vec_PtrSize(vDivs) < p->pPars->nWinMax )
    Vec_PtrForEachEntry( Abc_Obj_t *, vDivs, pObj, k )
    {
        // consider fanouts of this node
        Abc_ObjForEachFanout( pObj, pFanout, f )
        {
            // stop if there are too many fanouts
            if ( p->pPars->nFanoutsMax && f > p->pPars->nFanoutsMax )
                break;
            // skip nodes that are already added
            if ( Abc_NodeIsTravIdPrevious(pFanout) )
                continue;
            // skip nodes in the TFO or in the MFFC of node
            if ( Abc_NodeIsTravIdCurrent(pFanout) )
                continue;
            // skip COs
            if ( !Abc_ObjIsNode(pFanout) )
                continue;
            // skip nodes with large level
            if ( (int)pFanout->Level > nLevDivMax )
                continue;
            // skip nodes whose fanins are not divisors  -- here we skip more than we need to skip!!! (revise later)  August 7, 2009
            Abc_ObjForEachFanin( pFanout, pFanin, m )
                if ( !Abc_NodeIsTravIdPrevious(pFanin) )
                    break;
            if ( m < Abc_ObjFaninNum(pFanout) )
                continue;
            // make sure this divisor in not among the nodes
//            Vec_PtrForEachEntry( Abc_Obj_t *, p->vNodes, pFanin, m )
//                assert( pFanout != pFanin );
            // add the node to the divisors
            Vec_PtrPush( vDivs, pFanout );
//            Vec_PtrPush( p->vNodes, pFanout );
            Vec_PtrPushUnique( p->vNodes, pFanout );
            Abc_NodeSetTravIdPrevious( pFanout );
            nDivsPlus++;
            if ( Vec_PtrSize(vDivs) >= p->pPars->nWinMax )
                break;
        }
        if ( Vec_PtrSize(vDivs) >= p->pPars->nWinMax )
            break;
    }
    p->nMaxDivs += (Vec_PtrSize(vDivs) >= p->pPars->nWinMax);

    // sort the divisors by level in the increasing order
    Vec_PtrSort( vDivs, (int (*)(const void *, const void *))Abc_NodeCompareLevelsIncrease );

    // add the fanins of the node
    Abc_ObjForEachFanin( pNode, pFanin, k )
        Vec_PtrPush( vDivs, pFanin );

/*
    printf( "Node level = %d.  ", Abc_ObjLevel(p->pNode) );
    Vec_PtrForEachEntryStart( Abc_Obj_t *, vDivs, pObj, k, Vec_PtrSize(vDivs)-p->nDivsPlus )
        printf( "%d ", Abc_ObjLevel(pObj) );
    printf( "\n" );
*/
//printf( "%d ", p->nDivsPlus );
//    printf( "(%d+%d)(%d+%d+%d) ", Vec_PtrSize(p->vSupp), Vec_PtrSize(p->vNodes),
//        nTrueSupp, Vec_PtrSize(vDivs)-nTrueSupp-nDivsPlus, nDivsPlus );
    return vDivs;
}

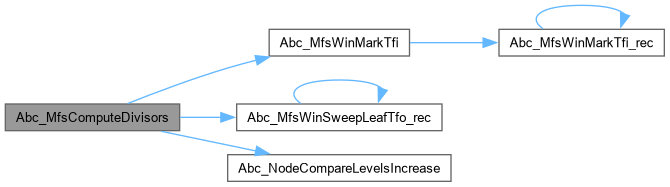

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_MfsNodeDeref_rec()

int Abc_MfsNodeDeref_rec

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Dereferences the node's MFFC.]

Description []

SideEffects []

SeeAlso []

Definition at line 118 of file mfsDiv.c.

{
    Abc_Obj_t * pFanin;
    int i, Counter = 1;
    if ( Abc_ObjIsCi(pNode) )
        return 0;
    Abc_NodeSetTravIdCurrent( pNode );
    Abc_ObjForEachFanin( pNode, pFanin, i )
    {
        assert( pFanin->vFanouts.nSize > 0 );
        if ( --pFanin->vFanouts.nSize == 0 )
            Counter += Abc_MfsNodeDeref_rec( pFanin );
    }
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_MfsNodeRef_rec()

int Abc_MfsNodeRef_rec

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [References the node's MFFC.]

Description []

SideEffects []

SeeAlso []

Definition at line 145 of file mfsDiv.c.

{
    Abc_Obj_t * pFanin;
    int i, Counter = 1;
    if ( Abc_ObjIsCi(pNode) )
        return 0;
    Abc_ObjForEachFanin( pNode, pFanin, i )
    {
        if ( pFanin->vFanouts.nSize++ == 0 )
            Counter += Abc_MfsNodeRef_rec( pFanin );
    }
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_MfsWinMarkTfi()

Vec_Ptr_t * Abc_MfsWinMarkTfi

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Marks and collects the TFI cone of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 75 of file mfsDiv.c.

{
    Vec_Ptr_t * vCone;
    vCone = Vec_PtrAlloc( 100 );
    Abc_MfsWinMarkTfi_rec( pNode, vCone );
    return vCone;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_MfsWinMarkTfi_rec()

ABC_NAMESPACE_IMPL_START void Abc_MfsWinMarkTfi_rec	(	Abc_Obj_t *	pObj,
		Vec_Ptr_t *	vCone )

DECLARATIONS ///.

CFile****************************************************************

FileName [mfsDiv.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [The good old minimization with complete don't-cares.]

Synopsis [Procedures to compute candidate divisors.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

mfsDiv.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Marks and collects the TFI cone of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file mfsDiv.c.

{
    Abc_Obj_t * pFanin;
    int i;
    if ( Abc_NodeIsTravIdCurrent(pObj) )
        return;
    Abc_NodeSetTravIdCurrent( pObj );
    if ( Abc_ObjIsCi(pObj) )
    {
        Vec_PtrPush( vCone, pObj );
        return;
    }
    assert( Abc_ObjIsNode(pObj) );
    // visit the fanins of the node
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Abc_MfsWinMarkTfi_rec( pFanin, vCone );
    Vec_PtrPush( vCone, pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_MfsWinSweepLeafTfo_rec()

void Abc_MfsWinSweepLeafTfo_rec	(	Abc_Obj_t *	pObj,
		int	nLevelLimit )

Function*************************************************************

Synopsis [Marks the TFO of the collected nodes up to the given level.]

Description []

SideEffects []

SeeAlso []

Definition at line 94 of file mfsDiv.c.

{
    Abc_Obj_t * pFanout;
    int i;
    if ( Abc_ObjIsCo(pObj) || (int)pObj->Level > nLevelLimit )
        return;
    if ( Abc_NodeIsTravIdCurrent(pObj) )
        return;
    Abc_NodeSetTravIdCurrent( pObj );
    Abc_ObjForEachFanout( pObj, pFanout, i )
        Abc_MfsWinSweepLeafTfo_rec( pFanout, nLevelLimit );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_MfsWinVisitMffc()

int Abc_MfsWinVisitMffc

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Labels MFFC of the node with the current trav ID.]

Description []

SideEffects []

SeeAlso []

Definition at line 170 of file mfsDiv.c.

{
    int Count1, Count2;
    assert( Abc_ObjIsNode(pNode) );
    // dereference the node (mark with the current trav ID)
    Count1 = Abc_MfsNodeDeref_rec( pNode );
    // reference it back
    Count2 = Abc_MfsNodeRef_rec( pNode );
    assert( Count1 == Count2 );
    return Count1;
}

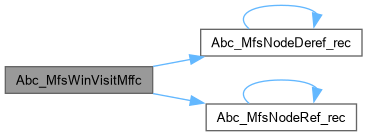

Here is the call graph for this function:
