reduce.c File Reference

#include "espresso.h"

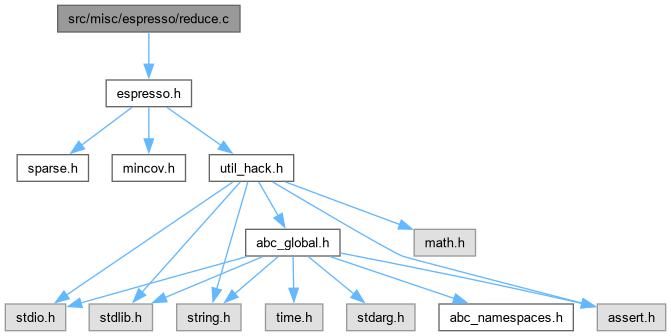

Include dependency graph for reduce.c:

Go to the source code of this file.

Functions
pcover	reduce (INOUT pcover F, IN pcover D)
pcube	reduce_cube (IN pcube *FD, IN pcube p)
pcube	sccc (INOUT pcube *T)
pcube	sccc_merge (INOUT register pcube left, INOUT register pcube right, INOUT register pcube cl, INOUT register pcube cr)
pcube	sccc_cube (pcube result, pcube p)
bool	sccc_special_cases (INOUT pcube *T, OUT pcube *result)

Function Documentation

reduce()

pcover reduce	(	INOUT pcover	F,
		IN pcover	D )

Definition at line 59 of file reduce.c.

{
    register pcube last, p, cunder, *FD;

    /* Order the cubes */
    if (use_random_order)
    F = random_order(F);
    else {
    F = toggle ? sort_reduce(F) : mini_sort(F, descend);
    toggle = ! toggle;
    }

    /* Try to reduce each cube */
    FD = cube2list(F, D);
    foreach_set(F, last, p) {
    cunder = reduce_cube(FD, p);        /* reduce the cube */
    if (setp_equal(cunder, p)) {            /* see if it actually did */
        SET(p, ACTIVE);    /* cube remains active */
        SET(p, PRIME);    /* cube remains prime ? */
    } else {
        if (debug & REDUCE) {
        printf("REDUCE: %s to %s %s\n",
            pc1(p), pc2(cunder), print_time(ptime()));
        }
        set_copy(p, cunder);                /* save reduced version */
        RESET(p, PRIME);                    /* cube is no longer prime */
        if (setp_empty(cunder))
        RESET(p, ACTIVE);               /* if null, kill the cube */
        else
        SET(p, ACTIVE);                 /* cube is active */
    }
    free_cube(cunder);
    }
    free_cubelist(FD);

    /* Delete any cubes of F which reduced to the empty cube */
    return sf_inactive(F);
}

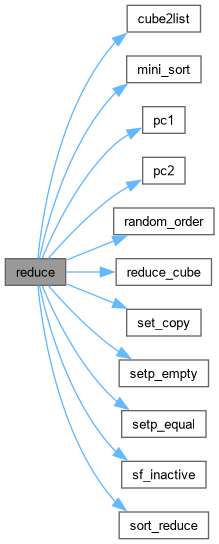

Here is the call graph for this function:

reduce_cube()

pcube reduce_cube	(	IN pcube *	FD,
		IN pcube	p )

Definition at line 101 of file reduce.c.

{
    pcube cunder;

    cunder = sccc(cofactor(FD, p));
    return set_and(cunder, cunder, p);
}

Here is the call graph for this function:

sccc()

pcube sccc

(

INOUT pcube *

T

)

Definition at line 112 of file reduce.c.

{
    pcube r;
    register pcube cl, cr;
    register int best;
    static int sccc_level = 0;

    if (debug & REDUCE1) {
    debug_print(T, "SCCC", sccc_level++);
    }

    if (sccc_special_cases(T, &r) == MAYBE) {
    cl = new_cube();
    cr = new_cube();
    best = binate_split_select(T, cl, cr, REDUCE1);
    r = sccc_merge(sccc(scofactor(T, cl, best)),
               sccc(scofactor(T, cr, best)), cl, cr);
    free_cubelist(T);
    }

    if (debug & REDUCE1)
    printf("SCCC[%d]: result is %s\n", --sccc_level, pc1(r));
    return r;
}

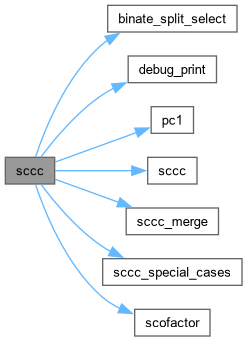

Here is the call graph for this function:

sccc_cube()

pcube sccc_cube	(	pcube	result,
		pcube	p )

Definition at line 166 of file reduce.c.

{
    register pcube temp=cube.temp[0], mask;
    int var;

    if ((var = cactive(p)) >= 0) {
    mask = cube.var_mask[var];
    INLINEset_xor(temp, p, mask);
    INLINEset_and(result, result, temp);
    }
    return result;
}

Here is the call graph for this function:

sccc_merge()

pcube sccc_merge	(	INOUT register pcube	left,
		INOUT register pcube	right,
		INOUT register pcube	cl,
		INOUT register pcube	cr )

Definition at line 139 of file reduce.c.

{
    INLINEset_and(left, left, cl);
    INLINEset_and(right, right, cr);
    INLINEset_or(left, left, right);
    free_cube(right);
    free_cube(cl);
    free_cube(cr);
    return left;
}

sccc_special_cases()

bool sccc_special_cases	(	INOUT pcube *	T,
		OUT pcube *	result )

Definition at line 184 of file reduce.c.

{
    register pcube *T1, p, temp = cube.temp[1], ceil, cof = T[0];
    pcube *A, *B;

    /* empty cover => complement is universe => SCCC is universe */
    if (T[2] == NULL) {
    *result = set_save(cube.fullset);
    free_cubelist(T);
    return TRUE;
    }

    /* row of 1's => complement is empty => SCCC is empty */
    for(T1 = T+2; (p = *T1++) != NULL; ) {
    if (full_row(p, cof)) {
        *result = new_cube();
        free_cubelist(T);
        return TRUE;
    }
    }

    /* Collect column counts, determine unate variables, etc. */
    massive_count(T);

    /* If cover is unate (or single cube), apply simple rules to find SCCCU */
    if (cdata.vars_unate == cdata.vars_active || T[3] == NULL) {
    *result = set_save(cube.fullset);
    for(T1 = T+2; (p = *T1++) != NULL; ) {
        (void) sccc_cube(*result, set_or(temp, p, cof));
    }
    free_cubelist(T);
    return TRUE;
    }

    /* Check for column of 0's (which can be easily factored( */
    ceil = set_save(cof);
    for(T1 = T+2; (p = *T1++) != NULL; ) {
    INLINEset_or(ceil, ceil, p);
    }
    if (! setp_equal(ceil, cube.fullset)) {
    *result = sccc_cube(set_save(cube.fullset), ceil);
    if (setp_equal(*result, cube.fullset)) {
        free_cube(ceil);
    } else {
        *result = sccc_merge(sccc(cofactor(T,ceil)),
             set_save(cube.fullset), ceil, *result);
    }
    free_cubelist(T);
    return TRUE;
    }
    free_cube(ceil);

    /* Single active column at this point => tautology => SCCC is empty */
    if (cdata.vars_active == 1) {
    *result = new_cube();
    free_cubelist(T);
    return TRUE;
    }

    /* Check for components */
    if (cdata.var_zeros[cdata.best] < CUBELISTSIZE(T)/2) {
    if (cubelist_partition(T, &A, &B, debug & REDUCE1) == 0) {
        return MAYBE;
    } else {
        free_cubelist(T);
        *result = sccc(A);
        ceil = sccc(B);
        (void) set_and(*result, *result, ceil);
        set_free(ceil);
        return TRUE;
    }
    }

    /* Not much we can do about it */
    return MAYBE;
}

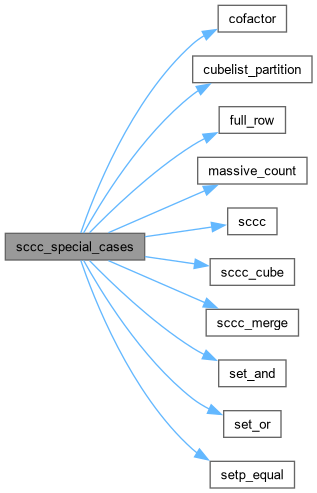

Here is the call graph for this function:
