mpmCore.c File Reference

#include "aig/gia/gia.h"
#include "mpmInt.h"

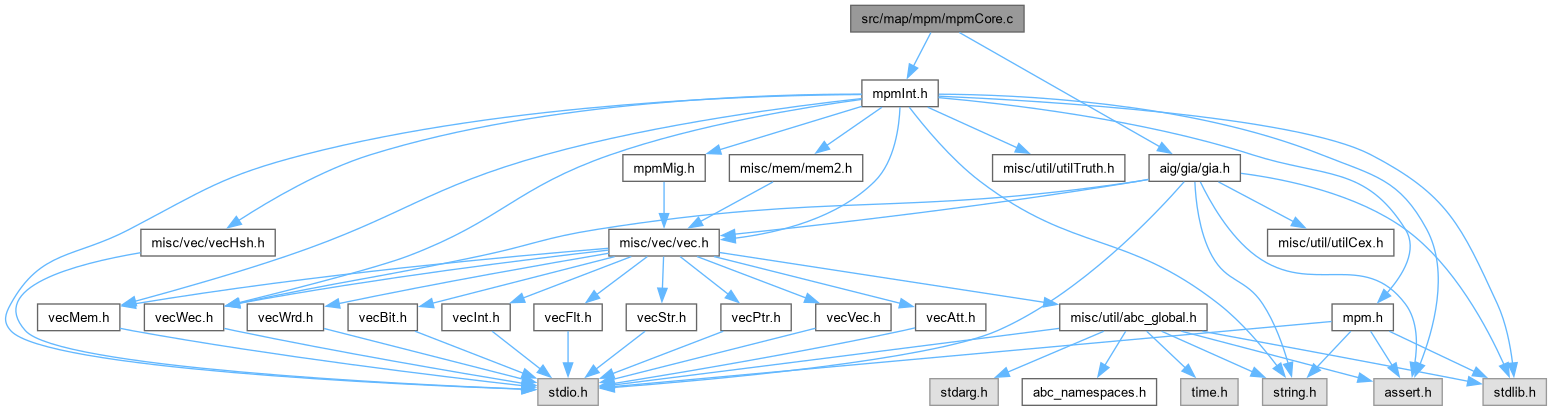

Include dependency graph for mpmCore.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Mpm_ManSetParsDefault (Mpm_Par_t *p)
	DECLARATIONS ///.
Gia_Man_t *	Mpm_ManPerformLutMapping (Mig_Man_t *pMig, Mpm_Par_t *pPars)
Gia_Man_t *	Mpm_ManLutMapping (Gia_Man_t *pGia, Mpm_Par_t *pPars)

Function Documentation

Mpm_ManLutMapping()

Gia_Man_t * Mpm_ManLutMapping	(	Gia_Man_t *	pGia,
		Mpm_Par_t *	pPars )

Definition at line 90 of file mpmCore.c.

{
    Mig_Man_t * p;
    Gia_Man_t * pNew;
    assert( pPars->pLib->LutMax <= MPM_VAR_MAX );
    assert( pPars->nNumCuts <= MPM_CUT_MAX );
    if ( pPars->fUseGates )
    {
        pGia = Gia_ManDupMuxes( pGia, 2 );
        p = Mig_ManCreate( pGia );
        Gia_ManStop( pGia );
    }
    else
        p = Mig_ManCreate( pGia );
    pNew = Mpm_ManPerformLutMapping( p, pPars );
    Mig_ManStop( p );
    return pNew;
}

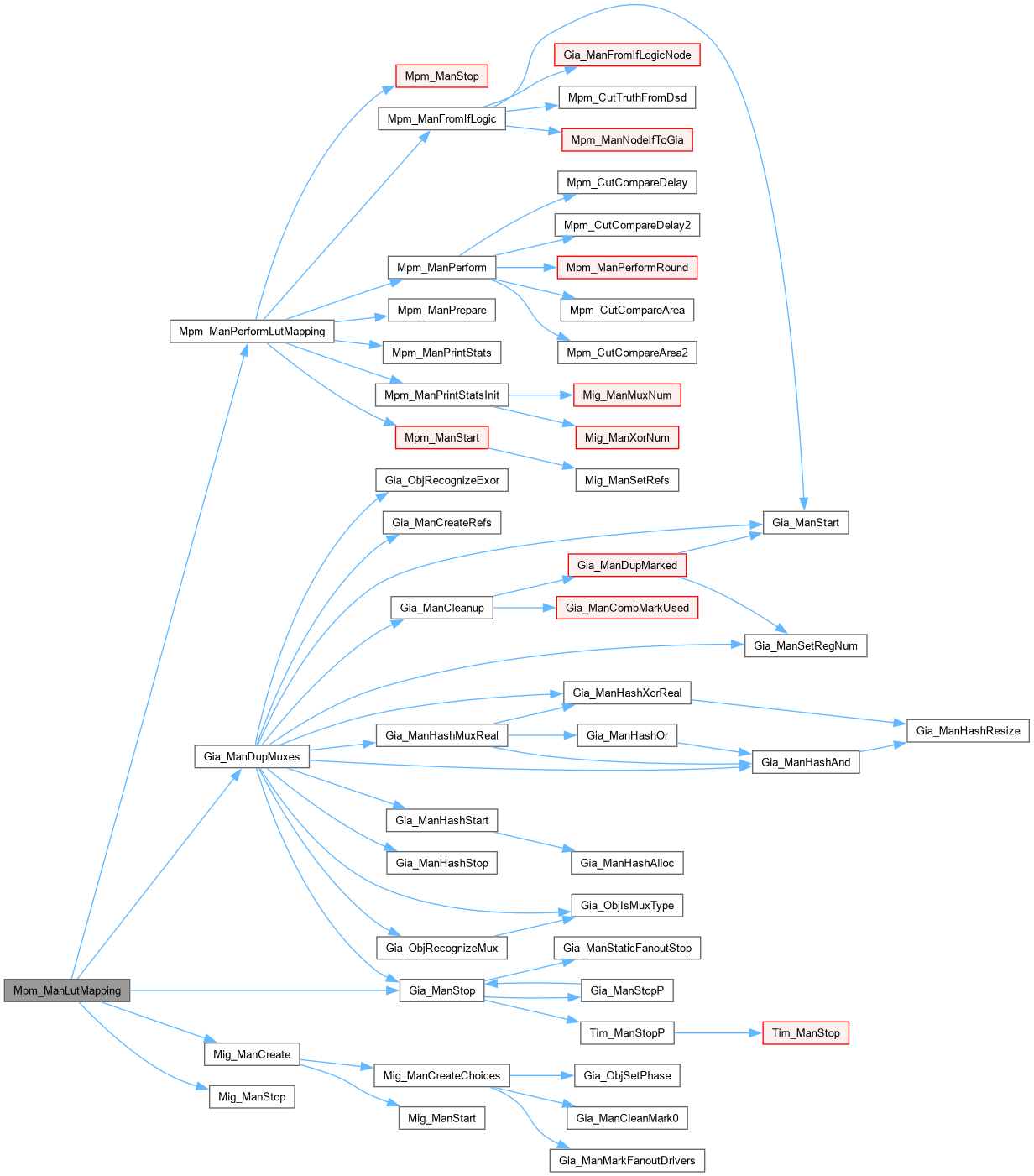

Here is the call graph for this function:

Mpm_ManPerformLutMapping()

Gia_Man_t * Mpm_ManPerformLutMapping	(	Mig_Man_t *	pMig,
		Mpm_Par_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 75 of file mpmCore.c.

{
    Gia_Man_t * pNew;
    Mpm_Man_t * p;
    p = Mpm_ManStart( pMig, pPars );
    if ( p->pPars->fVerbose )
        Mpm_ManPrintStatsInit( p );
    Mpm_ManPrepare( p );
    Mpm_ManPerform( p );
    if ( p->pPars->fVerbose )
        Mpm_ManPrintStats( p );
    pNew = (Gia_Man_t *)Mpm_ManFromIfLogic( p );
    Mpm_ManStop( p );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mpm_ManSetParsDefault()

ABC_NAMESPACE_IMPL_START void Mpm_ManSetParsDefault

(

Mpm_Par_t *

p

)

DECLARATIONS ///.

MACRO DEFINITIONS ///.

CFile****************************************************************

FileName [mpmCore.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Configurable technology mapper.]

Synopsis [Core procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 1, 2013.]

Revision [

Id

mpmCore.c,v 1.00 2013/06/01 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file mpmCore.c.

{
    memset( p, 0, sizeof(Mpm_Par_t) );
    p->pLib           =   NULL;  // LUT library
    p->nNumCuts       =      8;  // cut number
    p->fUseTruth      =      0;  // uses truth tables
    p->fUseDsd        =      0;  // uses DSDs
    p->fCutMin        =      0;  // enables cut minimization
    p->fOneRound      =      0;  // enabled one round
    p->DelayTarget    =     -1;  // delay target
    p->fDeriveLuts    =      0;  // use truth tables to derive AIG structure
    p->fMap4Cnf       =      0;  // mapping for CNF
    p->fMap4Aig       =      0;  // mapping for AIG
    p->fMap4Gates     =      0;  // mapping for gates
    p->fVerbose       =      0;  // verbose output
    p->fVeryVerbose   =      0;  // verbose output
}

Here is the call graph for this function:
