mpmPre.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include "misc/vec/vec.h"
#include "misc/vec/vecHsh.h"
#include "misc/extra/extra.h"
#include "bool/kit/kit.h"
#include "misc/util/utilTruth.h"

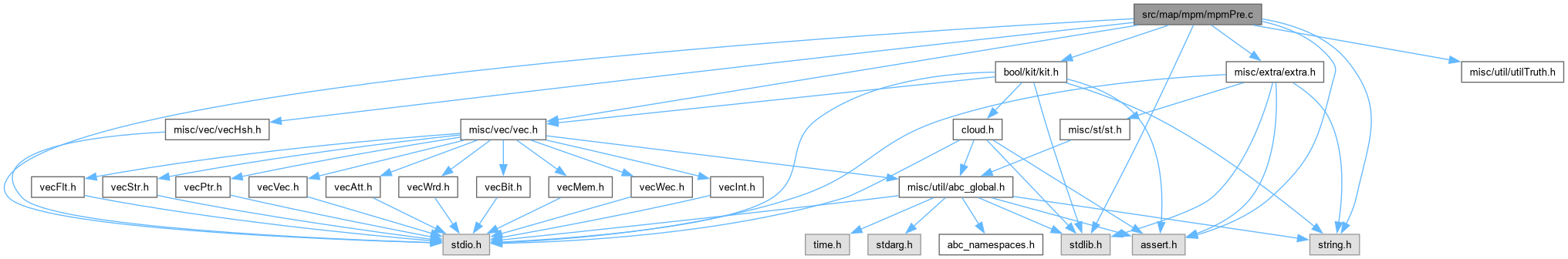

Include dependency graph for mpmPre.c:

Go to the source code of this file.

Classes
struct	Ifd_Obj_t_
struct	Ifd_Man_t_

Macros
#define	Ifd_ManForEachNodeWithSupp(p, nVars, pLeaf, i)
#define	IFM_MAX_STR   100
#define	IFM_MAX_VAR   16

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Ifd_Obj_t_	Ifd_Obj_t
	DECLARATIONS ///.
typedef struct Ifd_Man_t_	Ifd_Man_t

Functions
Ifd_Man_t *	Ifd_ManStart ()
	FUNCTION DEFINITIONS ///.
void	Ifd_ManStop (Ifd_Man_t *p)
void	Ifd_ObjPrint_rec (Ifd_Man_t *p, int iLit, int *pCounter, int DiffType)
void	Ifd_ObjPrint (Ifd_Man_t *p, int iLit)
void	Ifd_ManPrint2 (Ifd_Man_t *p)
void	Ifd_ManPrint (Ifd_Man_t *p)
word	Ifd_ObjTruth_rec (Ifd_Man_t *p, int iLit, int *pCounter)
word	Ifd_ObjTruth (Ifd_Man_t *p, int iLit)
void	Ifd_ManTruthAll (Ifd_Man_t *p)
int	Mpm_ComputeCnfSizeOne (word Truth, int nVars, Vec_Int_t *vCover, Vec_Str_t *vCnf)
void	Mpm_ComputeCnfSizeAll (Ifd_Man_t *p)
int	Ifd_ManHashLookup (Ifd_Man_t *p, int iDsd0, int iDsd1, int iDsdC, int Type)
void	Ifd_ManHashInsert (Ifd_Man_t *p, int iDsd0, int iDsd1, int iDsdC, int Type, int Res)
int	Ifd_ManHashFindOrAdd (Ifd_Man_t *p, int iDsd0, int iDsd1, int iDsdC, int Type)
void	Ifd_ManOperSuper_rec (Ifd_Man_t *p, int iLit, int Type, Vec_Int_t *vObjs)
int	Ifd_ManOper (Ifd_Man_t *p, int iDsd0, int iDsd1, int iDsdC, int Type)
int	Ifd_ManFindDsd_rec (Ifd_Man_t *pMan, char *pStr, char **p, int *pMatches)
int *	Ifd_ManComputeMatches (char *p)
int	Ifd_ManFindDsd (Ifd_Man_t *pMan, char *p)
void	Ifd_ManDsdTest2 ()
Vec_Wrd_t *	Ifd_ManDsdTruths (int nVars)
void	Ifd_ManDsdPermPrint (int *perm, int size)
Vec_Int_t *	Ifd_ManDsdPermJT (int n)
int	Ifd_ManDsdTest4 ()
Vec_Wrd_t *	Extra_Truth6AllConfigs2 (word t, int *pComp, int *pPerm, int nVars)
Vec_Wrd_t *	Extra_Truth6AllConfigs (word t, int *pComp, int *pPerm, int nVars)
void	Ifd_ComputeSignature (word uTruth, int pCounts[6])
int	Ifd_ManDsdTest33 ()
int	Ifd_ManDsdTest ()
int	Ifd_ManDsdTest55 ()

Macro Definition Documentation

Ifd_ManForEachNodeWithSupp

#define Ifd_ManForEachNodeWithSupp	(		p,
			nVars,
			pLeaf,
			i )

Value:

    for ( i = Vec_IntEntry(p->vMarks, nVars); (i < Vec_IntEntry(p->vMarks, nVars+1)) && (pLeaf = Ifd_ManObj(p, i)); i++ )

Definition at line 79 of file mpmPre.c.

#define Ifd_ManForEachNodeWithSupp( p, nVars, pLeaf, i )                       \
    for ( i = Vec_IntEntry(p->vMarks, nVars); (i < Vec_IntEntry(p->vMarks, nVars+1)) && (pLeaf = Ifd_ManObj(p, i)); i++ )

IFM_MAX_STR

#define IFM_MAX_STR   100

Definition at line 563 of file mpmPre.c.

IFM_MAX_VAR

#define IFM_MAX_VAR   16

Definition at line 564 of file mpmPre.c.

Typedef Documentation

Ifd_Man_t

typedef struct Ifd_Man_t_ Ifd_Man_t

Definition at line 50 of file mpmPre.c.

Ifd_Obj_t

typedef typedefABC_NAMESPACE_IMPL_START struct Ifd_Obj_t_ Ifd_Obj_t

DECLARATIONS ///.

CFile****************************************************************

FileName [mpmPre.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Configurable technology mapper.]

Synopsis [DSD-related precomputations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 1, 2013.]

Revision [

Id

mpmPre.c,v 1.00 2013/06/01 00:00:00 alanmi Exp

]

Definition at line 39 of file mpmPre.c.

Function Documentation

Extra_Truth6AllConfigs()

Vec_Wrd_t * Extra_Truth6AllConfigs	(	word	t,
		int *	pComp,
		int *	pPerm,
		int	nVars )

Definition at line 835 of file mpmPre.c.

{
    int nPerms = Extra_Factorial( nVars );
    int nSwaps = (1 << nVars);
    Vec_Wrd_t * vTruths = Vec_WrdStart( nPerms * nSwaps );
    word tCur = t, tTemp1, tTemp2;
    int p, c, Config;

    tTemp1 = tCur;
    for ( p = 0; p < nPerms; p++ )
    {
        tCur = Extra_Truth6SwapAdjacent( tCur, pPerm[p] );
        Config = 0;
        tTemp2 = tCur;
        for ( c = 0; c < nSwaps; c++ )
        {
            Vec_WrdWriteEntry( vTruths, (p << nVars)|Config, tCur );
            tCur = Extra_Truth6ChangePhase( tCur, pComp[c] );
            Config ^= (1 << pComp[c]);
        }
        assert( Config == 0 );
        assert( tTemp2 == tCur );
    }
    assert( tTemp1 == tCur );

    if ( t )
    {
        int i;
        word Truth;
        Vec_WrdForEachEntry( vTruths, Truth, i )
            assert( Truth );
    }
    return vTruths;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Extra_Truth6AllConfigs2()

Vec_Wrd_t * Extra_Truth6AllConfigs2	(	word	t,
		int *	pComp,
		int *	pPerm,
		int	nVars )

Definition at line 802 of file mpmPre.c.

{
    int nPerms = Extra_Factorial( nVars );
    int nSwaps = (1 << nVars);
    Vec_Wrd_t * vTruths = Vec_WrdStart( nPerms * (1 << (nVars+1)) );
    word tCur, tTemp1, tTemp2;
    int i, p, c;
    for ( i = 0; i < 2; i++ )
    {
        tCur = i ? t : ~t;
        tTemp1 = tCur;
        for ( p = 0; p < nPerms; p++ )
        {
            tTemp2 = tCur;
            for ( c = 0; c < nSwaps; c++ )
            {
                Vec_WrdWriteEntry( vTruths, (p << (nVars+1))|(i << nVars)|c, tCur );
                tCur = Extra_Truth6ChangePhase( tCur, pComp[c] );
            }
            assert( tTemp2 == tCur );
            tCur = Extra_Truth6SwapAdjacent( tCur, pPerm[p] );
        }
        assert( tTemp1 == tCur );
    }
    if ( t )
    {
        int i;
        word Truth;
        Vec_WrdForEachEntry( vTruths, Truth, i )
            assert( Truth );
    }
    return vTruths;
}

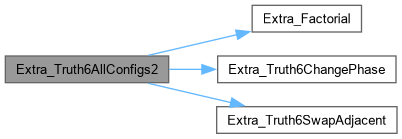

Here is the call graph for this function:

Ifd_ComputeSignature()

void Ifd_ComputeSignature	(	word	uTruth,
		int	pCounts[6] )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 882 of file mpmPre.c.

{
    int v, Pos, Neg, Xor;
    for ( v = 0; v < 6; v++ )
    {
        Neg = Abc_TtCountOnes( Abc_Tt6Cofactor0(uTruth, v) ) / 2;
        Pos = Abc_TtCountOnes( Abc_Tt6Cofactor1(uTruth, v) ) / 2;
        Xor = Abc_TtCountOnes( Abc_Tt6Cofactor0(uTruth, v) ^ Abc_Tt6Cofactor1(uTruth, v) ) / 2;
        if ( Pos <= Neg )
            pCounts[v] = (Pos << 20) | (Neg << 10) | Xor;
        else
            pCounts[v] = (Neg << 20) | (Pos << 10) | Xor;
    }
    Vec_IntSelectSort( pCounts, 6 );
}

Here is the caller graph for this function:

Ifd_ManComputeMatches()

int * Ifd_ManComputeMatches

(

char *

p

)

Definition at line 565 of file mpmPre.c.

{
    static int pMatches[IFM_MAX_STR];
    int pNested[IFM_MAX_VAR];
    int v, nNested = 0;
    for ( v = 0; p[v]; v++ )
    {
        assert( v < IFM_MAX_STR );
        pMatches[v] = 0;
        if ( p[v] == '(' || p[v] == '[' || p[v] == '<' || p[v] == '{' )
            pNested[nNested++] = v;
        else if ( p[v] == ')' || p[v] == ']' || p[v] == '>' || p[v] == '}' )
            pMatches[pNested[--nNested]] = v;
        assert( nNested < IFM_MAX_VAR );
    }
    assert( nNested == 0 );
    return pMatches;
}

Here is the caller graph for this function:

Ifd_ManDsdPermJT()

Vec_Int_t * Ifd_ManDsdPermJT

(

int

n

)

Definition at line 713 of file mpmPre.c.

{
    Vec_Int_t * vGuide = Vec_IntAlloc( 100 );
    int *array, *dir, tmp, tmp2, i, max;
    array = (int*)malloc(sizeof(int) * n);
    dir = (int*)calloc(n, sizeof(int));
    for (i = 0; i < n; i++)
    array[i] = i;
    max = n - 1;
    if (n != 1)
    do
    {
//        Ifd_ManDsdPermPrint(array, n);
        tmp = array[max];
        tmp2 = dir[max];
        i = !dir[max] ? max - 1 : max + 1;
        array[max] = array[i];
        array[i] = tmp;
        Vec_IntPush( vGuide, Abc_MinInt(max, i) );
        dir[max] = dir[i];
        dir[i] = tmp2;
        for (i = 0; i < n; i++)
            if (array[i] > tmp)
                dir[i] = !dir[i];
        max = n;
        for (i = 0; i < n; i++)
            if (((!dir[i] && i != 0 && array[i] > array[i-1]) || (dir[i] && i != n-1 && array[i] > array[i+1])) && (array[i] > array[max] || max == n))
                max = i;
    }
    while (max < n);
//    Ifd_ManDsdPermPrint(array,n);
    Vec_IntPush( vGuide, 0 );
    free(dir);
    free(array);
    return vGuide;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ifd_ManDsdPermPrint()

void Ifd_ManDsdPermPrint	(	int *	perm,
		int	size )

Function*************************************************************

Synopsis [Generating the guided array for minimal permutations.]

Description [http://icodesnip.com/search/johnson%20trotter/]

SideEffects []

SeeAlso []

Definition at line 706 of file mpmPre.c.

{
    int i;
    for ( i = 0; i < size; i++ )
        printf( "%d", perm[i] );
    printf( "\n" );
}

Here is the caller graph for this function:

Ifd_ManDsdTest()

int Ifd_ManDsdTest

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 929 of file mpmPre.c.

{
    int nVars = 6;
    FILE * pFile;
    char pFileName[32];
    Vec_Wrd_t * vTruths = Ifd_ManDsdTruths( nVars );
    Vec_Wrd_t * vVariants;
    Vec_Int_t * vUniques;
    Vec_Int_t * vCompls;
    Vec_Wrd_t * vTruthRes = Vec_WrdAlloc( 4000000 );
    Vec_Int_t * vConfgRes = Vec_IntAlloc( 4000000 );
    int * pComp, * pPerm;
    word Truth, Variant;
    int i, k, Uniq, Runner, Counter = 0;
    assert( nVars >= 3 && nVars <= 6 );
    assert( Vec_WrdSize(vTruths) < (1<<10) );
    vCompls = Vec_IntAlloc( 720 * 64 );
    pComp = Extra_GreyCodeSchedule( nVars );
    pPerm = Extra_PermSchedule( nVars );
    Vec_WrdForEachEntry( vTruths, Truth, i )
    {
        vVariants = Extra_Truth6AllConfigs( Truth, pComp, pPerm, nVars );
        // save compl bits
        Vec_IntClear( vCompls );
        Vec_WrdForEachEntry( vVariants, Variant, k )
        {
            Vec_IntPush( vCompls, (int)(Variant & 1) );
            Vec_WrdWriteEntry( vVariants, k, Variant & 1 ? ~Variant : Variant );
        }
        // uniqify
        vUniques = Hsh_WrdManHashArray( vVariants, 1 );
        Runner = 0;
        Vec_IntForEachEntry( vUniques, Uniq, k )
            if ( Runner == Uniq )
            {
                Variant = Vec_WrdEntry(vVariants, k);
                assert( (Variant & 1) == 0 );
                Vec_WrdPush( vTruthRes, Variant );
                Vec_IntPush( vConfgRes, (i << 17)|(Vec_IntEntry(vCompls, k) << 16)|k );
                Runner++;
            }
        Vec_IntUniqify( vUniques );
        assert( Runner == Vec_IntSize(vUniques) );
        Counter += Vec_IntSize(vUniques);
//printf( "%5d : ", i ); Kit_DsdPrintFromTruth( &Truth, nVars ), printf( "  " ), Vec_IntPrint( vUniques ), printf( "\n" );
        Vec_IntFree( vUniques );
        Vec_WrdFree( vVariants );
    }
    Vec_IntFree( vCompls );
    Vec_WrdFree( vTruths );
    ABC_FREE( pPerm );
    ABC_FREE( pComp );
    printf( "Total = %d.\n", Counter );
    assert( Vec_WrdSize(vTruthRes) == Counter );
    // write the data into a file
    sprintf( pFileName, "dsdfuncs%d.dat", nVars );
    pFile = fopen( pFileName, "wb" );
    fwrite( Vec_WrdArray(vTruthRes), sizeof(word), Vec_WrdSize(vTruthRes), pFile );
    fwrite( Vec_IntArray(vConfgRes), sizeof(int), Vec_IntSize(vConfgRes), pFile );
    fclose( pFile );
    printf( "File \"%s\" with %d 6-input functions has been written out.\n", pFileName, Vec_IntSize(vConfgRes) );
    Vec_WrdFree( vTruthRes );
    Vec_IntFree( vConfgRes );
    return 1;
}

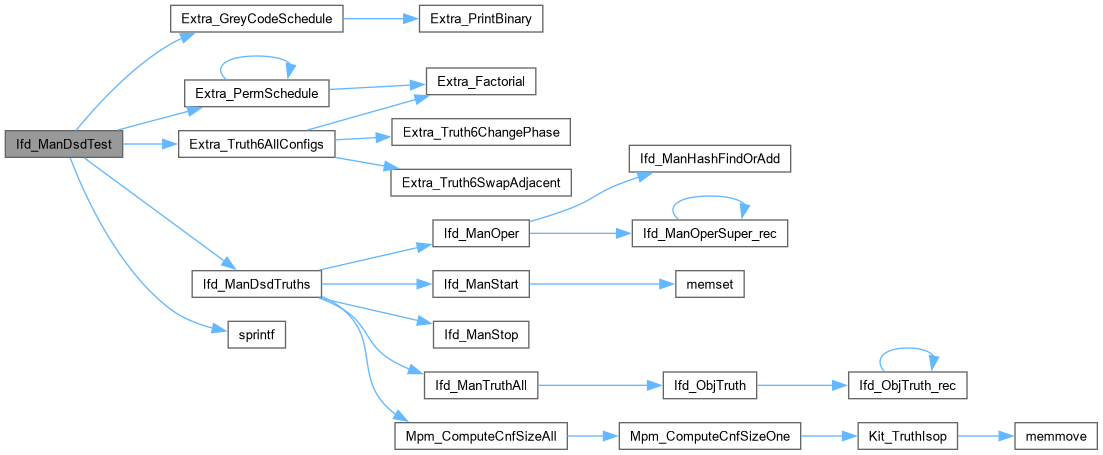

Here is the call graph for this function:

Ifd_ManDsdTest2()

void Ifd_ManDsdTest2

(

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 608 of file mpmPre.c.

{
    char * p = "(abc)";
//    char * q = "(a[bc])";
//    char * r = "[<abc>(def)]";
    Ifd_Man_t * pMan = Ifd_ManStart();
    int iLit = Ifd_ManFindDsd( pMan, p );
    Ifd_ObjPrint( pMan, iLit );
    Ifd_ManStop( pMan );
    printf( "\n" );
}

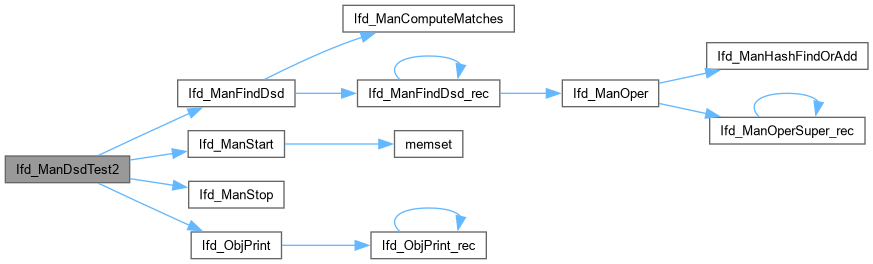

Here is the call graph for this function:

Ifd_ManDsdTest33()

int Ifd_ManDsdTest33

(

)

Definition at line 897 of file mpmPre.c.

{
    int nVars = 6;
    Vec_Wrd_t * vTruths = Ifd_ManDsdTruths( nVars );
    int i, v, pCounts[6];
    word uTruth;
    Vec_WrdForEachEntry( vTruths, uTruth, i )
    {
        Ifd_ComputeSignature( uTruth, pCounts );
        // print
        printf( "%5d :  ", i );
        for ( v = 0; v < 6; v++ )
            printf( "%2d %2d %2d   ", (pCounts[v] >> 20) & 0xFF, (pCounts[v] >> 10) & 0xFF, (pCounts[v] >> 0) & 0xFF );
        printf( "  " );
        Kit_DsdPrintFromTruth( (unsigned *)&uTruth, nVars );
        printf( "\n" );
    }
    Vec_WrdFree( vTruths );
    return 1;
}

Here is the call graph for this function:

Ifd_ManDsdTest4()

int Ifd_ManDsdTest4

(

)

Definition at line 749 of file mpmPre.c.

{
    int pPerm[6] = { 0, 1, 2, 3, 4, 5 };
    Vec_Int_t * vGuide = Ifd_ManDsdPermJT( 6 );
    int i, Entry;
    Vec_IntForEachEntry( vGuide, Entry, i )
    {
        ABC_SWAP( int, pPerm[Entry], pPerm[Entry+1] );
        Ifd_ManDsdPermPrint( pPerm, 6 );
    }
    Vec_IntFree( vGuide );
    return 1;
}

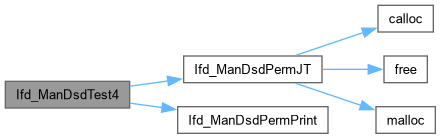

Here is the call graph for this function:

Ifd_ManDsdTest55()

int Ifd_ManDsdTest55

(

)

Definition at line 995 of file mpmPre.c.

{
    abctime clk = Abc_Clock();
    FILE * pFile;
    char * pFileName = "dsdfuncs6.dat";
    int RetValue, size = Extra_FileSize( pFileName ) / 12;  // 2866420
    Vec_Wrd_t * vTruthRes = Vec_WrdAlloc( size + 1 );
    Vec_Int_t * vConfgRes = Vec_IntAlloc( size );
    Hsh_IntMan_t * pHash;

    pFile = fopen( pFileName, "rb" );
    RetValue = fread( Vec_WrdArray(vTruthRes), sizeof(word), size, pFile );
    RetValue = fread( Vec_IntArray(vConfgRes), sizeof(int), size, pFile );
    vTruthRes->nSize = size;
    vConfgRes->nSize = size;
    // create hash table
    pHash = Hsh_WrdManHashArrayStart( vTruthRes, 1 );
    // experiment with functions

    // cleanup
    Hsh_IntManStop( pHash );
    Vec_WrdFree( vTruthRes );
    Vec_IntFree( vConfgRes );
    Abc_PrintTime( 1, "Reading file", Abc_Clock() - clk );
    return 1;
}

Here is the call graph for this function:

Ifd_ManDsdTruths()

Vec_Wrd_t * Ifd_ManDsdTruths

(

int

nVars

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 631 of file mpmPre.c.

{
    int fUseMux = 1;
    Vec_Wrd_t * vTruths;
    Ifd_Man_t * pMan = Ifd_ManStart();
    Ifd_Obj_t * pLeaf0, * pLeaf1, * pLeaf2;
    int v, i, j, k, c0, c1, c2;
    for ( v = 2; v <= nVars; v++ )
    {
        // create ANDs/XORs
        for ( i = 1; i < v; i++ )
        for ( j = 1; j < v; j++ )
        if ( i + j == v )
        {
            Ifd_ManForEachNodeWithSupp( pMan, i, pLeaf0, c0 )
            Ifd_ManForEachNodeWithSupp( pMan, j, pLeaf1, c1 )
            {
                assert( (int)pLeaf0->nSupp == i );
                assert( (int)pLeaf1->nSupp == j );
                Ifd_ManOper( pMan, Abc_Var2Lit(c0, 0), Abc_Var2Lit(c1, 0), -1, 1 );
                if ( !pLeaf1->fWay )
                Ifd_ManOper( pMan, Abc_Var2Lit(c0, 0), Abc_Var2Lit(c1, 1), -1, 1 );
                if ( !pLeaf0->fWay )
                Ifd_ManOper( pMan, Abc_Var2Lit(c0, 1), Abc_Var2Lit(c1, 0), -1, 1 );
                if ( !pLeaf0->fWay && !pLeaf1->fWay )
                Ifd_ManOper( pMan, Abc_Var2Lit(c0, 1), Abc_Var2Lit(c1, 1), -1, 1 );
                Ifd_ManOper( pMan, Abc_Var2Lit(c0, 0), Abc_Var2Lit(c1, 0), -1, 2 );
            }
        }
        // create MUX
        if ( fUseMux )
        for ( i = 1; i < v-1; i++ )
        for ( j = 1; j < v-1; j++ )
        for ( k = 1; k < v-1; k++ )
        if ( i + j + k == v )
        {
            Ifd_ManForEachNodeWithSupp( pMan, i, pLeaf0, c0 )
            Ifd_ManForEachNodeWithSupp( pMan, j, pLeaf1, c1 )
            Ifd_ManForEachNodeWithSupp( pMan, k, pLeaf2, c2 )
            {
                assert( (int)pLeaf0->nSupp == i );
                assert( (int)pLeaf1->nSupp == j );
                assert( (int)pLeaf2->nSupp == k );
//printf( "%d %d %d   ", i, j, k );
//printf( "%d %d %d\n", Ifd_ObjId(pMan, pLeaf0), Ifd_ObjId(pMan, pLeaf1), Ifd_ObjId(pMan, pLeaf2) );
                if ( pLeaf2->fWay && c0 < c1 )
                    continue;
                Ifd_ManOper( pMan, Abc_Var2Lit(c0, 0), Abc_Var2Lit(c1, 0), Abc_Var2Lit(c2, 0), 3 );
                if ( !pLeaf0->fWay && !pLeaf1->fWay )
                Ifd_ManOper( pMan, Abc_Var2Lit(c0, 1), Abc_Var2Lit(c1, 0), Abc_Var2Lit(c2, 0), 3 );
            }
        }
        // bookmark
        Vec_IntPush( pMan->vMarks, pMan->nObjs );
    }
    Ifd_ManTruthAll( pMan );
    Mpm_ComputeCnfSizeAll( pMan );
//    Ifd_ManPrint( pMan );
    vTruths = pMan->vTruths; pMan->vTruths = NULL;
    Ifd_ManStop( pMan );
    return vTruths;
}

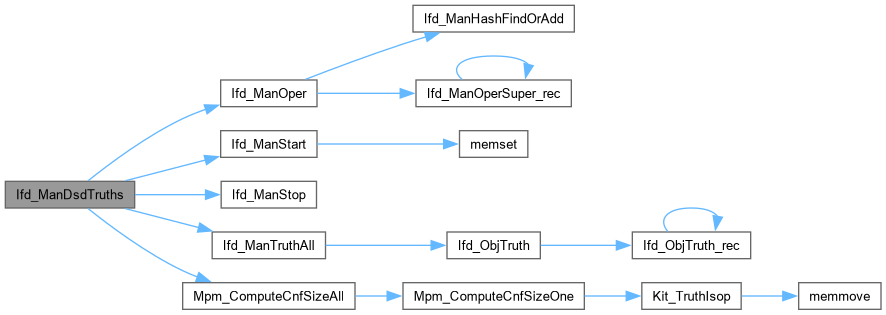

Here is the call graph for this function:

Here is the caller graph for this function:

Ifd_ManFindDsd()

int Ifd_ManFindDsd	(	Ifd_Man_t *	pMan,
		char *	p )

Definition at line 583 of file mpmPre.c.

{
    int Res;
    if ( *p == '0' && *(p+1) == 0 )
        Res = 0;
    else if ( *p == '1' && *(p+1) == 0 )
        Res = 1;
    else
        Res = Ifd_ManFindDsd_rec( pMan, p, &p, Ifd_ManComputeMatches(p) );
    assert( *++p == 0 );
    return Res;
}

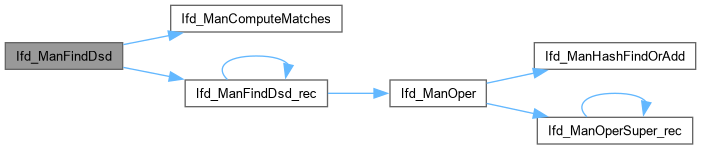

Here is the call graph for this function:

Here is the caller graph for this function:

Ifd_ManFindDsd_rec()

int Ifd_ManFindDsd_rec	(	Ifd_Man_t *	pMan,
		char *	pStr,
		char **	p,
		int *	pMatches )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 510 of file mpmPre.c.

{
    int fCompl = 0;
    if ( **p == '!' )
        (*p)++, fCompl = 1;
    if ( **p >= 'a' && **p <= 'f' ) // var
    {
        assert( **p - 'a' >= 0 && **p - 'a' < 6 );
        return Abc_Var2Lit( 1, fCompl );
    }
    if ( **p == '(' ) // and/or
    {
        char * q = pStr + pMatches[ *p - pStr ];
        int Lit, Res = 1;
        assert( **p == '(' && *q == ')' );
        for ( (*p)++; *p < q; (*p)++ )
        {
            Lit = Ifd_ManFindDsd_rec( pMan, pStr, p, pMatches );
            Res = Ifd_ManOper( pMan, Res, Lit, 0, 1 );
        }
        assert( *p == q );
        return Abc_LitNotCond( Res, fCompl );
    }
    if ( **p == '[' ) // xor
    {
        char * q = pStr + pMatches[ *p - pStr ];
        int Lit, Res = 0;
        assert( **p == '[' && *q == ']' );
        for ( (*p)++; *p < q; (*p)++ )
        {
            Lit = Ifd_ManFindDsd_rec( pMan, pStr, p, pMatches );
            Res = Ifd_ManOper( pMan, Res, Lit, 0, 2 );
        }
        assert( *p == q );
        return Abc_LitNotCond( Res, fCompl );
    }
    if ( **p == '<' ) // mux
    {
        int Temp[3], * pTemp = Temp, Res;
        char * q = pStr + pMatches[ *p - pStr ];
        assert( **p == '<' && *q == '>' );
        // derive MAX components
        for ( (*p)++; *p < q; (*p)++ )
            *pTemp++ = Ifd_ManFindDsd_rec( pMan, pStr, p, pMatches );
        assert( pTemp == Temp + 3 );
        assert( *p == q );
//        Res = (Temp[0] & Temp[1]) | (~Temp[0] & Temp[2]);
        Res = Ifd_ManOper( pMan, Temp[2], Temp[1], Temp[0], 3 );
        return Abc_LitNotCond( Res, fCompl );
    }
    assert( 0 );
    return 0;
}

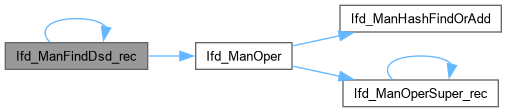

Here is the call graph for this function:

Here is the caller graph for this function:

Ifd_ManHashFindOrAdd()

int Ifd_ManHashFindOrAdd	(	Ifd_Man_t *	p,
		int	iDsd0,
		int	iDsd1,
		int	iDsdC,
		int	Type )

Definition at line 381 of file mpmPre.c.

{
    Ifd_Obj_t * pObj;
    int iObj, Value;
    assert( iDsdC != -1 || iDsd0 >= iDsd1 );
    assert( iDsdC == -1 || !Abc_LitIsCompl(iDsd1) );
    Vec_IntPush( p->vArgs, iDsd0 );
    Vec_IntPush( p->vArgs, iDsd1 );
    Vec_IntPush( p->vArgs, iDsdC );
    Vec_IntPush( p->vArgs, Type );
    Value = Hsh_IntManAdd( p->vHash, Vec_IntSize(p->vRes) );
    if ( Value < Vec_IntSize(p->vRes) )
    {
        iObj = Vec_IntEntry(p->vRes, Value);
        Vec_IntShrink( p->vArgs, Vec_IntSize(p->vArgs) - 4 );
        pObj = Ifd_ManObj( p, iObj );
//        pObj->nFreq++;
        assert( (int)pObj->Type == Type );
        assert( (int)pObj->nSupp == Ifd_LitSuppSize(p, iDsd0) + Ifd_LitSuppSize(p, iDsd1) + Ifd_LitSuppSize(p, iDsdC) );
    }
    else
    {
        if ( p->nObjs == p->nObjsAlloc )
            printf( "The number of nodes is more than %d\n", p->nObjs );
        assert( p->nObjs < p->nObjsAlloc );
        iObj = p->nObjs;
        pObj = Ifd_ManObj( p, p->nObjs++ );
//        pObj->nFreq = 1;
        pObj->nSupp = Ifd_LitSuppSize(p, iDsd0) + Ifd_LitSuppSize(p, iDsd1) + Ifd_LitSuppSize(p, iDsdC);
        pObj->nAnds = Ifd_LitNumAnds(p, iDsd0) + Ifd_LitNumAnds(p, iDsd1) + Ifd_LitNumAnds(p, iDsdC) + ((Type == 1) ? 1 : 3);
        pObj->Type  = Type;
        if ( Type == 1 )
            pObj->fWay = 0;
        else if ( Type == 2 )
            pObj->fWay = Ifd_ManObjFromLit(p, iDsd0)->fWay || Ifd_ManObjFromLit(p, iDsd1)->fWay;
        else if ( Type == 3 )
//            pObj->fWay = (Ifd_ManObjFromLit(p, iDsd0)->fWay && Ifd_ManObjFromLit(p, iDsd1)->fWay) || (Abc_Lit2Var(iDsd0) == Abc_Lit2Var(iDsd1) && Ifd_ManObjFromLit(p, iDsdC)->fWay);
            pObj->fWay = (Ifd_ManObjFromLit(p, iDsd0)->fWay && Ifd_ManObjFromLit(p, iDsd1)->fWay) || (iDsd0 == Abc_LitNot(iDsd1) && Ifd_ManObjFromLit(p, iDsdC)->fWay);
        else assert( 0 );
        pObj->pFans[0] = iDsd0;
        pObj->pFans[1] = iDsd1;
        pObj->pFans[2] = iDsdC;
        Vec_IntPush( p->vRes, iObj );
    }
    assert( 4 * Vec_IntSize(p->vRes) == Vec_IntSize(p->vArgs) );
    return iObj;
}

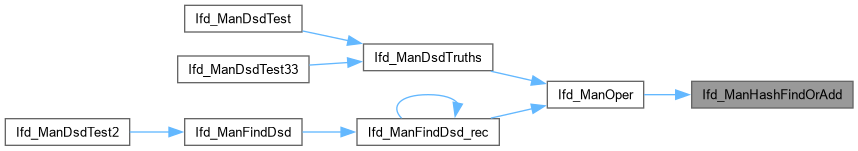

Here is the caller graph for this function:

Ifd_ManHashInsert()

void Ifd_ManHashInsert	(	Ifd_Man_t *	p,
		int	iDsd0,
		int	iDsd1,
		int	iDsdC,
		int	Type,
		int	Res )

Definition at line 367 of file mpmPre.c.

{
    int iObj;
    assert( iDsdC != -1 || iDsd0 >= iDsd1 );
    assert( iDsdC == -1 || !Abc_LitIsCompl(iDsd1) );
    Vec_IntPush( p->vArgs, iDsd0 );
    Vec_IntPush( p->vArgs, iDsd1 );
    Vec_IntPush( p->vArgs, iDsdC );
    Vec_IntPush( p->vArgs, Type );
    iObj = Hsh_IntManAdd( p->vHash, Vec_IntSize(p->vRes) );
    assert( iObj == Vec_IntSize(p->vRes) );
    Vec_IntPush( p->vRes, Res );
    assert( 4 * Vec_IntSize(p->vRes) == Vec_IntSize(p->vArgs) );
}

Ifd_ManHashLookup()

int Ifd_ManHashLookup	(	Ifd_Man_t *	p,
		int	iDsd0,
		int	iDsd1,
		int	iDsdC,
		int	Type )

Function*************************************************************

Synopsis [Canonicizing DSD structures.]

Description []

SideEffects []

SeeAlso []

Definition at line 356 of file mpmPre.c.

{
    int pData[4];
    assert( iDsdC != -1 || iDsd0 >= iDsd1 );
    assert( iDsdC == -1 || !Abc_LitIsCompl(iDsd1) );
    pData[0] = iDsd0;
    pData[1] = iDsd1;
    pData[2] = iDsdC;
    pData[3] = Type;
    return *Hsh_IntManLookup( p->vHash, (unsigned *)pData );
}

Ifd_ManOper()

int Ifd_ManOper	(	Ifd_Man_t *	p,
		int	iDsd0,
		int	iDsd1,
		int	iDsdC,
		int	Type )

Definition at line 439 of file mpmPre.c.

{
    int i, iLit0, iLit1, iThis, fCompl = 0;
    if ( Type == 1 ) // AND
    {
        if ( iDsd0 == 0 || iDsd1 == 0 )
            return 0;
        if ( iDsd0 == 1 || iDsd1 == 1 )
            return (iDsd0 == 1) ? iDsd1 : iDsd0;
    }
    else if ( Type == 2 ) // XOR
    {
        if ( iDsd0 < 2 )
            return Abc_LitNotCond( iDsd1, iDsd0 );
        if ( iDsd1 < 2 )
            return Abc_LitNotCond( iDsd0, iDsd1 );
        if ( Abc_LitIsCompl(iDsd0) )
            fCompl ^= 1, iDsd0 = Abc_LitNot(iDsd0);
        if ( Abc_LitIsCompl(iDsd1) )
            fCompl ^= 1, iDsd1 = Abc_LitNot(iDsd1);
    }
    else if ( Type == 3 )
    {
        if ( Abc_LitIsCompl(iDsdC) )
        {
            ABC_SWAP( int, iDsd0, iDsd1 );
            iDsdC = Abc_LitNot(iDsdC);
        }
        if ( Abc_LitIsCompl(iDsd1) )
            fCompl ^= 1, iDsd0 = Abc_LitNot(iDsd0), iDsd1 = Abc_LitNot(iDsd1);
    }
    assert( iDsd0 > 1 && iDsd1 > 1 && Type >= 1 && Type <= 3 );
/*
    // check cache
    iThis = Ifd_ManHashLookup( p, iDsd0, iDsd1, iDsdC, Type );
    if ( iThis != -1 )
        return Abc_Var2Lit( iThis, fCompl );
*/
    // create new entry
    if ( Type == 3 )
    {
        iThis = Ifd_ManHashFindOrAdd( p, iDsd0, iDsd1, iDsdC, Type );
        return Abc_Var2Lit( iThis, fCompl );
    }
    assert( iDsdC == -1 );
    Vec_IntClear( p->vSuper );
    Ifd_ManOperSuper_rec( p, iDsd0, Type, p->vSuper );
    Ifd_ManOperSuper_rec( p, iDsd1, Type, p->vSuper );
    Vec_IntSort( p->vSuper, 1 );
    iLit0 = Vec_IntEntry( p->vSuper, 0 );
    Vec_IntForEachEntryStart( p->vSuper, iLit1, i, 1 )
        iLit0 = Abc_Var2Lit( Ifd_ManHashFindOrAdd(p, iLit0, iLit1, -1, Type), 0 );
    assert( !Abc_LitIsCompl(iLit0) );
    // insert into cache
//    if ( Vec_IntSize(p->vSuper) > 2 )
//        Ifd_ManHashInsert( p, iDsd0, iDsd1, iDsdC, Type, iLit0 );
    return Abc_LitNotCond( iLit0, fCompl );
}

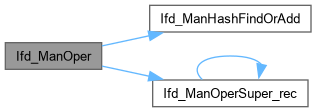

Here is the call graph for this function:

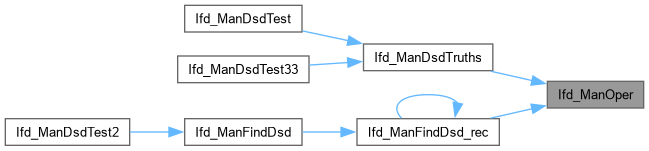

Here is the caller graph for this function:

Ifd_ManOperSuper_rec()

void Ifd_ManOperSuper_rec	(	Ifd_Man_t *	p,
		int	iLit,
		int	Type,
		Vec_Int_t *	vObjs )

Definition at line 428 of file mpmPre.c.

{
    Ifd_Obj_t * pDsd = Ifd_ManObjFromLit( p, iLit );
    if ( Abc_LitIsCompl(iLit) || (int)pDsd->Type != Type )
        Vec_IntPush( vObjs, iLit );
    else
    {
        Ifd_ManOperSuper_rec( p, pDsd->pFans[0], Type, vObjs );
        Ifd_ManOperSuper_rec( p, pDsd->pFans[1], Type, vObjs );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ifd_ManPrint()

void Ifd_ManPrint

(

Ifd_Man_t *

p

)

Definition at line 191 of file mpmPre.c.

{
    int i;
    for ( i = 0; i < p->nObjs; i++ )
    {
        word Fun = Vec_WrdEntry( p->vTruths, i );
        printf( "    { " );
        printf( "%d, ", Extra_TruthSupportSize((unsigned *)&Fun, 6) );
        printf( "%2d, ", Ifd_LitNumAnds(p, Abc_Var2Lit(i, 0)) );
        printf( "%2d, ", Vec_IntEntry(p->vClauses, i) );
        printf( "ABC_CONST(" );
        Extra_PrintHex( stdout, (unsigned *)&Fun, 6 );
        printf( "), \"" );
        Ifd_ObjPrint( p, Abc_Var2Lit( i, 0 ) );
        printf( "\" },   // %4d \n", i );
    }
}

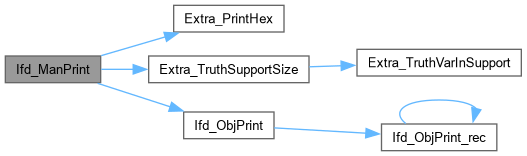

Here is the call graph for this function:

Ifd_ManPrint2()

void Ifd_ManPrint2

(

Ifd_Man_t *

p

)

Definition at line 181 of file mpmPre.c.

{
    int i;
    for ( i = 0; i < p->nObjs; i++ )
    {
        printf( "%4d : ", i );
        Ifd_ObjPrint( p, Abc_Var2Lit( i, 0 ) );
        printf( "\n" );
    }
}

Here is the call graph for this function:

Ifd_ManStart()

Ifd_Man_t * Ifd_ManStart

(

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 98 of file mpmPre.c.

{
    Ifd_Man_t * p;
    p = ABC_CALLOC( Ifd_Man_t, 1 );
    p->nObjsAlloc = Abc_PrimeCudd( 50000000 );
    p->nObjs      = 2;
    p->pObjs      = ABC_CALLOC( Ifd_Obj_t, p->nObjsAlloc );
    memset( p->pObjs, 0xFF, sizeof(Ifd_Obj_t) ); // const node
    (p->pObjs + 1)->nSupp = 1;  // variable
    (p->pObjs + 1)->fWay  = 1;  // variable
    // hashing operations
    p->vArgs      = Vec_IntAlloc( 4000 );
    p->vRes       = Vec_IntAlloc( 1000 );
    p->vHash      = Hsh_IntManStart( p->vArgs, 4, 1000 );
    p->vMarks     = Vec_IntAlloc( 100 );
    Vec_IntPush( p->vMarks, 0 );
    Vec_IntPush( p->vMarks, 1 );
    Vec_IntPush( p->vMarks, p->nObjs );
    // other data
    p->vSuper     = Vec_IntAlloc( 1000 );
    p->vTruths    = Vec_WrdAlloc( 1000 );
    p->vClauses   = Vec_IntAlloc( 1000 );
    return p;
}

Here is the call graph for this function:

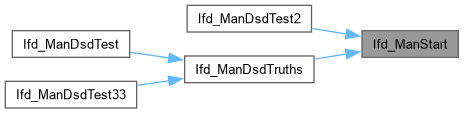

Here is the caller graph for this function:

Ifd_ManStop()

void Ifd_ManStop

(

Ifd_Man_t *

p

)

Definition at line 122 of file mpmPre.c.

{
    int i, This, Prev = 0;
    Vec_IntForEachEntryStart( p->vMarks, This, i, 1 )
    {
        printf( "%d(%d:%d) ", i-1, This, This - Prev );
        Prev = This;
    }
    printf( "\n" );

    Vec_IntFreeP( &p->vArgs );
    Vec_IntFreeP( &p->vRes );
    Vec_WrdFreeP( &p->vTruths );
    Vec_IntFreeP( &p->vClauses );
    Vec_IntFreeP( &p->vMarks );
    Hsh_IntManStop( p->vHash );
    Vec_IntFreeP( &p->vSuper );
    ABC_FREE( p->pObjs );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Ifd_ManTruthAll()

void Ifd_ManTruthAll

(

Ifd_Man_t *

p

)

Definition at line 268 of file mpmPre.c.

{
    word Fun;
    int i;
    assert( Vec_WrdSize(p->vTruths) == 0 );
    for ( i = 0; i < p->nObjs; i++ )
    {
        Fun = Ifd_ObjTruth( p, Abc_Var2Lit( i, 0 ) );
        Vec_WrdPush( p->vTruths, Fun );
//        Extra_PrintHex( stdout, (unsigned *)&Fun, 6 ); printf( " " );
//        Kit_DsdPrintFromTruth( (unsigned *)&Fun, 6 ); printf( "\n" );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ifd_ObjPrint()

void Ifd_ObjPrint	(	Ifd_Man_t *	p,
		int	iLit )

Definition at line 172 of file mpmPre.c.

{
    int Counter = 0;
    if ( iLit == 0 )
        { printf( "0" ); return; }
    if ( iLit == 1 )
        { printf( "1" ); return; }
    Ifd_ObjPrint_rec( p, iLit, &Counter, 1 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ifd_ObjPrint_rec()

void Ifd_ObjPrint_rec	(	Ifd_Man_t *	p,
		int	iLit,
		int *	pCounter,
		int	DiffType )

Function*************************************************************

Synopsis [Printing structures.]

Description []

SideEffects []

SeeAlso []

Definition at line 154 of file mpmPre.c.

{
    char Symb[2][4] = { {'?','(','[','<'}, {'?',')',']','>'} };
    Ifd_Obj_t * pDsd;
    if ( Abc_LitIsCompl(iLit) )
        printf( "!" ), iLit = Abc_LitNot(iLit);
    if ( iLit == 2 )
        { printf( "%c", 'a' + (*pCounter)++ ); return; }
    pDsd = Ifd_ManObjFromLit( p, iLit );
    if ( DiffType )
        printf( "%c", Symb[0][pDsd->Type] );
    Ifd_ObjPrint_rec( p, pDsd->pFans[0], pCounter, pDsd->Type == 3 || Abc_LitIsCompl(pDsd->pFans[0]) || pDsd->Type != Ifd_ManObjFromLit(p, pDsd->pFans[0])->Type );
    Ifd_ObjPrint_rec( p, pDsd->pFans[1], pCounter, pDsd->Type == 3 || Abc_LitIsCompl(pDsd->pFans[1]) || pDsd->Type != Ifd_ManObjFromLit(p, pDsd->pFans[1])->Type );
    if ( pDsd->pFans[2] != -1 )
    Ifd_ObjPrint_rec( p, pDsd->pFans[2], pCounter, pDsd->Type == 3 || Abc_LitIsCompl(pDsd->pFans[2]) || pDsd->Type != Ifd_ManObjFromLit(p, pDsd->pFans[2])->Type );
    if ( DiffType )
        printf( "%c", Symb[1][pDsd->Type] );
}

Here is the call graph for this function:

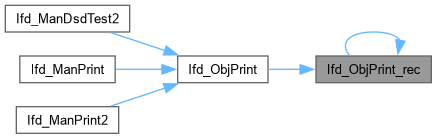

Here is the caller graph for this function:

Ifd_ObjTruth()

word Ifd_ObjTruth	(	Ifd_Man_t *	p,
		int	iLit )

Definition at line 257 of file mpmPre.c.

{
    word Fun;
    int Counter = 0;
    if ( iLit == 0 )
        return 0;
    if ( iLit == 1 )
        return ~(word)0;
    Fun = Ifd_ObjTruth_rec( p, Abc_LitRegular(iLit), &Counter );
    return Abc_LitIsCompl(iLit) ? ~Fun : Fun;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ifd_ObjTruth_rec()

word Ifd_ObjTruth_rec	(	Ifd_Man_t *	p,
		int	iLit,
		int *	pCounter )

Function*************************************************************

Synopsis [Computing truth tables.]

Description []

SideEffects []

SeeAlso []

Definition at line 221 of file mpmPre.c.

{
    static word s_Truths6[6] = {
        ABC_CONST(0xAAAAAAAAAAAAAAAA),
        ABC_CONST(0xCCCCCCCCCCCCCCCC),
        ABC_CONST(0xF0F0F0F0F0F0F0F0),
        ABC_CONST(0xFF00FF00FF00FF00),
        ABC_CONST(0xFFFF0000FFFF0000),
        ABC_CONST(0xFFFFFFFF00000000)
    };
    Ifd_Obj_t * pDsd;
    word Fun0, Fun1, Fun2 = 0;
    assert( !Abc_LitIsCompl(iLit) );
    if ( iLit == 2 )
        return s_Truths6[(*pCounter)++];
    pDsd = Ifd_ManObjFromLit( p, iLit );

    Fun0 = Ifd_ObjTruth_rec( p, Abc_LitRegular(pDsd->pFans[0]), pCounter );
    Fun1 = Ifd_ObjTruth_rec( p, Abc_LitRegular(pDsd->pFans[1]), pCounter );
    if ( pDsd->pFans[2] != -1 )
    Fun2 = Ifd_ObjTruth_rec( p, Abc_LitRegular(pDsd->pFans[2]), pCounter );

    Fun0 = Abc_LitIsCompl(pDsd->pFans[0]) ? ~Fun0 : Fun0;
    Fun1 = Abc_LitIsCompl(pDsd->pFans[1]) ? ~Fun1 : Fun1;
    if ( pDsd->pFans[2] != -1 )
    Fun2 = Abc_LitIsCompl(pDsd->pFans[2]) ? ~Fun2 : Fun2;

    if ( pDsd->Type == 1 )
        return Fun0 & Fun1;
    if ( pDsd->Type == 2 )
        return Fun0 ^ Fun1;
    if ( pDsd->Type == 3 )
        return (Fun2 & Fun1) | (~Fun2 & Fun0);
    assert( 0 );
    return -1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mpm_ComputeCnfSizeAll()

void Mpm_ComputeCnfSizeAll

(

Ifd_Man_t *

p

)

Definition at line 332 of file mpmPre.c.

{
    Vec_Int_t * vCover = Vec_IntAlloc( 1 << 16 );
    Vec_Str_t * vCnf = Vec_StrAlloc( 1000 );
    word Truth;
    int i;
    assert( Vec_IntSize(p->vClauses) == 0 );
    Vec_WrdForEachEntry( p->vTruths, Truth, i )
        Vec_IntPush( p->vClauses, Mpm_ComputeCnfSizeOne(Truth, 6, vCover, vCnf) );
    Vec_IntFree( vCover );
    Vec_StrFree( vCnf );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mpm_ComputeCnfSizeOne()

int Mpm_ComputeCnfSizeOne	(	word	Truth,
		int	nVars,
		Vec_Int_t *	vCover,
		Vec_Str_t *	vCnf )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 293 of file mpmPre.c.

{
    Vec_StrClear( vCnf );
    if ( Truth == 0 || ~Truth == 0 )
    {
//        assert( nVars == 0 );
        Vec_StrPush( vCnf, (char)(Truth == 0) );
        Vec_StrPush( vCnf, (char)-1 );
        return 1;
    }
    else
    {
        int i, k, c, RetValue, Literal, Cube, nCubes = 0;
        assert( nVars > 0 );
        for ( c = 0; c < 2; c ++ )
        {
            Truth = c ? ~Truth : Truth;
            RetValue = Kit_TruthIsop( (unsigned *)&Truth, nVars, vCover, 0 );
            assert( RetValue == 0 );
            nCubes += Vec_IntSize( vCover );
            Vec_IntForEachEntry( vCover, Cube, i )
            {
                for ( k = 0; k < nVars; k++ )
                {
                    Literal = 3 & (Cube >> (k << 1));
                    if ( Literal == 1 )      // '0'  -> pos lit
                        Vec_StrPush( vCnf, (char)Abc_Var2Lit(k, 0) );
                    else if ( Literal == 2 ) // '1'  -> neg lit
                        Vec_StrPush( vCnf, (char)Abc_Var2Lit(k, 1) );
                    else if ( Literal != 0 )
                        assert( 0 );
                }
                Vec_StrPush( vCnf, (char)Abc_Var2Lit(nVars, c) );
                Vec_StrPush( vCnf, (char)-1 );
            }
        }
        return nCubes;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:
