ndr.h File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include "abcOper.h"

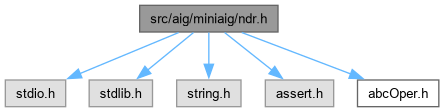

Include dependency graph for ndr.h:

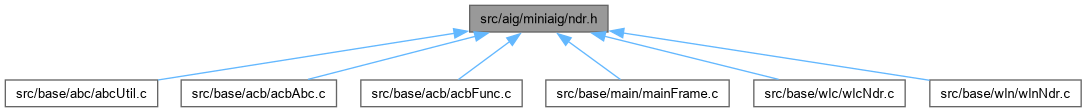

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Ndr_Data_t_

Macros
#define	NDR_ALLOC(type, num)
#define	Ndr_DesForEachMod(p, Mod)
	ITERATORS ///.
#define	Ndr_ModForEachObj(p, Mod, Obj)
#define	Ndr_ObjForEachEntry(p, Obj, Ent)
#define	Ndr_ModForEachPi(p, Mod, Obj)
#define	Ndr_ModForEachPo(p, Mod, Obj)
#define	Ndr_ModForEachNode(p, Mod, Obj)
#define	Ndr_ModForEachTarget(p, Mod, Obj)

Typedefs
typedef struct Ndr_Data_t_	Ndr_Data_t
	BASIC TYPES ///.

Enumerations
enum	Ndr_RecordType_t {   NDR_NONE = 0 , NDR_DESIGN , NDR_MODULE , NDR_OBJECT ,   NDR_INPUT , NDR_OUTPUT , NDR_OPERTYPE , NDR_NAME ,   NDR_RANGE , NDR_FUNCTION , NDR_TARGET , NDR_UNKNOWN }
	INCLUDES ///. More...

Macro Definition Documentation

NDR_ALLOC

#define NDR_ALLOC	(		type,
			num )

Value:

((type *) malloc(sizeof(type) * (size_t)(num)))

Definition at line 136 of file ndr.h.

Ndr_DesForEachMod

#define Ndr_DesForEachMod	(		p,
			Mod )

Value:

    for ( Mod = 1; Mod < Ndr_DataEntry(p, 0); Mod += Ndr_DataSize(p, Mod) ) if (Ndr_DataType(p, Mod) != NDR_MODULE) {} else

ITERATORS ///.

Definition at line 143 of file ndr.h.

#define Ndr_DesForEachMod( p, Mod )                                   \
    for ( Mod = 1; Mod < Ndr_DataEntry(p, 0); Mod += Ndr_DataSize(p, Mod) ) if (Ndr_DataType(p, Mod) != NDR_MODULE) {} else

Ndr_ModForEachNode

#define Ndr_ModForEachNode	(		p,
			Mod,
			Obj )

Value:

    Ndr_ModForEachObj( p, Mod, Obj ) if ( Ndr_ObjIsType(p, Obj, ABC_OPER_CI) || Ndr_ObjIsType(p, Obj, ABC_OPER_CO) ) {} else

Definition at line 163 of file ndr.h.

#define Ndr_ModForEachNode( p, Mod, Obj )                             \
    Ndr_ModForEachObj( p, Mod, Obj ) if ( Ndr_ObjIsType(p, Obj, ABC_OPER_CI) || Ndr_ObjIsType(p, Obj, ABC_OPER_CO) ) {} else

Ndr_ModForEachObj

#define Ndr_ModForEachObj	(		p,
			Mod,
			Obj )

Value:

    for ( Obj = Mod + 1; Obj < Ndr_DataEnd(p, Mod); Obj += Ndr_DataSize(p, Obj) ) if (Ndr_DataType(p, Obj) != NDR_OBJECT) {} else

Definition at line 147 of file ndr.h.

#define Ndr_ModForEachObj( p, Mod, Obj )                              \
    for ( Obj = Mod + 1; Obj < Ndr_DataEnd(p, Mod); Obj += Ndr_DataSize(p, Obj) ) if (Ndr_DataType(p, Obj) != NDR_OBJECT) {} else

Ndr_ModForEachPi

#define Ndr_ModForEachPi	(		p,
			Mod,
			Obj )

Value:

    Ndr_ModForEachObj( p, Mod, Obj ) if ( !Ndr_ObjIsType(p, Obj, ABC_OPER_CI) ) {} else

Definition at line 155 of file ndr.h.

#define Ndr_ModForEachPi( p, Mod, Obj )                               \
    Ndr_ModForEachObj( p, Mod, Obj ) if ( !Ndr_ObjIsType(p, Obj, ABC_OPER_CI) ) {} else

Ndr_ModForEachPo

#define Ndr_ModForEachPo	(		p,
			Mod,
			Obj )

Value:

    Ndr_ModForEachObj( p, Mod, Obj ) if ( !Ndr_ObjIsType(p, Obj, ABC_OPER_CO) ) {} else

Definition at line 159 of file ndr.h.

#define Ndr_ModForEachPo( p, Mod, Obj )                               \
    Ndr_ModForEachObj( p, Mod, Obj ) if ( !Ndr_ObjIsType(p, Obj, ABC_OPER_CO) ) {} else

Ndr_ModForEachTarget

#define Ndr_ModForEachTarget	(		p,
			Mod,
			Obj )

Value:

    for ( Obj = Mod + 1; Obj < Ndr_DataEnd(p, Mod); Obj += Ndr_DataSize(p, Obj) ) if (Ndr_DataType(p, Obj) != NDR_TARGET) {} else

Definition at line 167 of file ndr.h.

#define Ndr_ModForEachTarget( p, Mod, Obj )                           \
    for ( Obj = Mod + 1; Obj < Ndr_DataEnd(p, Mod); Obj += Ndr_DataSize(p, Obj) ) if (Ndr_DataType(p, Obj) != NDR_TARGET) {} else

Ndr_ObjForEachEntry

#define Ndr_ObjForEachEntry	(		p,
			Obj,
			Ent )

Value:

    for ( Ent = Obj + 1; Ent < Ndr_DataEnd(p, Obj); Ent += Ndr_DataSize(p, Ent) )

Definition at line 151 of file ndr.h.

#define Ndr_ObjForEachEntry( p, Obj, Ent )                            \
    for ( Ent = Obj + 1; Ent < Ndr_DataEnd(p, Obj); Ent += Ndr_DataSize(p, Ent) )

Typedef Documentation

Ndr_Data_t

typedef struct Ndr_Data_t_ Ndr_Data_t

BASIC TYPES ///.

Definition at line 119 of file ndr.h.

Enumeration Type Documentation

Ndr_RecordType_t

enum Ndr_RecordType_t

INCLUDES ///.

CFile****************************************************************

FileName [ndr.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Format for word-level design representation.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - August 22, 2014.]

Revision [

Id

ndr.h,v 1.00 2014/09/12 00:00:00 alanmi Exp

] PARAMETERS ///

Enumerator
NDR_NONE
NDR_DESIGN
NDR_MODULE
NDR_OBJECT
NDR_INPUT
NDR_OUTPUT
NDR_OPERTYPE
NDR_NAME
NDR_RANGE
NDR_FUNCTION
NDR_TARGET
NDR_UNKNOWN

Definition at line 98 of file ndr.h.

             {
    NDR_NONE = 0,          // 0:  unused
    NDR_DESIGN,            // 1:  design (or library of modules)
    NDR_MODULE,            // 2:  one module
    NDR_OBJECT,            // 3:  object
    NDR_INPUT,             // 4:  input
    NDR_OUTPUT,            // 5:  output
    NDR_OPERTYPE,          // 6:  operator type (buffer, shifter, adder, etc)
    NDR_NAME,              // 7:  name
    NDR_RANGE,             // 8:  bit range
    NDR_FUNCTION,          // 9:  specified for some operators (PLAs, etc)
    NDR_TARGET,            // 10: target
    NDR_UNKNOWN            // 11: unknown
} Ndr_RecordType_t;
